1x3x3 Floppy Rubik Cube Style Puzzle

1x3x3 Floppy Cube

The 1x3x3 Floppy Cube is a compact and portable Rubik like puzzle, perfect for beginners and collectors alike. Its simple yet intriguing design makes it an excellent entry-level puzzle and a fun, interactive decoration. Fully 3D-printed with no screws or springs required, this cube is easy to print, assemble, and enjoy!

About V1.3

This model is first released as V1.3.

V1.3 marks a milestone for Rubik-like cube puzzle models made by CZJ Studio, the designer. For models of V1.3, the models will share as many common parts as possible. For instance, all square (14.6mm) tiles will be compatible  between V1.3 models. So you may print tens of tiles and use them later, avoiding printing tiles for each model.

This 1x3x3 Floppy Cube is a special model, as it only shares tiles with other models. Stay seated, there will be tens of more models coming soon.

Check out more Rubik Cube Style Puzzle designs:

Classic 3x3x3 (So-called Rubik's Cube)

• Style Plain
• Style Tile
• Style Colorblock

Series 3x3x3 Variations:

• Axis Cube
  • Style Plain
  • Style Tile
• Mirror Cube (Style Plain and Colorblock)
• Diamond and Hexagonal Bipyramid Cube

Series 3x3xN:

• 1x3x3 (Style Plain and Tile)
• 2x3x3 (Style Plain and Tile)

Series NxNxN:

• 2x3x3 (Style Plain, Tile, Colorblock)

Others:

• 1x2x3, classic and mirror style
• Cube Stand

Part List

• 1 Axis Cross
• 2 Center Caps
• 4 Edges
• 4 Corners
• Tile Style only: 28 Tiles

Print Instruction:

Plain Style:

• Print all parts on Plate 1.

Tile Style:

Note: Please remove tiles from PEI plate after cooling down. Otherwise the tiles may be damaged.

• Print Plate 1 once

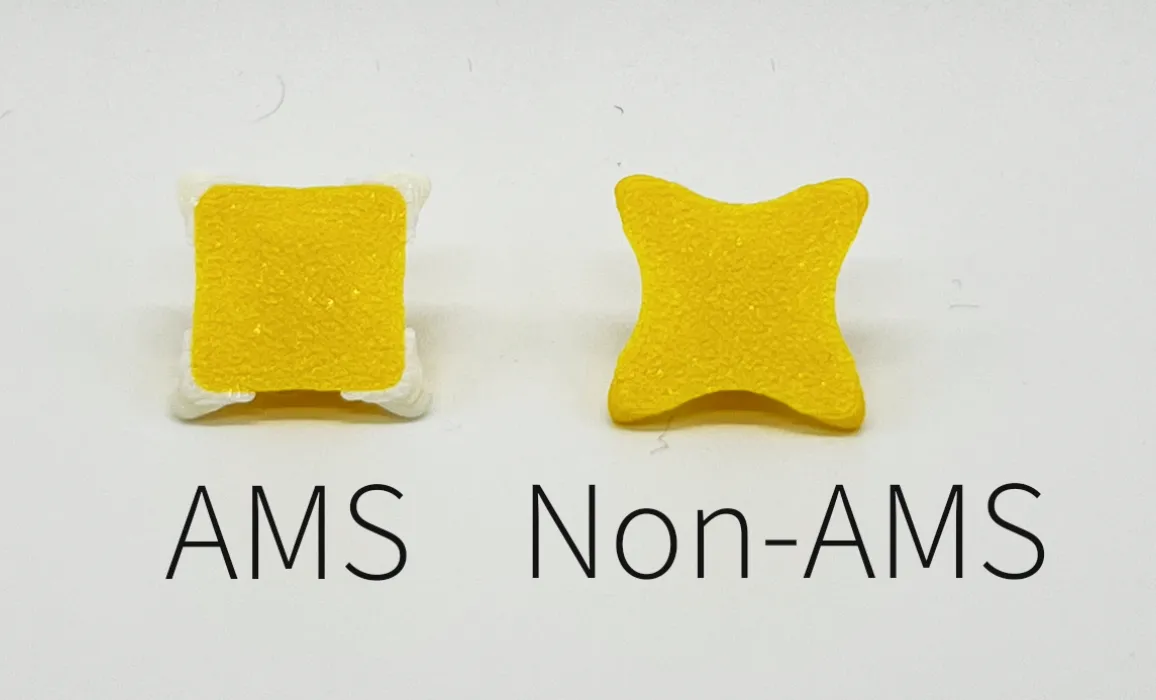

• Print Plate 2 (Non-AMS) or Plate 3 (AMS) for top and bottom Tiles.

• Print Plate 4, with 4 different colors for side Tiles.



Assembly Instruction:

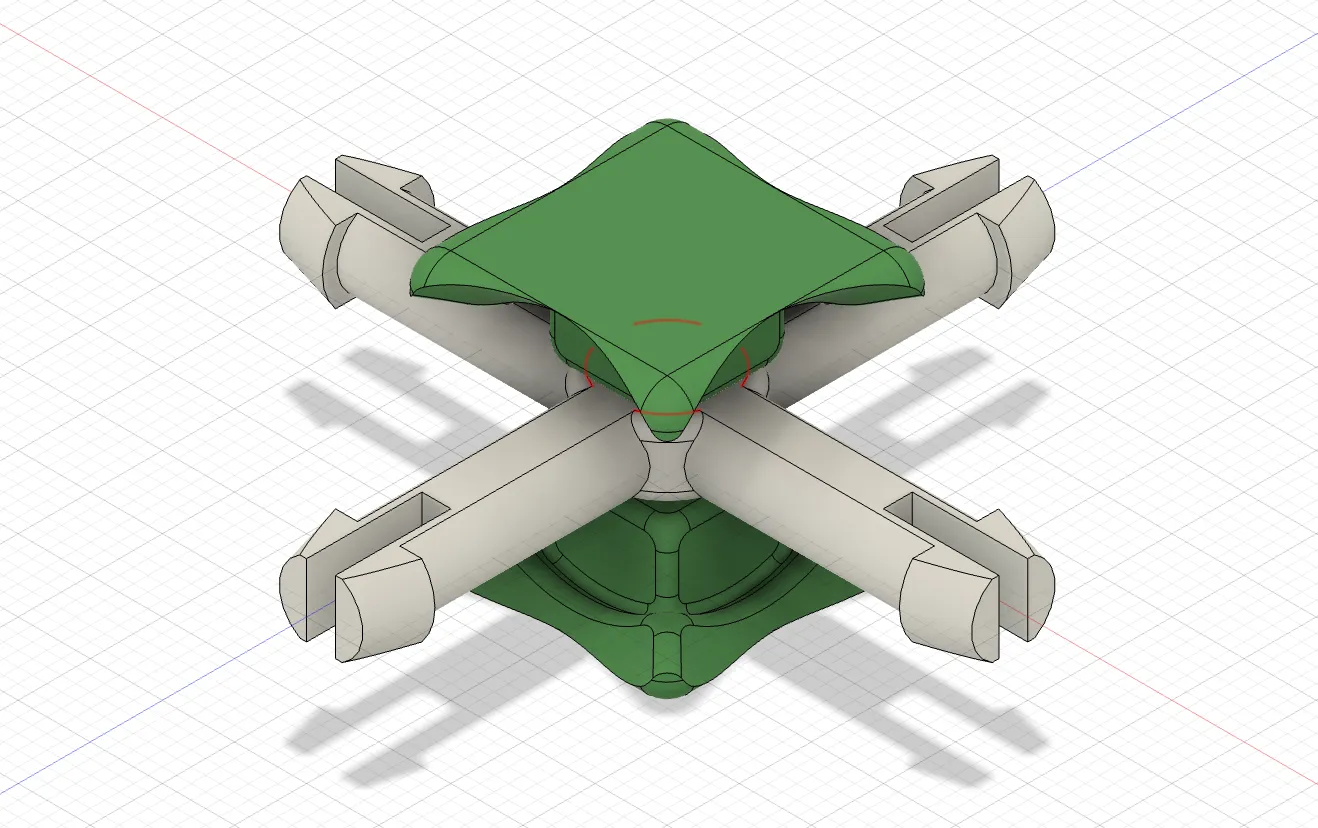

1. Clip 2 Center Caps to the Axis Cross.

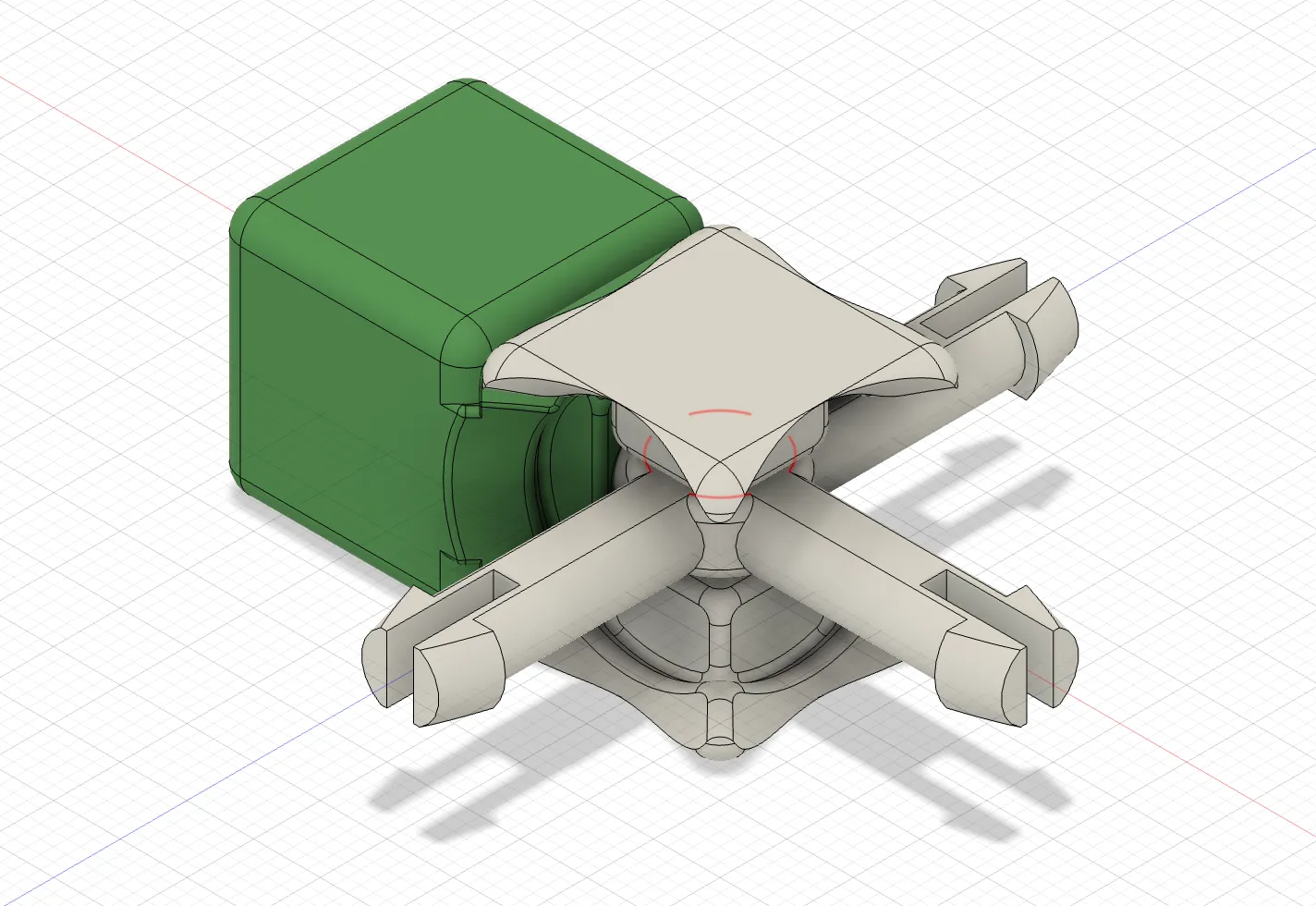

2. Attach a Edge Piece.

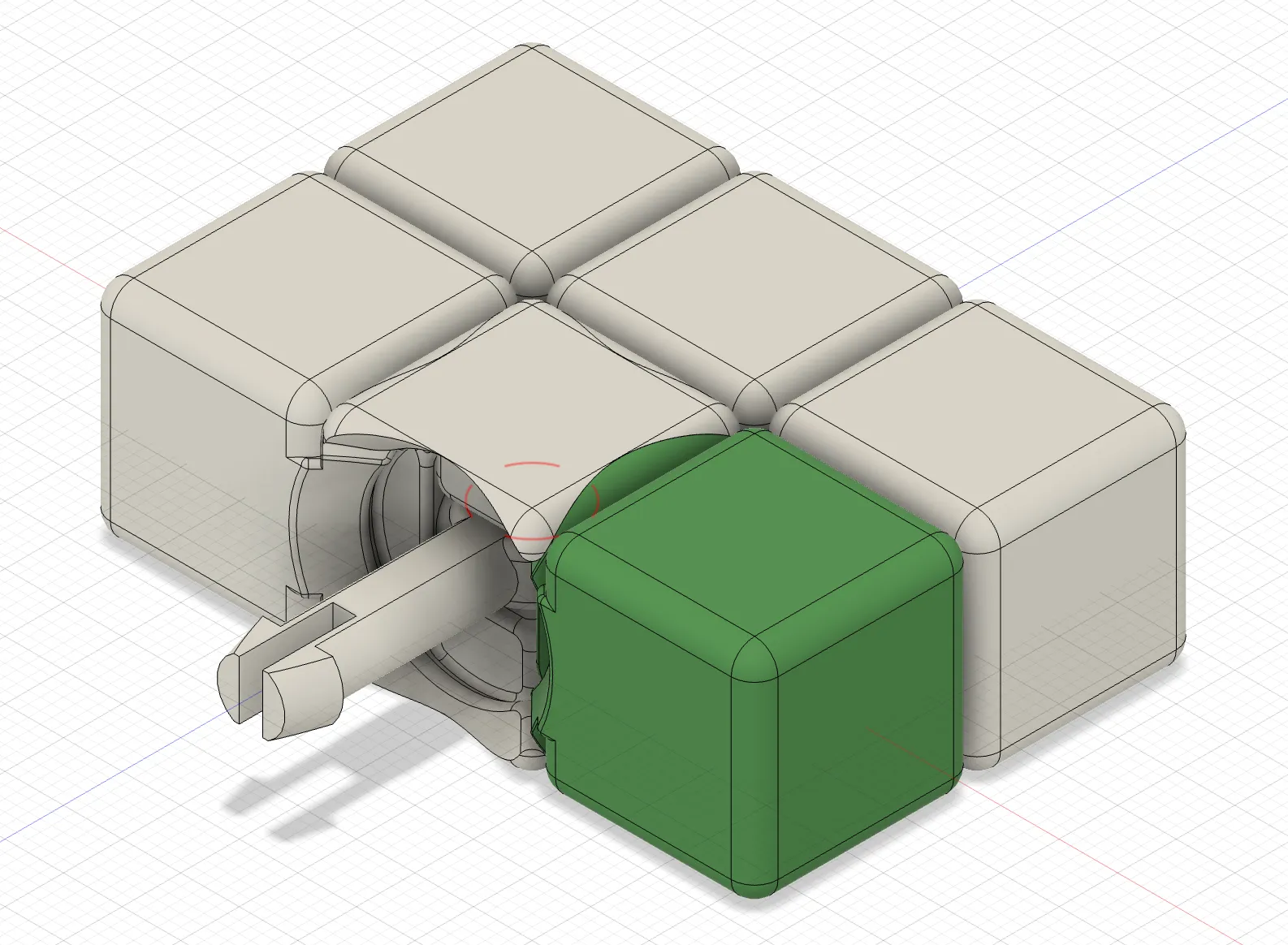

3. Place a Corner Piece next to the previous Edge Piece, and attach another Edge Piece.

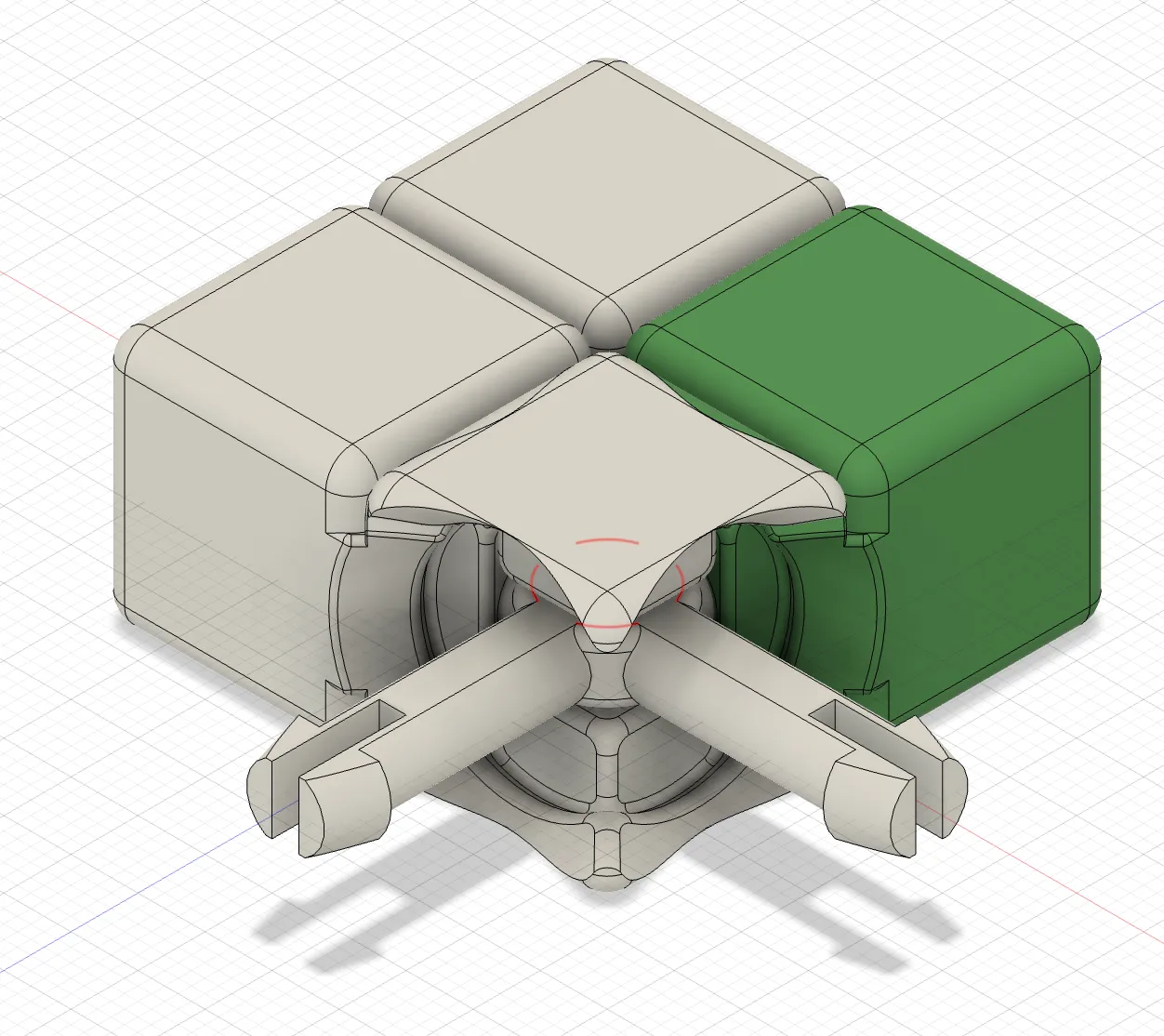

4. Similarly, Place a Corner Piece next to the previous Edge Piece, and attach another Edge Piece.

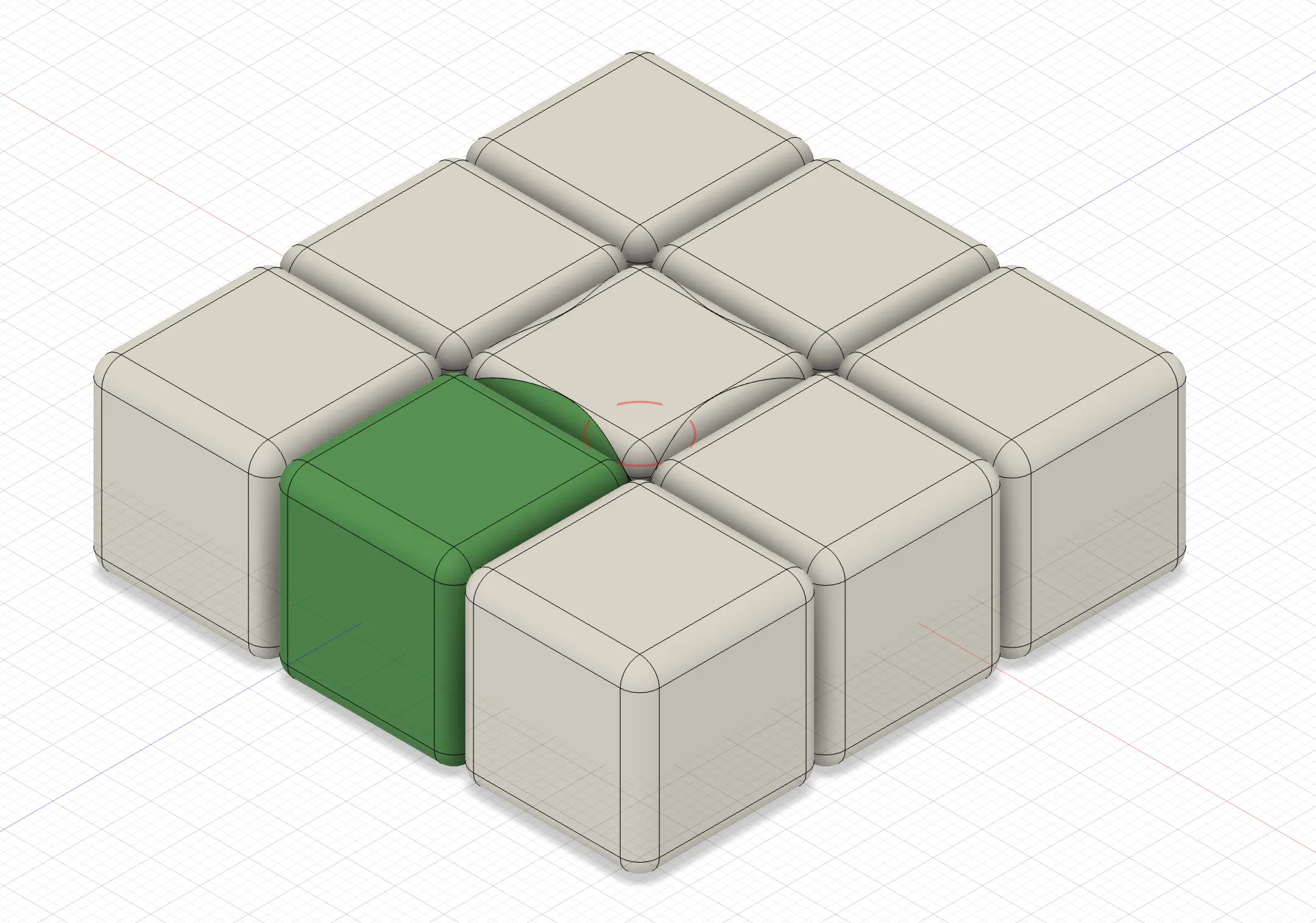

5. Lastly, place 2 Corner Pieces, and attach the last Edge Piece.


   .

6. For Tile Style, attach Tile Pieces to the slots.
7. Optional but recommend: Apply silicone-based lubricants to the cube.

Disclaimer: This model contains small pieces. Please take care handling them to avoid eaten by children or pets.
