Diamond and Hexagonal Bipyramid Cube Puzzle

Elevate your 3D-printed puzzle collection with this dual-design set featuring the Diamond Cube and the Hexagonal Bipyramid Cube. Built upon the well-designed, fully 3D-printed Rubik's Cube structure, these variations are crafted to be both functional puzzles and elegant decorative pieces. With an inter-convertible kit, you can switch between the two shapes effortlessly by printing and using the included conversion kit.

Check out more Rubik's Cube designs:

• Single color 3x3x3 Rubik's Cube
• Full color 3x3x3 Rubik's Cube
• Mirror Cube 3x3x3
• 1x2x3 Rubik's Cube, normal and mirror style
• Axis Cube 3x3x3

Features

• Two Stunning Shapes :
  • Diamond-Shaped Cube: A sharp, and eye-catching design.
  • Hexagonal Bypyramid Cube: A sleek and angular variation for a modern, geometric aesthetic.
• Inter-Convertible Design: Switch between the two shapes easily by using the conversion kit.
• Pure Color Elegance: Looks great in any solid color print.
• Premium Material Options: Achieve stunning results with:
  • PLA Silk for a glossy, reflective finish.
  • PLA Metal for a metallic, sophisticated look.
  • PET Translucent for a glowing, ethereal effect.
• Fully Functional & Decorative: Play with it as a puzzle or display it as a beautiful piece of art in your home or office.

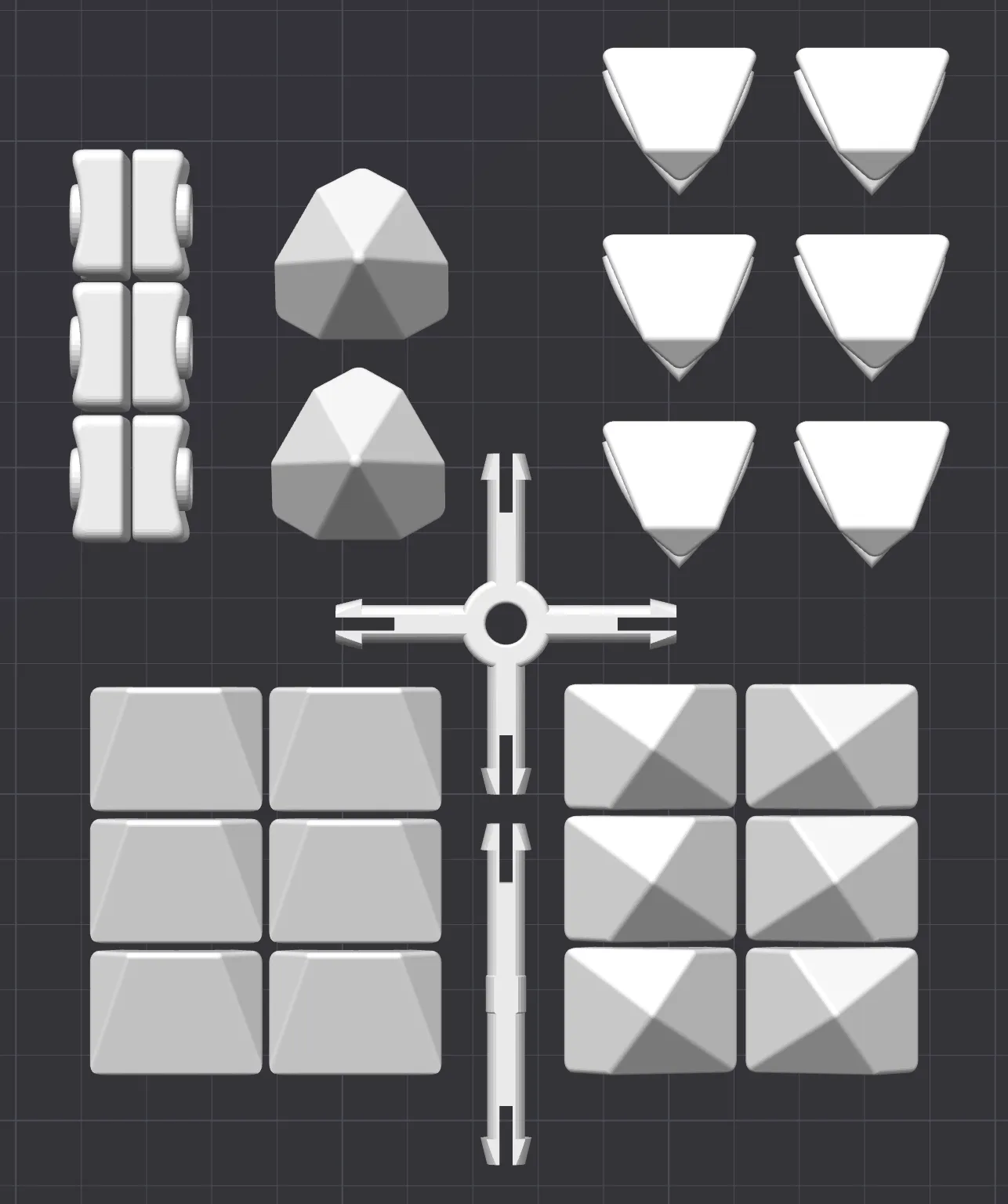

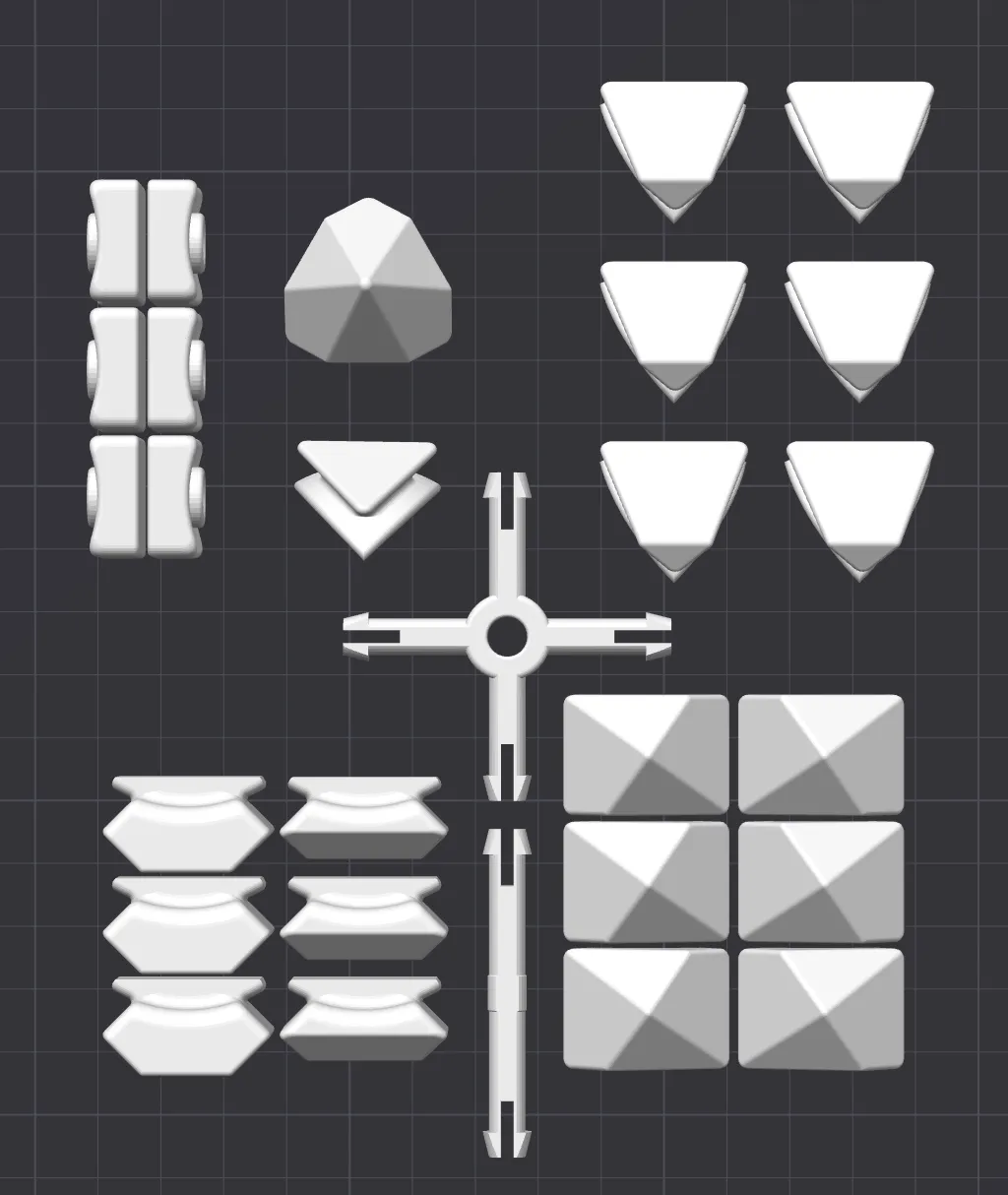

Parts View

• Hexagonal Bipyramid



• Diamond



Assembling Instructions

Step 1~4 are common to both cubes. Step 5~7 are different for two cubes.

1. Insert the axis stick into the center ring of axis cross. Try to place the ring at center of the stick.




2. Clip 5 center pieces onto the ends of the axis.



3. Slide 4 Edge pieces between the Center pieces, as shown in the figure. Please be sure to make choose the correct pieces to make the pattern shown in figures.



4. Insert 4 Corner pieces.

   _

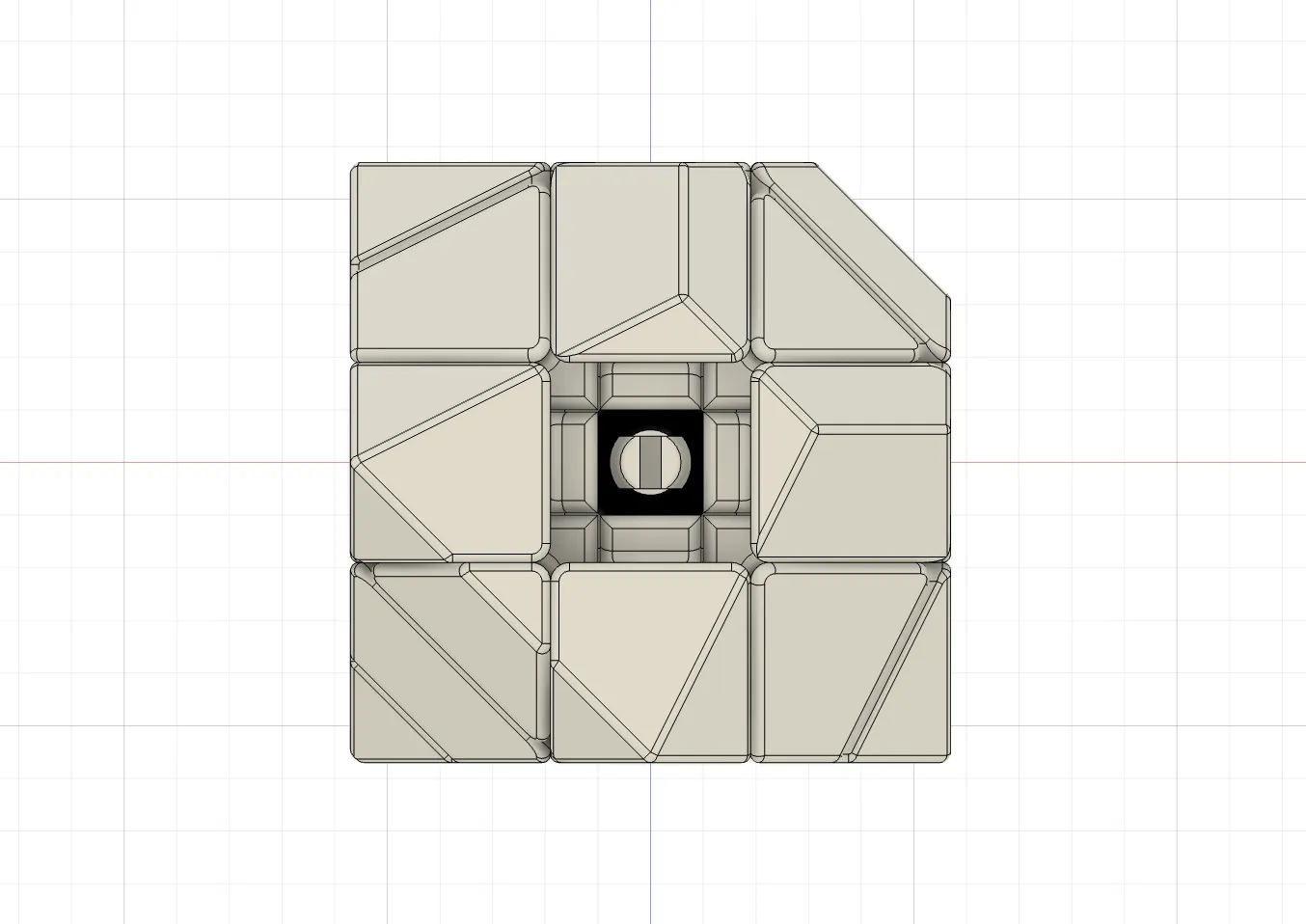

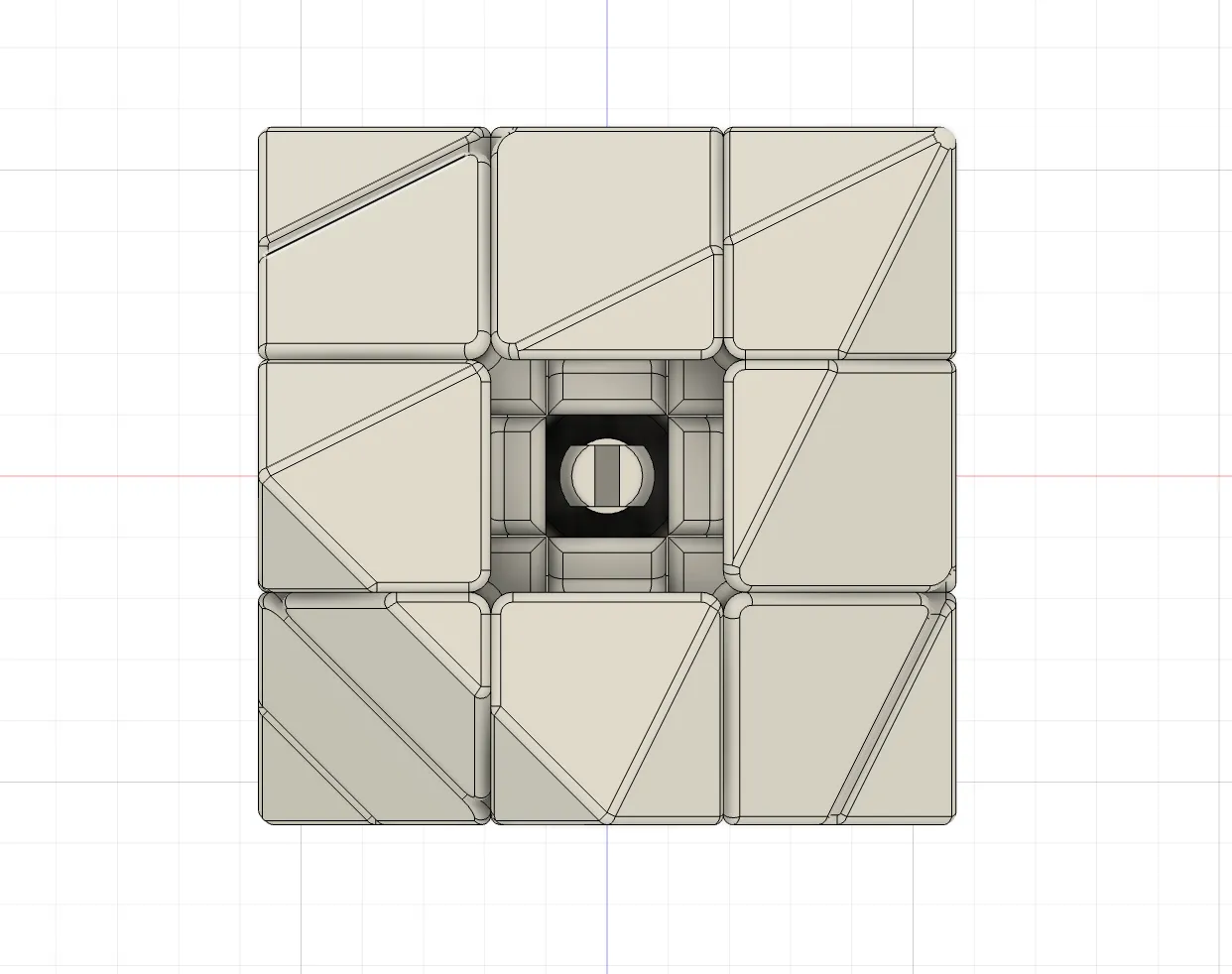

5. Insert 4 Edge pieces. Diamond and Hexagonal Bipyramid uses different pieces! Red rectangles indicate the different piece.

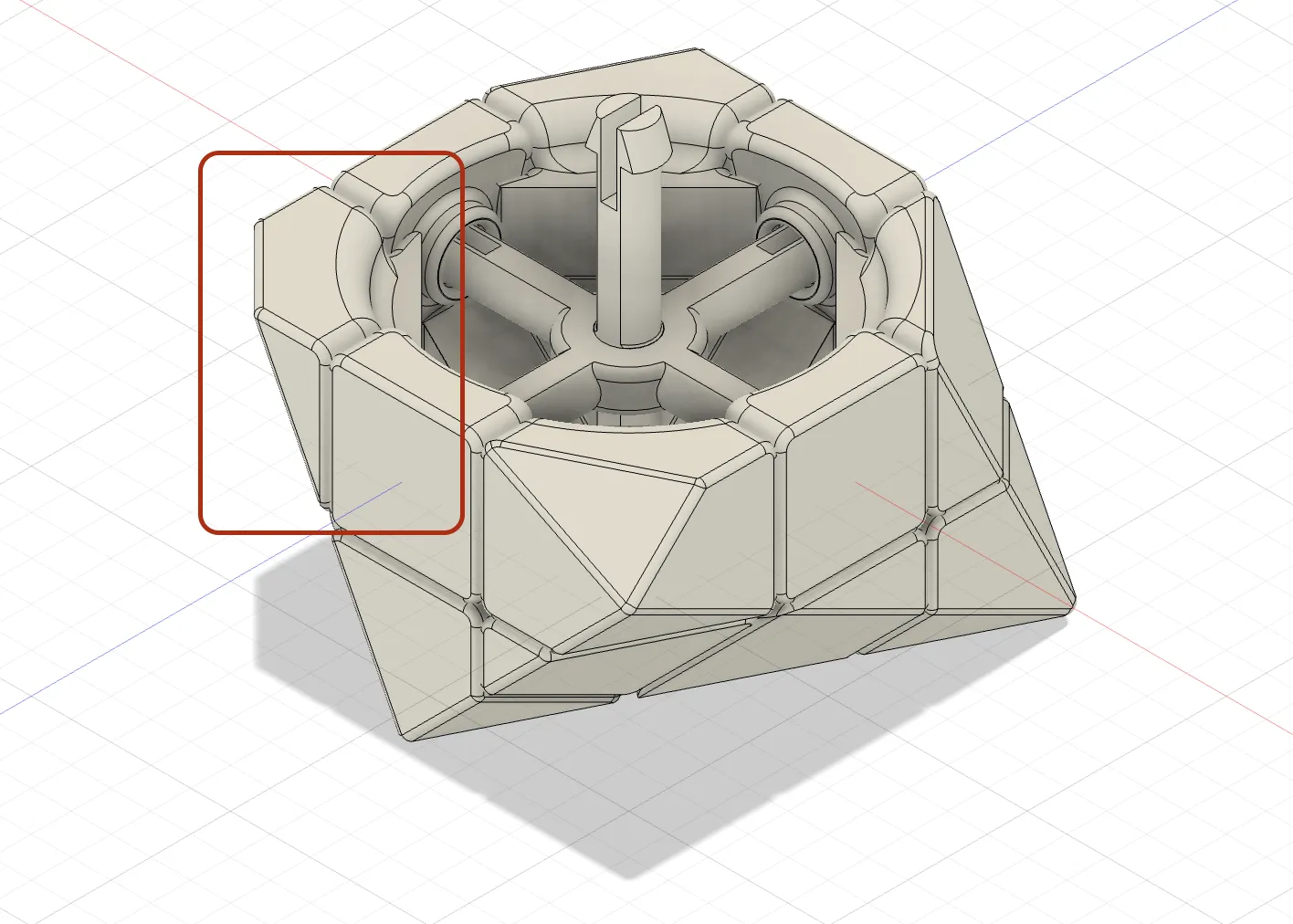

   Diamond Version:

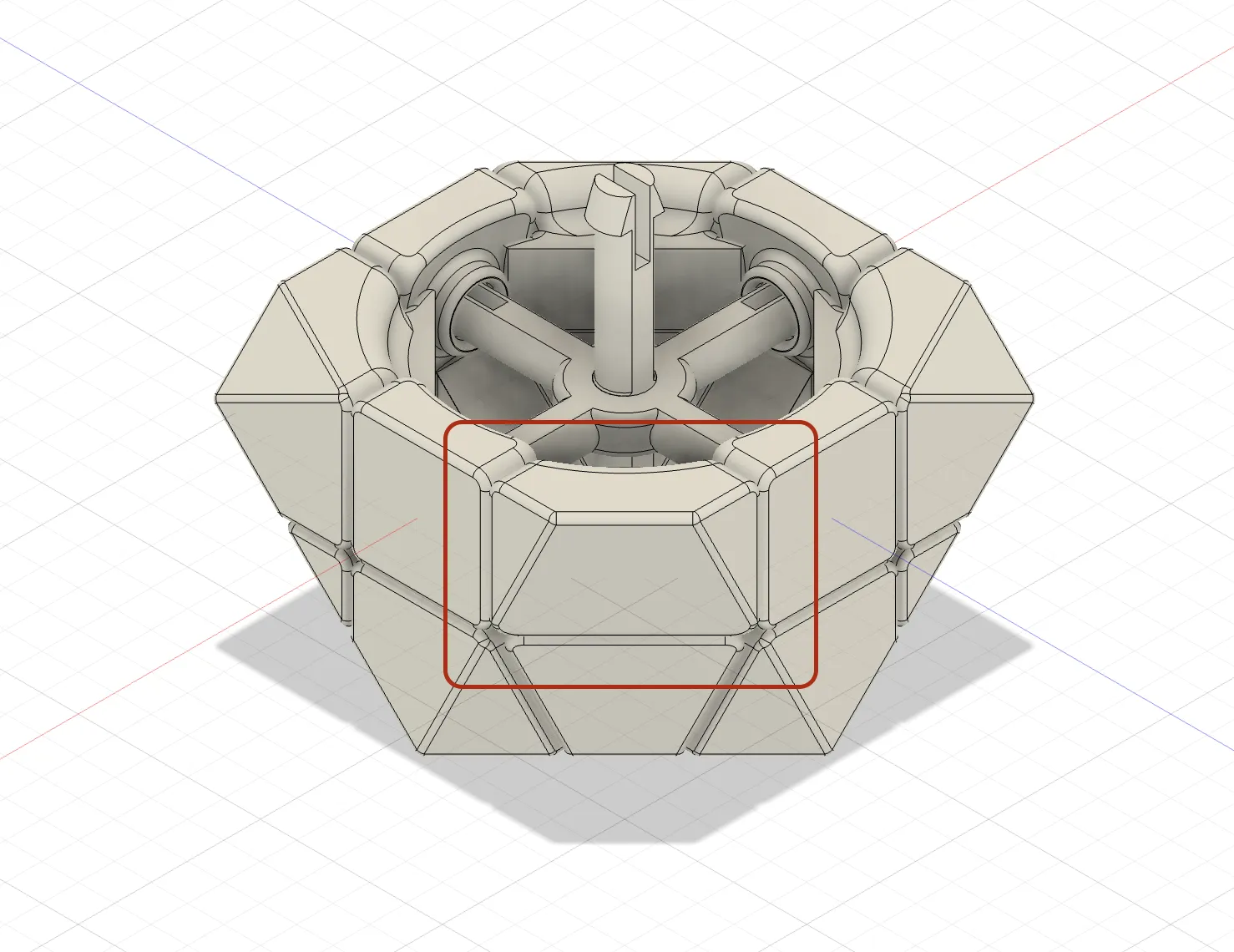

   Hexagonal Bipyramid Version:

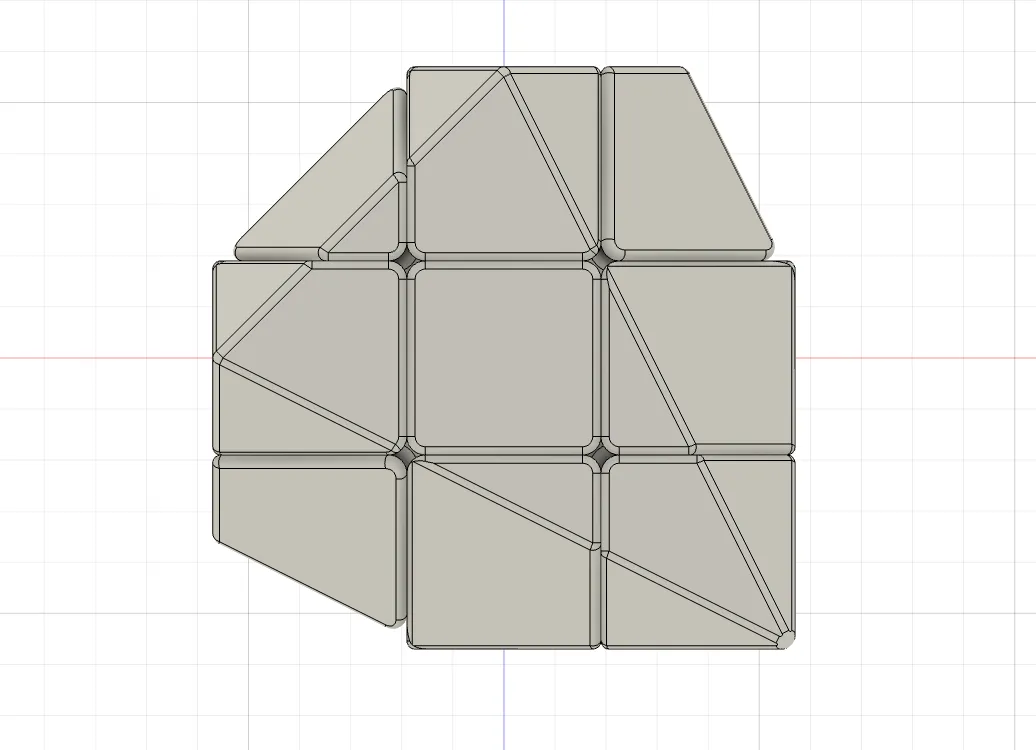

6. Add 4 Edge pieces and 4 Corner pieces to the top layer. Diamond and Hexagonal Bipyramid uses different pieces! Red rectangles indicate the different piece.

   Diamond Version:



   Hexagonal Bipyramid Version:

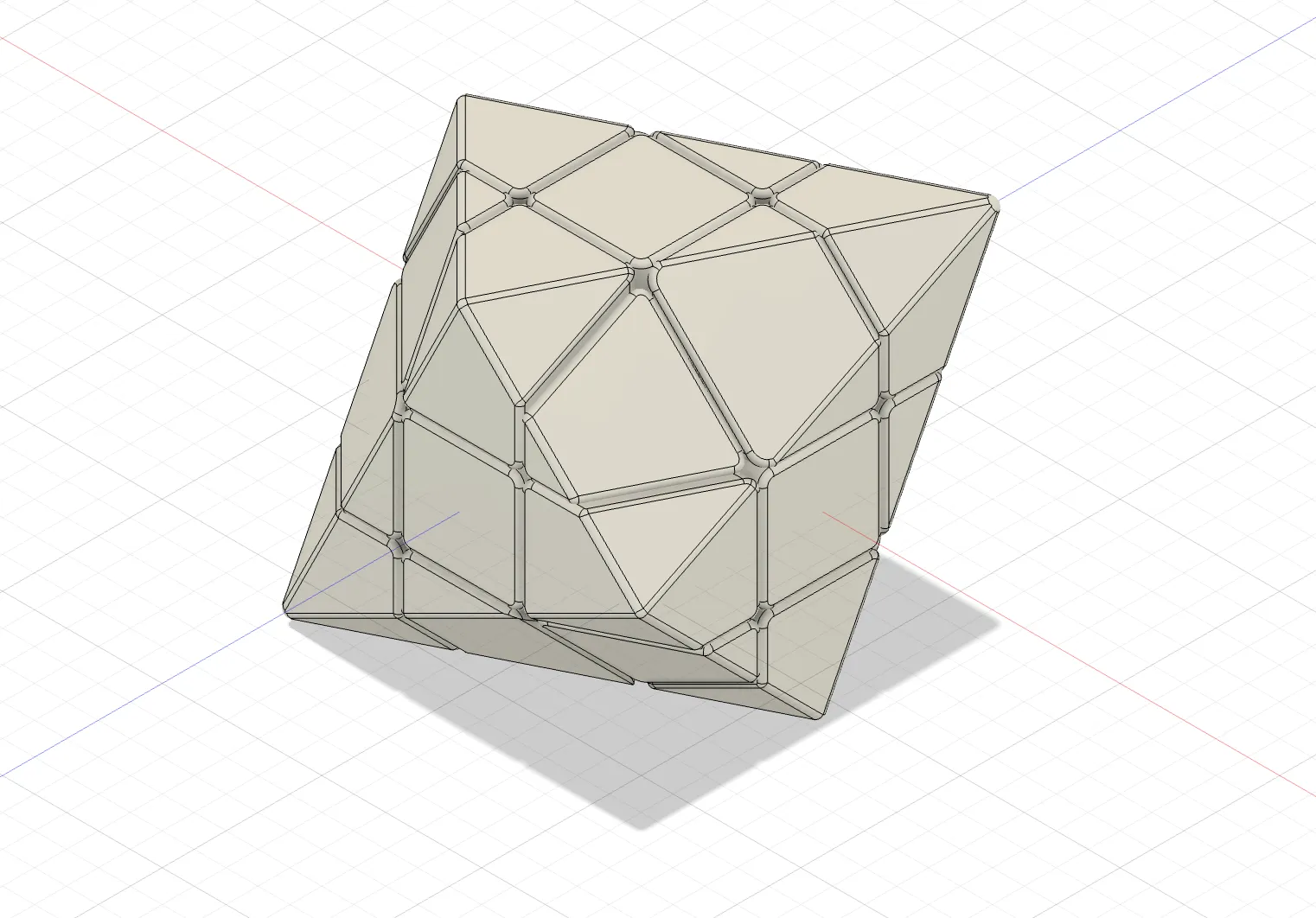

7. Clip the last Center Piece. Done!

   Diamond Version:



   Hexagonal Bipyramid Version:



8. Optional but recommended: Apply lubricant to the cube. Silicone based lubricants are recommended.

Conversion Instruction

• To convert one version to the other, print the corresponding conversion profile.

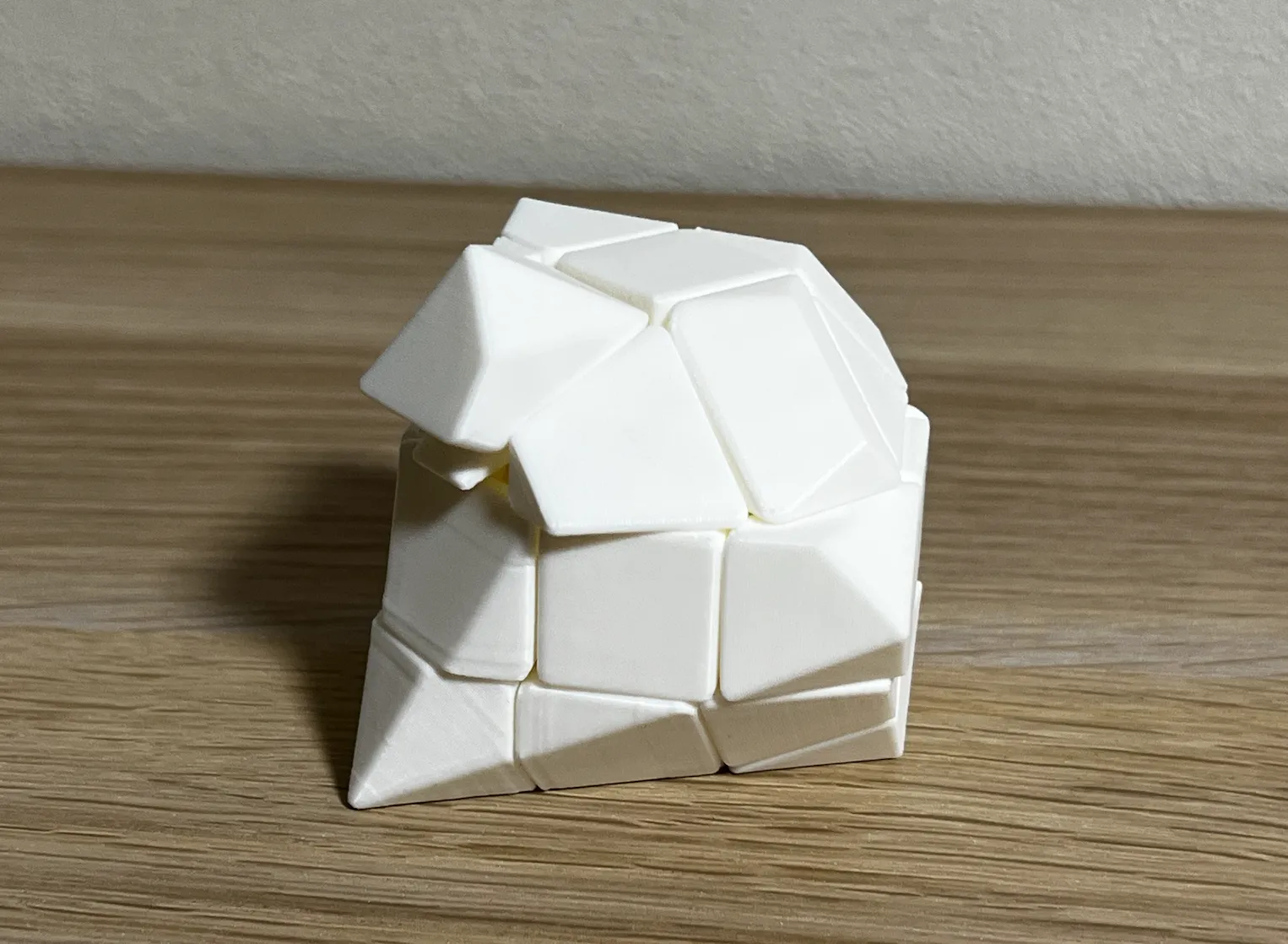

• To dissemble, rotate one layer of the cube 45 degrees, and take out one Edge piece, and the rest pieces.
• To re-assemble, insert all pieces but leave the one last Edge piece, rotate the last layer of the cube 45 degrees, and insert the last Edge piece.
• Example below:

Double the style, double the fun—bring these two stunning Rubik's Cube variations to life! Download now and start printing!
