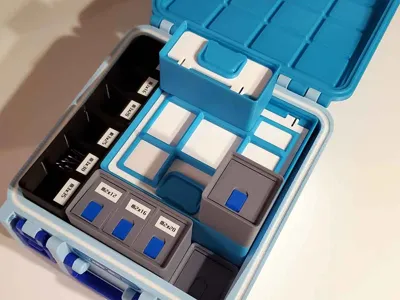

Gridfinity 3x (6U,9U &12U) Lidded Bins version 2.2

These are the latest version (v 2.2) of my lidded Gridfiniy bins, with several improvements over the 1st version. These include the following improvements and new elements:

• Fully redesigned bins with a more efficient use of material
• Slightly larger opening for the doors
• New tab option for the sliding latches
• New grid option to allow stacking 1x1 bins on the larger 2x and 3x bin models.
• No supports needed (same as the v1.0 models)
• Additional bin sizes added
• Label “chips” which can be used with the grid option (new with v2.2)

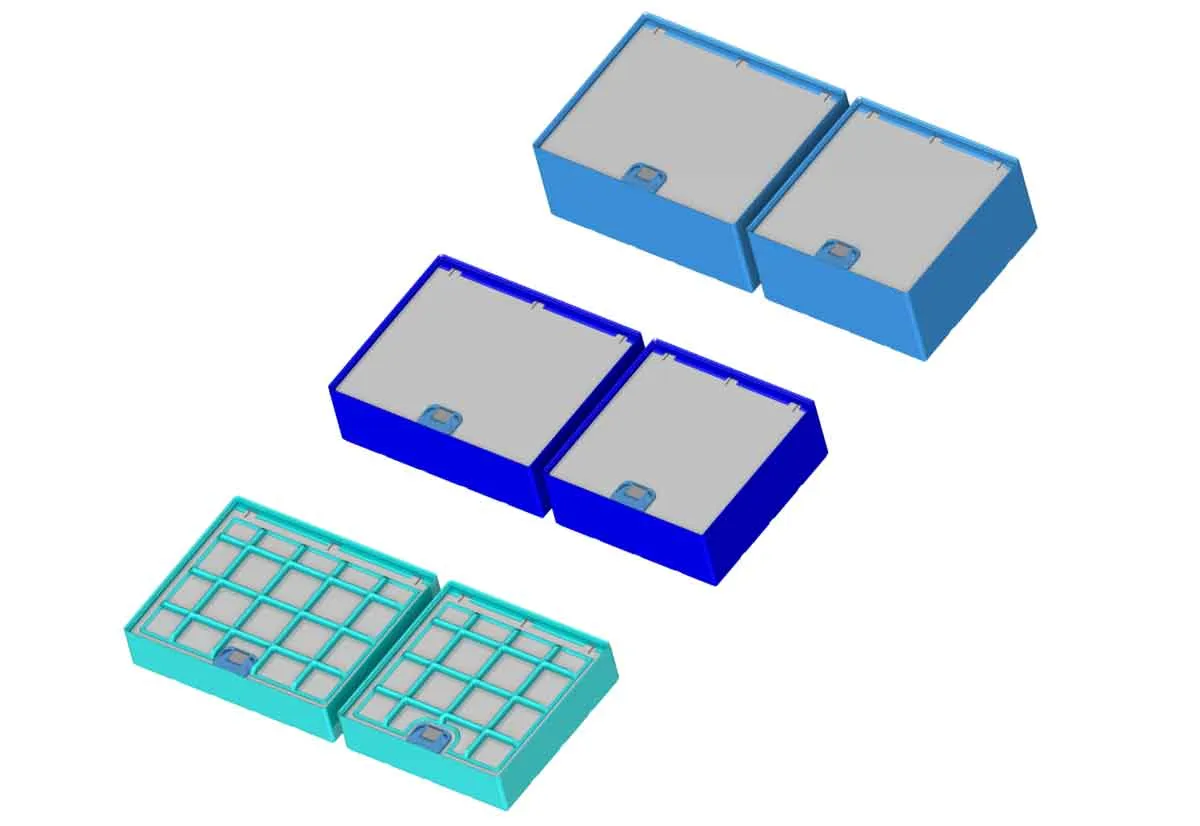

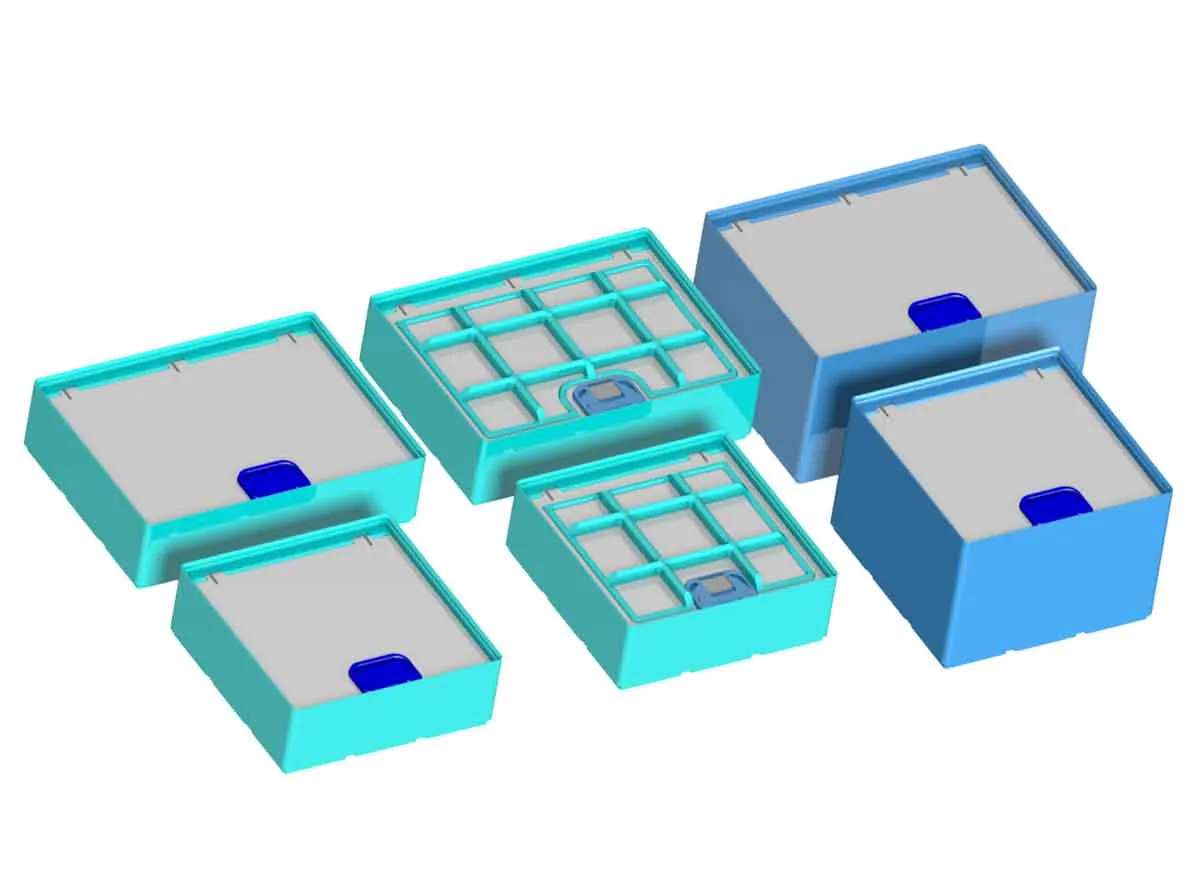

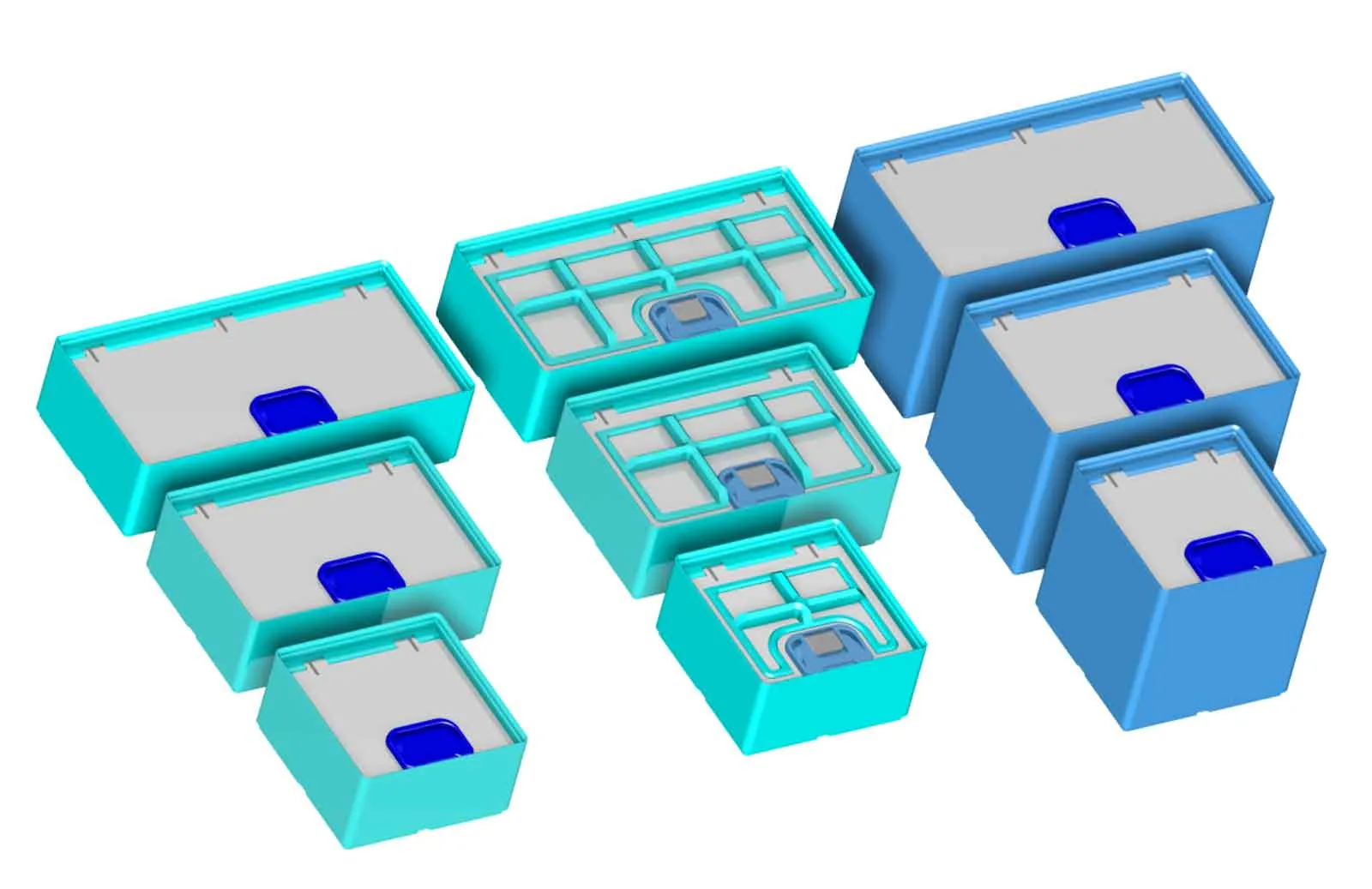

Included here are 9 types of Gridfinity bins with latching lids:

6U Bins:

• 3x3 6U
• 3x4 6U
• 3x5 6U

9U Bins:

• 3x3 9U
• 3x4 9U
• 3x5 9U

12U Bins:

• 3x3 12U
• 3x4 12U
• 3x5 12U

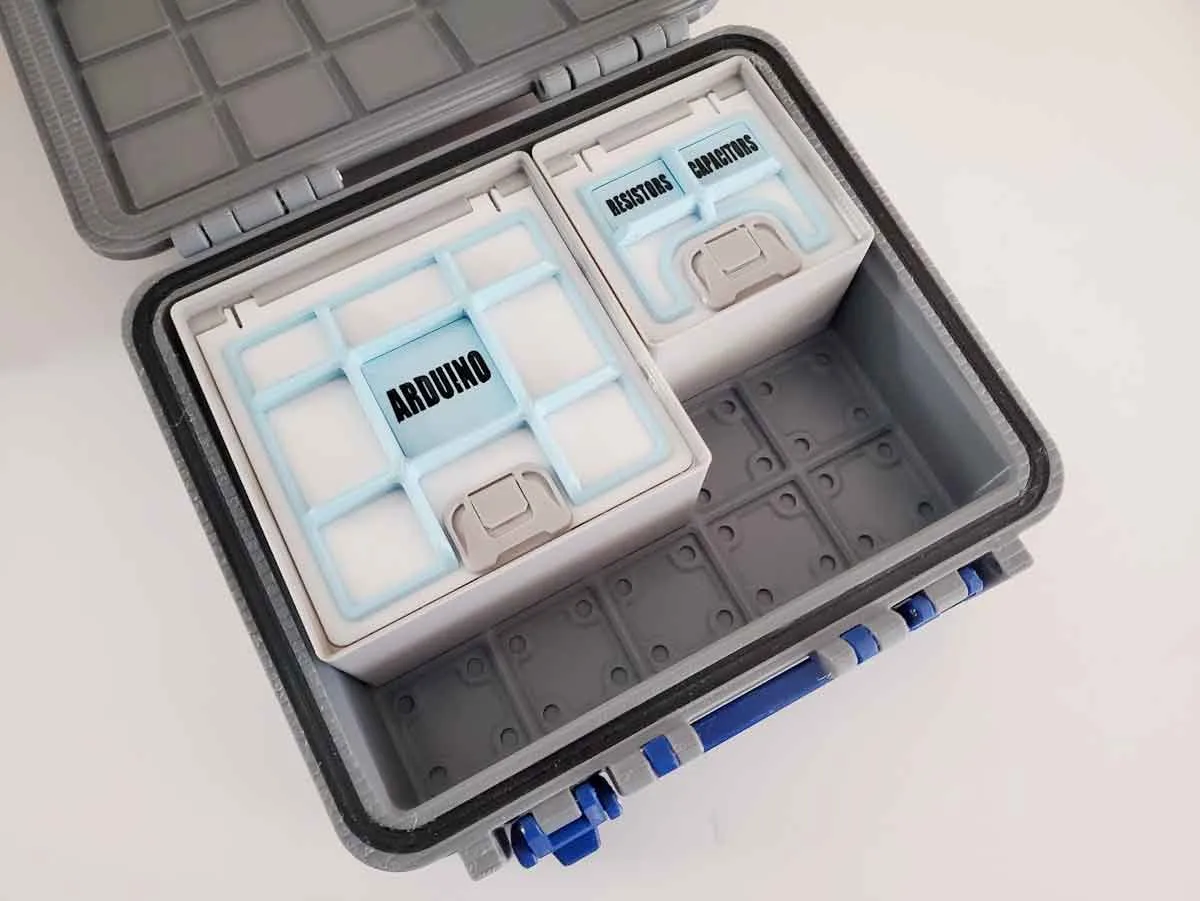

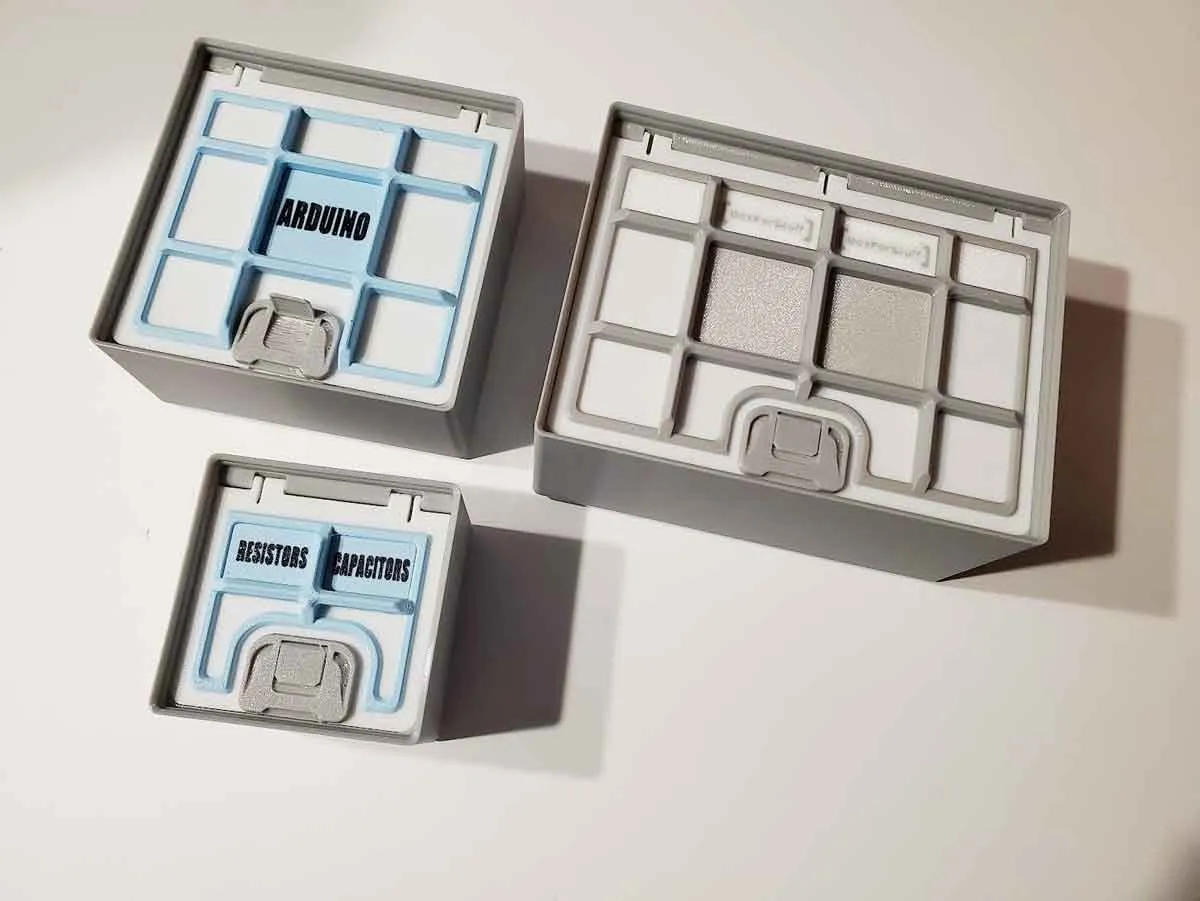

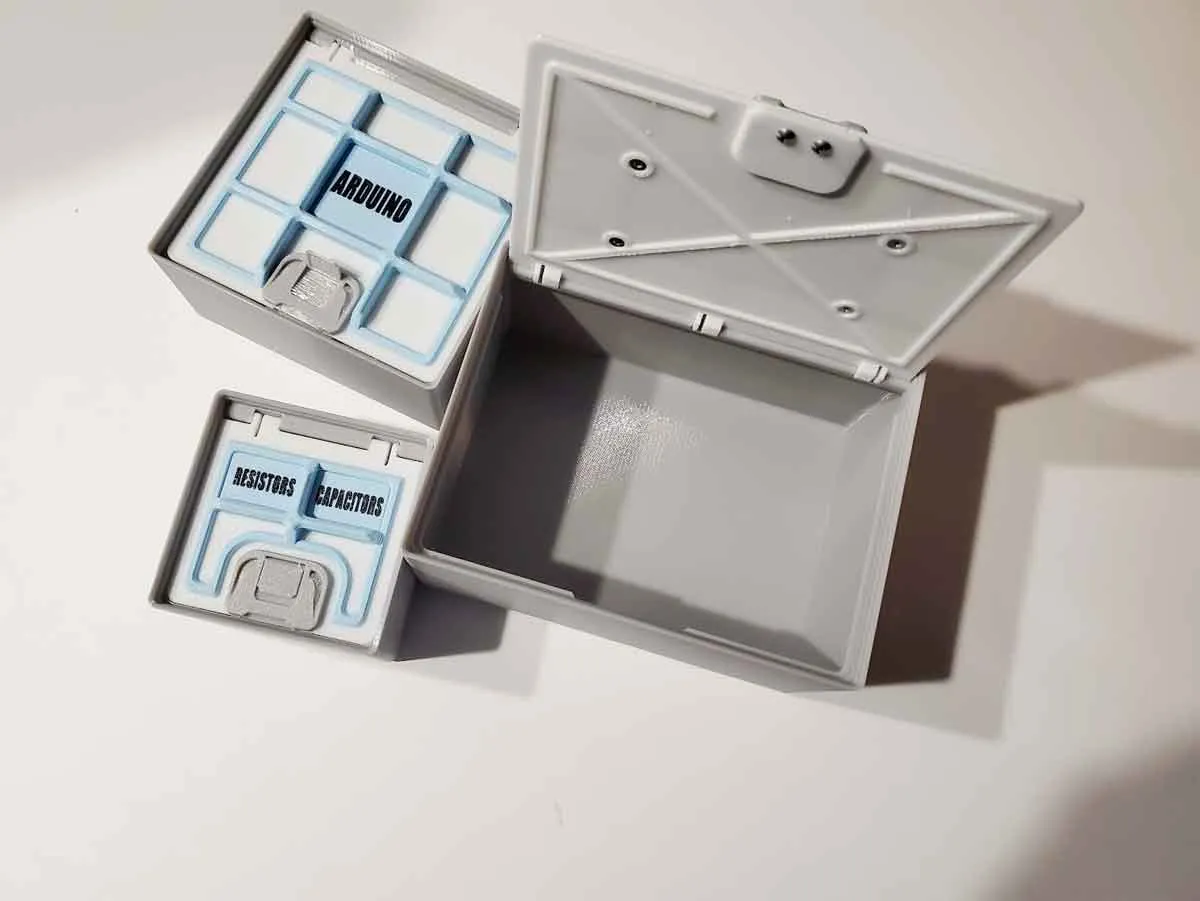

There are 2 options for the lids, one is a plain lid, and the other has a grid, which allows proper stacking for 1x1 bins on top of these bins.  With the newest v2.2 version, the grids now support optional label “chips”, which install between the grids and the lids.  The grids can be used without the label chips if they are not required.

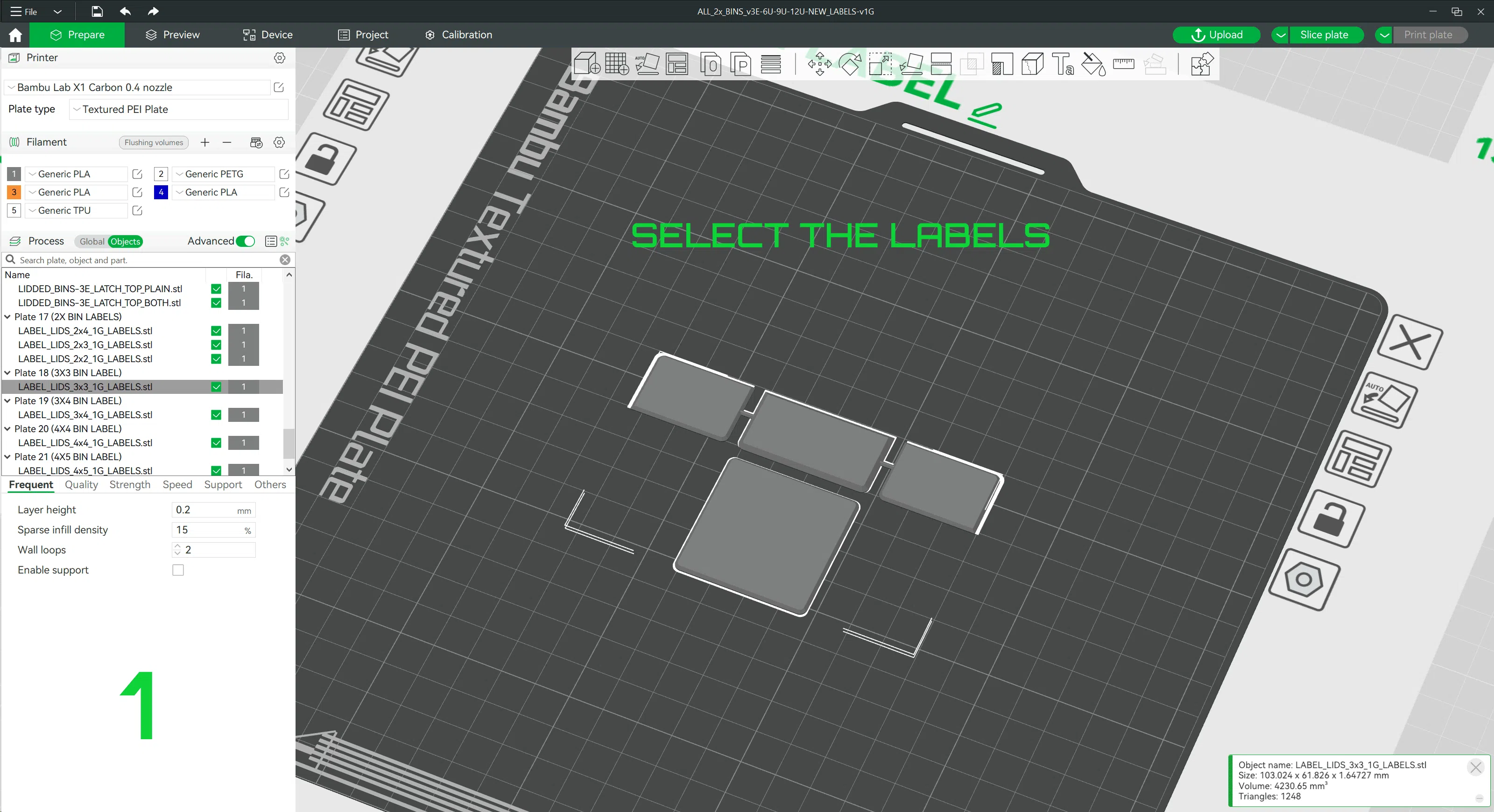

Text can be added to the grid label “chips” using the text as a modifier in the slicer using BambuStudio.  The animation below shows the steps to add text to the “chips” (give it time, each step pauses for 10 sec so the text can be read).  The steps in the animation are numbered as well (in the bottom left corner).  There are additional images showing the steps to add text modifiers to create custom labels on my blog here.

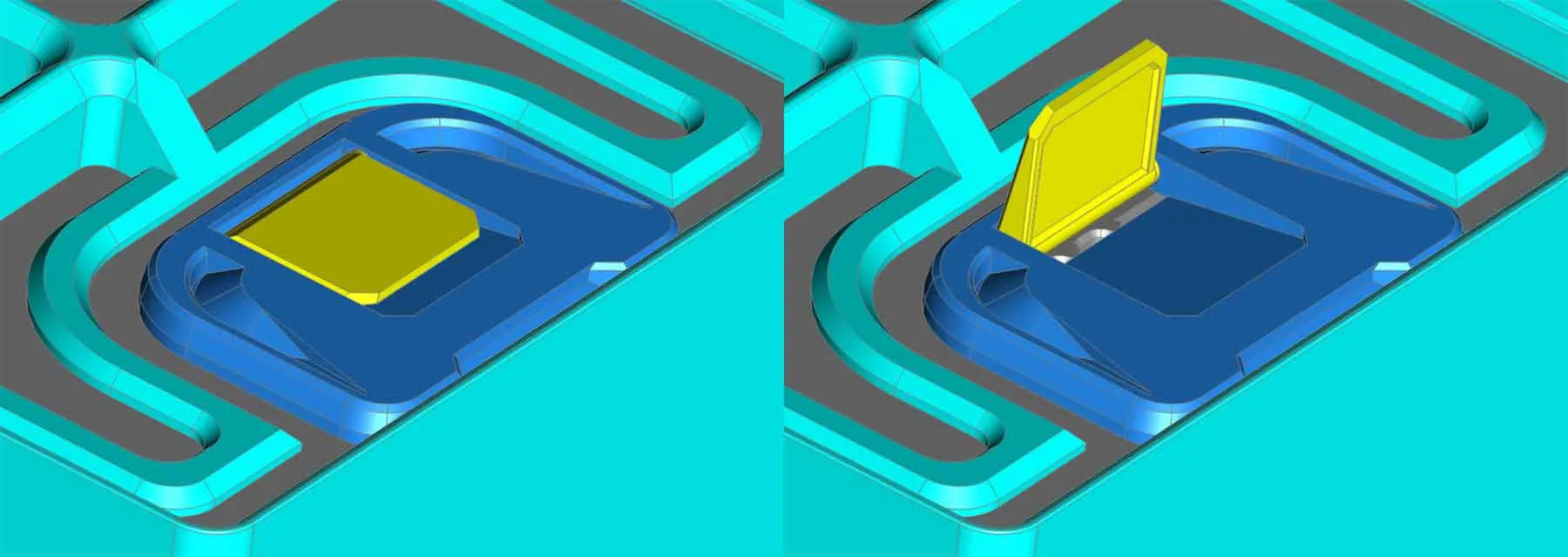

Additionally, there are two latch designs included. One is a plain latch top, and the other has a flip up tab, which can help with opening the bins (see pics).

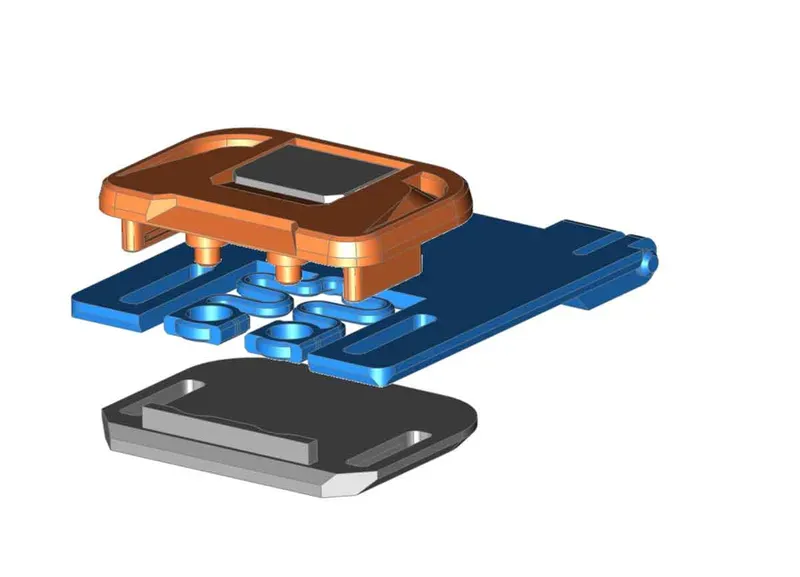

Update - There is a new alternative latch which requires no hardware (it snaps together).

If you want to try them out, just use the 2nd profile which is named “Updated Snap together slide latches”:
SNAP_TOGETHER_SLIDE_LATCHES_V7D.3mf

This design requires the following hardware:

(2) M3x6mm Button Head Cap Screws (BHCS) - or any M3x6 button head screws.  (now optional - see update above regarding snap together latch slides)

If using the lids with the Grid pattern, the following additional hardware is needed:

(2-3) M3x6 Flat Head Screws - M3x6 Button Head Cap Screws will also work.

Printing tips:

You can use the included 3MF which has all the models set up on 13 plates, including one multi-color option for the tabbed latches.

If you don't use the 3MF and manually set the files up in your chosen slicer, then I suggest using the following settings:

• Arachne wall generator
• 15% gyroid infill.
• PLA or PETG for the bases and PETG for the LID, since it has an integrated spring.
• I used a textured PEI plate, but if you plan to use P-Touch labels, a smooth plate may work better.

If you print the lids with the grids (to allow stacking 1x1 bins), use the models which have holes in them and “LID_GRID” in the names.  For example, these are the models needed for the 3x3 bins:

LIDDED_BINS-3E_3X3_LID_GRID_A.STL

The lids with the grid patterns require the additional M3x6 flat head screws.  A couple drops of superglue is also a good idea to bond the grids to the lids.

If you print the tabbed latch tops, you can use the following files:

Single Color:

LIDDED_BINS-3E_LATCH_TOP_BOTH.STL

Multicolor (load both files together in the slicer to maintain their relationship and answer “yes” to load them as a single object):

LIDDED_BINS-3E_LATCH_TOP_A.STL

LIDDED_BINS-3E_LATCH_TOP_B.STL

Assembly:

Assembly tips can be found in “Step 6” at the link below:

https://www.mystoopidstuff.com/bambu-spares-box-build-guide.html

The doors and hinges are designed so they will be easier to install if the hinges are pushed into place with the door almost closed.

If you find these models useful, please post a like or a comment with some pics of your prints.

Other stuff:

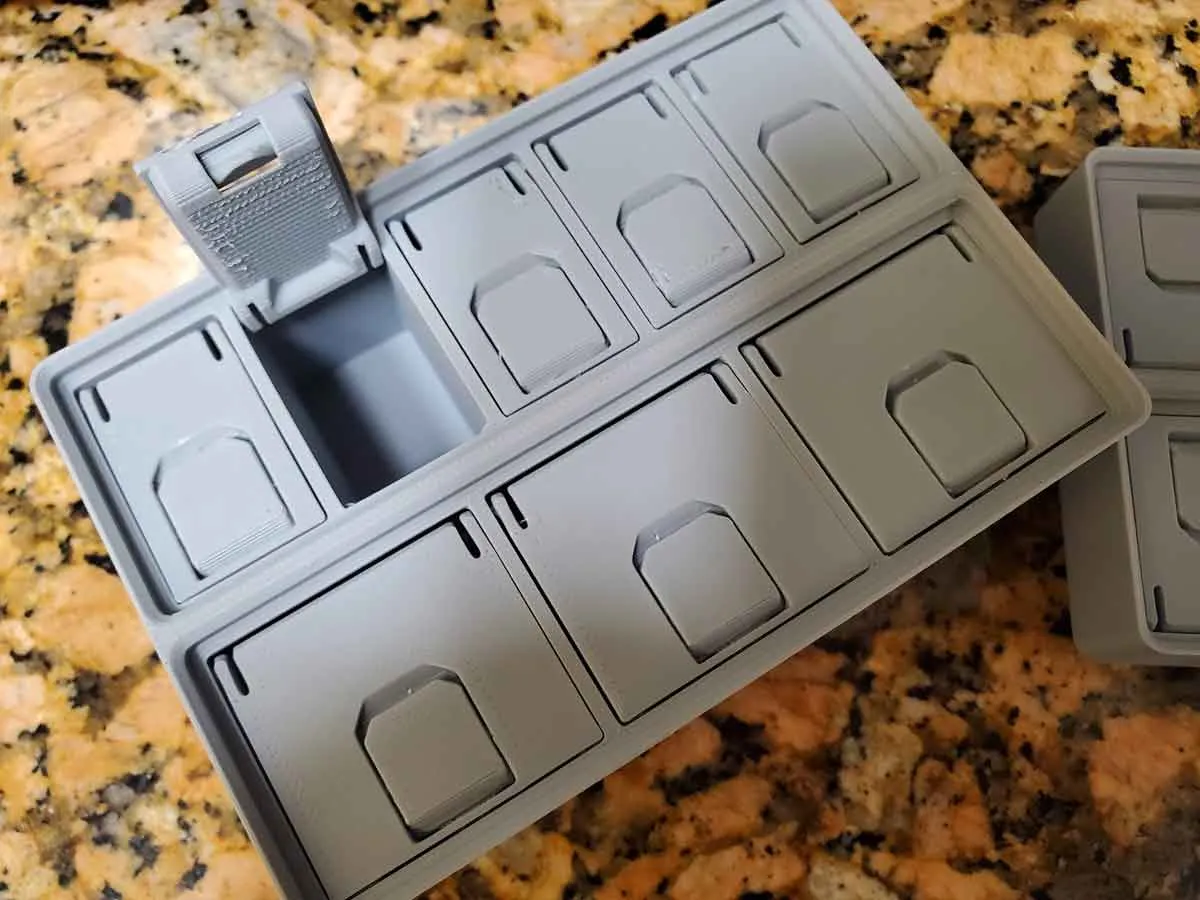

There are several latching lid bins available in 1x, 2x, 3x and 4x sizes:

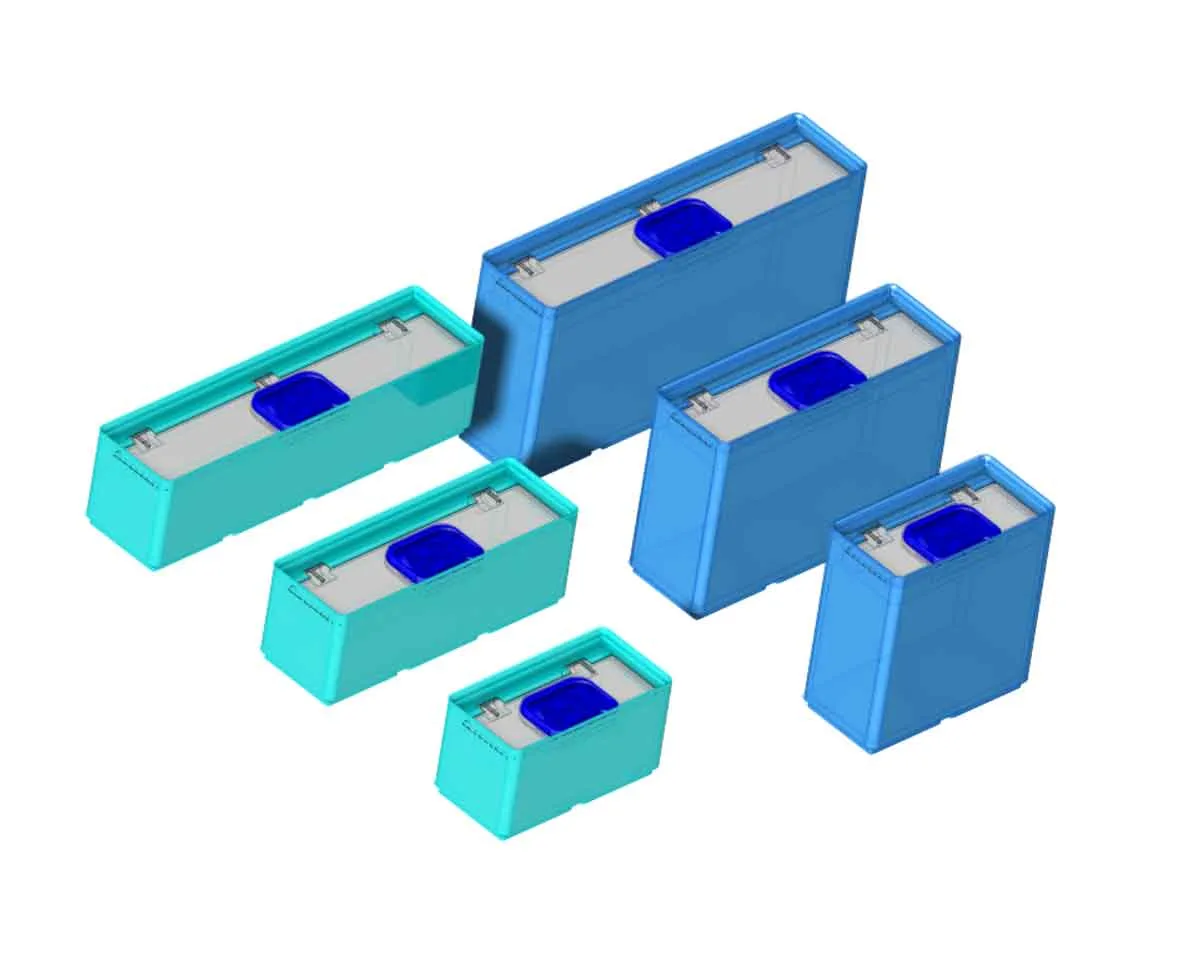

1. 1x2, 1x3, 1x4, 1x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
2. 2x2, 2x3, 2x4, 2x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
3. 3x3, 3x4, 3x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
4. 4x4, 4x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0

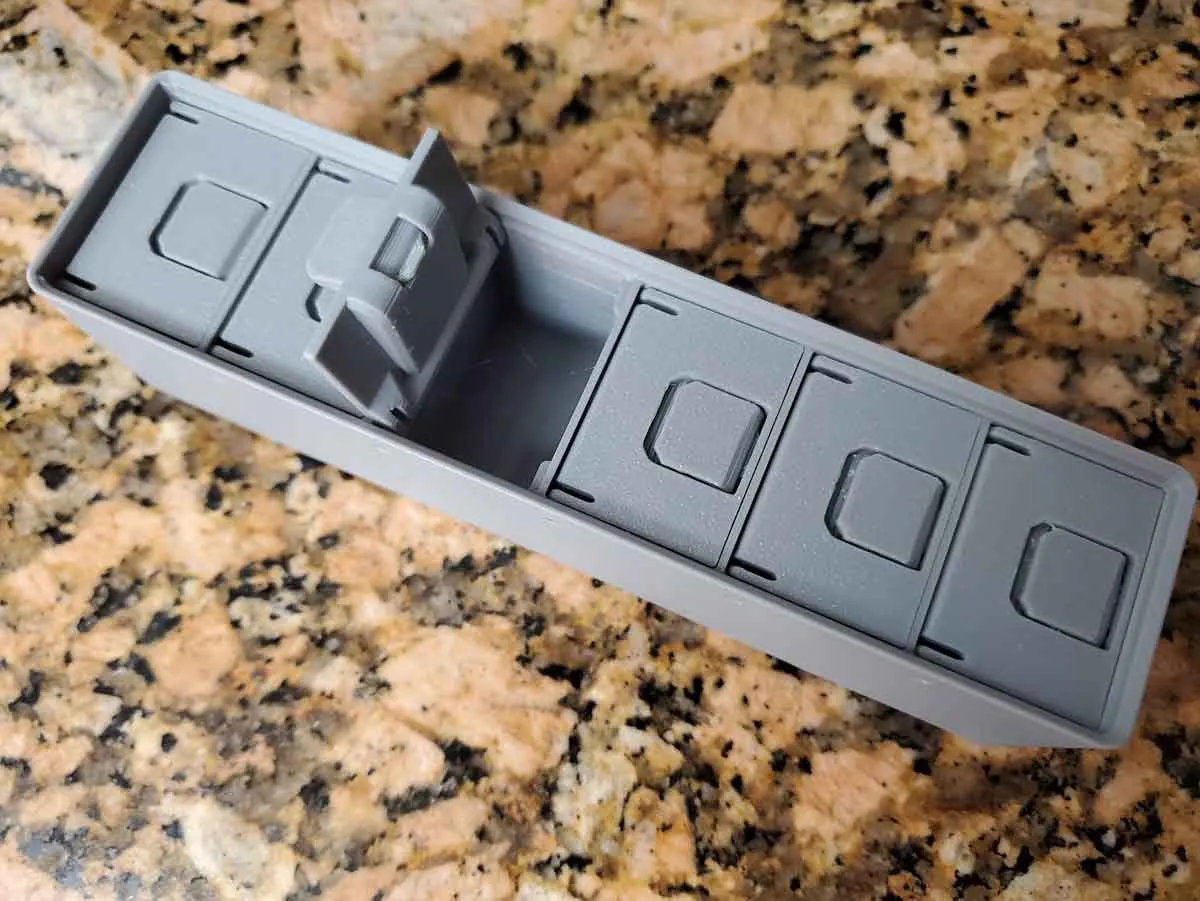

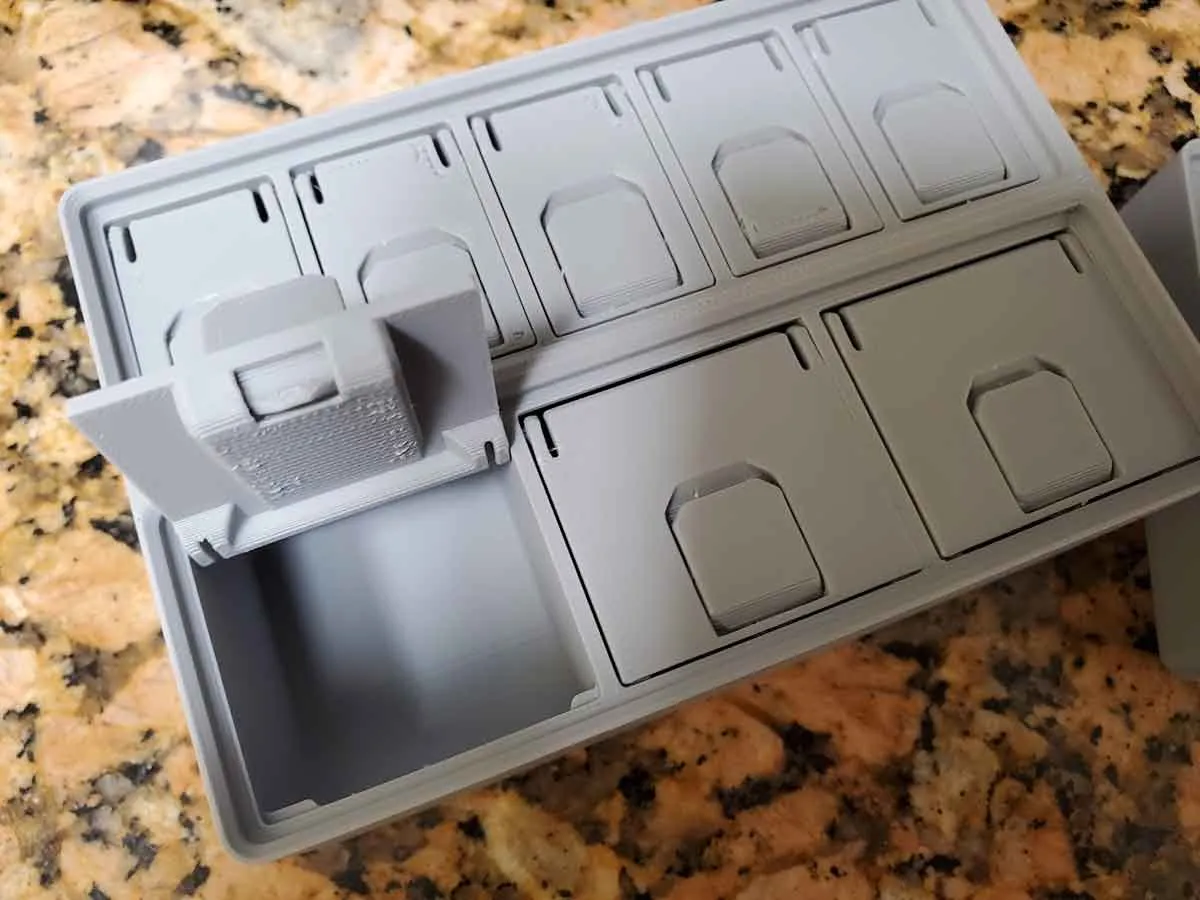

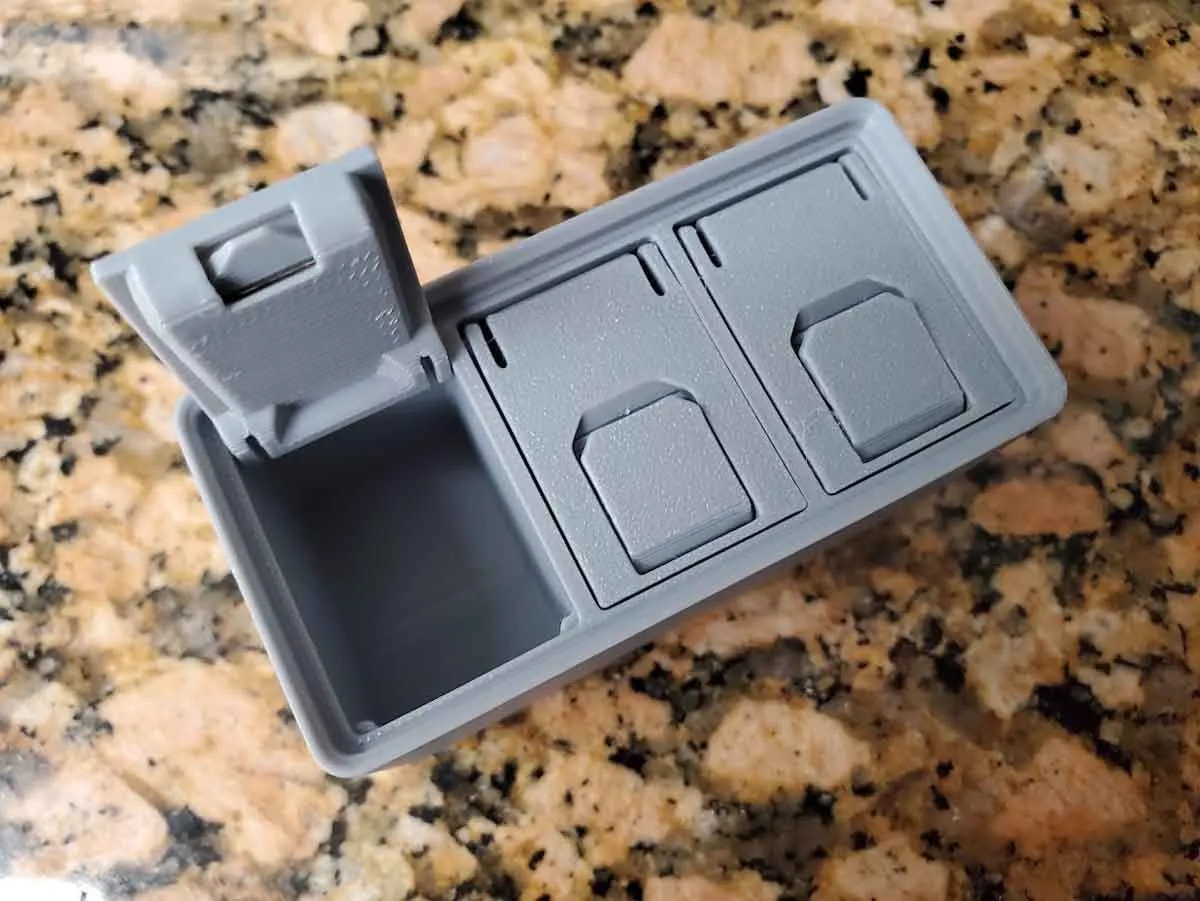

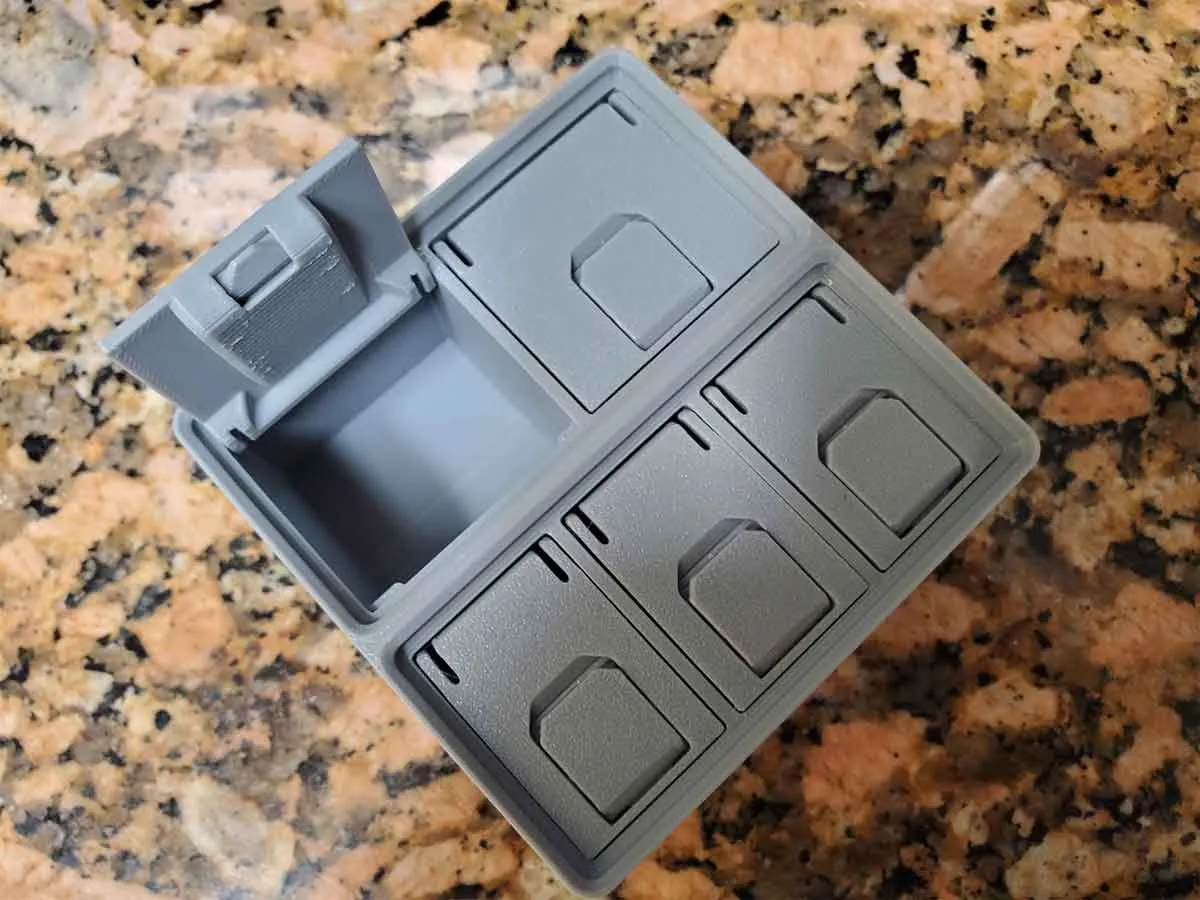

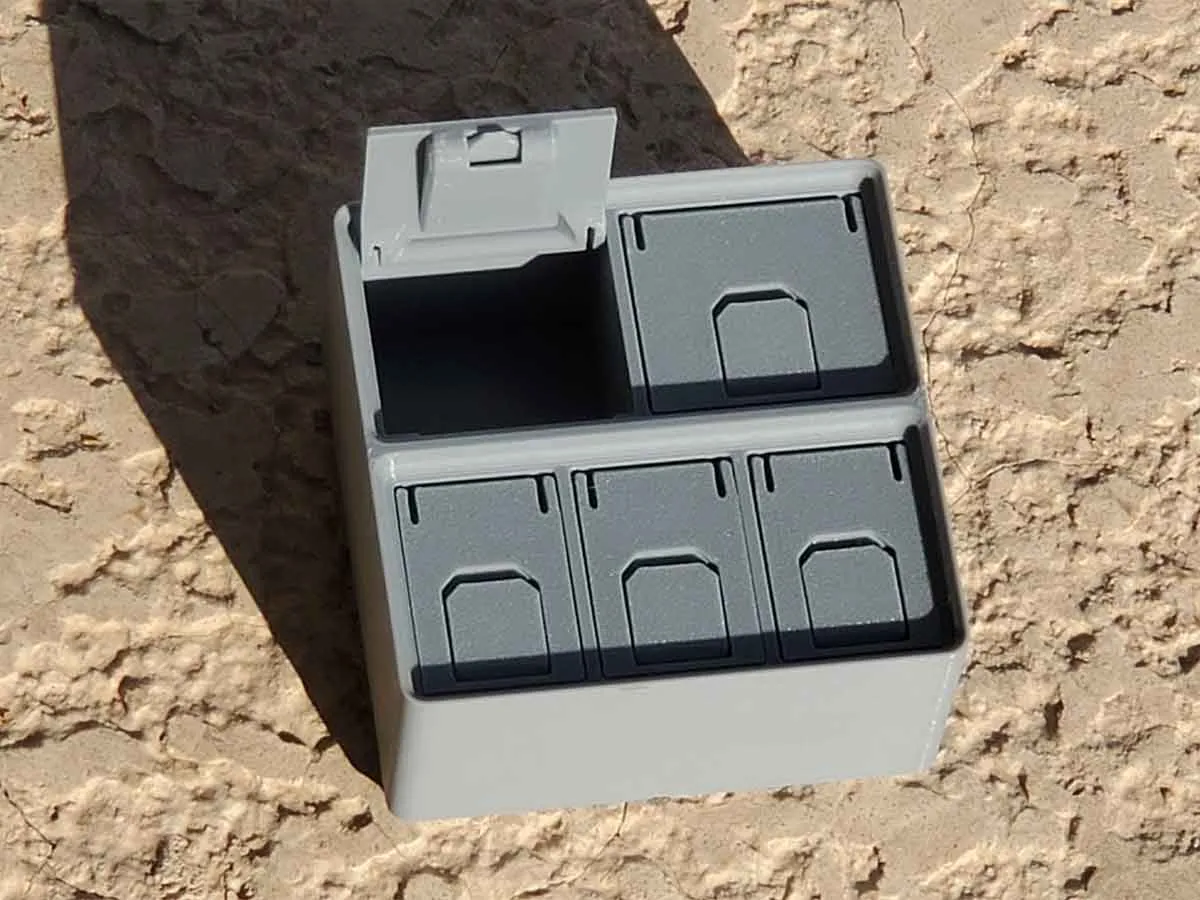

I've also made some smaller multi compartment latching lid bins, whcih are  available at the links below:

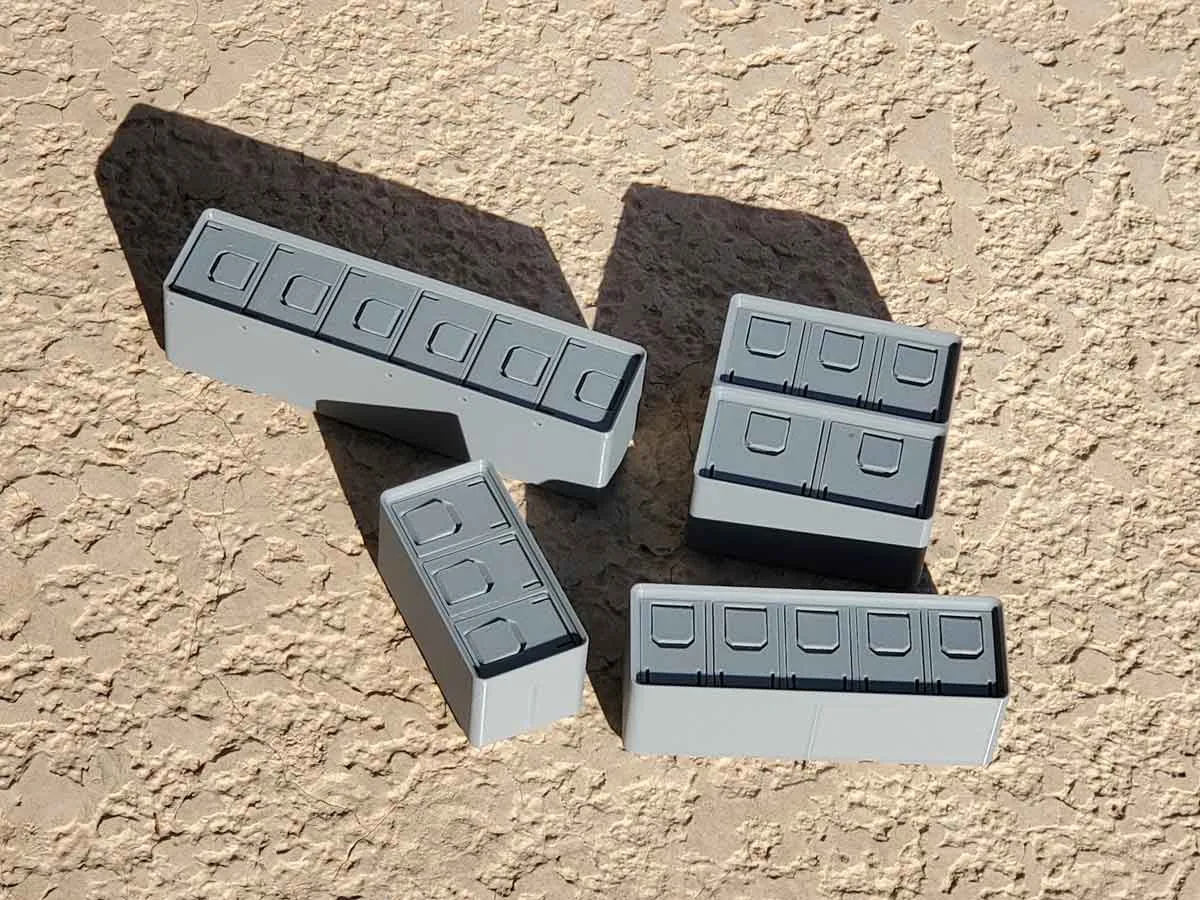

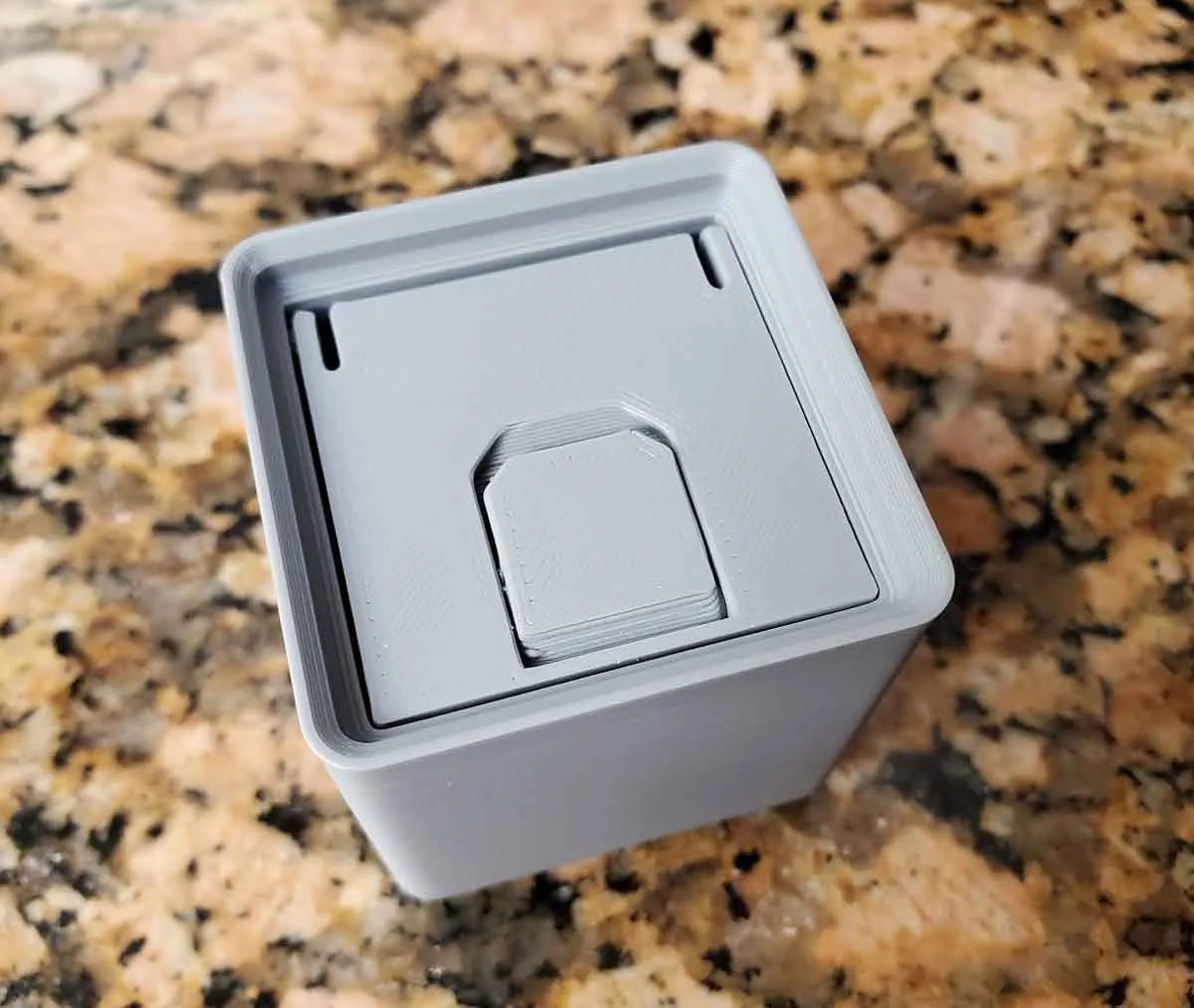

Gridfinity 1x1 Bins with Latching Lids v1.0

Gridfinity 1x2 Bins with Latching Lids v1.0

Gridfinity 1x3 Bins with Latching Lids v1.0

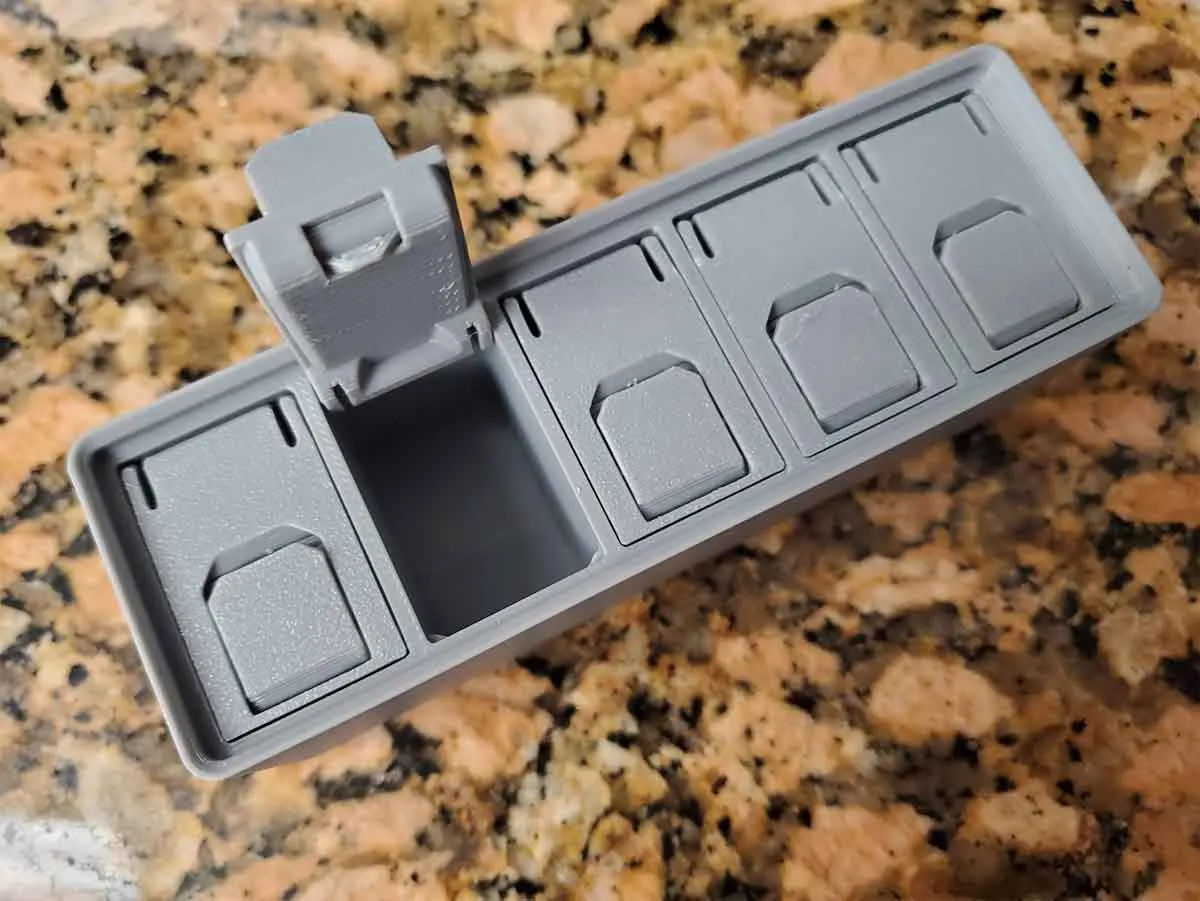

Gridfinity 1x4 Bins with Latching Lids v1.0

Gridfinity 2x2 Bins with Latching Lids v1.0

Gridfinity 2x3 Bins with Latching Lids v1.0

Gridfinity 3x3 Bins with Latching Lids v1.0 (not yet released)

The following bins are older designs, which include non-latching bins, and a bin with a magnet tool (handy for getting small screws from the bins).:

1. 1 compartment 2x1 (3U, 6U, 9U) bin with a magnet pickup tool
2. 1x1, 1x2 (3 Compartment) and 1x4 (6Compartment) bins with lids (6U) - version 2.1 (older non-latching type)

3. 1x2, 1x3 and 1x4 single compartment bins with tabbed lids (3U, 6U and 9U) - version 2.1 (older non-latching type)

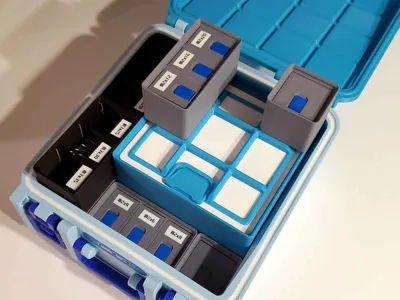

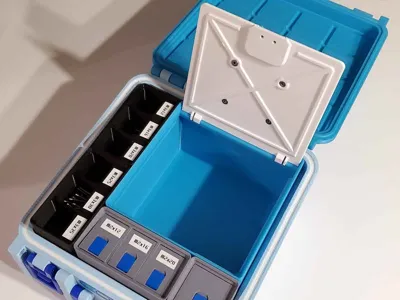

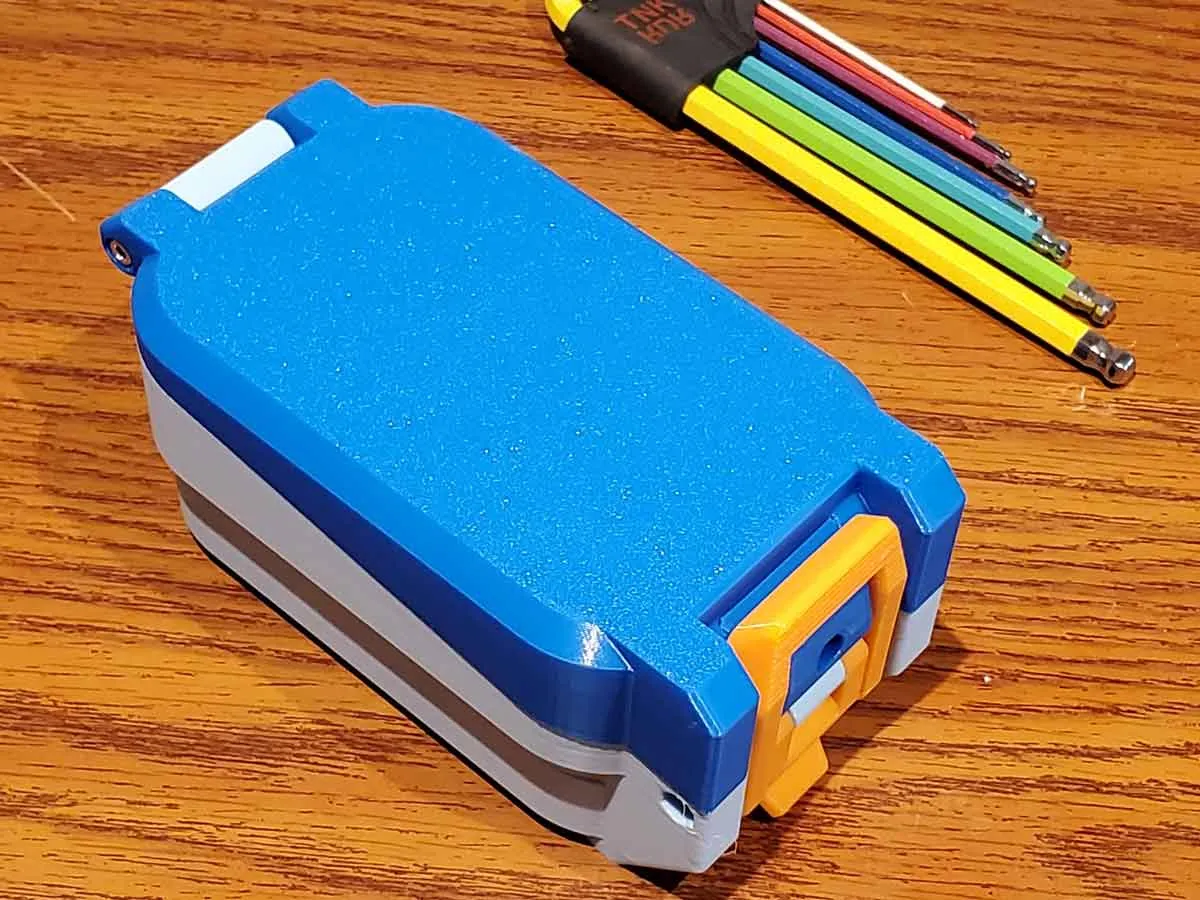

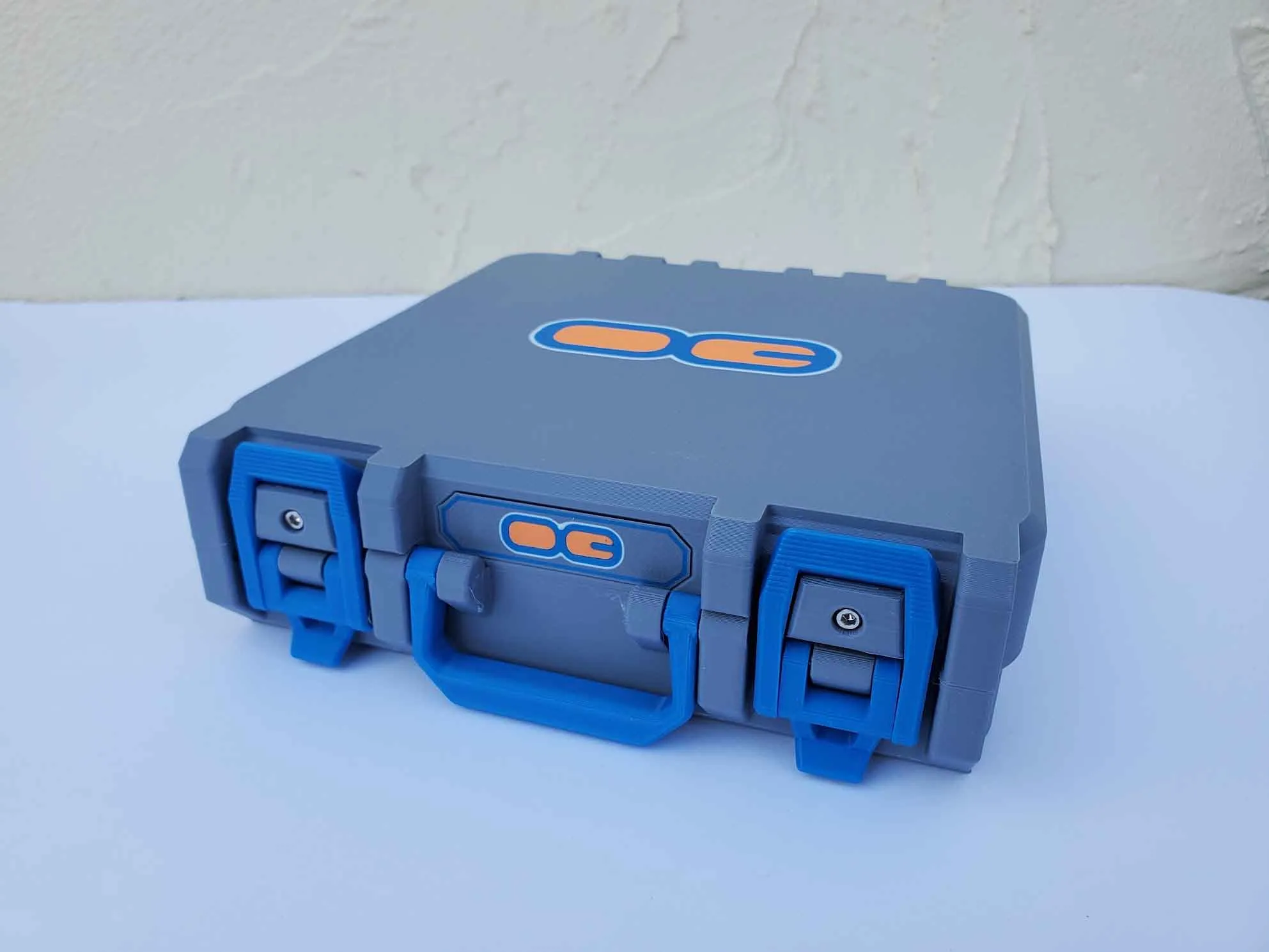

Finally, if you want to check out my other Gridfinity cases, you can find them at the links below:

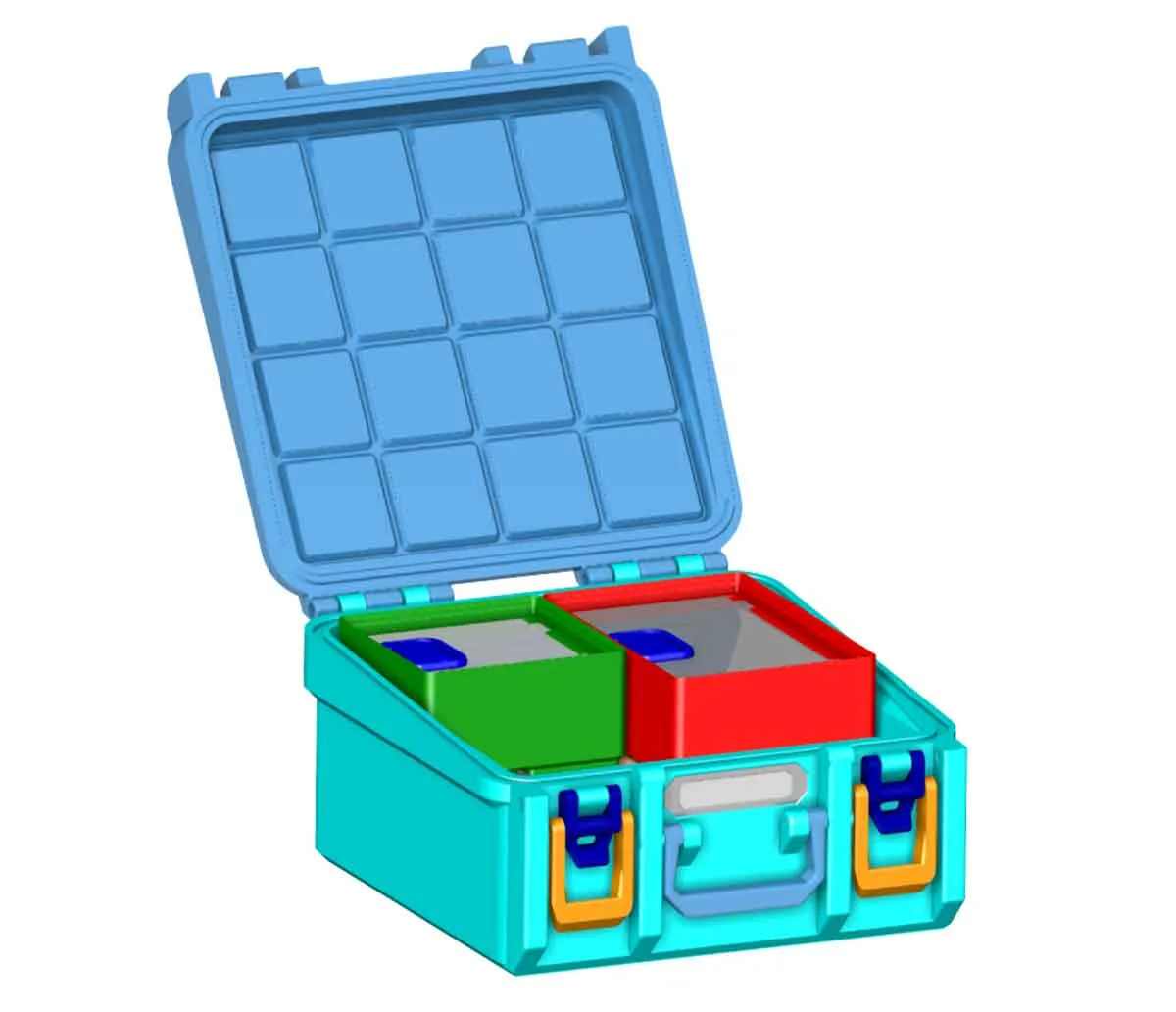

1. Gridfinity Box For Stuff 20 bin (6U)

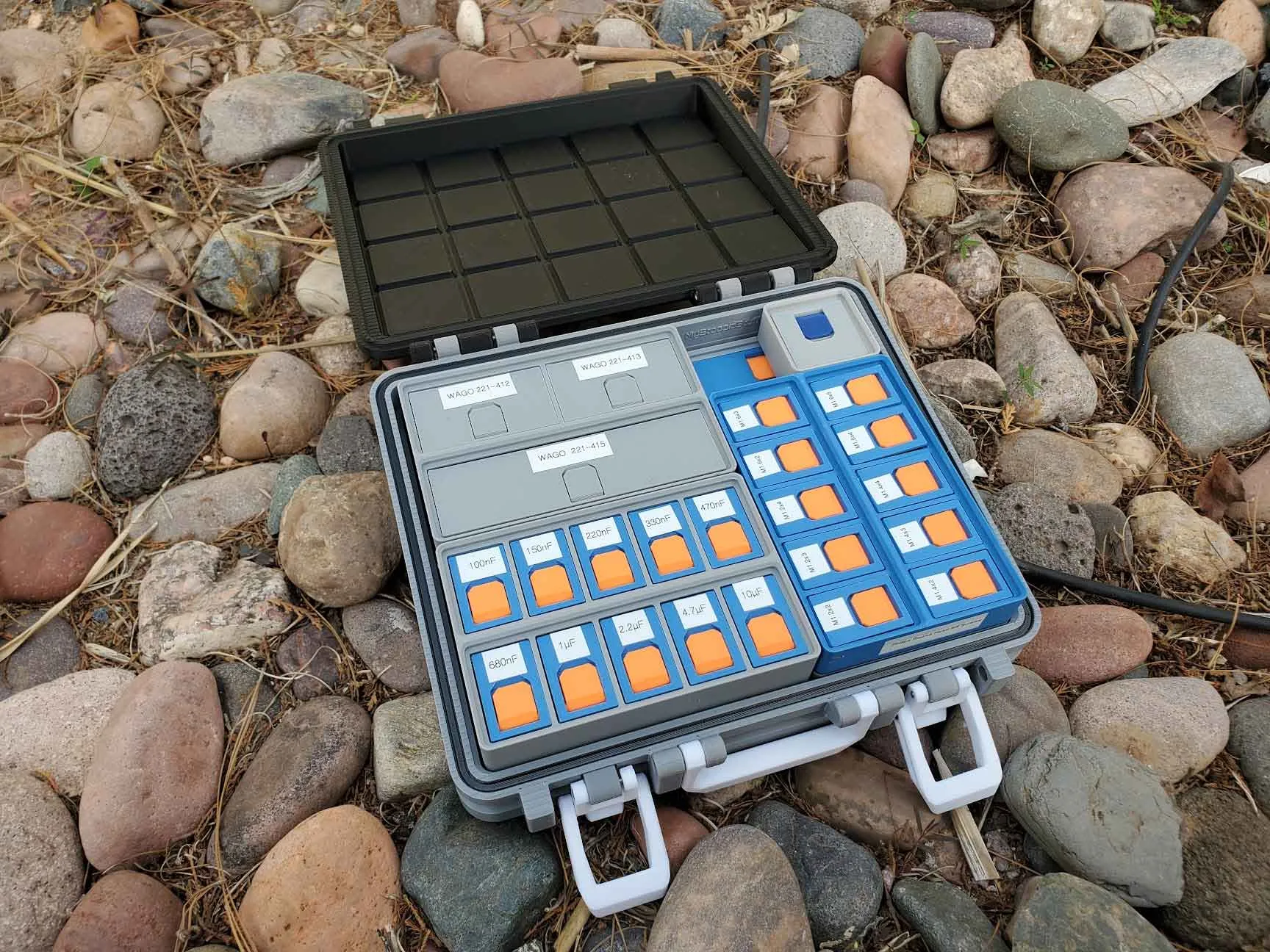

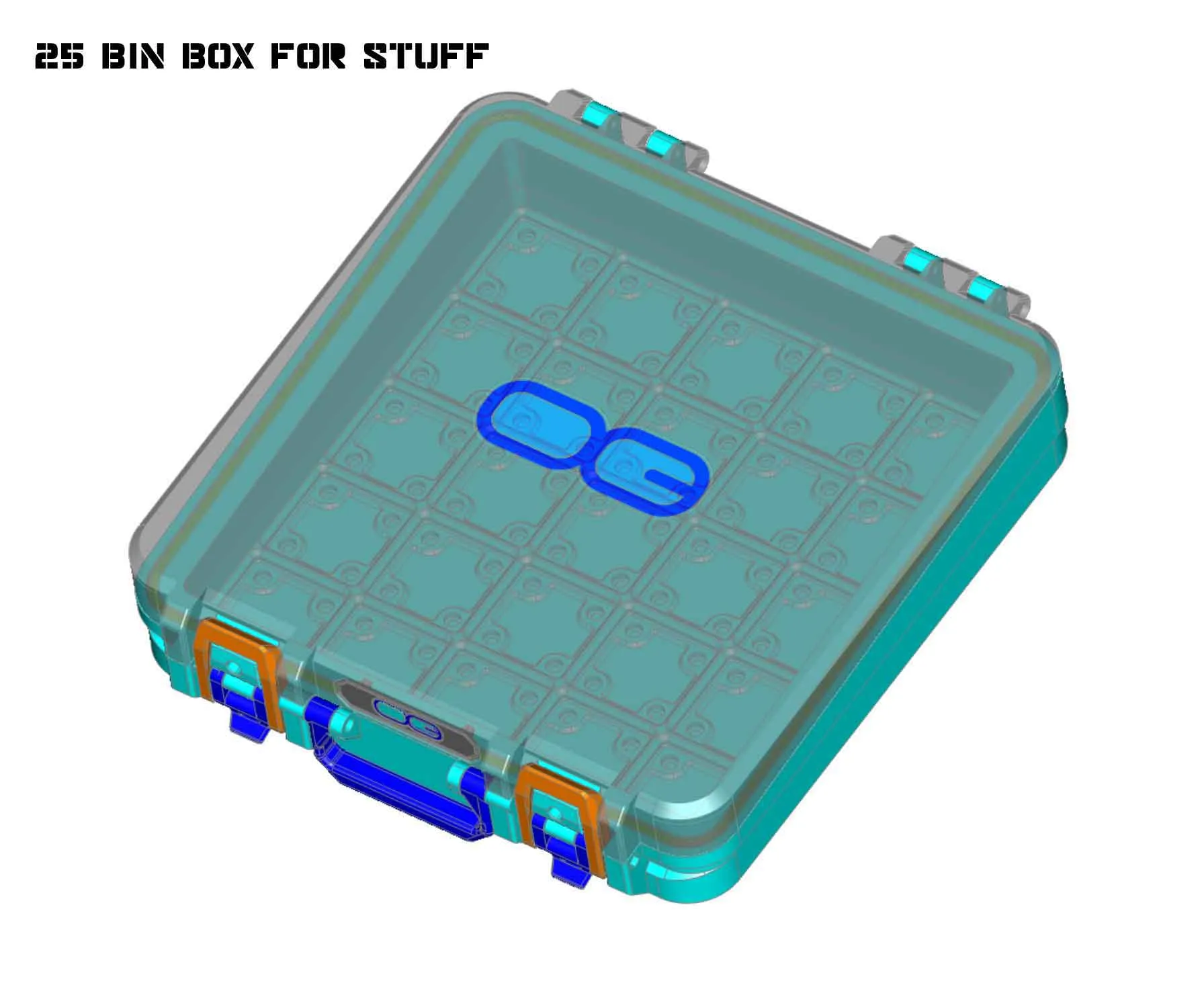

2. Gridfinity Box For Stuff 25 bin (6U) (max size for a Bambu X1C/P1S)
3. Gridfinity Box For Stuff 16 bin (6U) (Ender 3 size)
4. Gridfinity Box For Stuff 16 bin - 12U deep version (Ender 3 size)
5. Gridfinity Box For Stuff 2 bin (6U) (small test version)

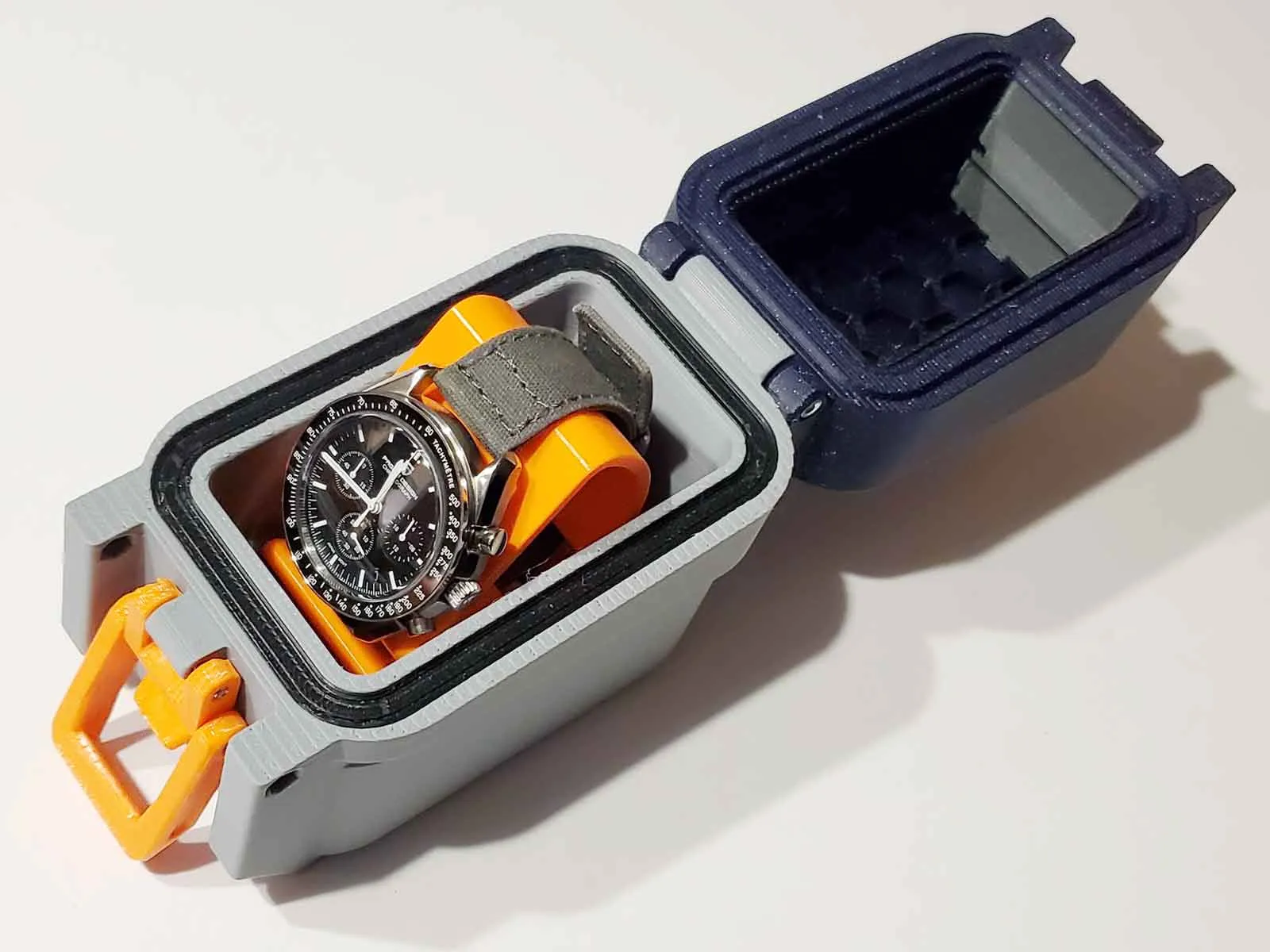

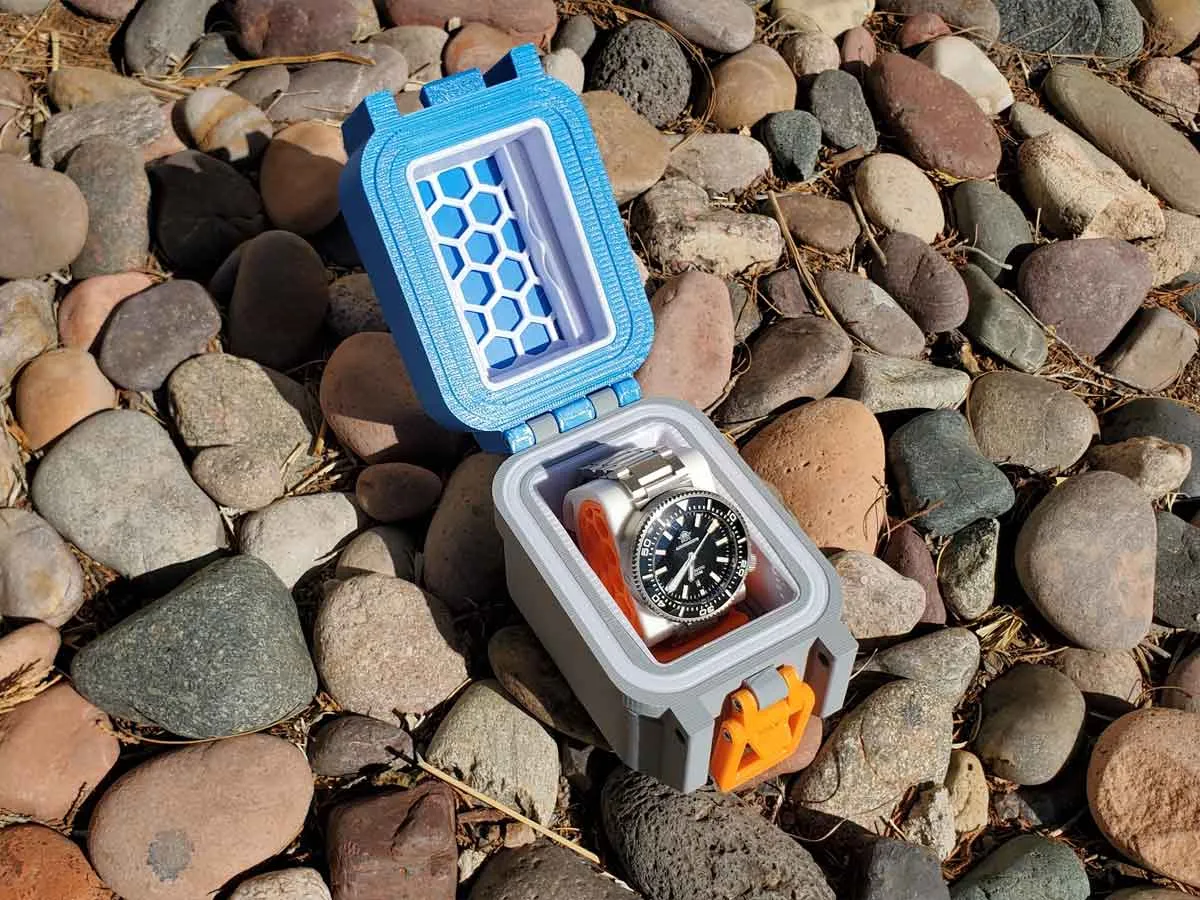

6. Gridfinity Single Watch Case

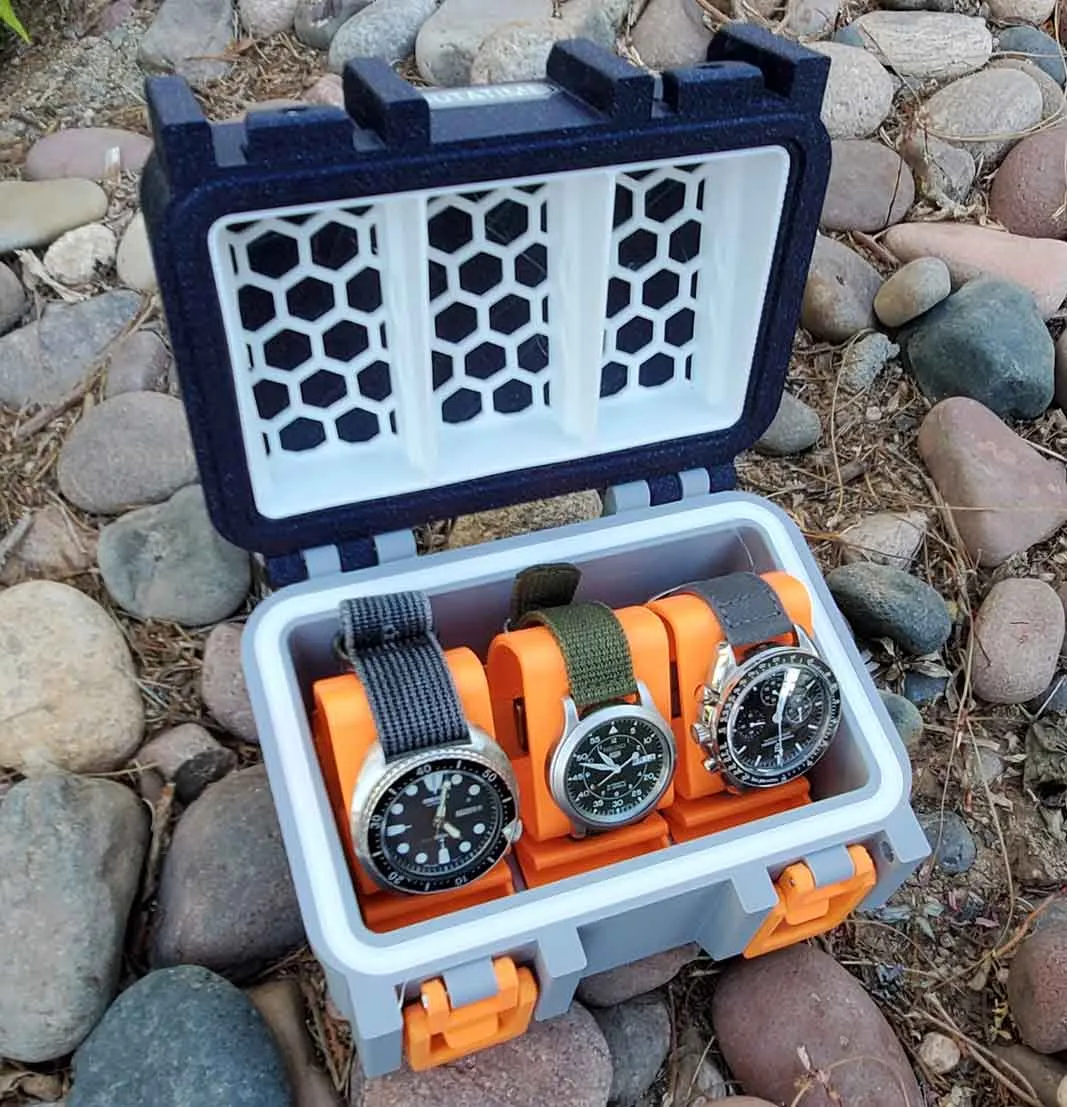

7. Gridfinity Triple Watch Case
8. Gridfinity Single Watch Case (for large watches)

There are currently no authorized sellers of prints of this model or prints of this model.

Thanks and Acknowledgements:

The models here could not have been made without the work of Zach Freedman, who introduced the world to Gridfinity, and then set it free for everyone to use.  These models are not based on direct remixing of Zach' original models, but they are fully compatible, and use the same, or a similar specification for the bin bases, bin lips and base grids, which Zach Freedman developed.   Zach Freedman's work is available on Thangs, and you can find examples of his Gridfinity designs here and here, which are available under his MIT license.  If you like this model, or want to learn more about Gridfinity, you can check out Zach Freedman's YouTube, or you can support Zach Freedman's work on Patreon (patreon.com/zackfreedman).

And Finally,

You can find the other things I'm working on at my blog here. You can also follow me here or on Printables to see what new stuff I post. If you would like to support my work, you can Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuff

Thanks for looking!

Changelog:

4/12/2024: A 9U tall version of the bins was added.

7/4/2024: Updated to version 2.2 with new grid label “chip” option.

11/2/2024: Added 2x5 bins.

3/23/2026:  Added a profile named “Updated Snap together slide latches” with new snap together latch slides.
