Gridfinity 1x (6U,9U &12U) Lidded Bins version 2.0

These are the latest version (v 2.0) of my lidded Gridfiniy bins, with several improvements over the 1st version.  These include the following improvements and new elements:

• Fully redesigned bins with a more efficient use of material
• Slightly larger opening for the doors
• New tab option for the sliding latches
• No supports needed (same as the v1.0 models)
• Additional bin sizes added

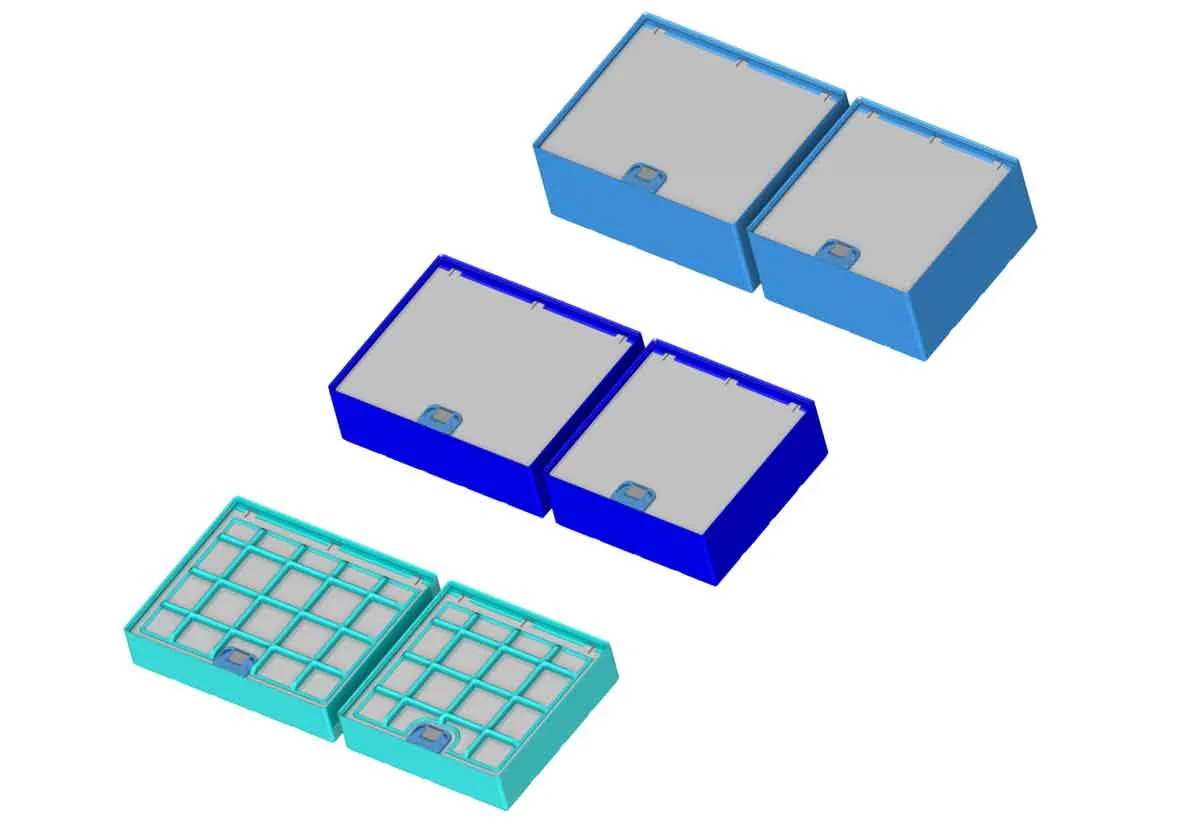

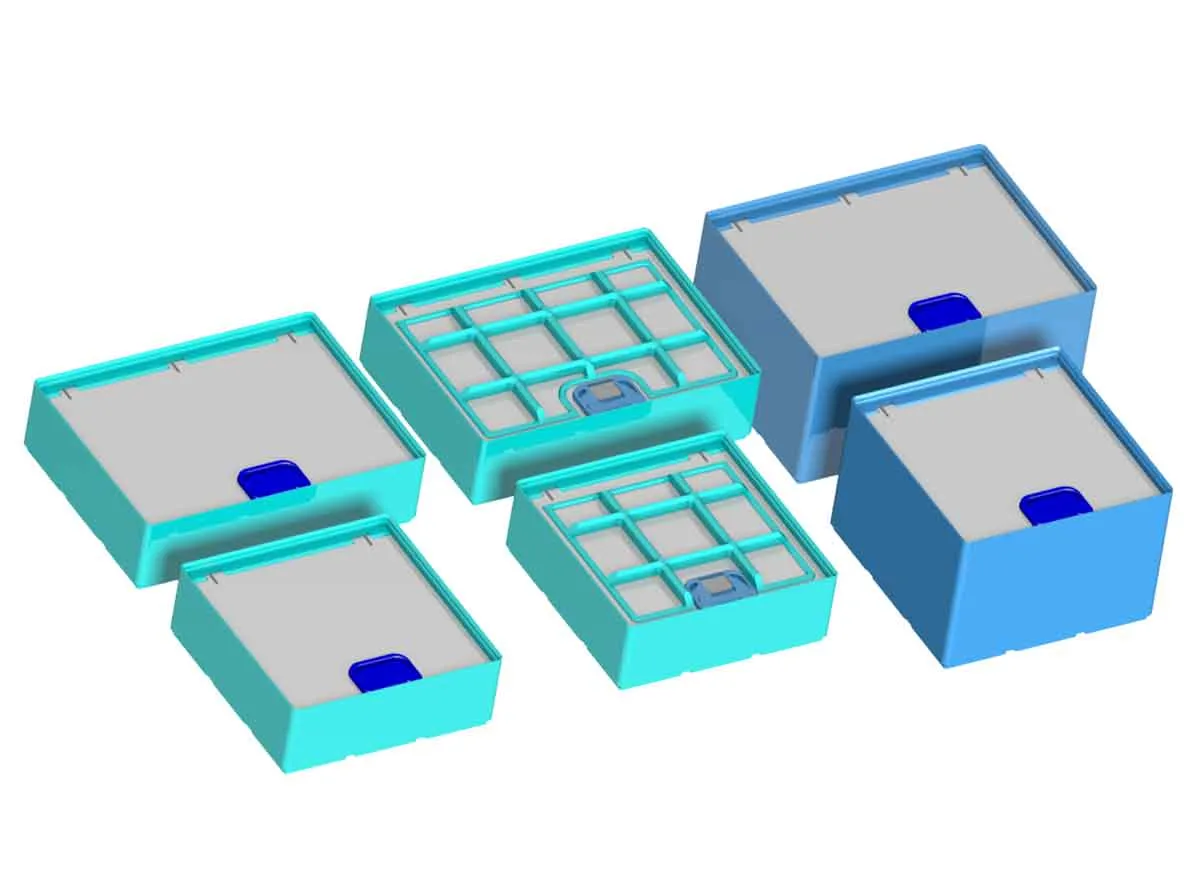

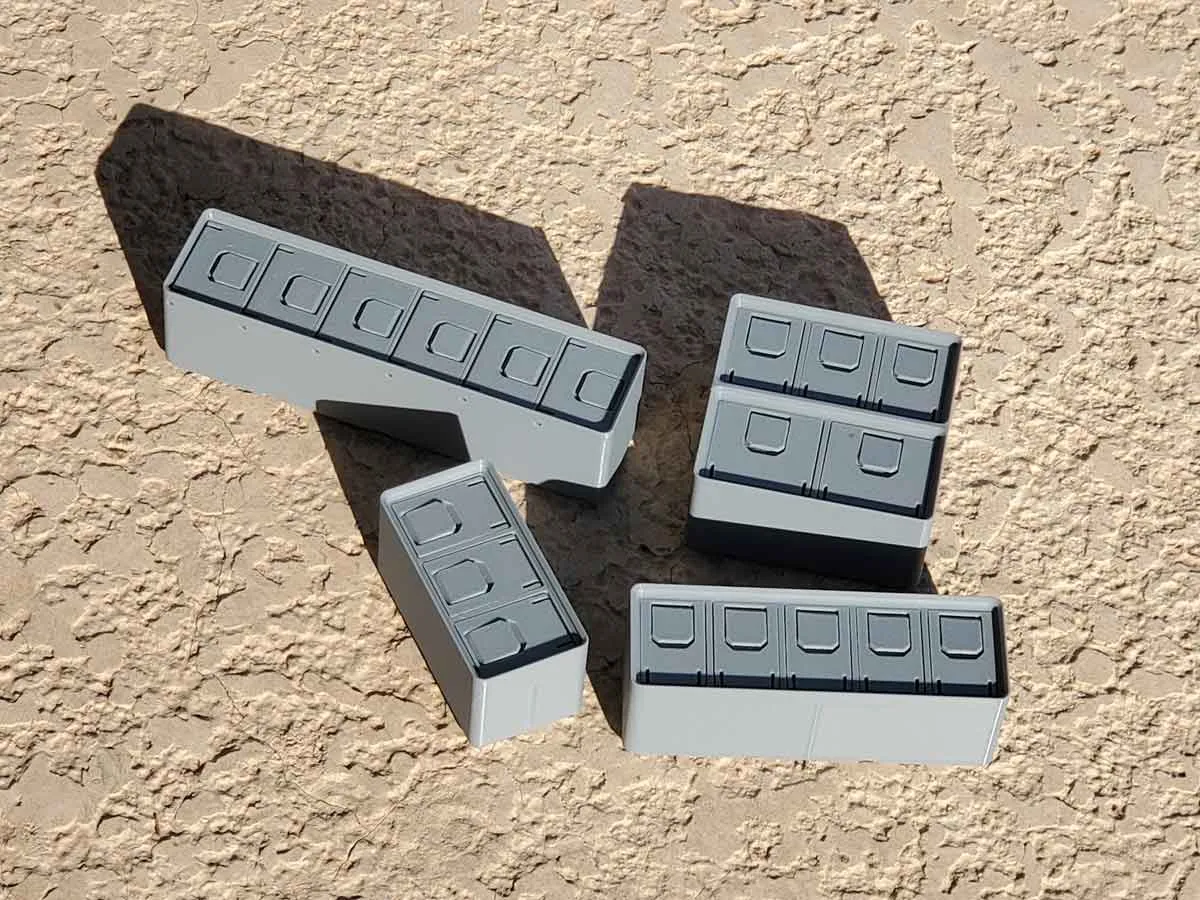

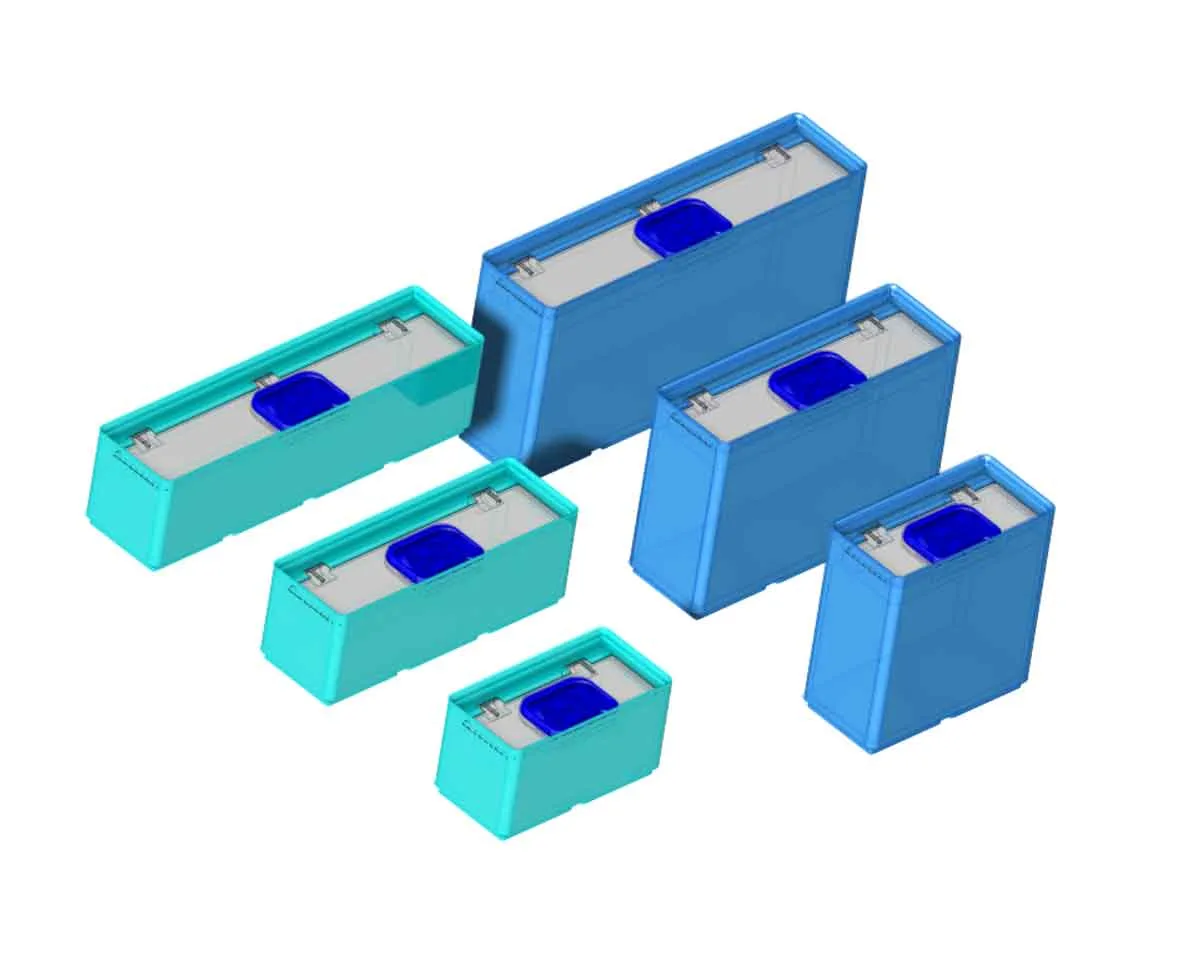

Included here are 6 types of Gridfinity bins with latching lids:

6U Bins:

• 1x2 6U
• 1x3 6U
• 1x4 6U
• 1x5 6U

9U Bins:

• 1x2 9U
• 1x3 9U
• 1x4 9U
• 1x5 9U

12U Bins:

• 1x2 12U
• 1x3 12U
• 1x4 12U
• 1x5 12U
• 1x4 12U

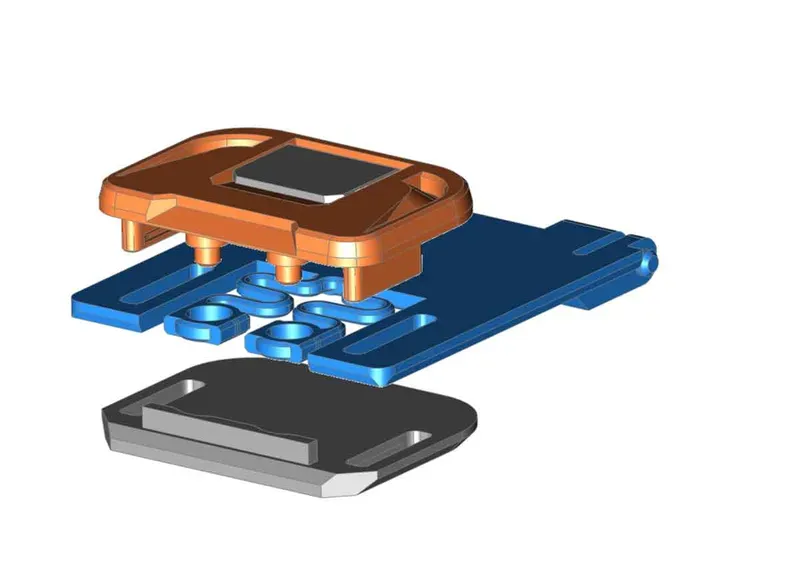

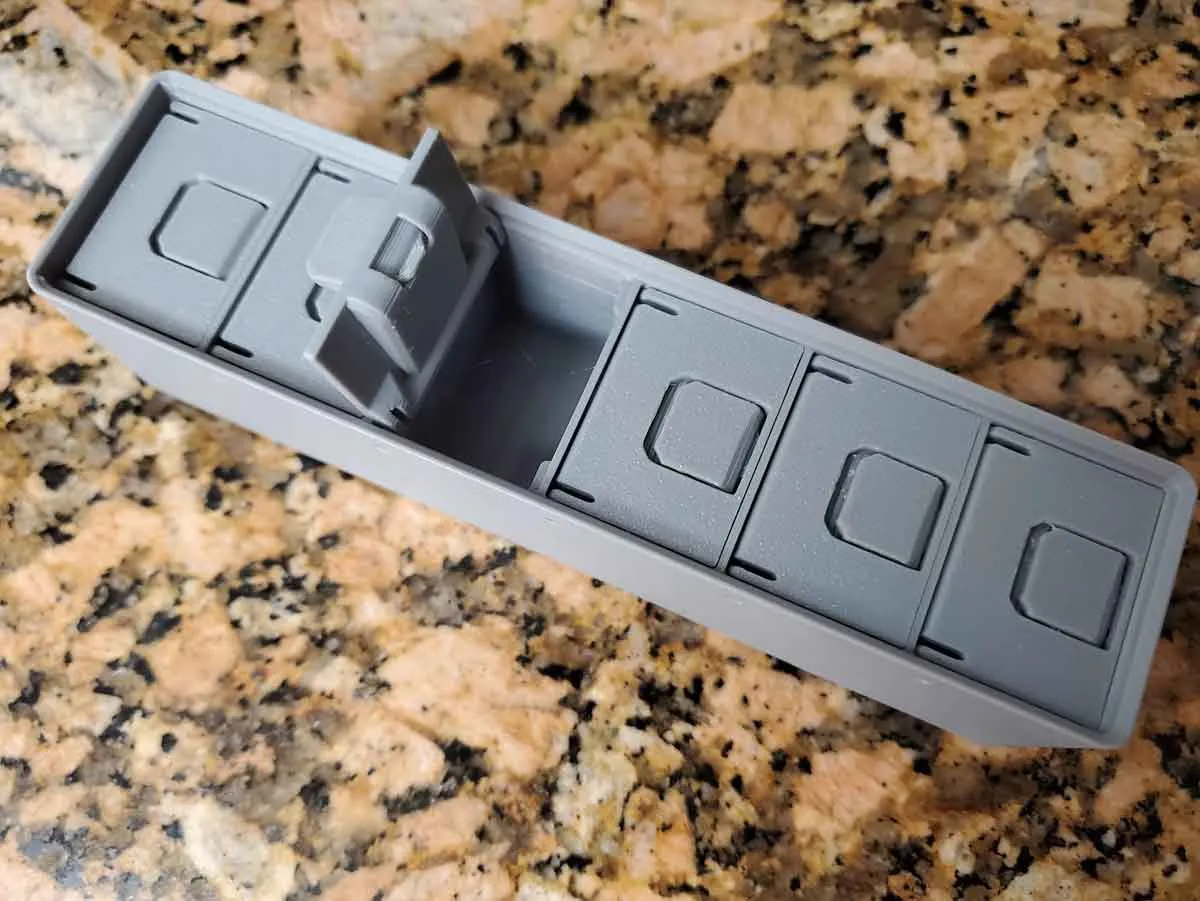

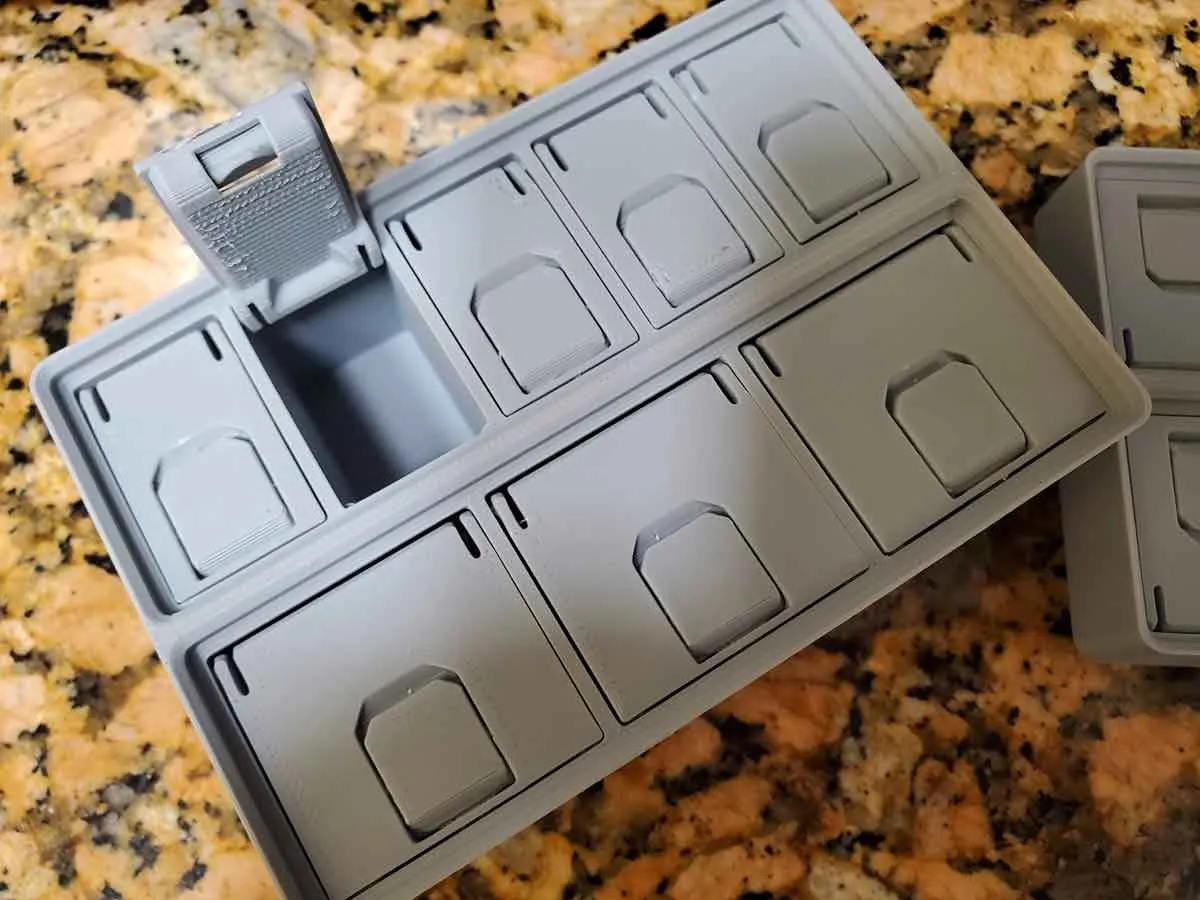

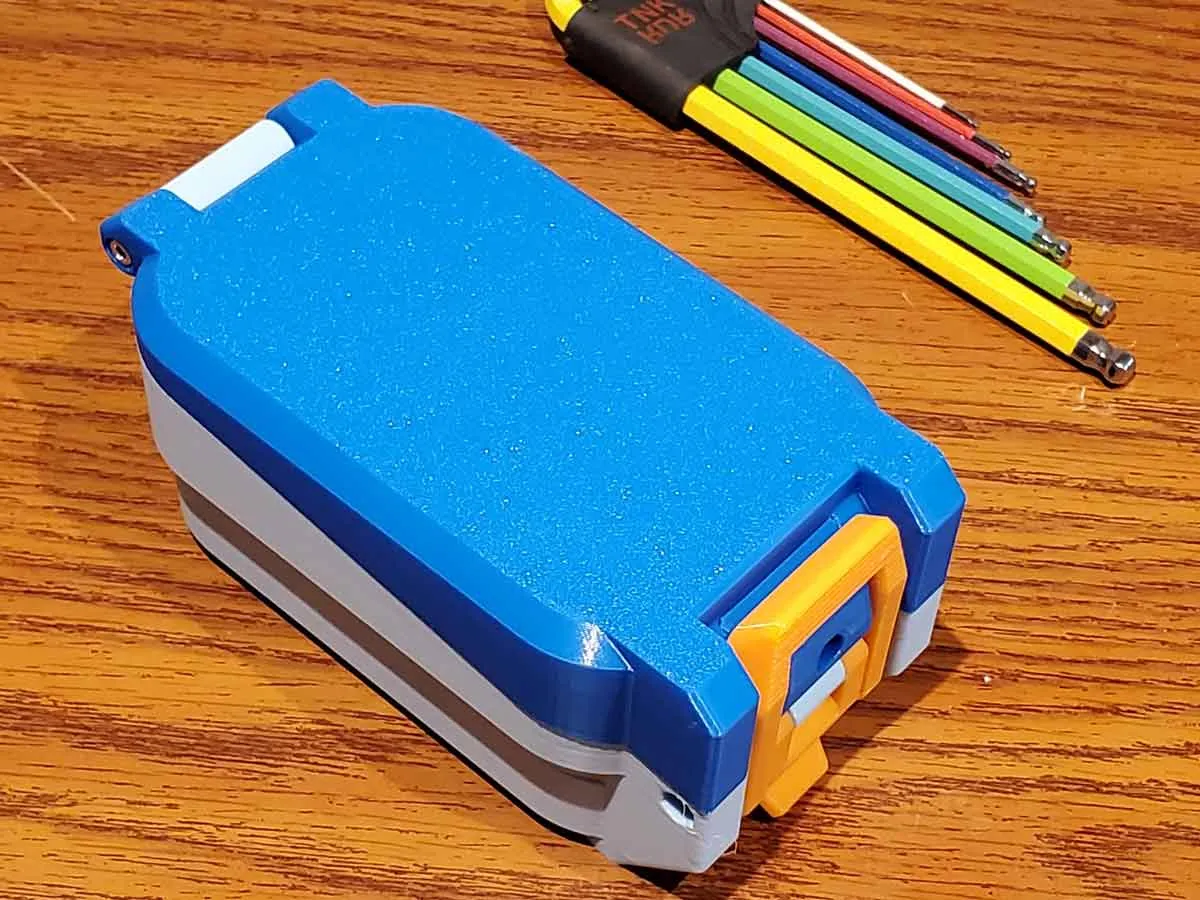

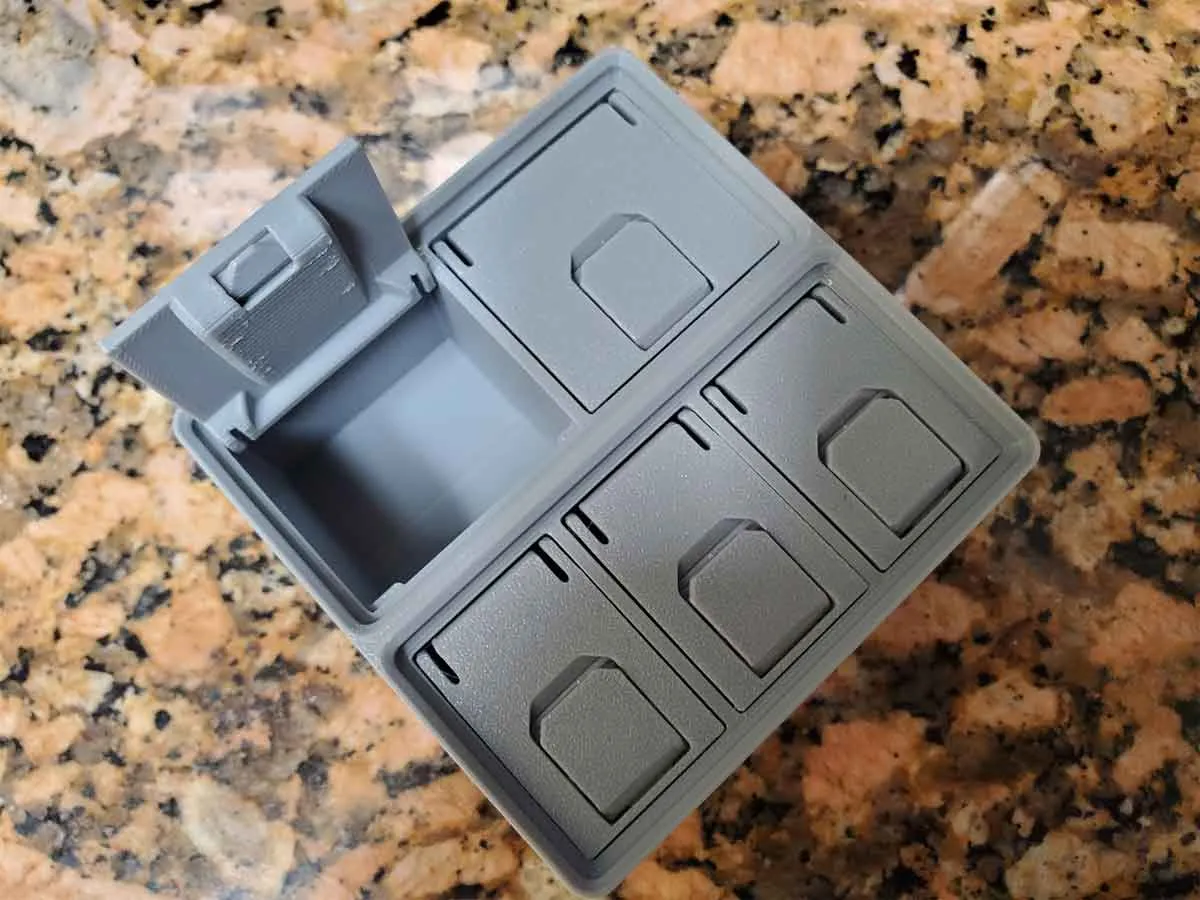

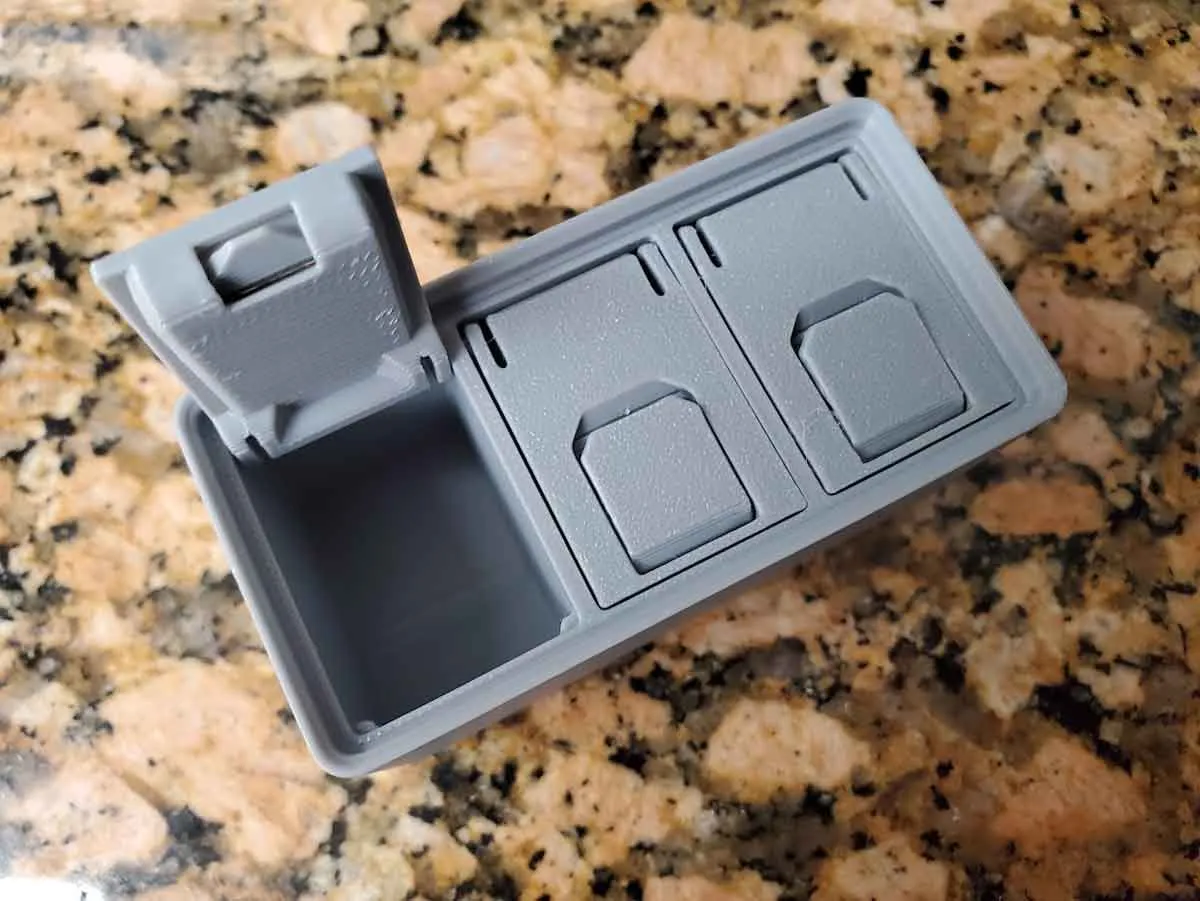

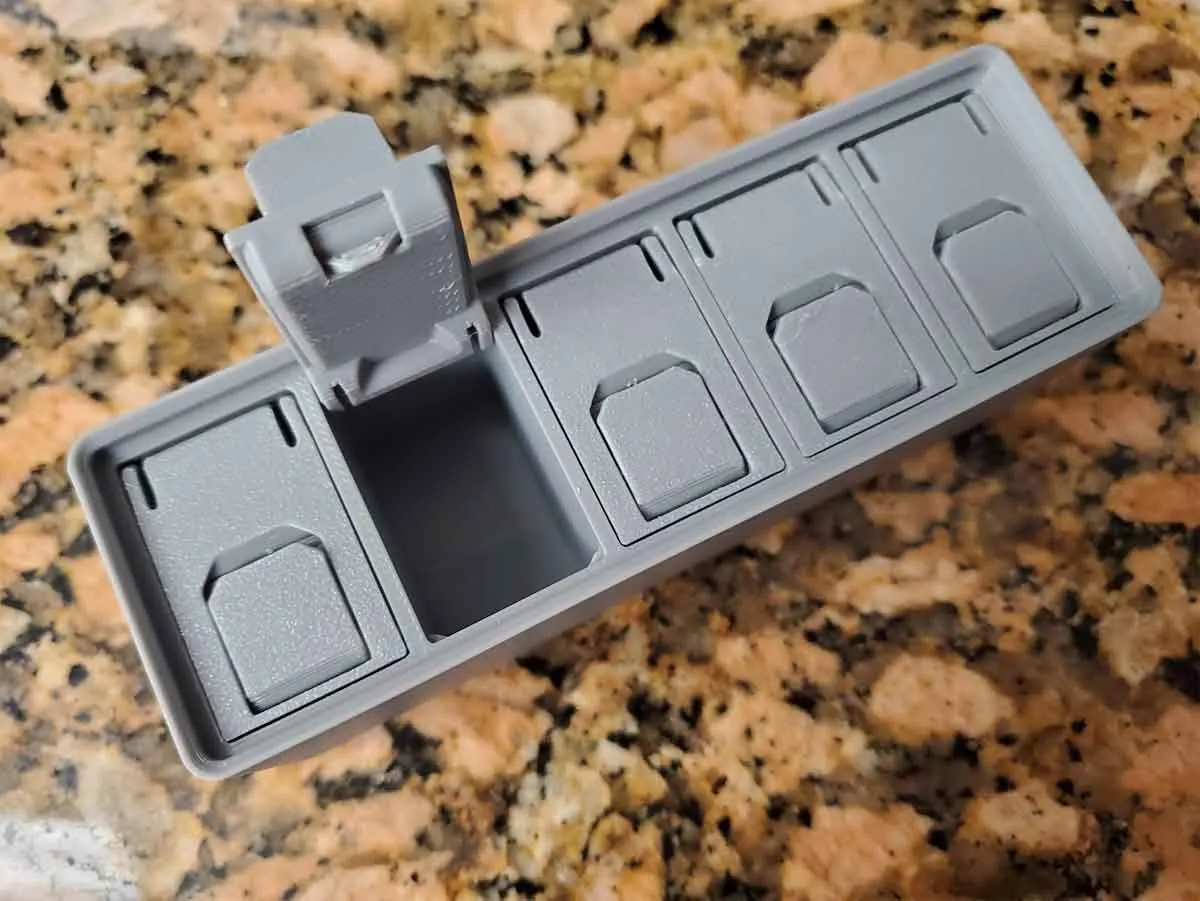

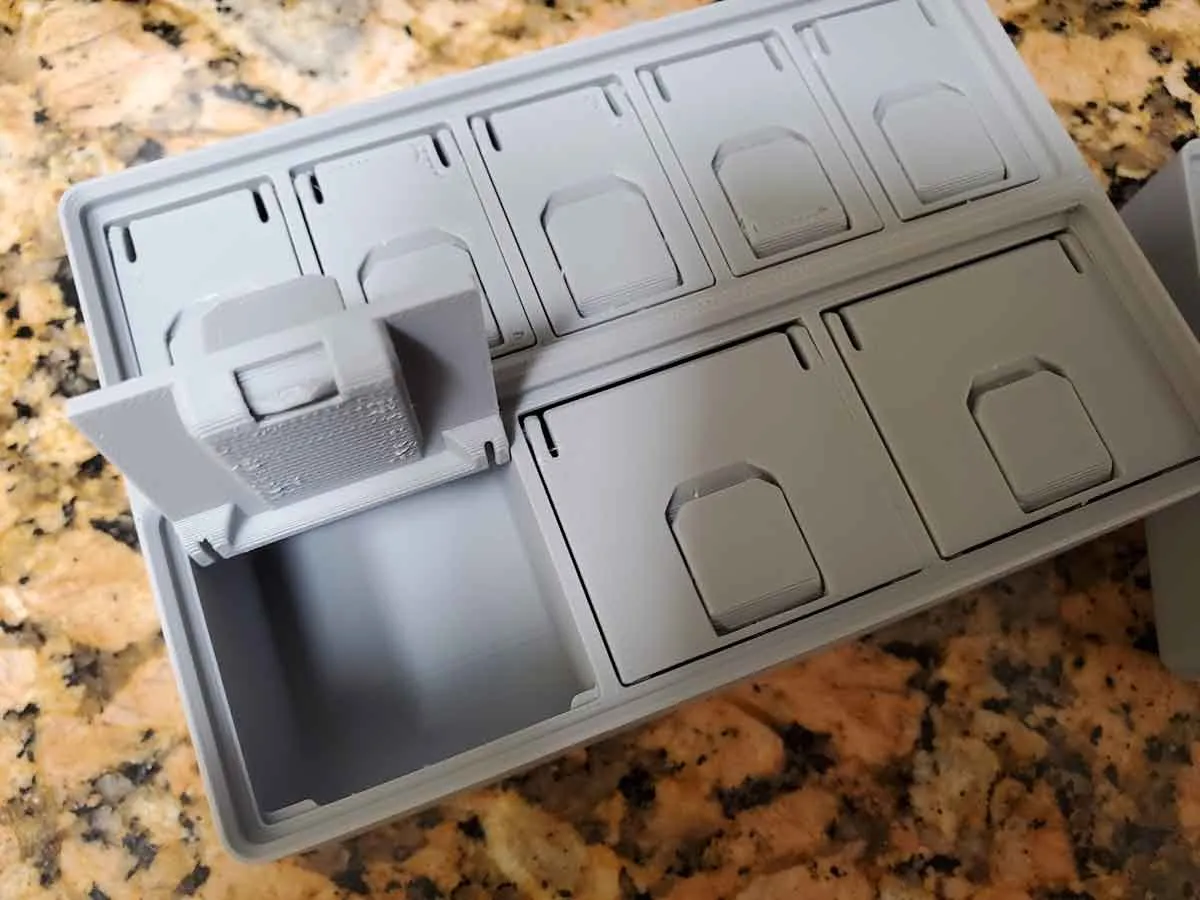

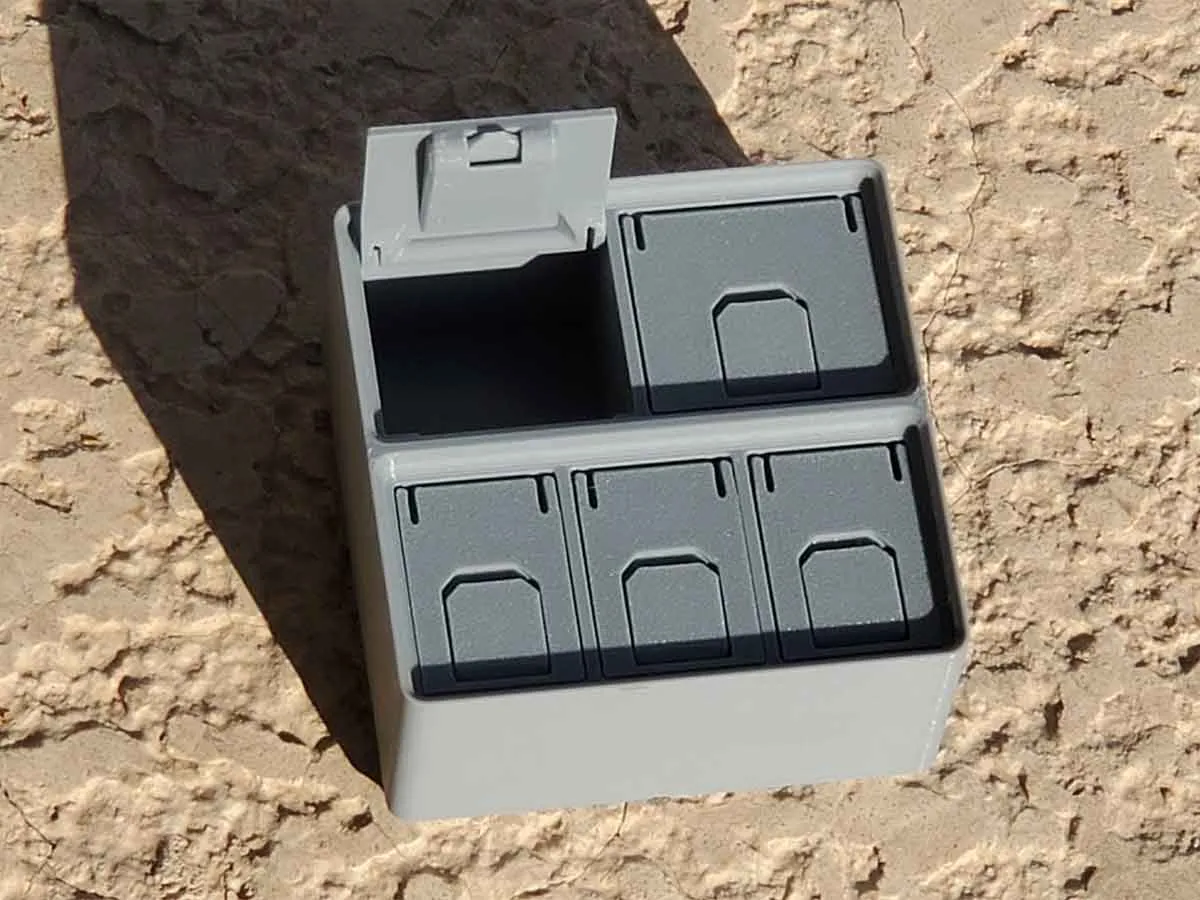

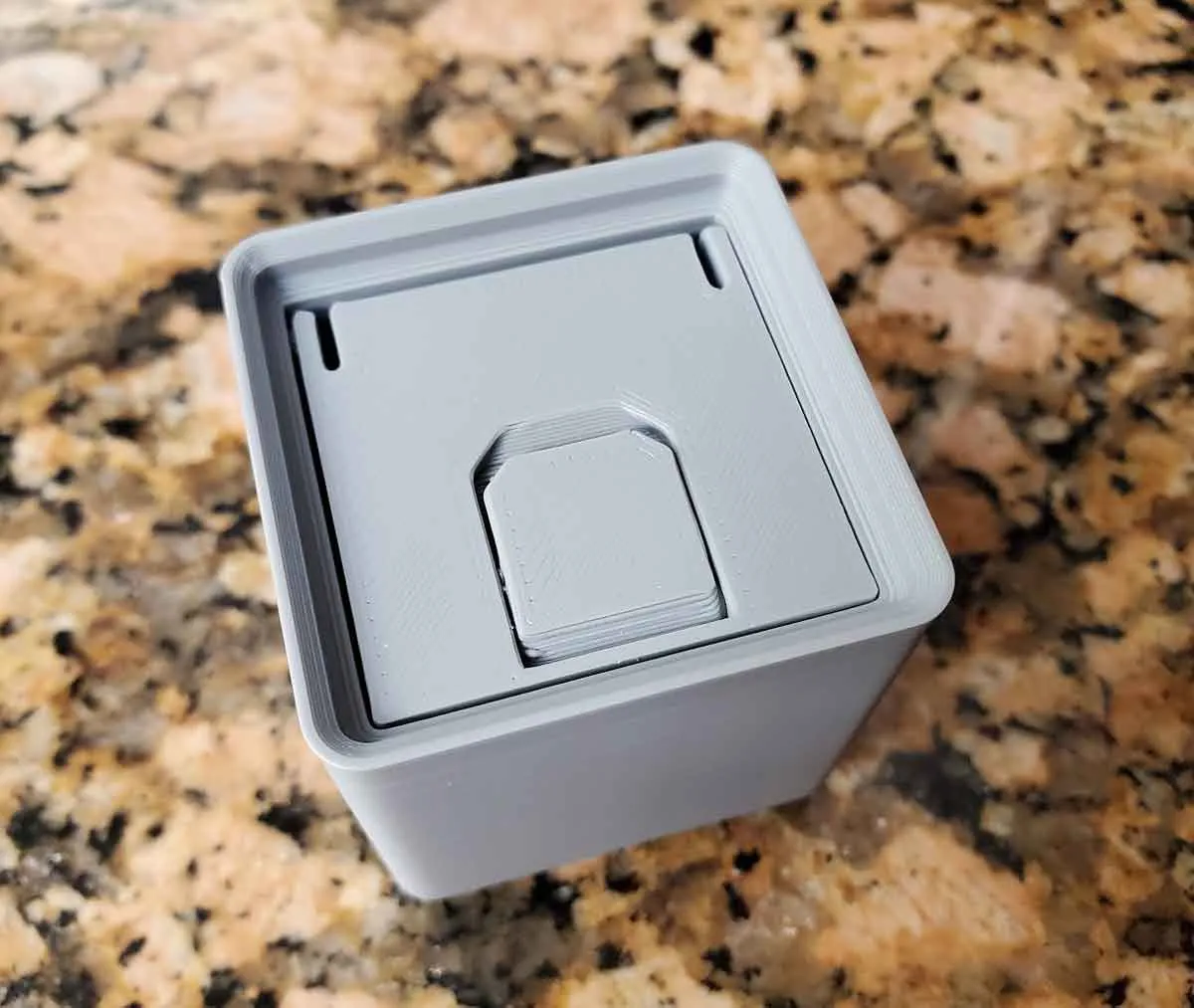

There are two latch designs included.  One is a plain latch top, and the other has a flip up tab, which can help with opening the bins (see pics).

Update - There is a new alternative latch which requires no hardware (it snaps together).

If you want to try them out, just use the 2nd profile which is named “Updated Snap together slide latches”:
SNAP_TOGETHER_SLIDE_LATCHES_V7D.3mf

This design requires the following hardware:

(2) M3x6mm Button Head Cap Screws (BHCS) - or any M3x6 button head screws.  (now optional - see update above regarding snap together latch slides)

Printing tips:

You can use the included 3MF which has all the models set up on 10 plates, including one multi-color option for the tabbed latches.  If you set the files up in your chosen slicer, then I suggest using the following settings:

• Arachne wall generator
• 15% gyroid infill.
• PLA for the bases and PETG for the LID, since it has an integrated spring.
• I used a textured PEI plate, but if you plan to use P-Touch labels, a smooth plate may work better.

If you print the tabbed latch tops, I recommend using PLA.  You can use the following files:

Single Color:

LIDDED_BINS-3E_LATCH_TOP_BOTH.STL

Multicolor (load both files together in the slicer to maintain their relationship and answer “yes” to load them as a single object):

LIDDED_BINS-3E_LATCH_TOP_A.STL

LIDDED_BINS-3E_LATCH_TOP_B.STL

Assembly:

Assembly tips can be found in “Step 6” at the link below:

https://www.mystoopidstuff.com/bambu-spares-box-build-guide.html

Due to the lid design, this will not work well if stacking 1x1 bins, on it.

The doors and hinges are designed so they will be easier to install if the hinges are pushed into place with the door almost closed.

If you find these models useful, please post a like or a comment with some pics of your prints.

Other stuff:

There are several other sizes of these lidded bins available in 1x, 2x, 3x and 4x sizes:

1. 1x2, 1x3, 1x4, 1x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
2. 2x2, 2x3, 2x4, 2x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
3. 3x3, 3x4, 3x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
4. 4x4, 4x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0

There are similar multi compartment latching lid bins available at the links below:

Gridfinity 1x1 Bins with Latching Lids v1.0

Gridfinity 1x2 Bins with Latching Lids v1.0

Gridfinity 1x3 Bins with Latching Lids v1.0

Gridfinity 1x4 Bins with Latching Lids v1.0

Gridfinity 2x2 Bins with Latching Lids v1.0

Gridfinity 2x3 Bins with Latching Lids v1.0

Gridfinity 3x3 Bins with Latching Lids v1.0 (not yet released)

The following bins are older designs, which include non-latching bins, and a bin with a magnet tool (handy for getting small screws from the bins).:

1. 1 compartment 2x1 (3U, 6U, 9U) bin with a magnet pickup tool
2. 1x1, 1x2 (3 Compartment) and 1x4 (6Compartment) bins with lids (6U) - version 2.1 (older non-latching type)

3. 1x2, 1x3 and 1x4 single compartment bins with tabbed lids (3U, 6U and 9U) - version 2.1 (older non-latching type)



If you want to check out my other Gridfinity cases, you can find them at the links below:

1. Gridfinity Box For Stuff 20 bin (6U)

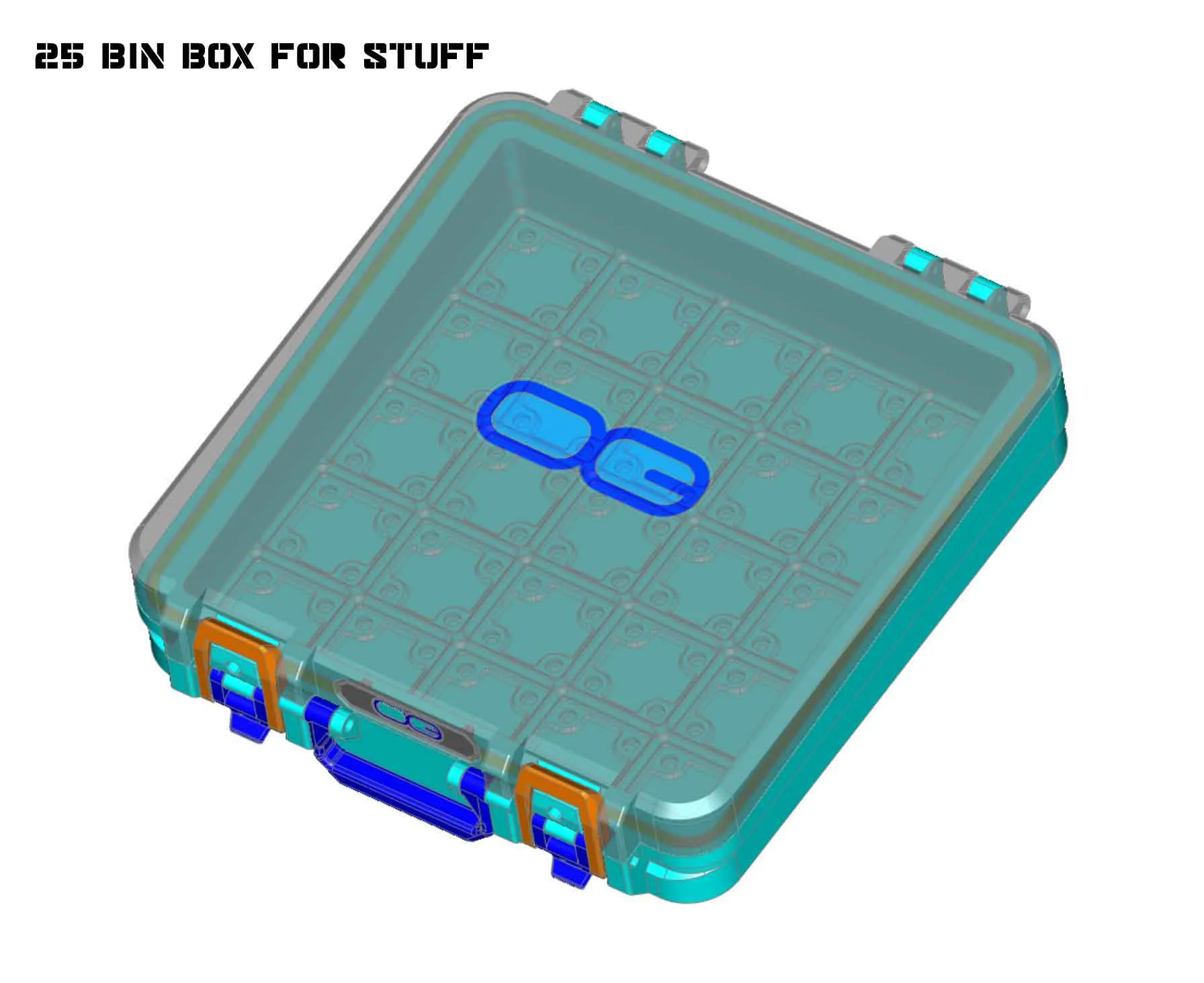

2. Gridfinity Box For Stuff 25 bin (6U) (max size for a Bambu X1C/P1S)
3. Gridfinity Box For Stuff 16 bin (6U) (Ender 3 size)
4. Gridfinity Box For Stuff 16 bin - 12U deep version (Ender 3 size)
5. Gridfinity Box For Stuff 2 bin (6U) (small test version)

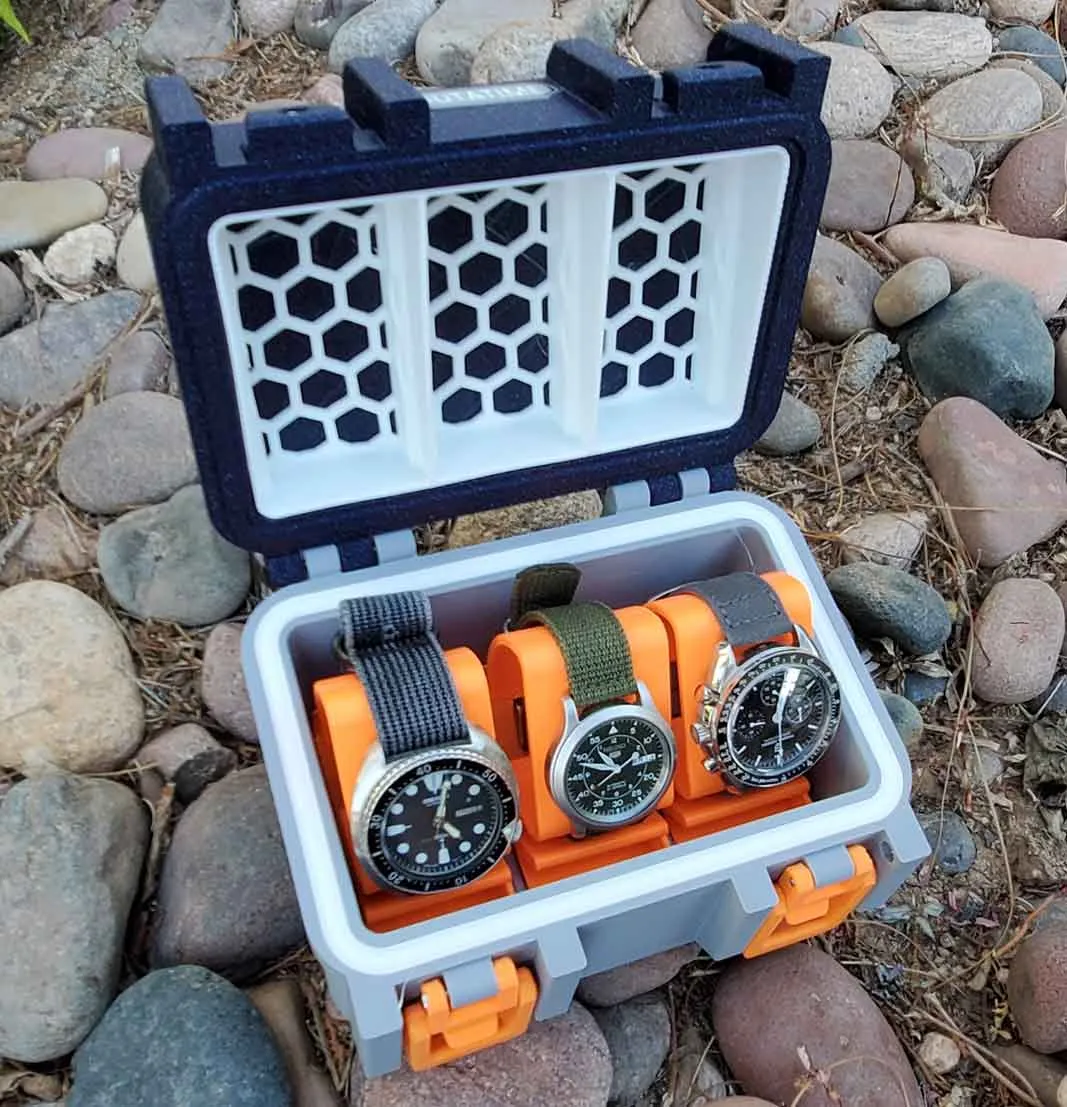

6. Gridfinity Single Watch Case
