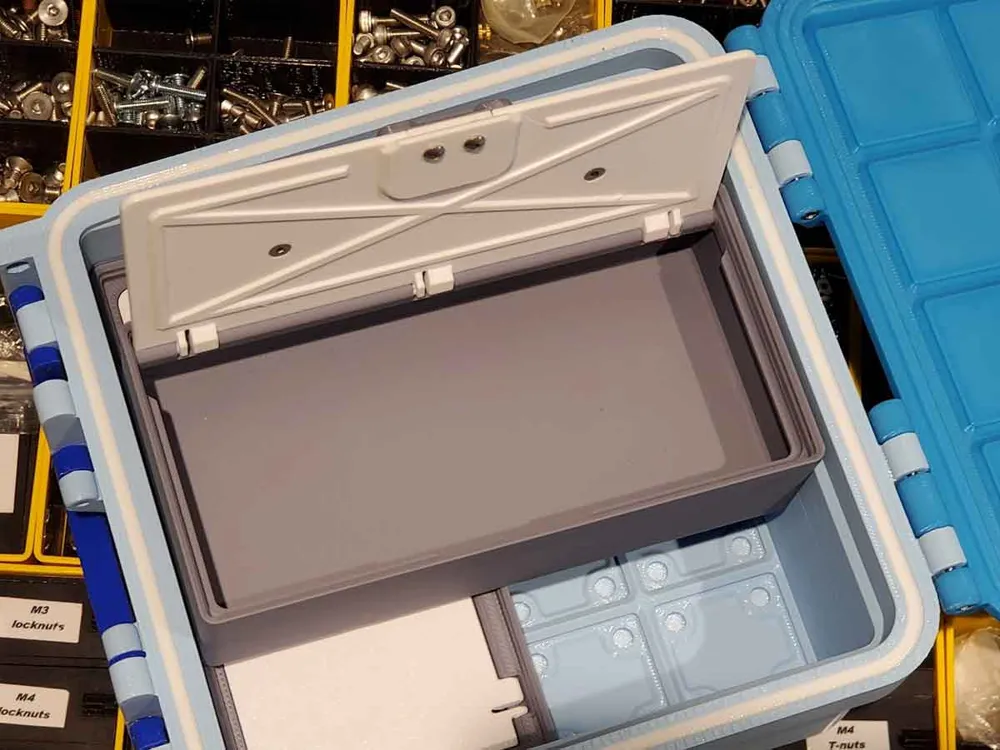

These are the latest version (v 2.0) of my lidded Gridfiniy bins, with several improvements over the 1st version.  These include the following improvements and new elements:

• Fully redesigned bins with a more efficient use of material
• Slightly larger opening for the doors
• New tab option for the sliding latches
• New grid option to allow stacking 1x1 bins on the larger 2x and 3x bin models.
• No supports needed (same as the v1.0 models)
• Additional bin sizes added

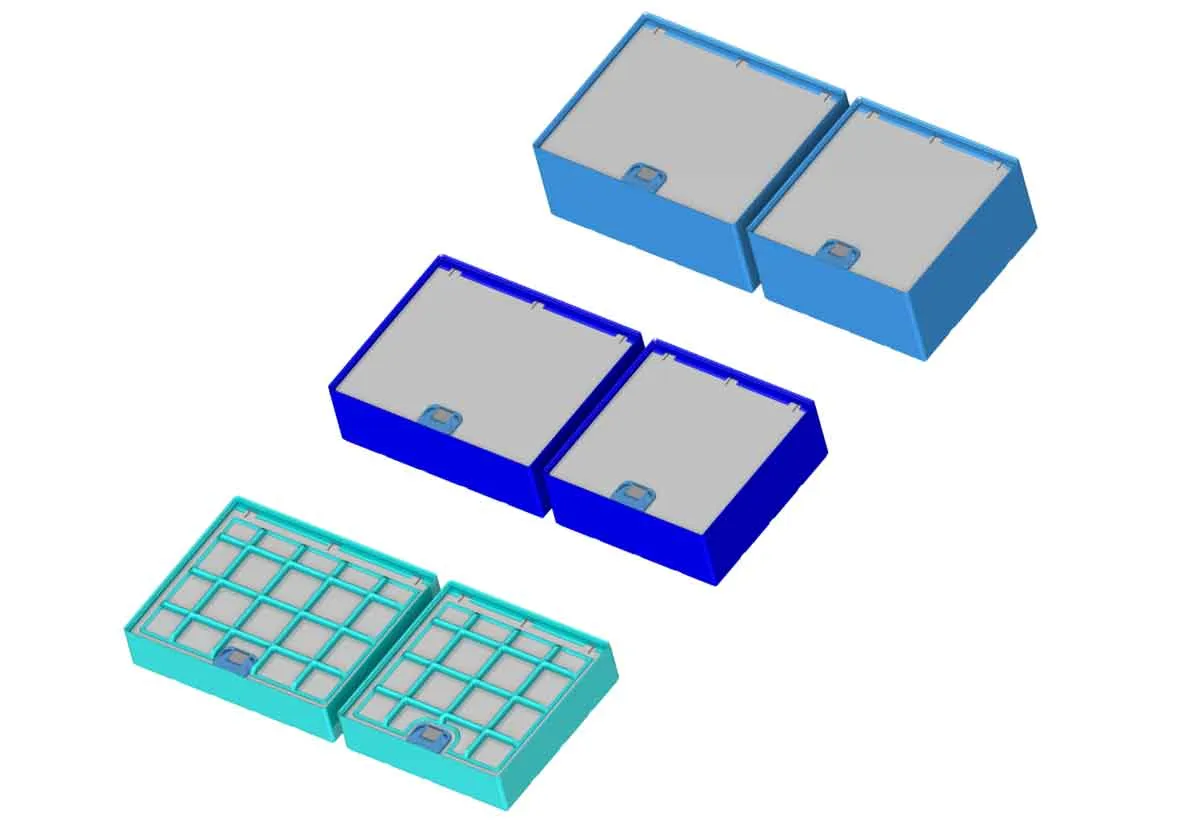

Included here are 6 types of Gridfinity bins with latching lids:

6U Bins:

• 2x2 6U
• 2x3 6U
• 2x4 6U

9U Bins:

• 2x2 9U
• 2x3 9U
• 2x4 9U

12U Bins:

• 2x2 12U
• 2x3 12U
• 2x4 12U

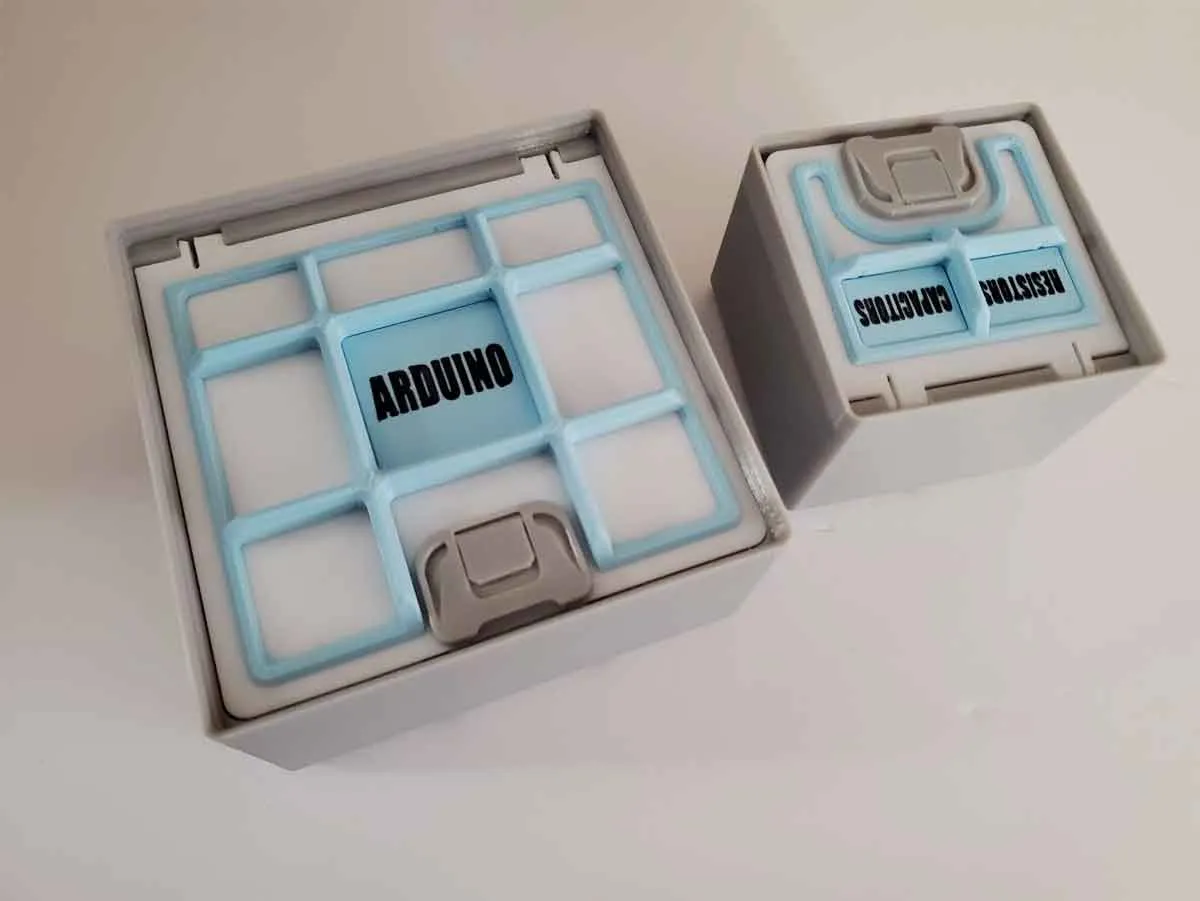

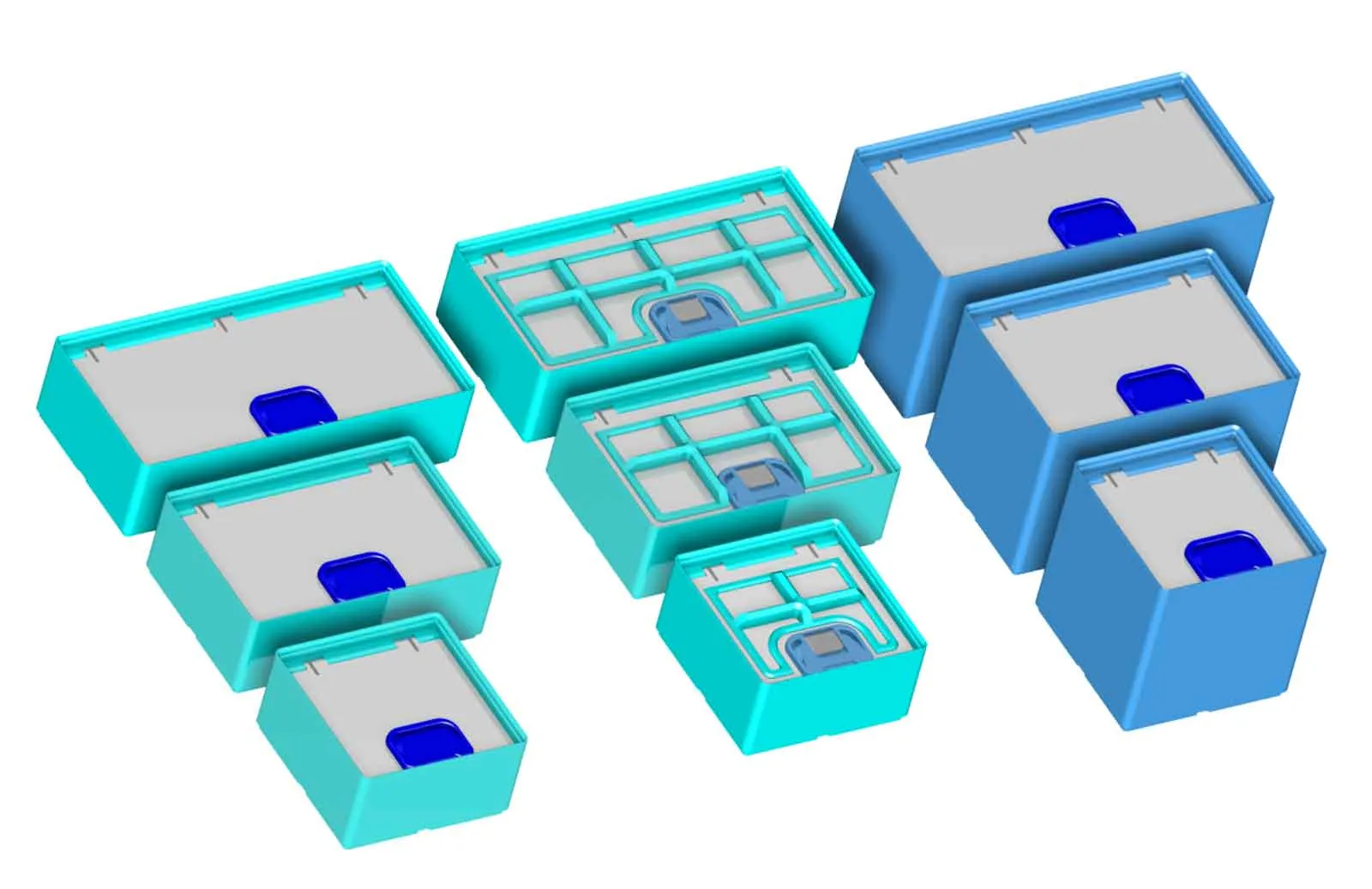

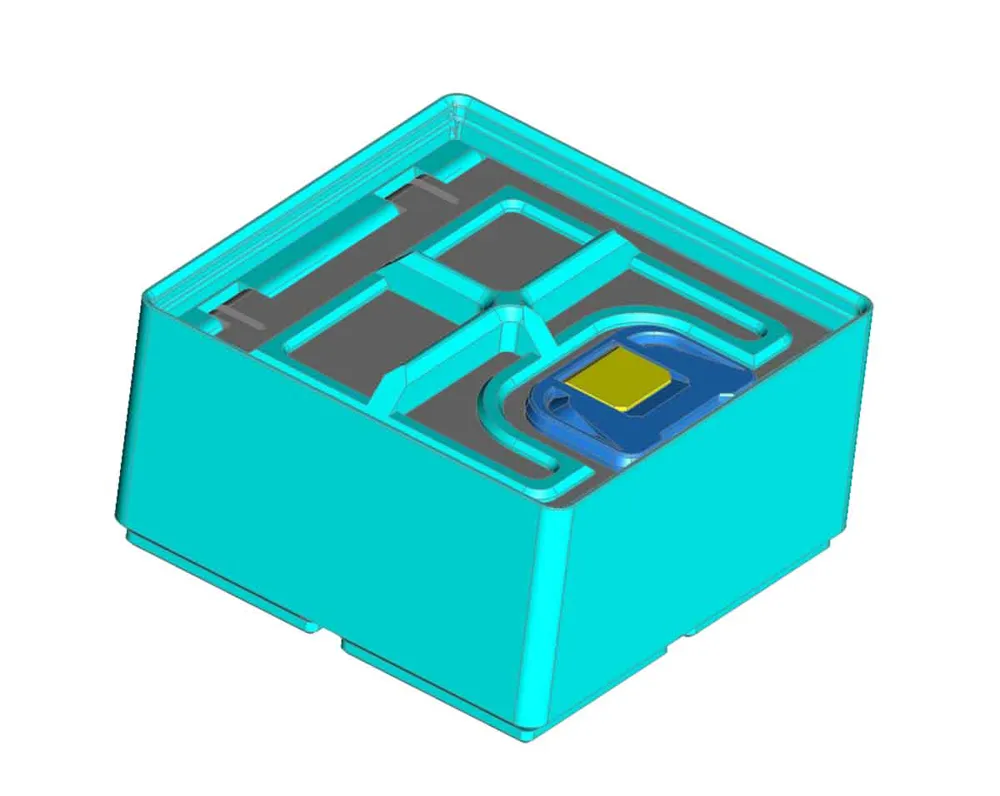

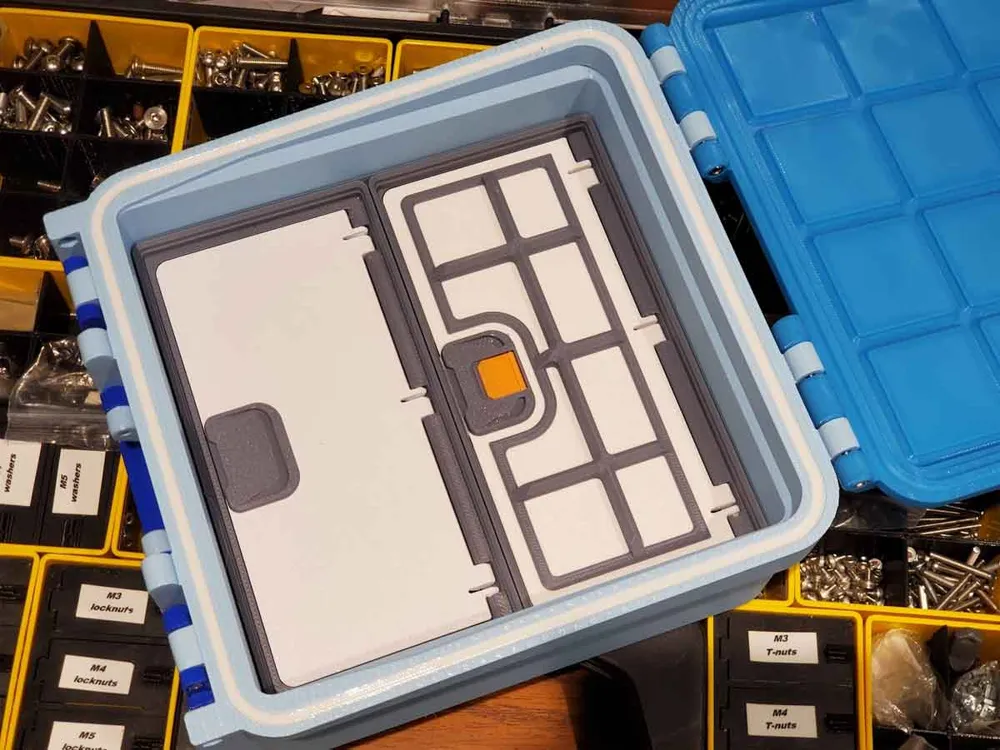

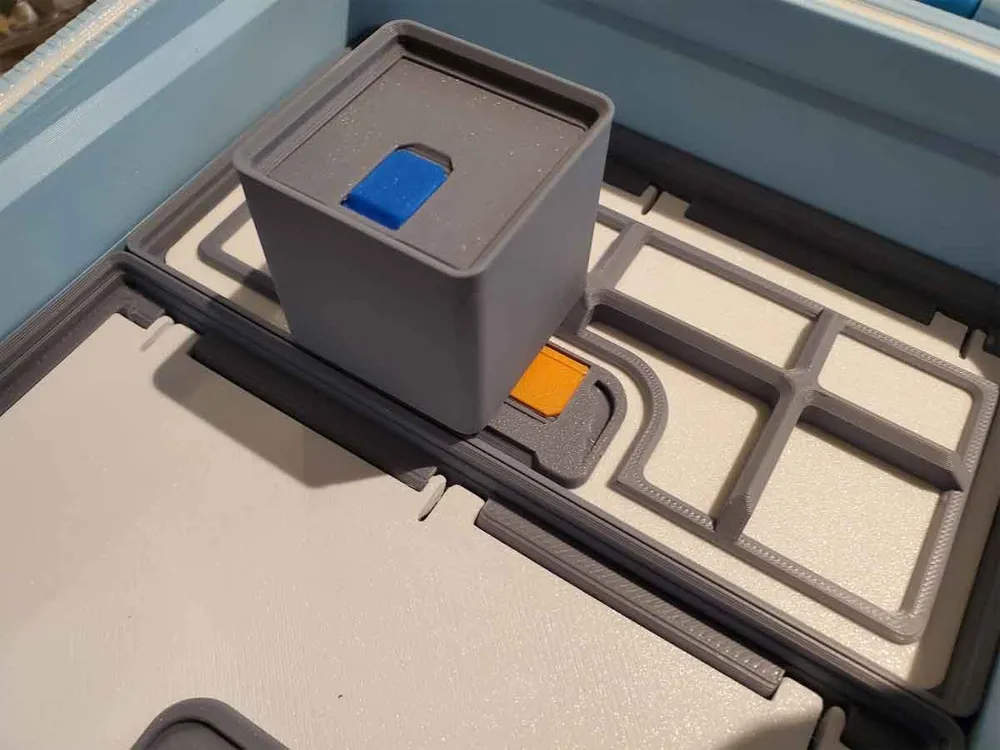

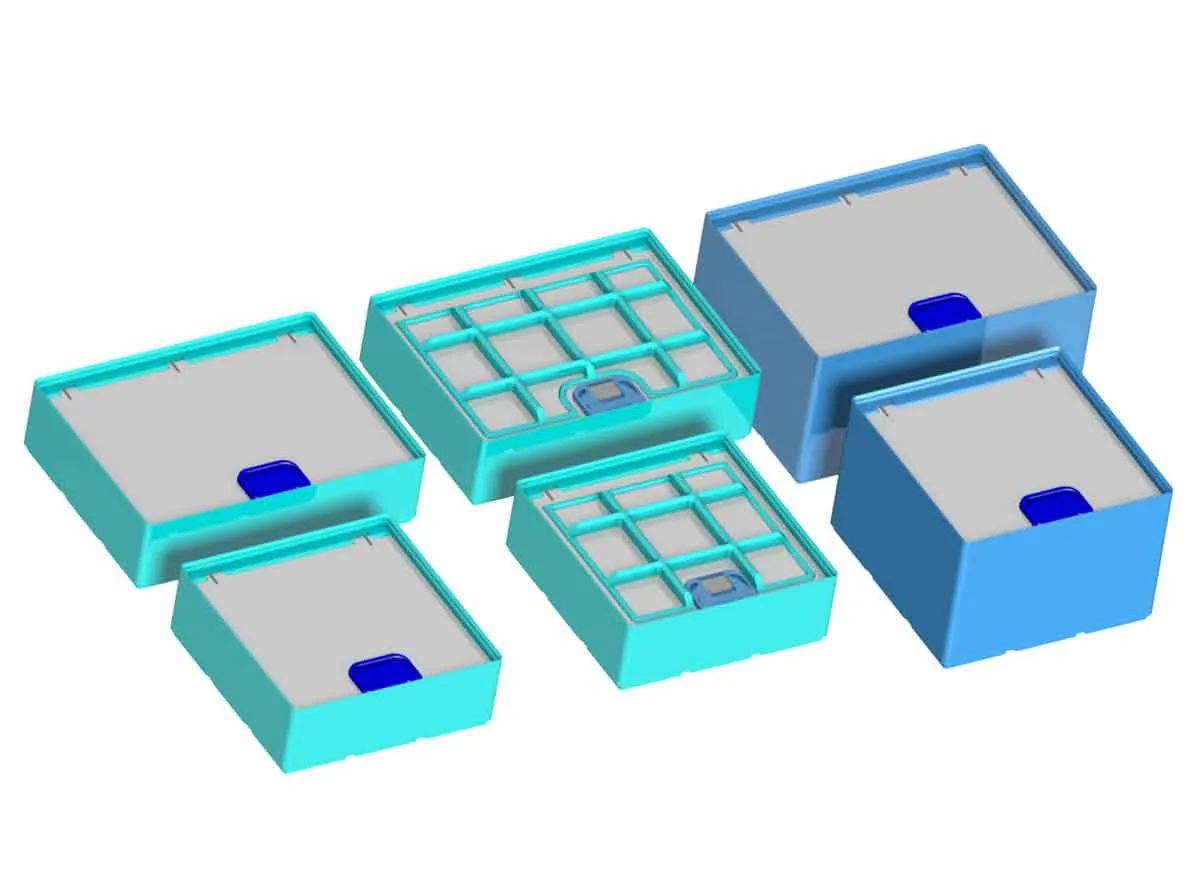

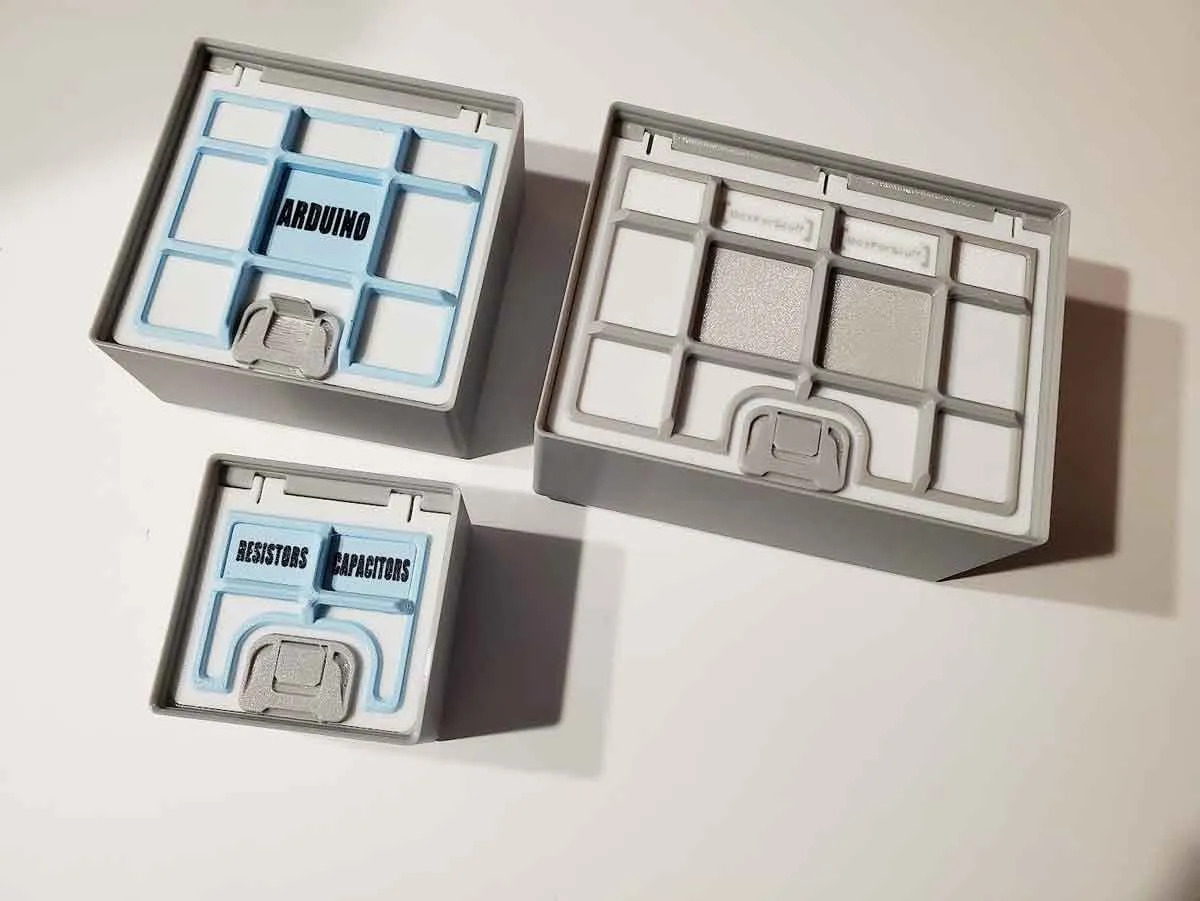

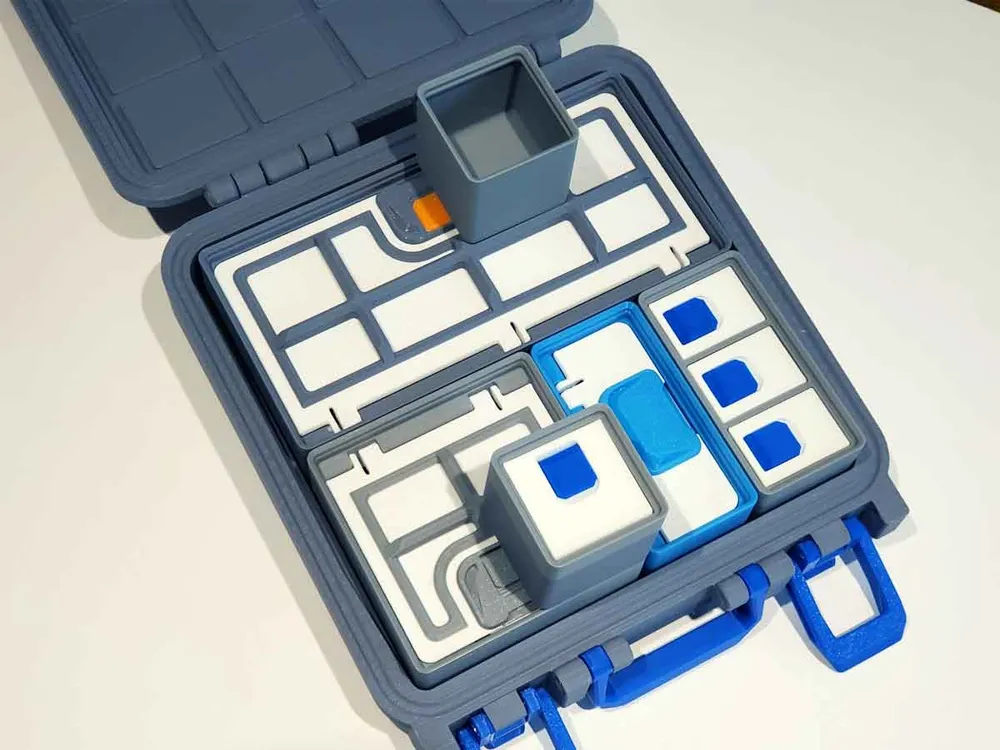

There are 2 options for the lids, one is a plain lid, and the other has a grid, which allows proper stacking for 1x1 bins on top of these bins.

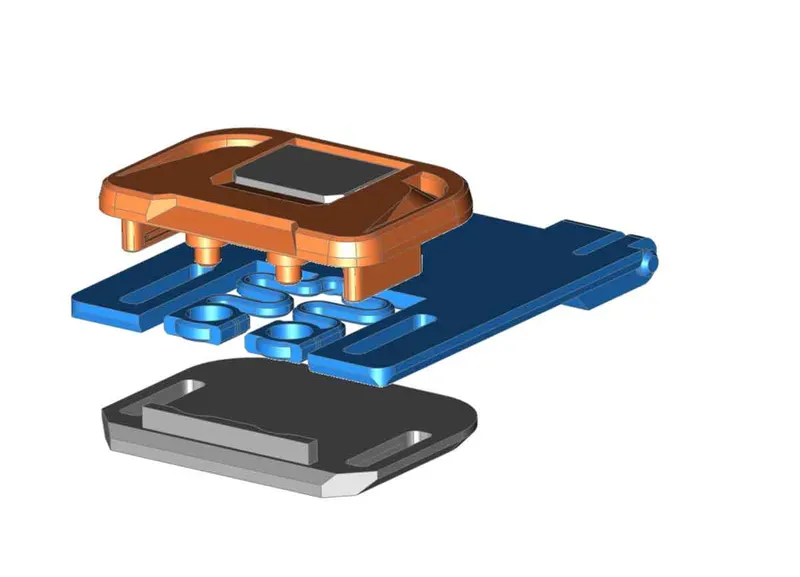

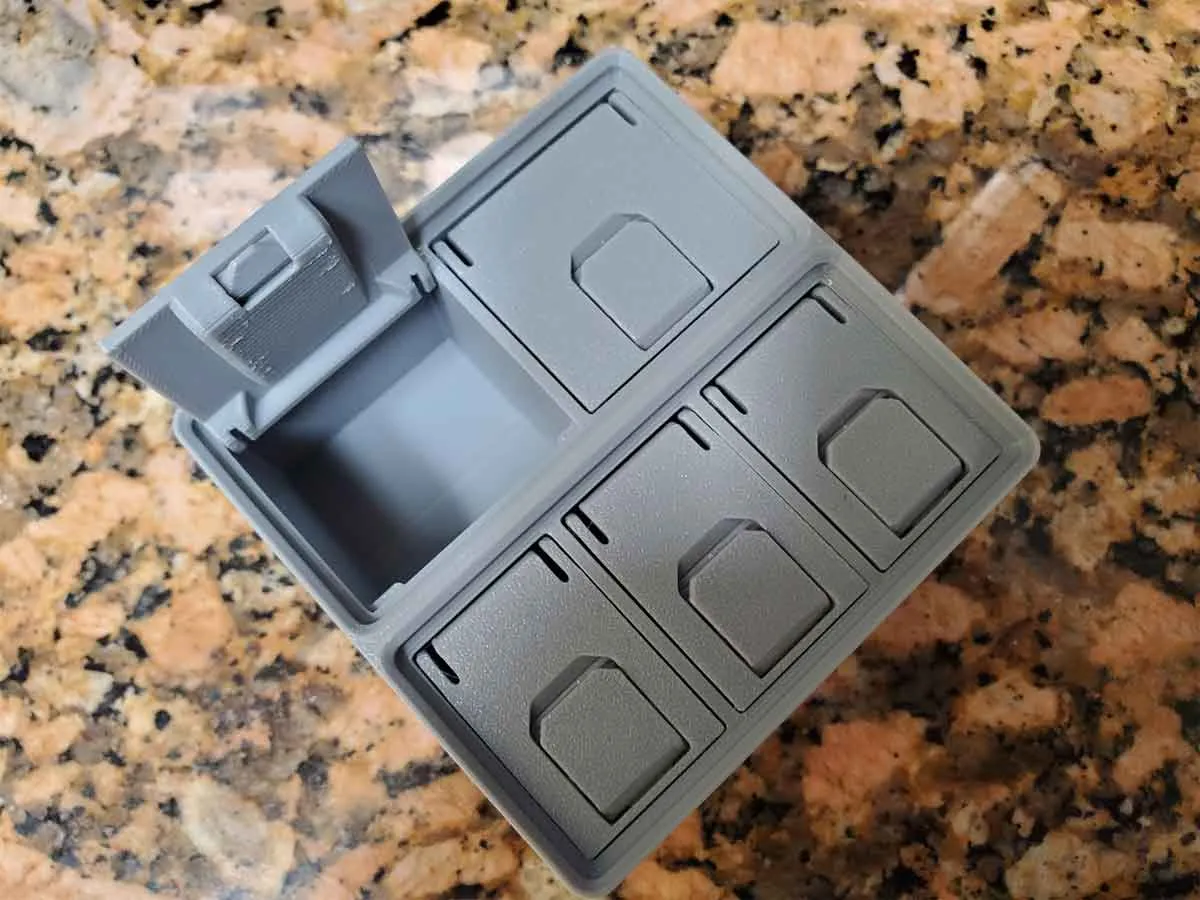

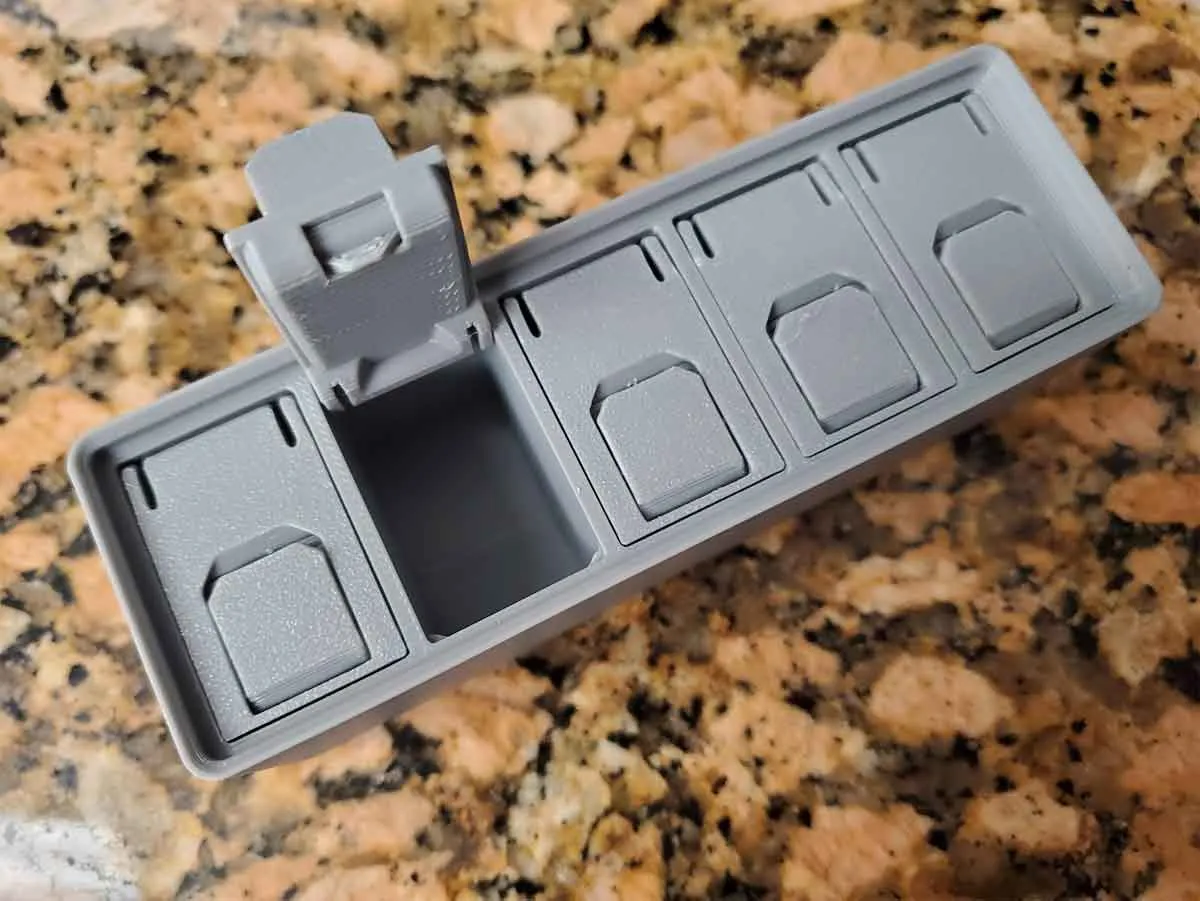

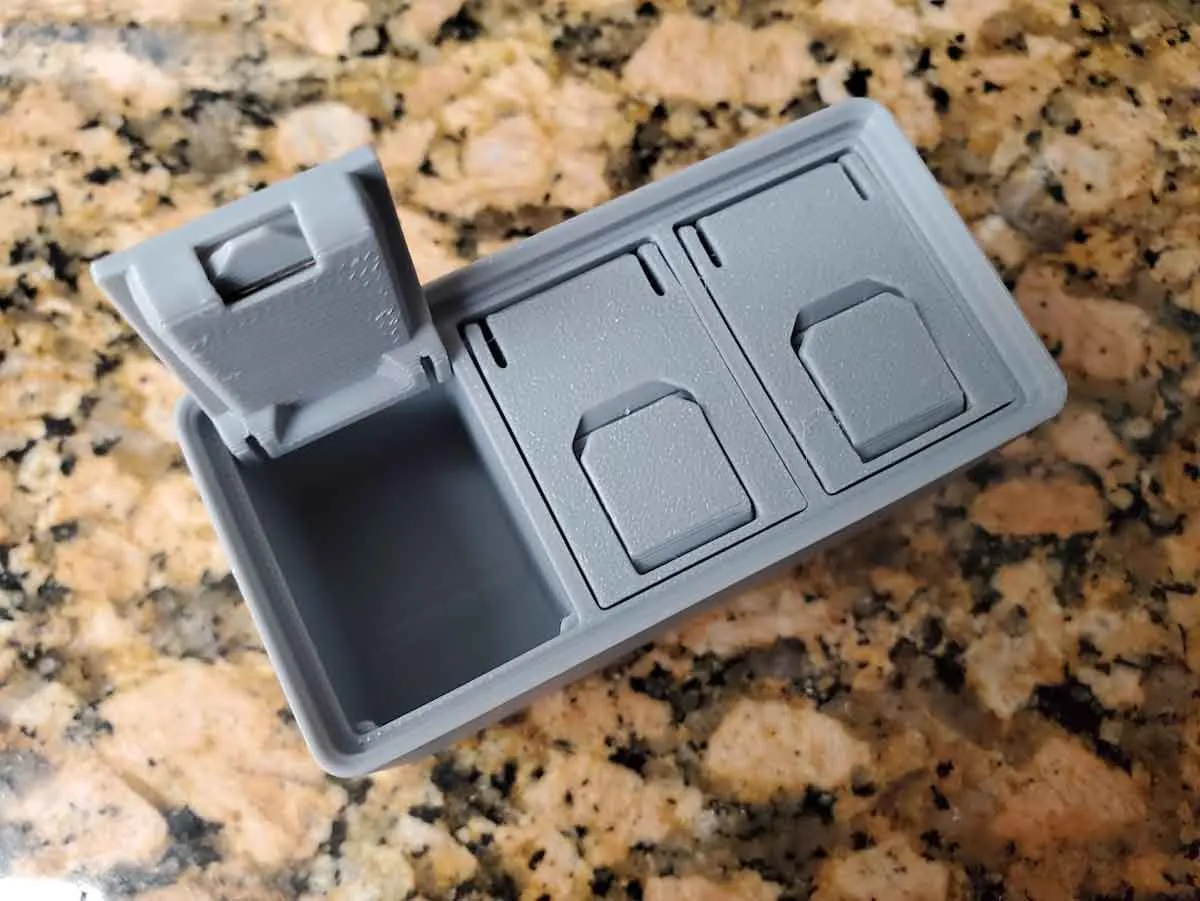

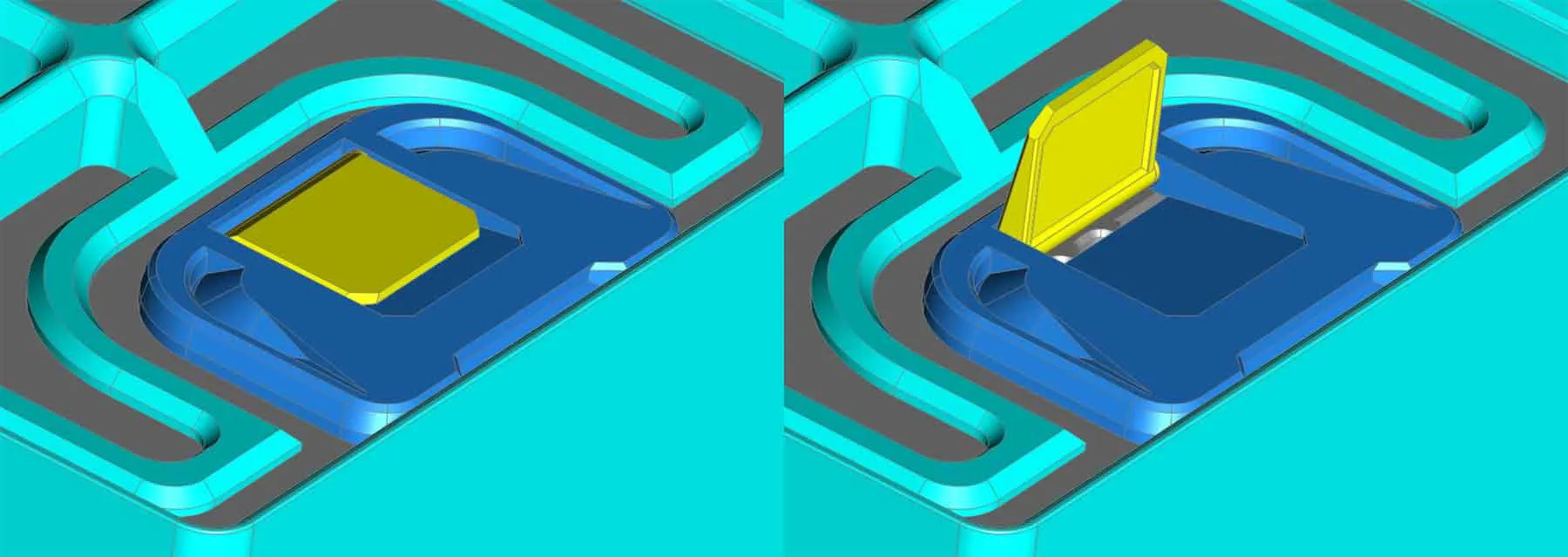

Additionally, there are two latch designs included.  One is a plain latch top, and the other has a flip up tab, which can help with opening the bins (see pics).

This design requires the following hardware:

(2) M3x6mm Button Head Cap Screws (BHCS) - or any M3x6 button head screws.

If using the lids with the Grid pattern, the following additional hardware is needed:

(2-3) M3x6 Flat Head Screws - M3x6 Button Head Cap Screws will also work.

Printing tips:

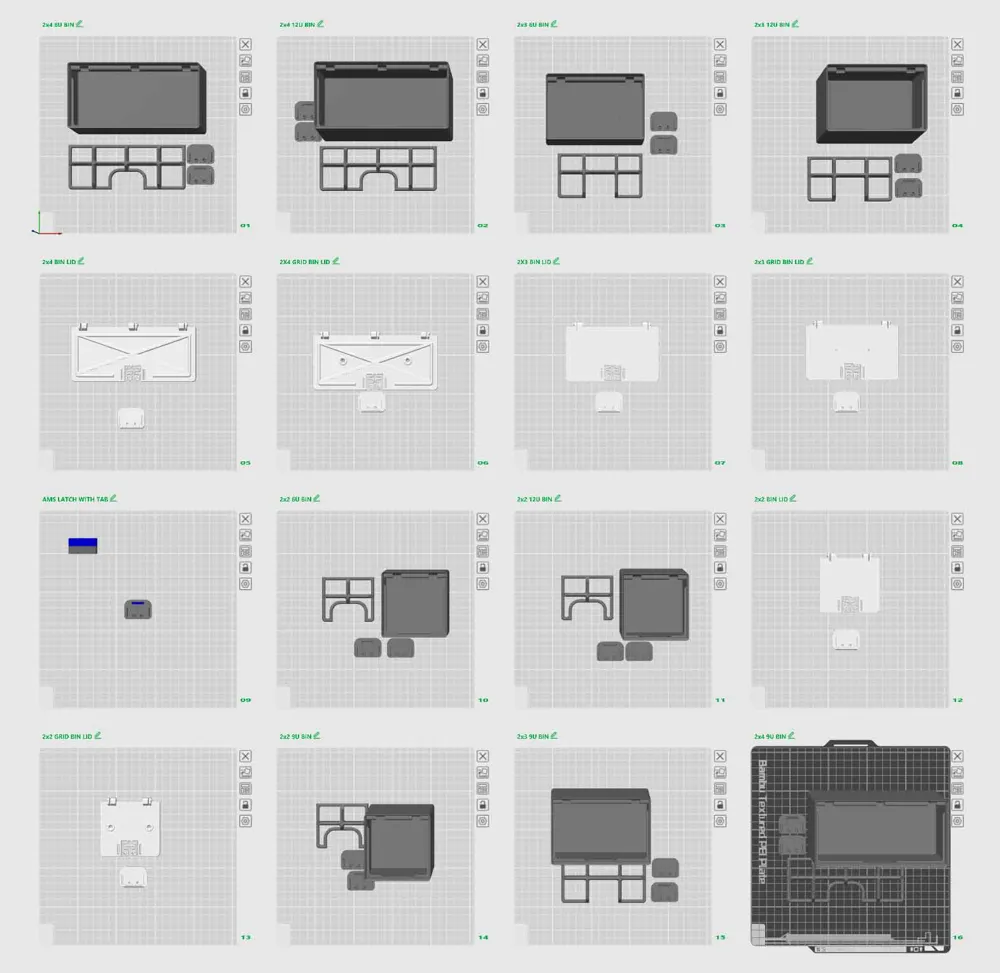

You can use the included 3MF which has all the models set up on 13 plates, including one multi-color option for the tabbed latches.  If you set the files up in your chosen slicer, then I suggest using the following settings:

• Arachne wall generator
• 15% gyroid infill.
• PLA for the bases and PETG for the LID, since it has an integrated spring.

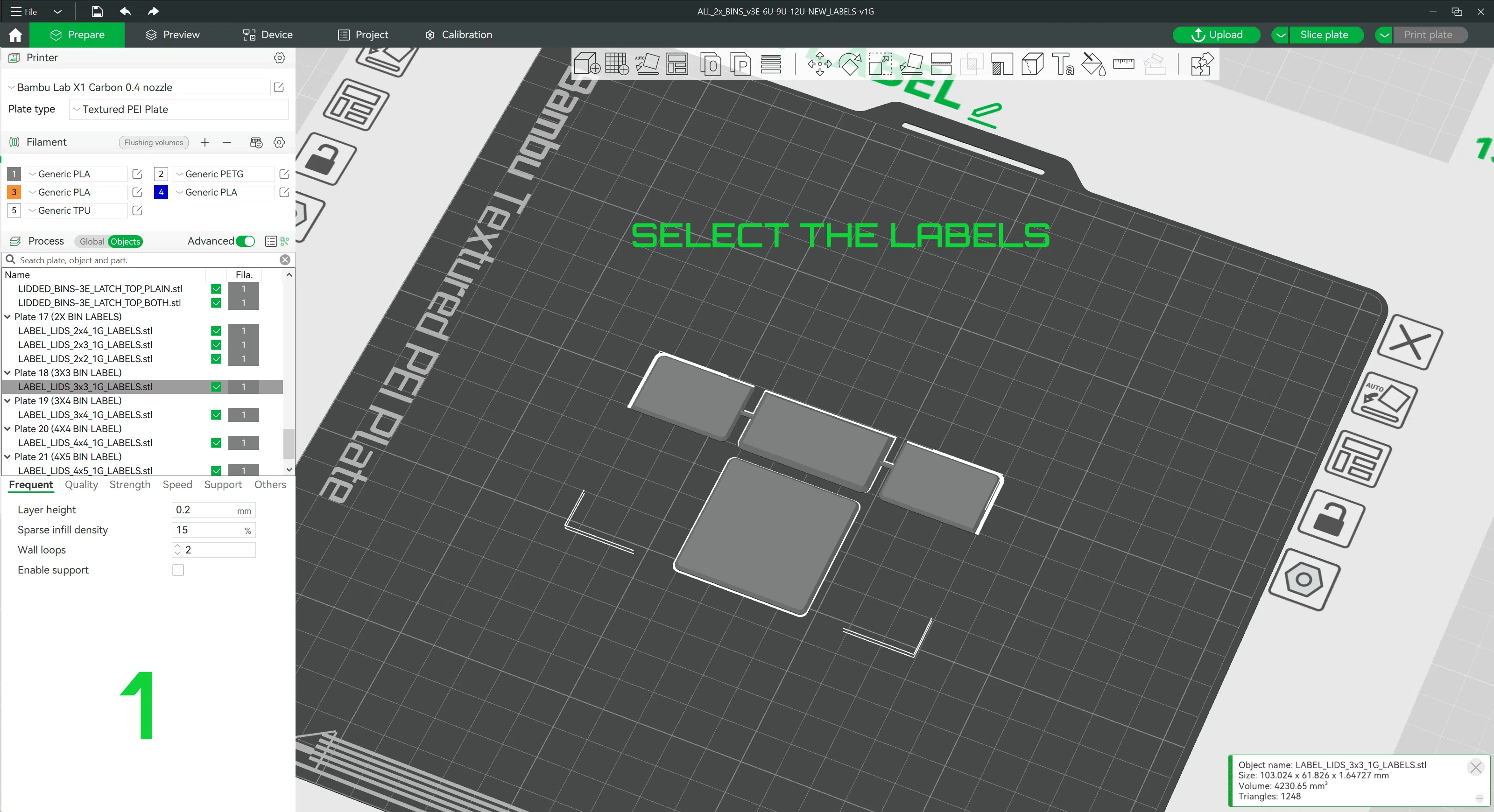

• I used a textured PEI plate, but if you plan to use P-Touch labels, a smooth plate may work better.

If you print the lids with the grids (to allow stacking 1x1 bins), use the models which have “LID_GRID” in the names.  For example, these are the models needed for the 2x3 bins:

LIDDED_BINS-3E_2X3_LID_GRID_A.STL

LIDDED_BINS-3E_2X3_LID_GRID_B.STL

The lids with the grid patterns require the additional M3x6 flat head screws.  A couple drops of superglue is also a good idea to bond the grids to the lids.

If you print the tabbed latch tops, I recommend using PLA.  You can use the following files:

Single Color:

LIDDED_BINS-3E_LATCH_TOP_BOTH.STL

Multicolor (load both files together in the slicer to maintain their relationship and answer “yes” to load them as a single object):

LIDDED_BINS-3E_LATCH_TOP_A.STL

LIDDED_BINS-3E_LATCH_TOP_B.STL

Assembly:

Assembly tips can be found in “Step 6” at the link below:

https://www.mystoopidstuff.com/bambu-spares-box-build-guide.html

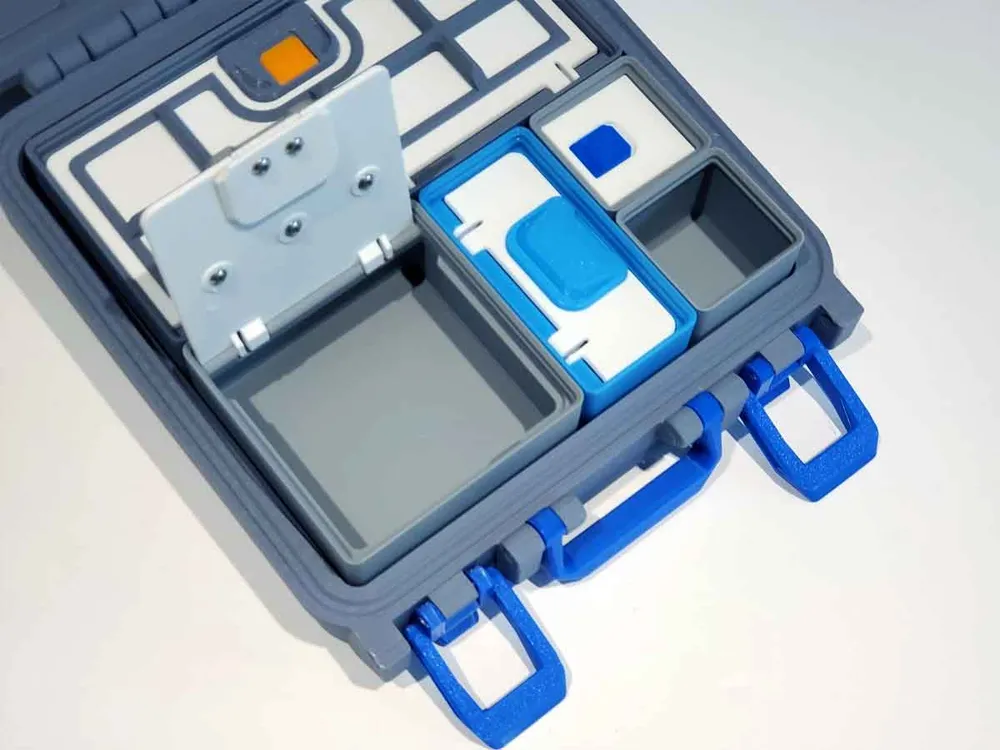

The doors and hinges are designed so they will be easier to install if the hinges are pushed into place with the door almost closed.

Other stuff:

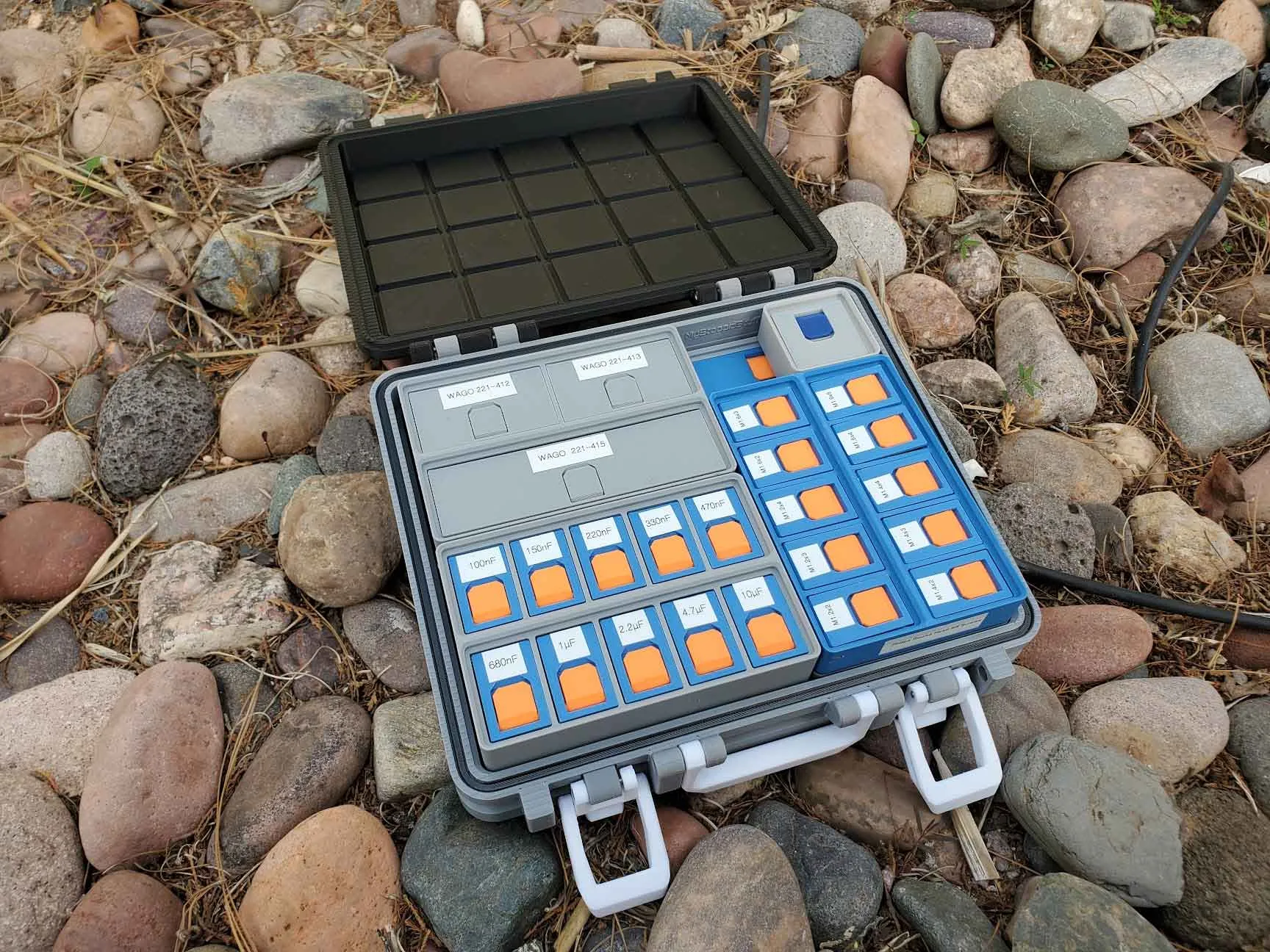

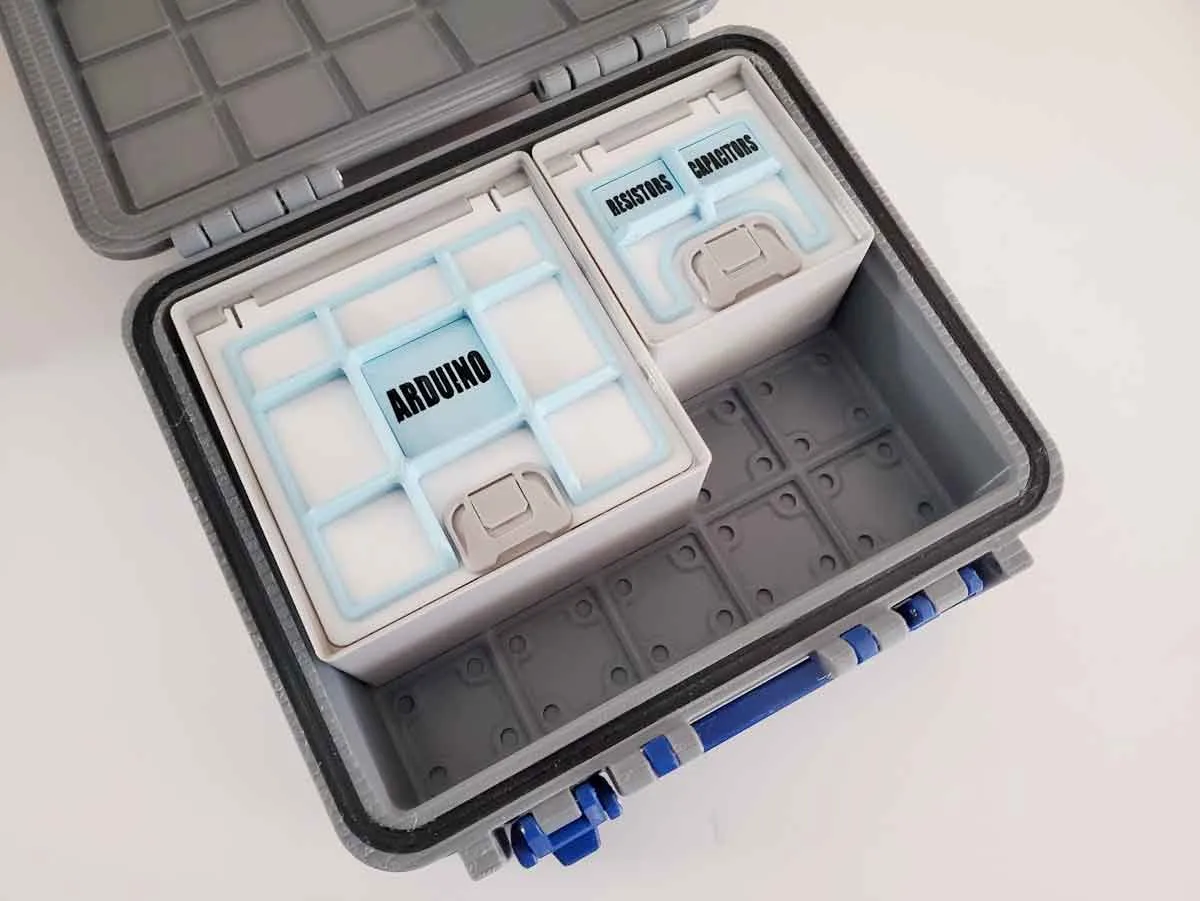

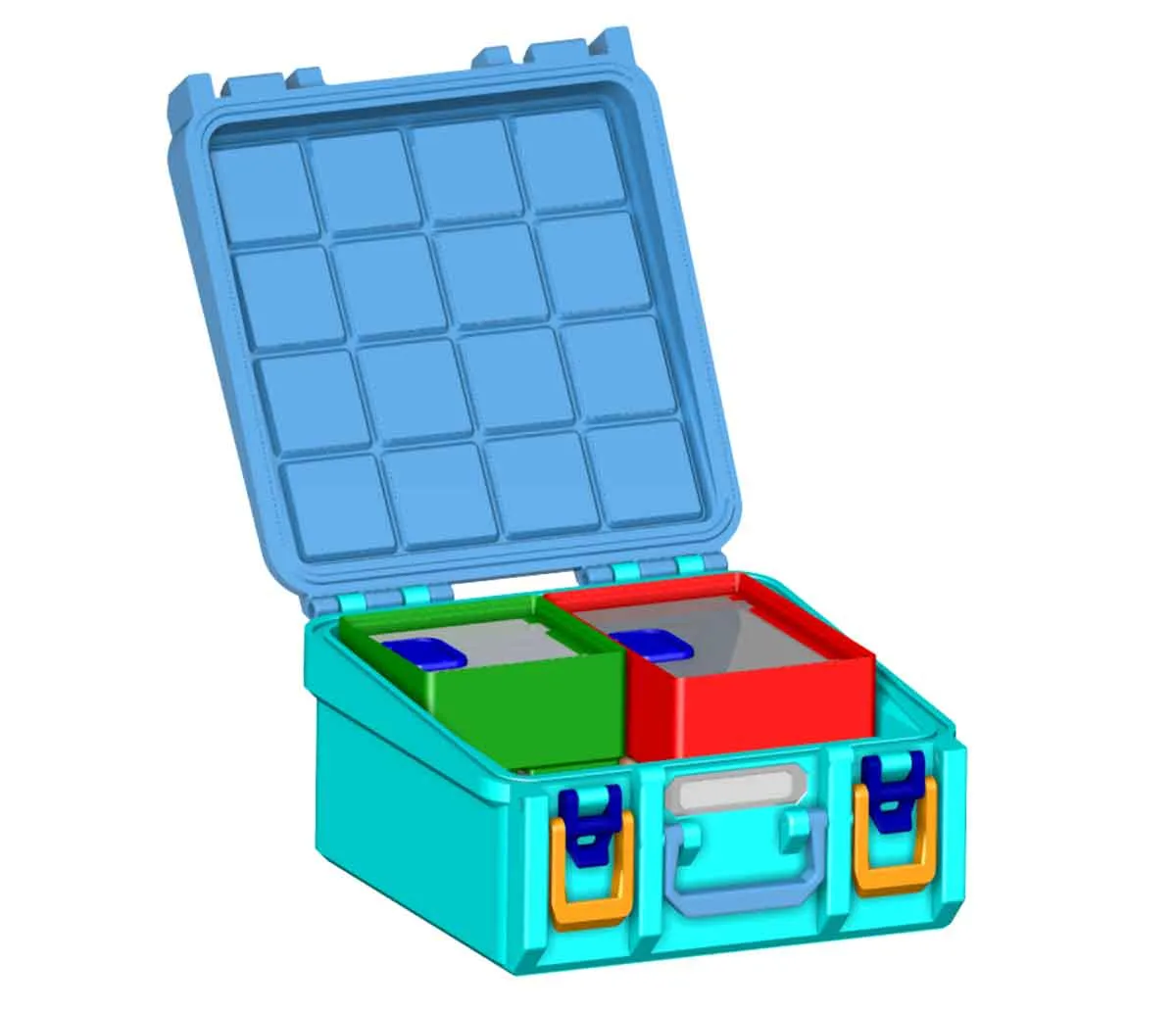

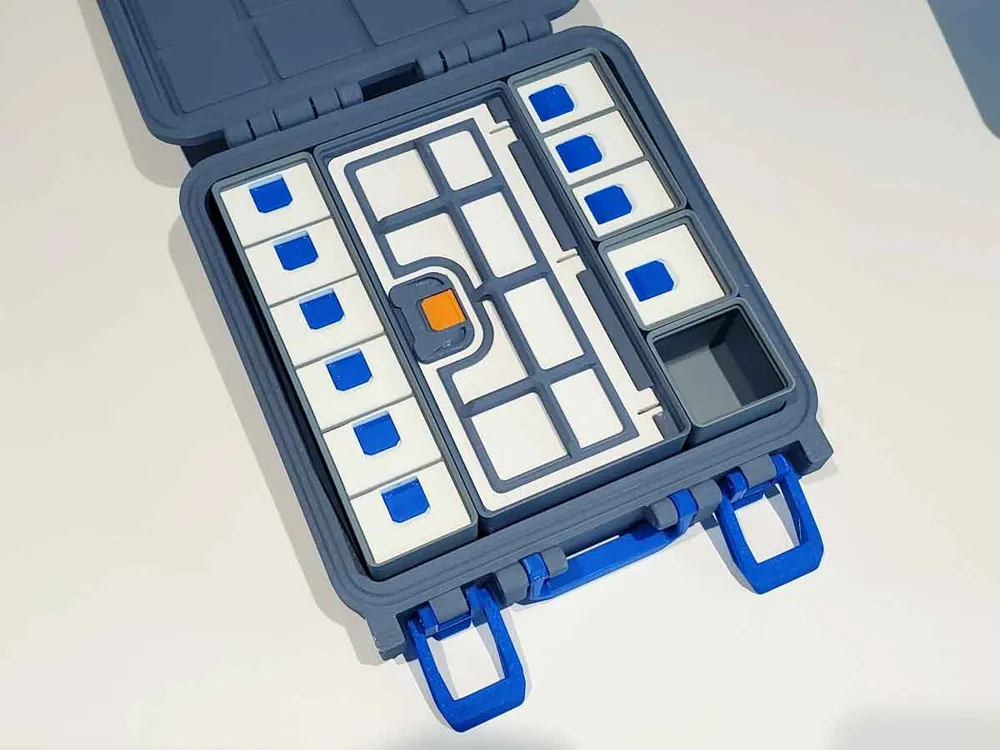

If you need some bins for small parts, the following bins with covers are a good option to use with the Box For Stuff 20 bin and 25 bin cases (or other 6U tall cases):

1. 1 compartment 2x1 (3U, 6U, 9U) bin with a magnet pickup tool

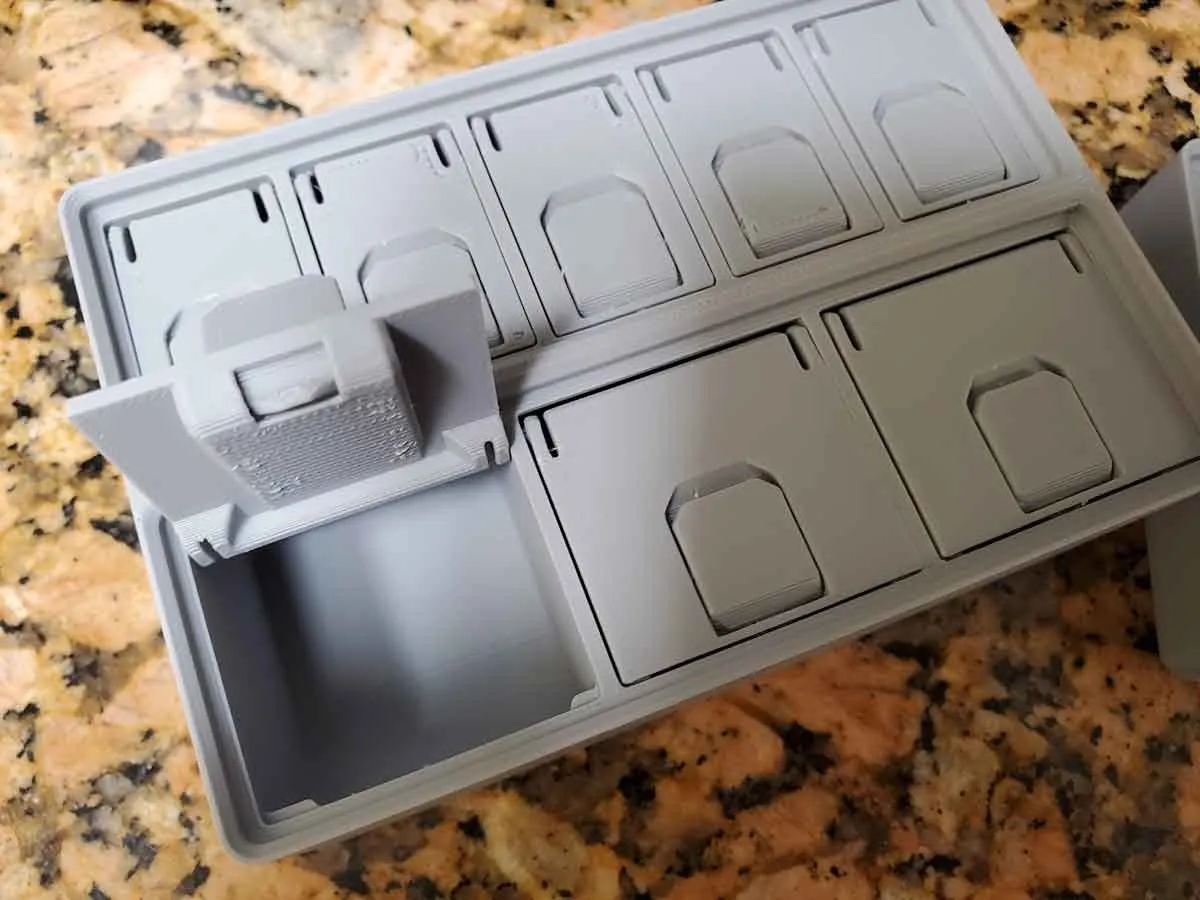

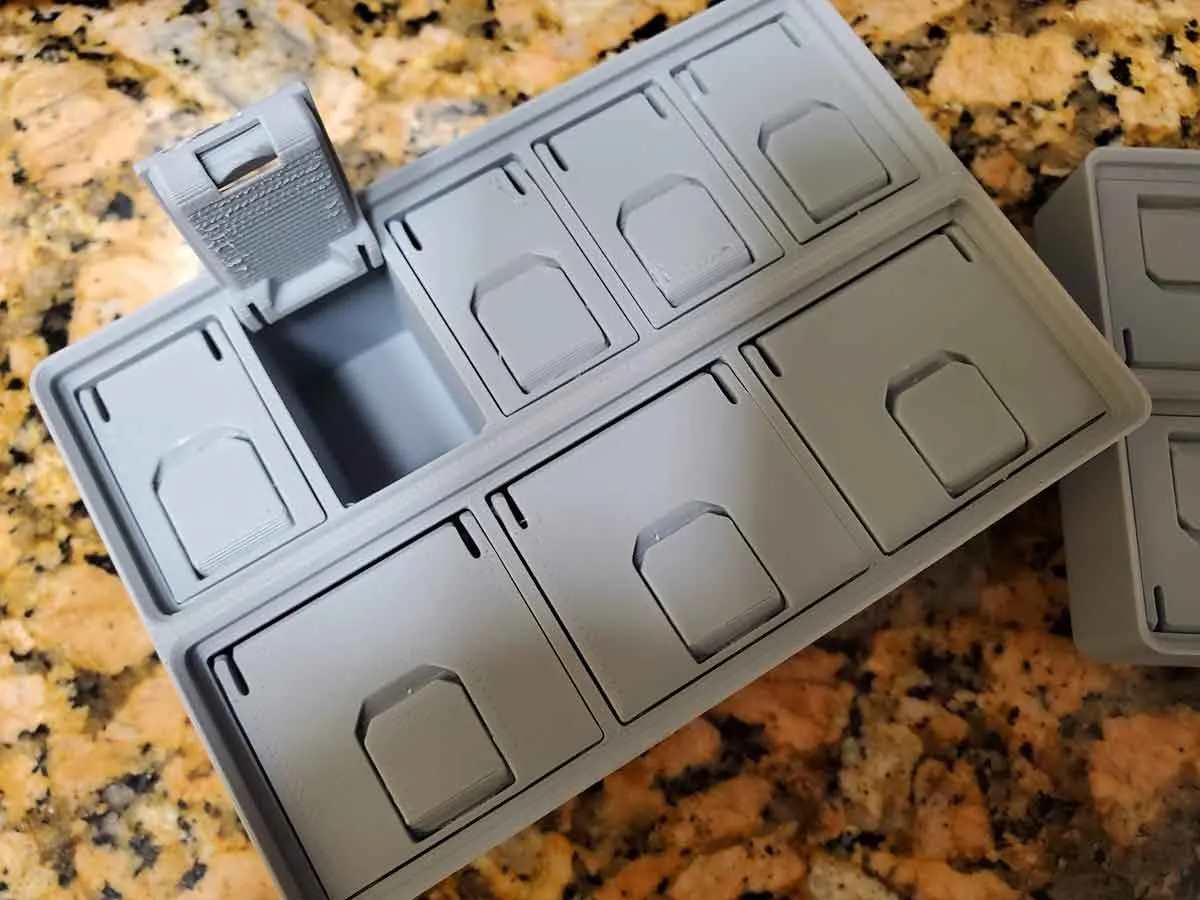

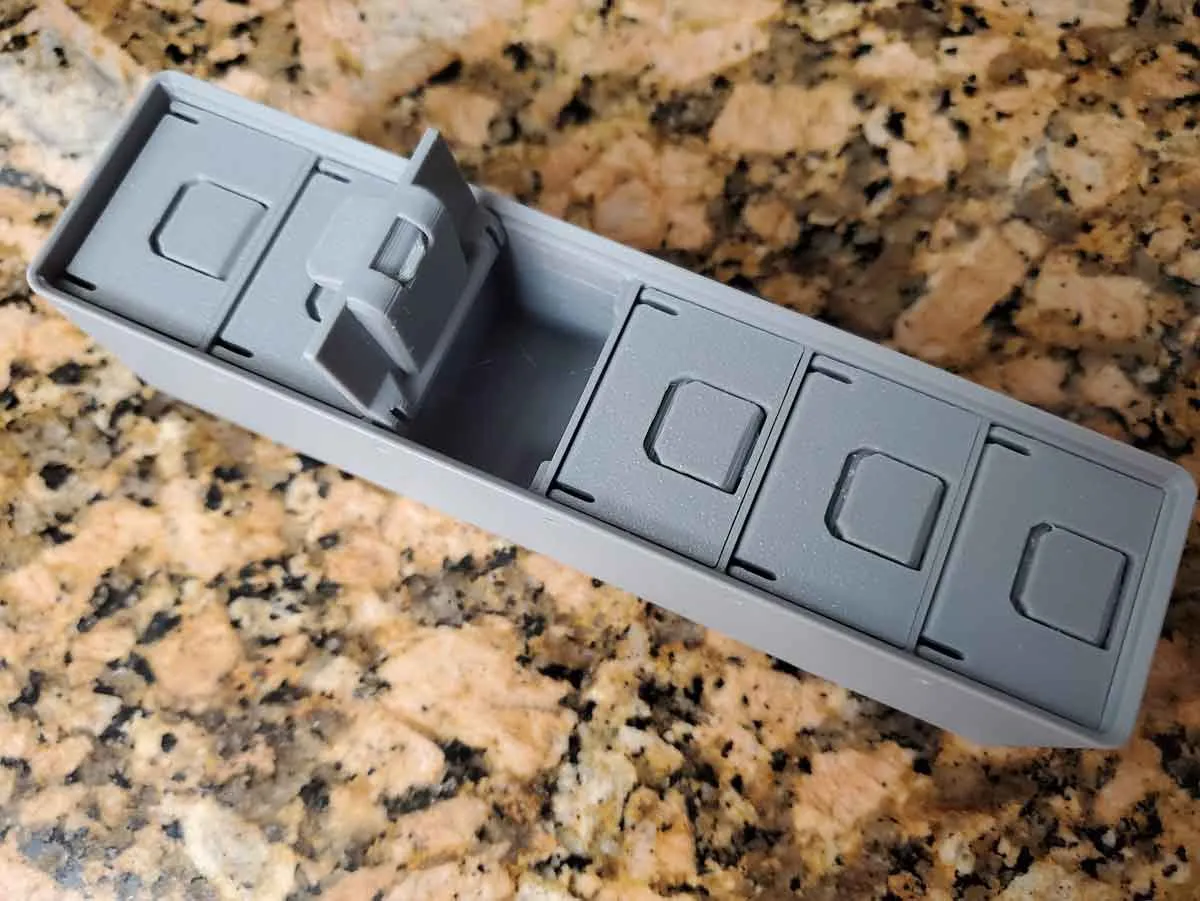

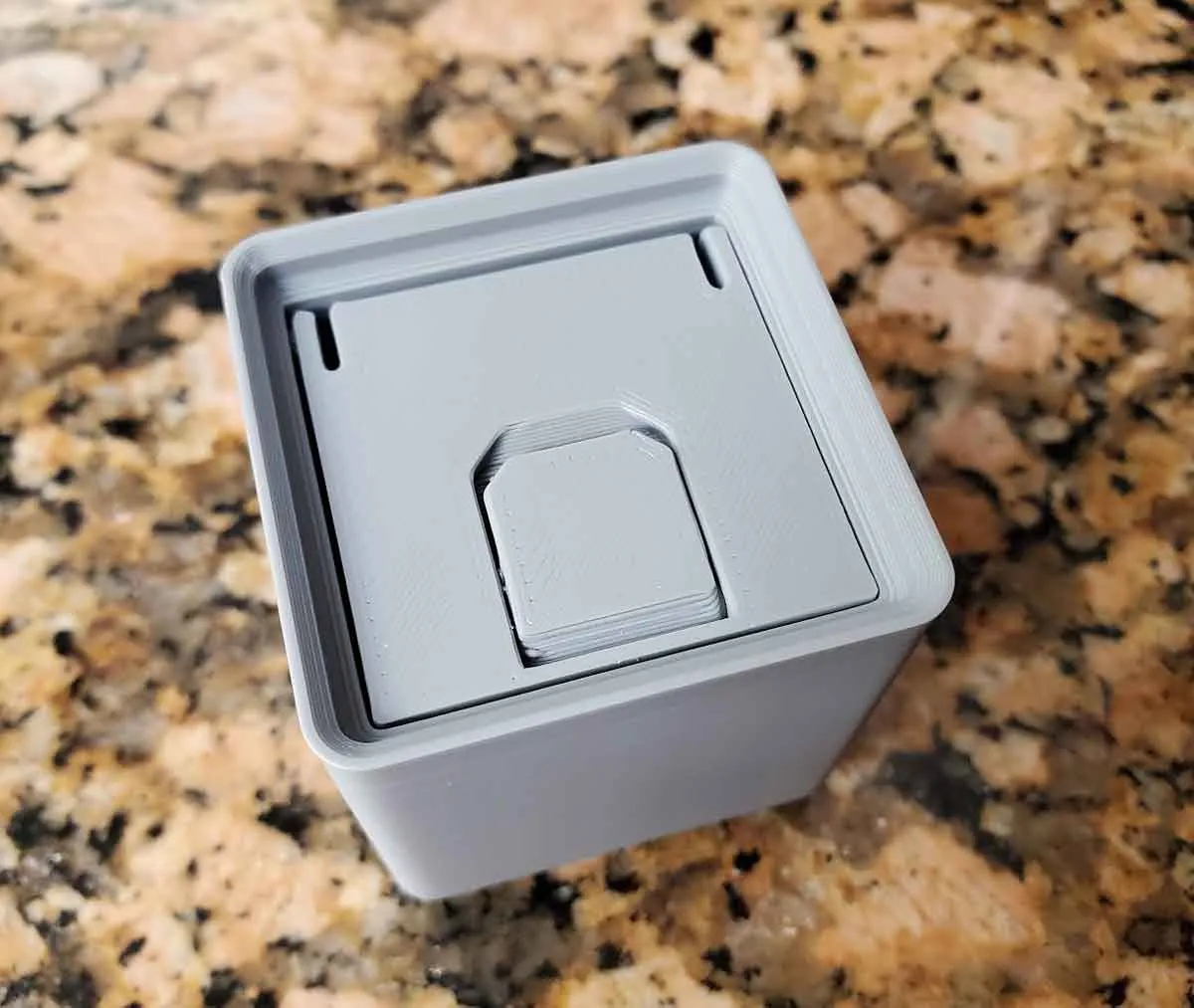

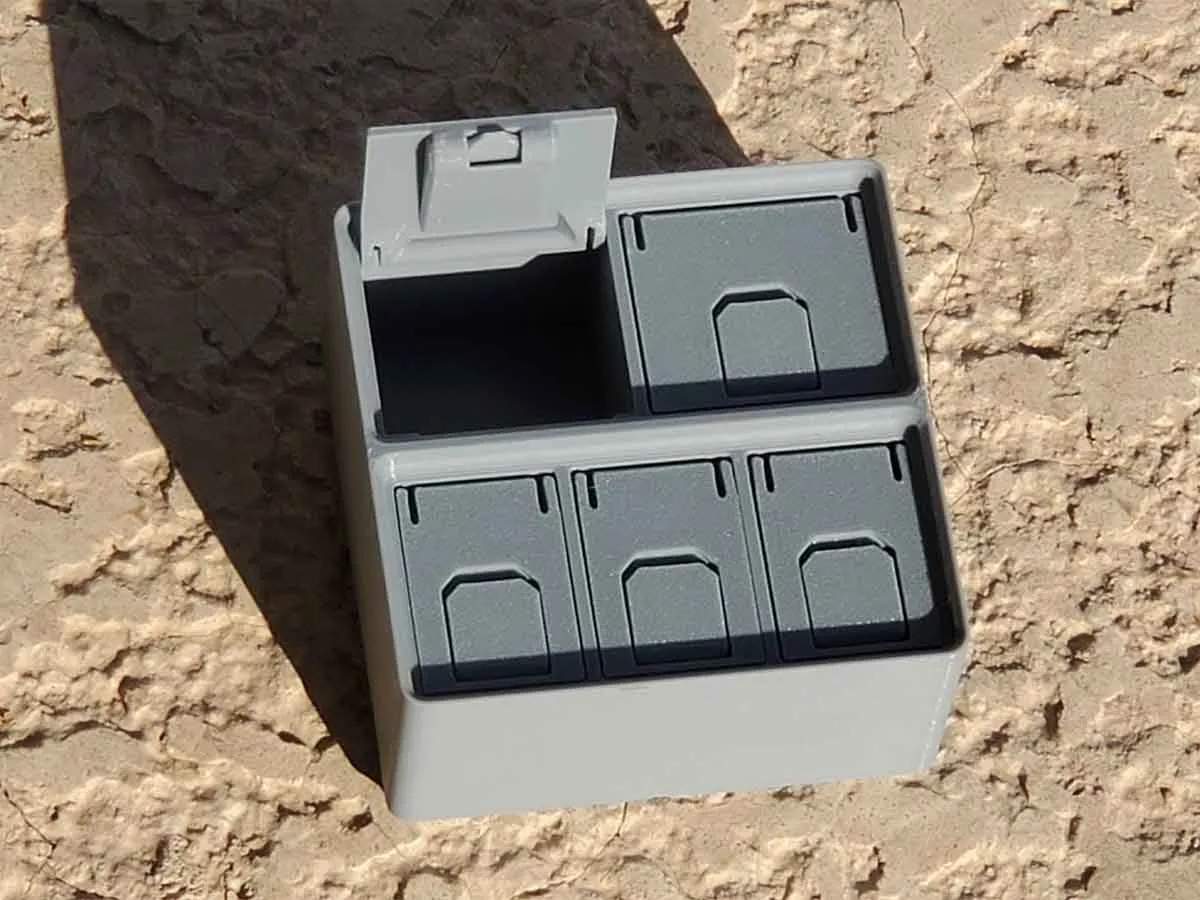

2. 1x1, 1x2 (3 Compartment) and 1x4 (6Compartment) bins with lids (6U) - version 2.1

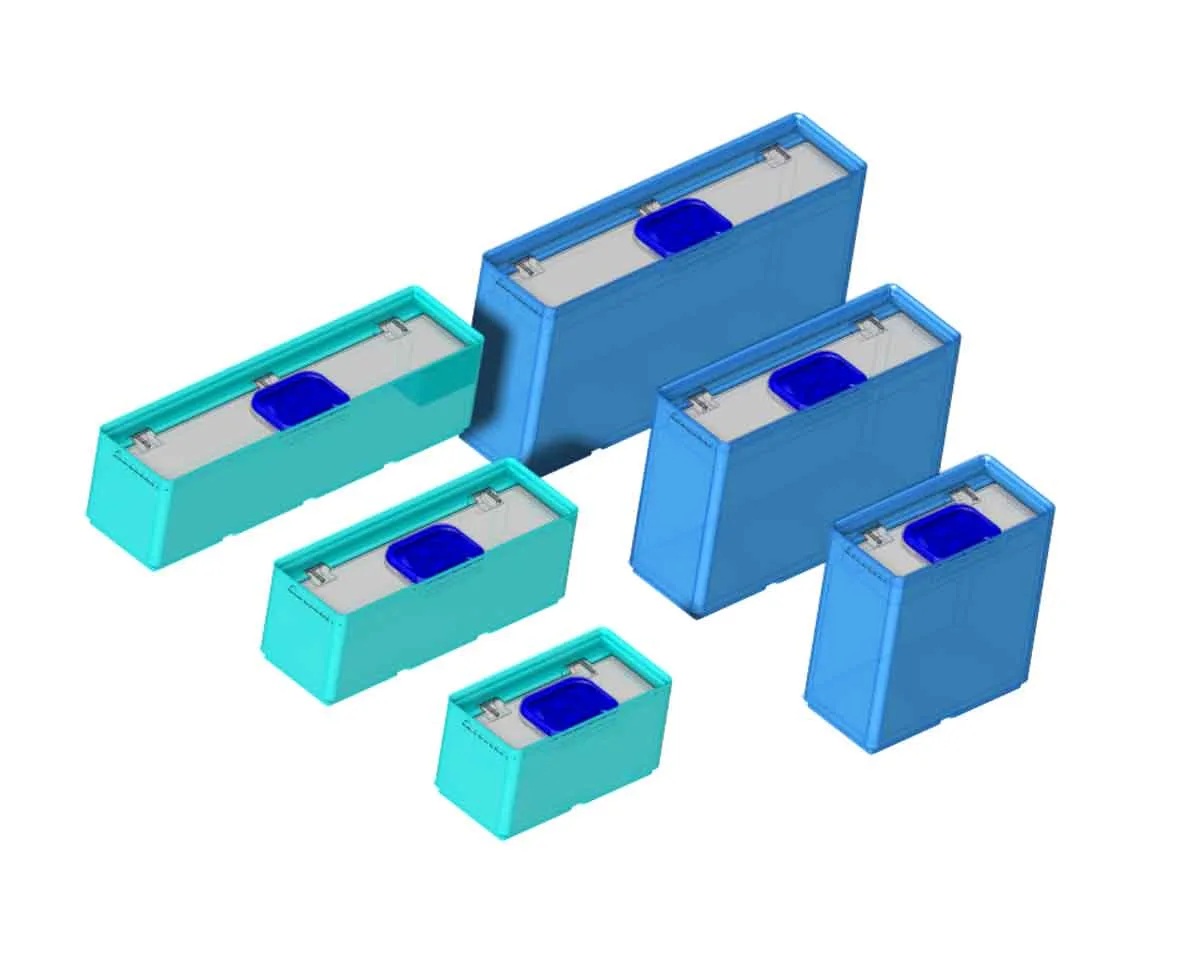

3. 1x2, 1x3, 1x4 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
4. 2x2, 2x3, 2x4 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0
5. 3x3, 3x4 (6U, 9U  and 12U) Lidded Bin for Stuff with Latch Version 2.0
6. 4x4, 4x5 (6U, 9U and 12U) Lidded Bin for Stuff with Latch Version 2.0

If you want to check out my other Gridfinity cases, you can find them at the links below:

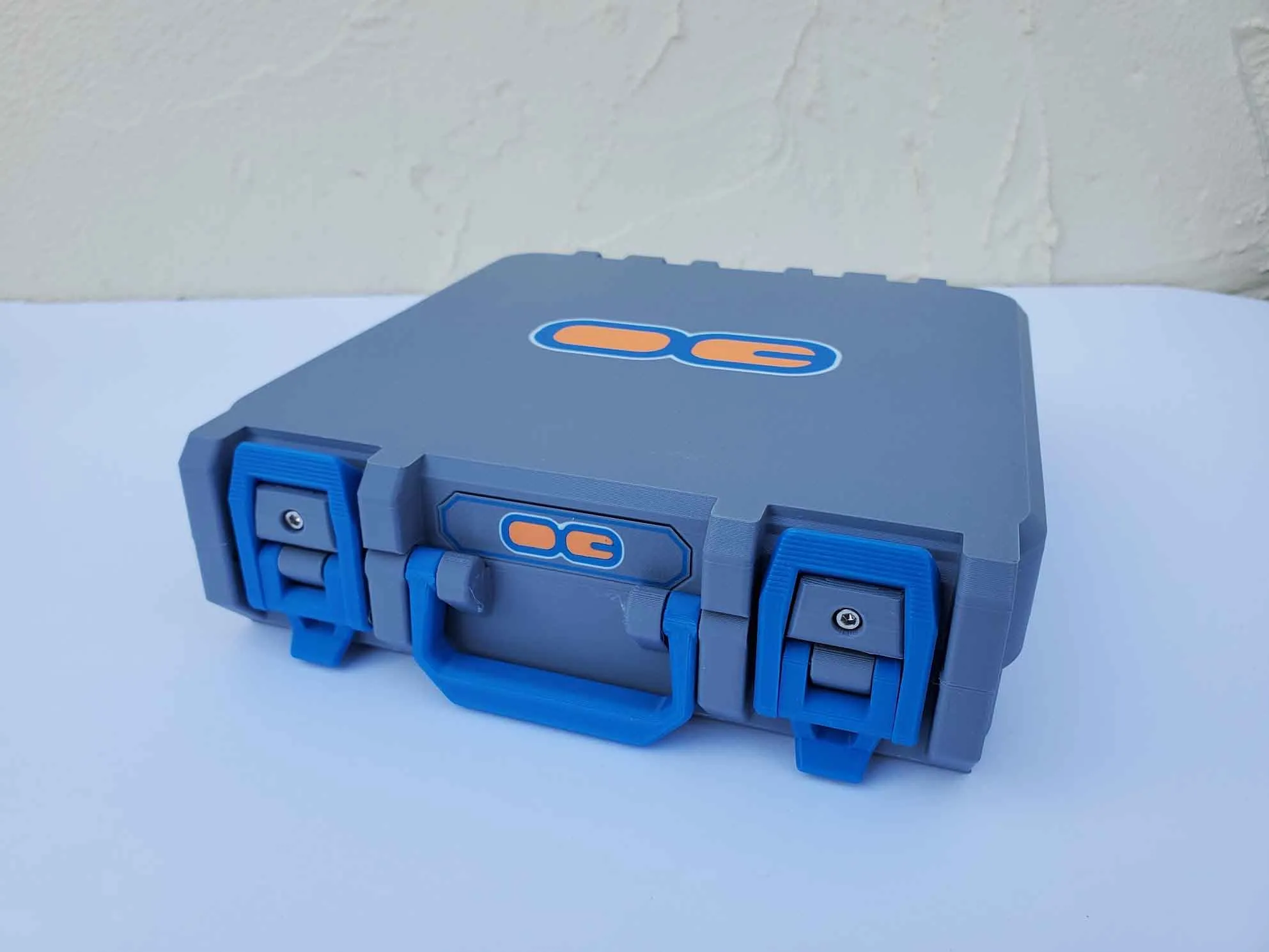

1. Gridfinity Box For Stuff 20 bin (6U)

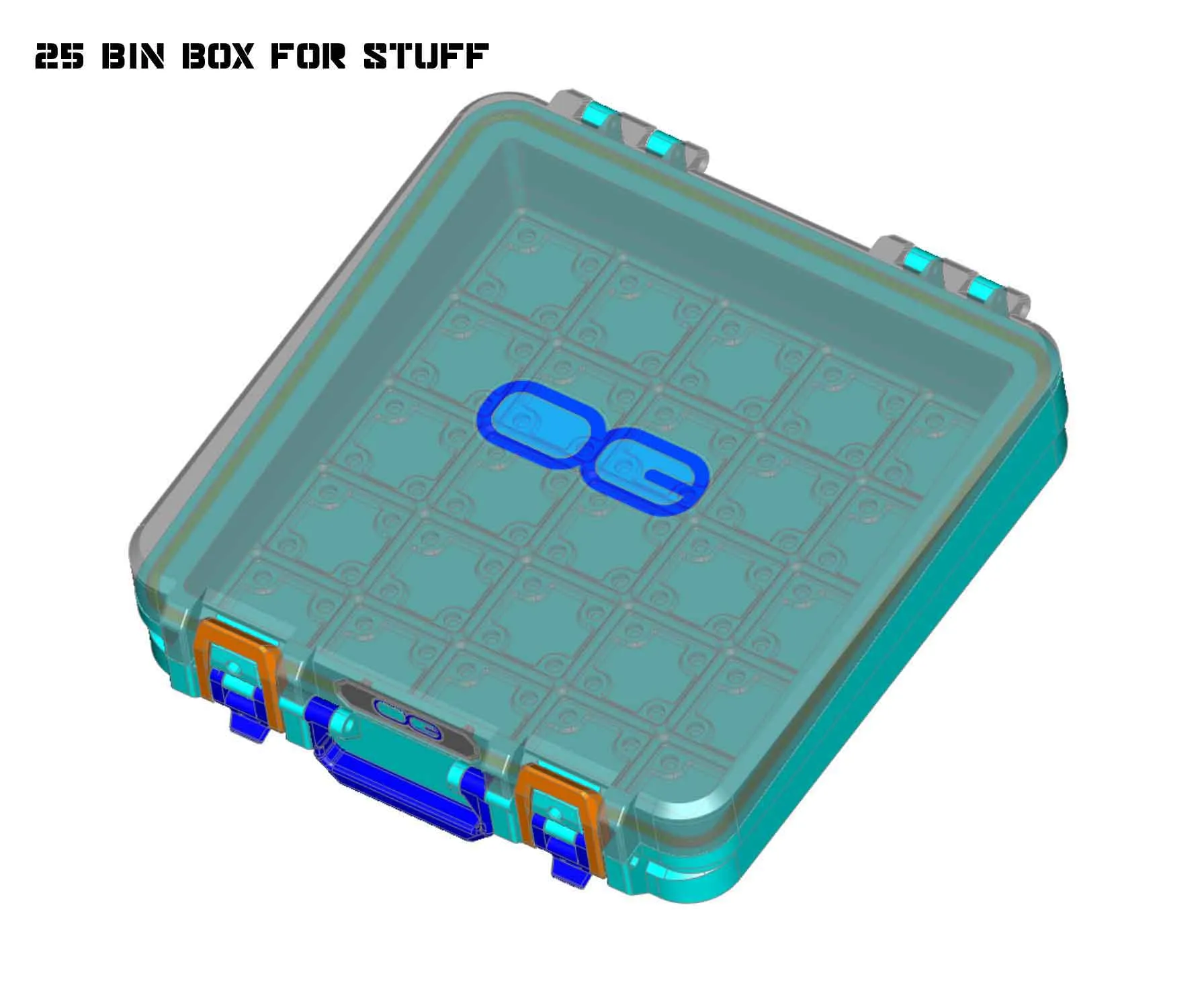

2. Gridfinity Box For Stuff 25 bin (6U) (max size for a Bambu X1C/P1S)
3. Gridfinity Box For Stuff 16 bin (6U) (Ender 3 size)
4. Gridfinity Box For Stuff 16 bin - 12U deep version (Ender 3 size)
5. Gridfinity Box For Stuff 2 bin (6U) (small test version)

If you find these models useful, please post a like or a comment with some pics of your prints.

You can find the other things I'm working on at my blog here. You can also follow me here or on Printables to see what new stuff I post. If you would like to support my work, you can Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuff

Thanks for looking!

Update 4/11/2024: A 9U tall version of the bins was added.
