A1/MINI Cap
Print Profile(2)
Description
PTFE Connector Cap MSXPC

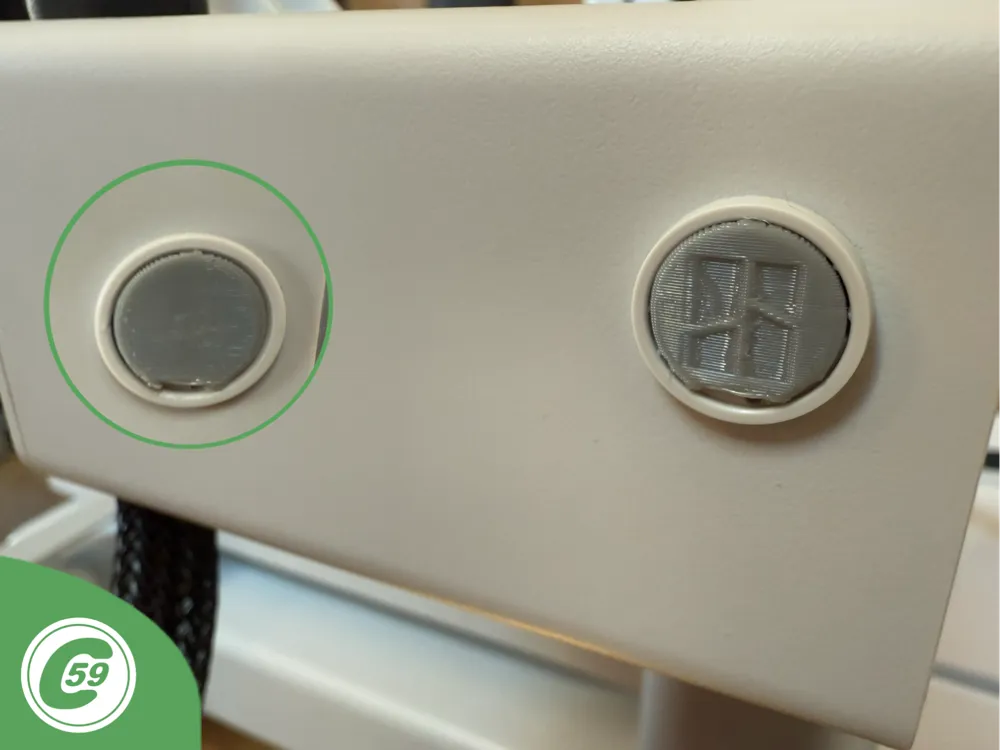

If you've removed the connector from the X motor cover and want a cleaner, more refined appearance, this sturdy cap fits securely onto your printer.
The cap is designed to be printed vertically, rather than horizontally, to ensure greater strength in the small tabs. You’ll need a flush cutter to remove any remaining support at the bottom, and you can use a CSRT support tool for the final cleanup, the examples in the picture are cleaned up quickly, but you can do better to enhance the appearance.
Benefits:
- Prevents dust from entering the machine
- Ensures efficient machine performance
- Enhances the overall aesthetic of your setup
Installation Instructions:
- Align the cap with the hole, ensuring the removal notch is positioned at 6 o'clock.
- Simply push the cap into place—you're done!
Customization Options: You can choose to have the cap with or without the Bambu logo.
Your upgraded setup is now complete—enjoy the sleek, refined look!
V1.0 Specifications
Material: PETG recommended should be fine in PLA
Printer Settings:
- Profile: Standard
- Layer Height: 0.20 mm
- Mode: LUDICROUS
- Infill: 15%
- Walls: 2
- Bottom Layers: 3
- Top Layers: 5
Printing Details:
- Supports: Required
- Print Time: Standard Mode: 00:03:49
- Filament Usage: 00.01 oz
- Estimated Cost: ~$0.01 (based on $26 PETG spool)
Streamlined Upgrade For A1/MINI
Tired of tangled cables or upgrades that just don’t feel right anymore? Check out my MSLPH Handle and MSZOC Z-Axis Cap (MINI Only), designed to combine functionality with style.
These upgrades feature an integrated rear mount for tube and cable management, with one configuration already available and more exciting options on the way! Plus, the MSZOC includes a convenient lubrication port for hassle-free Z-axis maintenance.
👉 MSLPH Handle MINI
👉 MSZOC Z-Axis Cap MINI
👉 ASBB HUB Support A1/MINI
👉 AMPC PTFE x Cable Clip A1/MINI
👉 MSPS Poop Deflector A1/MINI
Elevate your 3D printer setup today!
Boost Me (for free)
🚀 Boost Your Project! 🚀
If you love what I'm working on, hit the Boost button! Your support helps me continue to create, improve, and share even more exciting designs. Thank you for being part of this journey!
Enjoy your printing journey, and remember—keep your fingers away from the poop chute, she's angry!
"I’ll be sure to keep you updated with any future developments. If you come across any issues or need assistance, don’t hesitate to reach out—I’m here to help!"
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
Current ver.1.0_04/07/2025
© 2025 C59 Design Lab. All rights reserved.
