Description

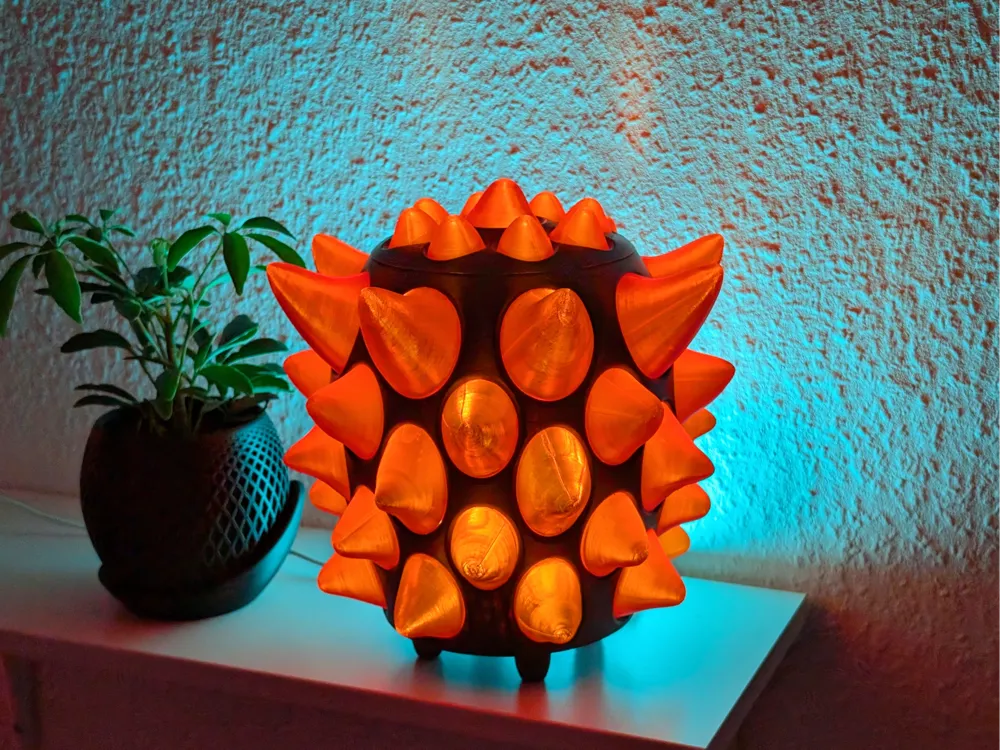

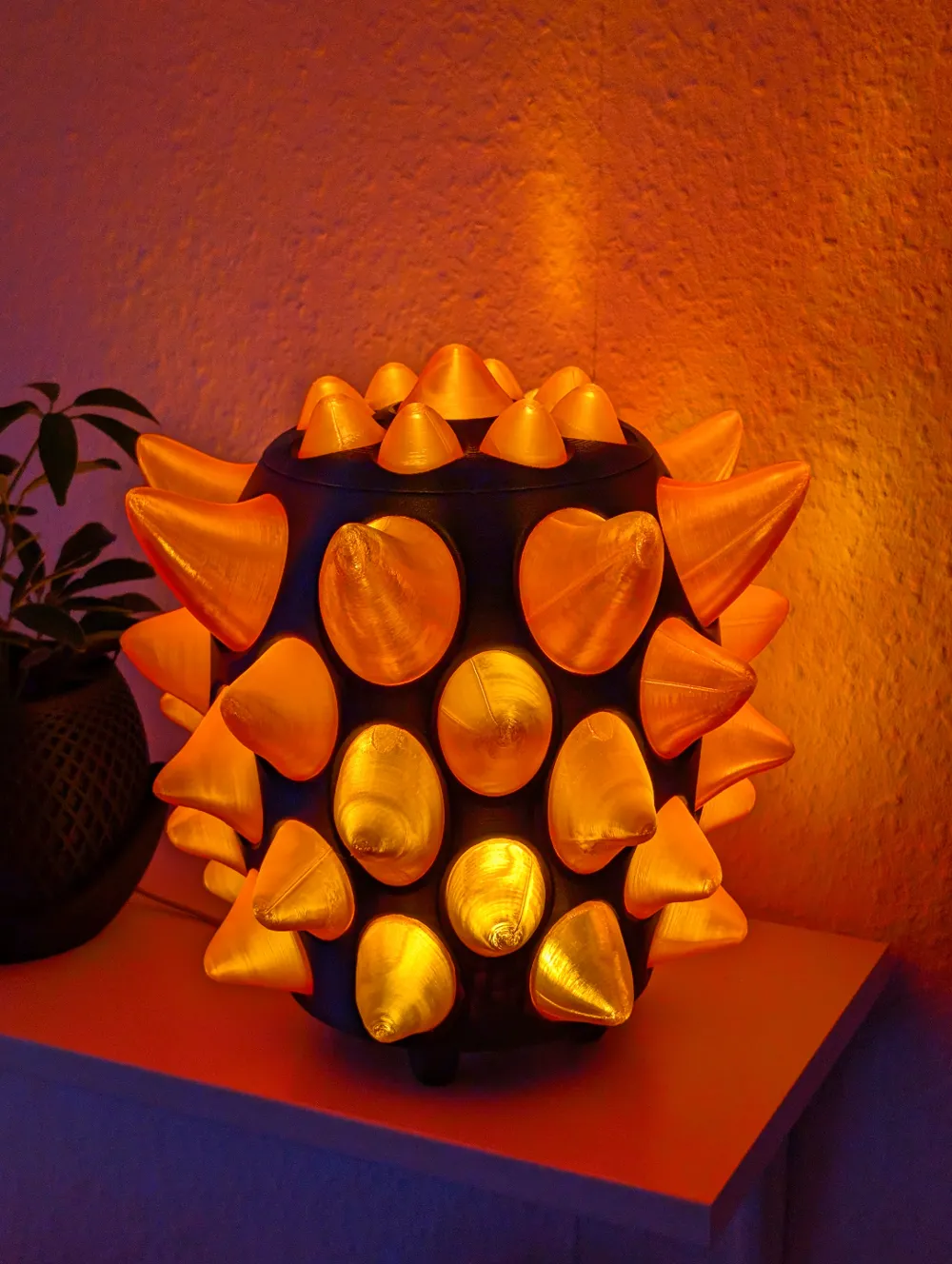

This alien egg lamp is designed without any extra parts needed for the build!

You only need the Bambu Lab LED kit!

Printing the Parts:

You’ll need to print the following:

1x Outer Structure
1x Base (for Bambu Lab LED Kit)
1x Top Structure Part
8x Bubbles (except the top middle bubble, which is printed once)
4x Feet

Assembly Steps:

1️⃣ Attach the Feet:

Insert the four feet into the holes in the base.
Rotate them 45 degrees to the right until you hear a click.
This requires some force but ensures a rigid connection.

2️⃣ Install the LED Kit:

Place the Bambu Lab LED Kit inside the base.

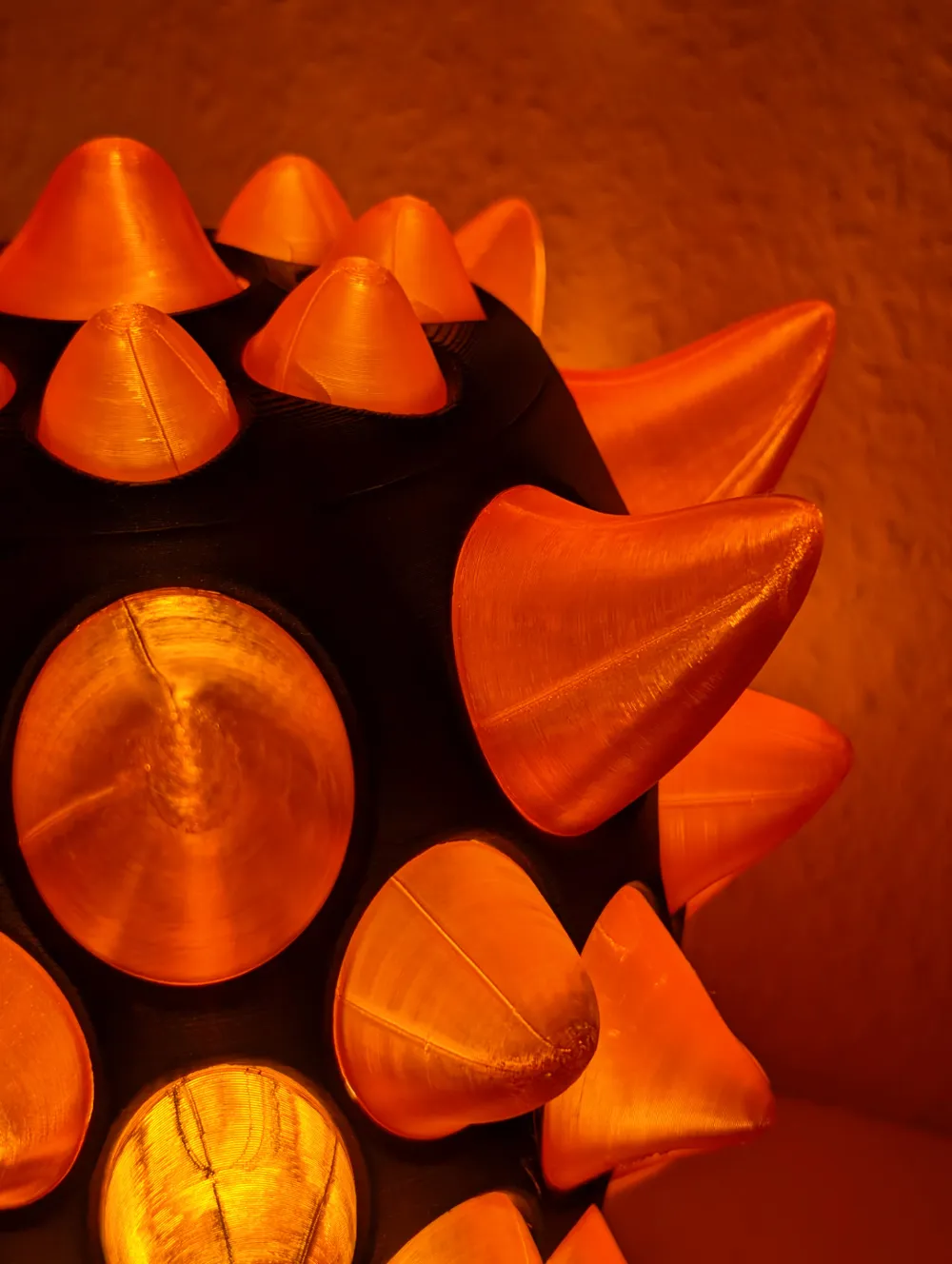

3️⃣ Attach the Bubbles:

Press-fit the side bubbles into the holes from the outside of the outer structure.
Refer to the 3D model to match the correct bubble heights.
Start with bubble 1 at the lowest hole and work your way up.

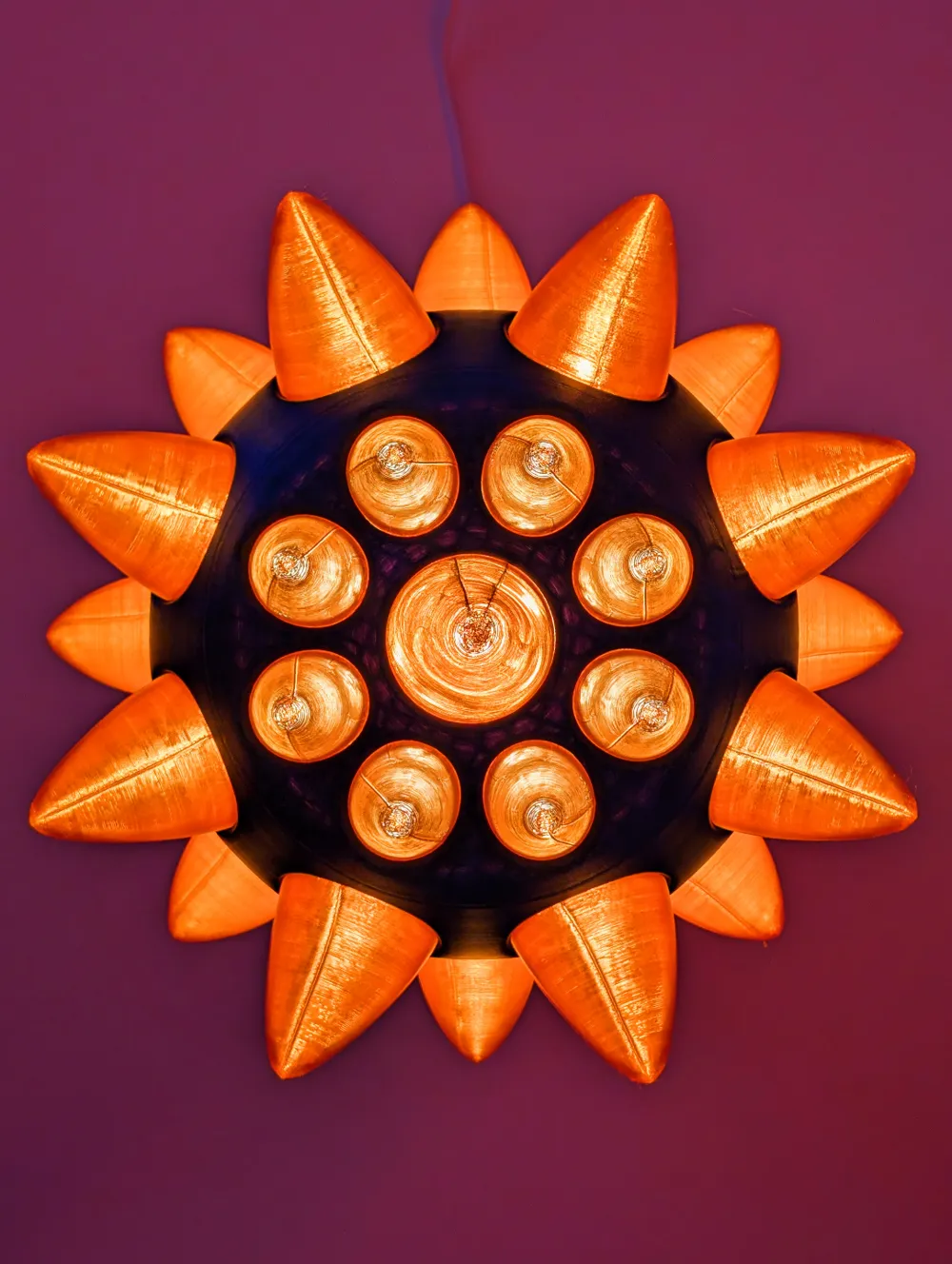

Press-fit the top bubbles from the inside of the structure.

4️⃣ Assemble the Base and Top Structure:

Insert the base into the outer structure.
Align the four slots and rotate it until it clicks into place (this also requires force).
Place the top structure onto the lamp.
Align it properly, but no need to clip it—it just rests in position.

✨ Your lamp is now complete! Enjoy the glow of your new alien egg design! ✨

If you have any questions or encounter problems feel free to reach out! If you liked the build i would love to see a picture!

Membership

You can now subscribe to my Membership program to support me or to get access to commercial use of my models! Thanks for all your help!

Join

Boost Me (for free)

If you like this model, consider giving me a boost! This really helps putting this much work into the designs ;)

Also have a look at my other lights, some are 100% 3D printable!

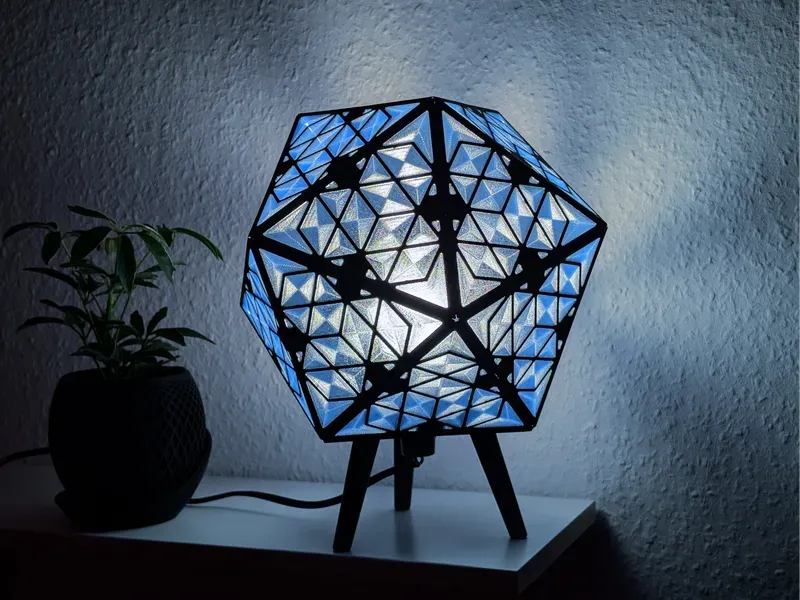

IcoFlux - A Fully 3D Printed Lamp

Florahedron V2 - A Fully 3D printable Lamp

Prisma Petal - Bambu Lab LED Kit

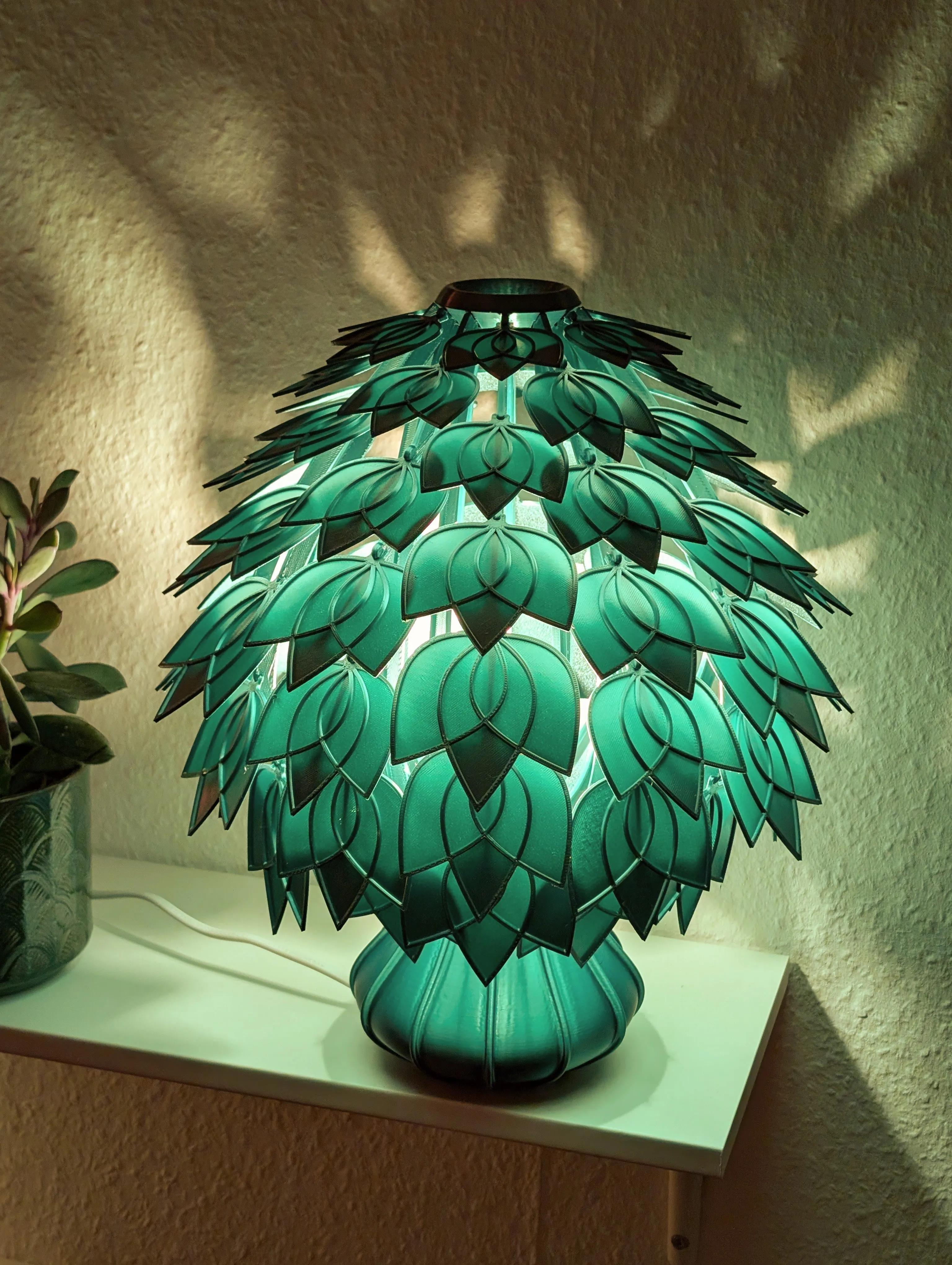

Water Lily Lamp Shade

PrismaPetal V2 - A Fully 3D Printed Lamp

Orbiflora - A 100% 3D printable Lamp!

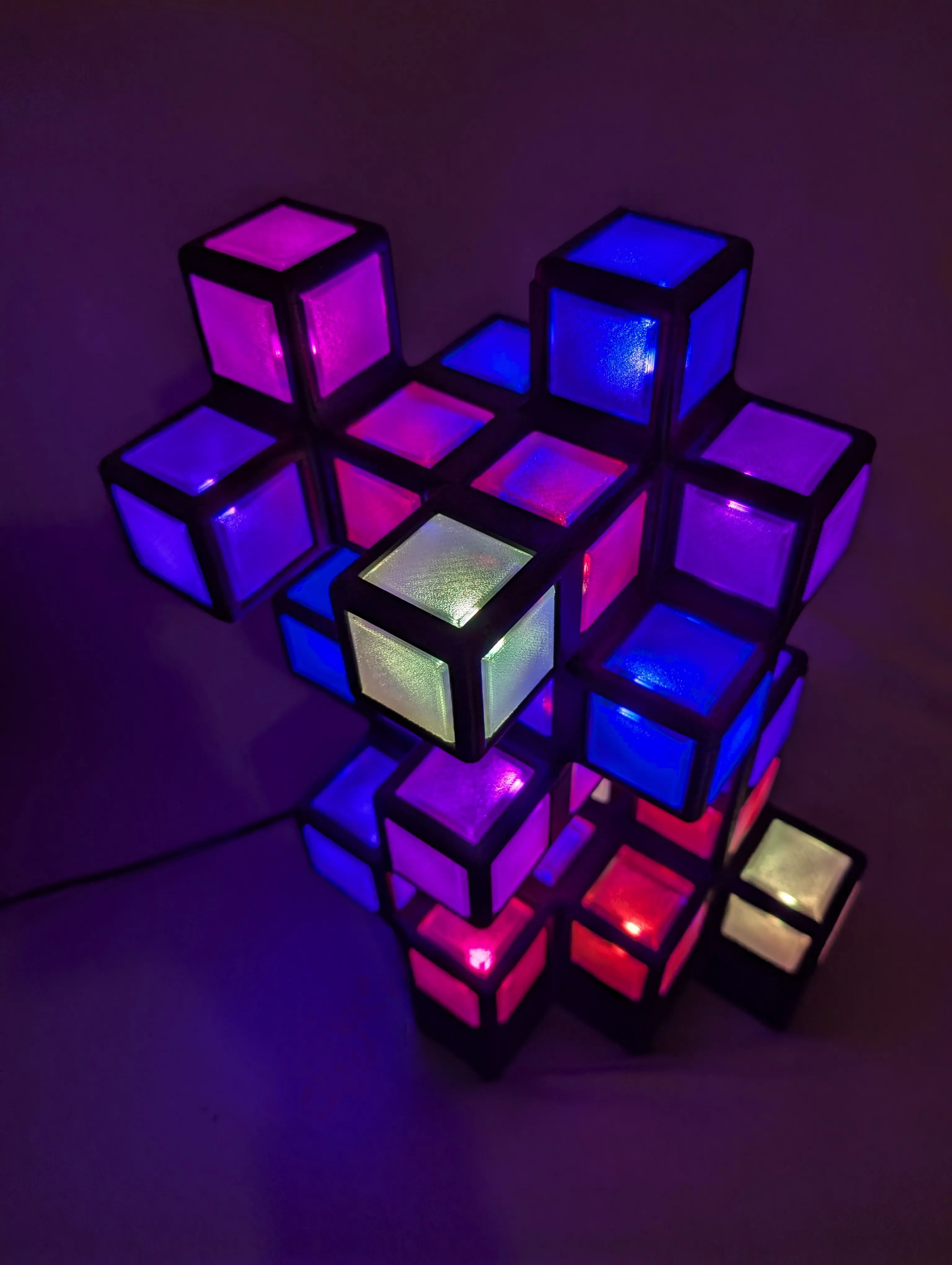

Grid Light
