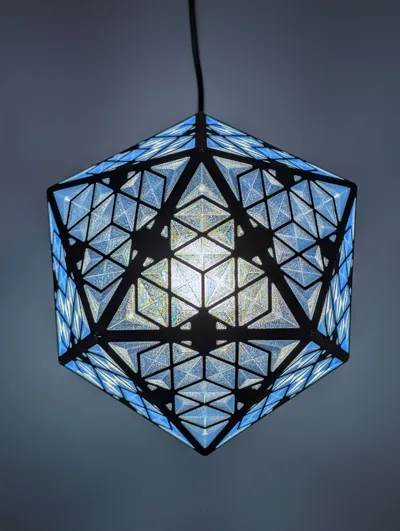

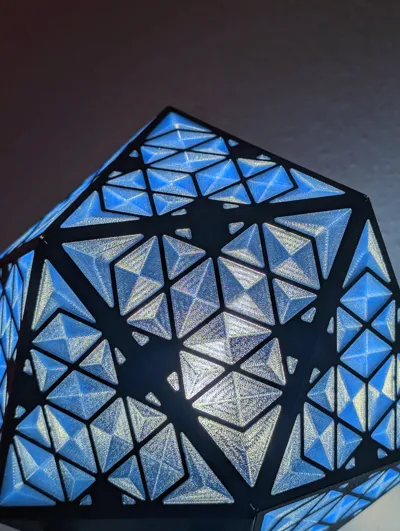

IcoFlux - A Fully 3D Printed Lamp!
Print Profile(2)
Bill of Materials
Description
This geometric lamp features 20 triangular panels that clip together seamlessly without glue or screws. Its unique design creates a stunning interplay of light and shadows. With a simple assembly process and no need for extra hardware, the Lumahedron is as functional as it is beautiful. Perfect for creating a modern ambiance in any room!
Assembly Steps:

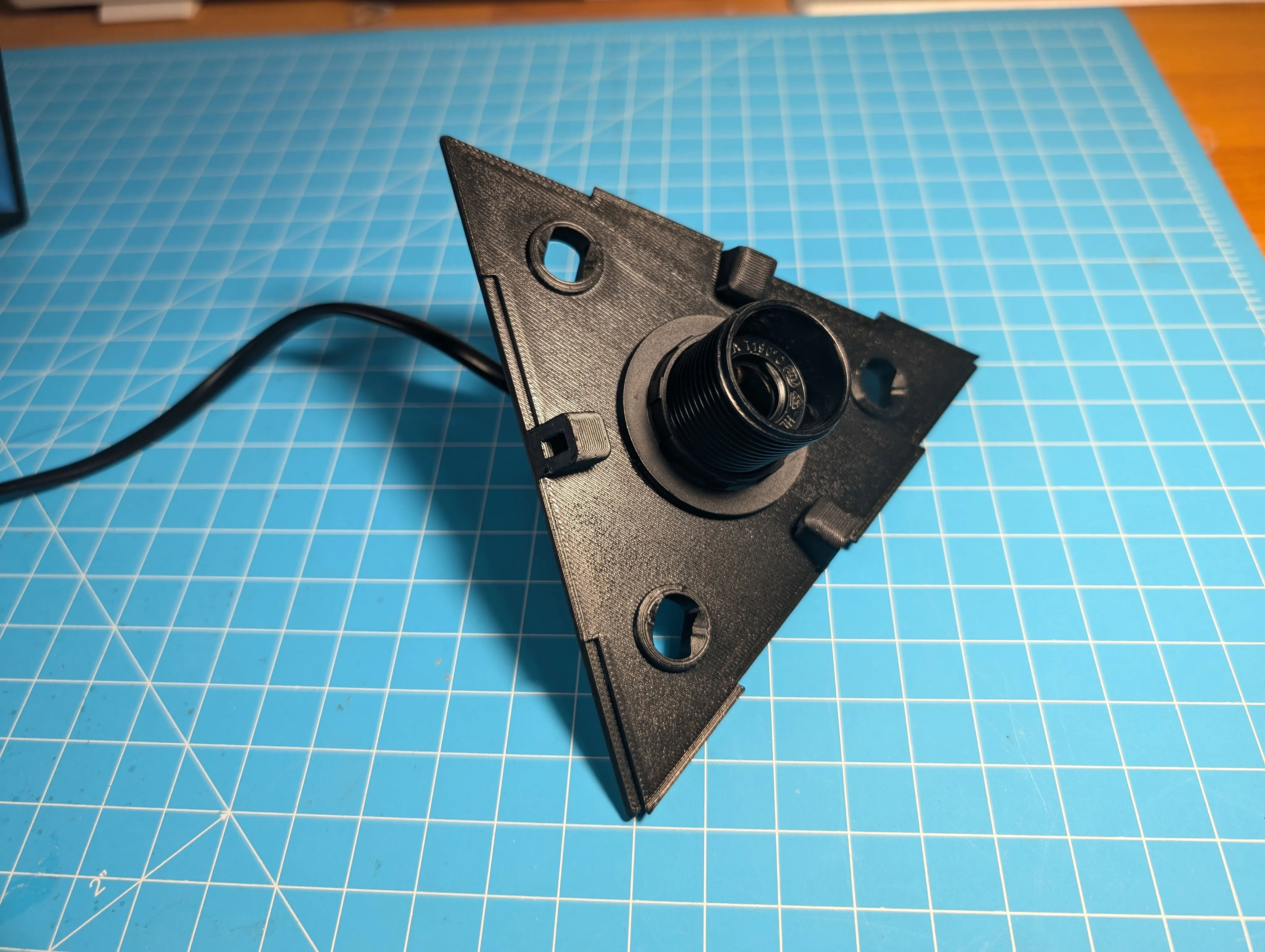

1. Prepare the Base
Insert the bulb or LED kit into the base.
2. Attach the Feet
- Match each foot (marked 1, 2, 3) with the corresponding hole in the base.
- Insert each foot into its hole and twist 90° until it locks into place, pointing outward.
Insert the bulb
3. Assemble the Panels
Take a triangle side panel and insert a clip into one side:
- Push the clip partially in by hand.
- Then, firmly press the entire panel against a flat surface to fully secure the clip.
- Repeat this process to connect all panels, forming the icosahedron shape.
- Leave one triangle slot open for inserting the base.
For easier attachement of the base keep two of the triangles that touch the hole unconnected to each other.
4. Attach the Base
- Insert 3 clips into the corresponding sides of the base.
- Carefully align the base with the opening of the partially assembled icosahedron.
Gently press-fit the base into place while keeping the feet safe from breaking or damage.
Important Tips:
- Be Gentle: Apply steady pressure when inserting clips and attaching the base to avoid breakage.
- Alignment Matters: Ensure clips and feet are properly aligned for a secure fit.
- Final Check: Verify all panels and clips are securely in place before finishing.
Enjoy your beautifully assembled icosahedron lamp!
