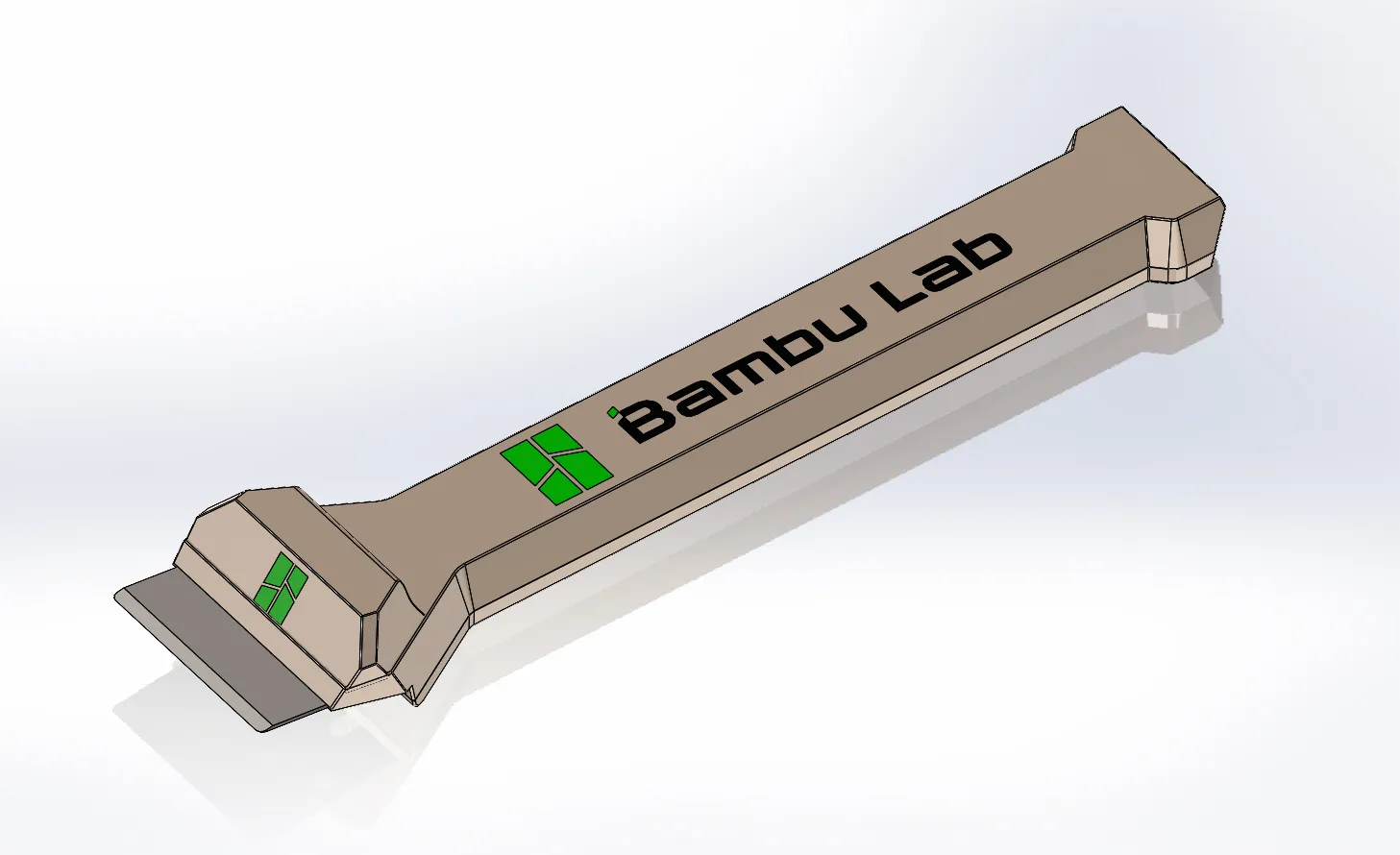

Bambu scraper grip
Print Profile(3)
Bill of Materials
Description
Another piece has been added to my small collection. I hope you will like this scraper too.
The scraper consists of two parts, of which I made two versions for you.
Part 1. Scraper handle for the original Bambu Lab 36x12x2 mm magnet
Other materials used: 36x12x2 mm self-adhesive magnet
Part 2. Scraper handle for D10x2 mm magnet
Other materials used: 3 pcs D10x2 mm magnet

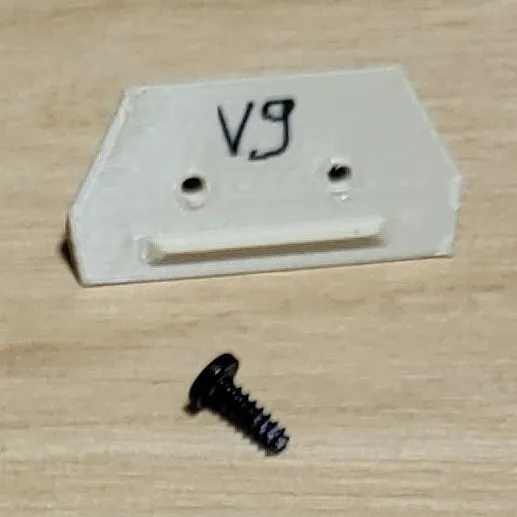

Part 3. Scraper head for original Bambu Lab screws
Other materials used: 2 x original Bambu Lab screws

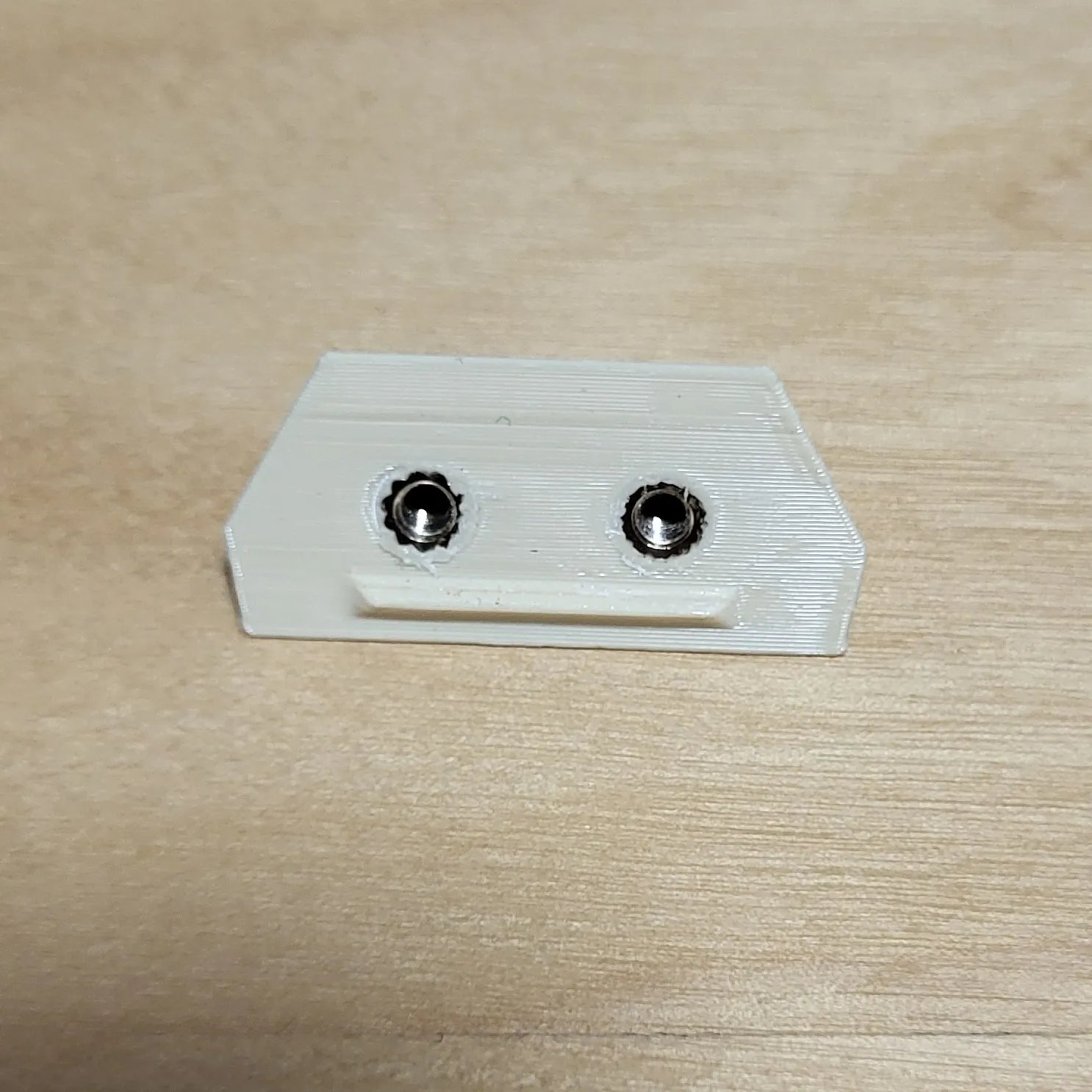

Part 4. Scraper head for 2 pcs M3 thread insert
Other materials used: 2 x M3 heat insert and 2 x M3x8 mm dome head bolt
These can be varied freely, both handles are compatible with both heads.
Its assembly is the same as the original scraper.
1. WITHOUT THE BLADE, screw in the screws almost all the way.
2. Stick the magnet in place
3. Insert the blade
4. Keeping the head in place, carefully tighten the screws
Boost Me (for free)
If you want to support my work, you can do it with a boost! Thank you for your past and future support!
I recommend the other pieces of my collection:

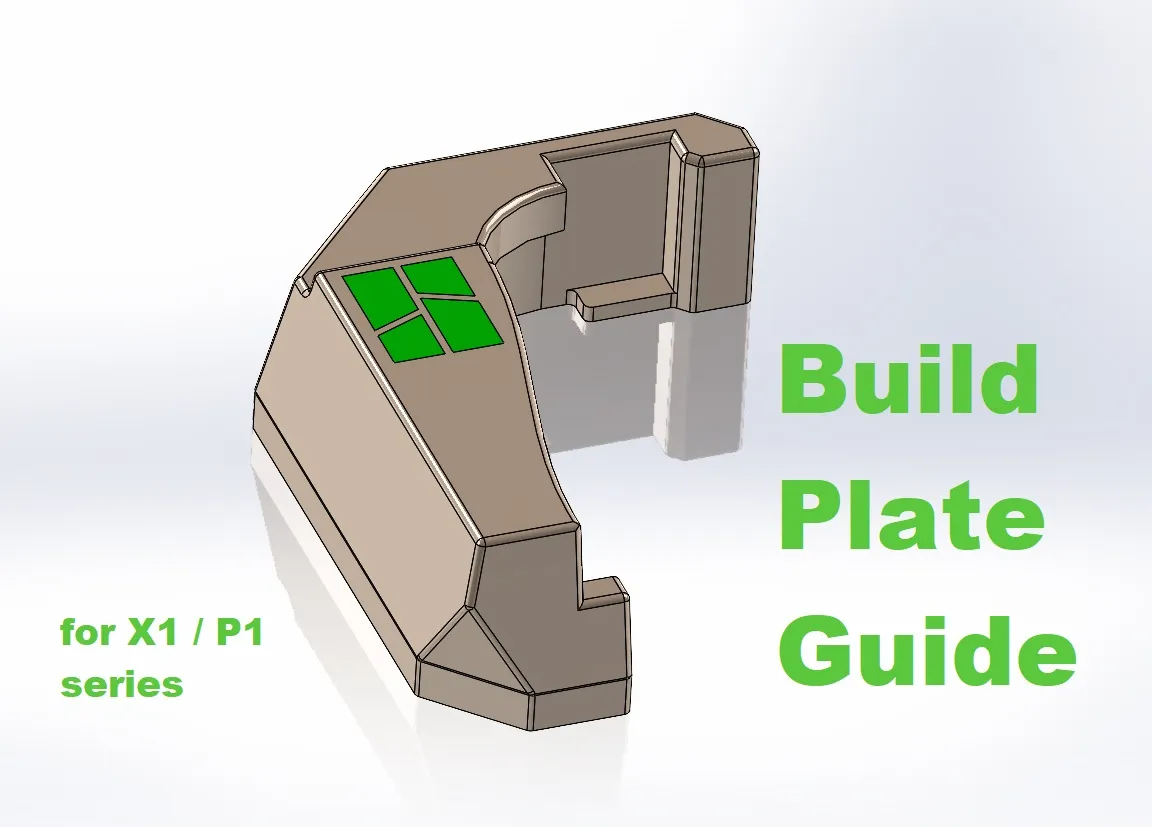

Build Plate Guide
Filament CLIP

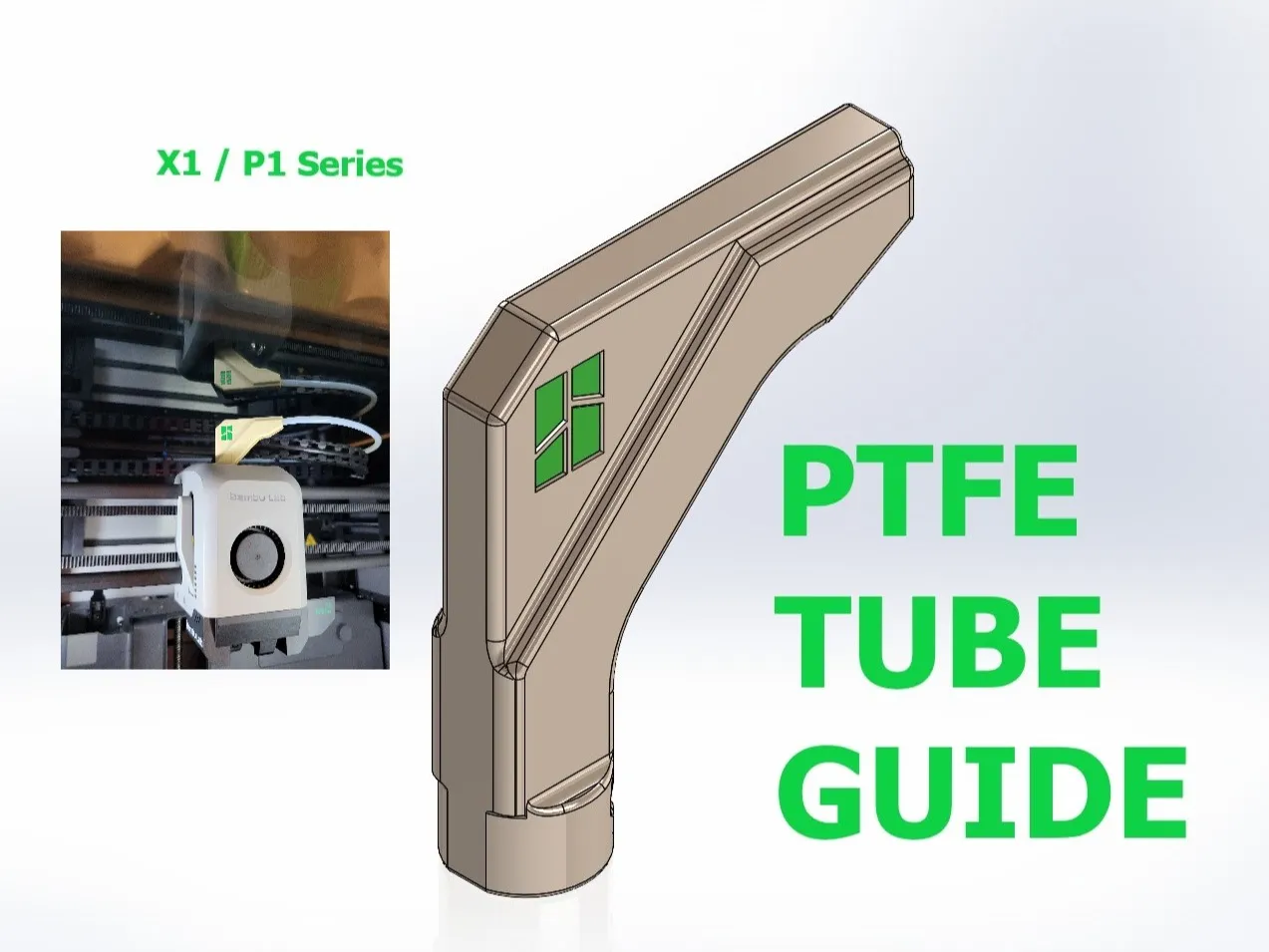

PTFE Tube Guide

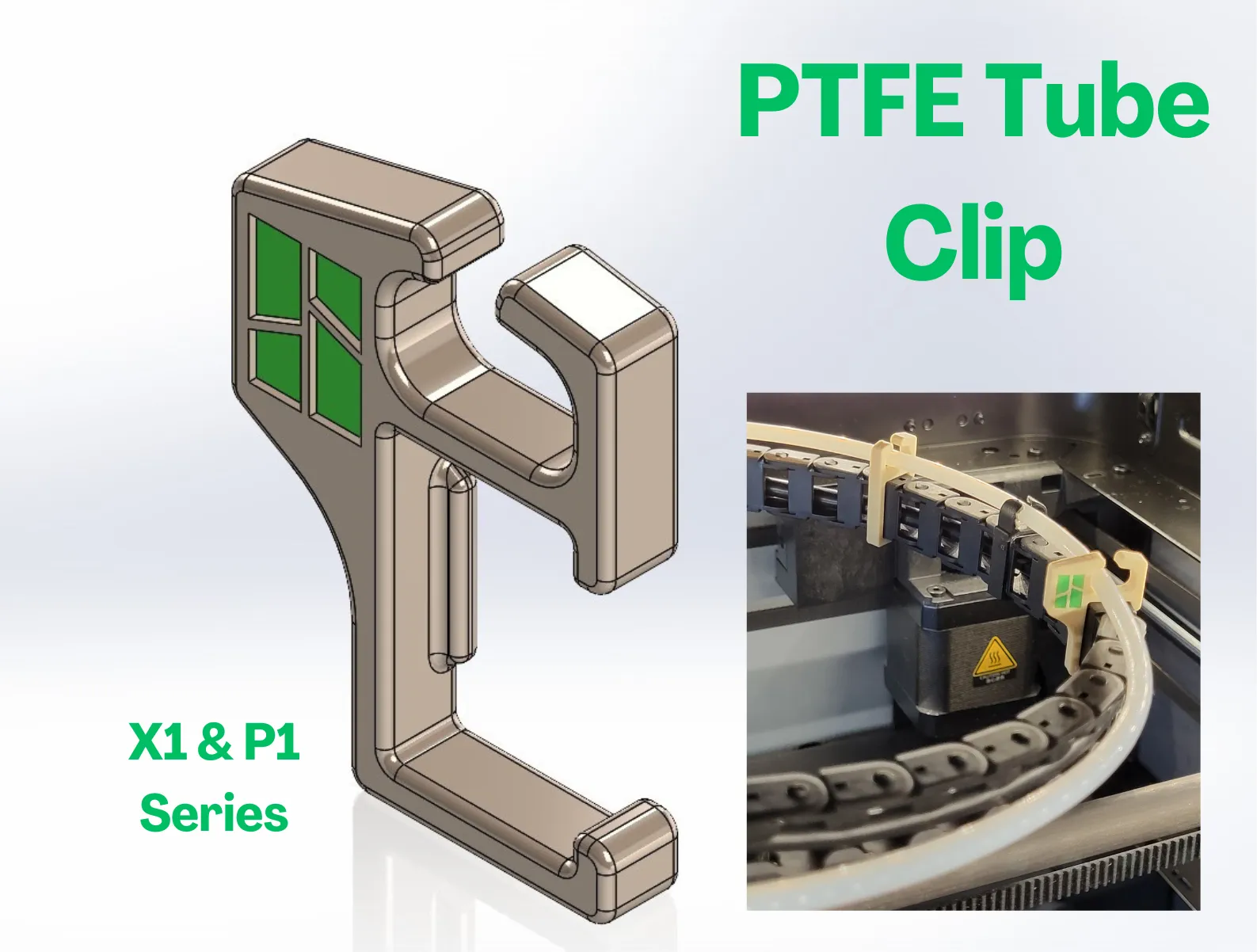

PTFE Tube clip
Z-axis Bearing Shield for Bambu Lab X1/P1 series
Dust cover
Fan safety guard - Aux fan

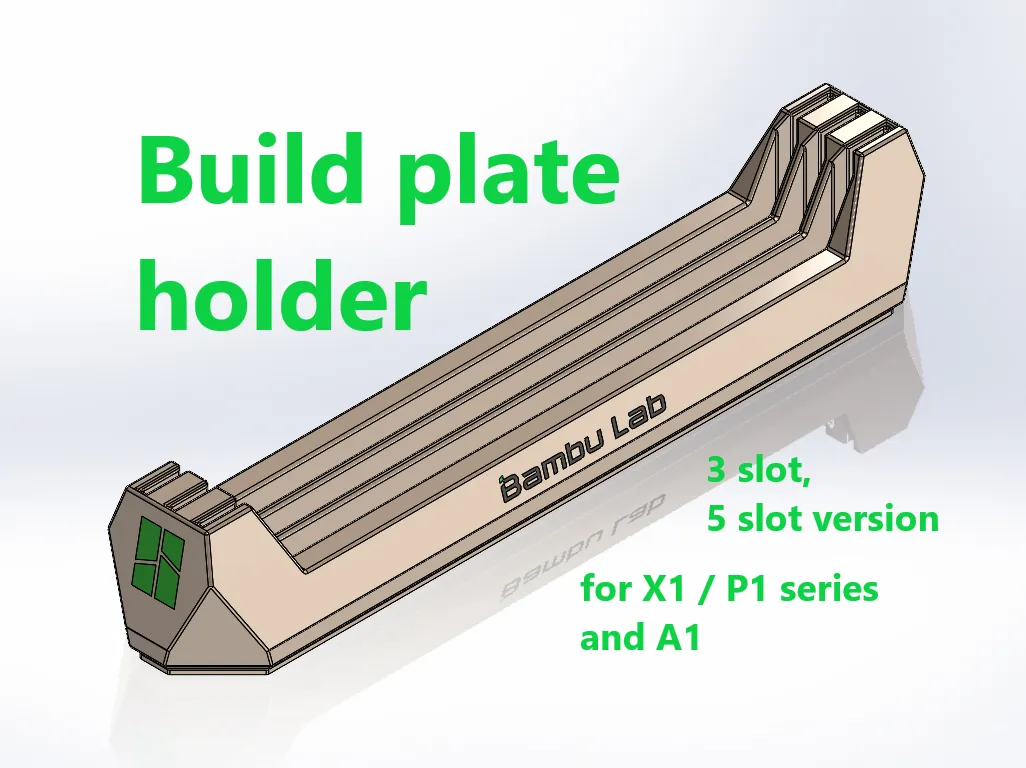

Build plate holder for X1/P1 series and A1

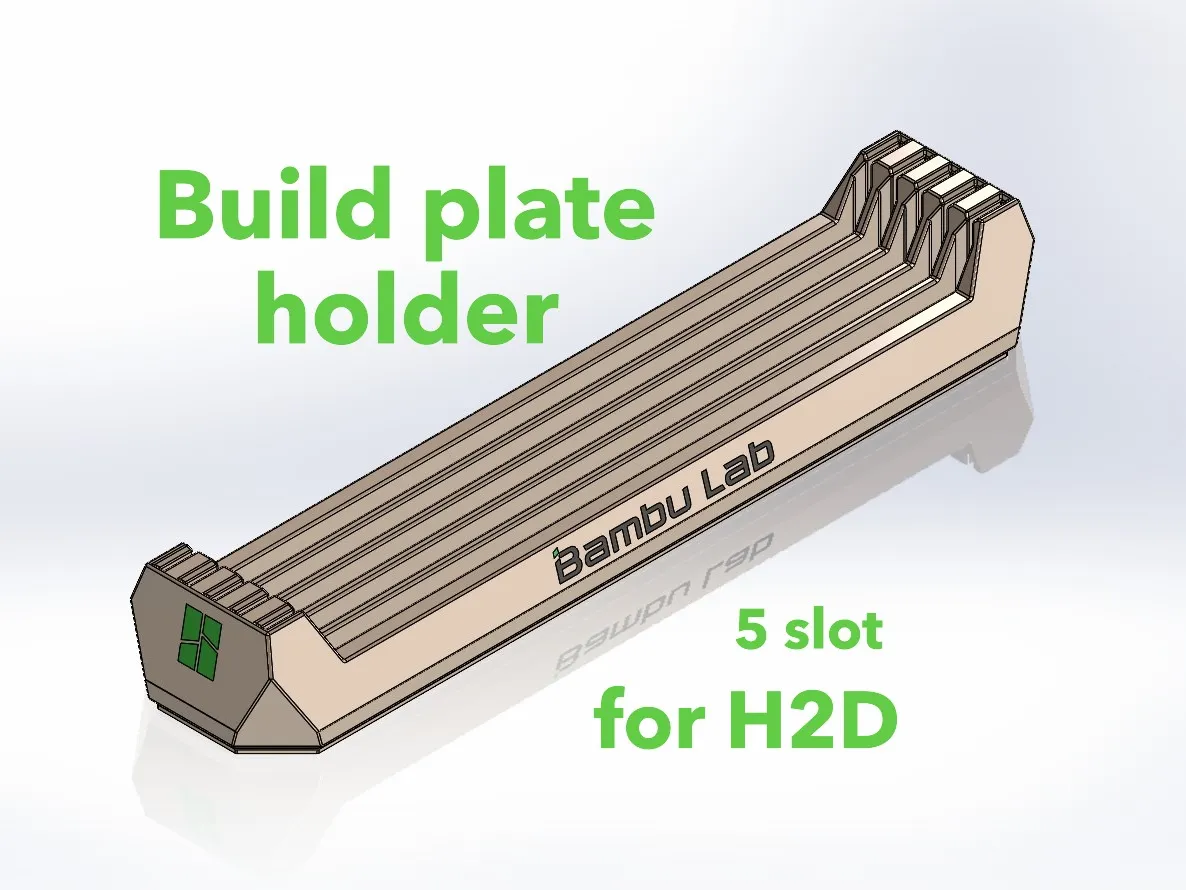

Build plate holder for H2D

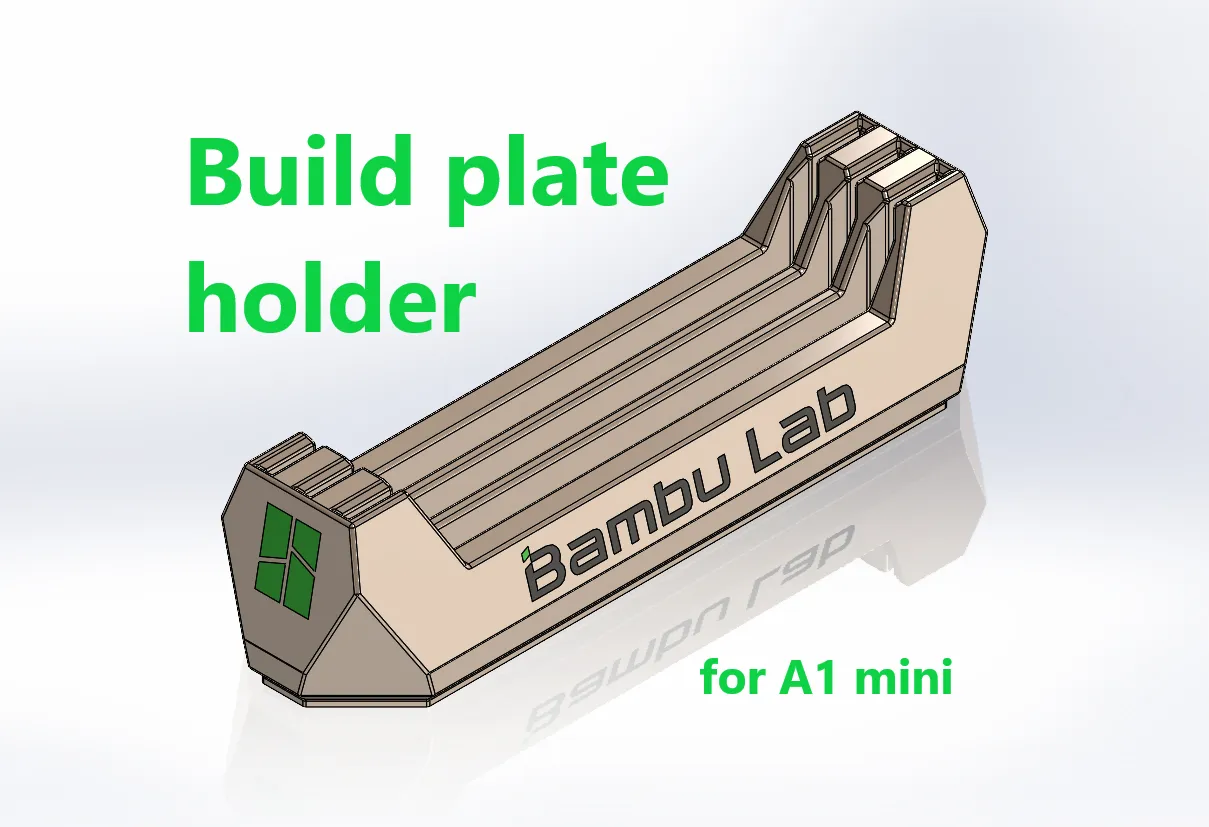

Build plate holder for A1 mini
Scraper
Poop Chute for X1 / P1 series

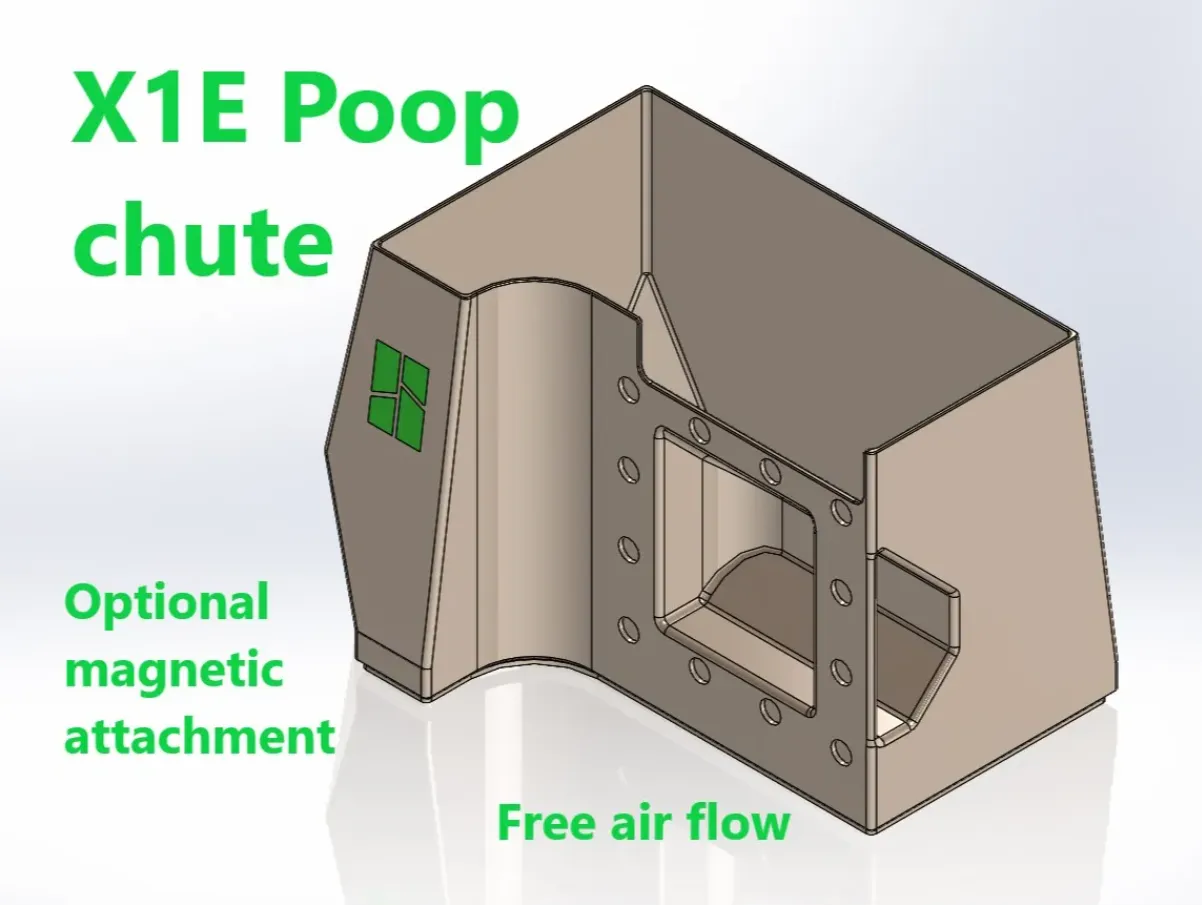

Poop Chute for X1E
