Description

Model

I wanted to make a stable but beautiful building plate holder that, apart from being practical, can show the advantage of multi-color printing. I looked over the offer and made my own version by combining their advantages. Having refined the first version, the second version has already met my expectations, so I would like to share it with you.

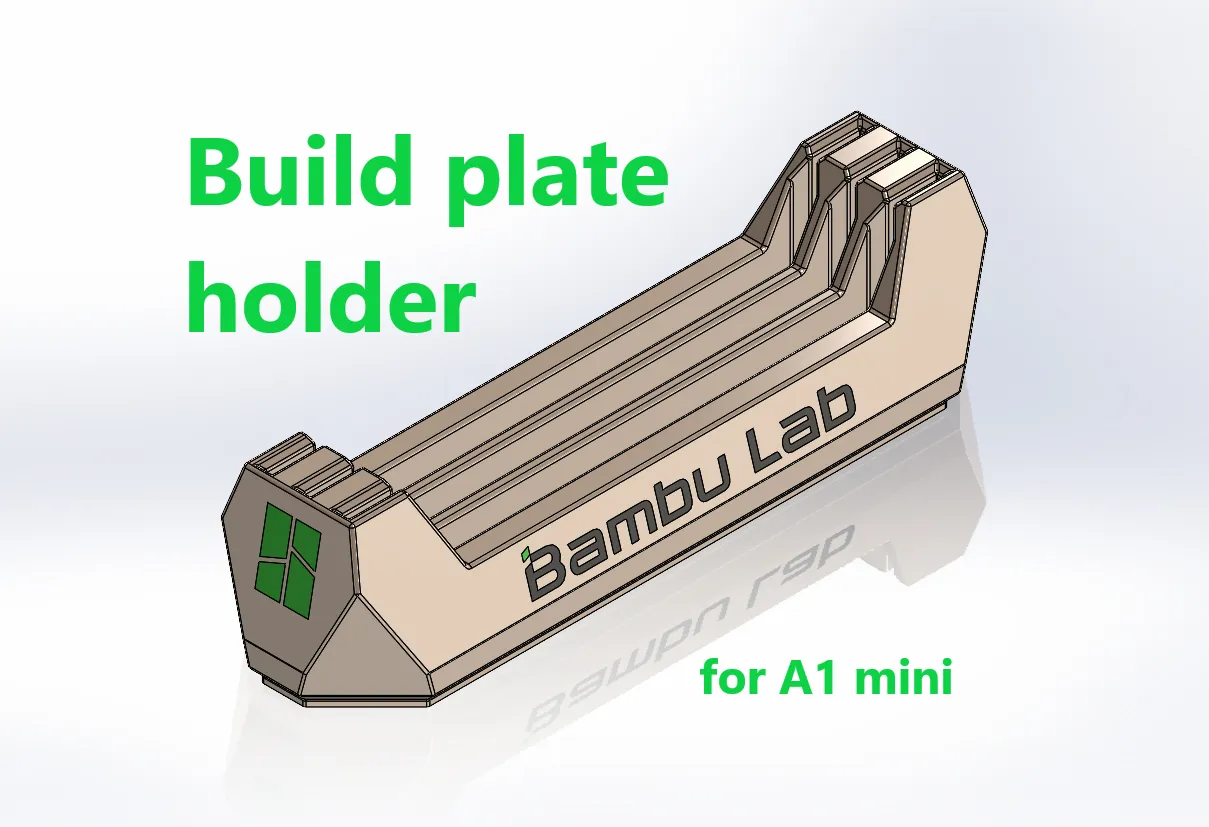

Easily holds up to 3 plates for the A1 mini printers. If you are looking for a plate holder for the X1 / P1 series or A1, you can find it at the link below. The inscription and logo are made in such a way that they are not visible when printing in one color, but can be easily handled in Bambu Studio when printing in multiple colors.

Try it and please let me know what you think!

Boost Me (for free)

If you want to support my work, you can do it with a boost! Thank you for your past and future support!

Compatible:
A1 mini

If you are looking for a plate holder for the X1 / P1 series or A1, you can find it at the link below.

https://makerworld.com/en/models/173399#profileId-190536

Printing:
Layer 0.2, 2 walls, 18% sparse infill density, adaptive cube, infill direction 75°
Support allowed from own material (only used for the legs, see pictures)
Support bottom Z distance 0.2
Support/object XY distance 0.35

Other materials used:
4 x D10 anti-slip disc (optional)

Update 02.06.2024. - V3.1

I modified some roundings and increased the length of the tray space by 1 mm. Although I didn't experience it when printed on another printer, they found that the tray stuck a little in place. I fixed the problem.

Update 02.08.2024. - V3.2

I made it easier to insert the building plates and increased the size of the Bambu Lab logo on the side. I also made the 5 slot versions and single color versions print profile.

Update 02.10.2024. - V3.2 - A1 mini

I also made a version suitable for the A1 mini, thanks again to Sam Bossert for the A1 mini plate dimensions! From there it was easy, apart from the width, the plate holder is completely identical to the holder for the X1 / P1 series and A1.

Update 02.21.2024. - V3.3 - A1 mini 5x

I received a request to make a 5-slot version, so I made it for you. I hope you like it!

I recommend the other pieces of my collection:

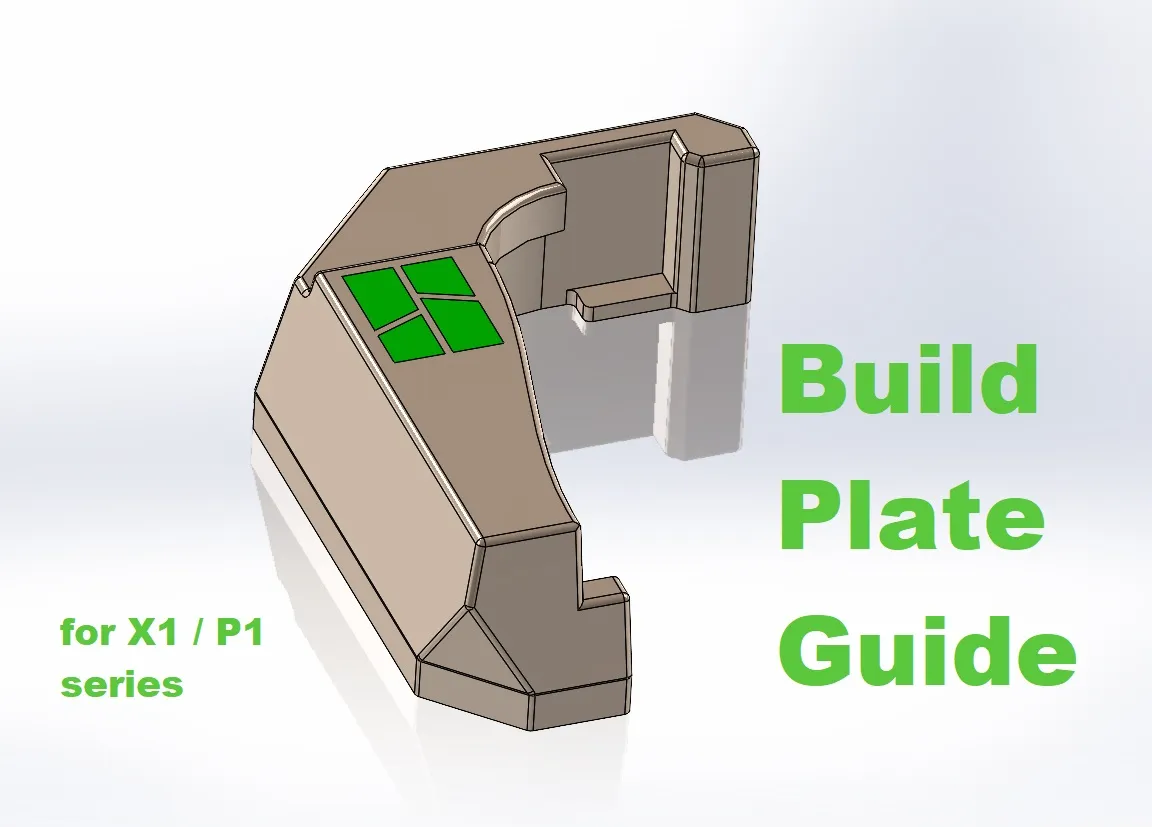

Build Plate Guide

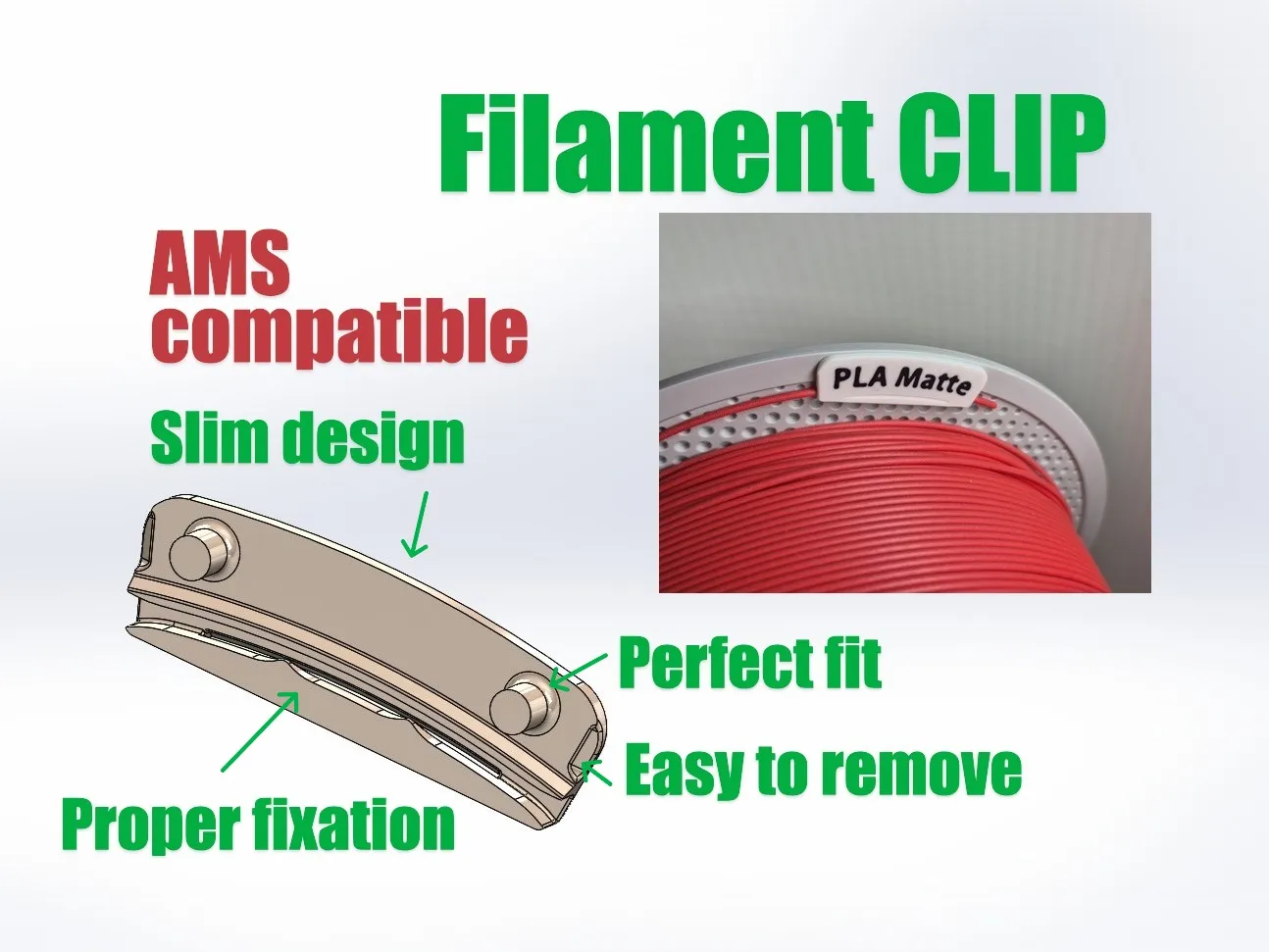

Filament CLIP

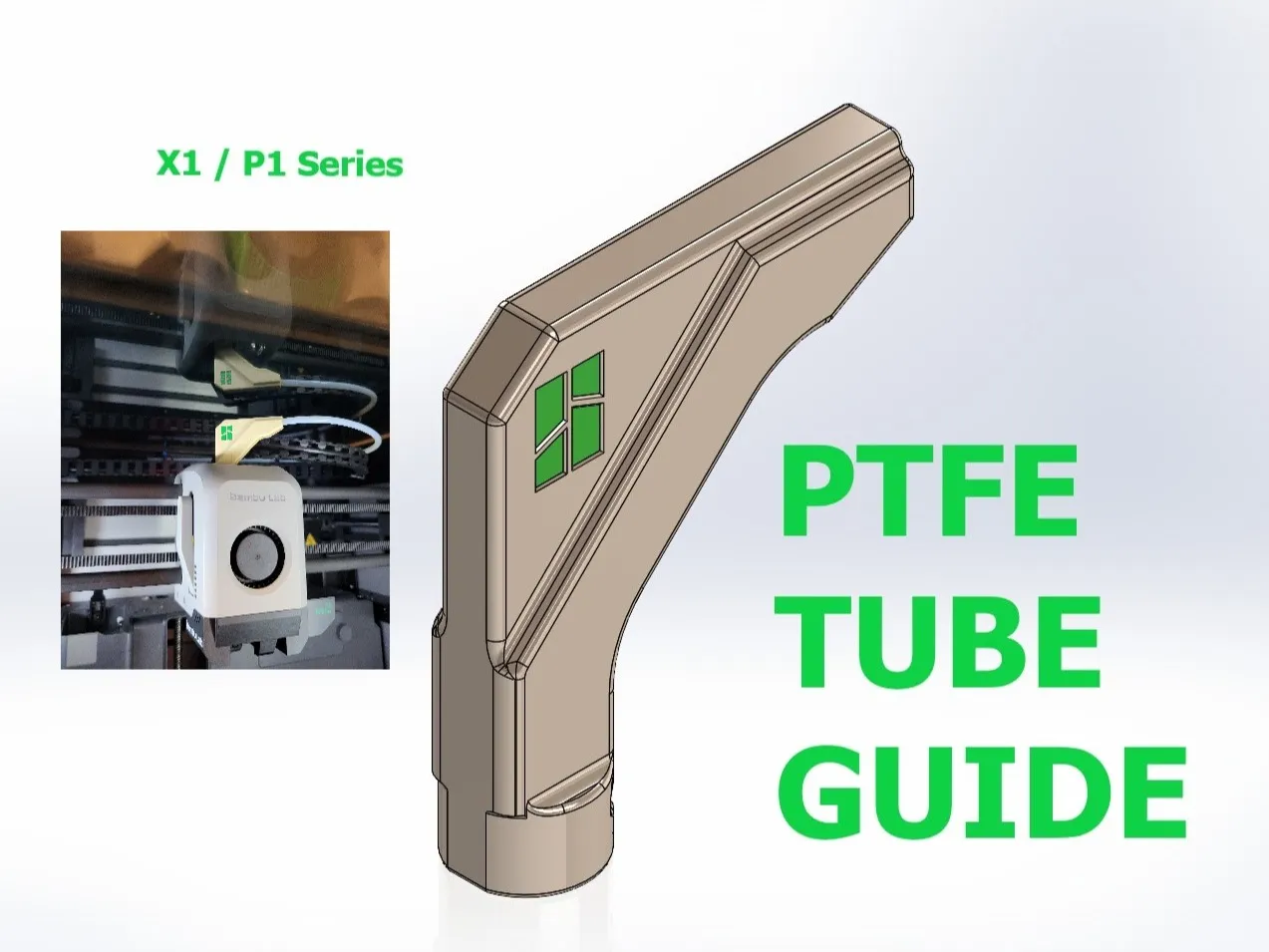

PTFE Tube Guide

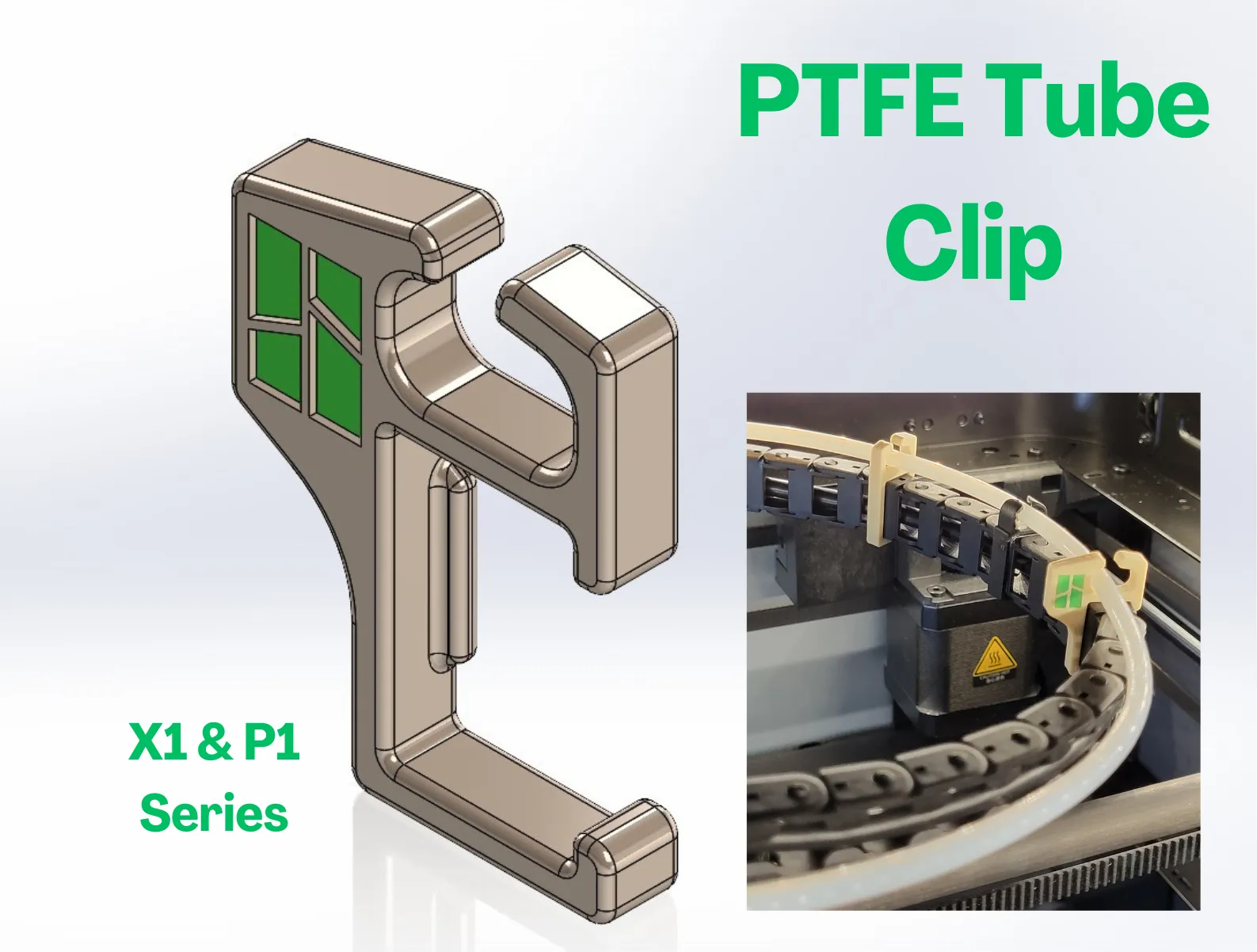

PTFE Tube clip

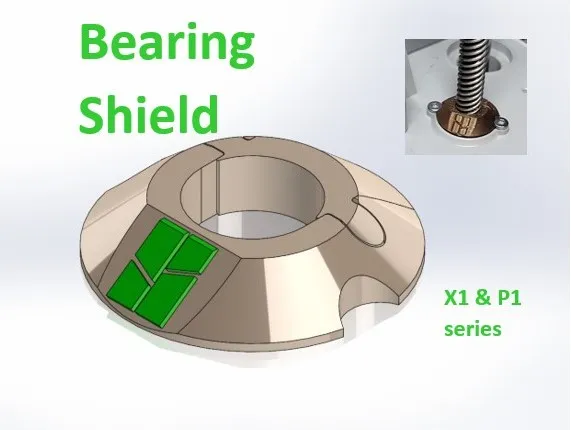

Z-axis Bearing Shield for Bambu Lab X1/P1 series

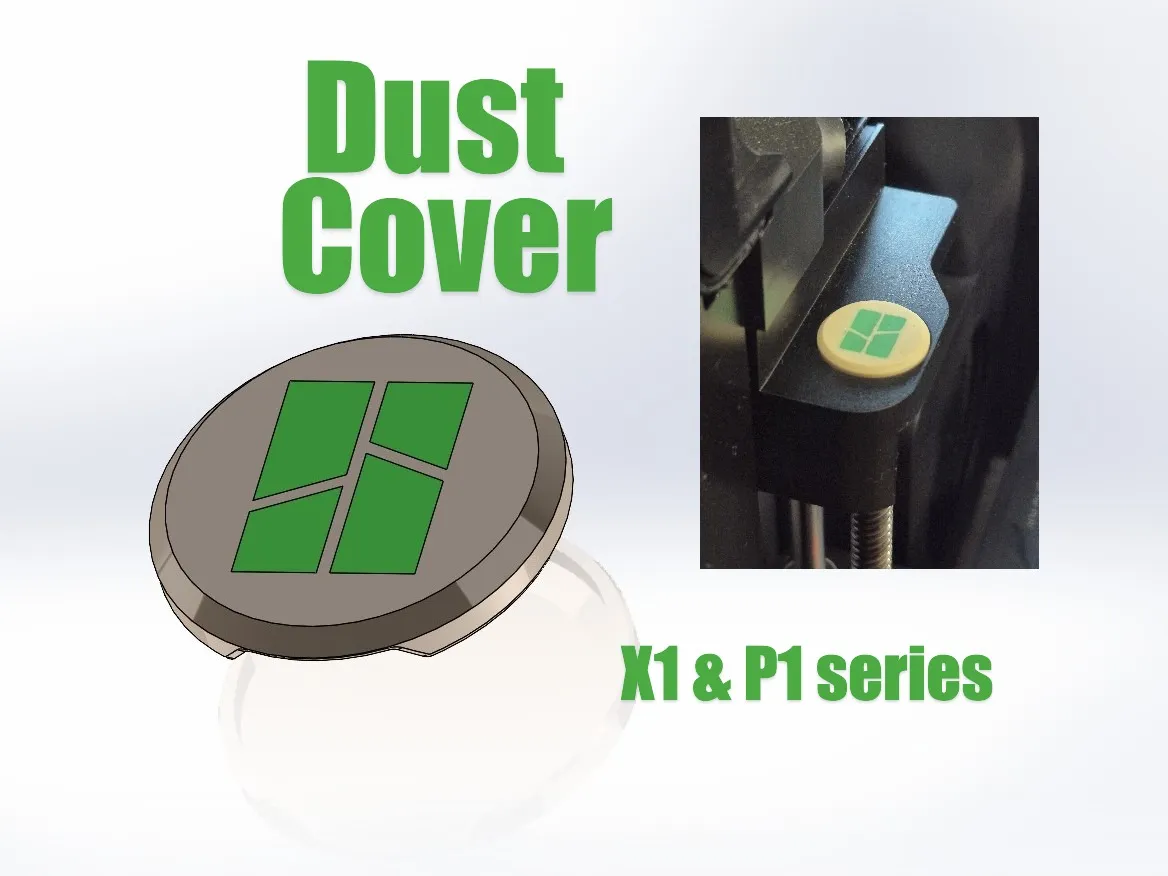

Dust cover

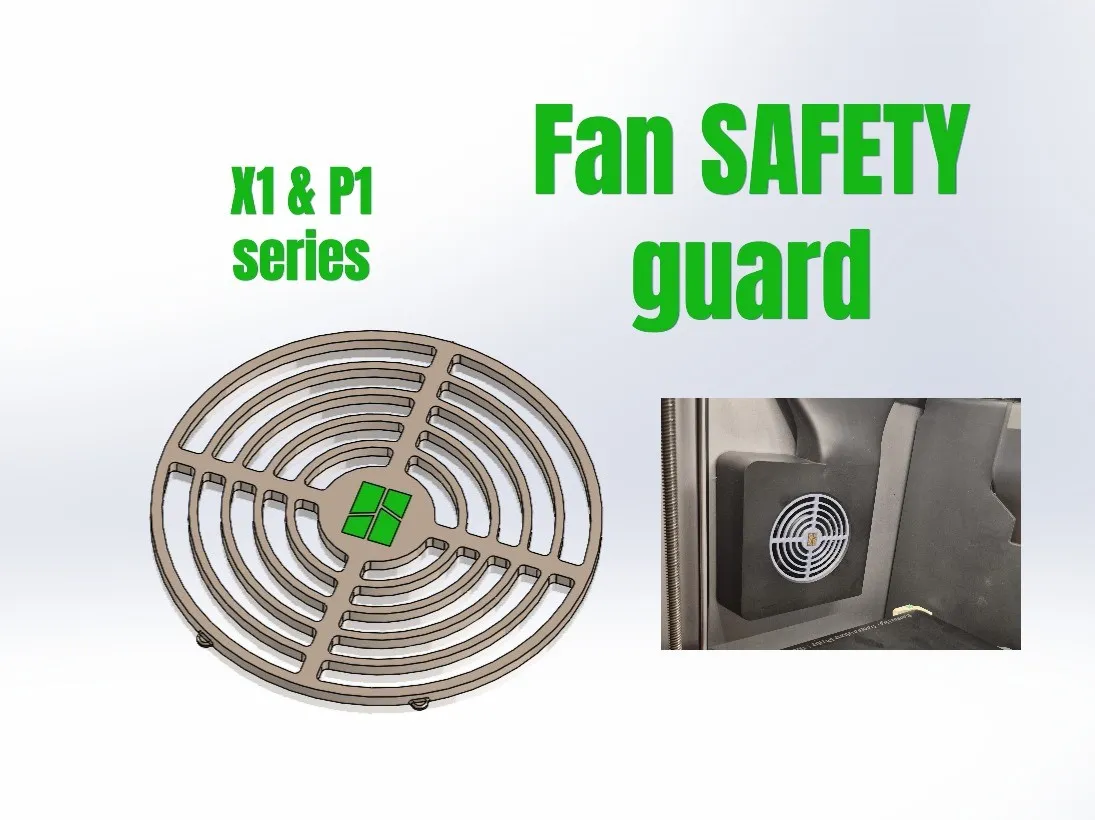

Fan safety guard - Aux fan

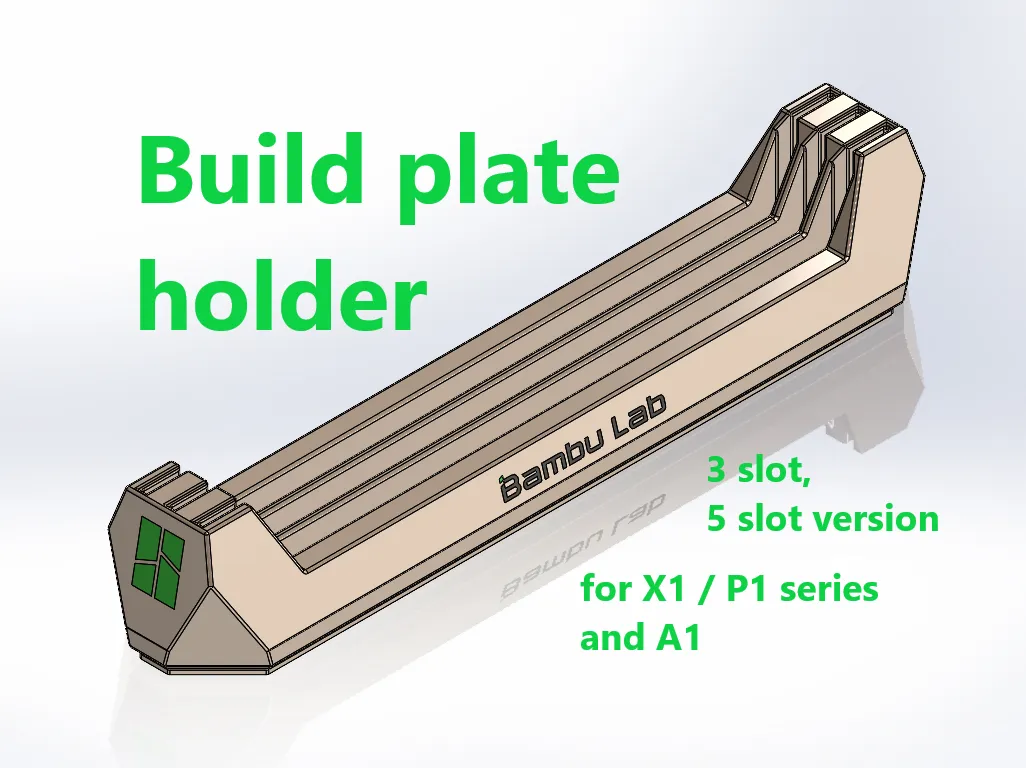

Build plate holder for X1/P1 series and A1

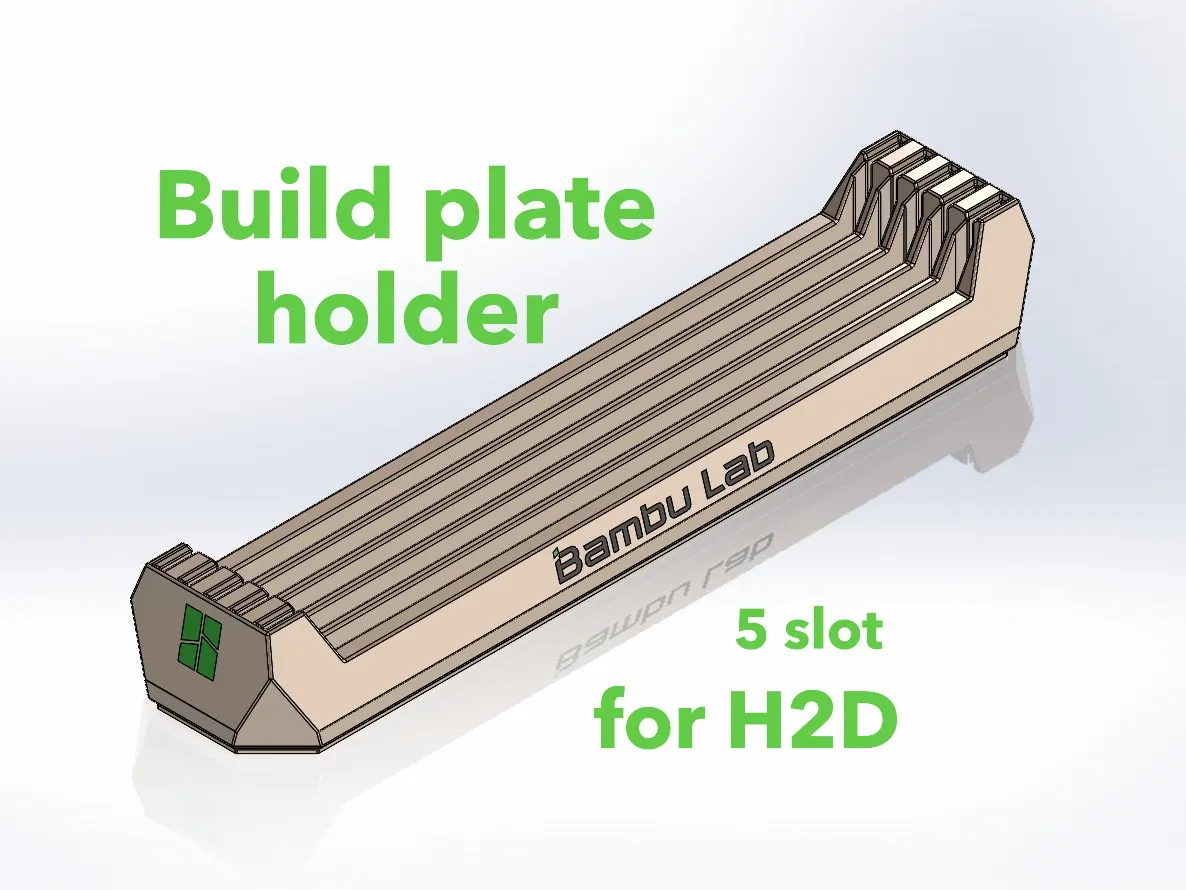

Build plate holder for H2D

Build plate holder for A1 mini

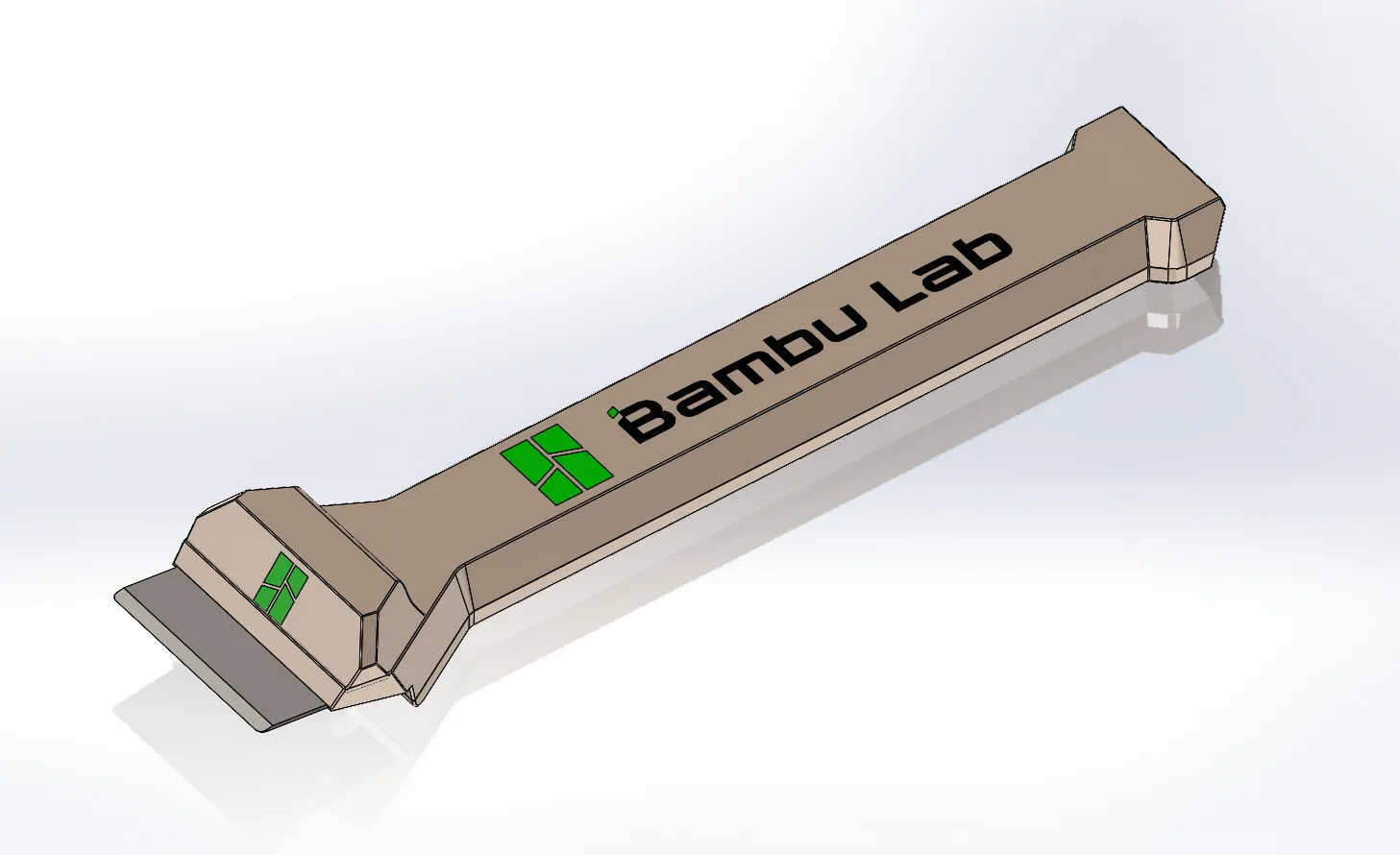

Scraper

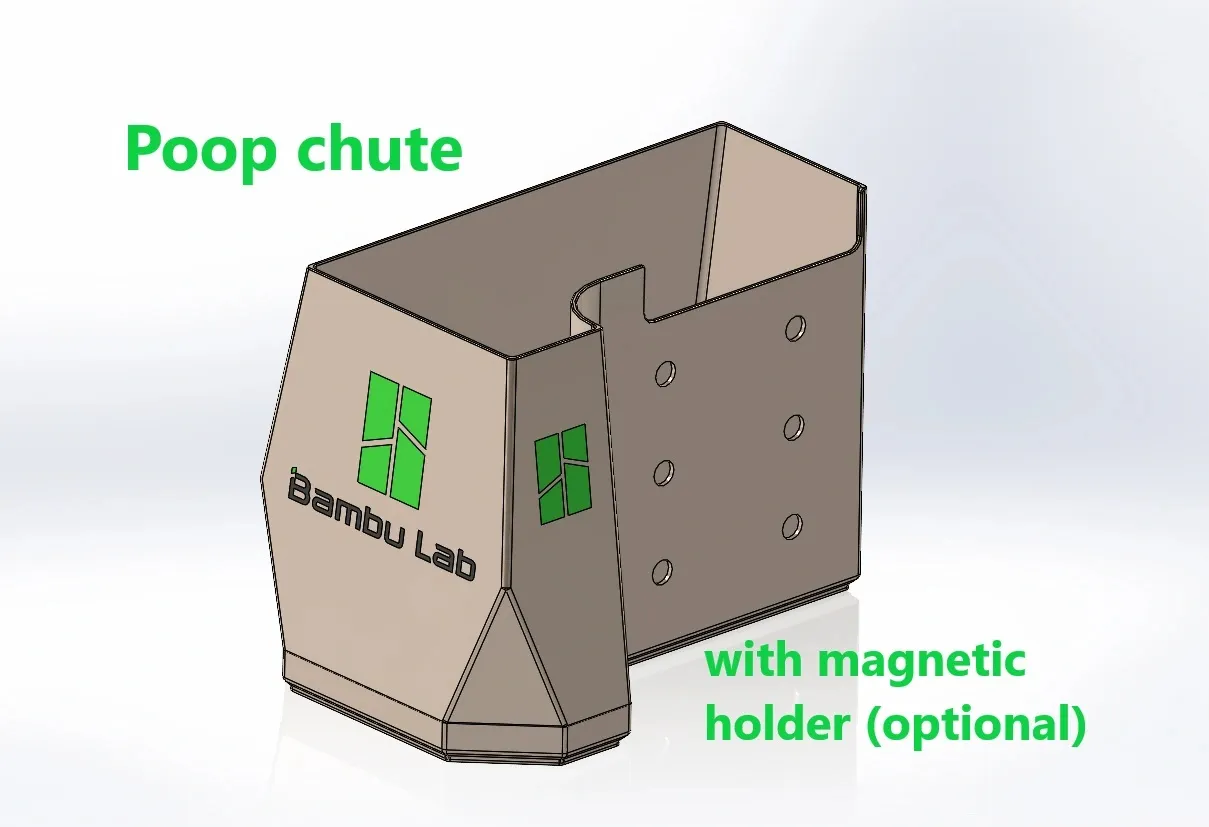

Poop Chute for X1 / P1 series

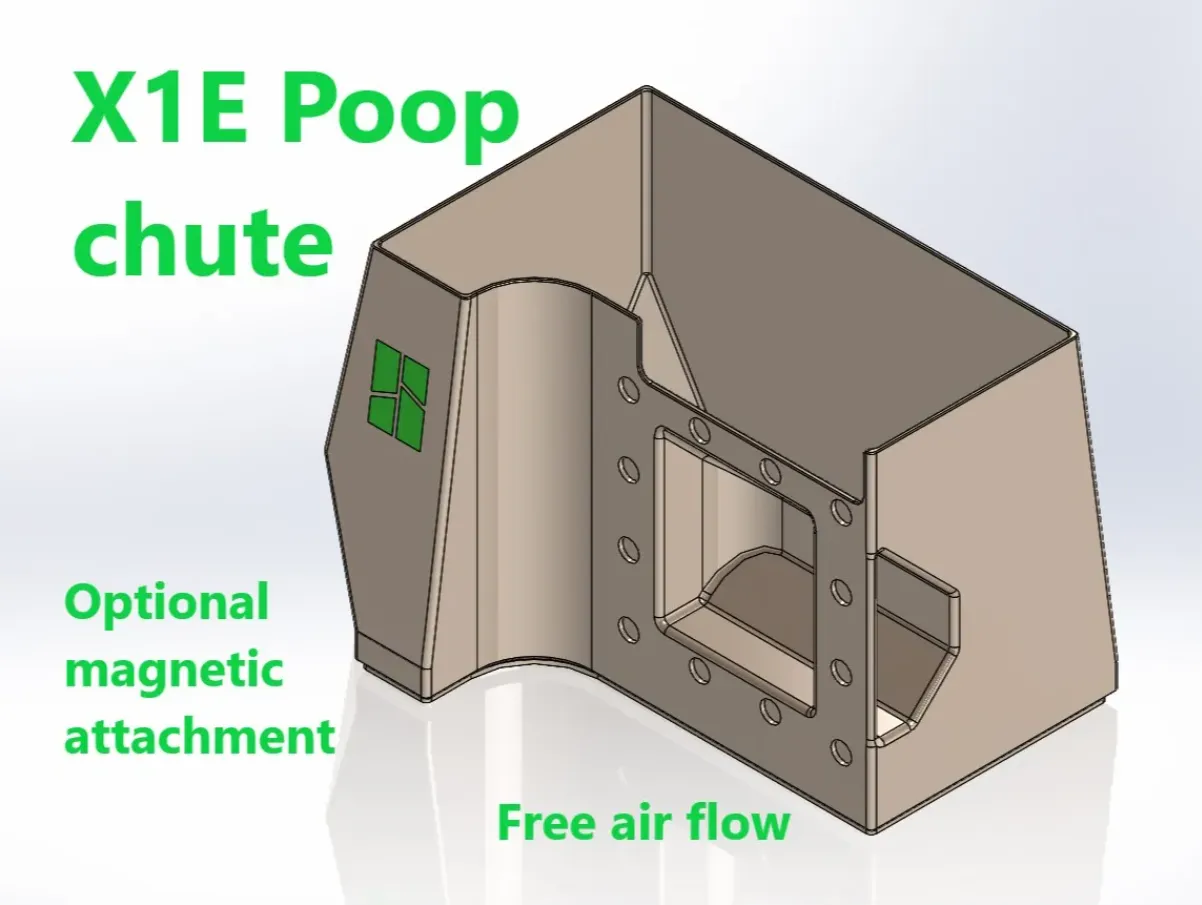

Poop Chute for X1E

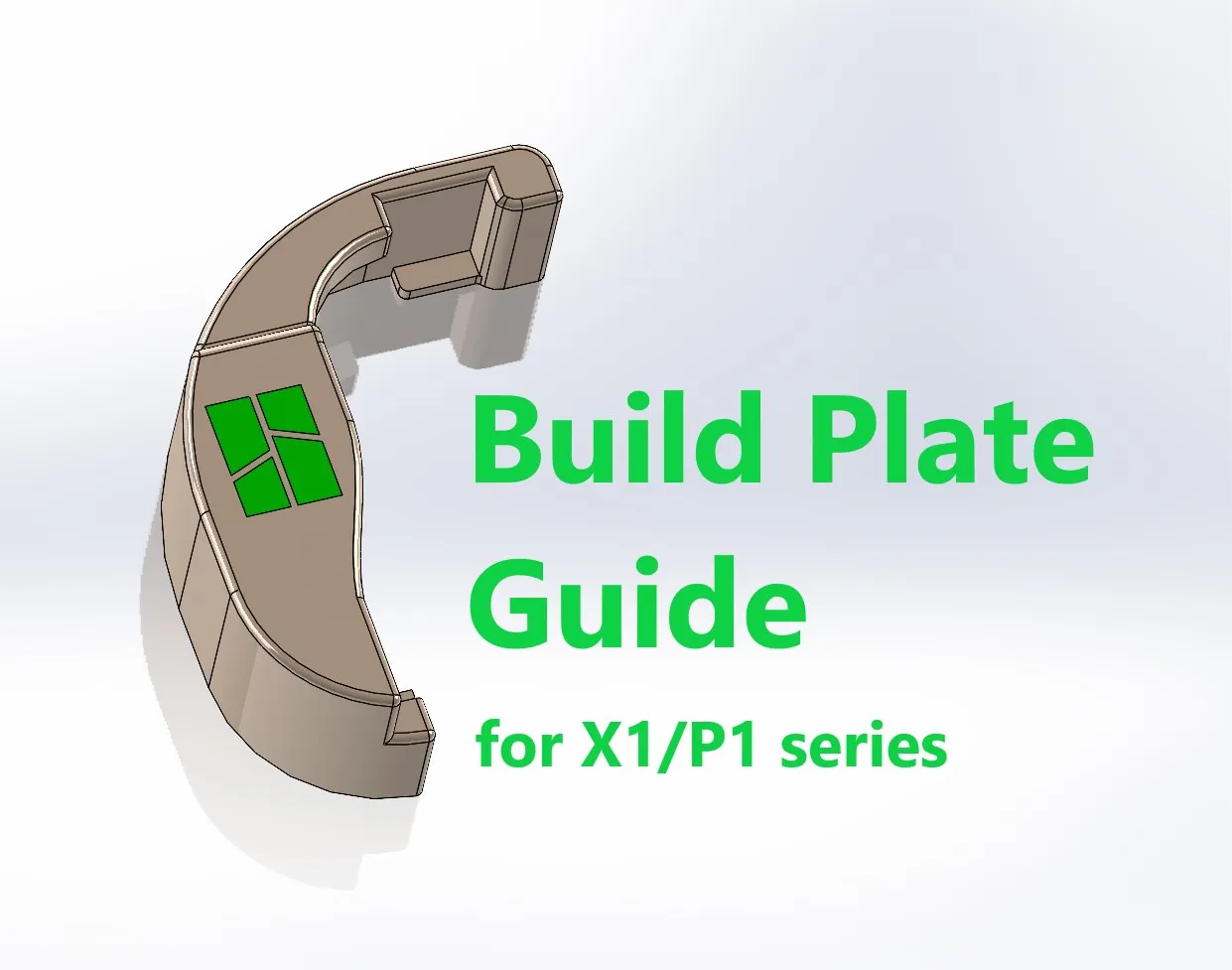

Build Plate Guide Rounded
