Build Plate Guide for X1/P1 series by 3DTechBase

3DTechBase

3D Printer>3D Printer Accessories

GIF

Print Profile(9)

All

X1 Carbon

P1S

P1P

X1E

ABS Single Color, X1/P1 series 0.2mm layer, 2 walls, 30% infill

Designer

14 min

1 plate

5.0(97)

PLA Single Color 0.2mm layer, 2 walls, 30% infill

Designer

14 min

1 plate

4.9(72)

PETG Single Color, 0.2mm layer, 2 walls, 30% infill

Designer

20 min

1 plate

4.8(51)

ABS Multi Color, X1/P1 series 0.2mm layer, 2 walls, 30% infill

Designer

29 min

1 plate

4.9(31)

Click to see more

Boost

653

1294

461

2.2 k

1.9 k

Released

Description

I made the next small piece of my collection, of course there are versions in multi colors! :).

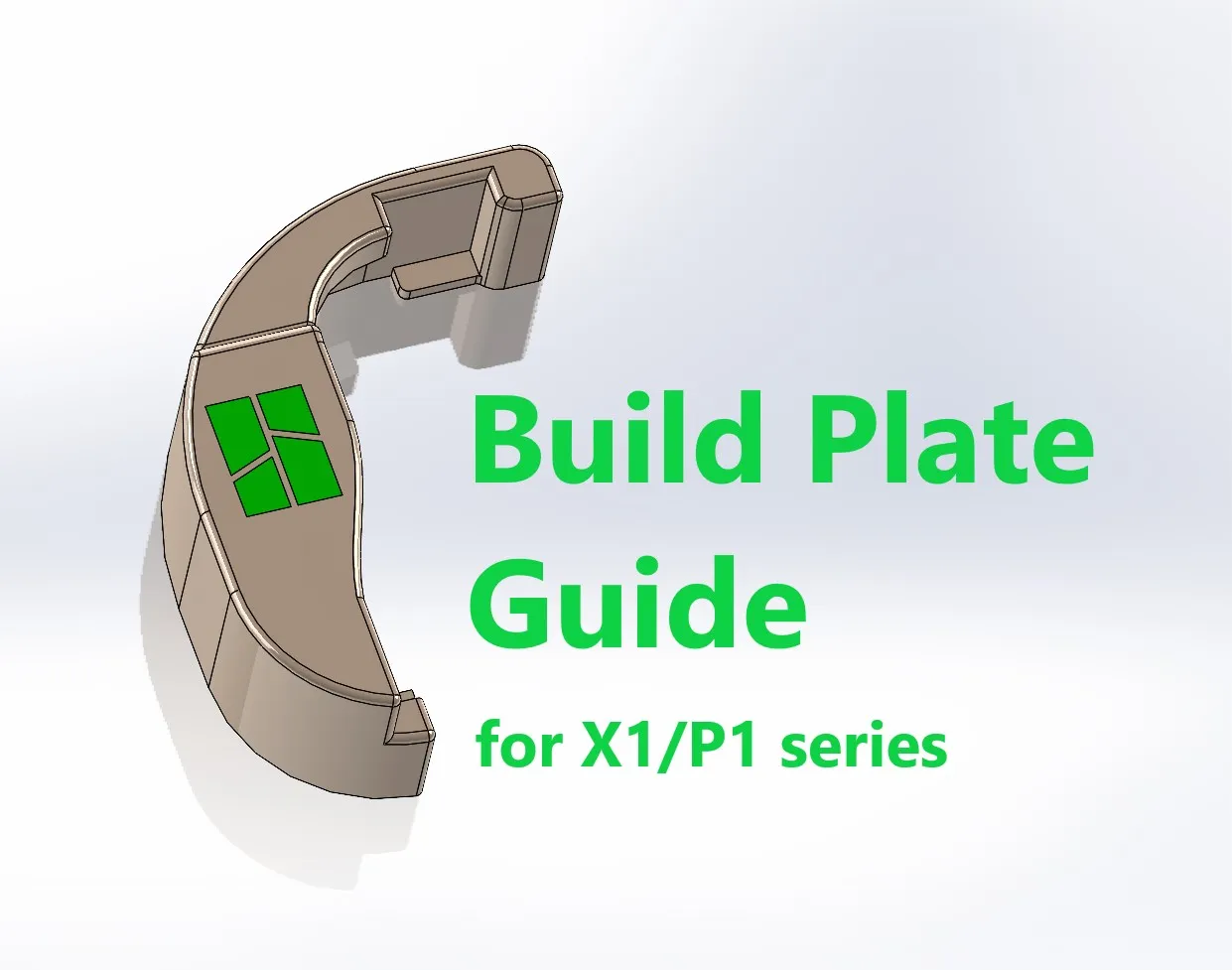

The build plate guide helps you easily push the build plate to its exact location. An important aspect of the design was that it fit well, could be easily placed without much force, of course it should be easy to print and look good. Installation video in the description.

I do not recommend mirroring the part and moving it to the right side! According to my practical experience, it is enough to place it only on one side, it does its job well and the right purge strip is far away. Please do not upload such models, I deliberately did not post the version on the right.

I hope you like it too!

Feel free to ask if you have any questions or comments!

If you like this 3D model and are able to, please consider supporting my work by > buying me a coffee < your contribution will go a long way towards making future creations! Thank you for being a supporter!

The main features of the component:

It easily slides the building plate into the exact location
Practical
It fits well
Easy to install
It is easy to print and the support is easy to remove
single-color and multi-color versions are available
Available profiles for ABS, PLA, PETG materials
and yes, in my opinion, it turned out beautiful. :)

Installation video:

Installation is very easy, even with one hand.

Remove video:

Print:

Quality:
Layer height: 0.2
Wall Generator: Arachne
Strength:
Wall: 2
Filling density: 30 %
Filling pattern: Adaptive cube
Support:
Enable Support: YES
Style: Tight
Remove small overhangs: NO
Z distance: 0.15
Support/Object XY distance: 0.35

Do not use PLA material for printing if you use your printer with other high temp. materials. PETG, ABS, ASA materials are printed at a higher temperature, which PLA cannot withstand. I recommend using ABS, ASA or PETG material.

Recommend:

I would like to recommend the following models to your attention (link, click on the photos):

Update:

2024.02.26. - V11 - Based on the first feedback, I adjusted the corner section a few tenths of a mm looser.

Comment & Rating (461)

@jeffreyxl

good fit to and easy to slot in the build plate. filament petg

The designer has replied

@3DTechBase

I am very happy! Thanks for the feedback! :)

@user_3313148766

Print Profile

PETG Multi Color, 0.2mm layer, 2 walls, 30% infill

turned out great

The designer has replied

@3DTechBase

I am very happy! Thx! :)

@KidHaroo

Print Profile

PLA Single Color 0.2mm layer, 2 walls, 30% infill

Prints super easy. Blends in. And works GREAT. Thanks for this!

The designer has replied

@3DTechBase

I am very happy, thank you!

@The_Big_Bang

Print Profile

PETG Single Color, 0.2mm layer, 2 walls, 30% infill

The support ruined a bit the corner so be careful.. Overall good print.

The designer has replied

@3DTechBase

What do you think exactly? I can clearly see that the top surface was at the bottom when you printed it? Thanks for helping my work with your answer!

@The_Big_Bang

I think that the design is good and does exactly what it supposed to do 👍 About the print, I did print it on the top surface, because I didn't want the support to ruin the connections.

@MarkyMarky

Nice print easy to fit. Printed in Bambu White ABS

The designer has replied

@3DTechBase

Thanks for the feedback, I'm glad you like it! :)

@MarkyMarky

Replying to @3DTechBase :

Just mirrored it(!) in Black ABS and it workes fine so far.

@branislav.polda

Boosted

Print Profile

ABS Single Color, X1/P1 series 0.2mm layer, 2 walls, 30% infill

AWESOME, makes life si much easier

The designer has replied

@3DTechBase

Thx

@eMeR

Print Profile

PETG Multi Color, 0.2mm layer, 2 walls, 30% infill

Oh-my-God (preferably should be read in Janice from Friends voice). That should have been the second print after getting the printer (just after the scraper). Now it's so easy to place the plate - it just snaps in a perfect position every time. Highly recommend 👍🏻 Printed in PETG. Considering reprint in ABS/ASA in the future. p.s. You DO need one. Trust me. I'm not an engineer, but I have a 3D printer so that's like 1/16 of it.

The designer has replied

@3DTechBase

Thank you very much! :)

@grimgprr

Print Profile

ABS Single Color, X1/P1 series 0.2mm layer, 2 walls, 30% infill

Wow this printed so quickly using ABS and just beautiful print. Fantastic job Thank you so much. I truly appreciate your work.

(Edited)

The designer has replied

@3DTechBase

Thank you very much! 😀

@AstronomiCole

Print Profile

PLA Multi Color, 0.2mm layer, 2 walls, 30% infill

looks great!

The designer has replied

@3DTechBase

Thx

@SneakyBeagle

Print Profile

PETG Single Color, 0.2mm layer, 2 walls, 30% infill

PERFECTION! Used E-Sun PETG High Speed black filament with a 75 degree bed temp, and 12 minutes later I can line up my bed IMMEDIATELY! I love that it is barely noticable as well.
