Bambu Lab AMS Service and Spares parts for MMSS

Introduction

Some of us have the fantastic AMS unit, others with more than one, and who need to have their printers working, so we buy spare parts in case something goes wrong, which as we all know will happen at the worst time...  Thus, and to store these parts in an organized way, I come to present a set of modules for the AMS that is used in the printers of the X1 and P1 series of Bambu Lab. These "modules are to be used in conjunction with my Multi-Modular Storage System (MMSS); You can find more information on my collection for the MMSS system

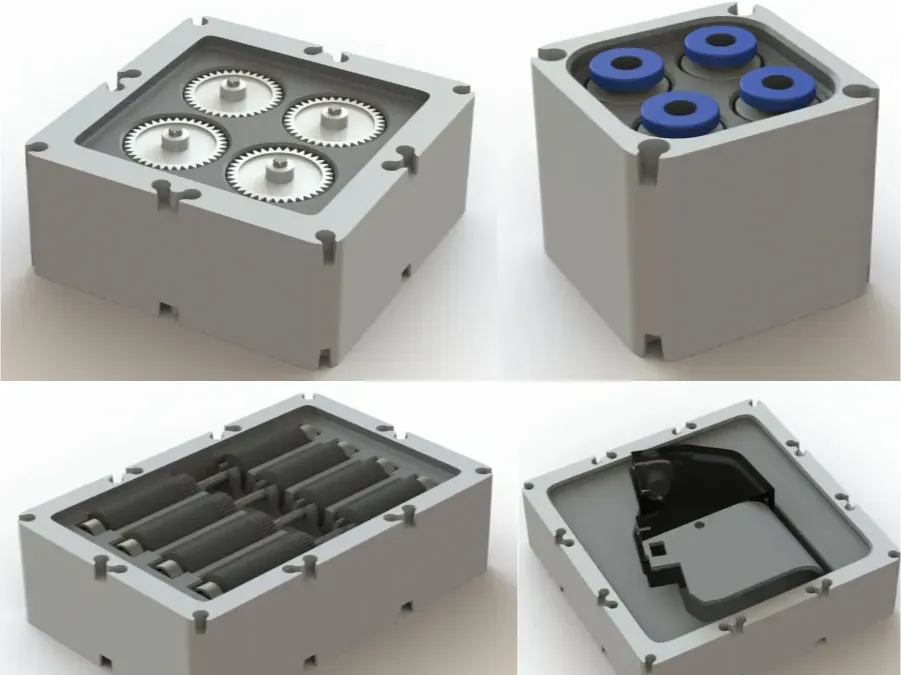

Modules available

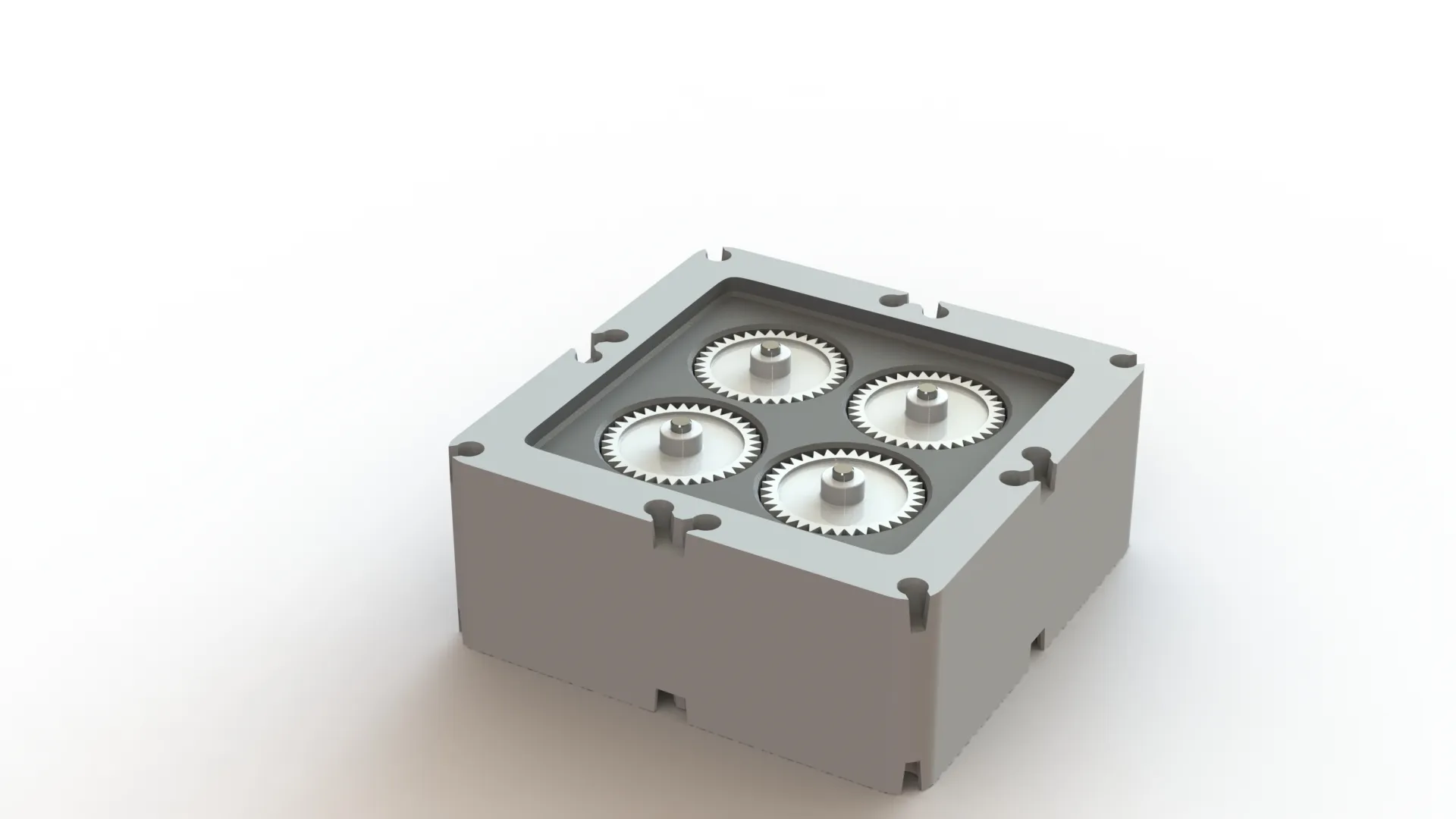

• 4x Active extrusion wheel assembly;

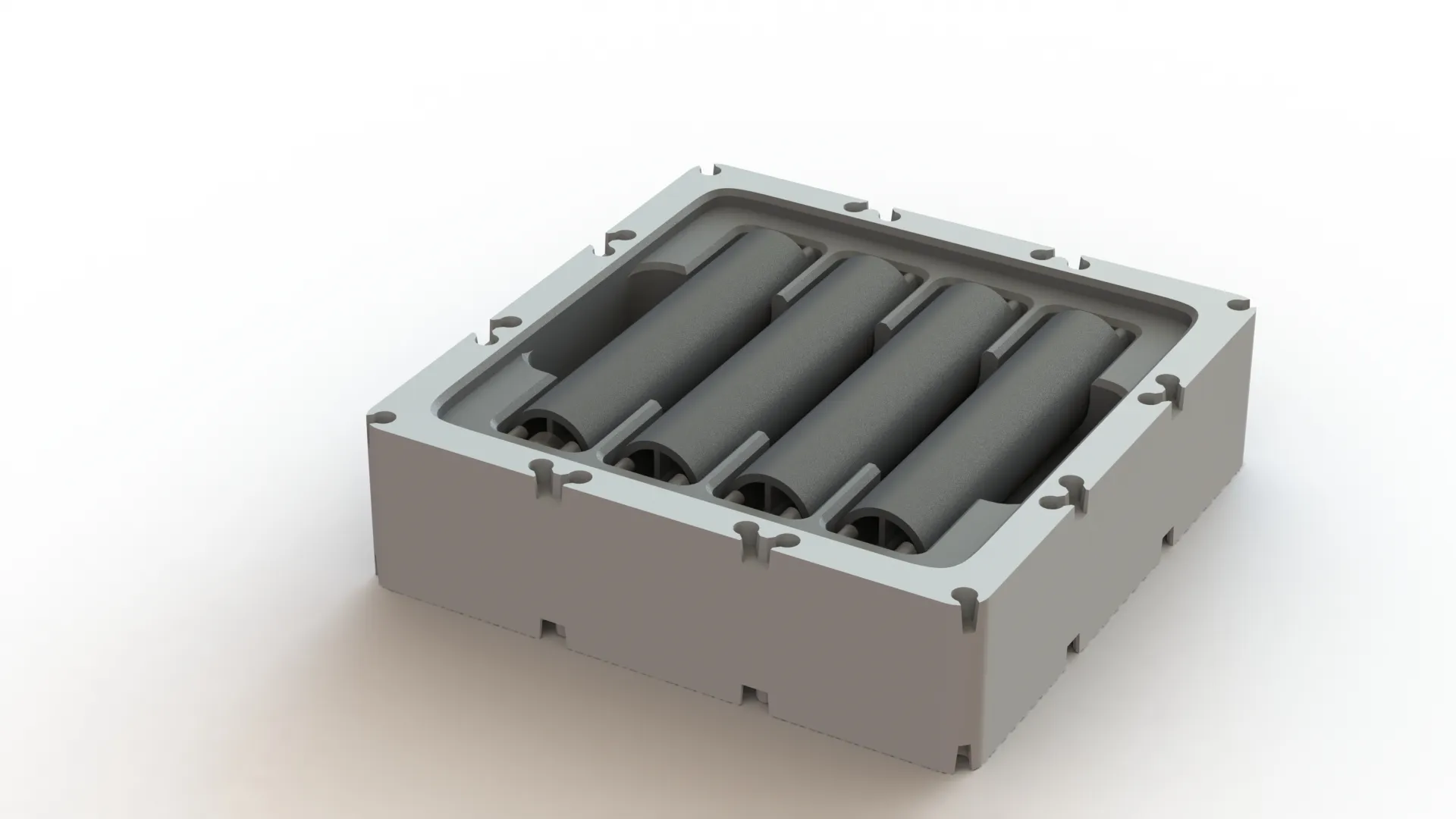

• 4x Active support shaft assembly;

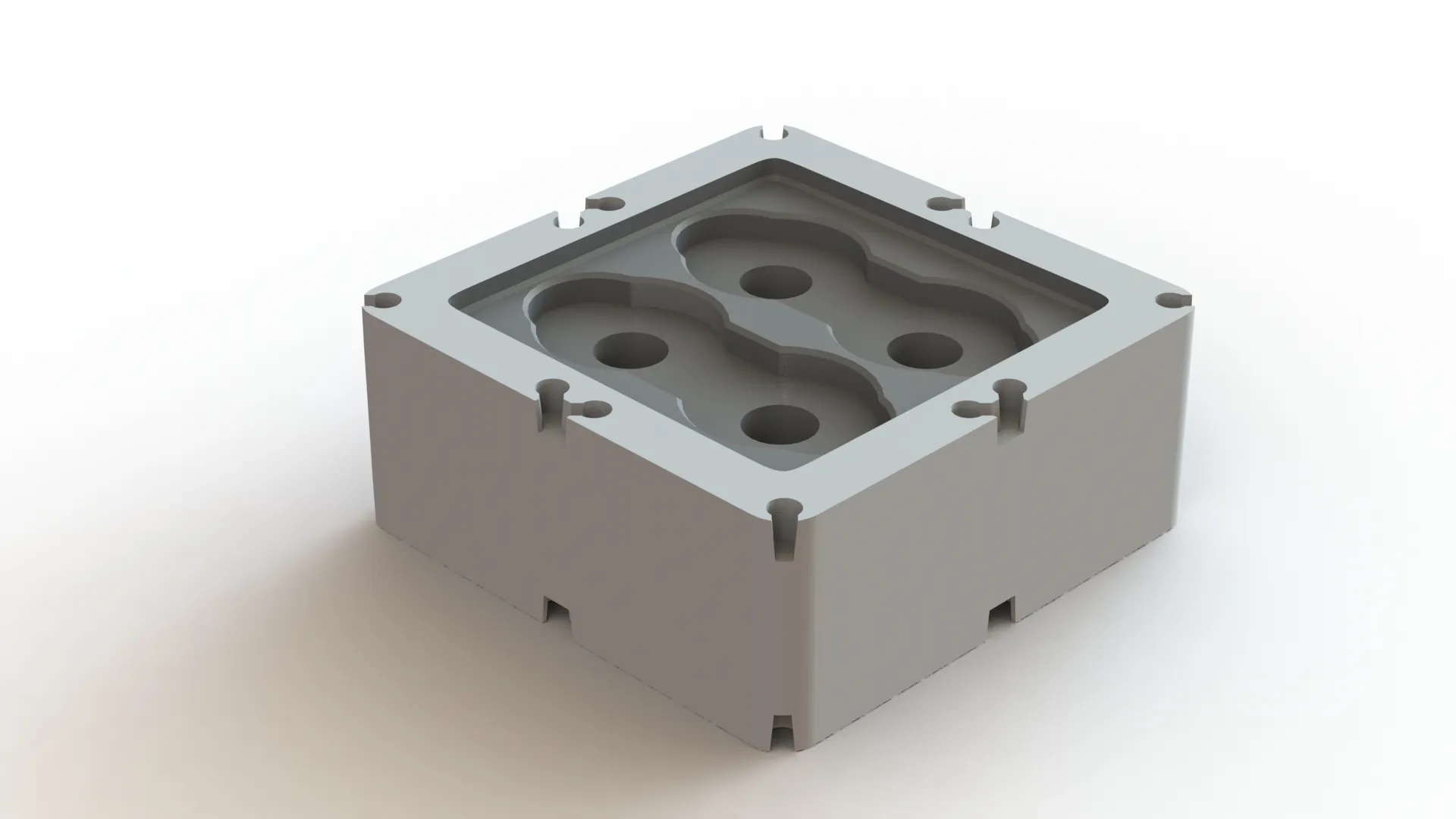

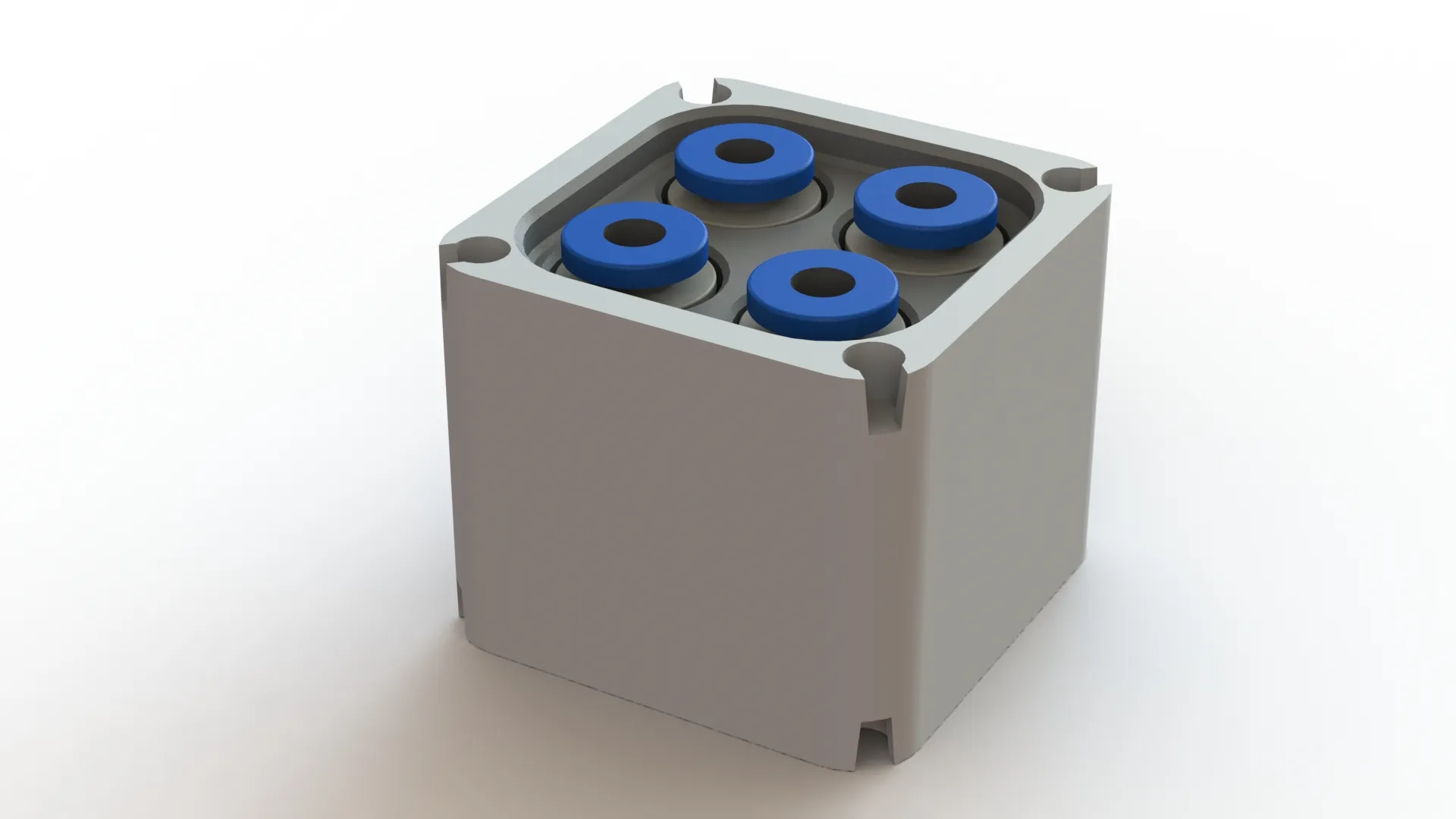

• 4x PTFE Tube Fast Connector;
• 4x  Driven Support Shaft Assembly
• 1x First Stage Feeder
• 2x AMS Feeding Unit

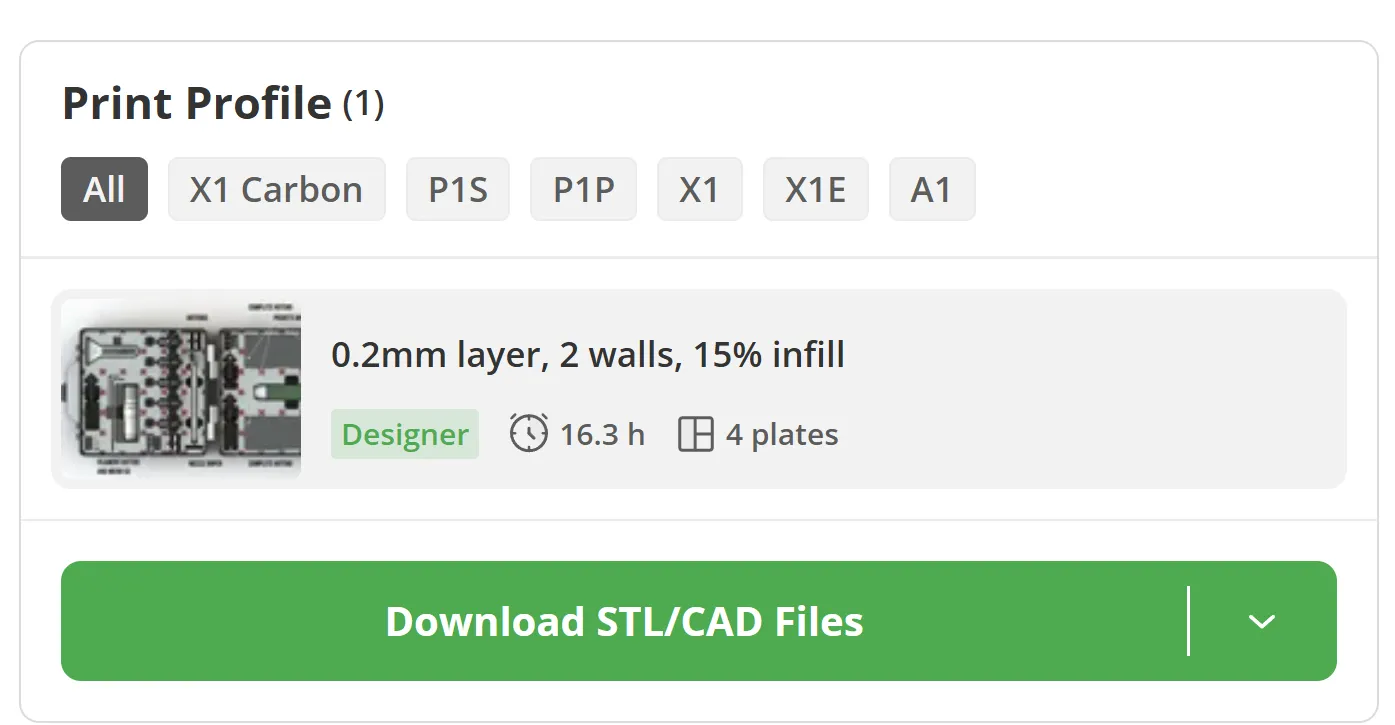

You can find it on the “Download STL/CAD files”	New version of the AMS feeding unit (V2), Offers a better fit. The last one will be removed.

Due to the size of some components, like the First Stage Feeder, it is not advisable to use the taller case (The one with components on both sides) because there may be interference, especially with the hotends.

You may use these solutions for the PTFE tubes.

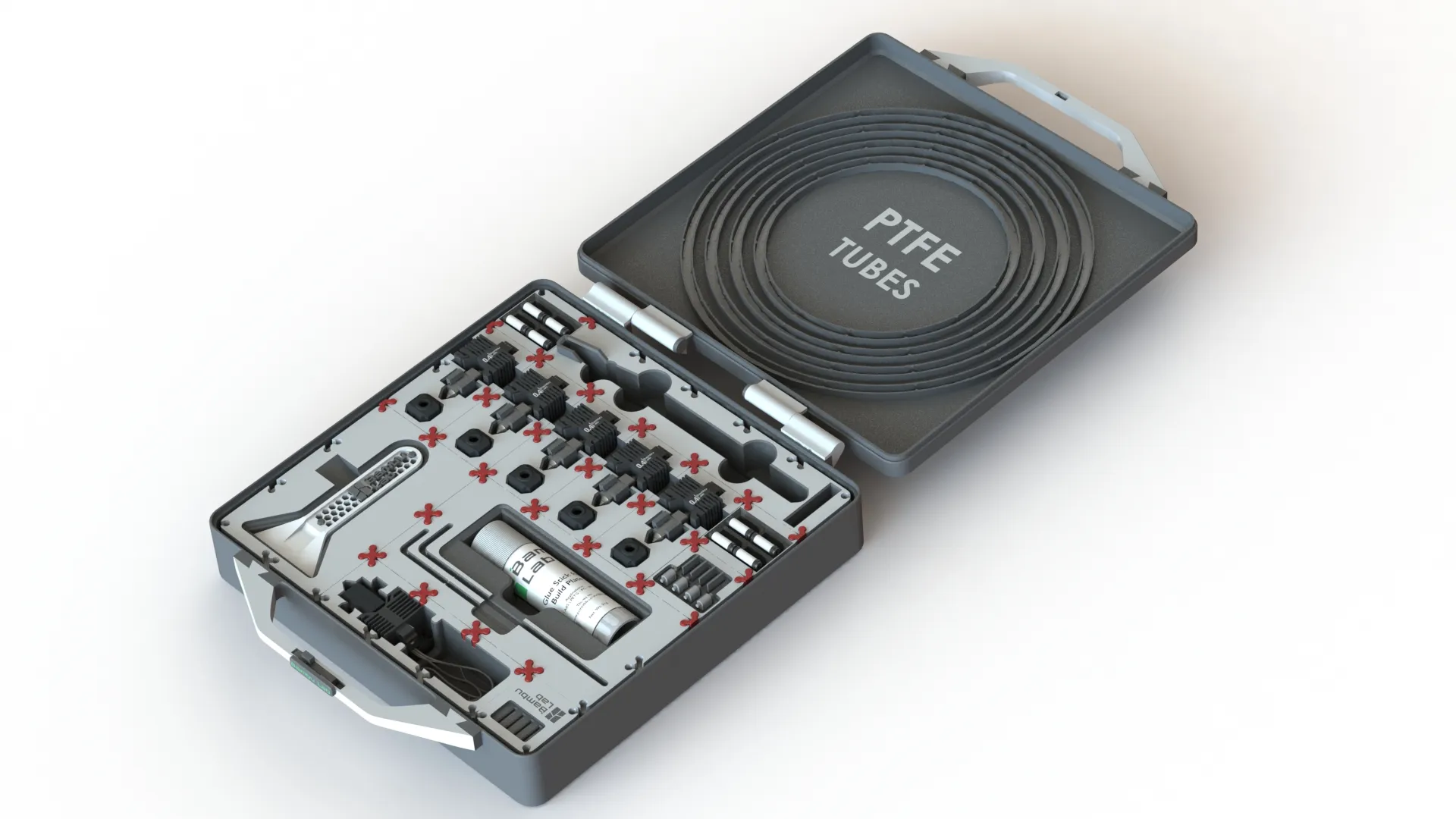

Narrower Case for the MMSS (Tag for the lock available for download)	Smaller case with PTFE tubes on the lid

or if you prefer the box, you can't go wrong:

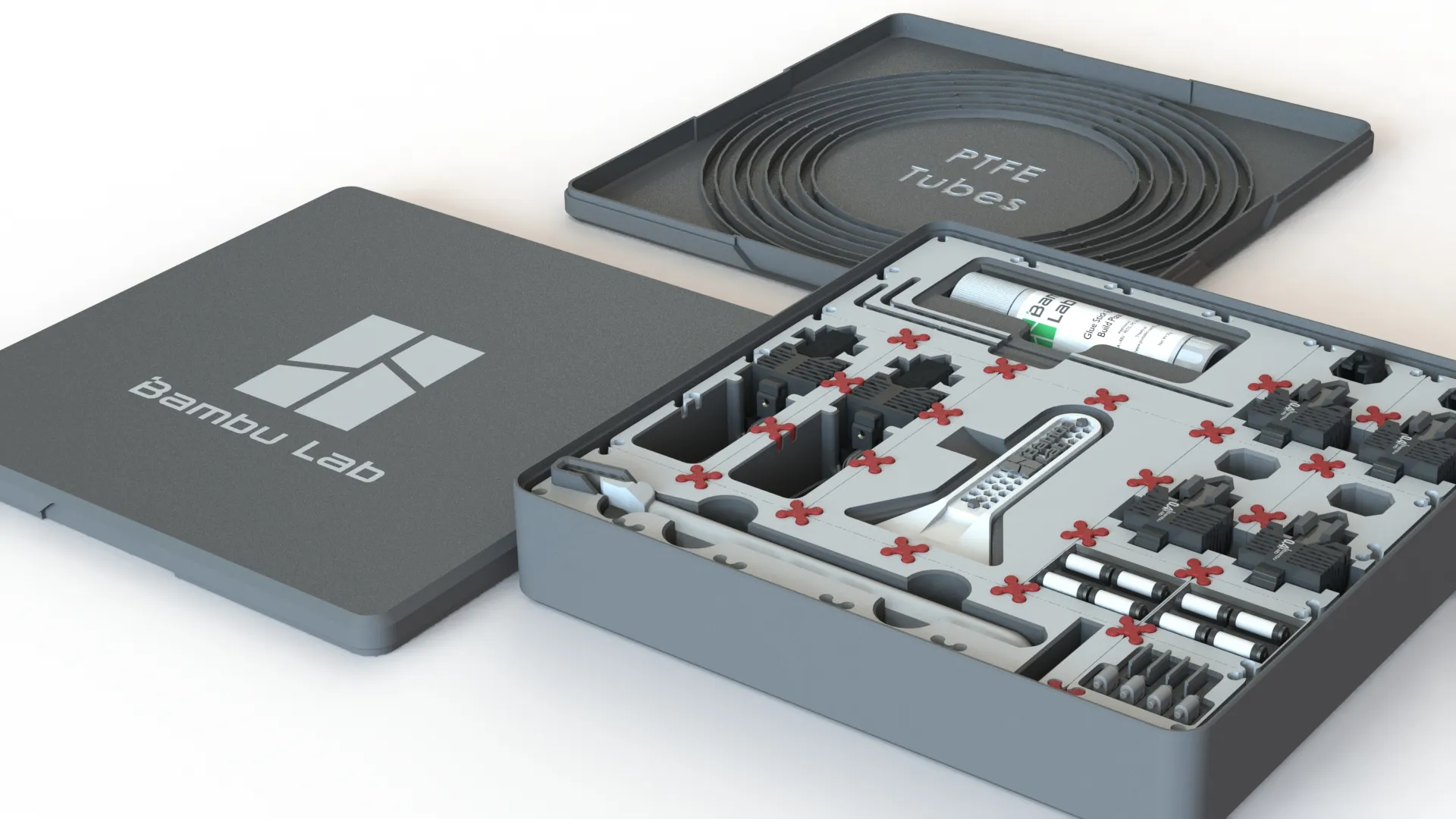

Box for the MMSS	A version of lid for the box with a spiral groove, is available for tubes up to 2,7 meters in length.

More MMSS modules already avialable

• MMSS 2x4 Module - Glue Stick and Hexagonal Keys
• MMSS 1x1 Module - MicroSD
• MMSS 1x1 Module - Nozzle Wipper
• MMSS 1x1 Module - Filament Cutter + MicroSD
• MMSS 1x1 Module - Filament Cutter
• MMSS 1x2 Module - Hotend and Silicon Sock
• MMSS 1x3 Module - Complete Hotend
• MMSS 2x3 Module - Small Scraper
• MMSS 2x5 Module - Liquid Glue
• MMSS various Modules - Pockets with Lid
• MMSS 2x3 Module - Spool Holder
• MMSS 1x5 bambu lab original scraper
• MMSS 2x2 Module – X1C
• MMSS for AMS Modules
  • 4x Active extrusion wheel assembly;
  • 4x Active support shaft assembly;
  • 4x PTFE Tube Fast Connector;
  • 4x  Driven Support Shaft Assembly
  • 1x First Stage Feeder
  • 1x MMSS 3x2 Module - AMS Buffer
• MMSS for the A1 printer
  • MMSS 1x1 Module - PTFE Removal Tube for the Bambu Lab A1
  • MMSS 2x1 Module - Nozzle Wiper for A1 mini
  • MMSS 1x2 Module – A1 Hotend Silicone Sock
• More to come… I'm always adding new modules, please check my profile for the later information, some are free, others are only available as exclusives for members.
• Batteries Modules
  • MMSS 2x3 Module - AAA batteries
  • MMSS 2x3 Module - AA batteries
  • MMSS 2x4 Module - PP3 9v batteries
• More to come… I'm always adding new modules, please check my Collection for the MMSS for more.

Change log

Sometimes I update or add more print profiles, they can be found under the section “Download STL/CAD Files”


• Added the: AMS Driven Support Shaft Assembly
  • Updated to the First Stage Feeder.
• Added the: AMS Feeding Unit
• Changed the “Active extrusion wheel assembly” to ease the extraction

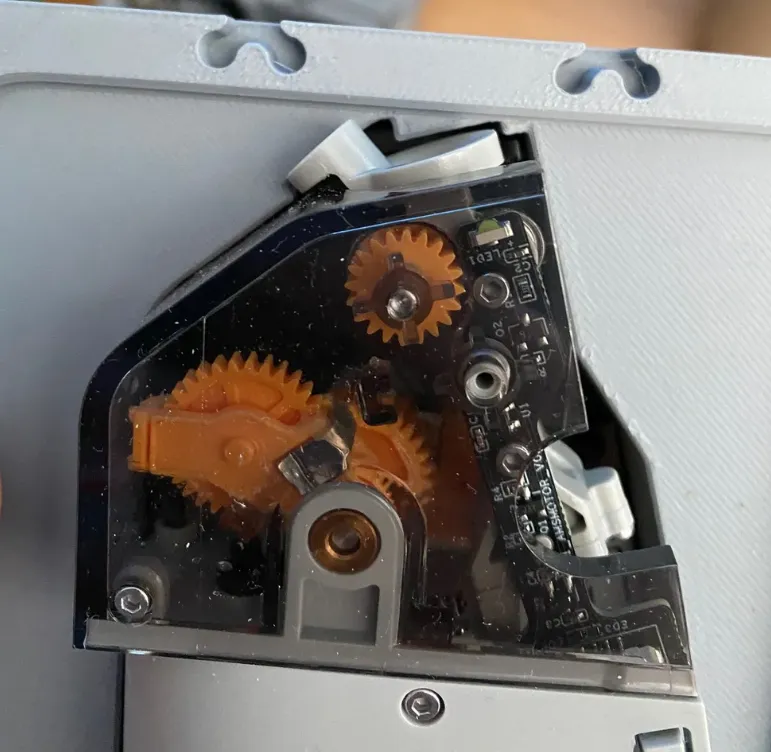

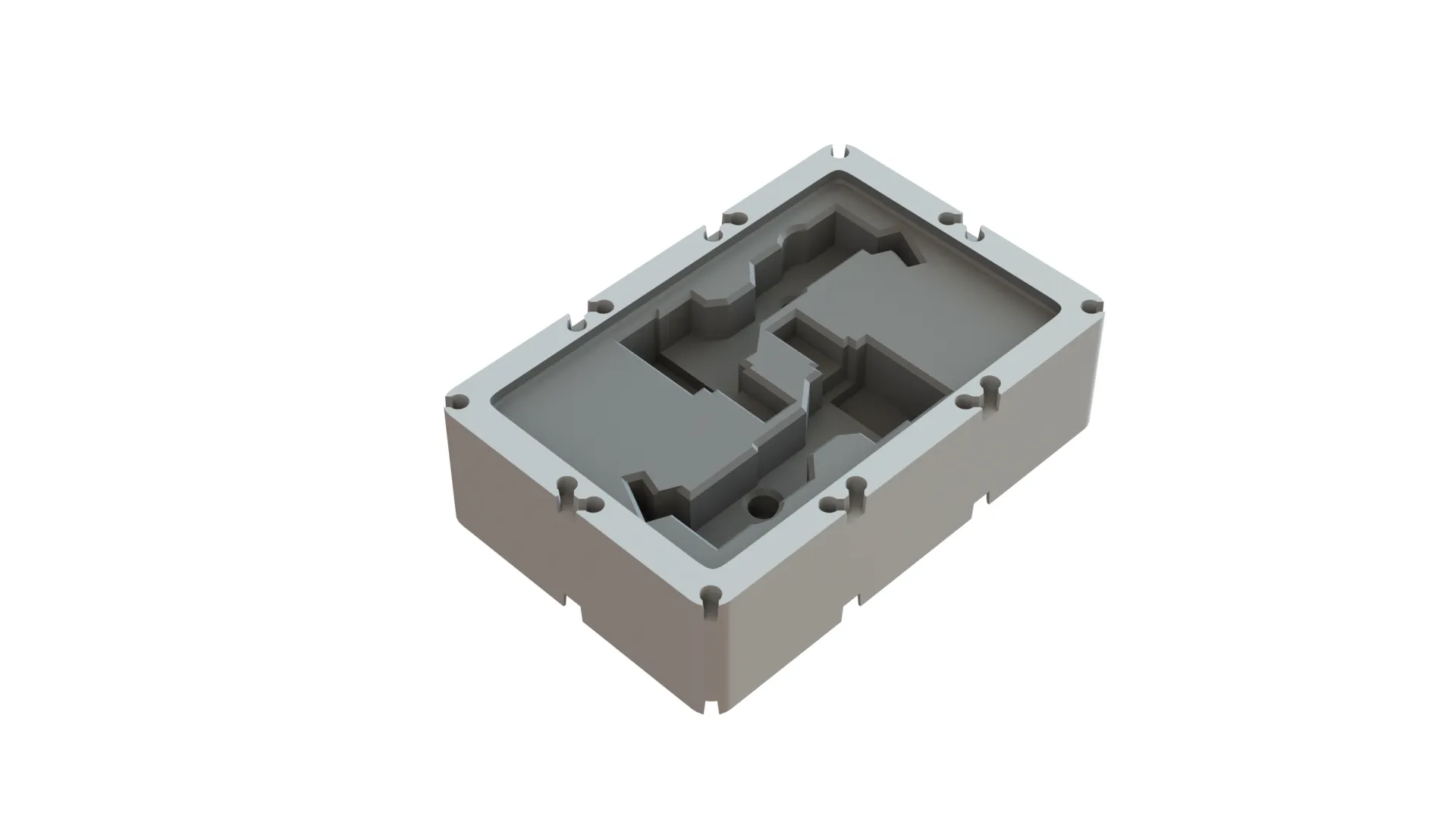

• (update) The module related to the "First Stage Feeder" seems to have undergone some changes in the latest units of AMS sent by Bambu. The "Feeding unit" now appears slightly higher. I'm not sure if this is a deliberate update (most likely) or if it's some quality control issue in the assembly (excluding injection mold faults). Therefore, I have created a new module in case your AMS has the filament loading clip slightly elevated (see image). In that case, use the version (AMS - First Stage Feeder v2). This model does not have the same aesthetic elements as the previous ones (recess), because I found it better to use the smallest module possible and thus save a lot of space, which I know is not much.

The new version features reinforced clips, thus increasing its durability and allowing compatibility with all versions. Therefore, if you don't mind the absence of the aesthetic detail (recess), this version will be the most versatile. However, I will maintain both versions.

Thanks for to the member LabMunkie that made this to my attention and helped me testing the new design.

• Update to the AMS Feeding unit, much better fit

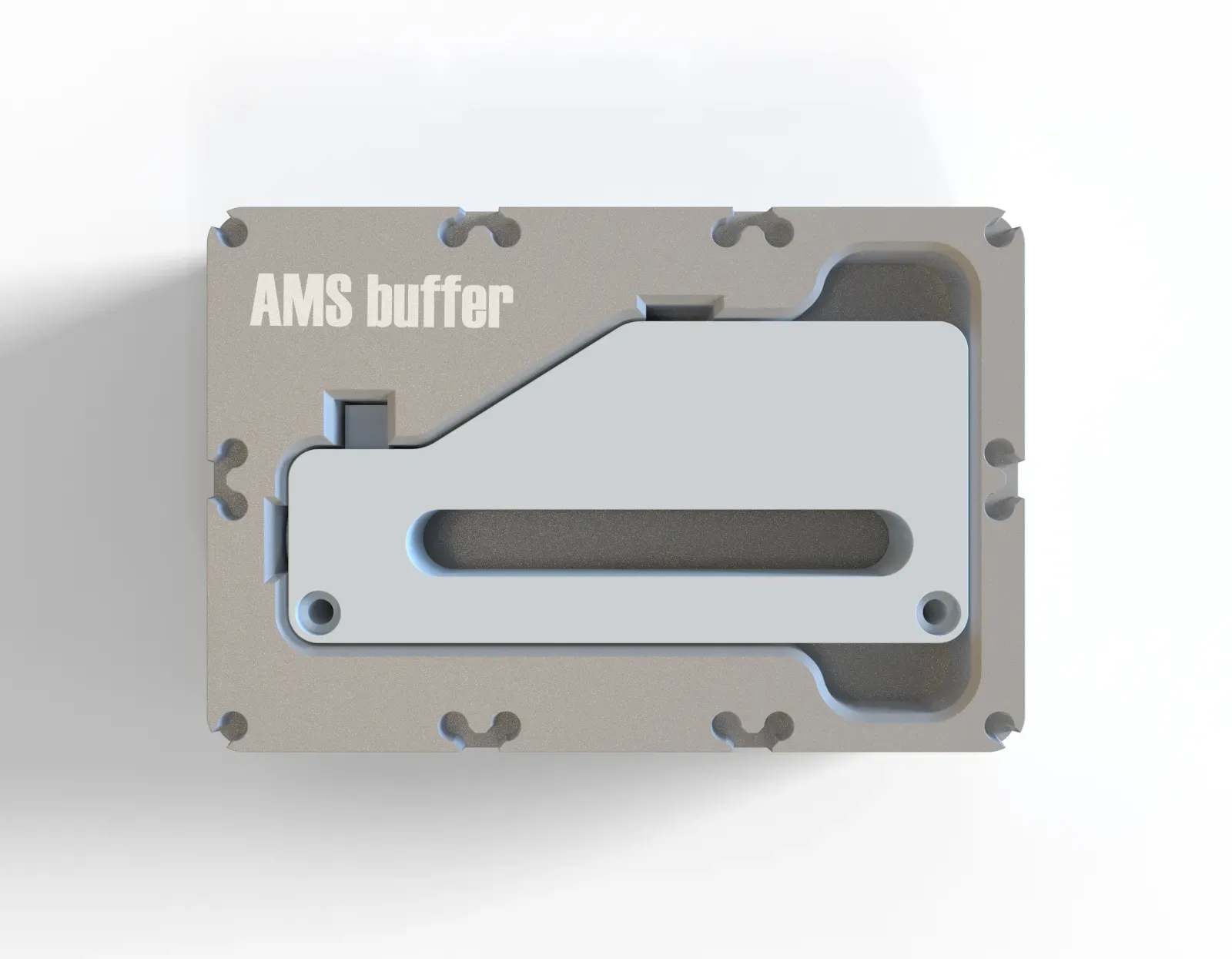

The AMS buffer is available as separate project, you can find it here: MMSS 3x2 Module - AMS Buffer by Jorge Rui - MakerWorld
