Box with lid for MMSS

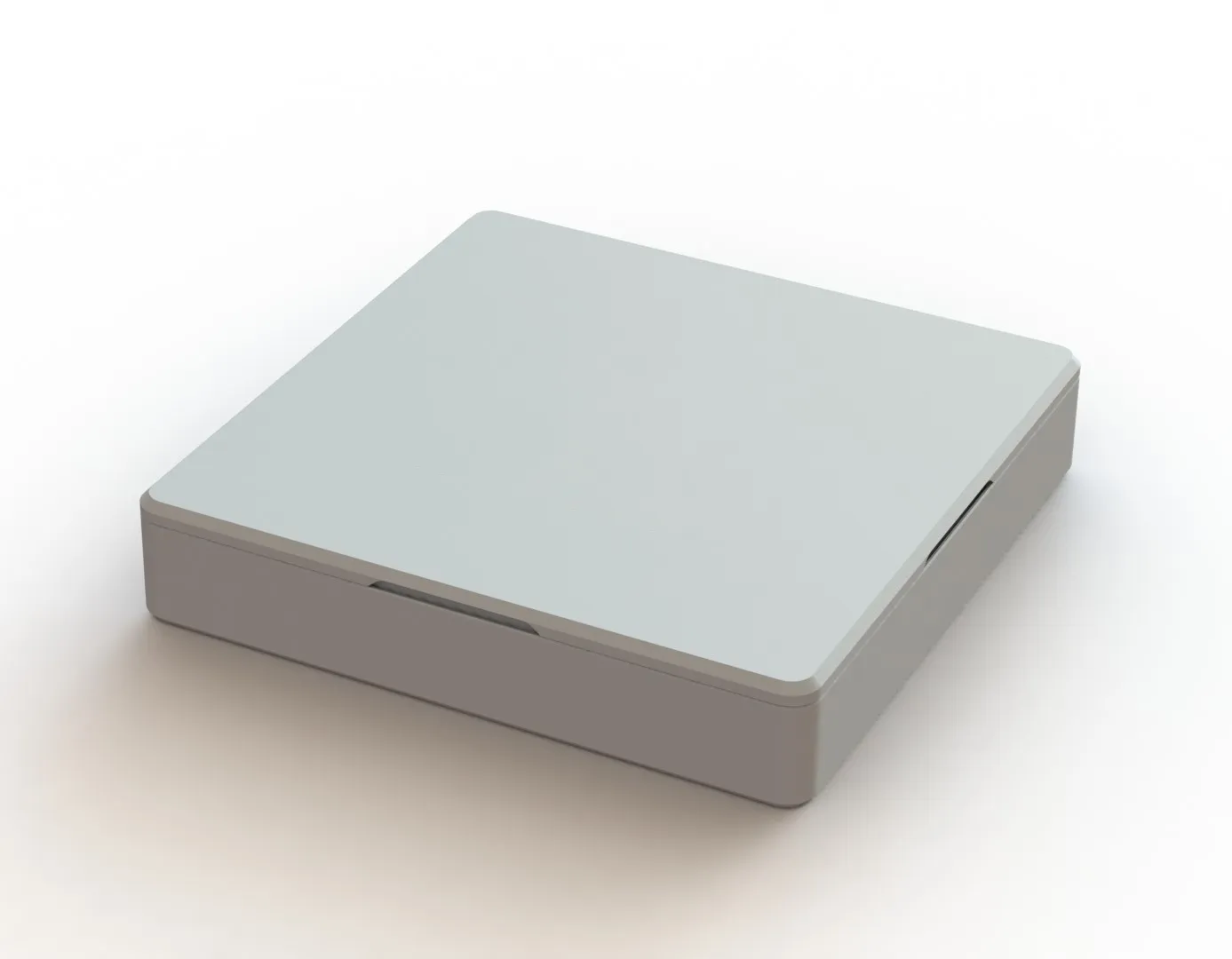

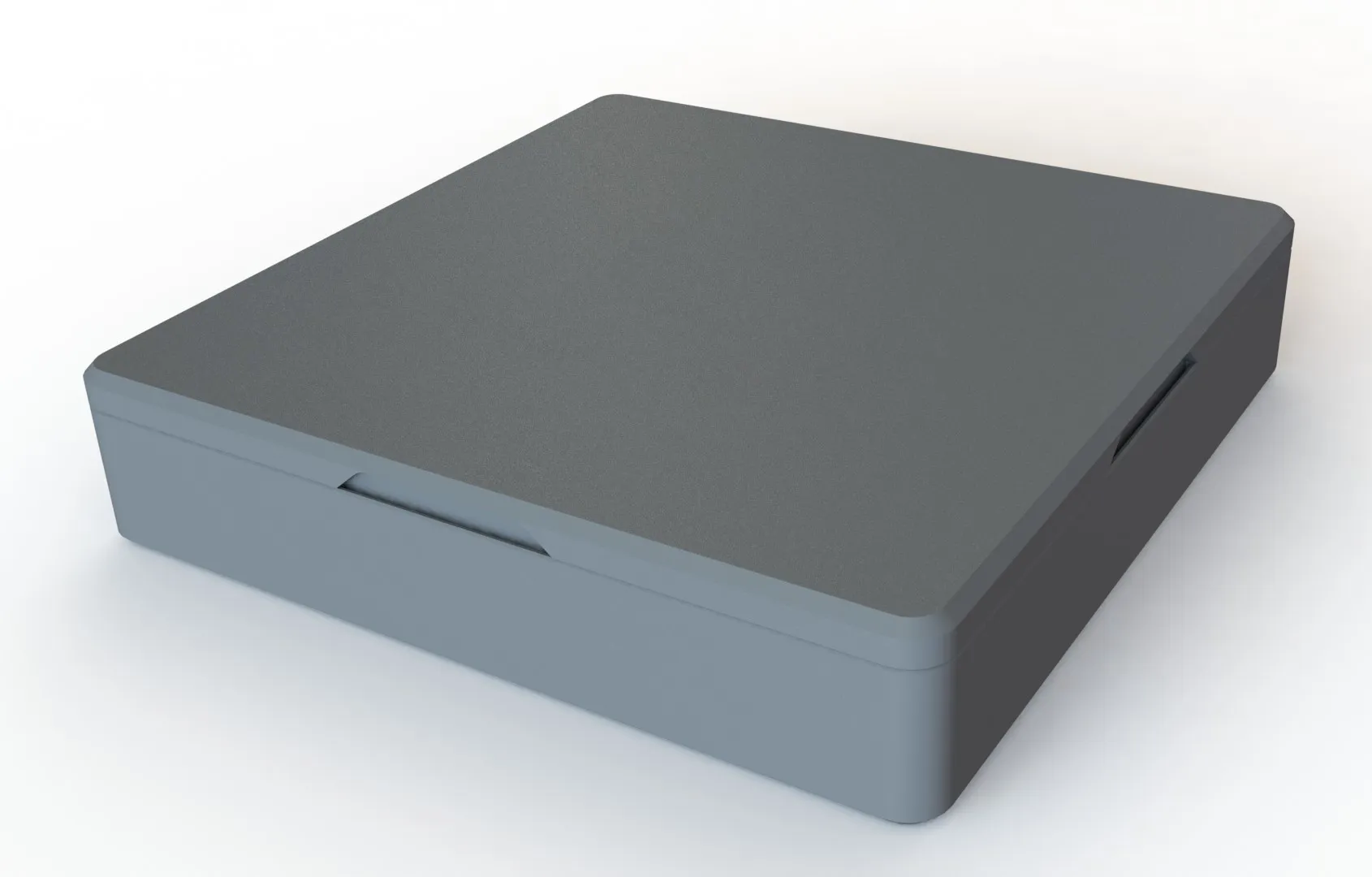

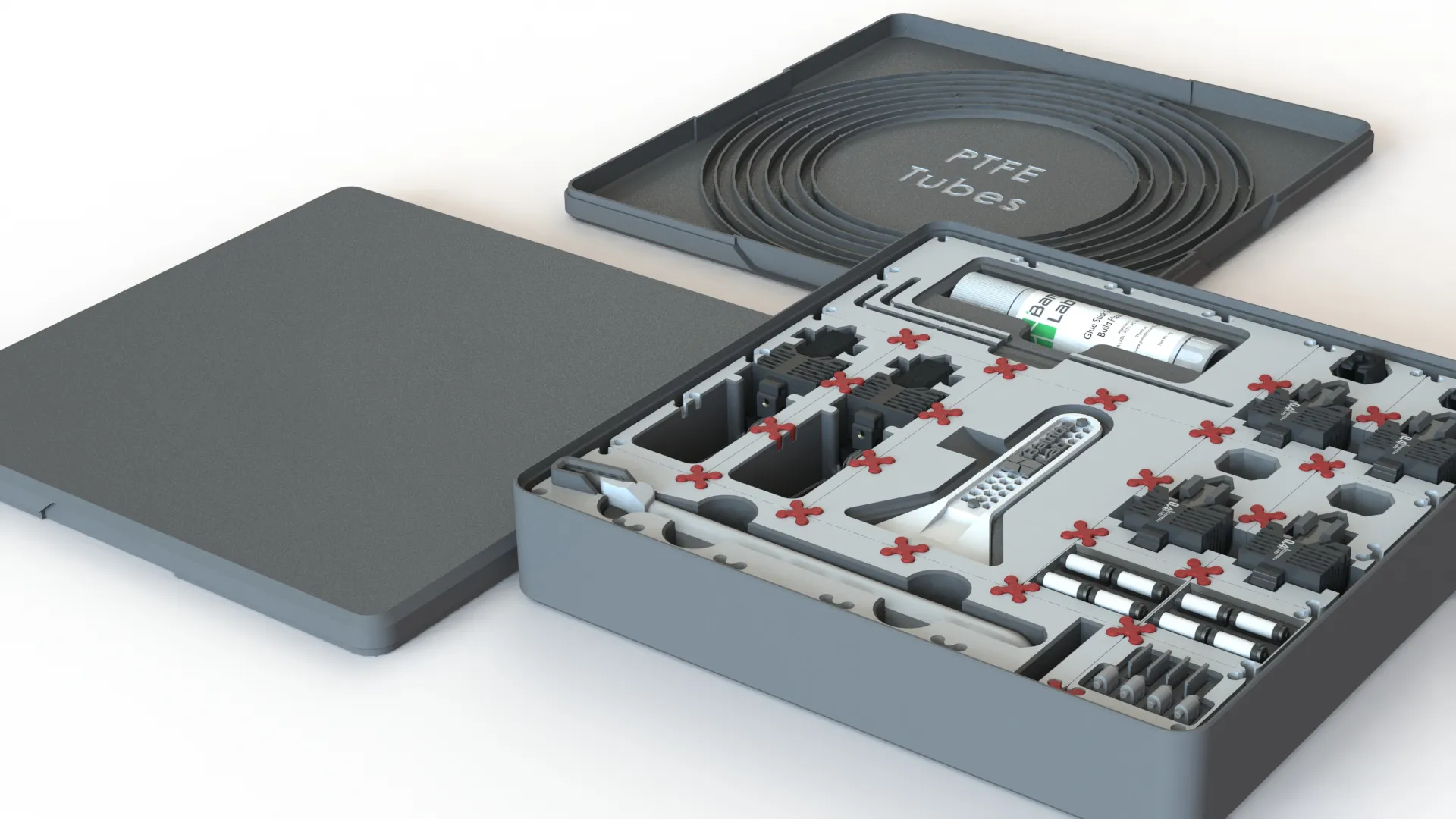

 The case with lid

This module is part of the Multi-Modular Storage System -MMSS.

Already prepared housing modules:

• MMSS 2x4 Module - Glue Stick and Hexagonal Keys
• MMSS 1x1 Module - MicroSD
• MMSS 1x1 Module - Nozzle Wipper
• MMSS 1x1 Module - Filament Cutter + MicroSD
• MMSS 1x1 Module - Filament Cutter
• MMSS 1x2 Module - Hotend and Silicon Sock
• MMSS 1x3 Module - Complete Hotend
• MMSS 2x3 Module - Small Scraper
• MMSS 2x5 Module - Liquid Glue
• MMSS various Modules - Pockets with Lid
• MMSS 2x3 Module - Spool Holder
• MMSS 1x5 bambu lab original scraper
• MMSS 2x2 Module – X1C
• MMSS for AMS Modules
  • 4x Active extrusion wheel assembly;
  • 4x Active support shaft assembly;
  • 4x PTFE Tube Fast Connector;
  • 4x  Driven Support Shaft Assembly
  • 1x First Stage Feeder
  • 1x MMSS 3x2 Module - AMS Buffer
• MMSS for the A1 printer
  • MMSS 1x1 Module - PTFE Removal Tube for the Bambu Lab A1
  • MMSS 2x1 Module - Nozzle Wiper for A1 mini
  • MMSS 1x2 Module – A1 Hotend Silicone Sock
• More to come… I'm always adding new modules, please check my profile for the later information, some are free, others are only available as exclusives for members.
• Batteries Modules
  • MMSS 2x3 Module - AAA batteries
  • MMSS 2x3 Module - AA batteries
  • MMSS 2x4 Module - PP3 9v batteries
• More to come… I'm always adding new modules, please check my Collection for the MMSS for more.

It works on the current printers: P1P, P1S and X1C.

Features

Here the idea of the MMSS will be maintained, that is, maximum flexibility. So, it can adapt to many situations.

There's no need to occupy all the spaces, you add modules only when necessary and, what you want.

It will help to organize and keep the modules fixed relative to each other.

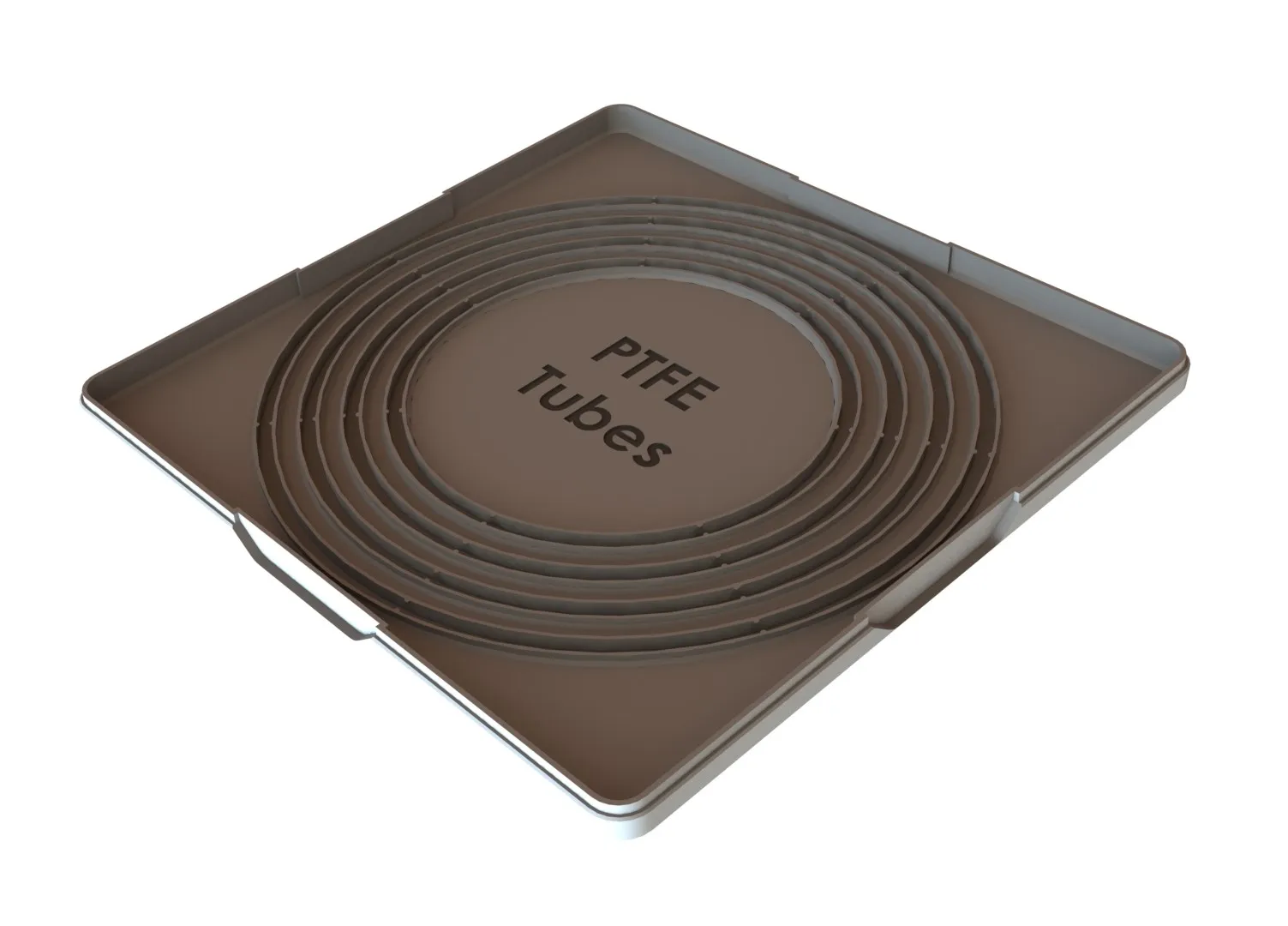

The lid

This is not just a simple lid, it can store the PTFE tubes.

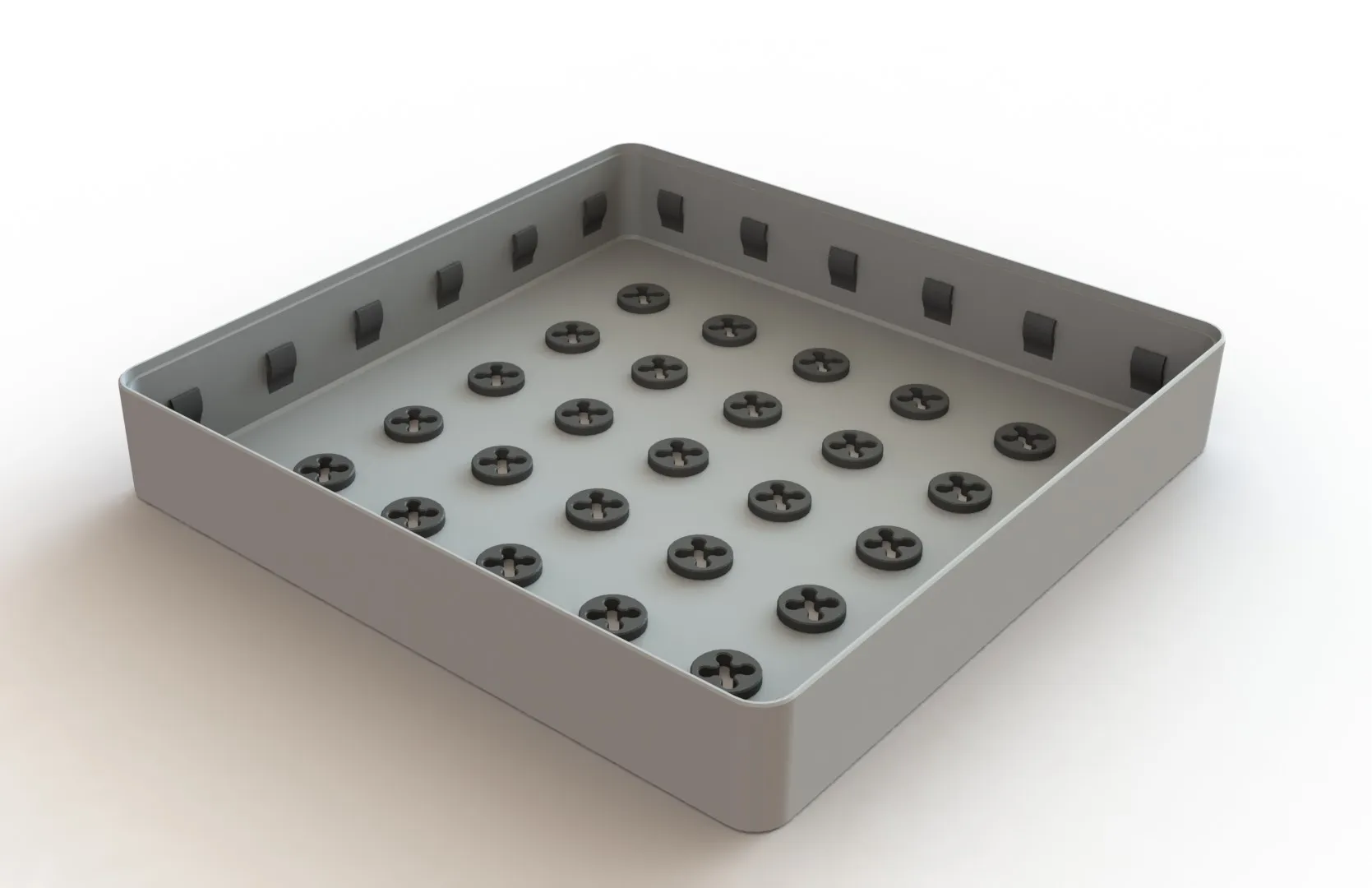

The box

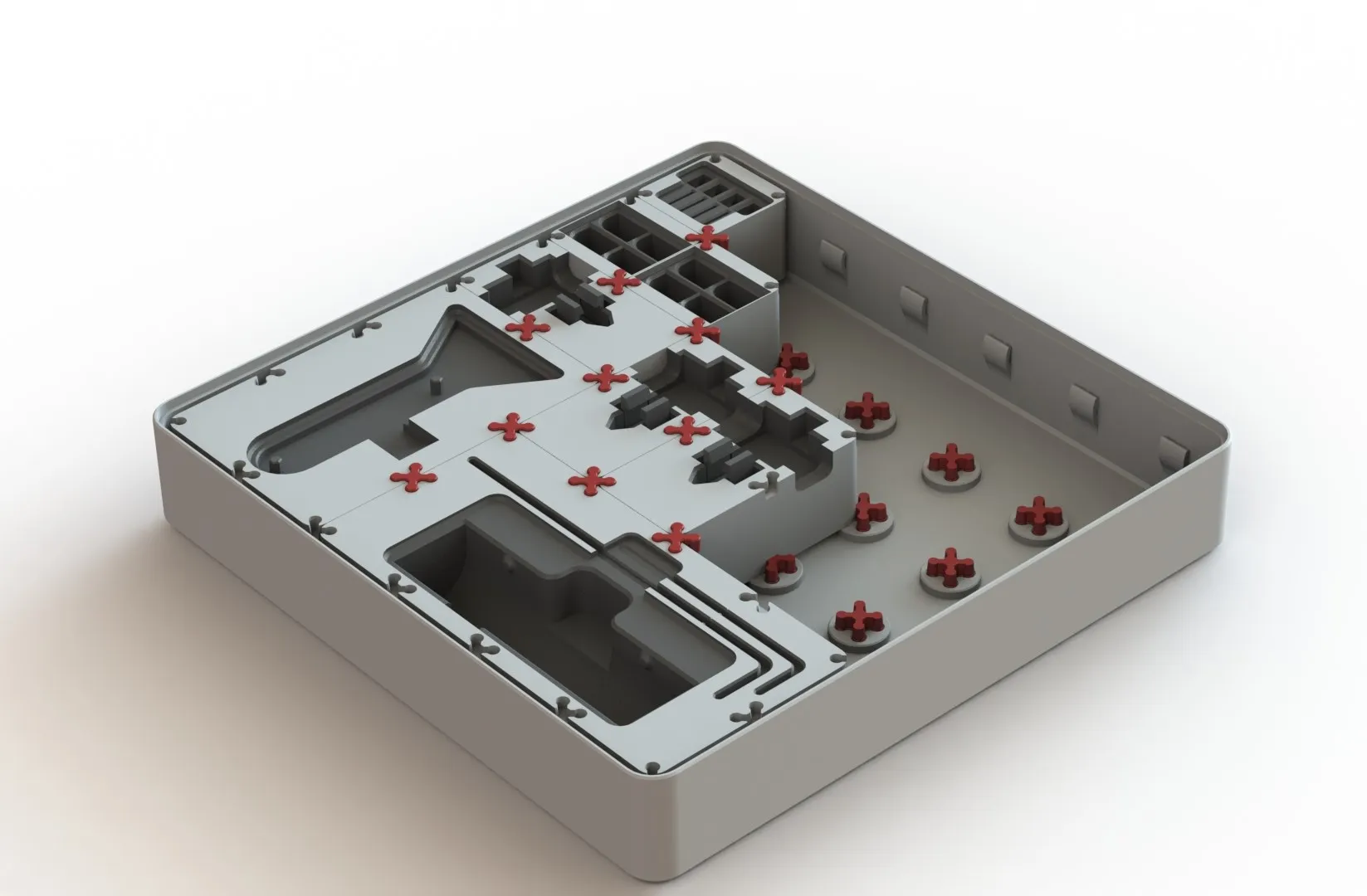

The box uses MMSS, with centering springs on the sides. A simple but functional design.

The assembly

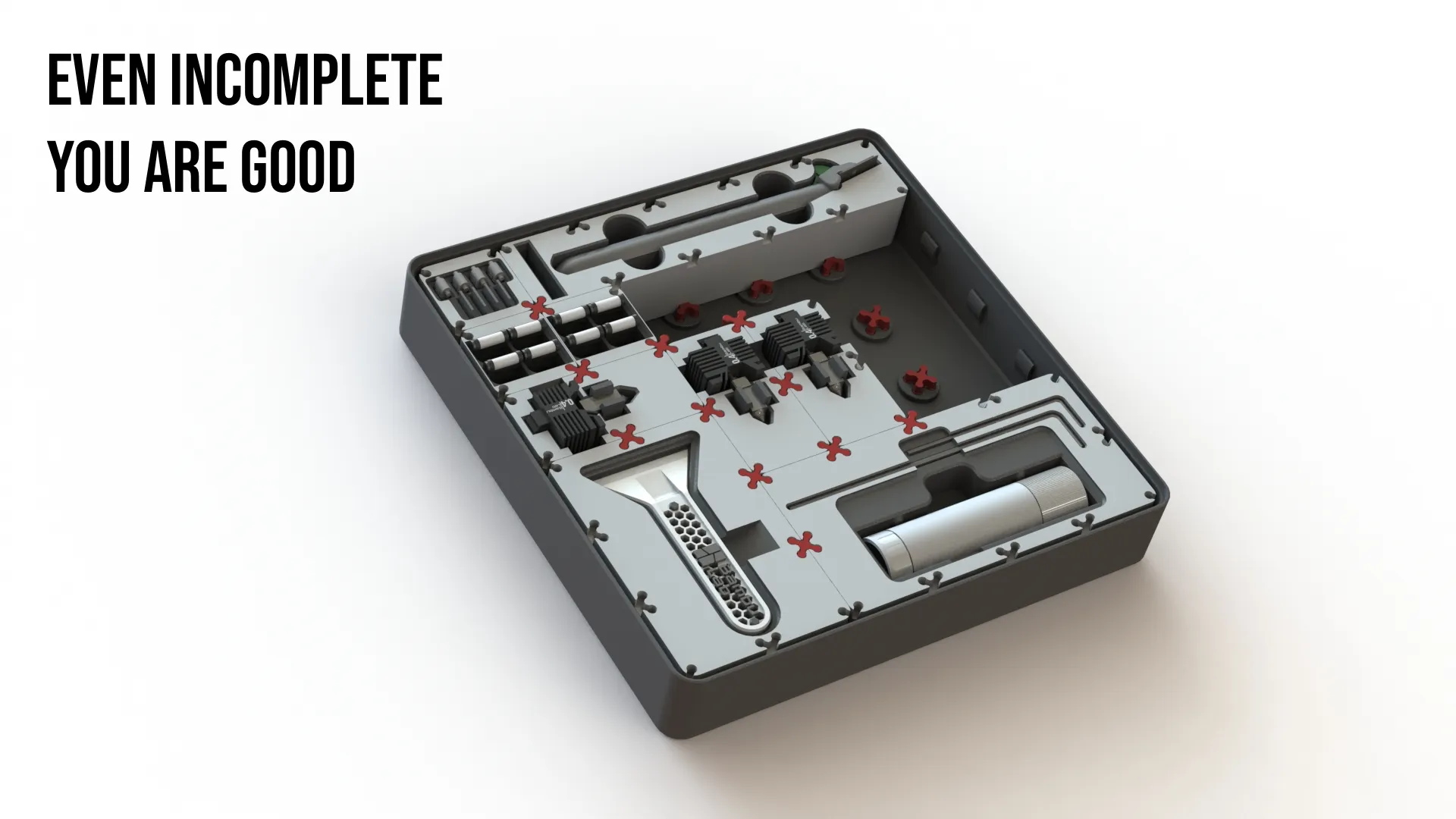

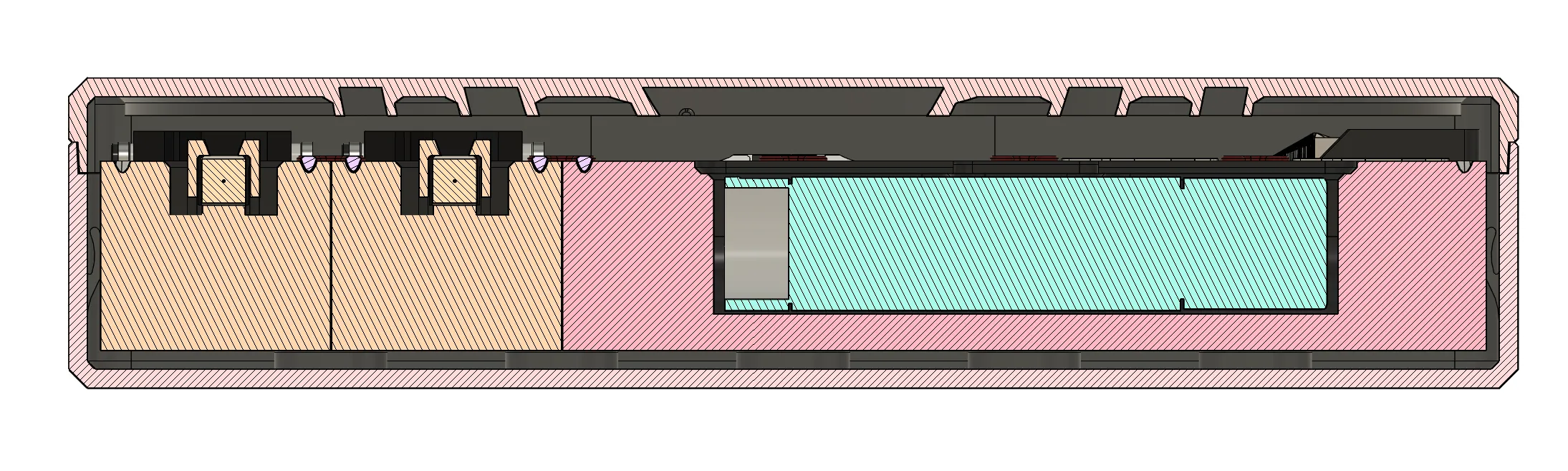

As you can see on the image bellow, all the parts have enough space between them for the lid the close. The highlighted blue surface is the rib for the PTFE tubes, you can see the full assembled hotends in black on the middle and the higher zone is the blade protection zone of the original scraper.

All-Stars

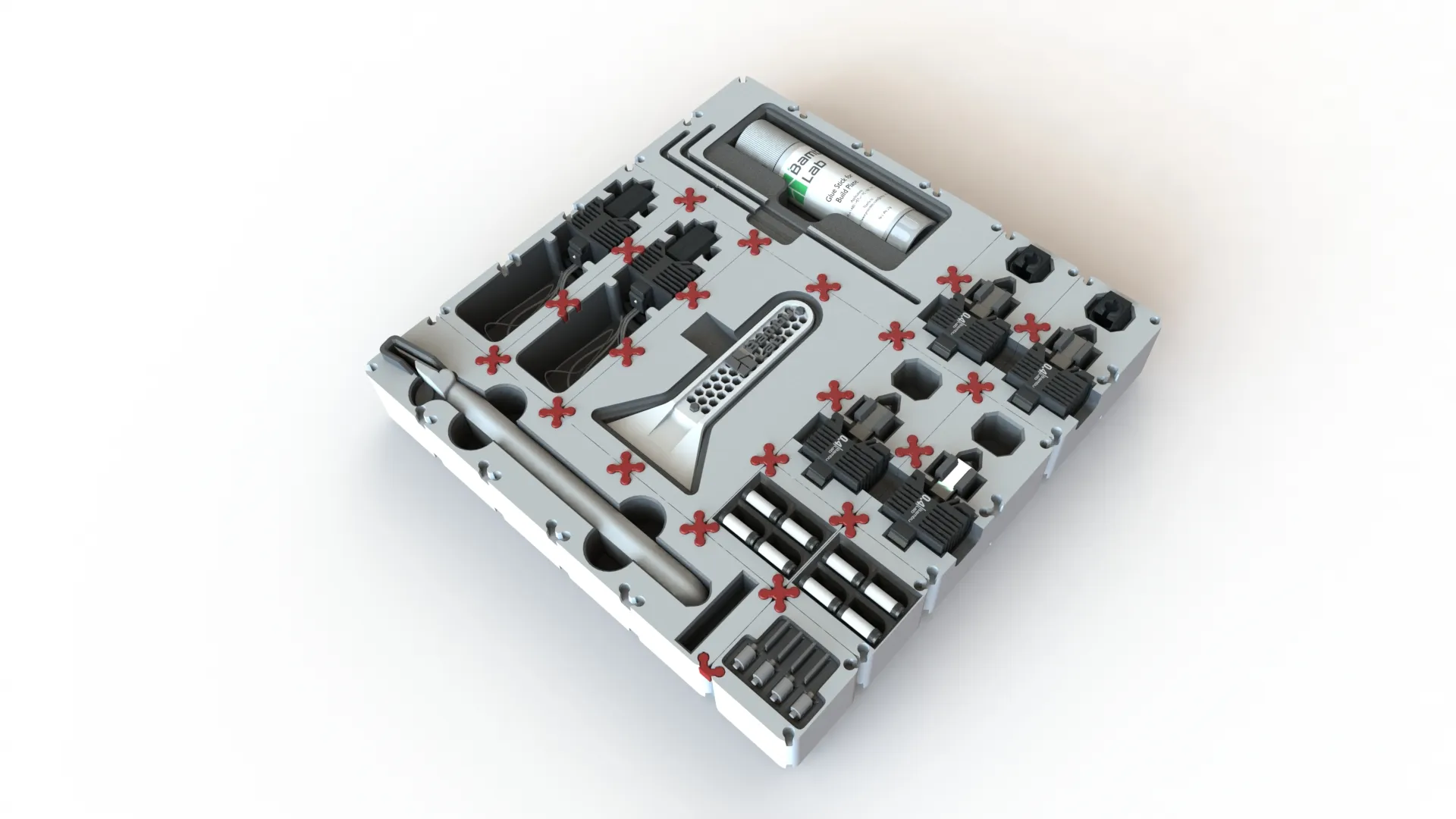

The connection is made with the stars in red. They will be the ones that will serve as an interface with the modules. This allows a correct spacing between modules, as well as their fitting, both horizontal and vertical.

• You have 2 types of stars, some for the base, thicker, and others for the top, thinner.
• The ones you see half the size can be used on the frame edges but, only if you fill like it's necessary.

The blocks

Blocks are volumes that you can use to place your things.

There is a base one, which is the smallest block you can see on the image, all the others are multiples of them, don't worry about the stacked tolerance, I've already worried about it for you... otherwise, if you don't know what it is, even better ;)

Any color you like.

Yes! We have one of the best FDM printers out there. But, if that wasn't already cool enough, you may have the best FDM color system, the “magical” AMS.

If you don't have one, and can buy it, then, don't waste your time, get one, or two :)

Jokes aside, buy only what you can. The simple unit is fantastic and let you print with more than one material with a little of patience.

Print instructions

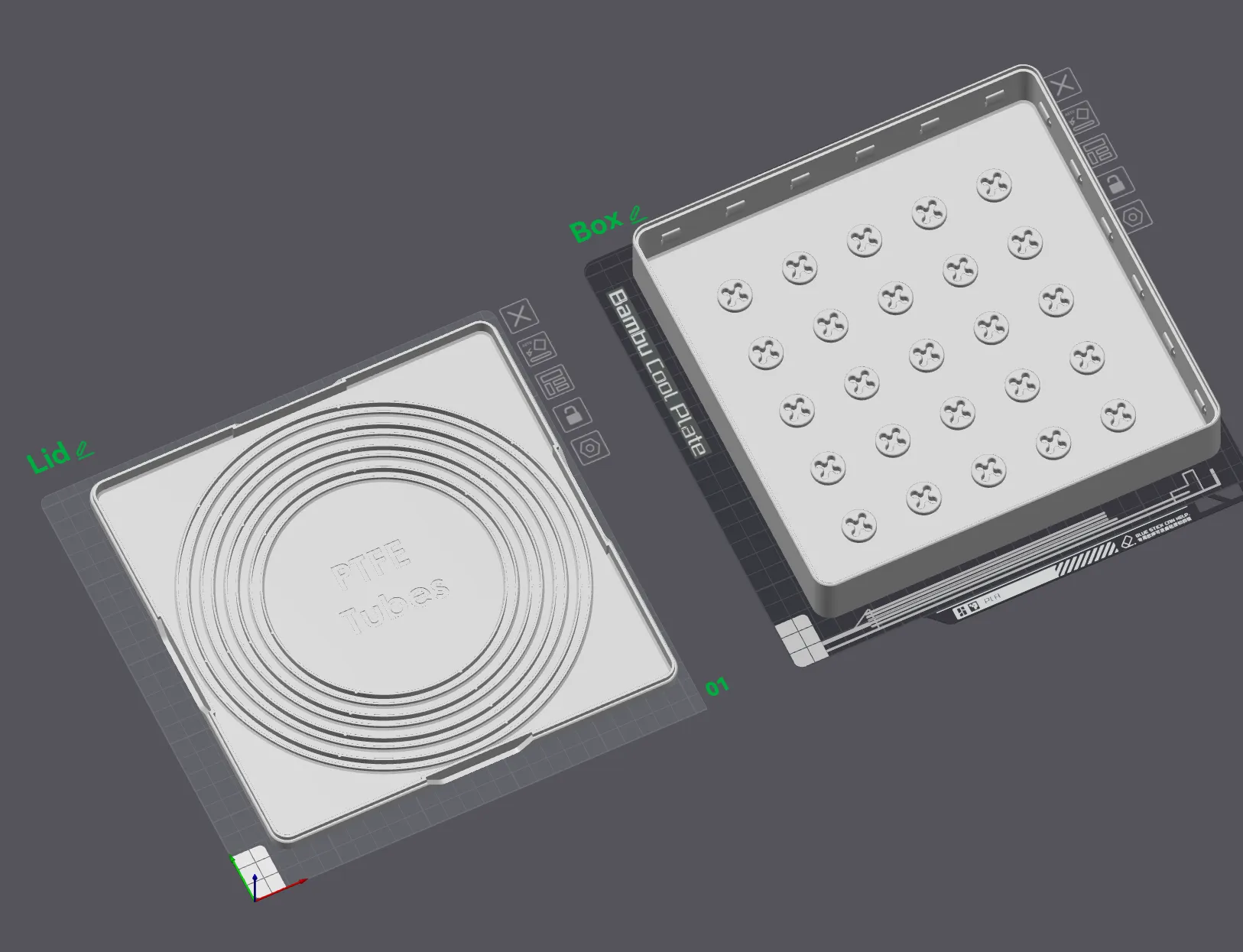

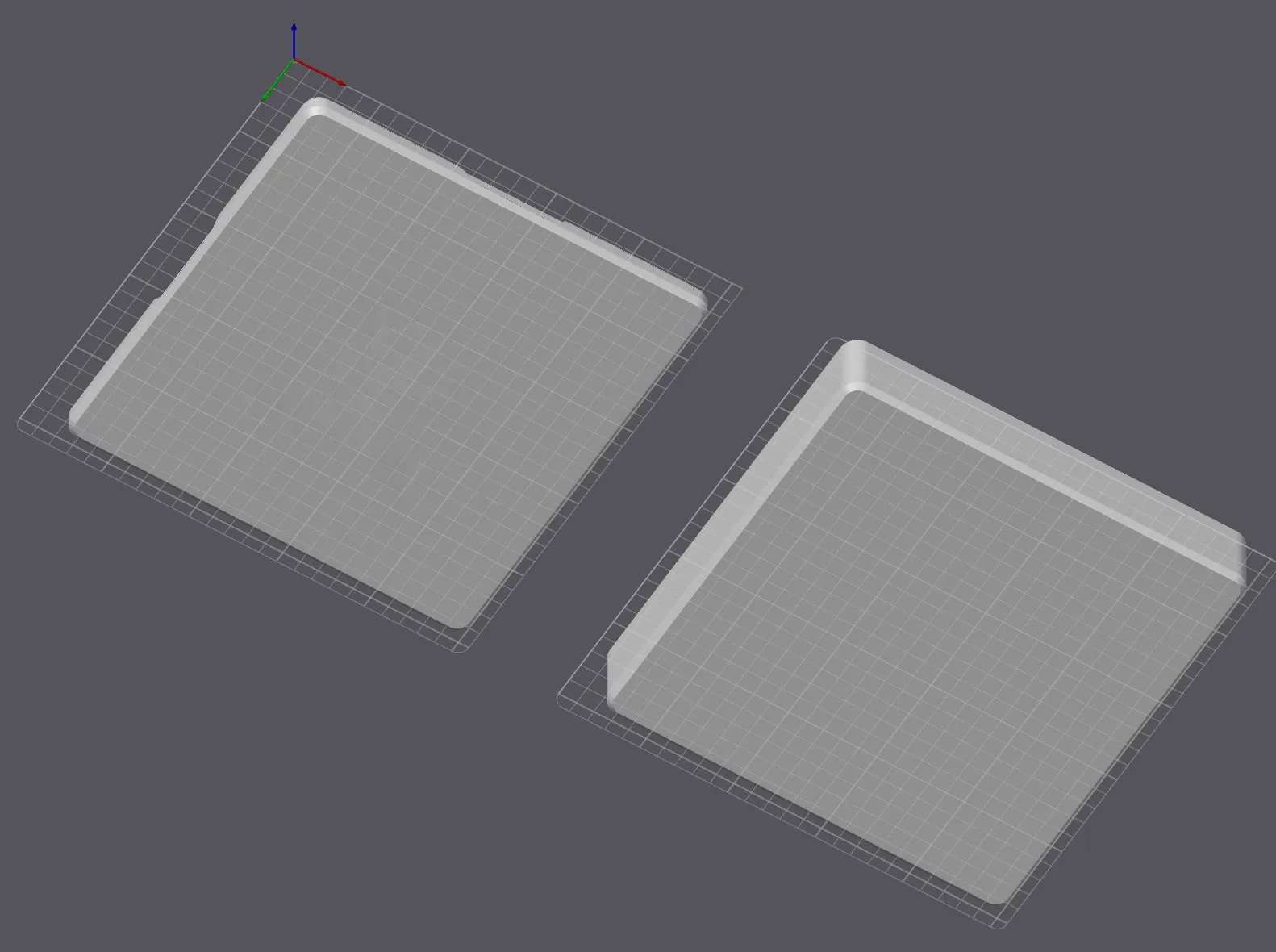

A 3mf file as a suggestion to print these parts. Try using the texture plate, the final surface quality will be very nice.

You will need a couple of parts that make part of the MMSS basic system:

• The stars
• and modules
  • Basic modules, if you want to make your own
  • Pre-made modules, here there are several, and many are exclusive for the bambu labs printers, see list on the top of this block.


End notes

This is then one of the direct applications of MMSS, others will follow…

Change Log

Sometimes I update or add more print profiles, they can be found under the section “Download STL/CAD Files”

• Some members have reported that the lid may appear a little loose, I think, it is related to the depth of the fitting zone between the two components. This update may resolve this situation. (Thanks to @KardesDesign and @SilvioSilva_843588)

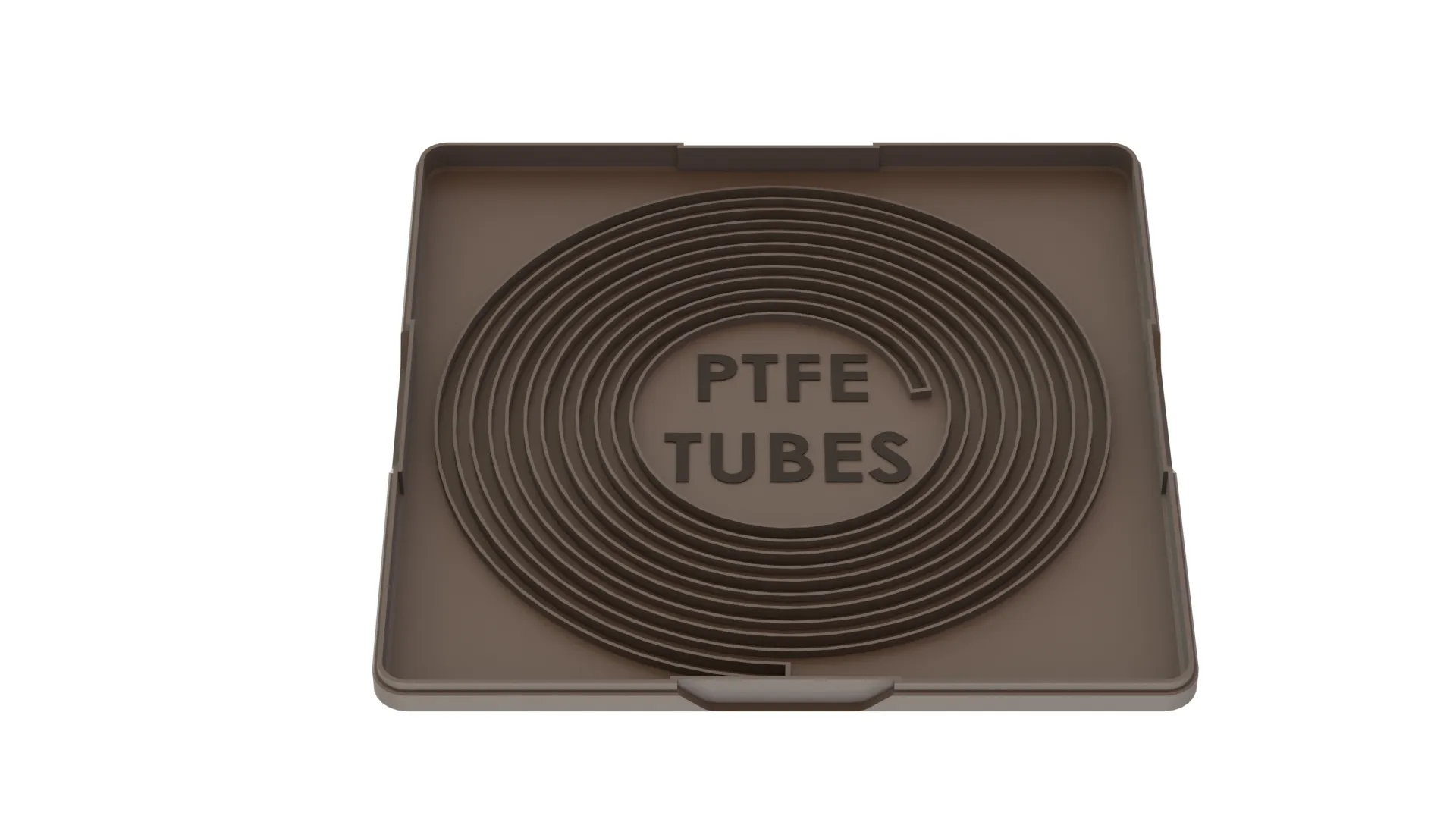

• Added a lid with a spiral path for some of you who buy PTFE tubes without the pre-cuts. Length approx.: 2.7meters
  • Fix on the spiral lid - External logo fixed. Thanks to darrenparchment.
• Small change to the spiral lid and normal concentrical lid.

• Added some clips for those of you who find that the spiral is a little large for the PTFE tubes. “Clip_for_Spiral.stl”.
• Added a new clip for the spiral lid (the previous one could interfere in some cases with some parts of the box.
  • Changes to to the 3mf files, something must have changed on Bambu Studio. if you noticed something wrong, this version should fix that. Thanks to ChristianN that notified me about this problem.
• Added a new lid, for those who need the spiral lid and use one of the AMS feeder's modules, found here - File name: "Box_lid_high"
