Anti Vibration Feet for A1

WARNING: This model is not commercially available by default, if you want to sell the finished model, please subscribe to the commercial license:

If you want to sell this model, but are not sure if you will be able to sell it, you can temporarily try to sell it without subscribing to a commercial license. However, you must include a link to this page in a prominent place such as the item description and subscribe to the commercial license as soon as you have successfully sold one.

Any unauthorized commercial use may result in liability,  especially the CHINESE people, please respect the work of others.

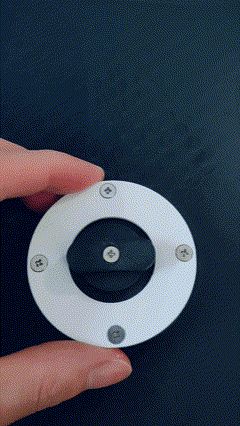

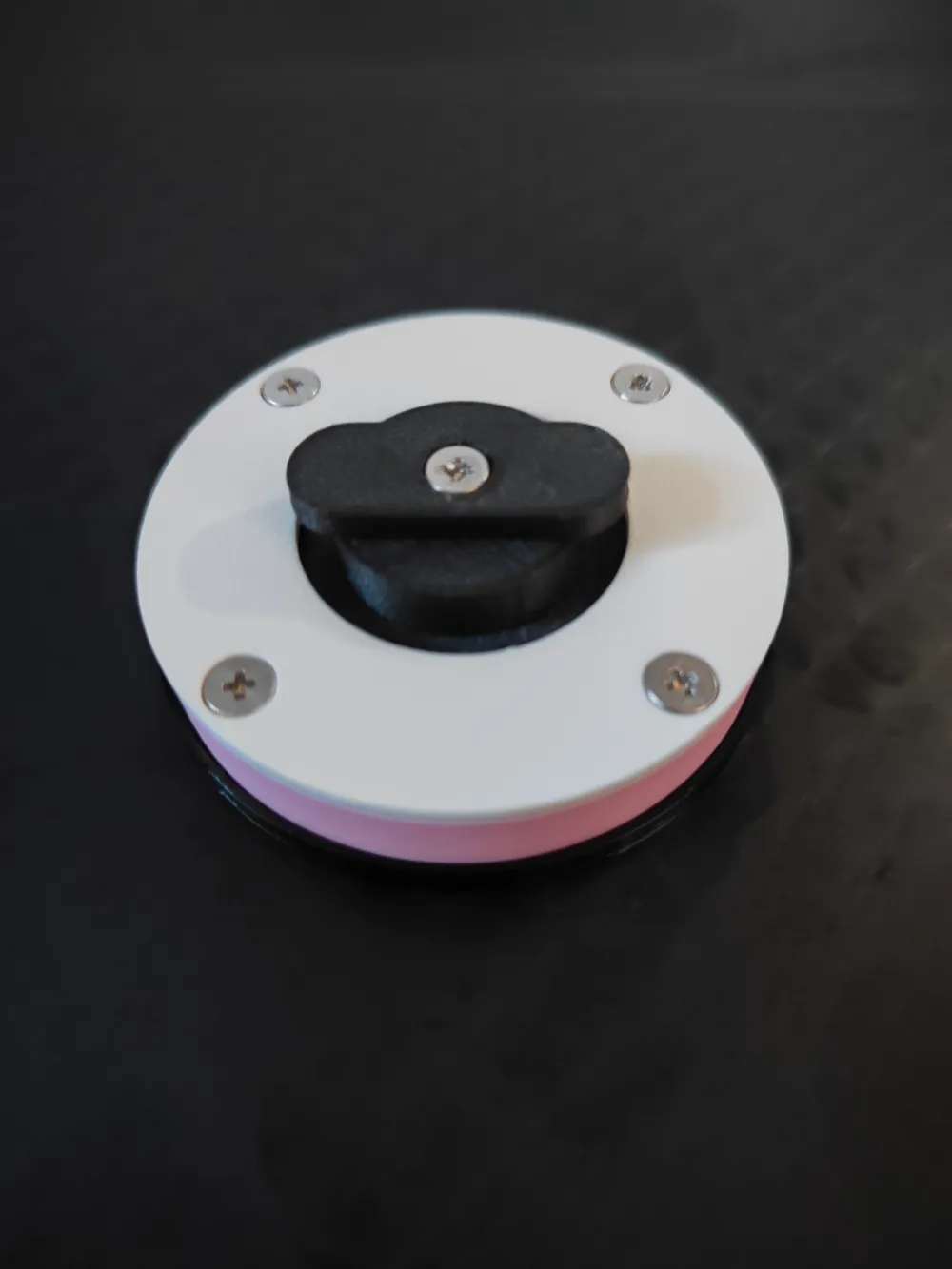

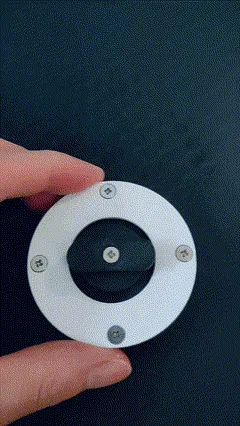

This is an anti vibration feet used to minimize vibration due to the movement of the printer tool head.
It improves print quality and prevents multiple printers from affecting each other.

This project was partly inspired by HULA, which prohibits secondary creations. At the time I created this model it didn't support A1, so I created it from scratch.

Video:

Why this:

Easy to print - only take 4-5 hours

Adapts to most printer - just modify the adapter at the top

No unnecessary useless logos

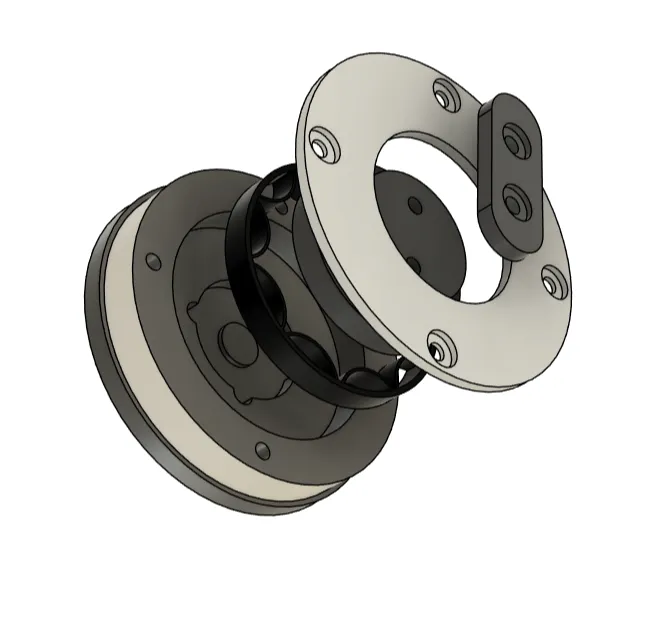

Additional parts needed:
M3*8 screws - 24 pcs  (5mm-8mm screws are fine, Please make sure that the thickness of the screw head is ≤1mm.)

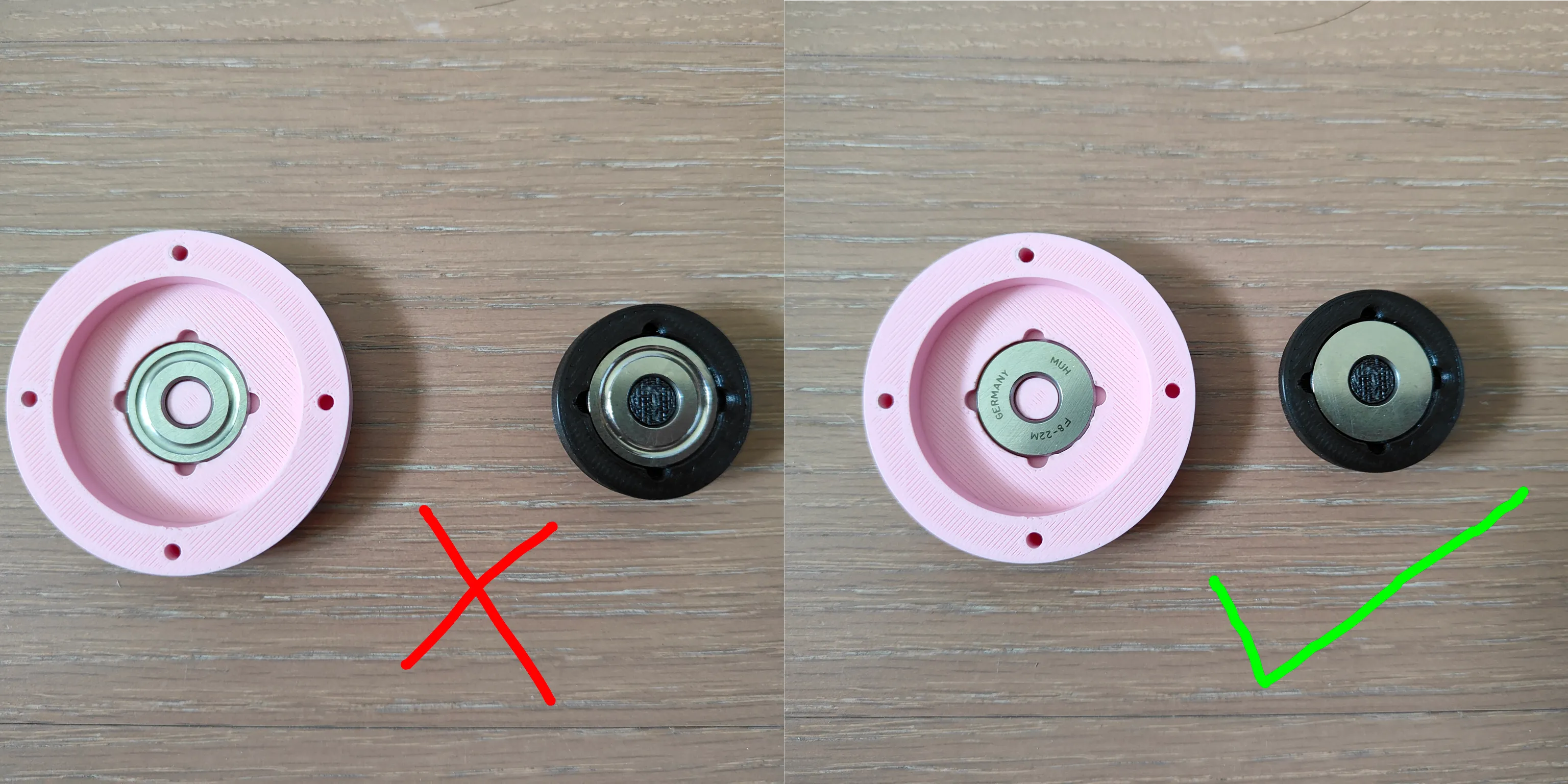

f8-22m thrust bearings - 4 pcs

If you don't want to remove the printer's original feet, 3Dav makes an adapter that eliminates the need to remove the feet. It may be better than my original design and you can get it here: https://makerworld.com/models/958673#profileId-928150

A larger version: https://makerworld.com/models/537016#profileId-453994

A1 Mini version: https://makerworld.com/zh/models/543284#profileId-461021

Attention:

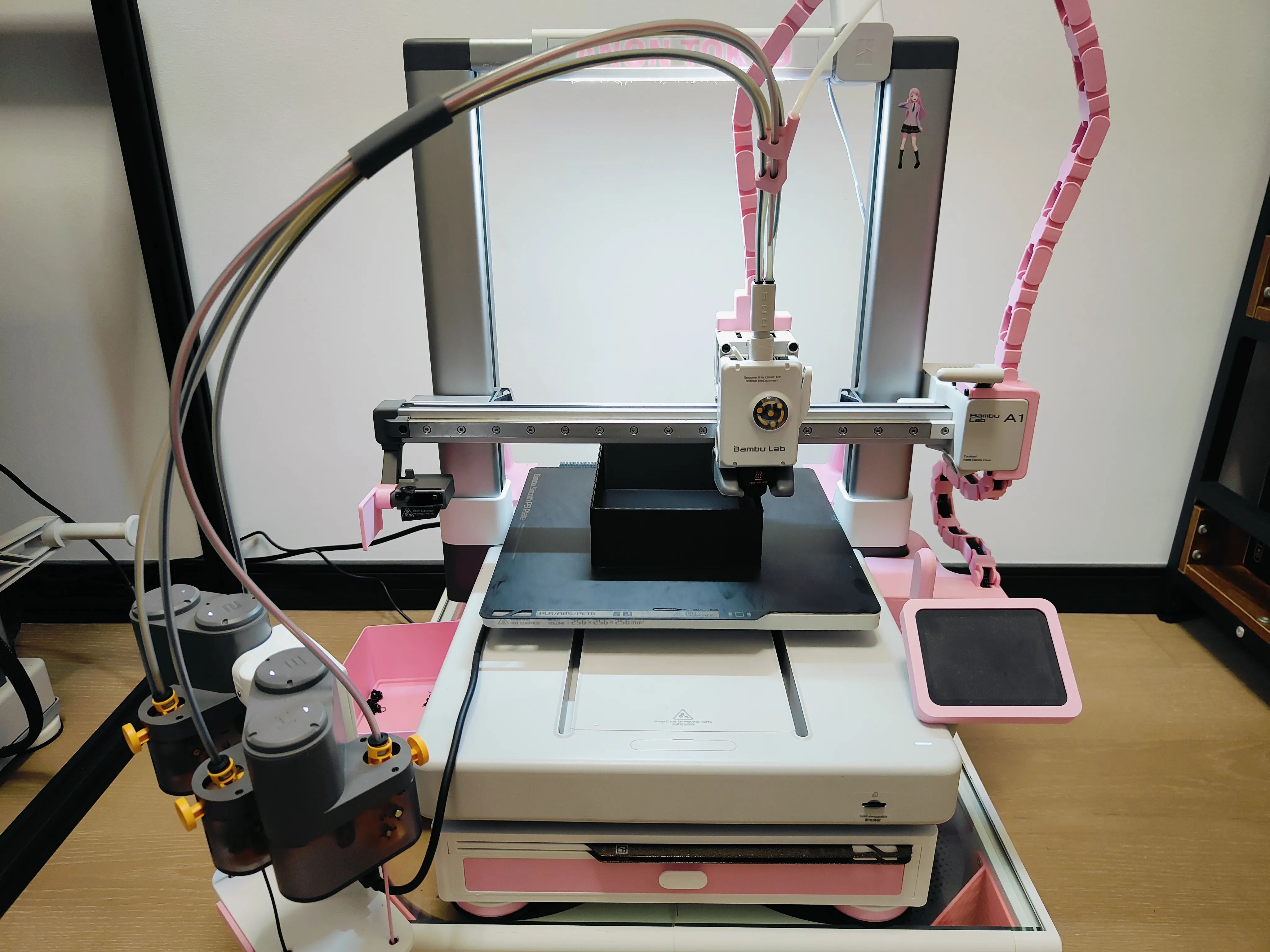

You can also try my new model: https://makerworld.com/zh/models/1312229-modular-multi-functional-base-for-a1#profileId-1346690

This project will add many features to your A1 and is compatible with this anti-vibration feet. You don't need to remove the foot pads of your A1 anymore and it will work more stable.
