Anti Vibration Feet for P1/X1 - Large Version
Print Profile(1)
Description
WARNING: This model is not commercially available by default, if you want to sell the finished model, please subscribe to the commercial license:
Membership
If you want to sell this model, but are not sure if you will be able to sell it, you can temporarily try to sell it without subscribing to a commercial license. However, you must include a link to this page in a prominent place such as the item description and subscribe to the commercial license as soon as you have successfully sold one.
Any unauthorized commercial use may result in liability, especially the CHINESE people, please respect the work of others.
[This is a larger version of : https://makerworld.com/models/532847#profileId-449712]

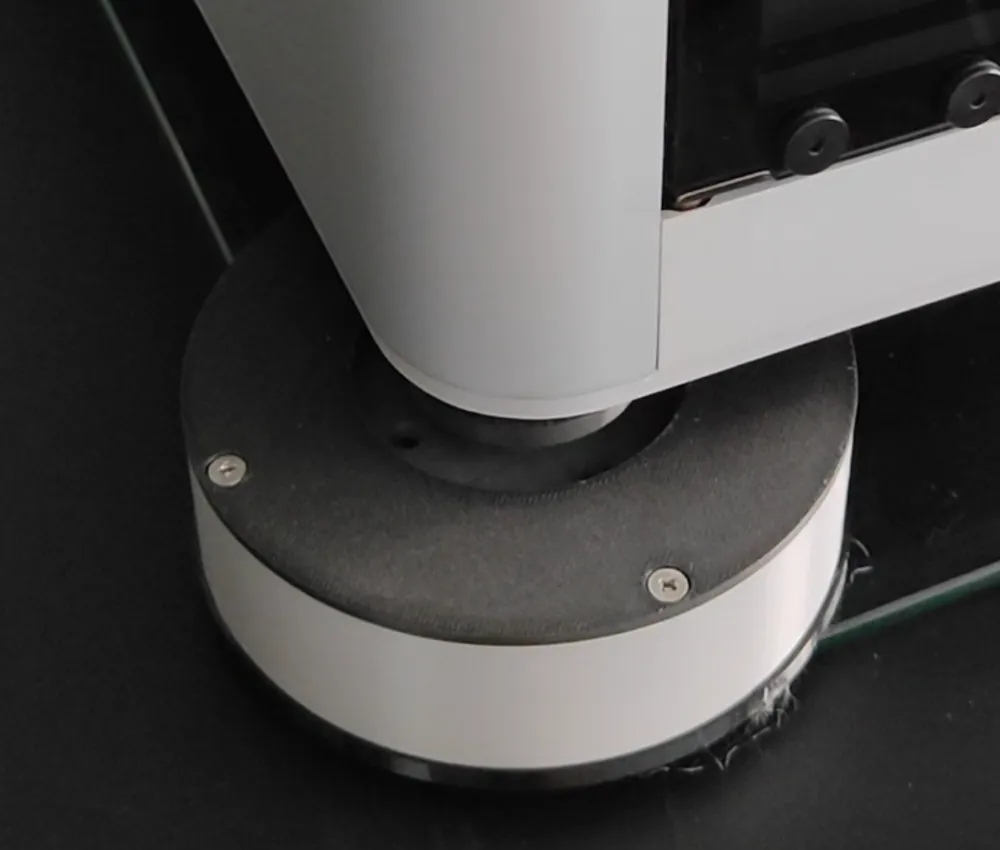

This is an anti vibration feet used to minimize vibration due to the movement of the printer tool head.
It improves print quality and prevents multiple printers from affecting each other.
This project was partly inspired by HULA, which prohibits secondary creations, so this project was designed entirely from scratch.
Video:
Why this:
Easy to print
Adapts to most printer - just modify the adapter at the top
Allow Remix
No unnecessary useless logos
Additional parts needed:
M3*12 screws - 24 pcs
M3*18 screws - 4 pcs

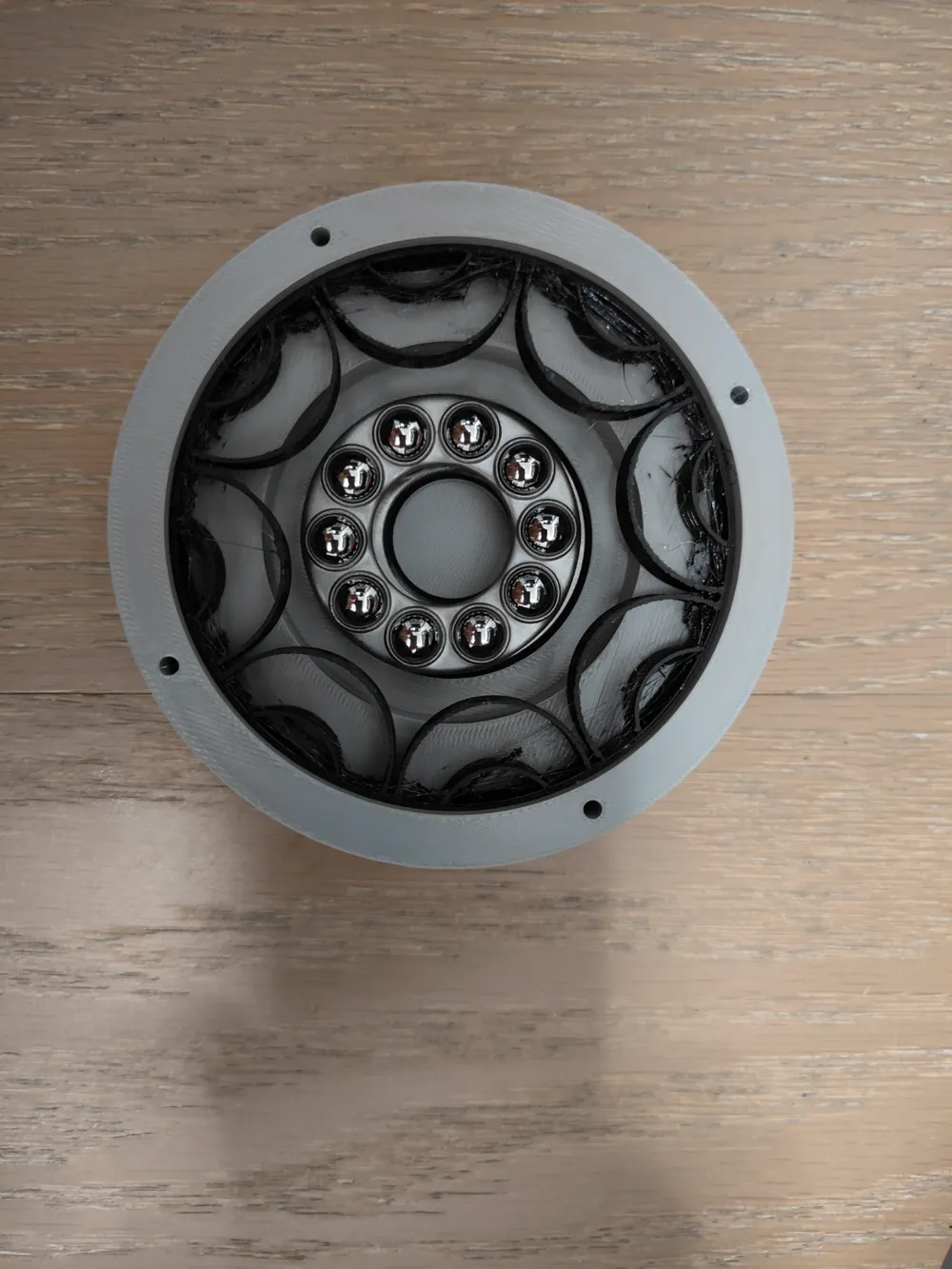

51304 thrust bearings - 4 pcs
