Build Plate Guide Multi Color Round (optional)
Print Profile(2)
Description
Model

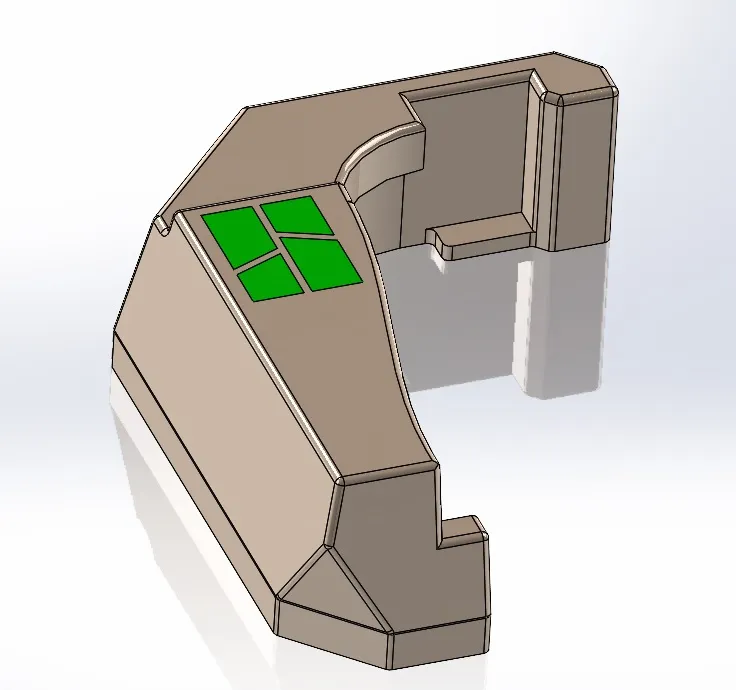

In accordance with the requests I received, I also designed a round version of the build plate guide I designed, which fits well and easily.
The build plate guide helps you easily push the build plate to its exact location. An important aspect of the design was that it fit well, could be easily placed without much force, of course it should be easy to print and look good. Installation video in the description.
I do not recommend mirroring the part and moving it to the right side! According to my practical experience, it is enough to place it only on one side, it does its job well and the right purge strip is far away. Please do not upload such models, I deliberately did not post the version on the right.
I hope you like it too!
Feel free to ask if you have any questions or comments!
Boost Me (for free)
If you want to support my work, you can do it with a boost! Thank you for your past and future support!
The main features of the component:
- It easily slides the building plate into the exact location
- Practical
- It fits well
- The part can be fitted very easily with little force
- It is easy to print and the support is easy to remove
- single-color and multi-color versions are available
- Available profiles for ABS, PLA, PETG materials
- and yes, in my opinion, it turned out beautiful. :)
I recommend the other design I made. Choose the one you like best, you get the same quality!

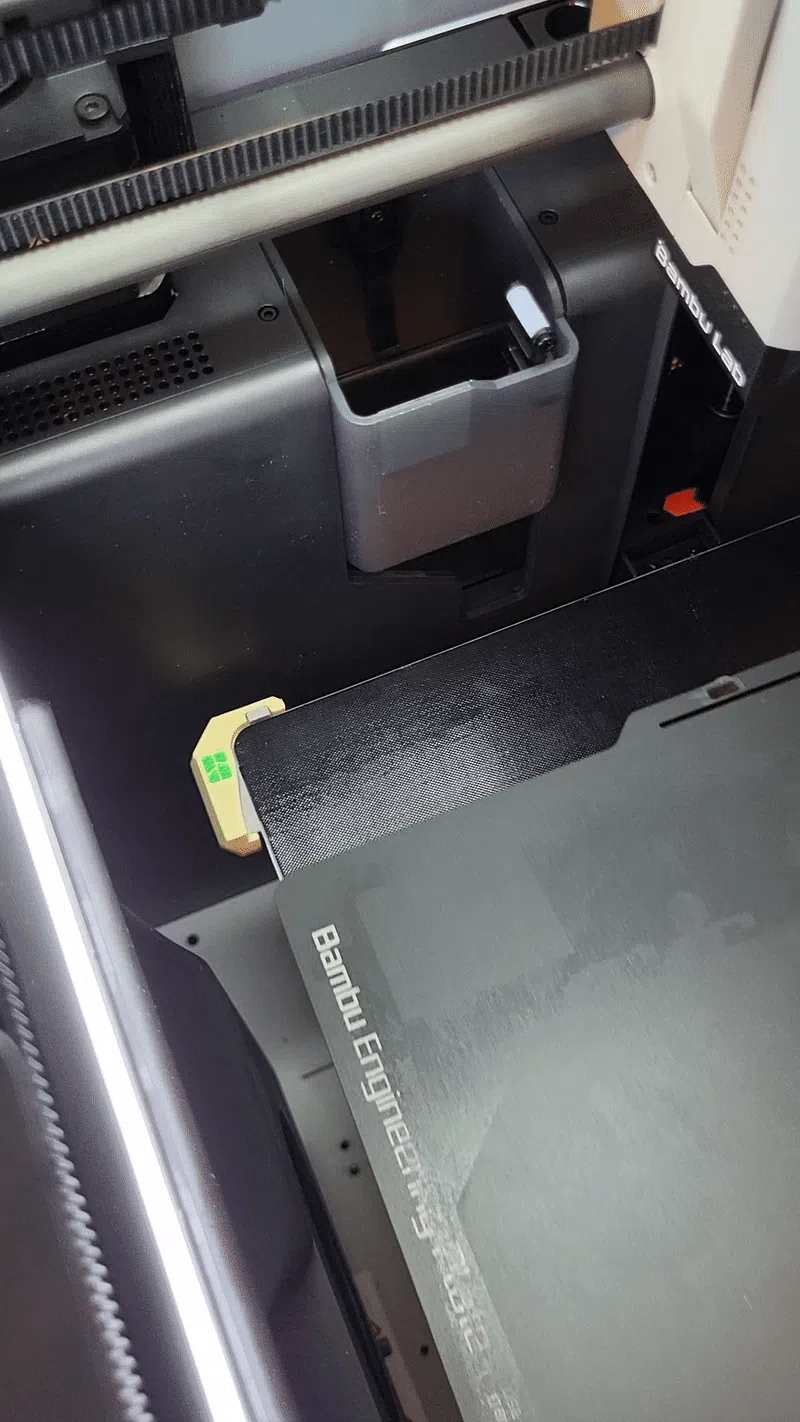

Installation video:
Installation is very easy, even with one hand.
Remove video:
Print:
Quality:
Layer height: 0.2
Wall Generator: Arachne
Strength:
Wall: 2
Filling density: 30 %
Filling pattern: Adaptive cube
Support:
Enable Support: YES
Style: Tight
Remove small overhangs: NO
Z distance: 0.15
Support/Object XY distance: 0.35
Quality:
Do not use PLA material for printing if you use your printer with other high temp. materials. PETG, ABS, ASA materials are printed at a higher temperature, which PLA cannot withstand. I recommend using ABS, ASA or PETG material.
I recommend the other pieces of my collection:

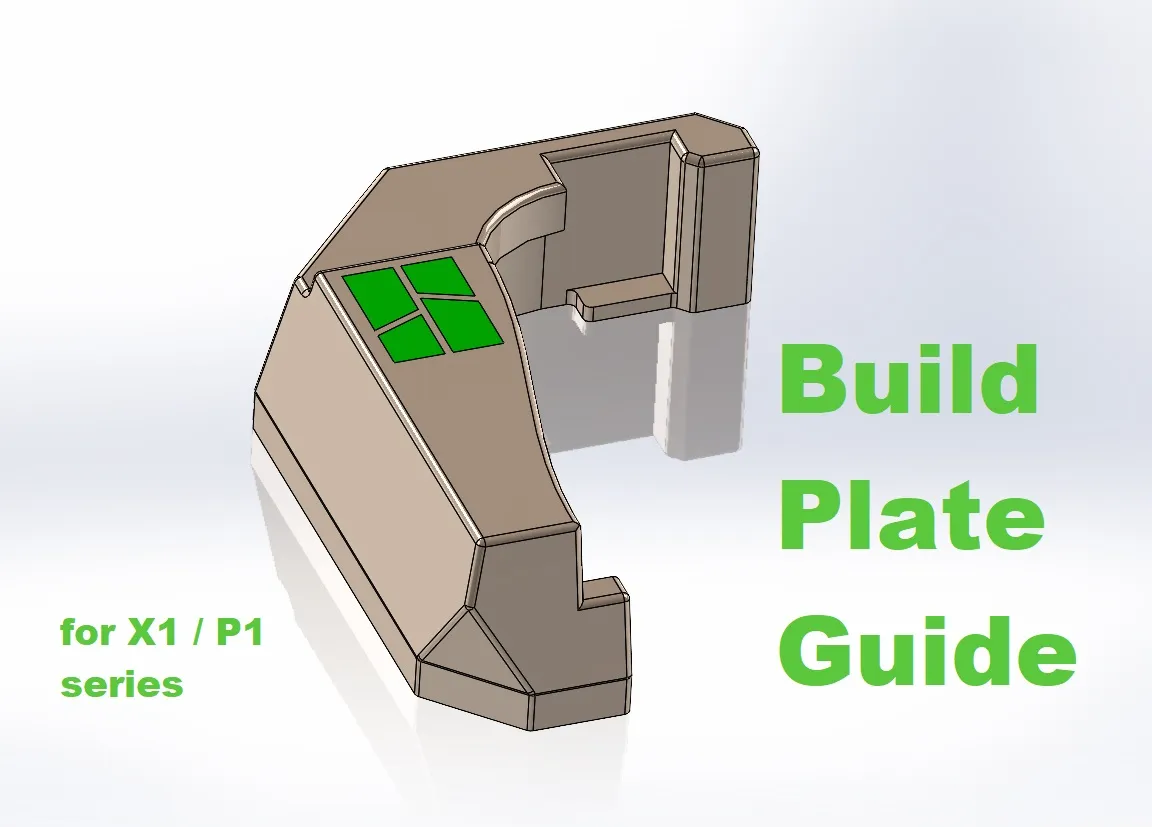

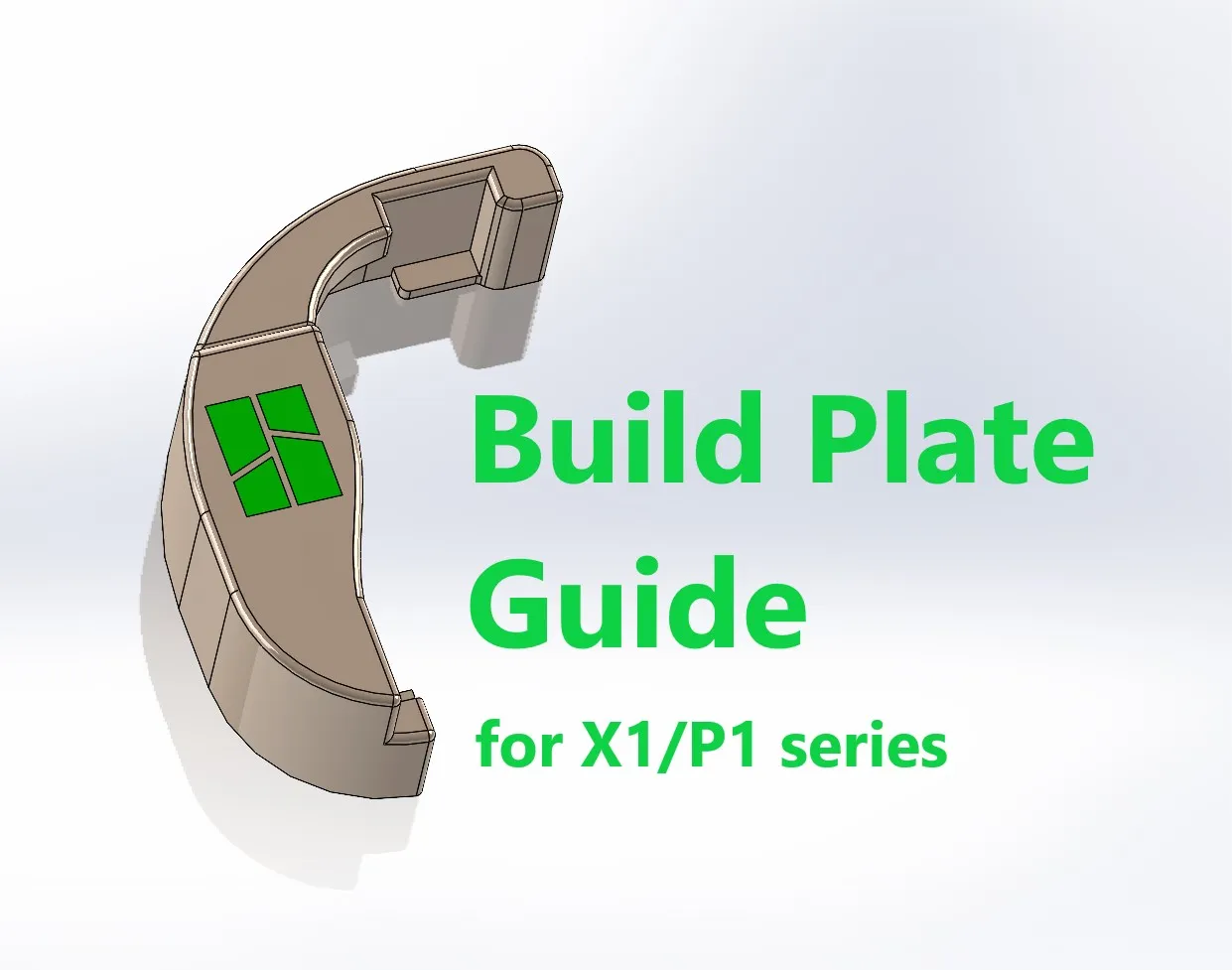

Build Plate Guide

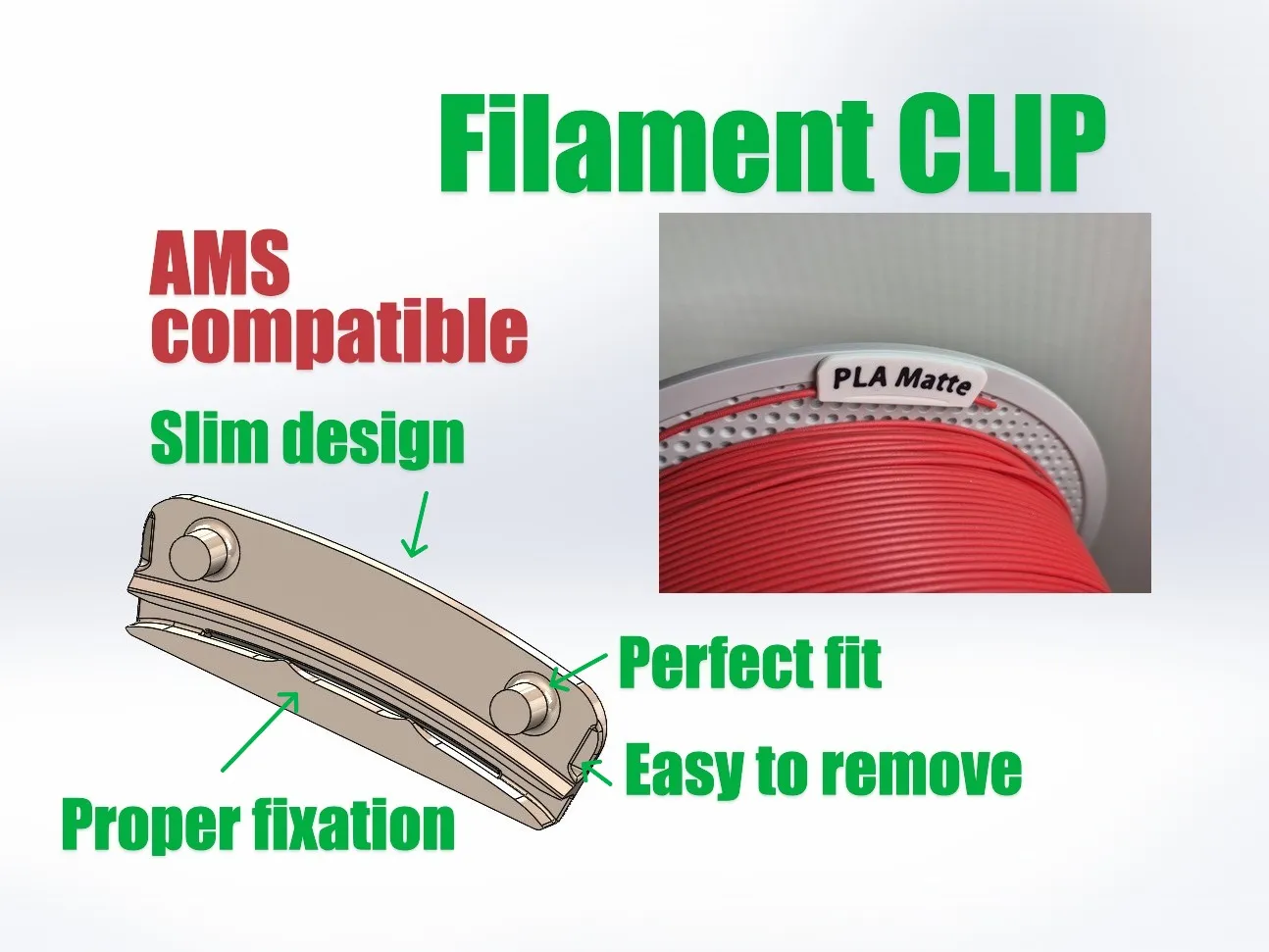

Filament CLIP

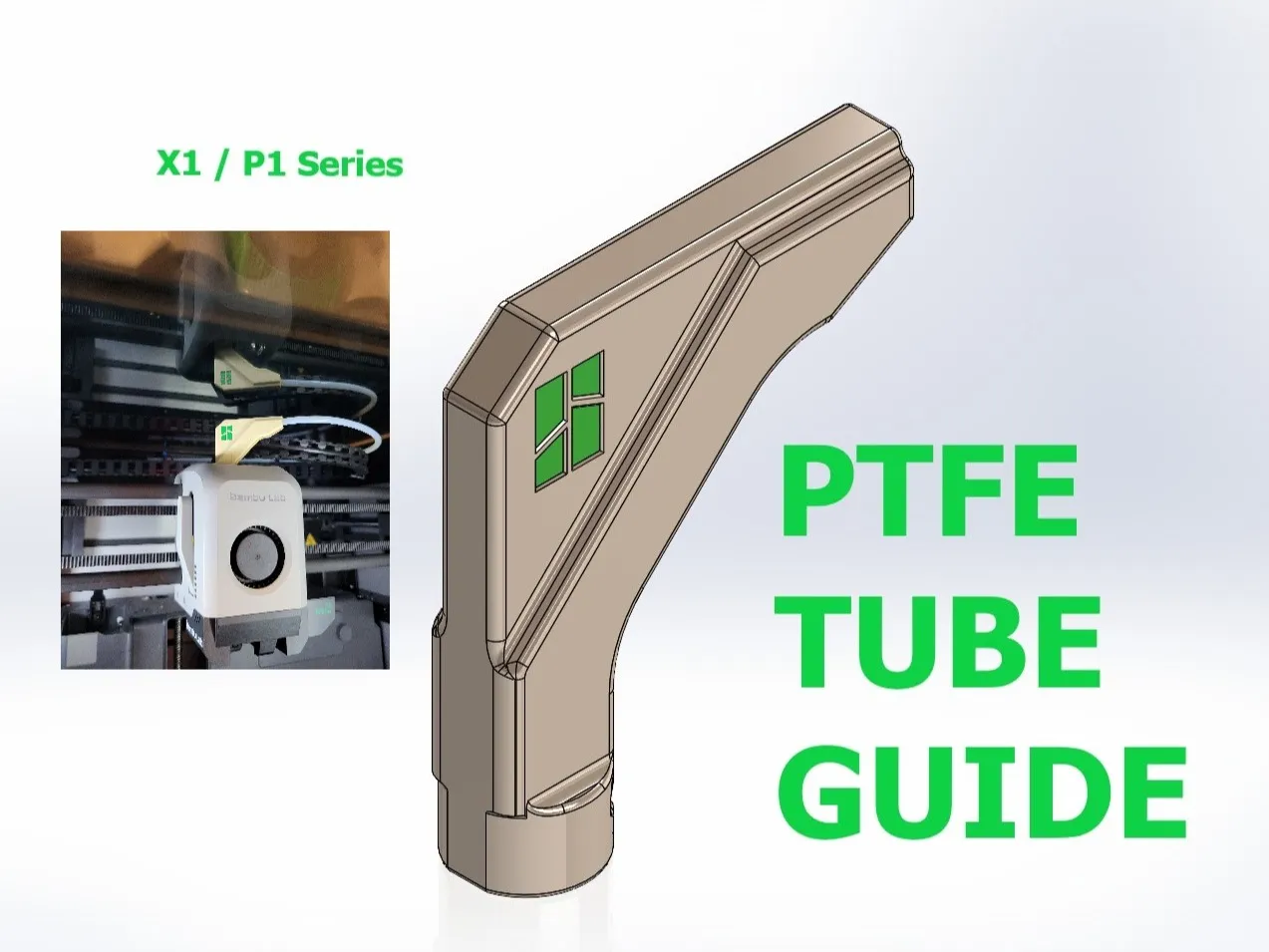

PTFE Tube Guide

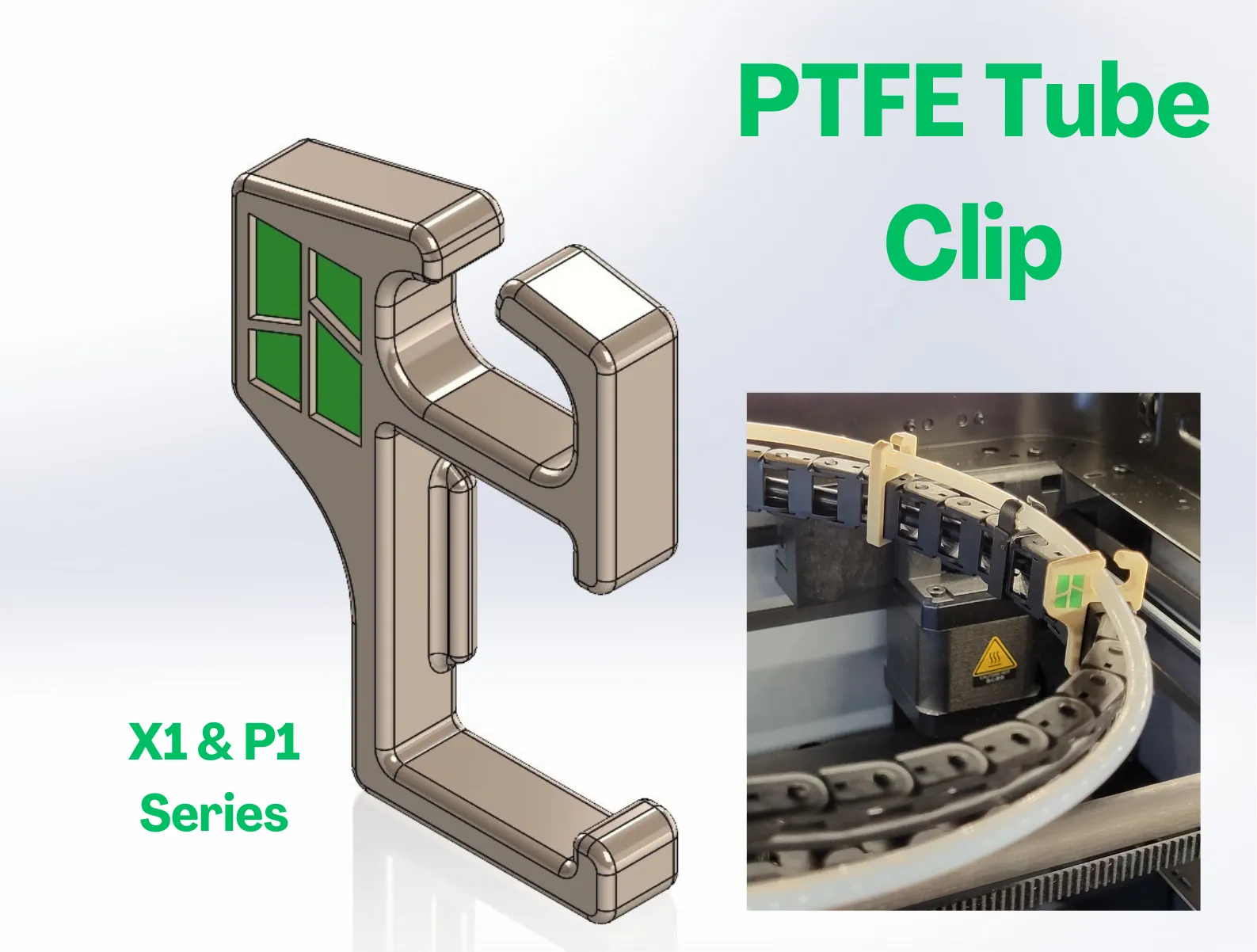

PTFE Tube clip

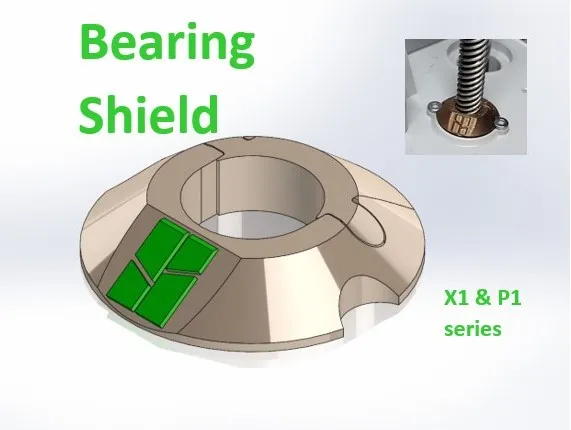

Z-axis Bearing Shield for Bambu Lab X1/P1 series

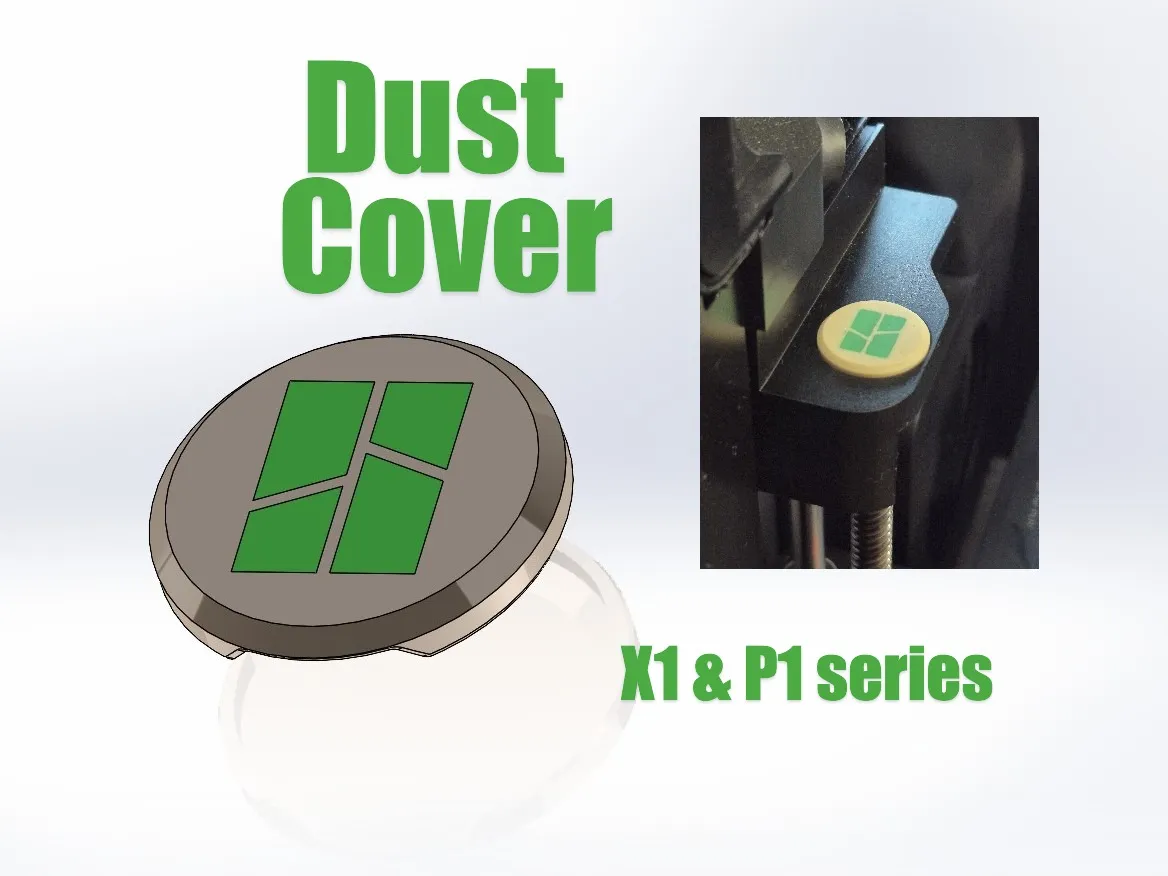

Dust cover

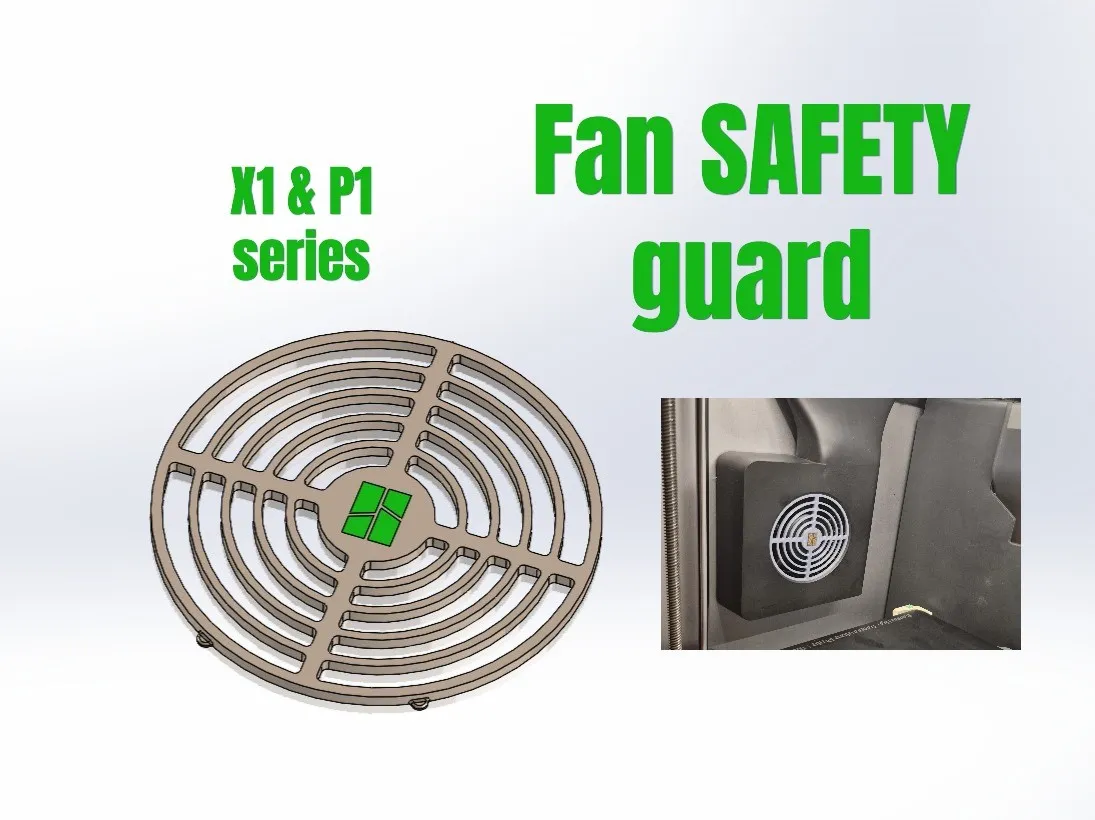

Fan safety guard - Aux fan

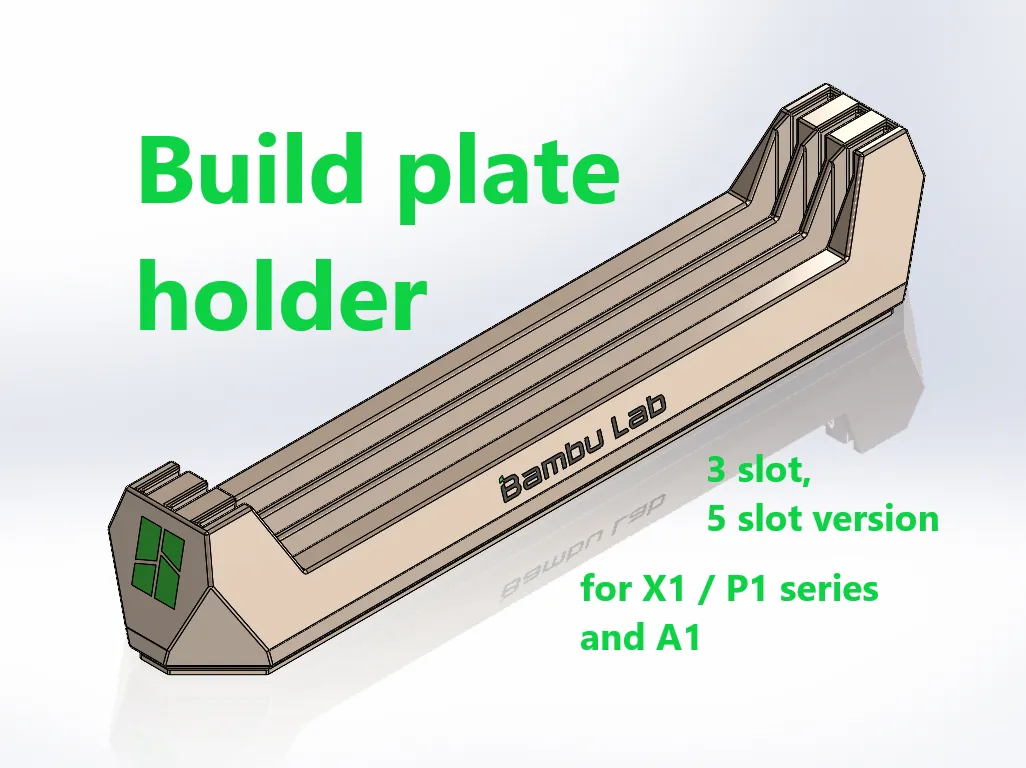

Build plate holder for X1/P1 series and A1

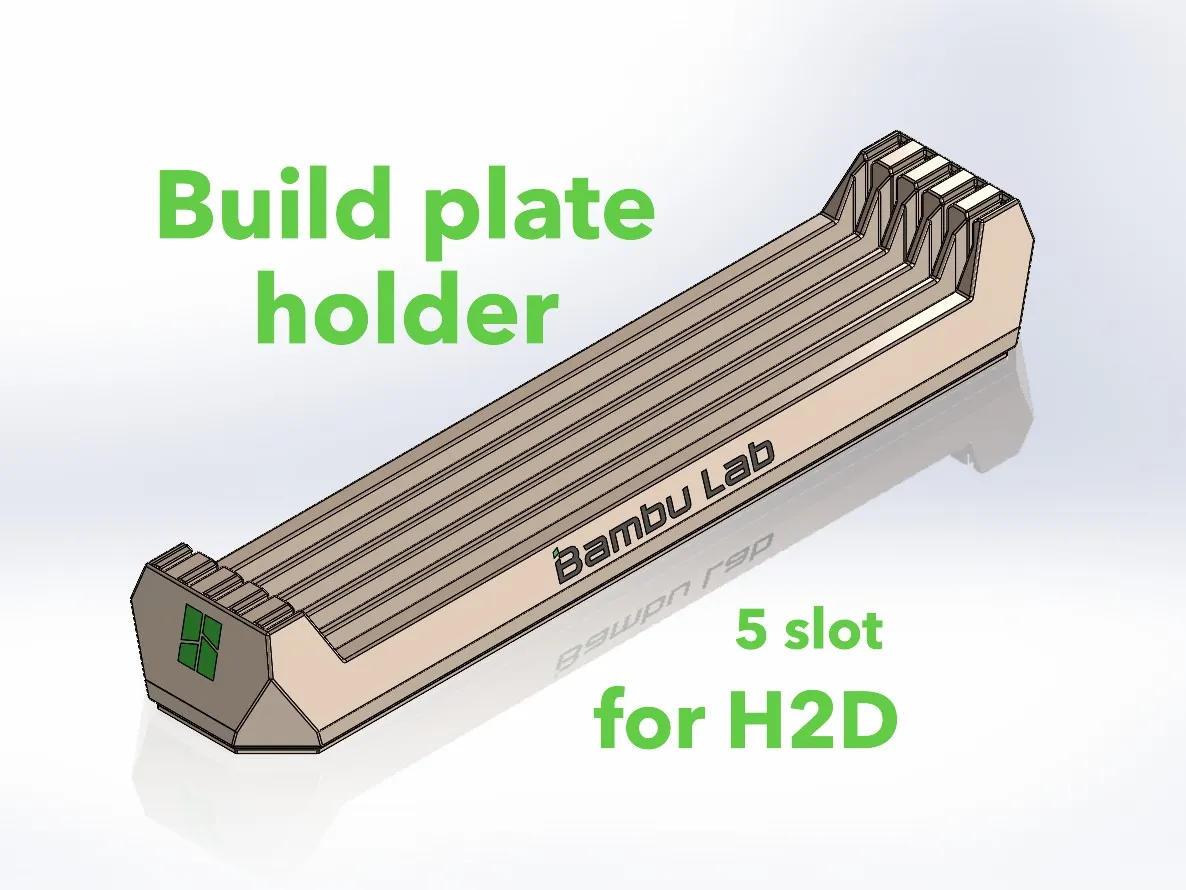

Build plate holder for H2D

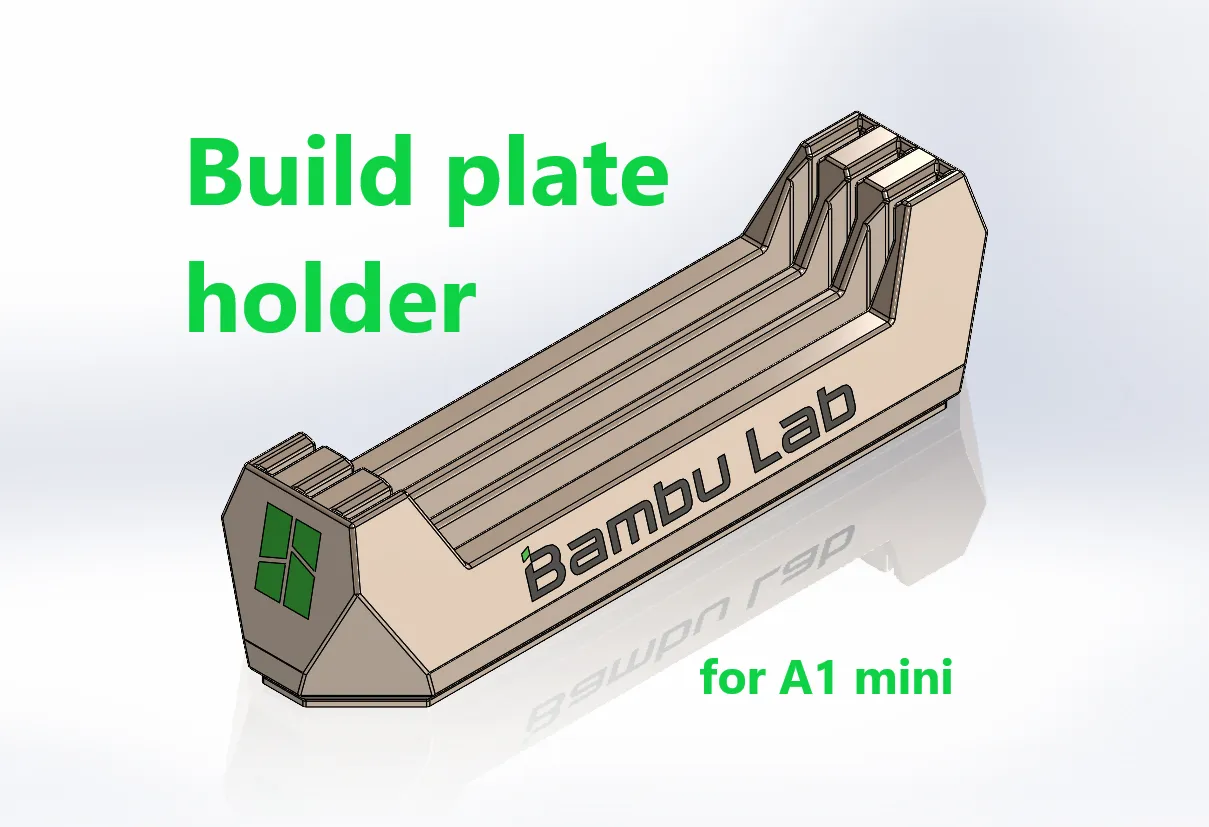

Build plate holder for A1 mini

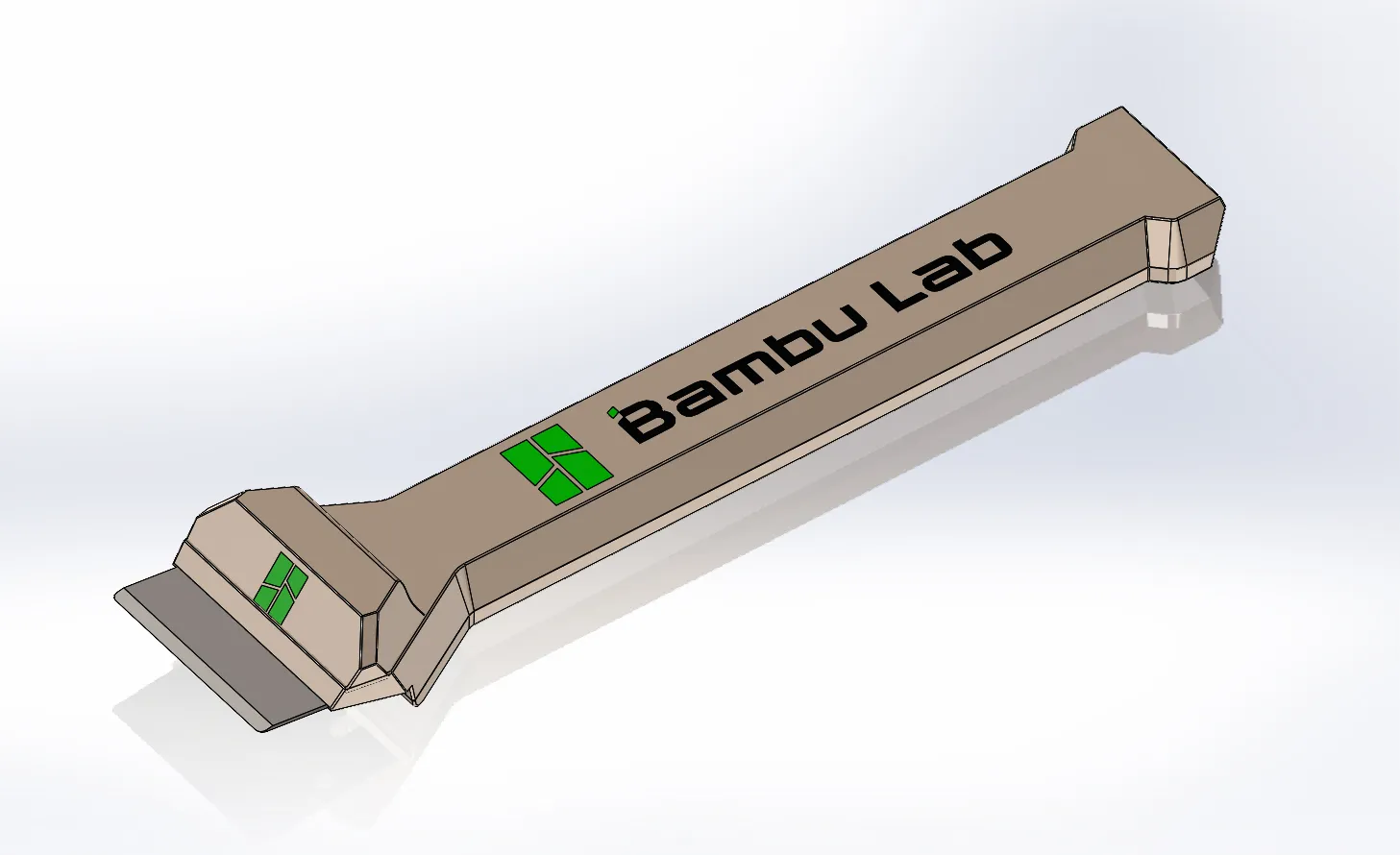

Scraper

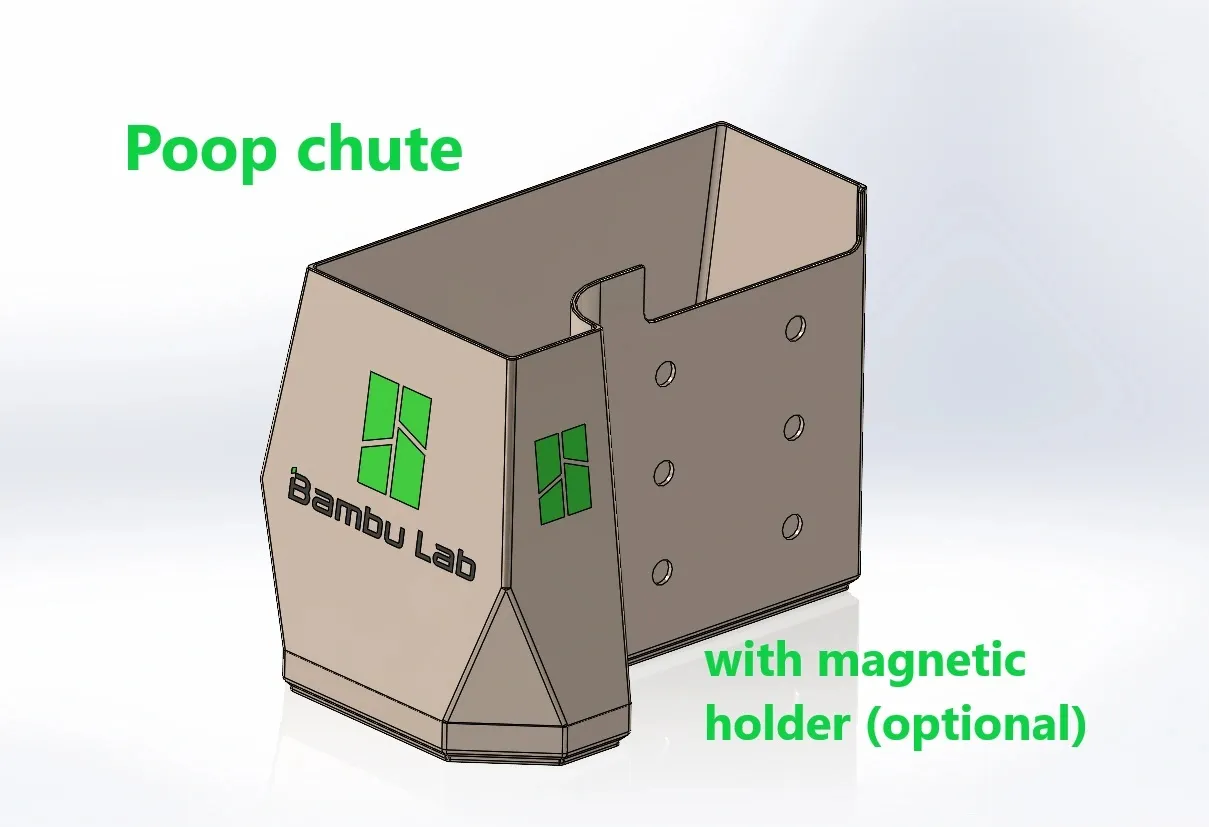

Poop Chute for X1 / P1 series

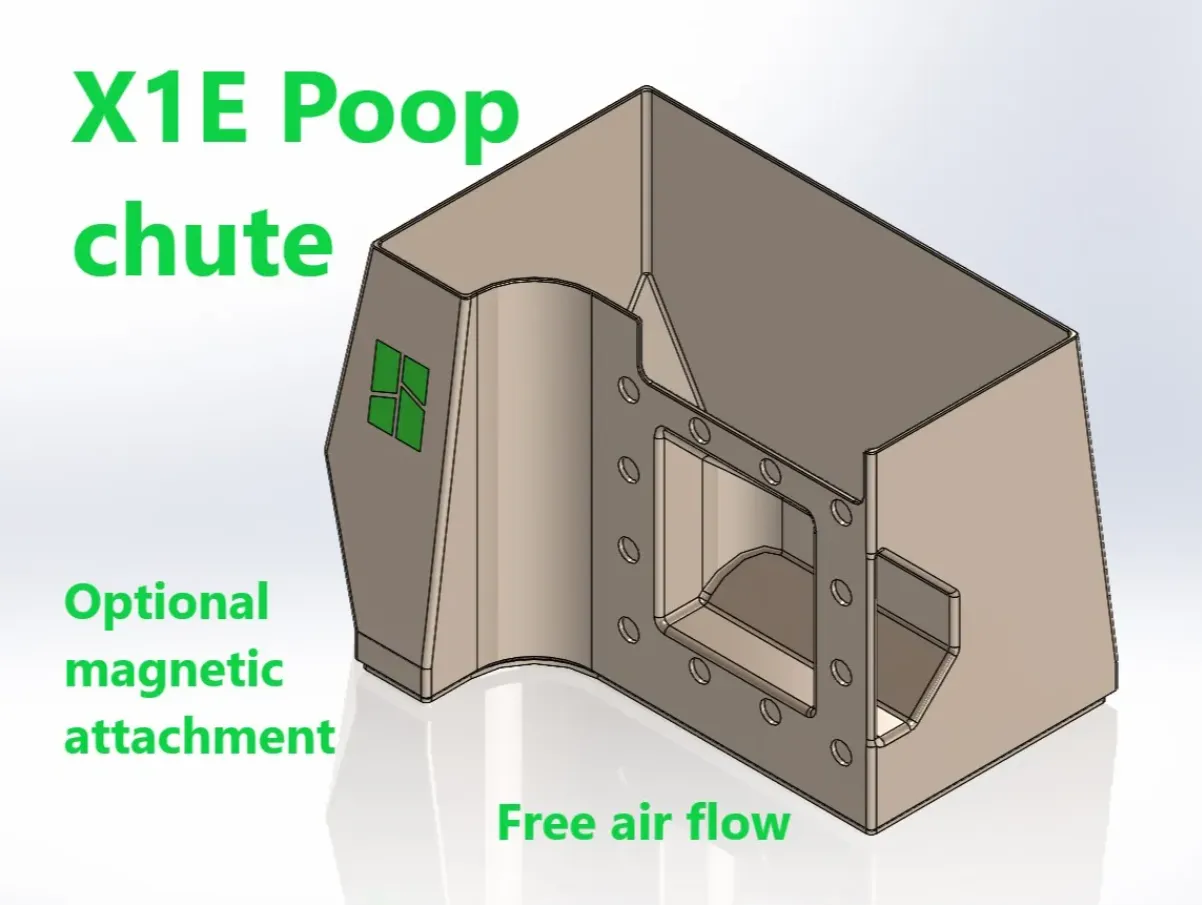

Poop Chute for X1E
