Mini Mushroom Tea Light Lantern
Print Profile(6)
Bill of Materials
Description
Boost Me (for free)
If you enjoy my designs, you can support my work with a boost!

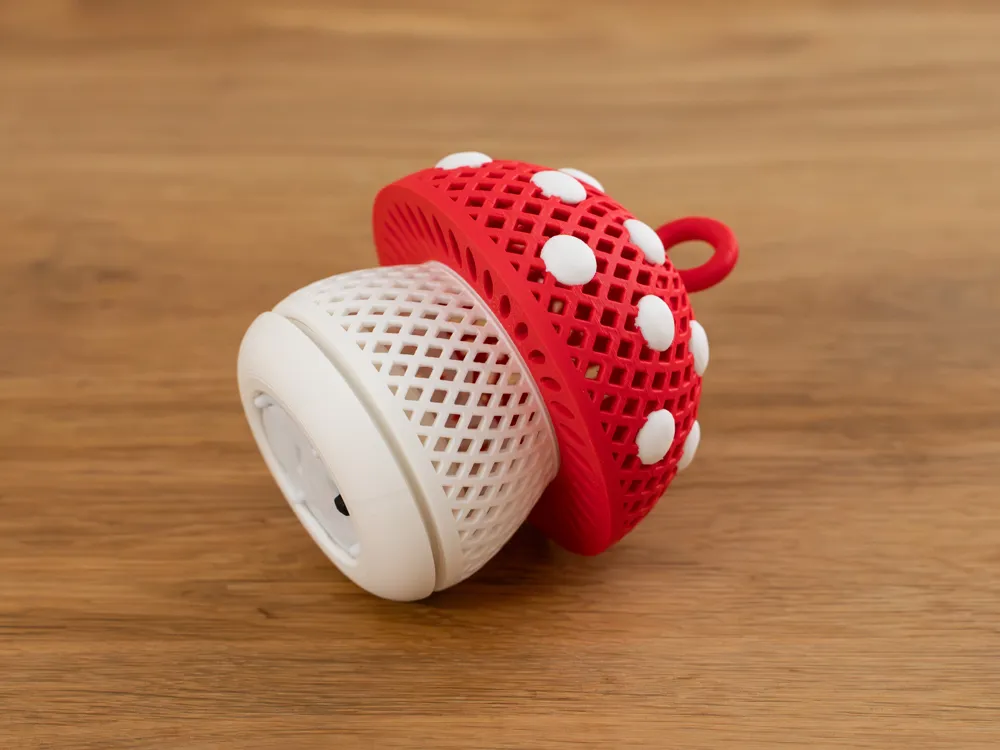

A charming decorative lantern inspired by nature. Perfect for cozy autumn and winter settings, it creates a warm, inviting atmosphere. It can also be used as a festive Christmas ornament, adding a soft glow and whimsical touch to seasonal decor.
The base model was designed to be printed without AMS - All parts simply screw together. There is only minimal support to ensure proper bridging at the top.

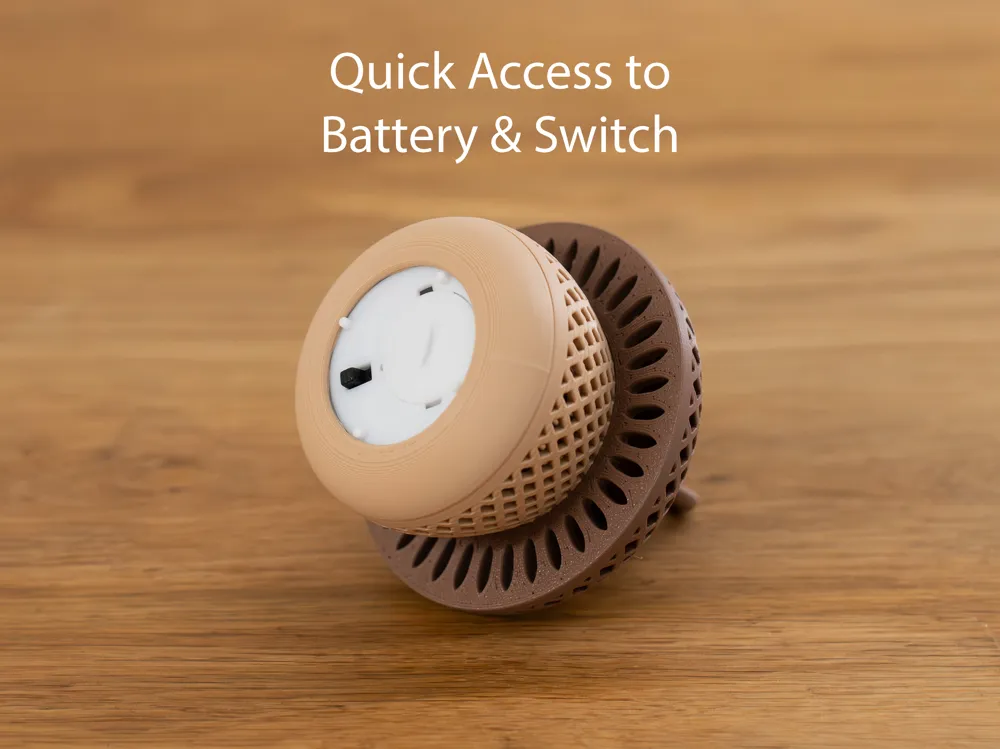

It holds tea lights with a body of up to 40mm diameter and heights between 17-27mm. Switch and battery or charging part stay accessible from the bottom.

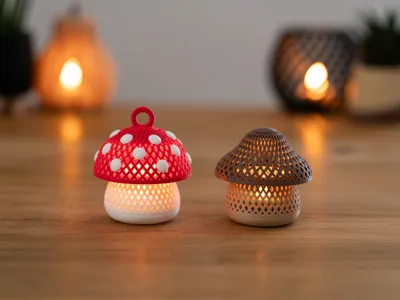

The base mode has two options for the cap, a round one and a bell shaped one.

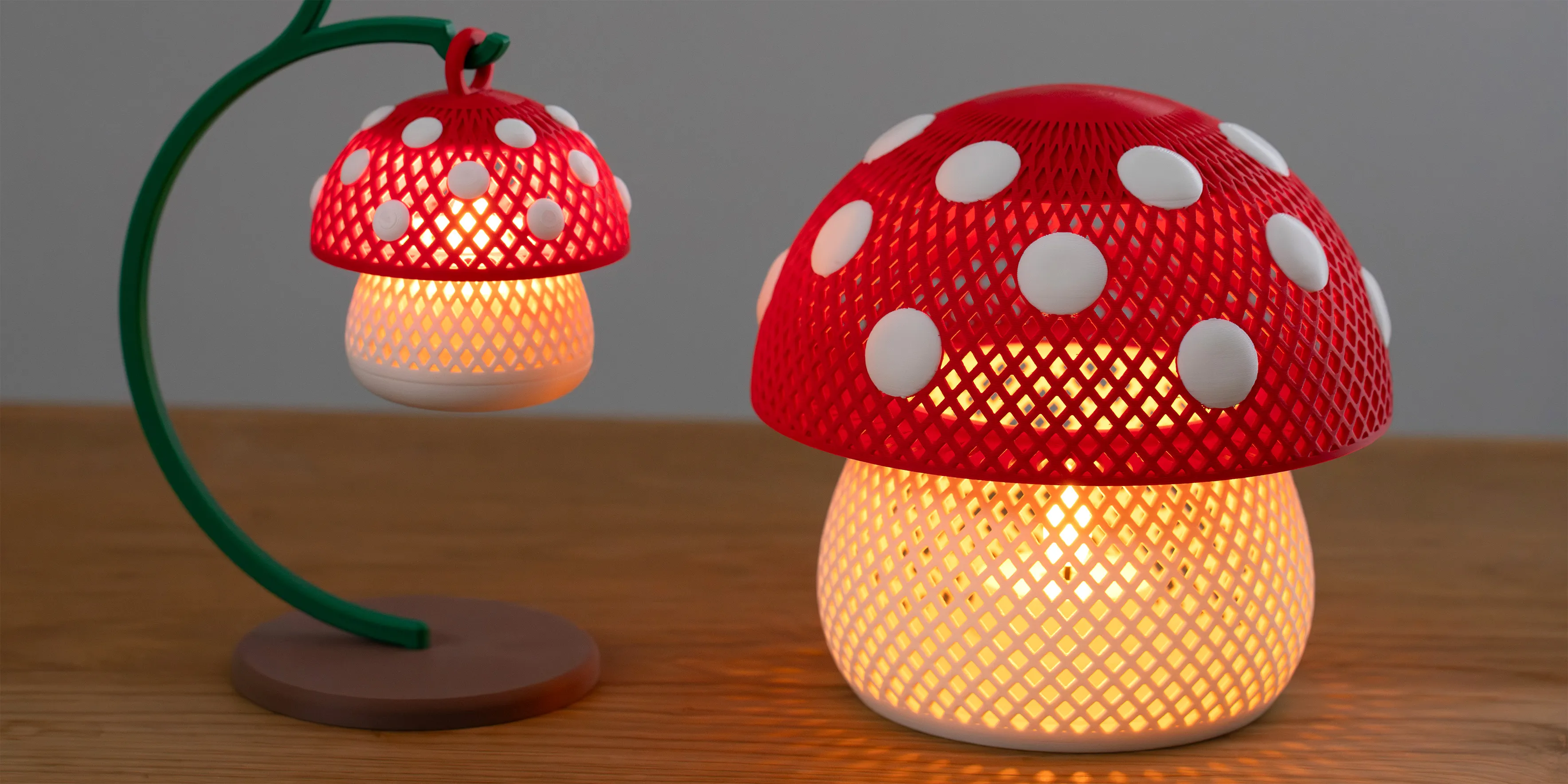

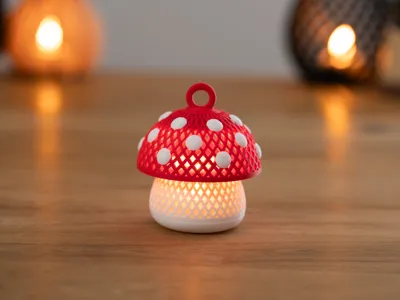

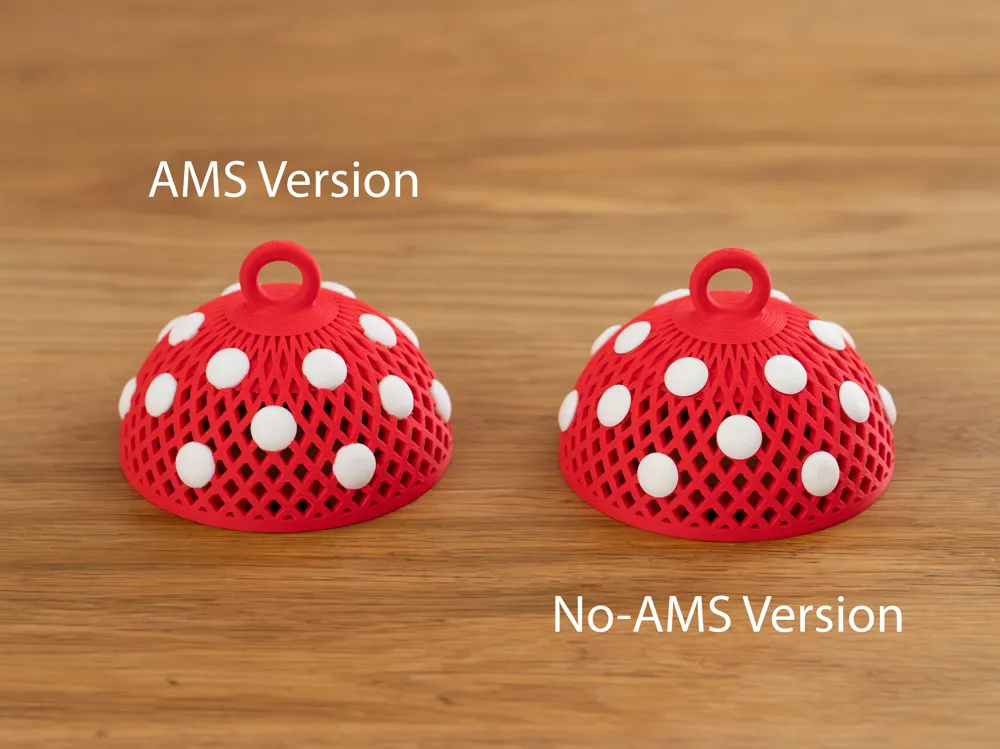

The round version is also available with dots. This version can either be printed in multicolor or in individual parts and assembled after printing. The multi color version is recommended for H2D / H2C users, but also possible with AMS.

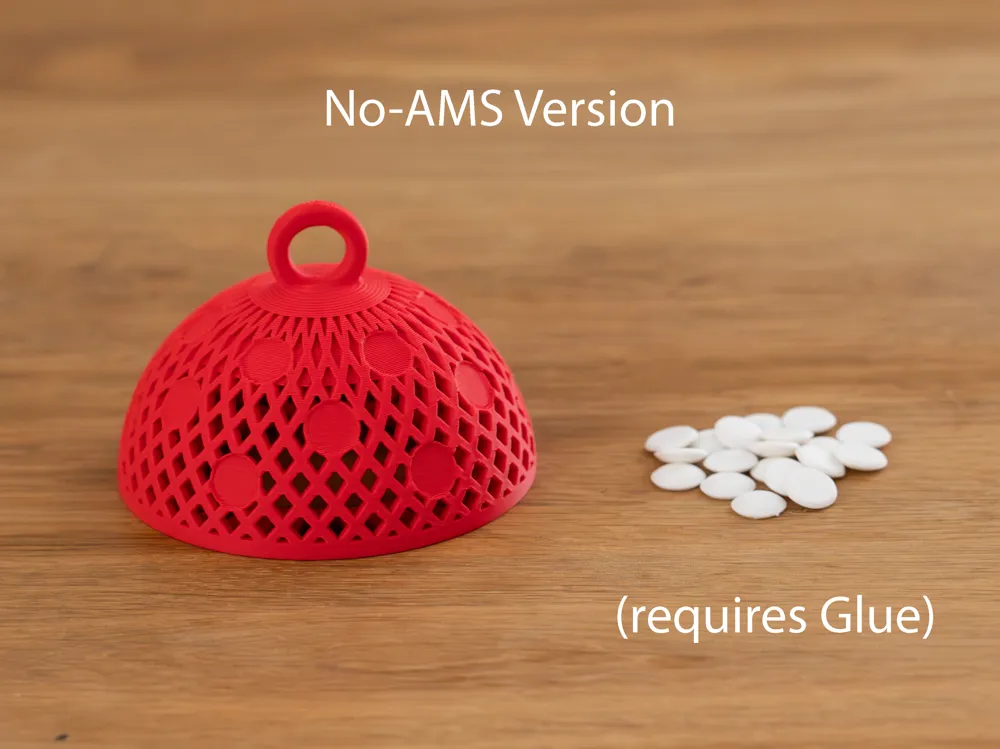

The dotted version without AMS needs to be assembled using glue.

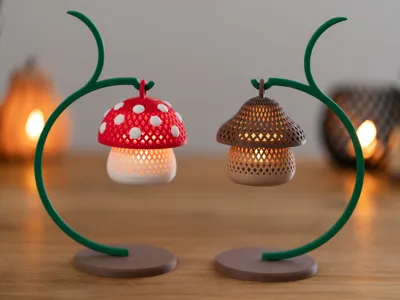

The stand from the photos can be found here: https://makerworld.com/en/models/1809475
Printing
This design needs to be printed with 0.16mm layer height to get clean threads with most filaments. I added a brim to a few critical parts as well as a minimal manual support for the round caps to ensure proper bridging at the top.
The AMS version is partially printed with 0.2mm layer height to reduce the amount of layer changes.
Assembly

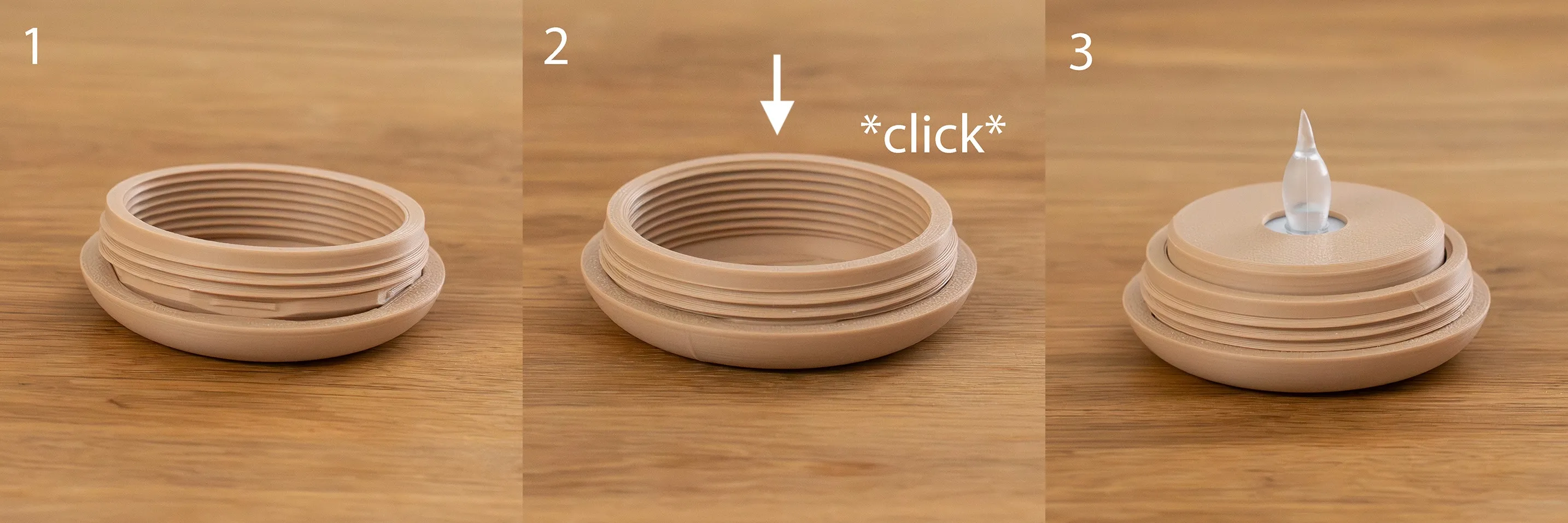

The base model can be assembled without glue. First snap the adapter piece into the base as shown in the photo. Now you can put in an electric tea light and secure it with the threaded holder.

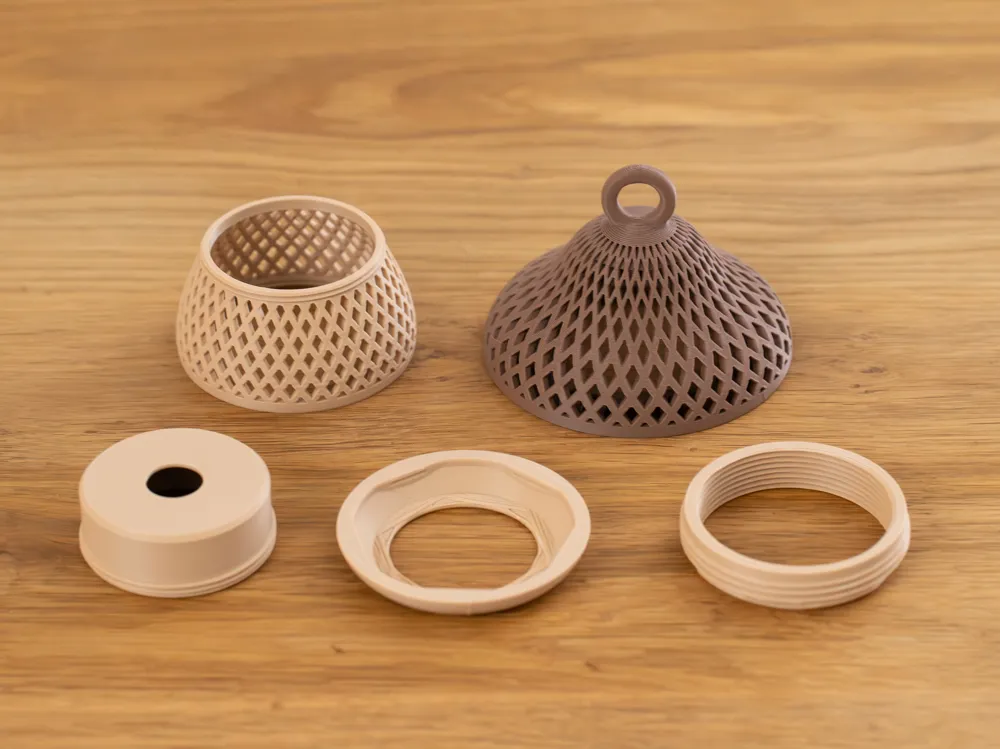

The remaining parts simply screw together. If you printed the No-AMS version of the dotted cap, you need to glue the dots into the cap.
Disclaimer: This design can ONLY be used with electric tea lights!
Also check out the larger version! https://makerworld.com/en/models/2237781
This design is part of the Mini Lantern Collection! https://makerworld.com/en/collections/5446140
Commercial license available on MakerWorld an Patreon!
