Mini Pumpkin Lantern - Tea Light

This pumpkin ornament brings a warm seasonal touch, great for Halloween or simply as a cozy autumn decoration.

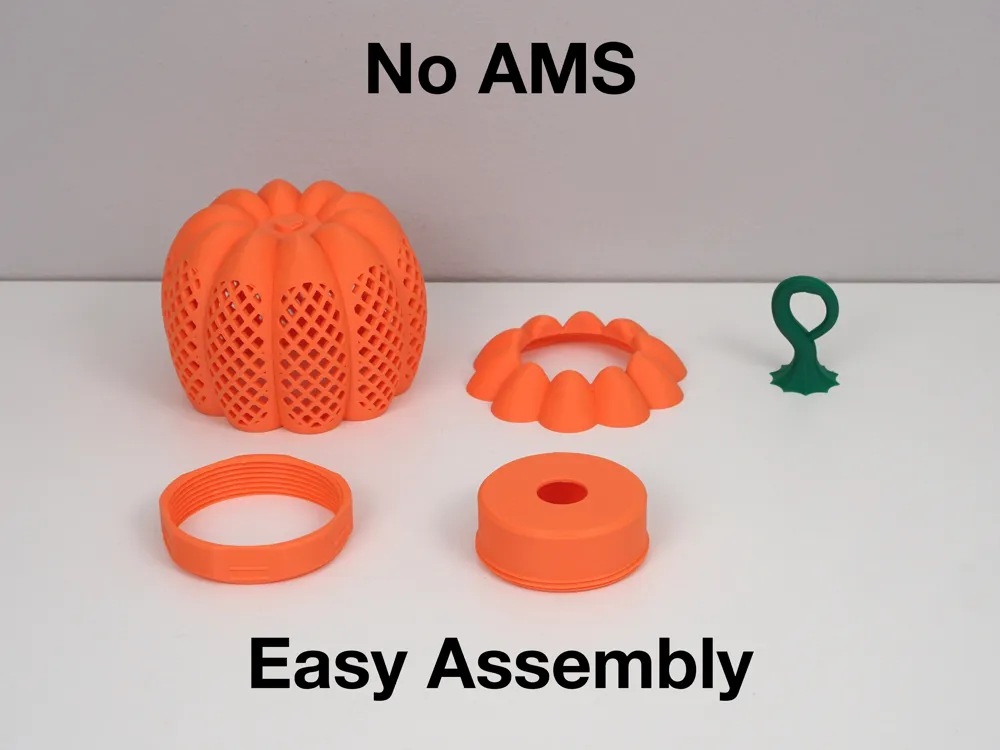

It fits tea lights with a diameter of up to 40mm and heights between 17-27mm. The parts simply click / screw into each other, no AMS is required for printing.

Print Settings

My provided profiles are ready to print.

This design was optimized for printing with 0.16mm layer height. The top is self supported, but I still used small, manual supports to ensure good bridge quality. The base needs a small tree support. The stem and hook should be printed with 100% infill and / or higher wall count.

Assembly

Assembly only takes a minute and requires no tools or other parts.

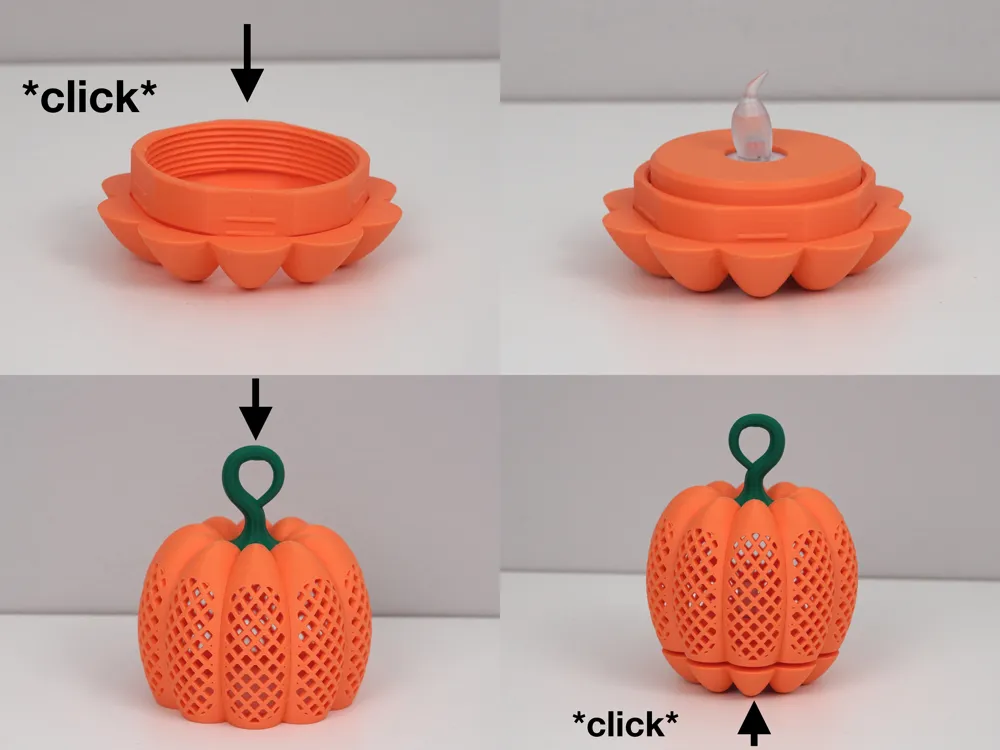

First, make sure to fully remove the supports from the base. Click the connector into the base as shown in the picture. Now you can put your tea light into the base and secure it with the threaded holder.

Next put the stem on the top. This might be a little harder, so try to support the top from the inside if it requires force. Finally, you can click both halves together.

Note that glue should not be required, but depending on your filament settings, you can consider adding a drop of glue during step 1 and step 3, as these connections are meant to be permanent.
