Description

☕ Like my designs? Keep the magic brewing — buy me a coffee at buymeacoffee.com/the.magic.squid.3d 🦑✨

Membership

Want to support or sell prints? Pick your power: Magic Supporter 💛🐙, Giant Squid 💼🦑, Kraken Master 🔥⚡🐉 (1 custom/month).

Join

Boost Me (for free)

If you like my design, don't hesitate to give me a little boost :-) It's really appreciated and will encourage me to make other creations!

⚠️ Important note about the spring mechanism

Some users have reported issues with the spring used in this model. Even when printed in PETG, the spring can develop a memory effect if the tower is stored closed for a long period of time, which may cause the drawbridge to no longer open properly.

To address this, I have designed a new spring-free version using a simple hinge system. It works just as well and is also available in a bi-color version for added realism:
👉 https://makerworld.com/fr/models/2169477-the-drawbridge-foldable-dice-tower#profileId-2352792

I sincerely apologize to anyone who encountered this issue 🙏
That said, I am keeping this model available, as it does not affect everyone. I personally have a test print that has been stored closed for over 2 months and still works perfectly.

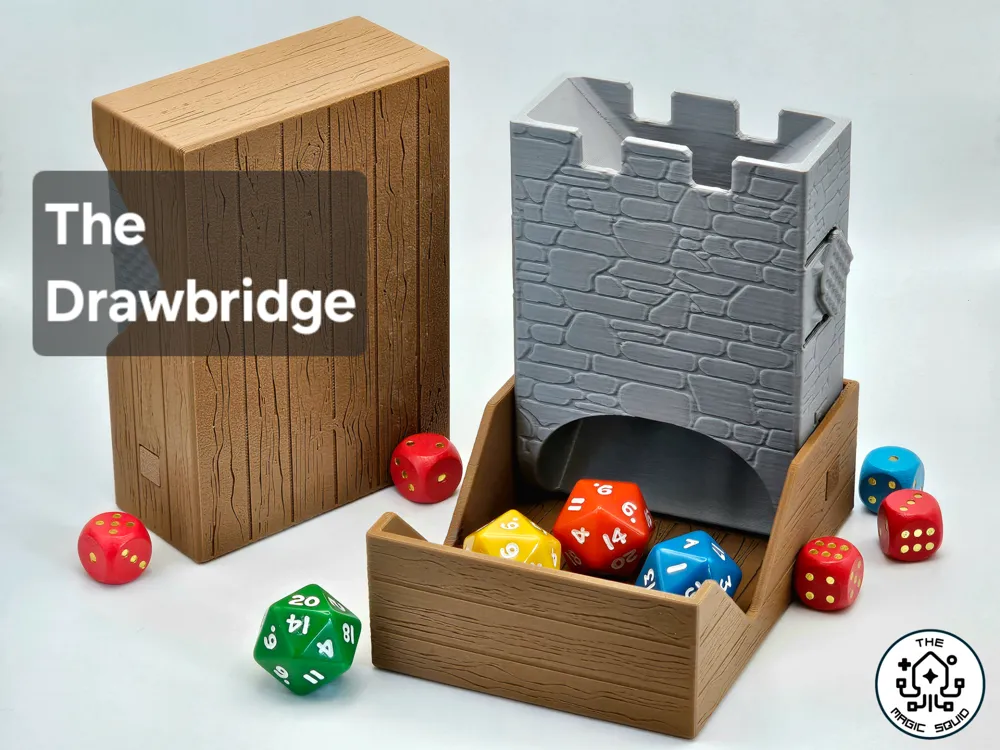

The Drawbridge Dice Tower 🏰🎲

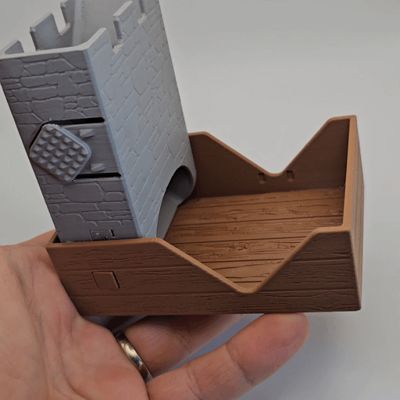

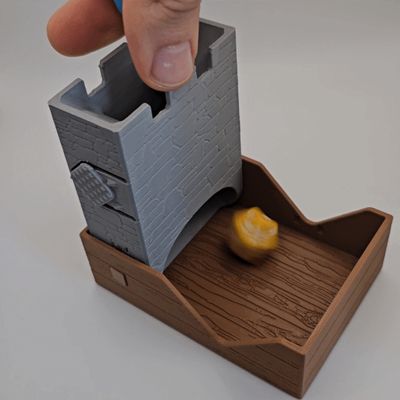

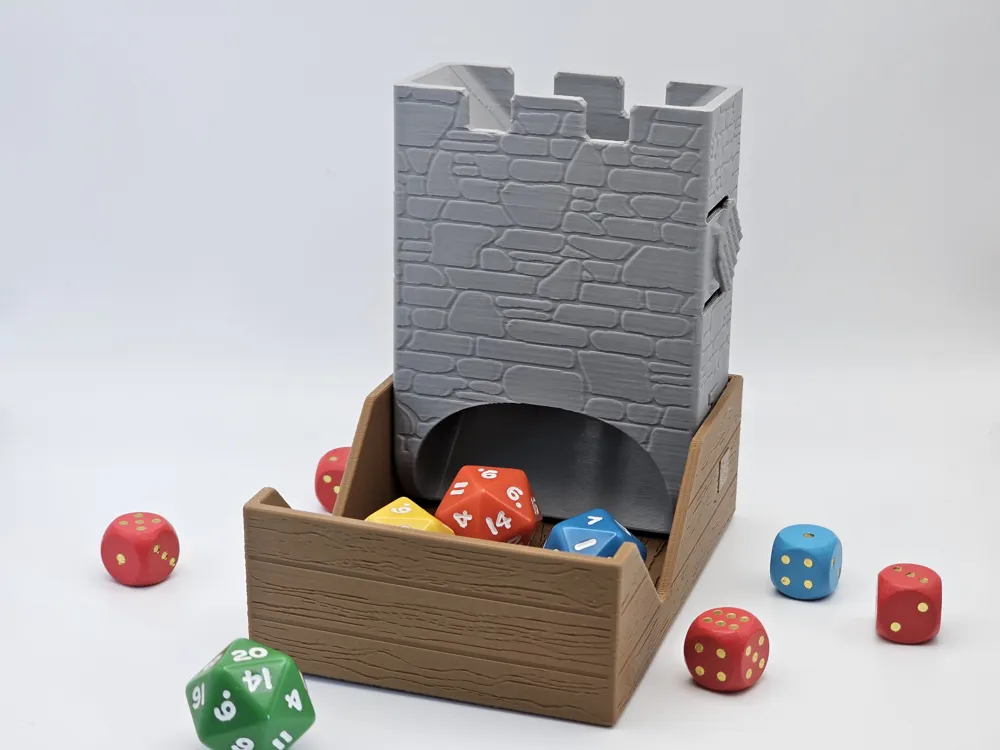

This compact dice tower was designed to look like a medieval keep — complete with a drawbridge gate that opens automatically!

🧠 Behind the design:

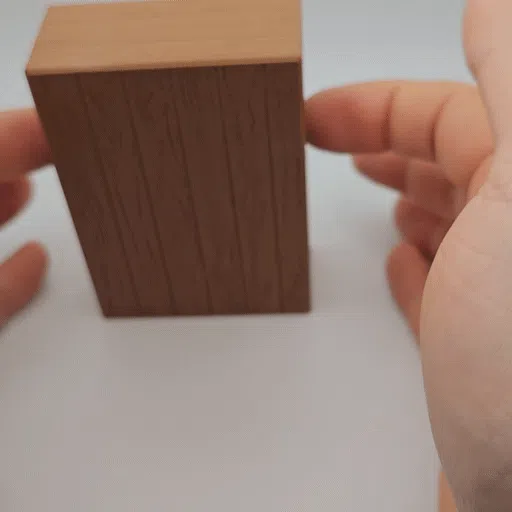

After creating my first dice tower (right here!), I wanted to make a foldable, and still pocket-friendly version. It took many sketches, prototypes, and iterations to get the mechanism just right — and now it’s finally here! The spring action is incredibly satisfying, and this little tower is perfect for board game nights on the go.

💡 Features:

Portable size: only 10 × 7 × 3 cm — take it anywhere!

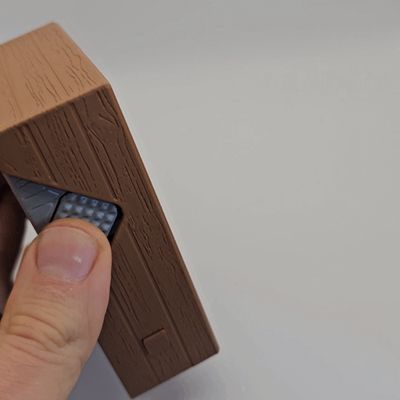

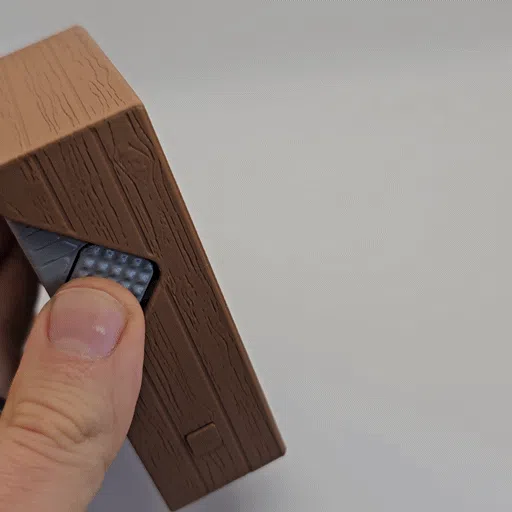

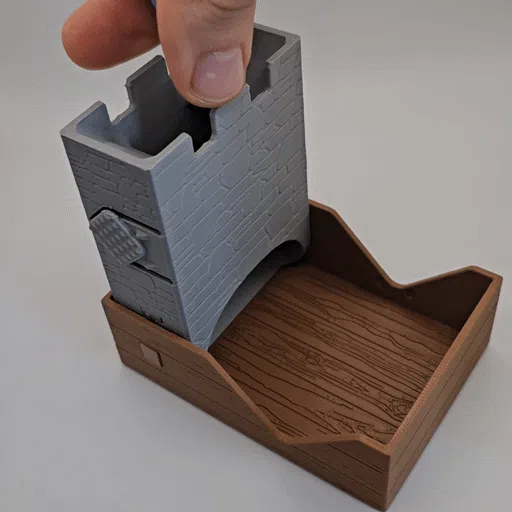

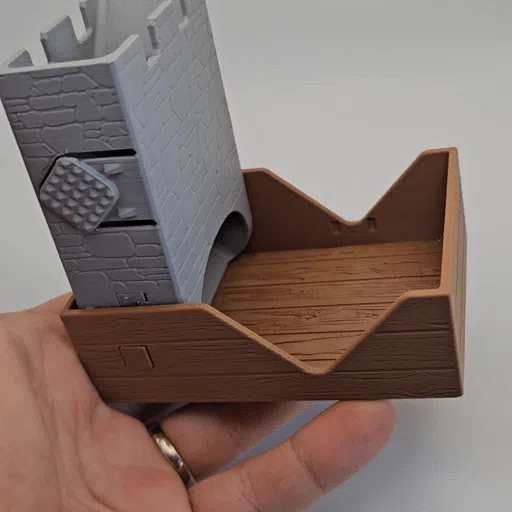

Spring-loaded mechanism: the gate opens with two side buttons and closes automatically thanks to printed springs.
Smart print setup: prints easily in PLA, but the springs are best printed in PETG for elasticity and long-term durability.
Easy assembly:

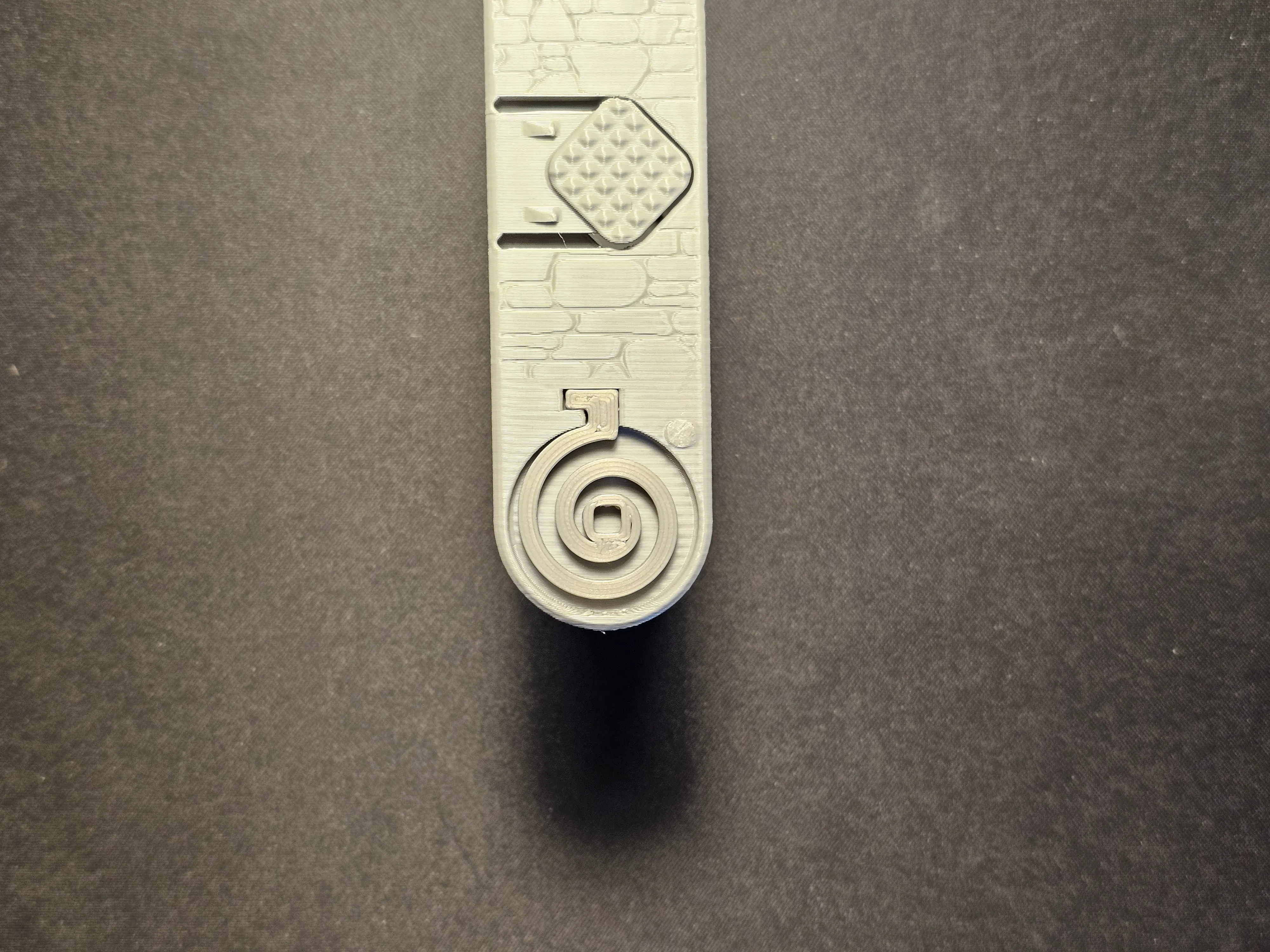

1. Insert the two springs on each side of the tower.
2. Place the tower vertically into the base so the square holes align.
3. Insert the two small square pegs into place.

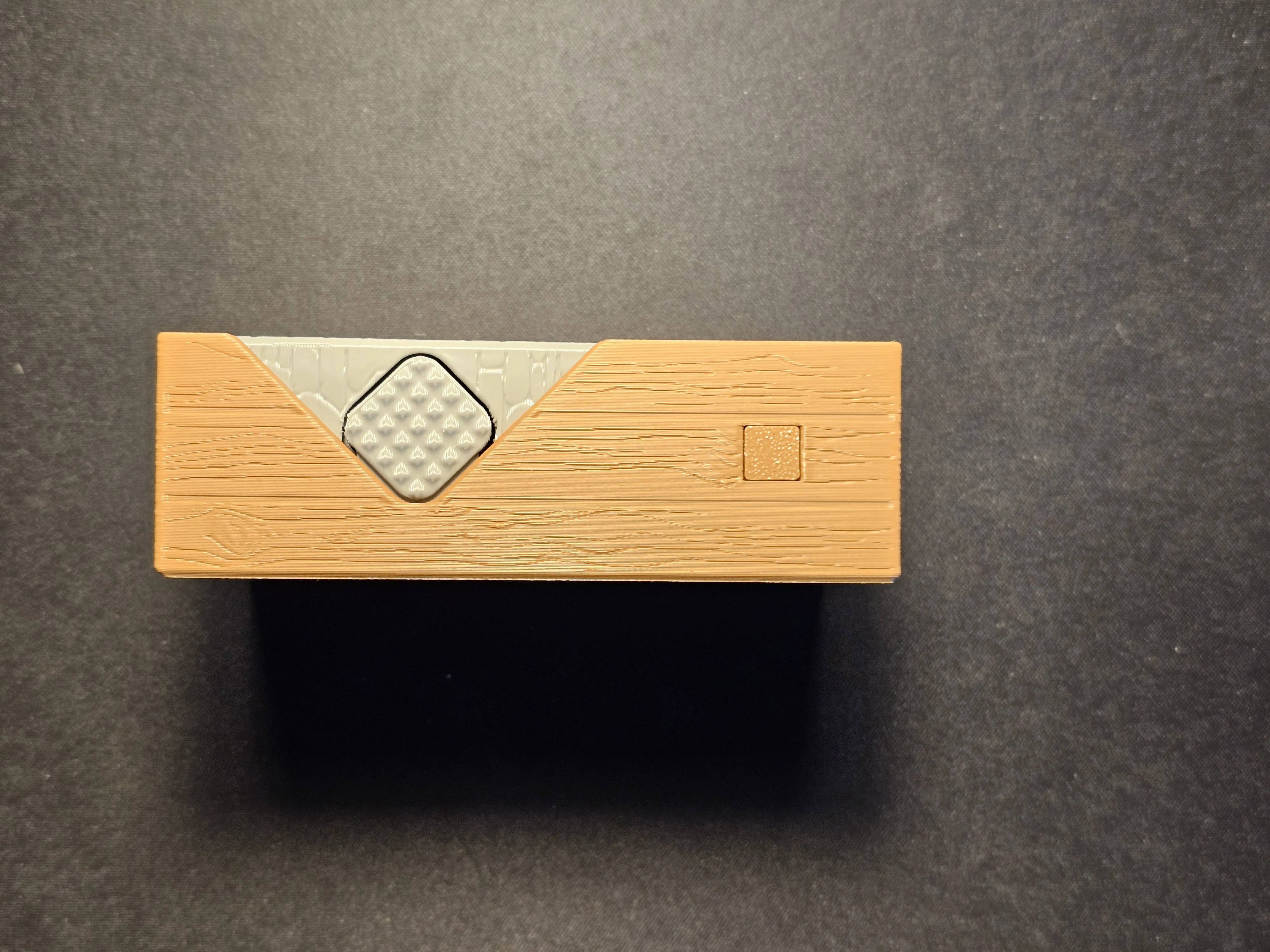

4. That’s it — close it and press the buttons to open!
The tower section includes minimal supports for a clean result.
You can even store your favorite dice inside when it’s closed!

Happy printing!

---------------------------------------------------------------------------------------------------------------

More from The Magic Squid
Discover my other printable designs: handy organizers, game accessories, and everyday upgrades.
🔗 Browse all models: My MakerWorld profile

Comment & Rating (27)

@user_2645404668

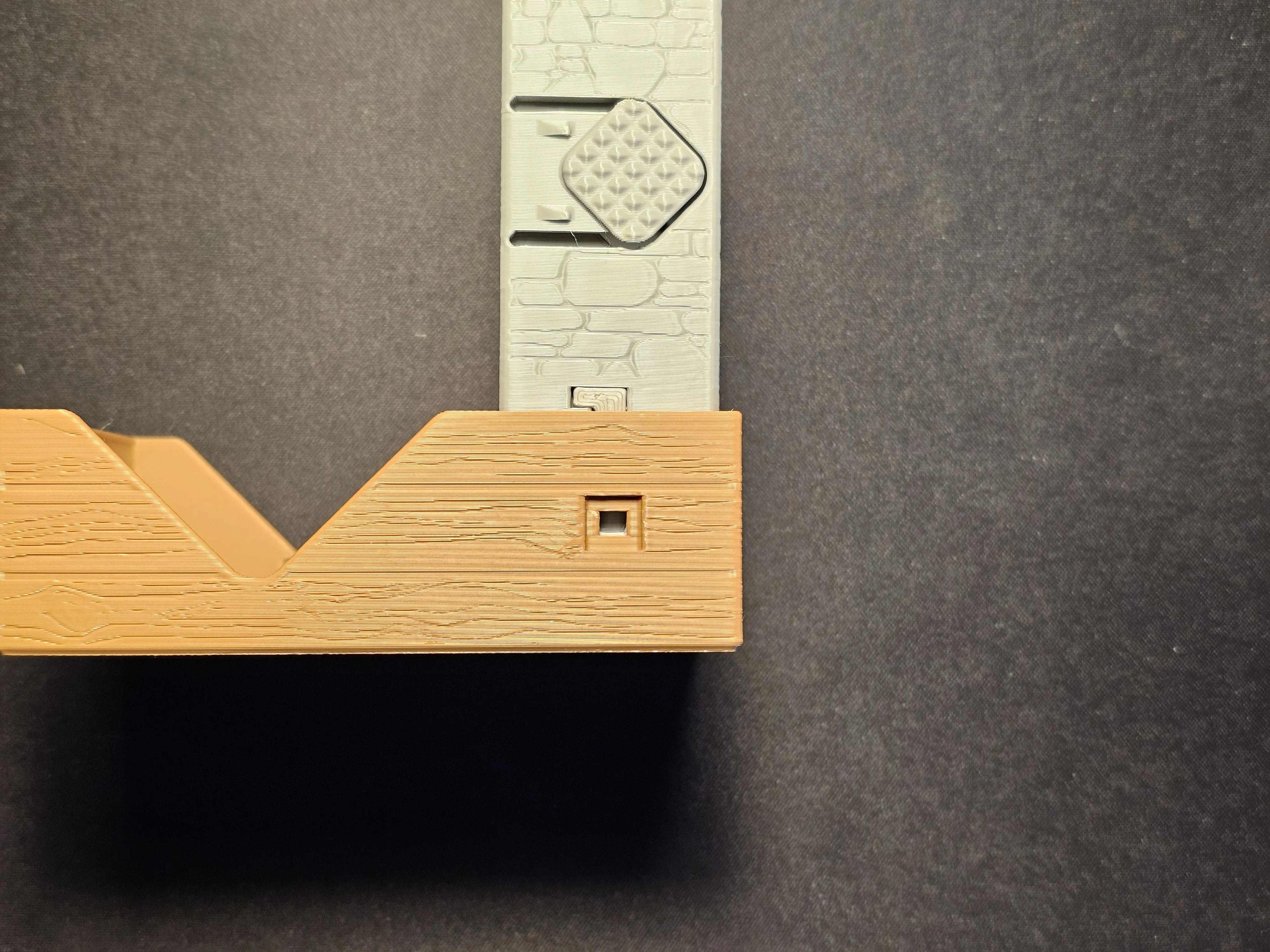

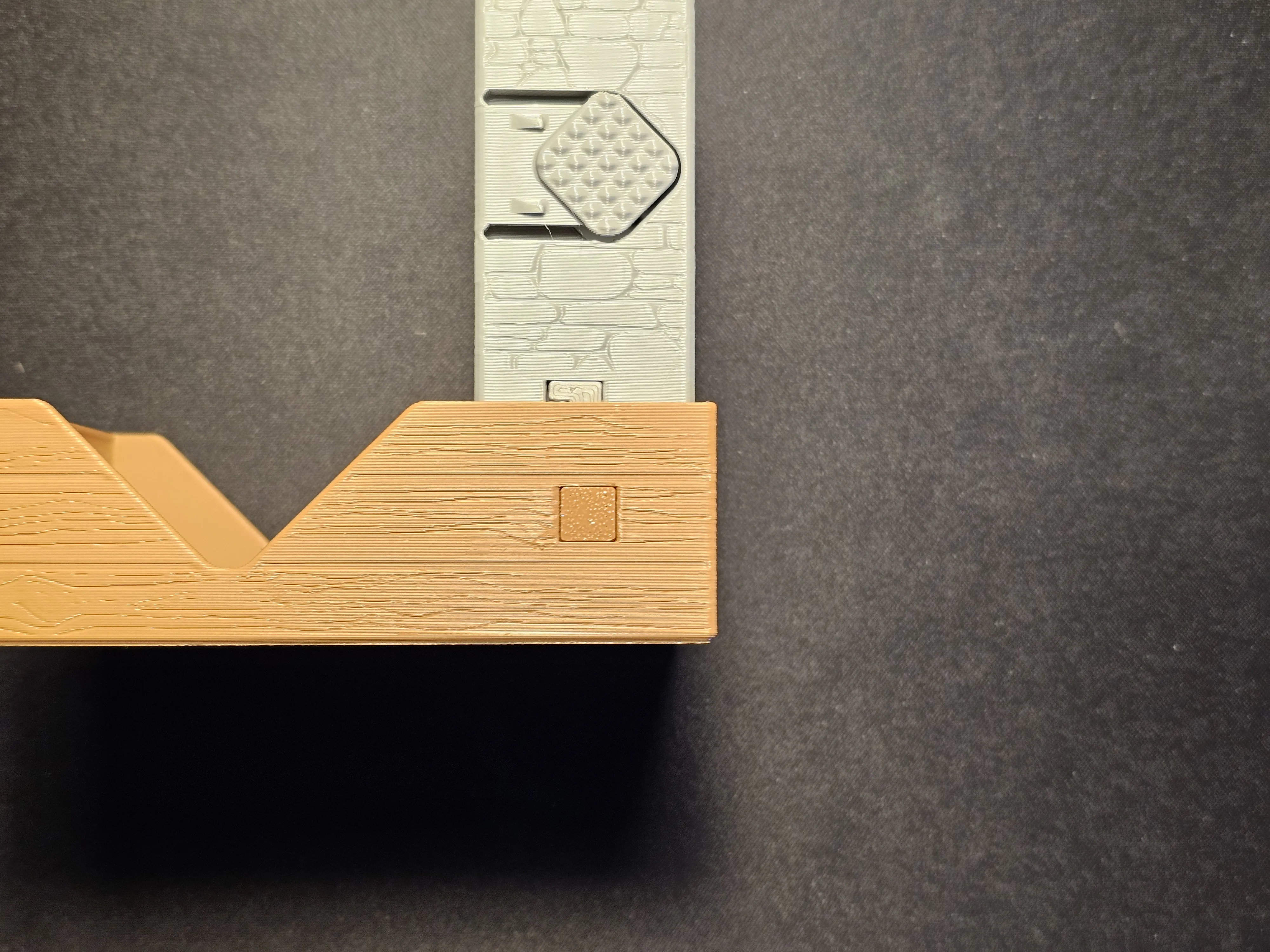

I really like the design but I am having problems with the spring. Even though I printed the square in PETG, after storing the dice tower in the closed position (which should be the normal storage, right?), it won´t go all the way back when opened because the springs have twisted permanently. See the picture where the square for the peg has misaligned after using it a few times. But I would really like to fix it because I like the design and compactness of it - any help and tips would be appreciated :)

The designer has replied

@The_magic_squid

Hello! Thank you for your feedback. Indeed, I encountered the same problem. I tried modifying the design to avoid this issue, but without success. Unfortunately, it seems the spring memory effect persists. I am therefore considering redesigning the model without a spring. I am very sorry about this.

@user_2645404668

Replying to @The_magic_squid :

Ok i see. I have not given up totally. Because I made 6 as a gift to my players and later realizing this problem (because right in the beginning it worked, so I just went on with printing the rest, but then this became a problem very soon after). There was a TikTok about this spring problem where the guy was experimenting with a different filament. He seem to have more luck with polycarbonate. My local 3d printing store is going to print it for me to see if it works. Otherwise if that doesn't work I probably have to abandon this 😕

@Winn32

Replying to @user_2645404668 :

I tried to print the spring from PC and there is the same issue like with other materials like PLA or PETG. This type of spring made from plastic is always problem.

@Cora_F

Print Profile

0.2mm layer, 2 walls, 10% infill

Super nice and compact dice tower Thanks for the print file

Show original

@Revenarine

The pins are really difficult to fit into place, had to trim them down a bit, but they still wouldn't go all the way in. when they clicked, the strength of the spring would wrestle them out of place when closing the tower leading to them falling out. This is such a cool design, but could really benefit from something like a single strong horizontal bar holding both springs at once, much less likely to fall out. Tried playing around with super glue as well, but no good results sadly.

@britwit

Print Profile

0.2mm layer, 2 walls, 10% infill

Love the design. The transparent PLA looks so cool on thr top. Elegoo Transparent PLA+ in clear on the top. Overture Matte PLA in light brown on the bottom.

@_samu.k

Boosted

Print Profile

0.2mm layer, 2 walls, 10% infill

I really liked the dice tower There's just one small problem, the pins tend to fall out of place, maybe if the pin and the spring were one single piece it would solve it

(Edited)

Show original

@Revenarine

Print Profile

0.2mm layer, 2 walls, 10% infill

The hinges could fit in a bit better but the tower design itself is stunning.

The profile uploader has replied

@The_magic_squid

Thank you very much for your comment and for the feedback. I'll work to enhance my model. I'll inform you once it's done 🙂

@_samu.k

Boosted

I think the idea of a compact dice tower that also doubles as a case is brilliant

(Edited)

The designer has replied

Show original

@The_magic_squid

Thank you very much for your comment and for the boost

Show original

@Dijxkie

Boosted

how did you make the wood plank look? looks amazing!

The designer has replied

@The_magic_squid

Hello! Thank you for your comment. I started with an image that I processed to turn it into a vector object Then I integrated it into Fusion360 to create an extrusion It's not the most elegant method, but it worked 🙂

Show original

@Pontation

Print Profile

0.2mm layer, 2 walls, 10% infill

let me start off with this mini dice castle that pops open is a fantastic designed build. the stone work and wood design looks amazing. but unfortunately i can only give this 3/5 stars due to the spring retention issue. i should have read the other reviews closer before printing, as there currently is not any filament that will 100% retain its original shape after being coiled for even a short amount of time. i tried using PLA, PETG, PC, PETG-CF, no luck. after being in the storage position for even a couple hours, the spring will no longer spring 100% back into place effectively ruining the build.

The profile uploader has replied

@The_magic_squid

Hello Thank you for your feedback Indeed the spring has a memory effect with certain filaments That's why I created another version without this mechanism However I saw a video where someone had the same problem on another model they had therefore tried several times with different types of filaments and it seems that the problem could be solved by using polycarbonate (PC) however I have not yet had the opportunity to try

Show original

@user_1982617884

havent printet yet, but i was wondering how could i add filt to the model, inside it to reduce the noise the dice makes when rumbling aorund in it? is there space for that, also on the drawbrigde itself
