Description

CHECK MY PREMIUM DESIGN

DOWNLOAD HERE THE YES/NO SPINNER

Check my premium design on Patreon

Do not change the orientation of the parts.
I printed with PLA at 0.2mm/layer.
Use high-quality PLA - avoid matte PLA as it is not very flexible, especially for the spring. -
Let the parts cool down well before assembling everything – if you’re in a hurry, place them in the freezer before assembly – assembling with hot parts and stressing the spring and trigger will alter the tolerances – don’t do it

Assembly video:

The Mechanical Dice is a mechanical device shaped like a pocket watch, fully 3D-printed. Its refined design evokes the classic style of a pocket watch, featuring a circular case with elegant details. At the center of the top, there is a button: when pressed, it activates an internal wheel with the faces of a standard die (numbers 1 to 6). The wheel spins as long as the button is held down and stops instantly upon release, revealing a random die face.

Comment & Rating (3641)

@FMRT

Boosted

Made my own disk , hope you dont mind :) The disk is available for download here , if you ahave a1 mini just select the a1

(Edited)

@tuananhaudio

Can you give me the stl file?

@L.fleischer

If possible, I would love that too!!!👍

Show original

@FMRT

Boosted

Replying to @L.fleischer :

Dont know if i can share it

@Garcy99

could you make a full dice set (D4 D8 d12 d20) for RPG?

@3.4.10

yes plz

@hnasralla1

that would be amazing

@xeph

neeeeeed ! lol

@user_2558760268

Added stickers to randomly select, or not, restaurants.

Show original

@user_2075326285

funny

@user_2558760268

Replying to @user_2075326285 :

Thank you for your liking

Show original

@mimi_chell

awesome!

@dandcmckay

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Amazing design. I added a print profile to this project for an Improved Replacement Spring. I had issues with the spring breaking when fully depressing the actuator. So I modified the design to allow the spring for the same deflection with less stress.

@CTurtle75

I found it in the profiles, but I can't download it. I don't have a bamboo so have to download stl files

@Nikki7

Where I can find this spring? the original one broke up just couple spins.

@user_1265596165

Replying to @CTurtle75 :

You can install Bambu and then export the part as an STL file.

Show original

@Emoticon

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

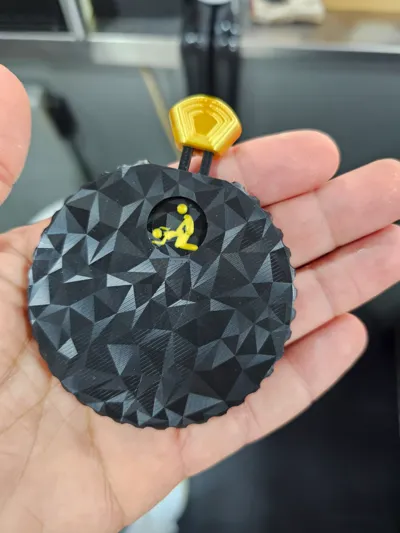

Works. Used octagram spiral on the bottom for visual interest.

@deathstargunner

Boosted

I see we had the same idea!

@297199903a

how can this be done

@user_3019946610

Replying to @297199903a :

Just here I think

@AbysmalHero

Boosted

Print Profile

No AMS 1 plate 0.2mm layer, 2 walls, 15% infill

Good print and great design. Quite satisfying and addictive to roll for no real reason. Have no issues so far with original spring, although I did let everything cool completely before assembly as I decided to paint it while still unassembled. I did have to reprint the dice plate as 2 of the dice failed to adhere to bed, was remedied with a clean and some adhesive spray, More than likely a user error than anything else but you may want to ensure your bed is prepped for this one. Thank you!

@ariabyss

what adhesive spray?

@lrayz

What filament did you use? It looks amazing!!

@lrayz

What filament did you use? It looks amazing!!

@HaroldWT

After I broke two parts, I replaced them with rubber bands. The effect was the same or even better. It is recommended to use small rubber bands for better results.

@chitterchad12

I also did the rubber band trick, works very well

@jp.potter

Print Profile

AMS, all in one plate (print by object)

I was surprised to see a skirt. Haven't used on in a very long time! The print quality was great. My spring broke on the first flex though. I may add reinforcement to it and reprint.

@dandcmckay

Boosted

I've created a Improved Replacement Spring profile in this model project. If you look a the profiles and scroll down you'll see the Improved Replacement Spring profile. I have found that this works really well so far.

@user_2458655656

Yeah, I hardly ever use skirts. But what's the point of skirting?

@jp.potter

Replying to @user_2458655656 :

back before good adhesion, the skirt.was meant to print around the object so you could watch it for any issues. some even would adjust their bed level to tweak it. a good skirt means that the bed was nice and level so the print could proceed. or at least that's my understanding

@K_VAN

Print Profile

0.2mm layer, 2 walls, 15% infill

Pretty cool print. The first spring broke after a couple rolls. The second, I printed at 99% infill and seems to be holding up better. Painting of the faces didn't seem to work well for me but I've found it finicky, at times, in Bambu Studio anyways so it's not likely a problem with the model. Overall, well done!

@dandcmckay

Boosted

@K_VAN

Replying to @dandcmckay :

I'll check it out!

@EVERYTHINGPLUSU

Print Profile

0.2mm layer, 2 walls, 15% infill

great but sometimes it can get stuck but very good

@user_4245671863

Boosted

wow what type of filmeent is that

@EVERYTHINGPLUSU

Replying to @user_4245671863 :

#coobeen transparent pink on PEO build plate

@17671311054

Wow, this is amazing!

Show original
