AR15 Honeycomb and Smooth Magwell Grip

AR15 Honeycomb and Smooth Magwell Grip

This magwell grip provides a secure and comfortable hold on the rifle's magwell, offering improved weapon control and a distinctive look. It is designed to enhance your shooting experience by providing a consistent and stable grip point, which can lead to better accuracy and faster target acquisition. Using the magwell as a grip is a popular technique for improving weapon manipulation and can also aid in faster, more intuitive magazine changes. The grip's ergonomic design and honeycomb texture further enhance stability and handling, while the custom logo and pattern options allow for a high degree of personalization. This is an ideal accessory for competitive shooters, airsoft players, or anyone looking to upgrade their rifle's aesthetics and function.

Features:

• Honeycomb Texture & Logo: Provides a unique anti-slip surface and the option to feature a custom logo for a personalized touch.
• Ergonomic Design: Shaped to provide a natural and comfortable grip, aiding in stability and recoil management.
• Improves Weapon Control: Provides a solid point of contact for better control and faster target transitions.
• Aids in Faster Reloads: The flared design of the magwell assists in guiding the magazine, making reloads quicker and more reliable.

Print Profiles: A wide range of pre-configured print profiles are available to suit your printing capabilities and aesthetic preferences:

• AR15 MAGWELL HCB - AMS Multicolor PLA - With Logo and With Pattern: The flagship profile, featuring the two-tone honeycomb pattern and a custom logo.
• AR15 MAGWELL HCB - AMS Multicolor PLA - With Logo and No Pattern: A two-tone version with the custom logo but a smooth surface.
• AR15 MAGWELL HCB - AMS Multicolor PLA - No Logo and With Pattern: The two-tone honeycomb pattern without the logo.
• AR15 MAGWELL HCB - Single Color PETG - With Logo and With Pattern: A durable and robust option with both the logo and honeycomb pattern.
• AR15 MAGWELL HCB - Single Color PETG - With Logo and No Pattern: A resilient option with the custom logo but a smooth surface.
• AR15 MAGWELL HCB - Single Color PETG - No Logo and With Pattern: A durable option featuring the honeycomb pattern but without the logo.
• AR15 MAGWELL HCB - Single Color PETG - No Logo and No Pattern: A durable and sleek, unadorned version.

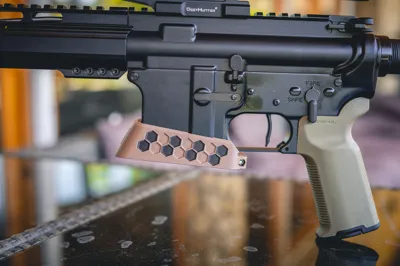

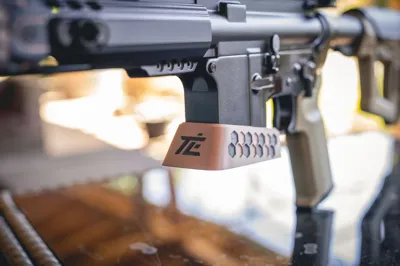

Durability and Printing Notes: The multicolor version shown in the photos was printed with PLA. I have used it during live fire sessions, and it has performed well so far. However, the long-term durability of a PLA print under repeated heat and mechanical stress is still being tested. For a more robust and durable option, I recommend printing in PETG, which offers better mechanical strength and heat resistance. The initial prototypes were printed in PETG, which held up perfectly. I chose PLA for the final version to achieve the desired multicolor effect with my available filament and will continue to evaluate its durability over time.

Installation: The magwell grip is designed to be mounted using a single M3x20mm (or shorter) hex socket screw and nut. Simply slide on the magwell, insert the screw, and secure it with the nut until tight.

 Check my profile for the complete build (m-lok grips, vertical grip and magwell) and my other designs! :)
