*V4* Bambu Spool - HoneyComb Edition Remixed by andythiloMakerWorld: Download Free 3D Models

Remixed by

andythilo

3D Printer>3D Printer Accessories

IP Report

Print Profile(19)

All

P1S

P1P

X1 Carbon

X1E

H2D

A1 mini

NEW V4! - 0.2mm layer, 3 walls, 20% infill

Designer

6.2 h

2 plates

4.9(1.9 k)

Spool Markers - Complete Set 0.12mm layer, 2 walls, 15% infill

Designer

1.1 h

1 plate

4.9(158)

0.2mm layer, 3 walls, 25% infill, ABS+, Esun

5.4 h

2 plates

4.9(41)

PLA Labels - For Handwriting - 0.12mm, 2 walls, 100% infill

59 min

1 plate

5.0(16)

Click to see more

Open in Bambu Studio

Boost

4484

10798

2800

5.6 k

35.9 k

32.1 k

Released

Description

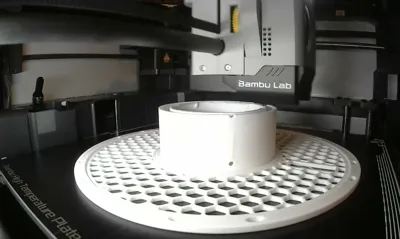

Honeycomb sided edition of the Bambu refillable spool. Photos show 2 versions, one is with infill, the other is 100% Rectilinear. The 100% takes a bit longer but looks much nicer with transparent PLA to match the original Bambu spools.

NEW VORONOI EDITION - https://makerworld.com/en/models/159888#profileId-175550

V4!!!!

Added Bambu sticker plate for spool ID
Thickened inside of spool slightly which has improved strength.

V3 Update!

Elongated the filament retaining holes
Fixed some surface issues
Added Bambu floating logo

V2 Update!

Added 6 sets of filament retaining holes on both sides
Added filament retention hole on the inside secure filament end when re-spooling
Added 12 filament tag inserts
Added Blank insert for your own names in raw section

Comment & Rating (2800)

@locotodd

Printed well, looks great, but doesn't work in my AMS. The rollers don't get any traction on retraction. Tried cleaning the rollers, but still no good. Seems like maybe the spool is too wide? Anyone else have this issue?

The designer has replied

@andythilo

Csnt say I’ve had this issue, but have you tried scuffing up the edge of the spool?

@locotodd

Replying to @andythilo :

I have not. Is there a preferred / recommended way to do that?

@andythilo

Replying to @locotodd :

I guess some sandpaper but I’ve never heard of this being an issue and have nearly 20k downloads.

@ckimber

Print Profile

Spool Markers - Complete Set 0.12mm layer, 2 walls, 15% infill

First layer was bad. I’m sure it’s all my fault to be fair.

The profile uploader has replied

@andythilo

What plate did you use? I recommend a textured PEI plate for these.

@ckimber

I was very curious about using a pei plate. I had one on my old Sovol and I loved it but I kept reading how the textured plates seem to mess with LiDAR. I then thought to myself that’s an expensive sensor so I should probably not disrupt it. Im sure that I’m wrong. lol

@iamKhris

Replying to @ckimber :

The biggest problem I've had using a PEI plate is it gets dirty and then filament doesn't stick. Once I wipe it down, it works perfectly fine. You won't break or harm the LiDAR sensor in any way by using a PEI plate.

@lorenjcsmith

Print Profile

NEW V4! - 0.2mm layer, 3 walls, 20% infill

Made the mistake of ordering two refills and this print saved the day! Perfect print from the Handy app

(Edited)

@VBNinja24

i made the same mistake with filament

@victorresp555

Print Profile

NEW V4! - 0.2mm layer, 3 walls, 20% infill

what can I say, it a spool that works great and it doesn’t use much filament to print. Fits my cereal dry box on my desiccant/ hydrometer /rollers.👍🏼

The profile uploader has replied

@andythilo

Looks great, thanks for the comment and rating

@Akpaine41

where did you get that setup? for the container and meter? thanks

@N405

Boosted

Print Profile

NEW V4! - 0.2mm layer, 3 walls, 20% infill

Very nice. like the original. Just one question i have. other spools use a little piece to lock the two parts together. do i need something likde this or is this not necessary?

@KneezInTheBreez

Add in the spool lock. You will regret not having it once it comes apart in your AMS. Happy Printing!

@traviskjansen

Replying to @KneezInTheBreez :

Is there a shim included in this? Or are you saying we should use the one that comes with other spools?

@KneezInTheBreez

Replying to @traviskjansen :

I don’t see it on the plate. I am only looking thru app, tho. I think I acquired from a remix or the original. one or the other. :) just don’t trust your AMS without it. you will remember that day forever. lol

@the3dhobbyist

Boosted

Print Profile

Spool Markers - Complete Set 0.12mm layer, 2 walls, 15% infill

I only needed a few but they turned out great!

The profile uploader has replied

@andythilo

Very nice, was that your own profile? if so could you upload it? it’s very clean

@the3dhobbyist

Boosted

Replying to @andythilo :

it started out as your profile but I did duplicate some and focused more on what I would need with an A1 mini being my only multi color printer and also changed the initial layer line width as it was leaving some odd spots on the lettering. I will upload it here shortly for anyone else that has similar needs. Edit: I added a print profile for anyone that would like to use it and would like to focus more on PLA/PETG. Thanks!

(Edited)

@user_2321097272

Replying to @the3dhobbyist :

where is this profile? I looked under your profile nd it wasn’t there

@rakibby

Print Profile

NEW V4! - 0.2mm layer, 3 walls, 20% infill

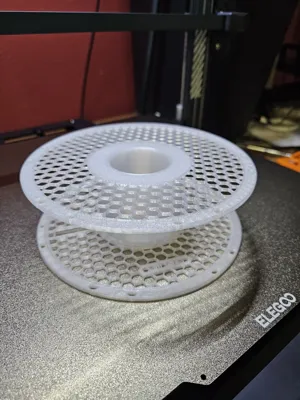

printed this in clear PC, looks SOOOO good. and super functional. used designers print settings

The profile uploader has replied

@andythilo

Looks great 😊

@ckimber

Print Profile

NEW V4! - 0.2mm layer, 3 walls, 20% infill

The first layer I think was to fast. It still finished printing though. All around solid spool and uses less material!

The profile uploader has replied

@andythilo

Did you do bed levelling before you printed? looks like nozzle is too high or underextruding

@ckimber

I always run the auto calibration before a print. is there something else I need to check or do? I’m so new to Bambu any help is much appreciated.

@sofranekf

Replying to @ckimber :

If you use PLA with correct print profile, I would say your PEI plate is greasy or not clean enough. I have similar problems with my new smooth PEI plate - after few good prints adhesion of first layer has rapidly worsen, no matter how I cleaned or de-greased plate. So I try to use glue, very thin layer (simple glue stick originally used on paper). This process is also recommended when using PLA with smooth PEI plate. With this glue all prints holds perfectly, with perfect first layer. And glue remains can be washed away with hot water.

@ldjamesl

Print Profile

NEW V4! - 0.2mm layer, 3 walls, 20% infill

Printing another set as I write this review. It prints fast, and I believe it is the most efficient Bambu alternative when it comes to cost. It look pretty cool, and I think I'll be using more of these soon :P
