Eight M3x23 Screws that are smooth until the last 3mm for smooth operation of the hinges and clasps while also letting you screw on a nut so the head of the screws don&#39;t stick out so much. &nbsp;These are just the screws and nuts, not the full model. They were created using this screw generator: <a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1055250#profileId-1042636">https://makerworld.com/en/models/1055250#profileId-1042636</a> &nbsp;Parameters used in case these don&#39;t fit for you as well as they did for me (If not specified I left as default):<ul><li>General:<ul><li>Spec: M3</li><li>Thread: Fine</li></ul></li><li>Screw: <ul><li>Screw Length: 23</li><li>Screw Head: Socket <ul><li>Hex would also look good since it would match the nut on the other side</li></ul></li><li>Screw Thread Length: 3 </li></ul></li><li>Nut:<ul><li>Nut Clearance: 0.04<ul><li>I tried 0.1, 0.05, and 0.03. Had a little bit of trouble with getting the 0.03 screwed on and 0.05 was able to be pulled off, so I bumped it to 0.04 here. </li><li>My recommendation would be to print just one of the nuts first to make sure it fits. They&#39;re quick, but obviously no need to waste if they don&#39;t fit. </li></ul></li></ul></li></ul>The tool will default with a screw, nut, and washer. You&#39;ll need to change the value on General &gt; Display to get just one. No way to get Nut and Screw together, have to do them individually.

M3x23 Screws and Nuts for Hinges and Clasp

Pitrus3D

bf81ae3d-3ebf-4a44-96df-087f6431a4ef.jfif

0.2mm layer, 2 walls, 15% infill

With TEXT 0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

https://www.printables.com/model/258431-rugged-box-parametric

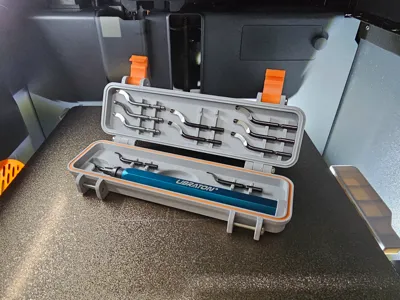

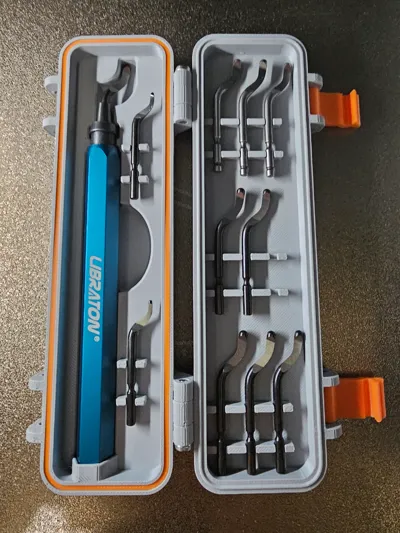

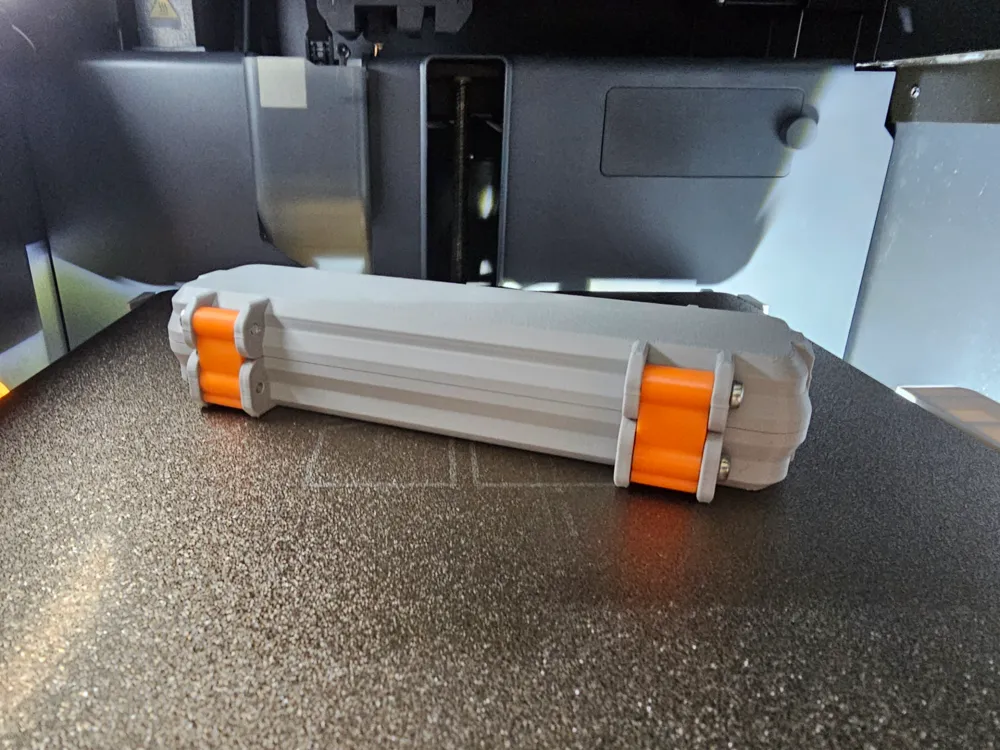

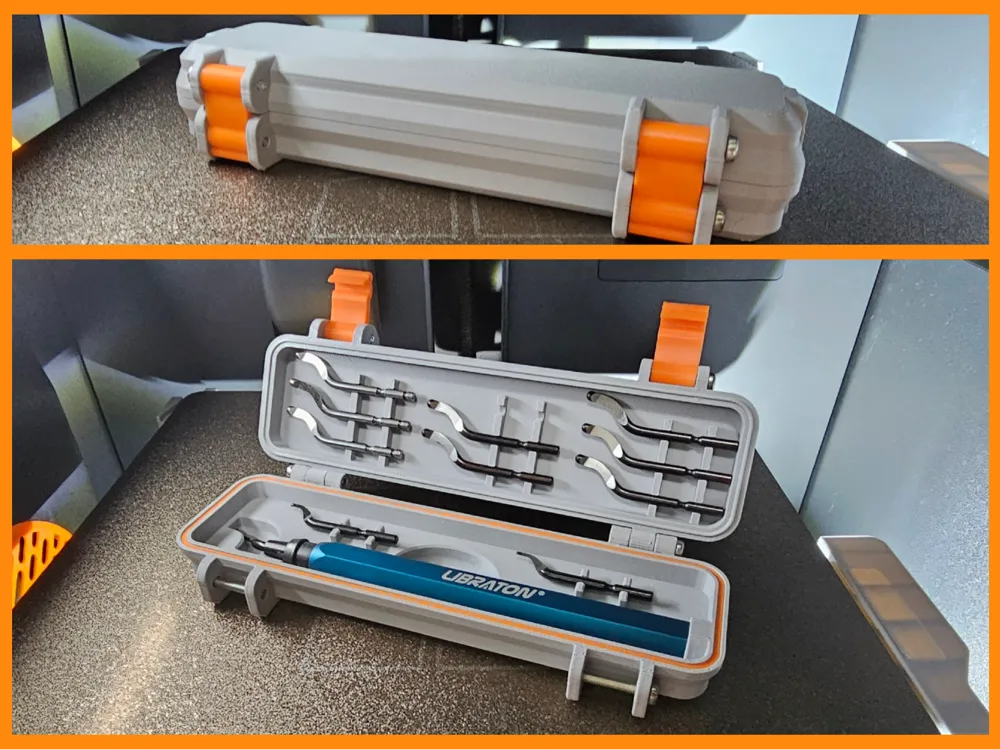

After trying diffent designs of deburring tool case, I realized that I needed a stronger one so I decided to start from scratch and design my own. Took the parametric box by Whity as starting point. The final result is a fantastic rugged deburring tool case which offer a perfect fit for the tool and all the tips (11 tips slots + 1 mounted on the tool). Print instructions: •    no support are needed •    AMS not required •    latches and seal are on different plates to allow the use of different colors or materials For the assembly you will need 6 of M3x20mm screws.&nbsp;Take a look also at my rugged caliper case:<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/it/models/1086555#profileId-1079442">https://makerworld.com/it/models/1086555#profileId-1079442</a> Enjoy Folks!&nbsp;<boostme><boosttitle>Boost Me</boosttitle></boostme>
