RUGGED DRAWER SYSTEM
Be sure to check all sizes - “Click to see more” in Profile list.
Check out the FULL RUGGED COLLECTION
Also fits my Rugged Organizers & Custom Storage Drawers
New Drawers added all the time, feel free to direct message me with your requests!
CUSTOM LABEL GENERATOR
Click [Customize] for Small & Wide Labels (Next to the DOWNLOAD button.)

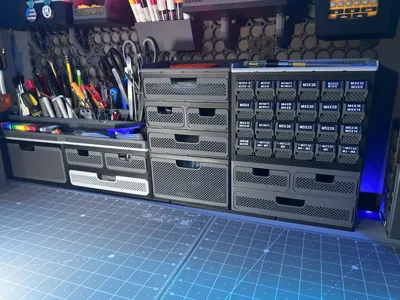

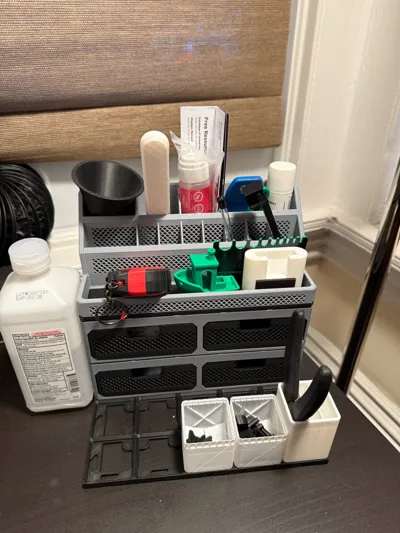

A stackable Gridfinity Drawer System that perfectly pairs with the Rugged Desktop Organizer or can be stand alone stackable drawers. This versatile and functional model is perfect for those looking to bring organization to their workspace. It's available in multiple sizes (more profiles/sizes coming soon). Whether it’s for your desk at home, office or work bench, this Drawer System is designed to bring ease and structure to your space.
Don't forget to Follow! Thank you so much for your Downloads, Likes and BOOSTS! |
ROADMAP - ✓ = Completed/Available in Profiles |
|
|
| Which models fit on my printer? | |
| X1/P1/A1 can fit all ◉○ | A1 mini fit ○ & ○○ (empty circles) |
Single Dots are Single Height (◉ & ○) | Two Dots are Double Height (◉◉ & ○○) |
Print Settings/Notes:
- ● in profile means it fits X1/P1/A1.
- ○ in profile means it fits A1 mini and X1/P1/A1.
- ●● / ○○ Double dots in profile means Double Height.
- Print times shown in profile are for all plates, not actual print times.
- All current drawer size profiles are Multiple Plates.
- I setup the Drawer Frame to print vertically (backside down) without supports. There was a little stringing under some of the gridfinity, but that did not warrant me using supports. 10 seconds of post processing (just clip the stringing) saves hours of print time.
Printing Tips:
- With large prints, warping can happen.
- Clean your print bed thoroughly
- Use Glue Stick or Nano Polymer to prevent warping
- If not using my profile, be sure the Aux Fan in the X1/P1S is turned off (This can help prevent warping on large prints)
If your room temp is colder than normal, raising up bed temp to 65c can help.
IMPORTANT NOTICE: I recommend you thoroughly clean your build plate (edge to edge) and use Nano Polymer or Glue Stick This is a large print, watch the first few layers for good bed adhesion. |
Q&A - What does Gridfinity 3x5, 3x4, 2x5, etc. mean?
- Gridfinity is a modular, open-source organization system that uses a grid to attach/organize multiple boxes or holders to items.
- Gridfinity Baseplates are optional, not required for these models. Profile for Gridfinity Baseplates added, you can overlap your drawer across multiple baseplates to secure multiple drawer frames together horizontally.
- 3x4, 3x5 etc. is the grid size on the top/bottom of drawer frame and other gridfinity models dimensions.
- Optional Magnet baseplates offer the option of a very secure platform (Only a few magnets should be more than enough)
- The drawer frame sizes are based on the Gridfinity Grid, but you can mix sizes.
Feel free to direct message me with your requests!
