Rugged caliper case with pencils holder
Print Profile(1)
Bill of Materials
Description
Stop leaving your caliper lying around your desk! It deserves a nice case to rest and recover.
I took the parametric box by Whity as starting point.

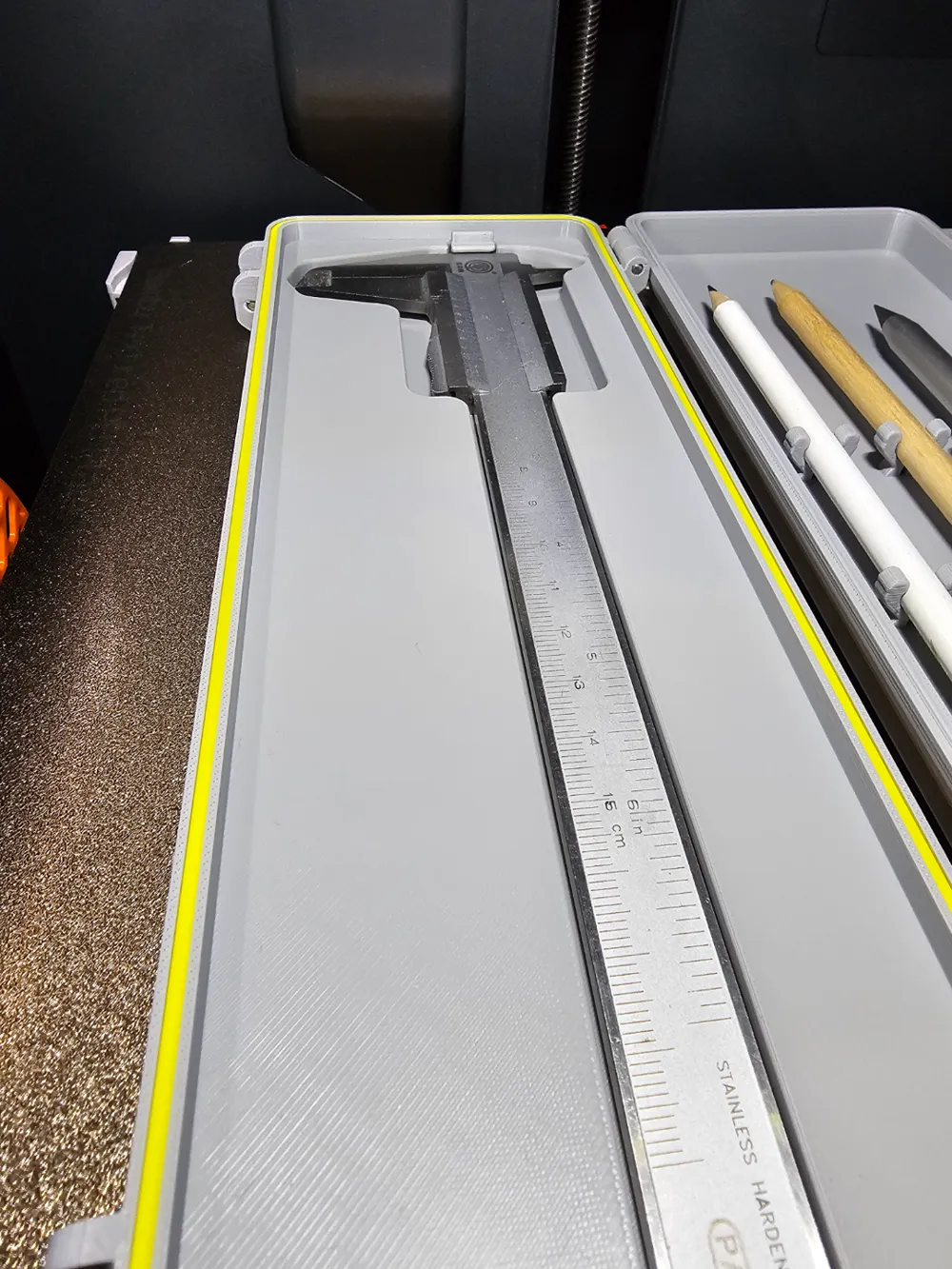

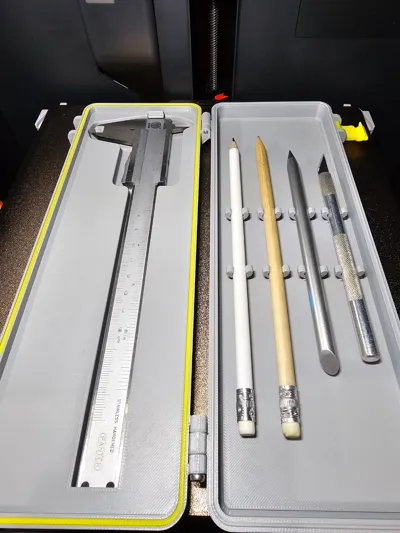

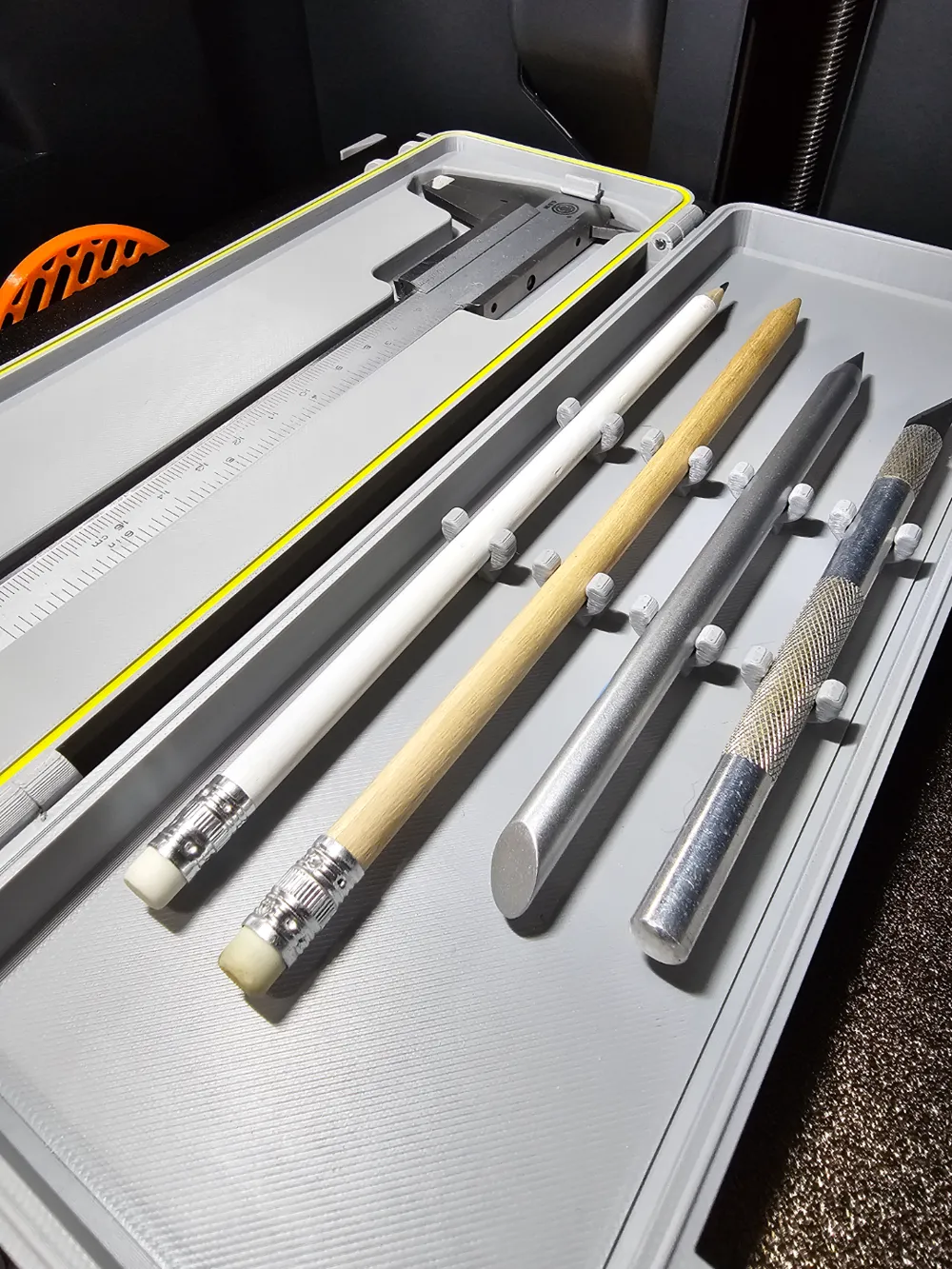

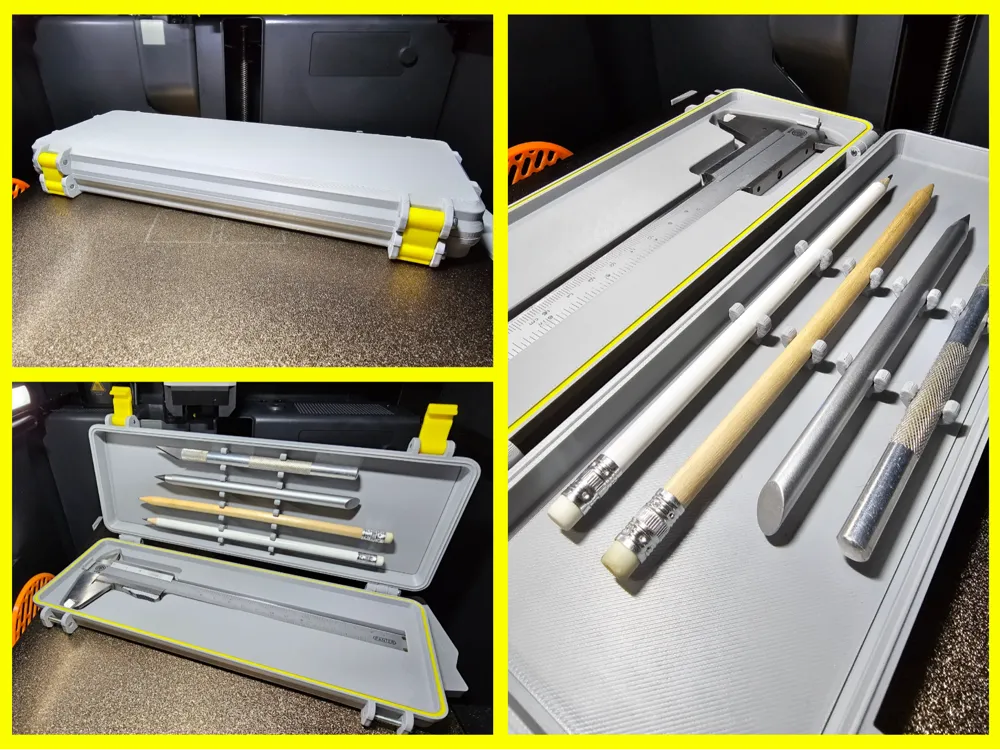

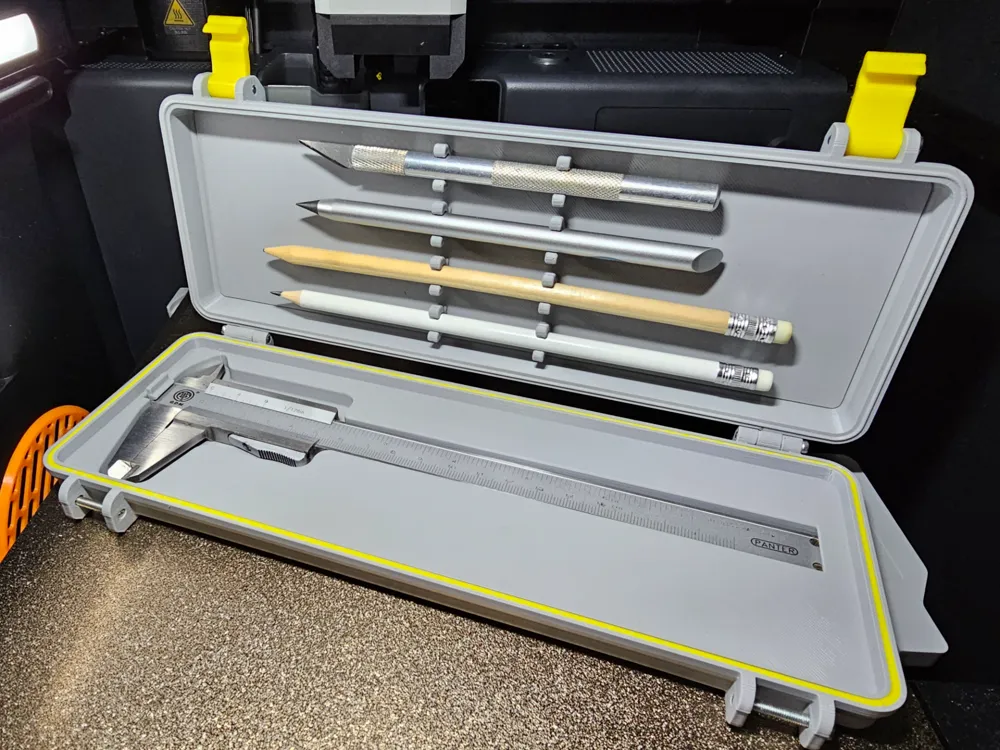

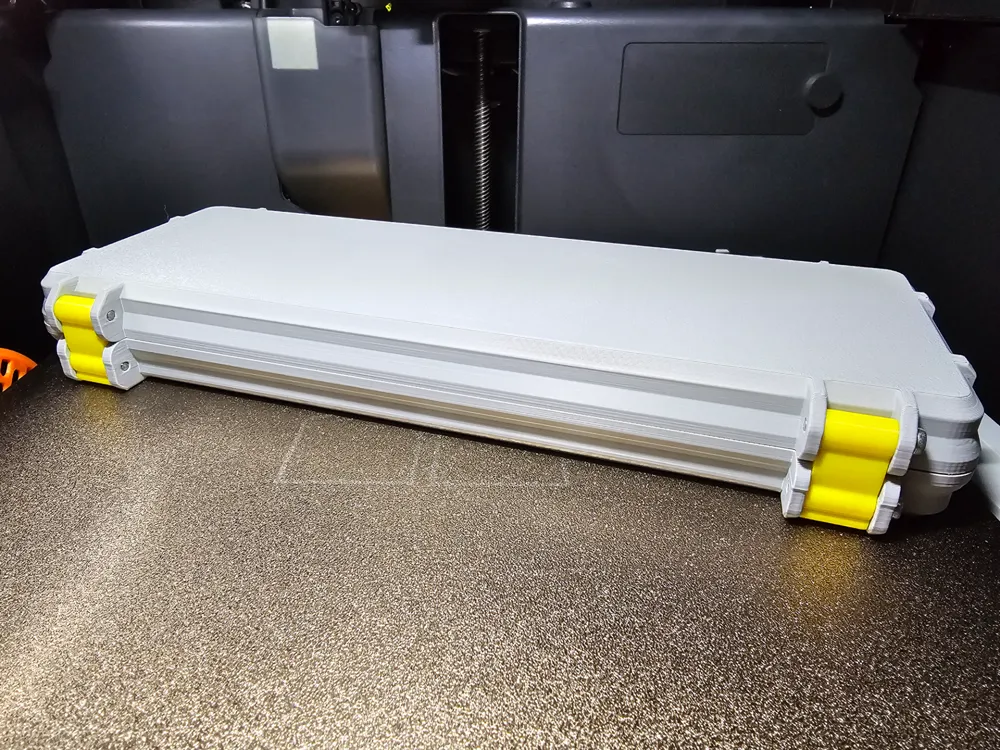

The final result is an awesome rugged caliper case with 4 holders on the lid for other things like pens, pencils or precision knife.
Base slot dimensions has been taken according to my standard 150mm caliper (GDM Panter 150) and then expanded to take into account also different type of stopping mechanisms and jaws.
Print instructions:
• no support are needed
• AMS not required
• latches and seal are on different plates to allow the use of different colors or materials
For the assembly you will need 6 of M3x20mm screws.

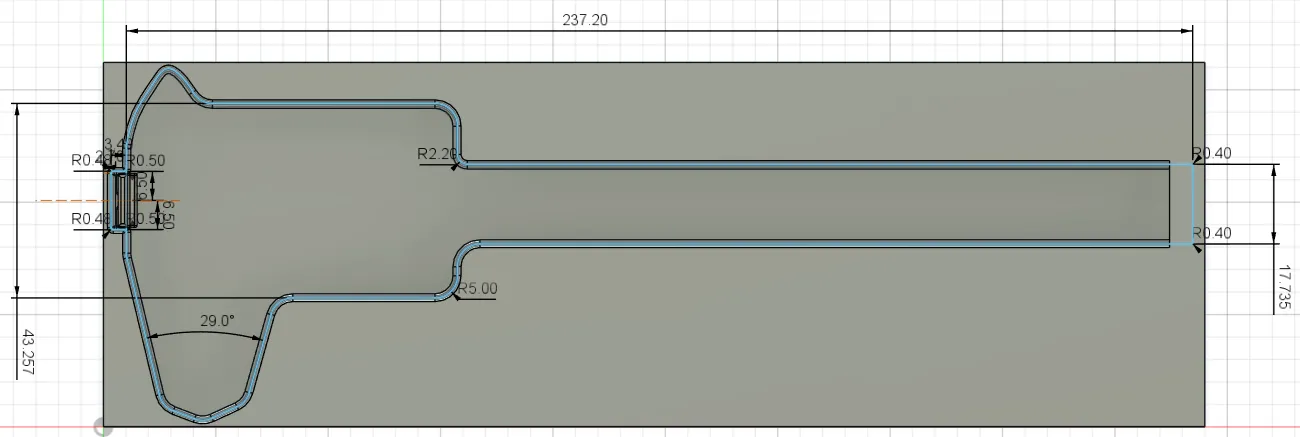

Below you can find some reference dimentions so that you can check the fitment with your caliper.
Take a look also at my rugged deburring tool case:
https://makerworld.com/it/models/1067877#profileId-1057140
Enjoy Folks!
