AMS Lite Rotating Vertical Tray Stand Extender

Update 10/26/25: Added 4 inch (100mm) extender to plate 2 of the 'Height Extenders’ profile. Requested by @onan_888

Update 1/29/25: Added a 6 inch (150mm) extender to ‘Height Extenders’ profile. Special thanks to @Chase for requesting this design and printing and testing it!

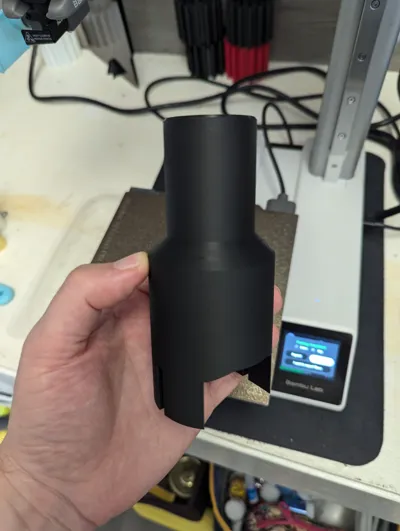

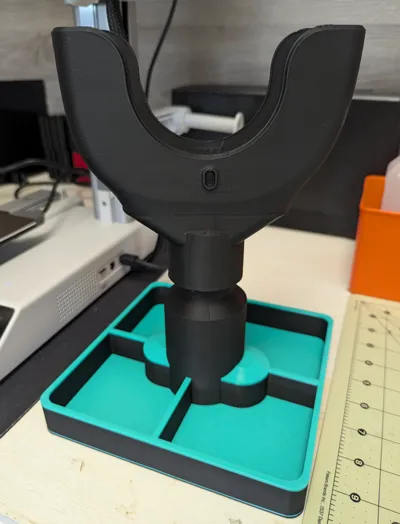

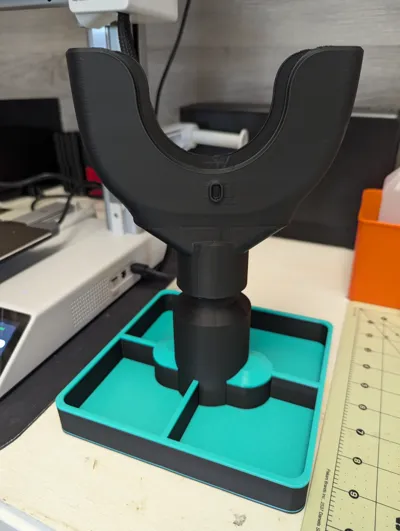

This model increases the height of the AMS Lite Rotating Vertical Tray Stand. Special thanks to @lion7718 for the original design request!

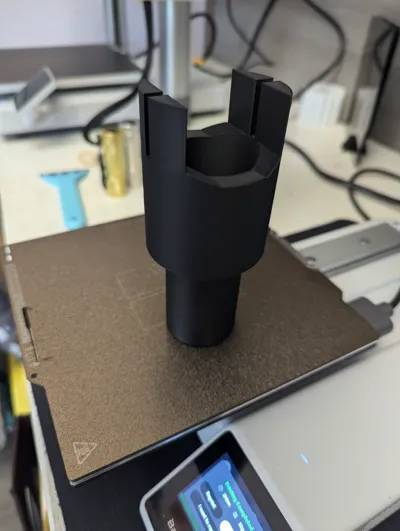

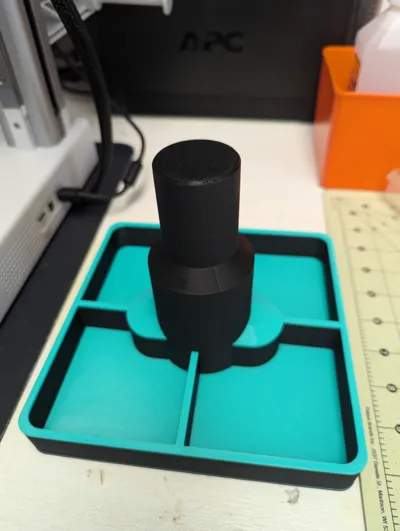

No supports are needed for printing. This extender is designed to fit directly onto the tray stand.

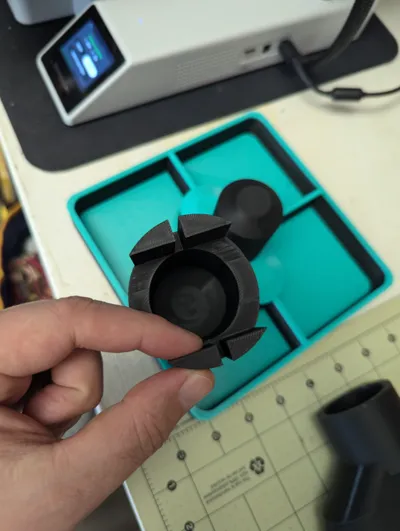

If the extension doesn’t slide fully onto the stand, simply remove it, rotate the extender, and try again. There’s a small variation in the cut-out, so it only fits one way.

The fit should be snug but should attach without excessive force.

How tall is it?

• The tray stand itself is 84mm tall, and the AMS Lite Rotating Vertical Tray Stand Extender adds an additional 53mm of height.

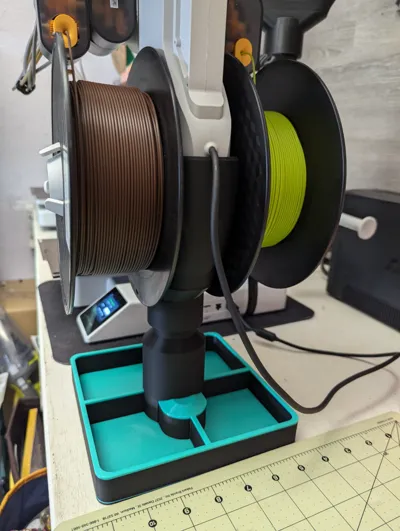

• Combined the tray base, extender, AMS Lite, and a spool loaded at the top reach a height of approximately 590mm (23.23 inches)
• To ensure proper clearance, I’d recommend having at least 610mm (24 inches) of height available.
• If you choose not to use the extender, you’ll save about 50mm (2 inches) of height.
• And adding the 6 inch (150 mm) or 4 inch (100 mm) extenders will increase the height accordingly.
