KYZ HSW Display Stand - Medium

Introduction

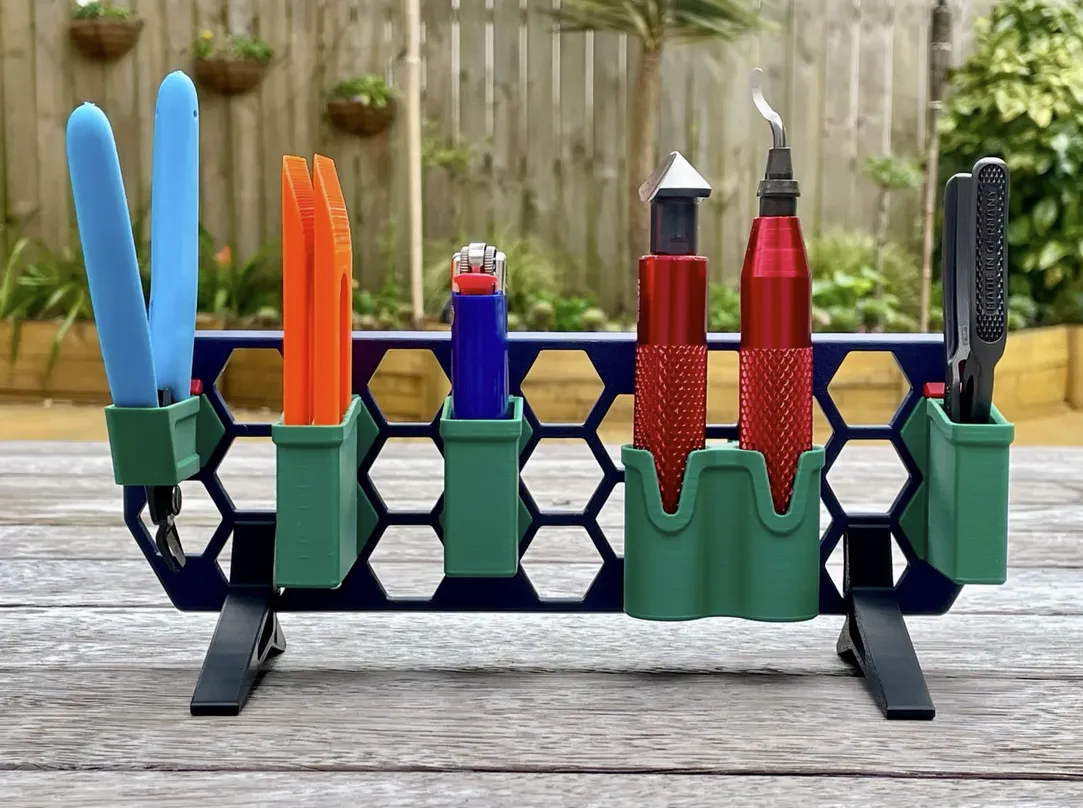

I have made free-standing HSW walls before but I wanted something more sturdy and more built-for-purpose and this is what I came up with. Enjoy!

You can't print this on an A1 mini but if you don't have a larger printer, you can print a mini wall from here and these modular feet to get a similar stand.

The round shelves shown in the pictures are here.

Materials

PLA and PETG-CF work well.

Do NOT use silk PLA - the layer adhesion can be poor with silk filament and the triangle connectors may delaminate. Thank you Myshka2024 for reporting this.

Print settings

Print the vertical wall piece with minimum 3 perimeters,

Print the horizontal piece with minimum 4 perimeters, 4 bottom layers and 5 top layers,

Print the feet with TPE or TPU - softer the better. The feet are optional.

Hardware

No additional hardware is required. Provisions are available for some M3 screws for additional security but these are completely optional (M3x10 cap screws or button head screws).

Recommended accessories

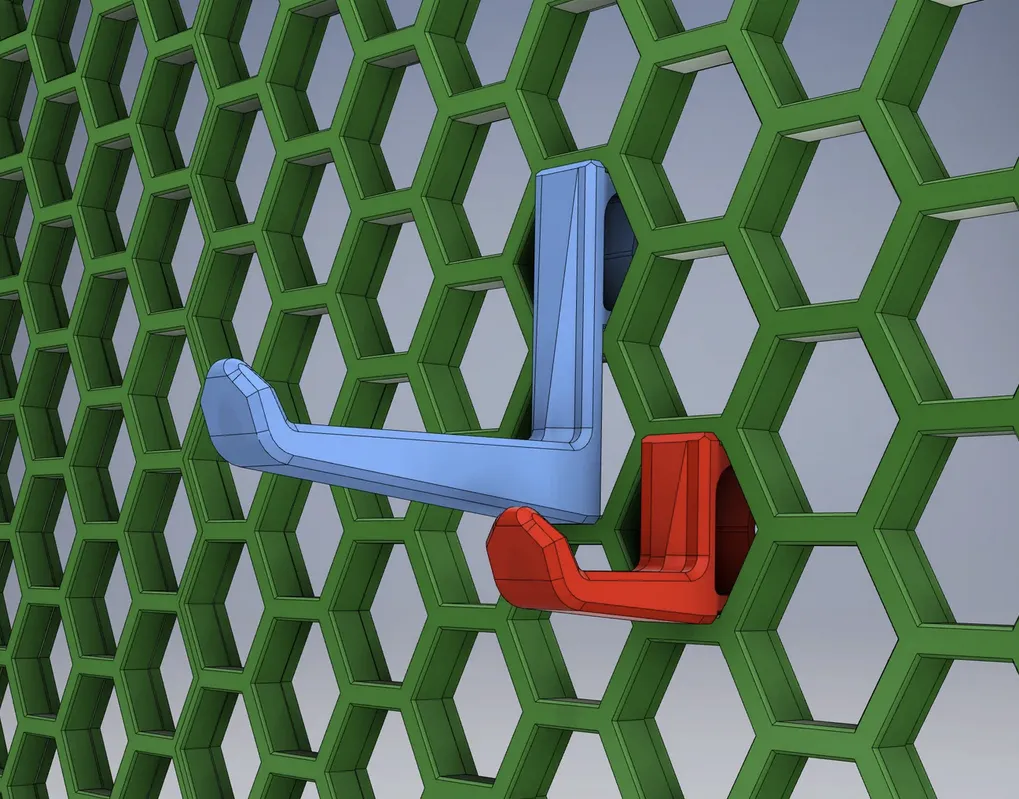

Peg Hooks	Tool holders

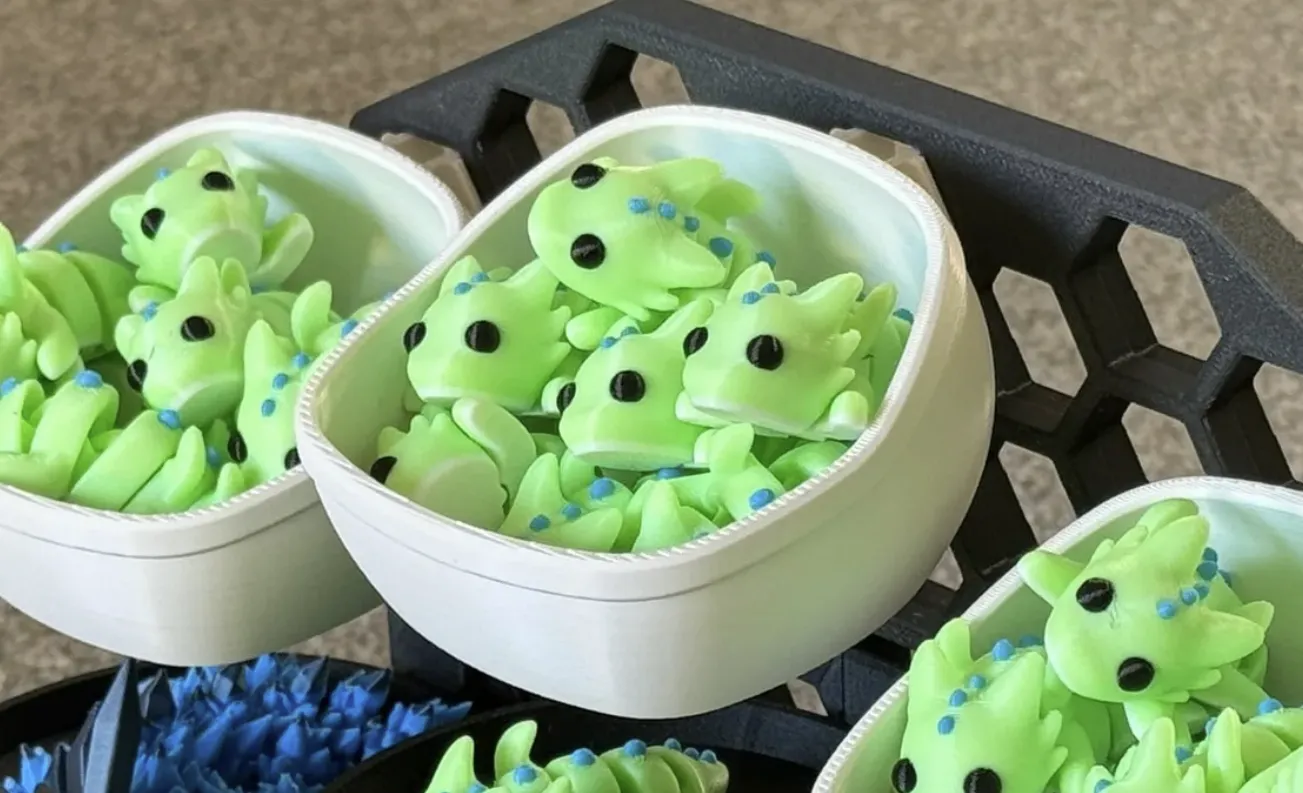

Bowls - 8 sizes available	Round Shelves - 8 sizes available
Price/description labels - 10 sizes available (Printables Store paid model - for commercial use)	Ball Holders - 6 sizes available
Cups and Collars - 9 sizes available of each	Keychain hooks - 4 sizes available
Business Card Holder	HSW Anything Tutorial and Template

If you would like to say thanks, you could buy me a few metres of plastic on Ko-Fi otherwise, please post a make and check out my other HSW models in this collection.
