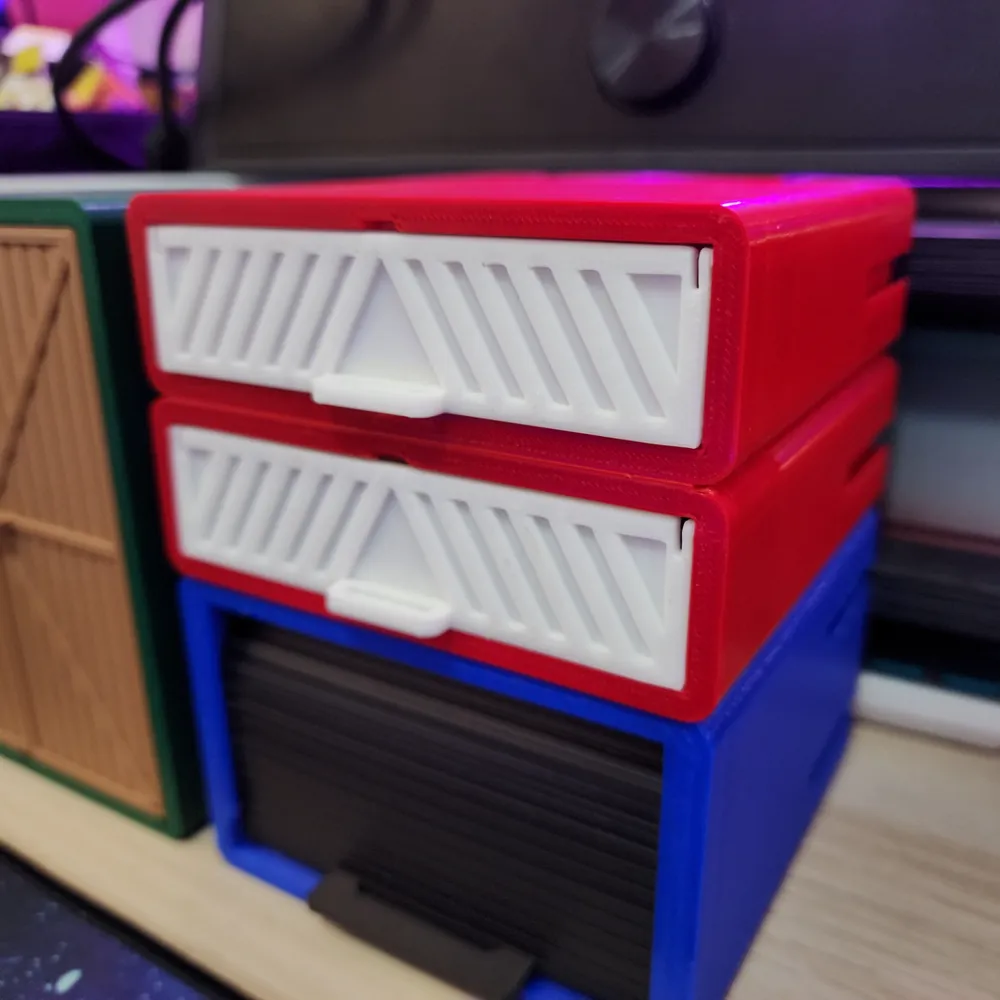

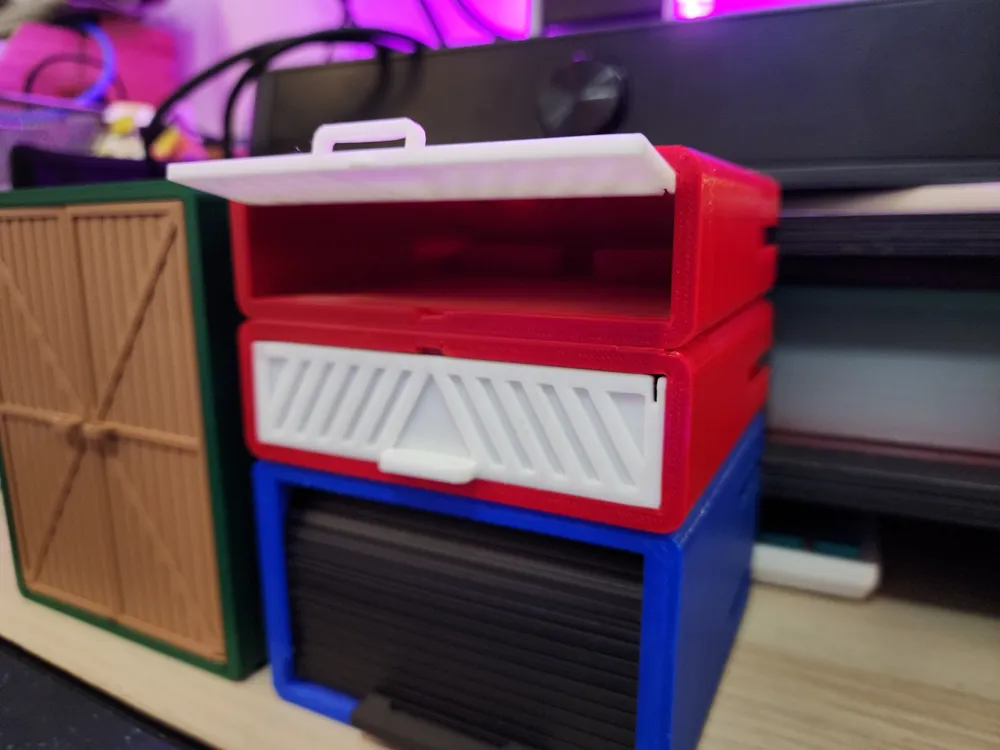

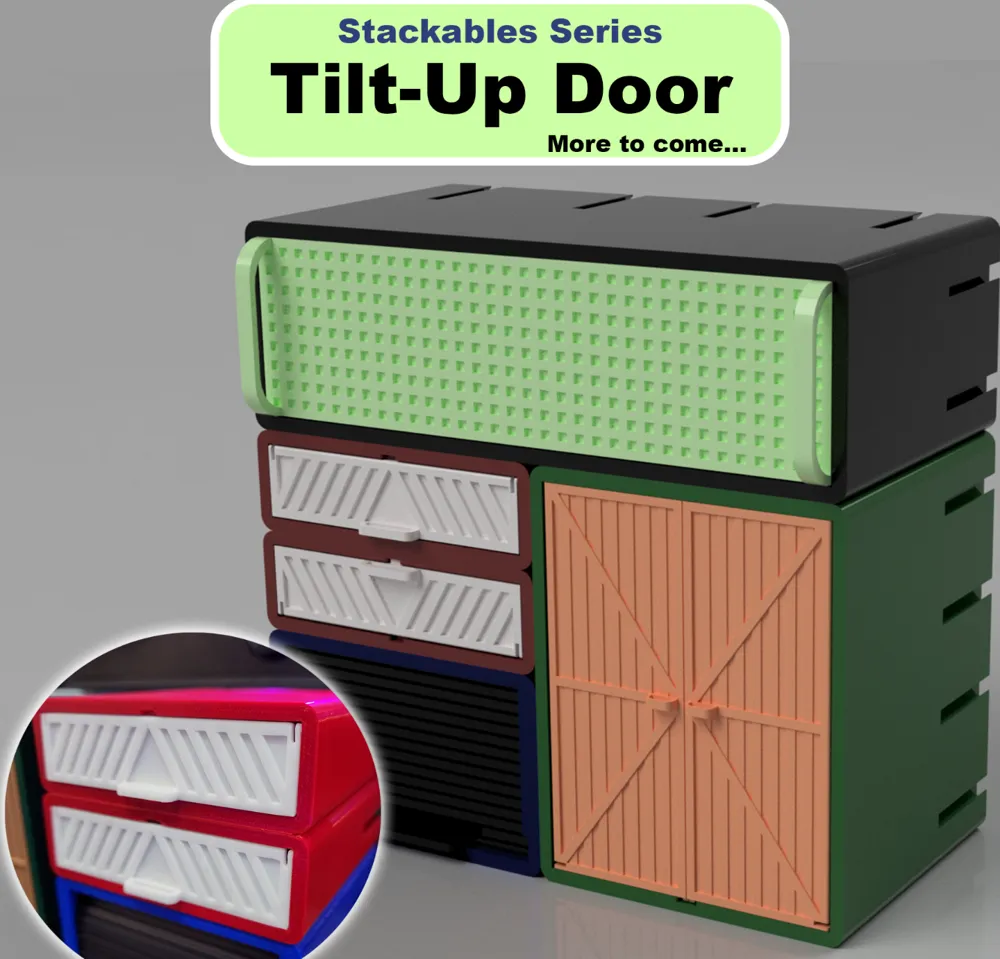

(Stackable Series) - Tilt Up Door Box

A simple stackable storage system with Tilt Up doors style, simple and easy print.

This is part of My ongoing Stackable Series, you can find links below and stack them as you want.

-Shutter Door box: https://makerworld.com/en/models/218307#profileId-254321
-Wooden Doors Box: https://makerworld.com/en/models/460414#profileId-368873
-Tilt Doors Box:  https://makerworld.com/en/models/463242#profileId-371738

-Drawer Box: coming next.
-More ideas will be coming in the future.

Just a simple print and assemble with no need to use screws.

Print the connecter STL file to connect other boxes from the stackable series.

i left a fitting test for the frame to test the assemble before spending hours on the Case box to see if your machine tolerances and suitable for the print.

Note: if you are stacking 2 red boxes with another box from the stackable series, you have to rotate the red box 180 degrees so that the connector channel can align with the others. don't worry i optimized the door holes inside the red box to be fitted either ways.

Enjoy.
