A bird feeder for small birds, designed to be fixed to your window, but can also be hanging or fixed from the ground.





This prints in a single part, single color, without support.
PETG is recommended, but if your climate allows you could print in PLA. (Images above are of it printed in Marble PLA)

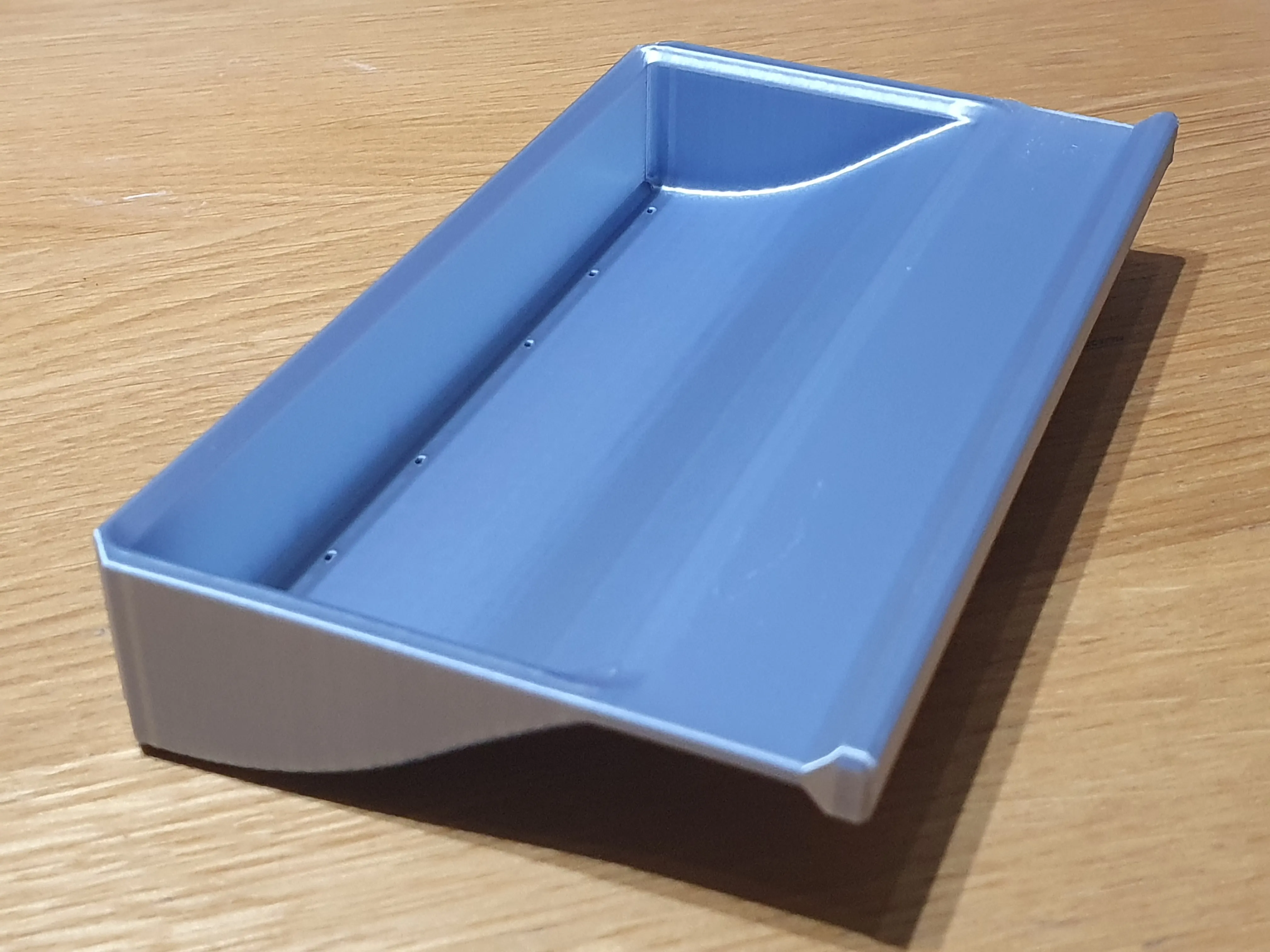

NEW: Don't forget to get your removable feed tray
Designed specially to fit this feeder, this optional extra makes it easier to refill and clean your feeder:

https://makerworld.com/en/models/2099339



Three ways of supporting the feeder:

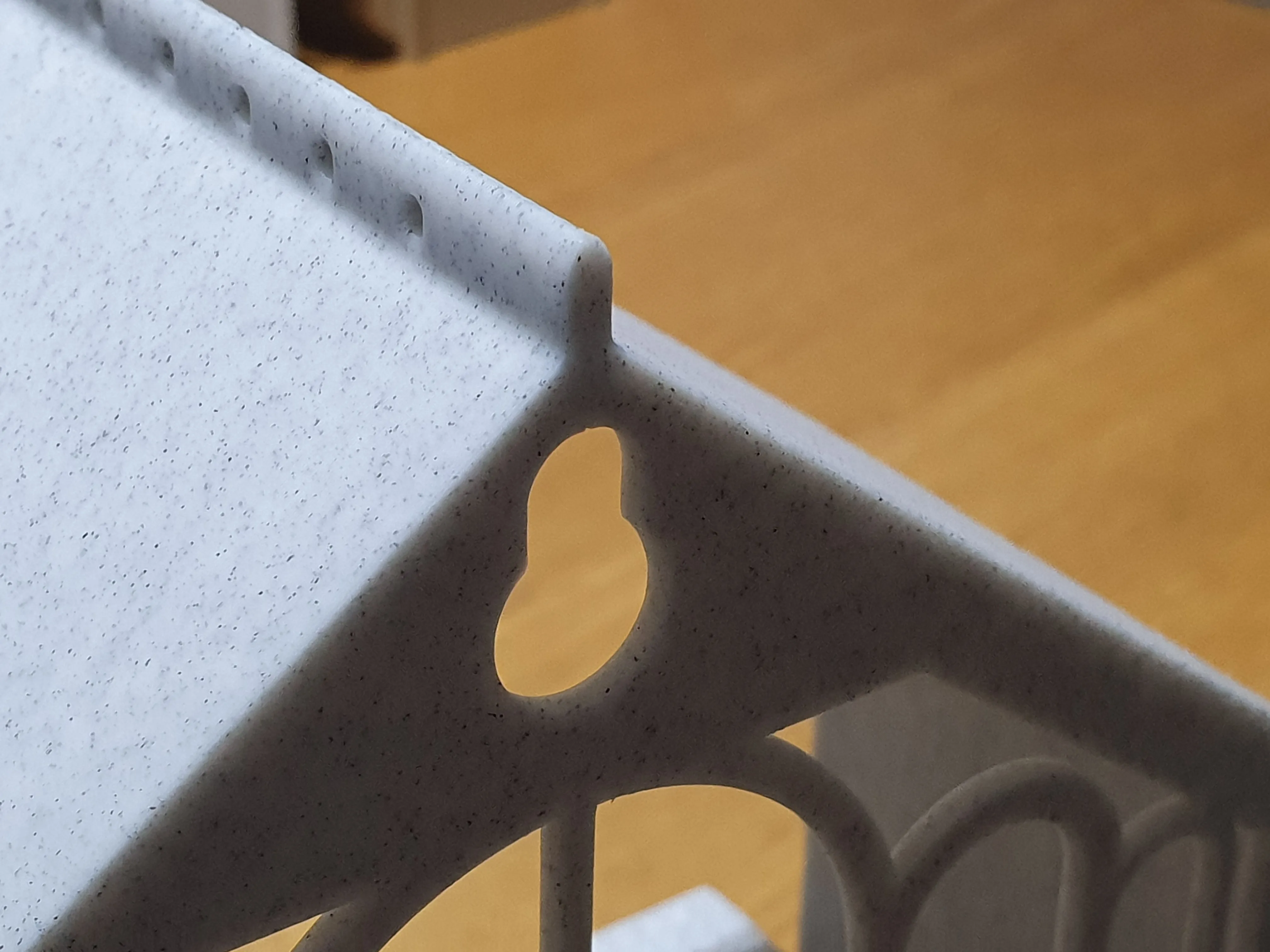

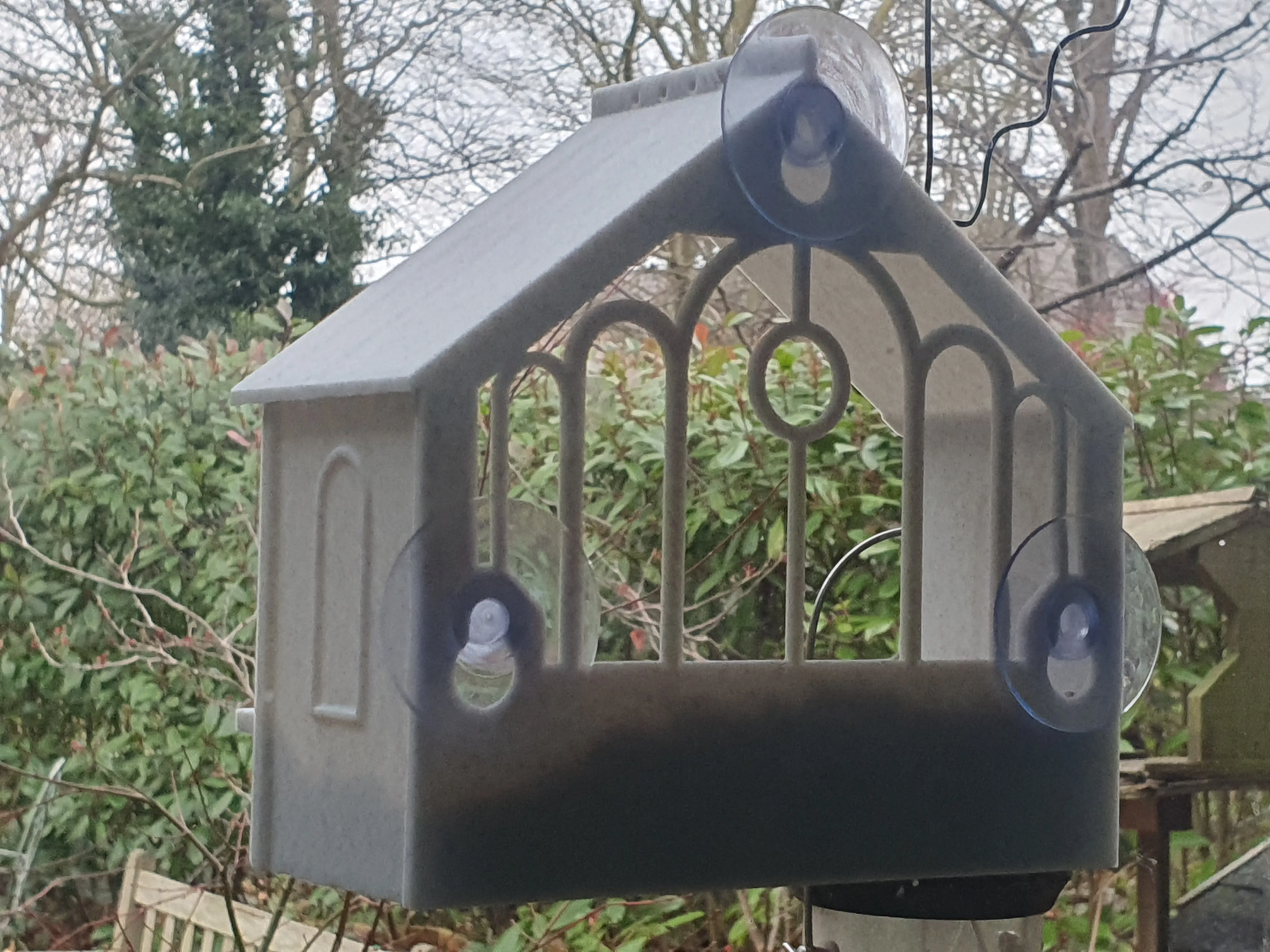

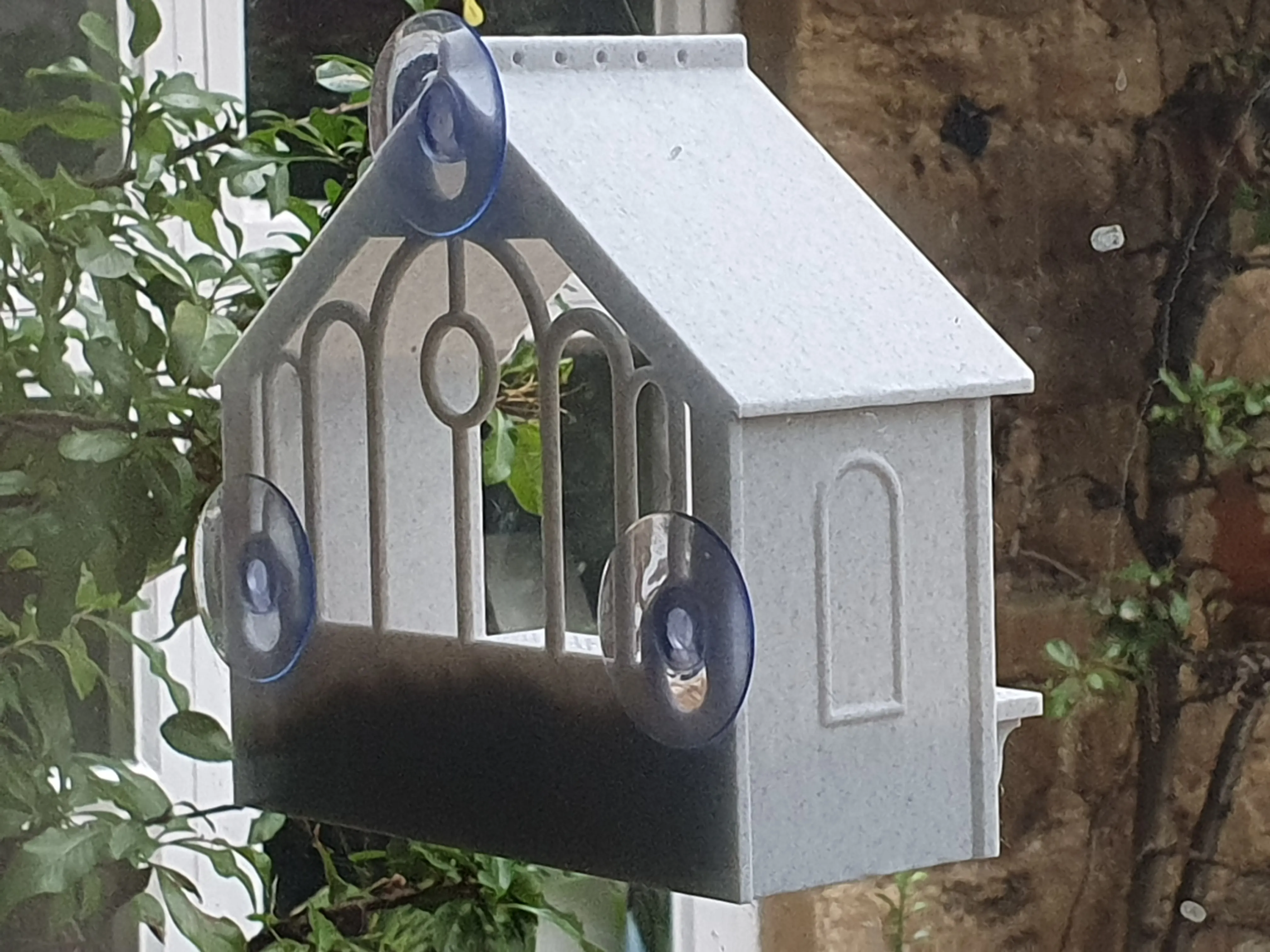

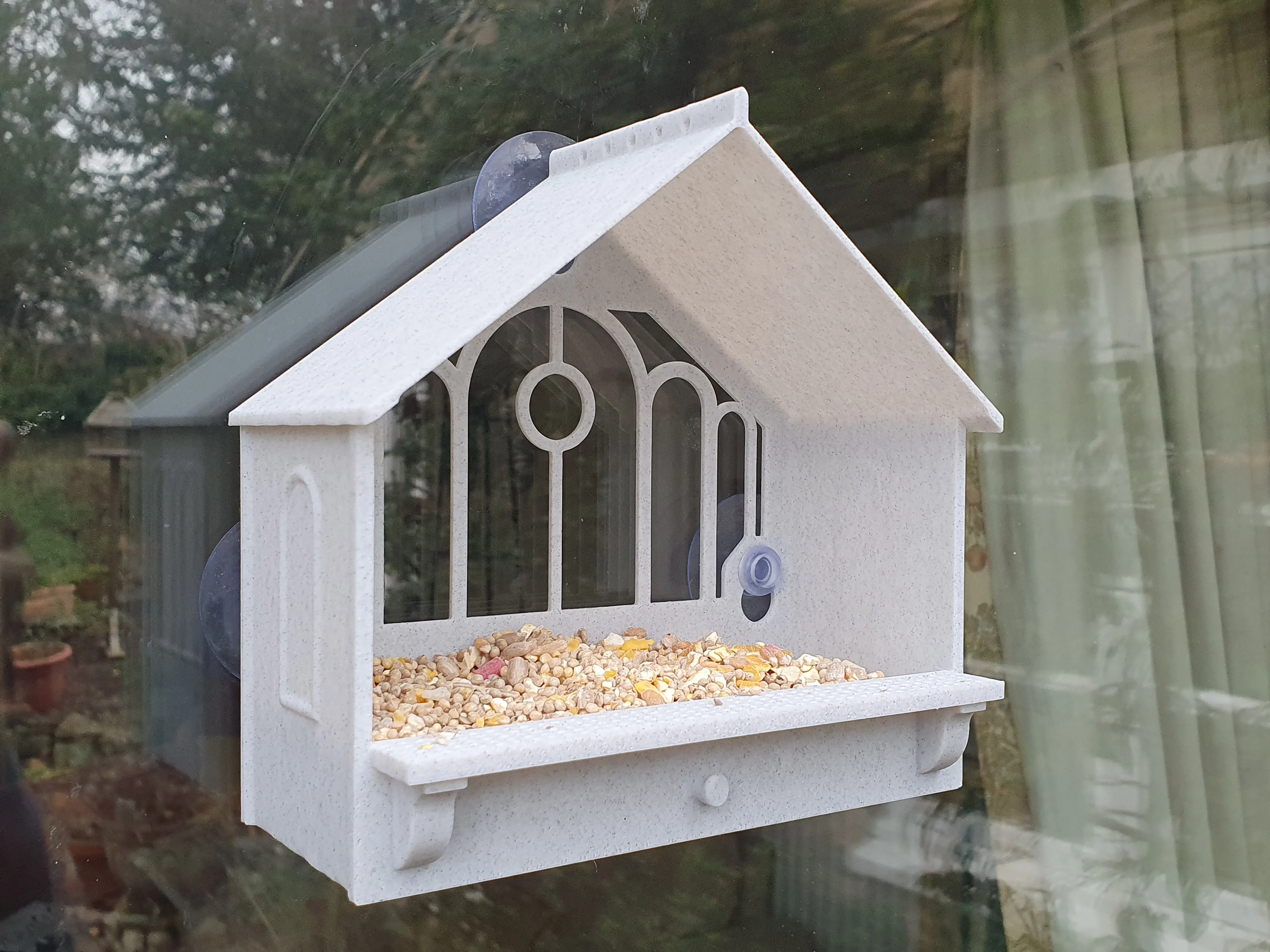

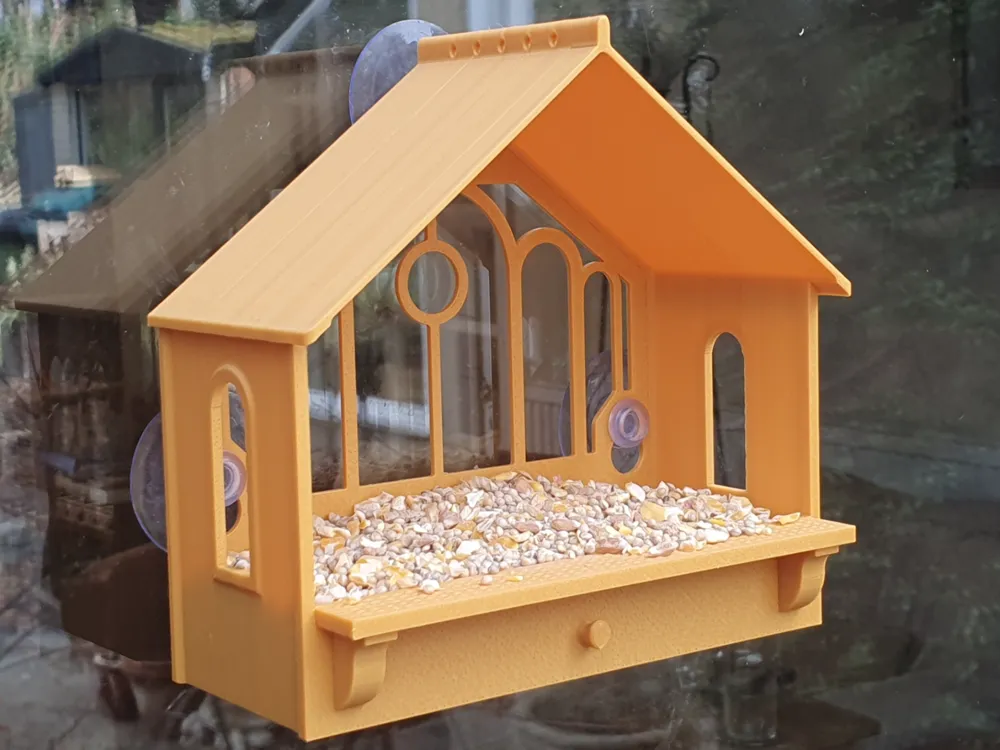

Suction cups on a window

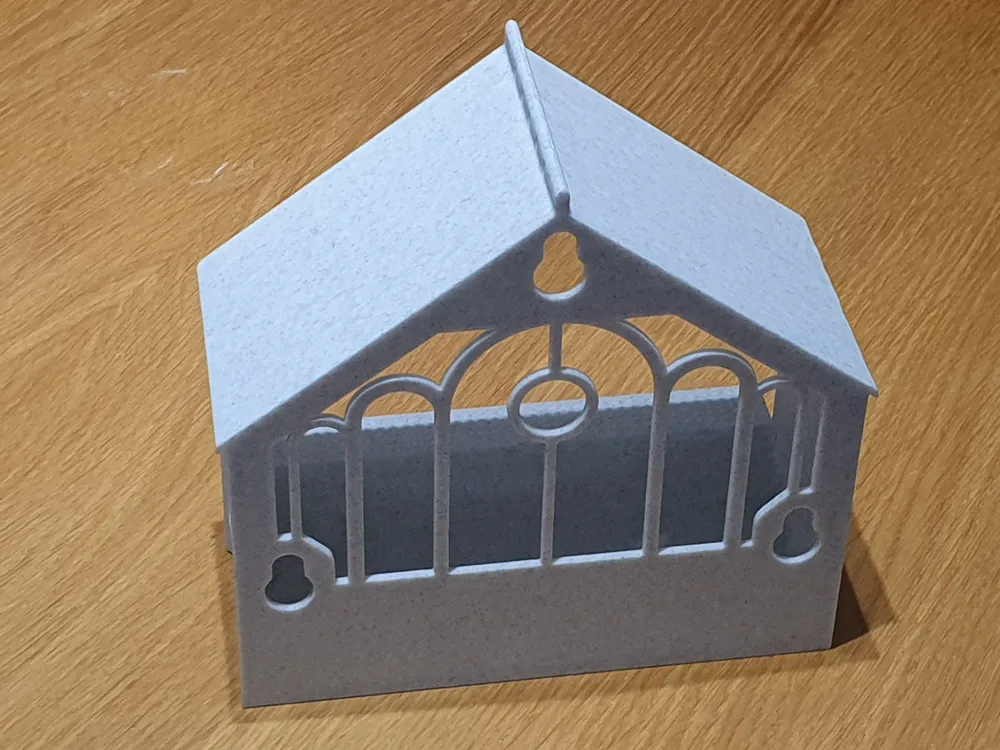

Suction cups can be used to hold it on your window:



Hanging from above

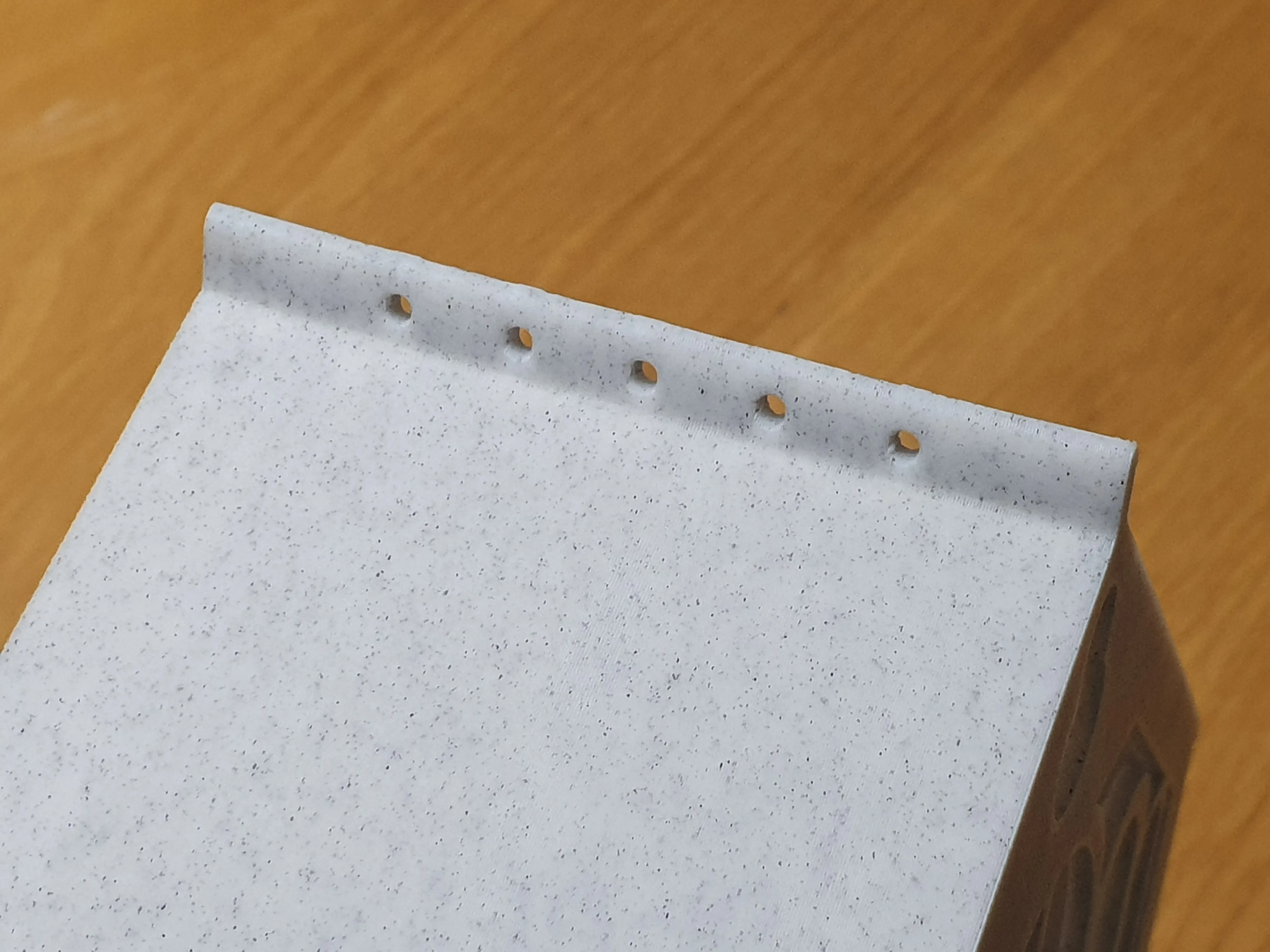

The roof ridge has five holes in it, so you can insert wires and suspend it from above. (Use more than one of the holes to keep it level and stop it spinning in the wind.)



From the ground

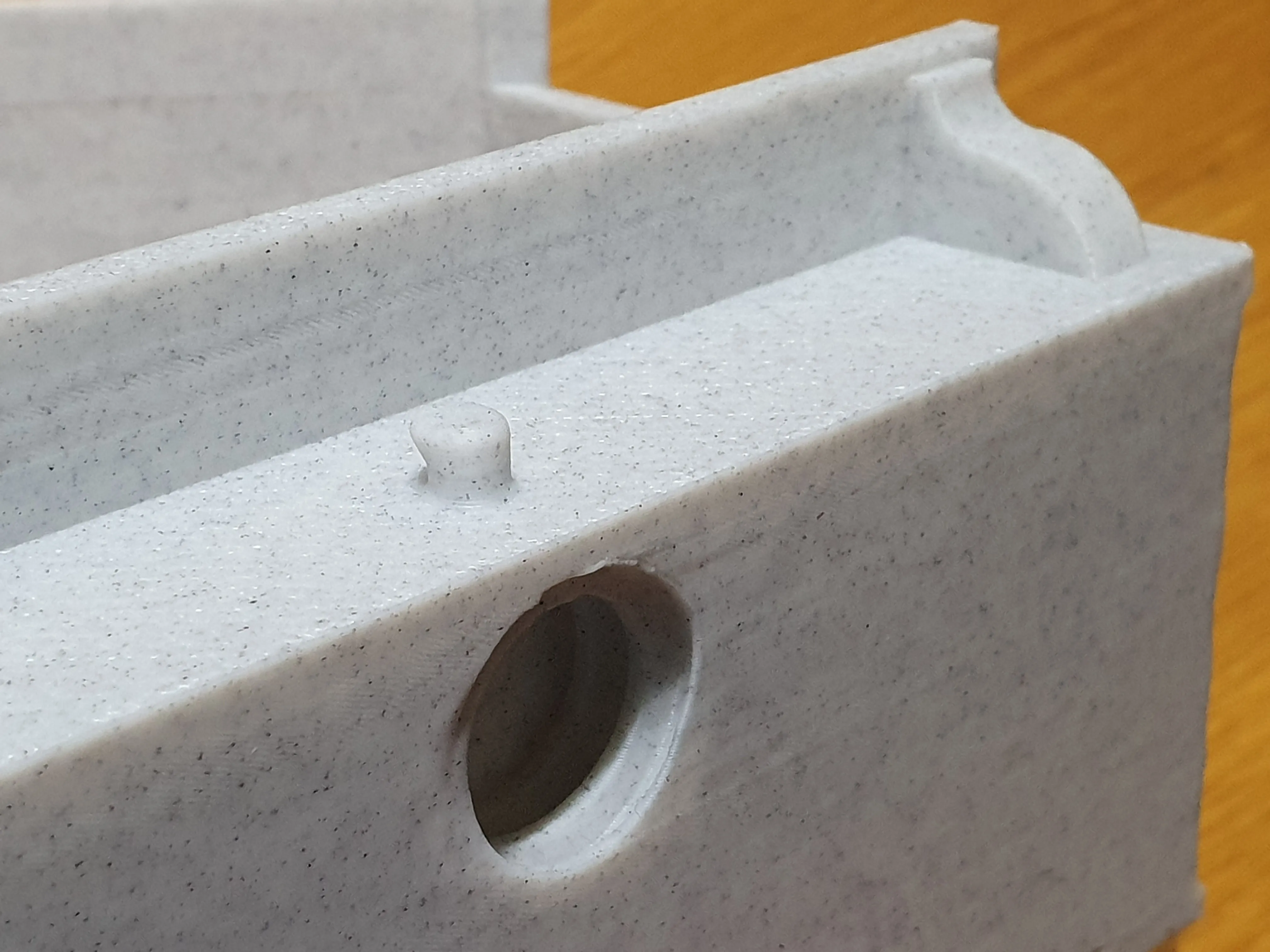

The bottom of the feeder has a threaded hole (7/8" Acme) to fit a standard broom stick.

(broomsticks vary - add a comment with your thread needs if it doesn't match, and I'll make a variant or adaptor to fit)





Some other useful features:

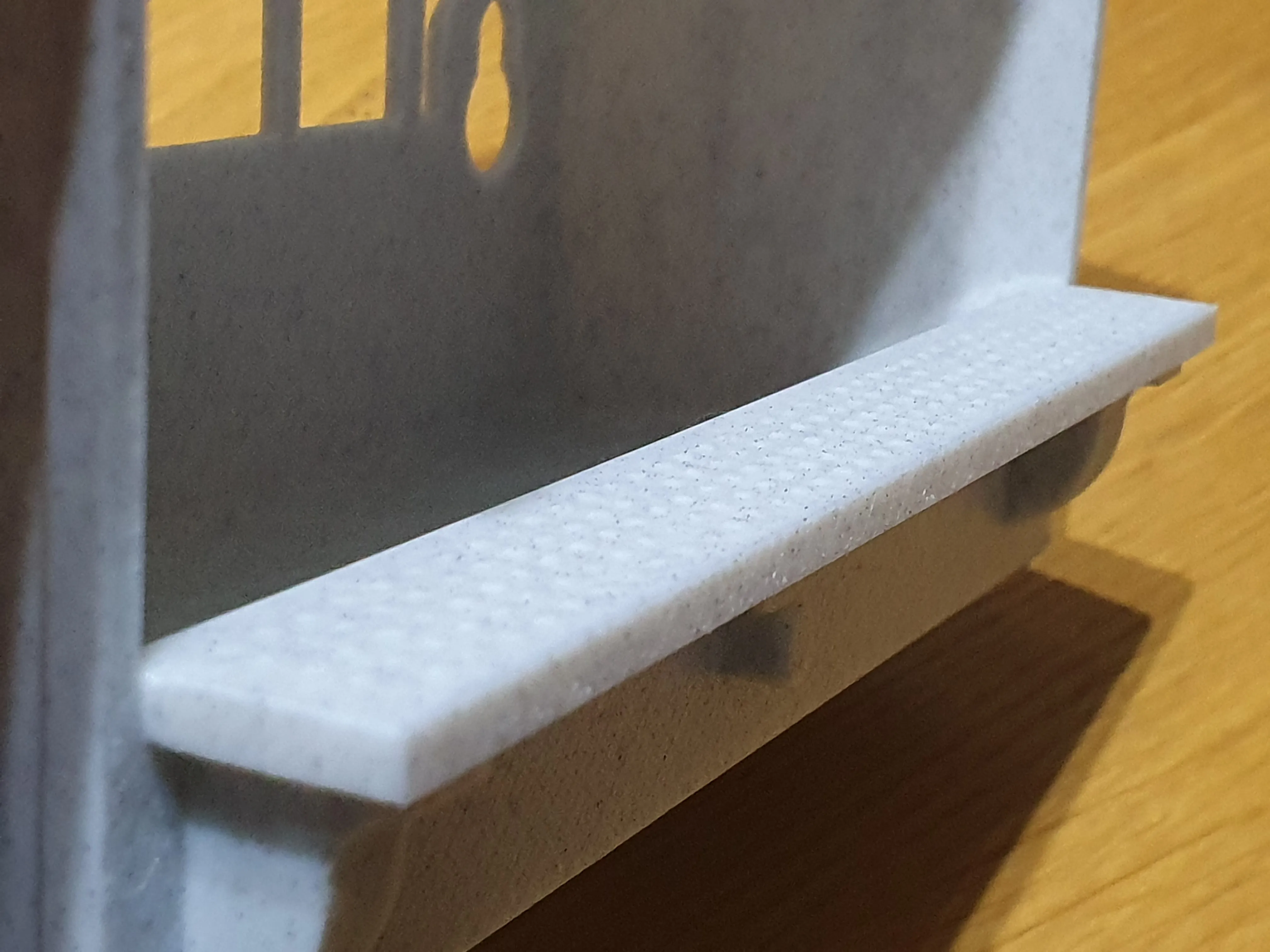

Landing strip:

A textured ‘shelf’ area for the birds to land on:

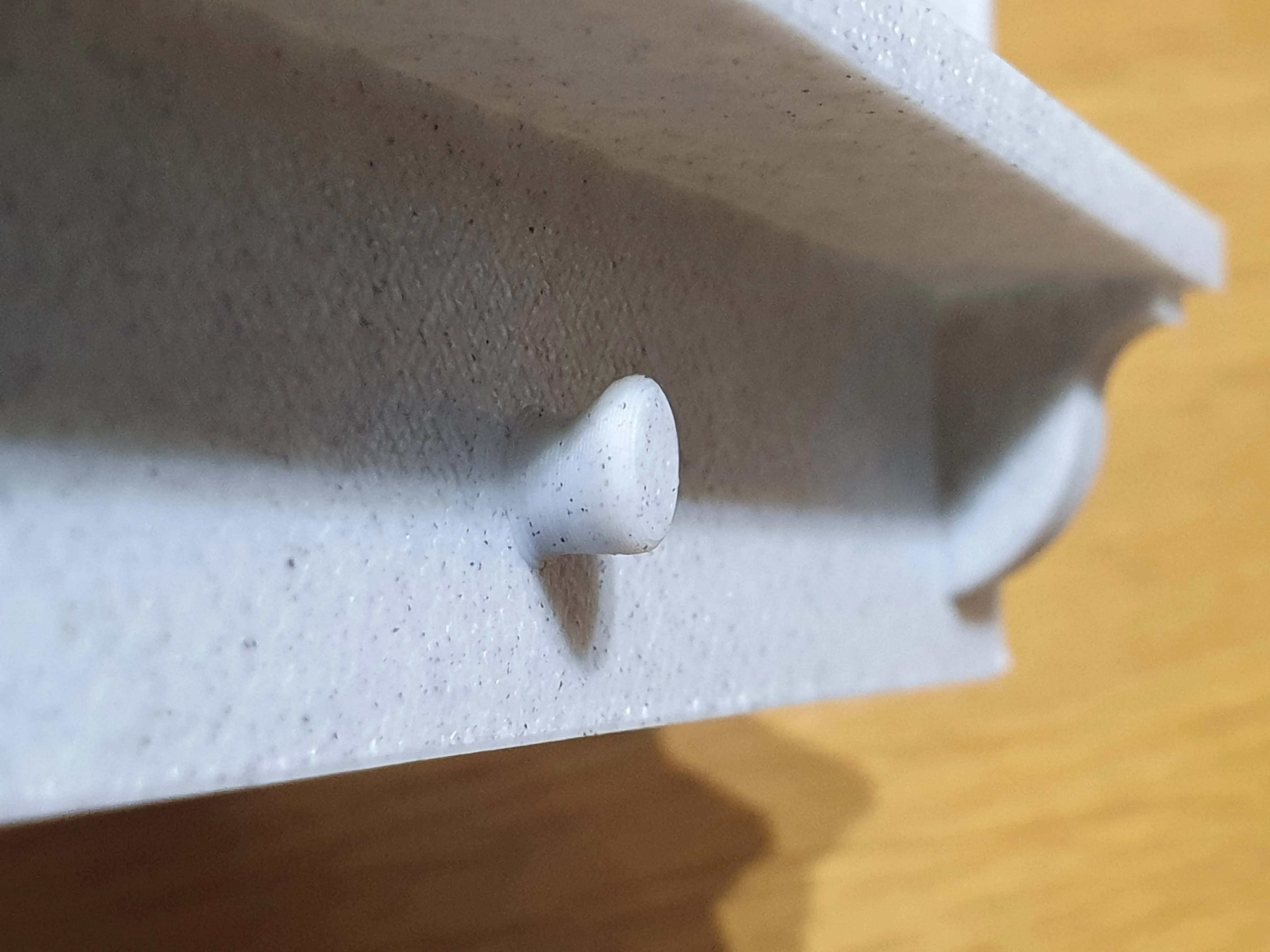

Hook:

Below the shelf at the front, there is a hook, that you can hang a fat-ball net off.

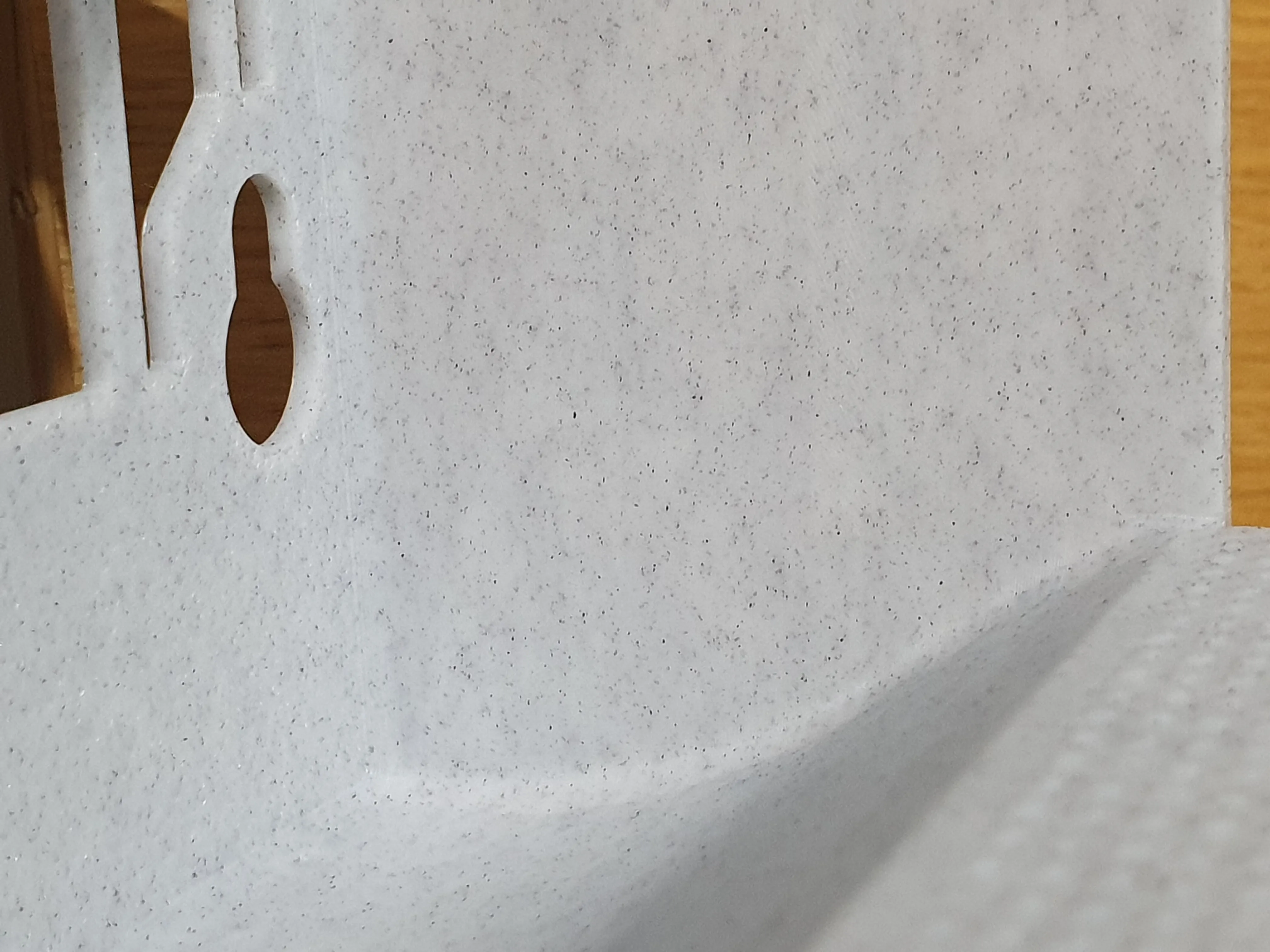

Easy-clean feed container:

The feed container is shaped with chamfered edges to make it easy to clean, which should be done regularly to prevent birds spreading diseases to each other. A set of drainage holes at the bottom stop it flooding if the rain gets in.





Or try these versions…

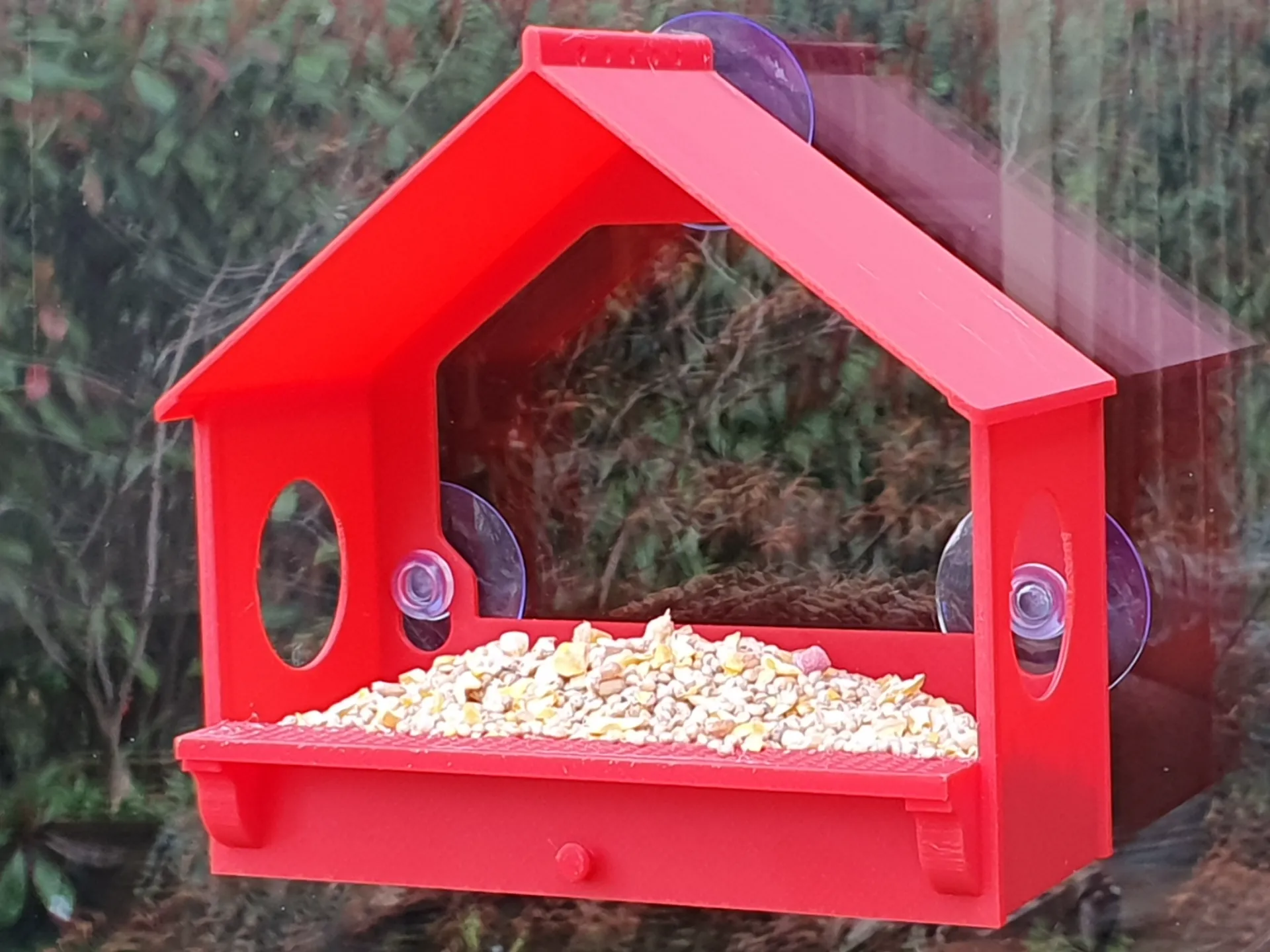

Modern https://makerworld.com/en/models/970650

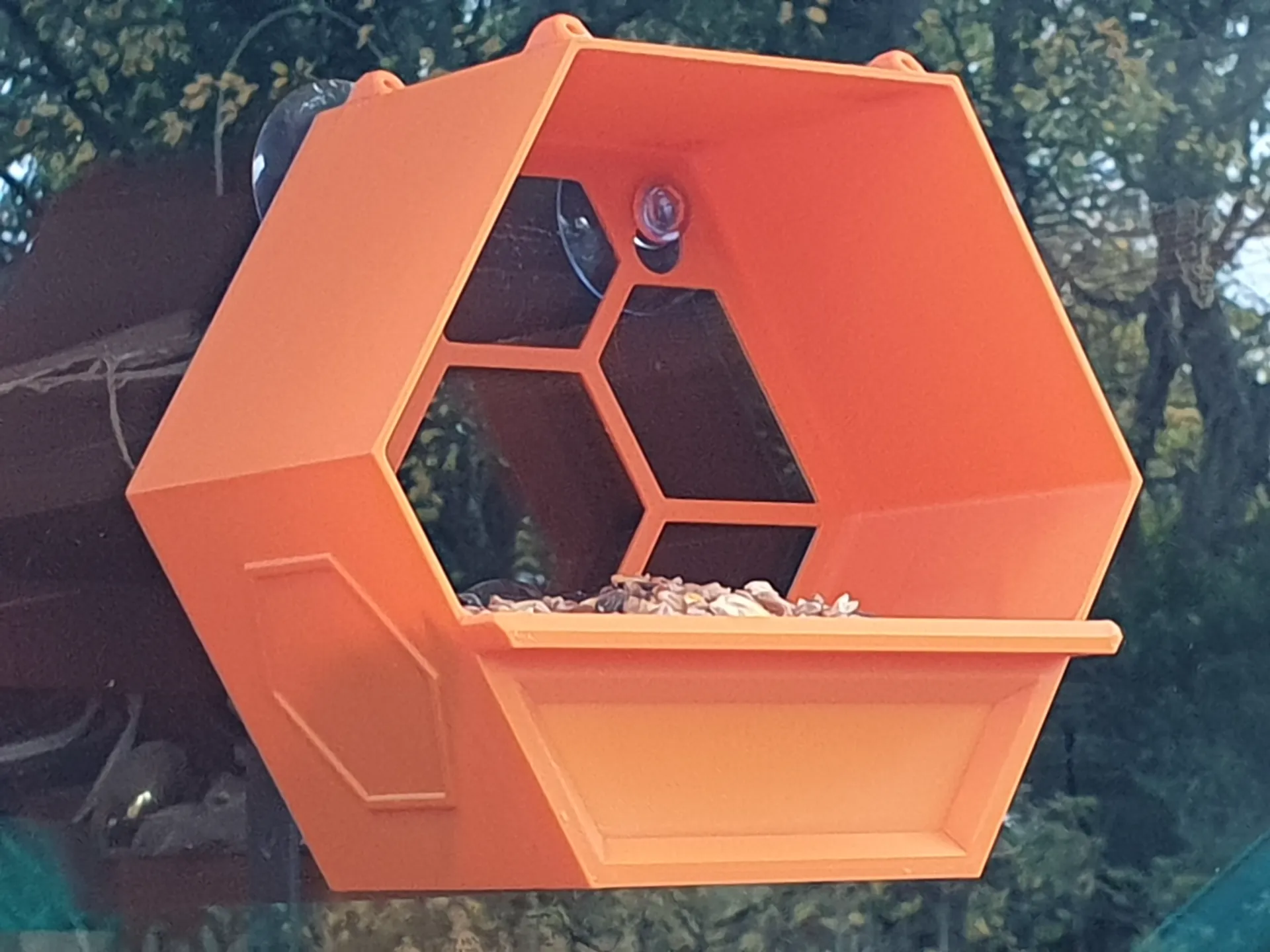

Hexagon https://makerworld.com/en/models/1919603

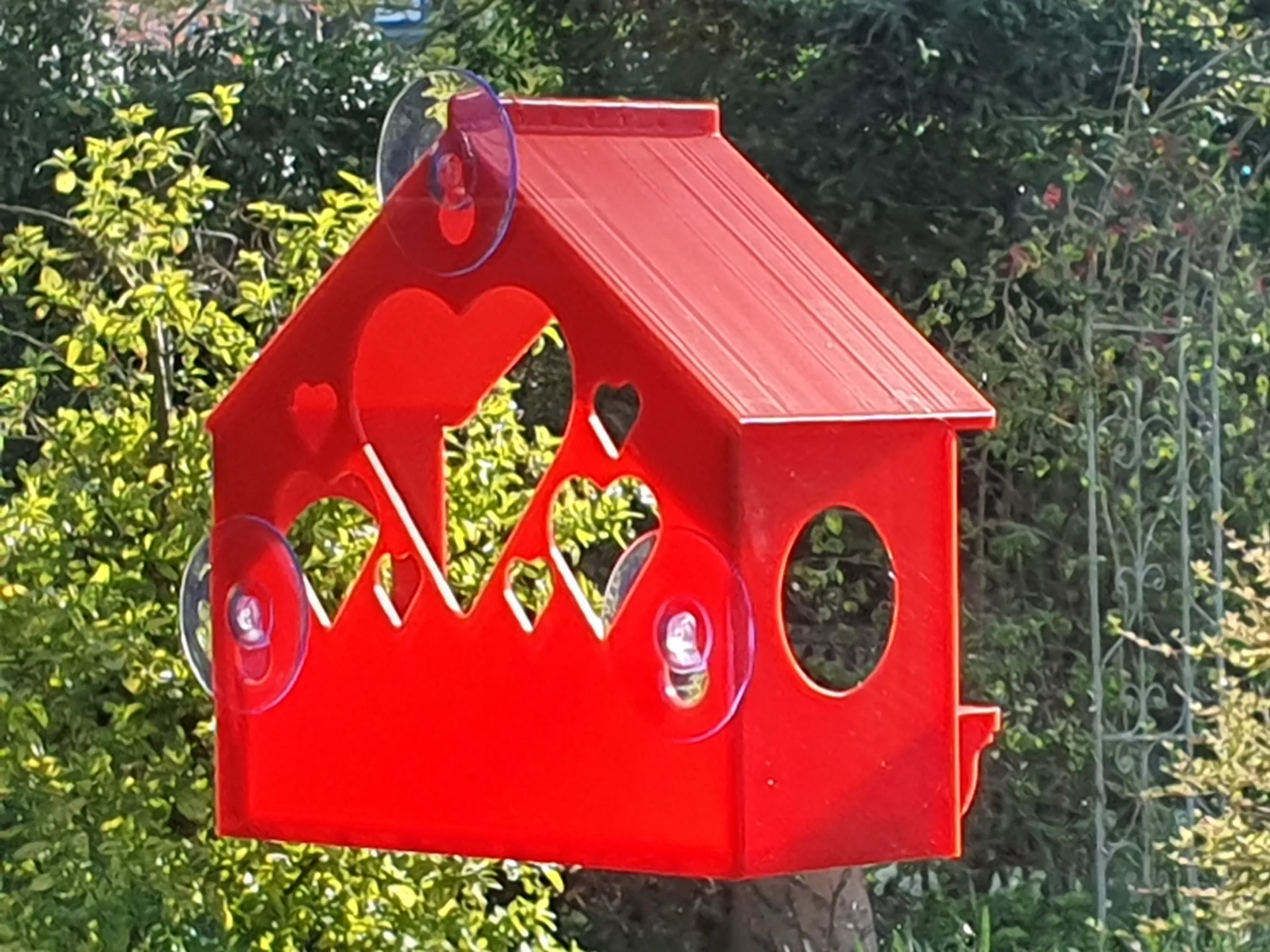

Hearts https://makerworld.com/en/models/1308166

If you found this useful, please give it a Boost, which raises the profile to help others find it, and is much appreciated. Thank you.

Boost Me (for free)

Boost this for free to help others find this model

Please post your photos of the model. And if you can catch it with birds feeding, even better!



💎 Don't forget to click “Follow” to follow me to get updates on this and other new models.









Looking for other things for the garden?

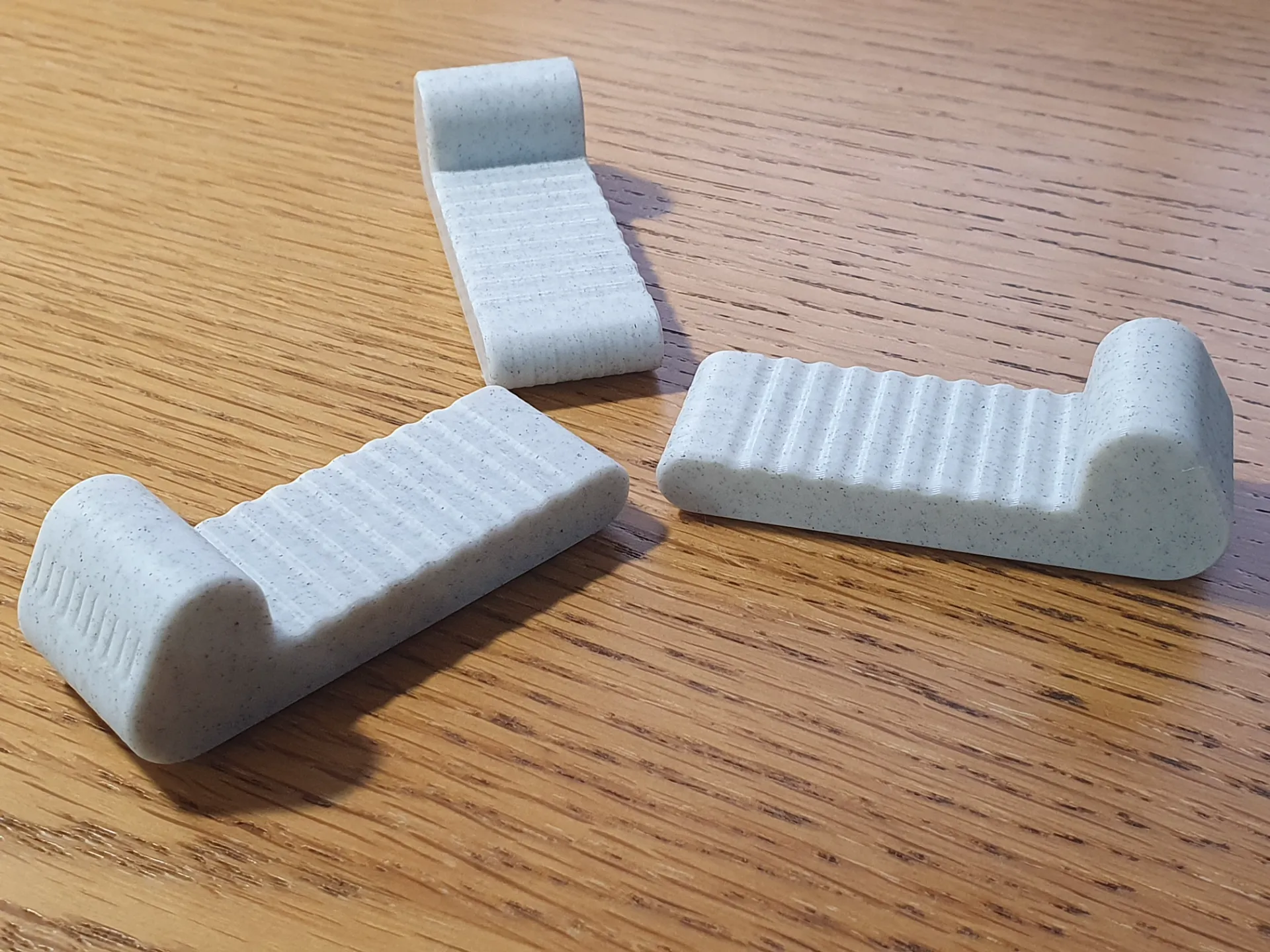

Plant pot feet - designed for your outdoor plant pots, place these under your pot to keep it off the ground, allowing drainage, and preventing roots rotting or growing into the ground:



https://makerworld.com/en/models/857317

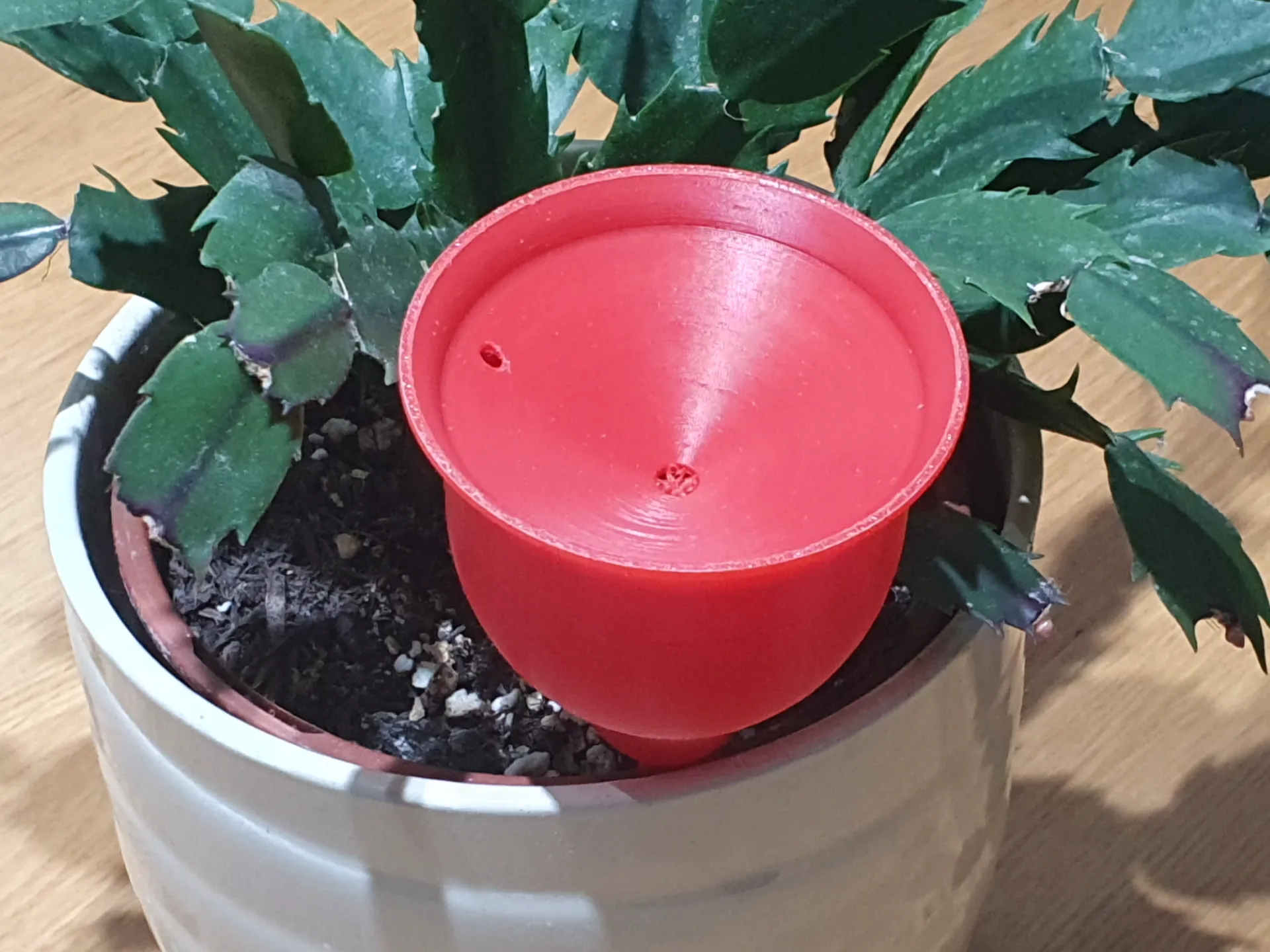

Slow-release watering device:

https://makerworld.com/en/models/910055

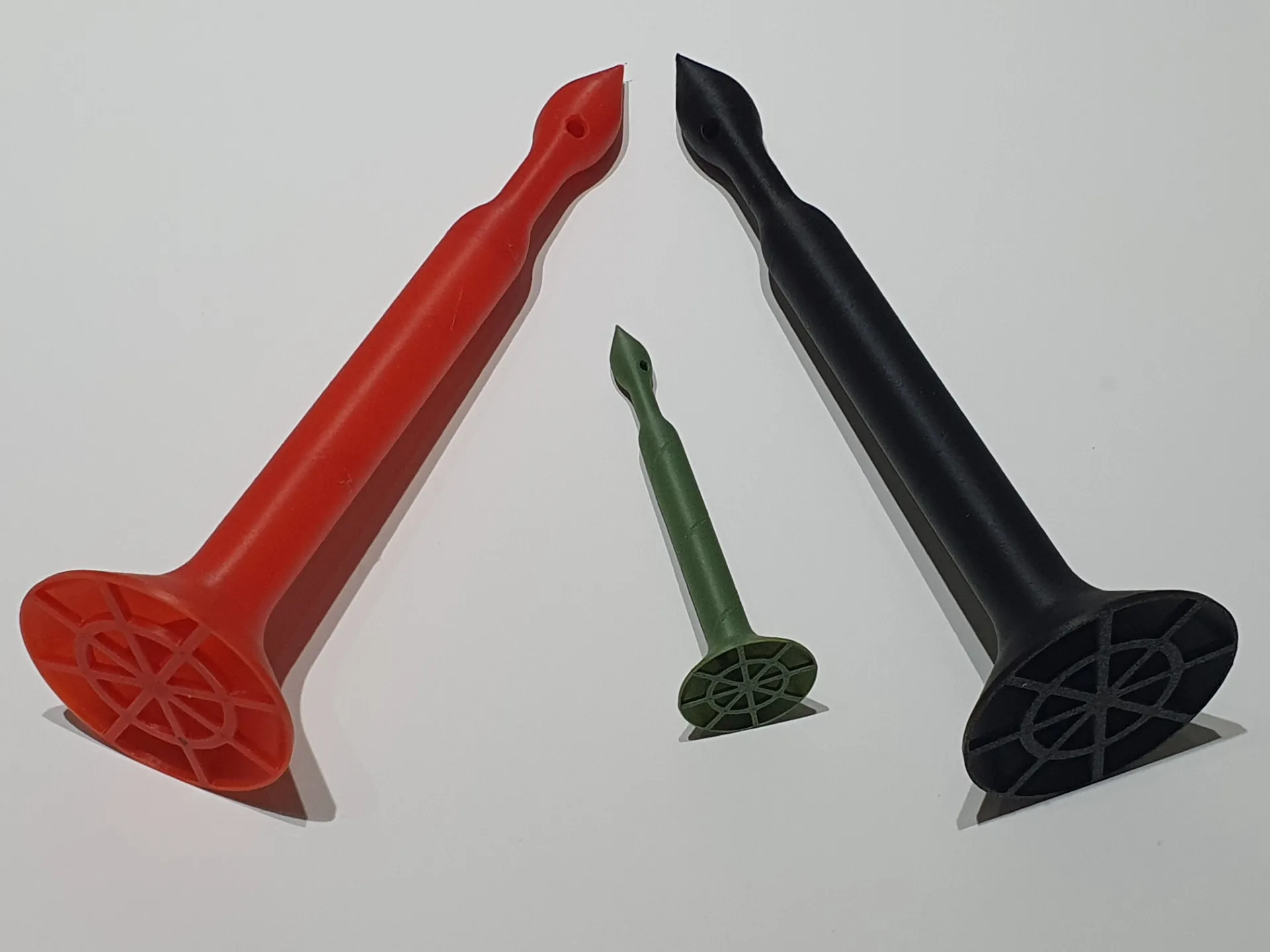

Rapid-flow plant watering pin / spike:

Gets water quickly to the roots

https://makerworld.com/en/models/934245

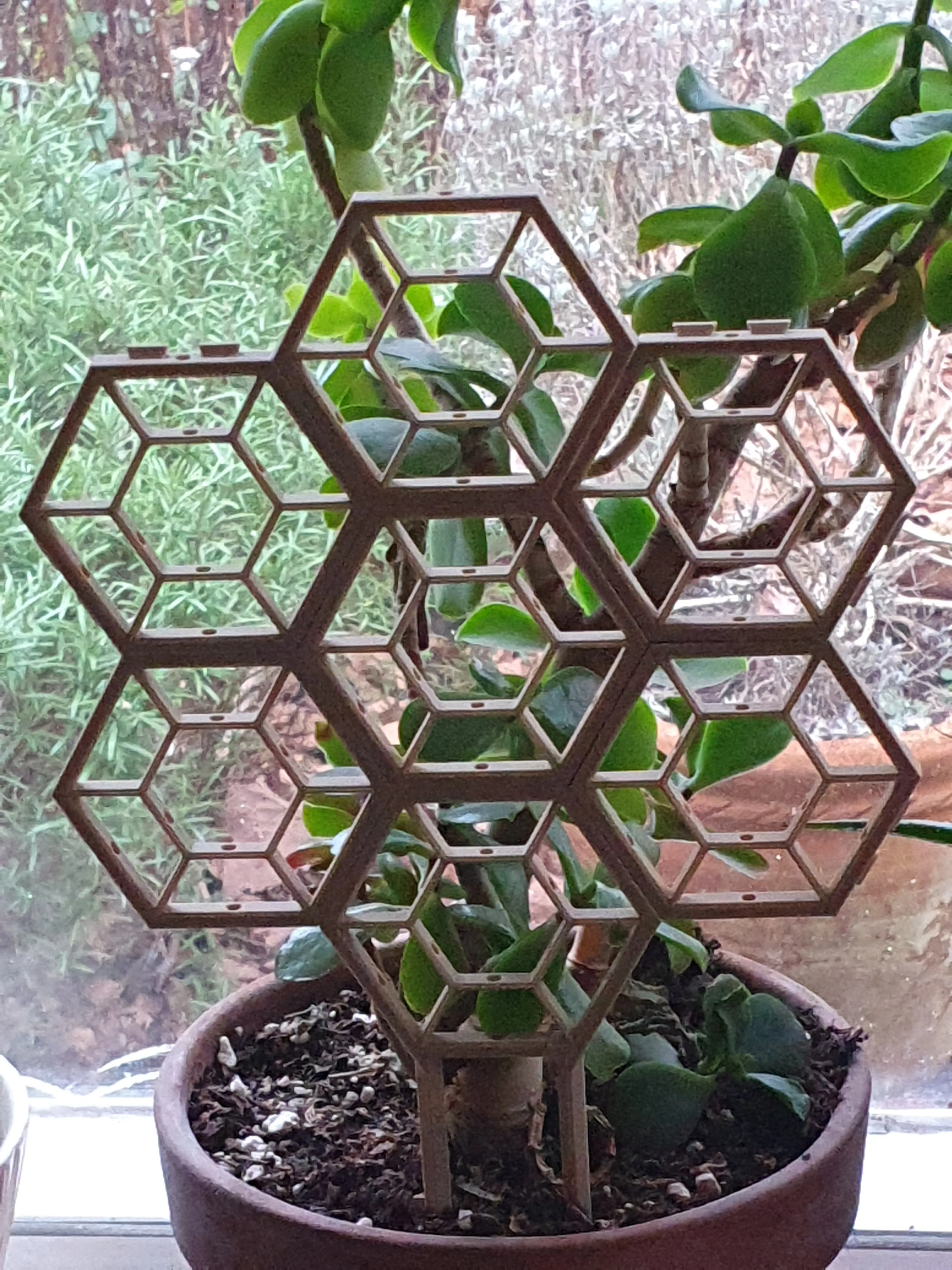

Modular hexagon plant support:

https://makerworld.com/en/models/1127261
