iPhone 17 Pro Max High-definition Phone Case (Honeycomb and Flat Bottom Versions, including STEP)
Print Profile(4)
Description
Boost Me (for free)
If you like my model, please boost me, thank you!

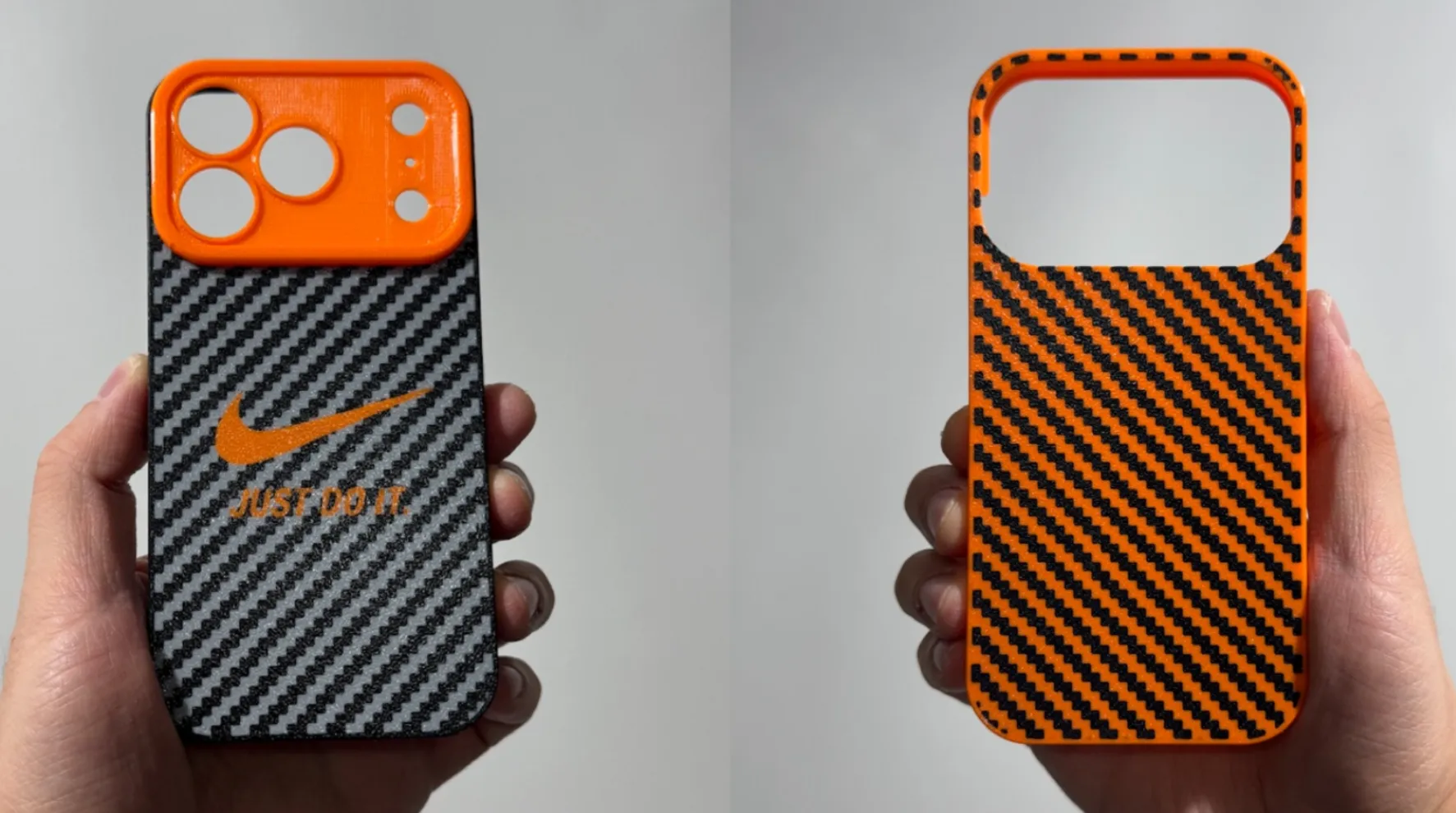

2025-12-4 Added iPhone 17 series carbon fiber texture phone case.
International site link:
https://makerworld.com/zh/models/2072103
Model Features
1.Molded with a model of the same size as Apple's design documents, it perfectly fits your phone.
2.STEP editable files are provided.
3.Two versions are available: honeycomb and flat bottom. The honeycomb version weighs only 14 grams (excluding camera protector), prints in just 24 minutes, and offers better heat dissipation. The flat bottom version provides better protection.

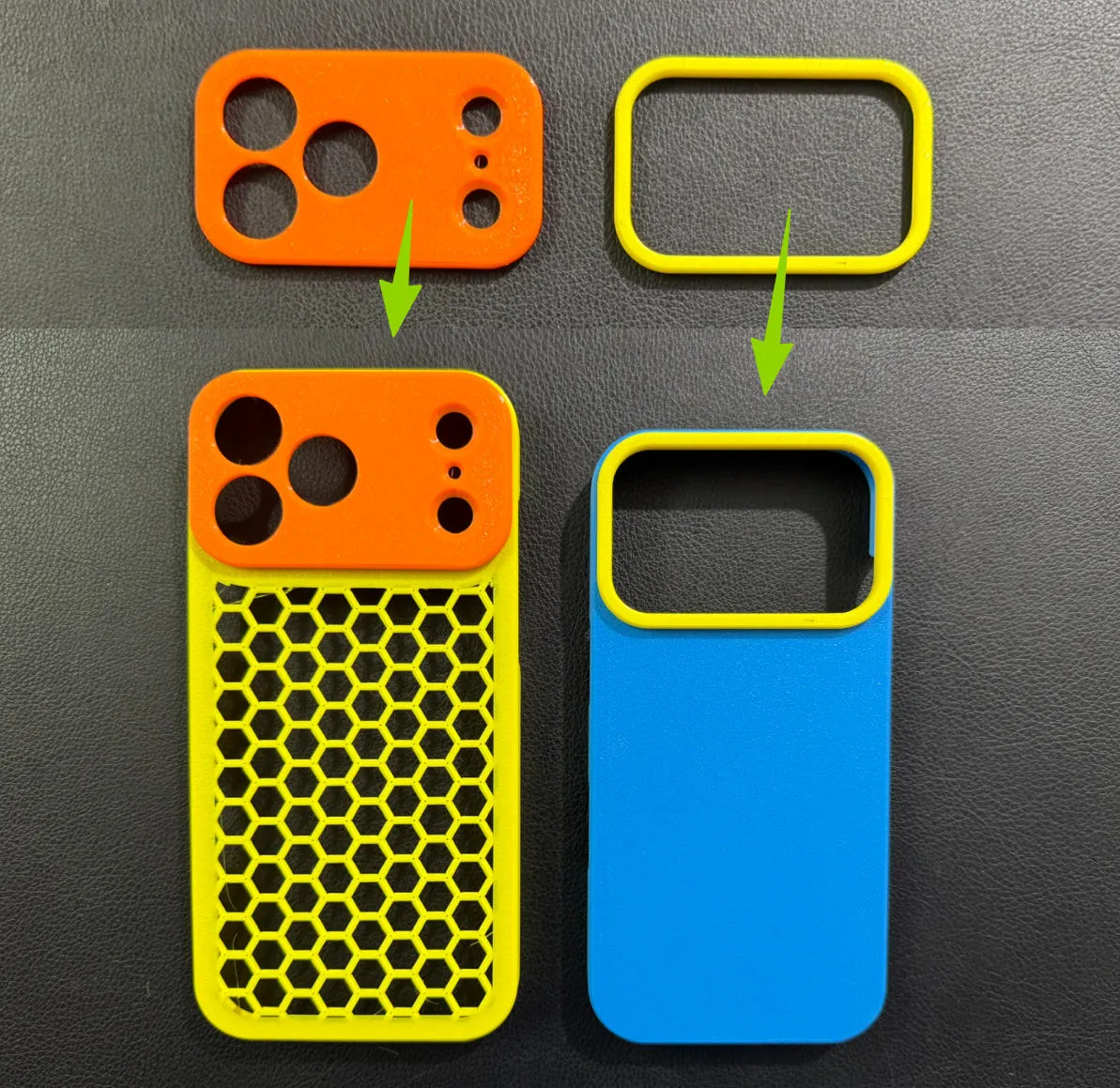

4.The camera protector and main body are printed separately and can be assembled as needed (two versions are available: high-protection and open-style, each made into a separate print profile). Assembly method: There are slots at the connection points of both parts; apply glue first, then press them together. See the image below for the printed parts (left is the high-protection version, right is the open-style version):
Other iPhone 17 Models (with STEP editable files)
iPhone 17 Pro phone case (honeycomb and flat bottom versions)
https://makerworld.com/zh/models/1796345
iPhone 17 Pro High-Precision Model
https://makerworld.com/zh/models/1789547
iPhone 17 Pro Max style phone case (compatible with iPhone 15 Pro Max)
https://makerworld.com/zh/models/1781376
Honeycomb Version Printing Notes

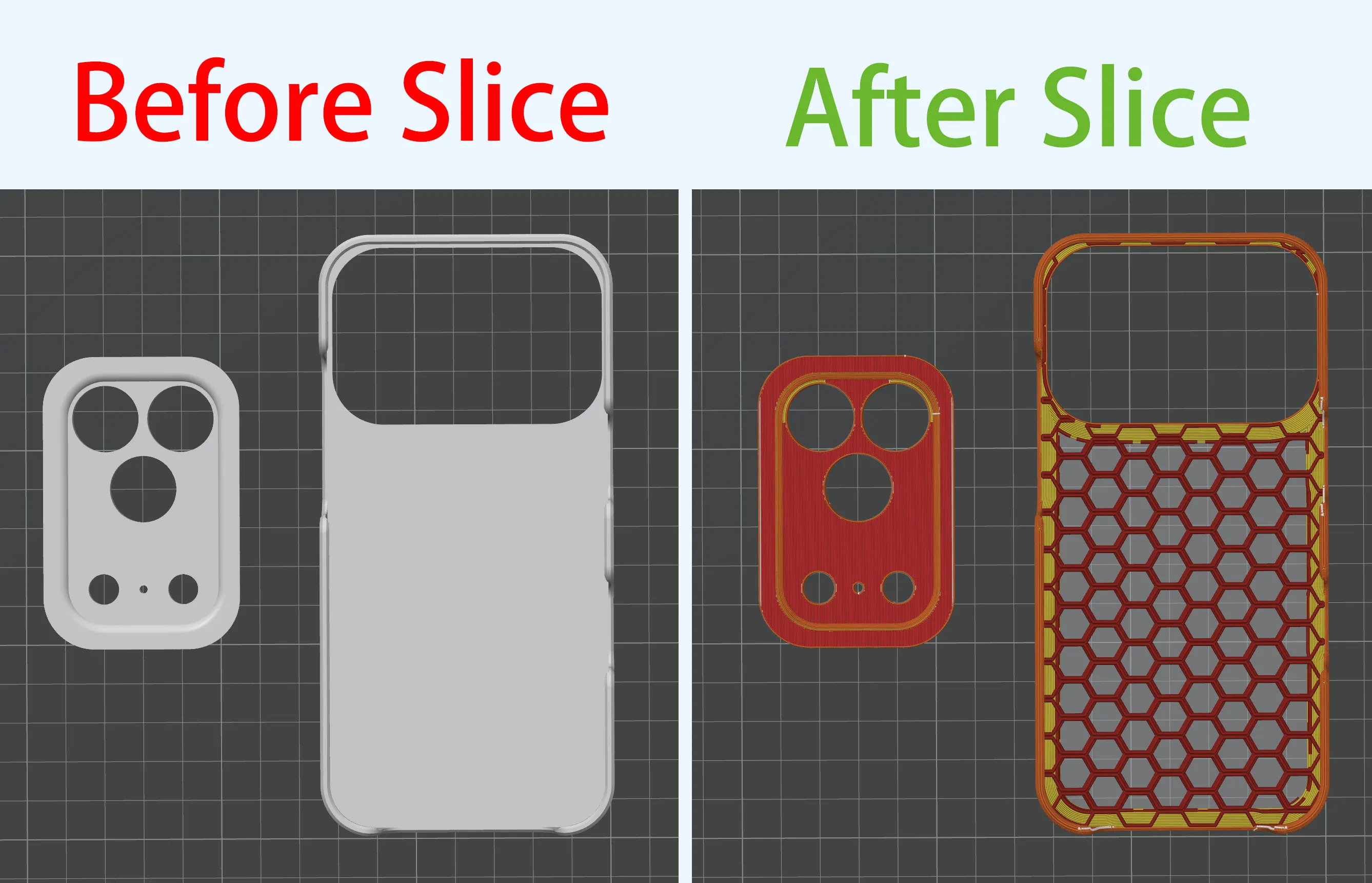

1.The honeycomb effect for the honeycomb version will only be visible when sliced with desktop software (see image below); it is normal for the display interface to show a flat bottom, and it can be printed directly.
2.The honeycomb effect is configured in the Bambu Studio slicing software with the following parameters. If you wish to adjust the honeycomb effect yourself, please modify it based on these settings:
Line width - sparse infill: 1 (mm); walls: 11; sparse infill density: 20%; sparse infill pattern: honeycomb; infill direction: 0 (degrees); top/bottom shell layers: 0
Optional Third-Party Tools
Glue, for bonding the camera protector.
Test Phone Description
The orange phone model shown below is a high-precision phone model based on official design documents.
Model link: https://makerworld.com/zh/models/1787225
Printed Parts Display
The gray lens protector shown in the image below is an older model without a slot. The latest version has added a slot for a better fit. (Aside from the slot, the appearance is largely the same, so the images will not be updated for now).

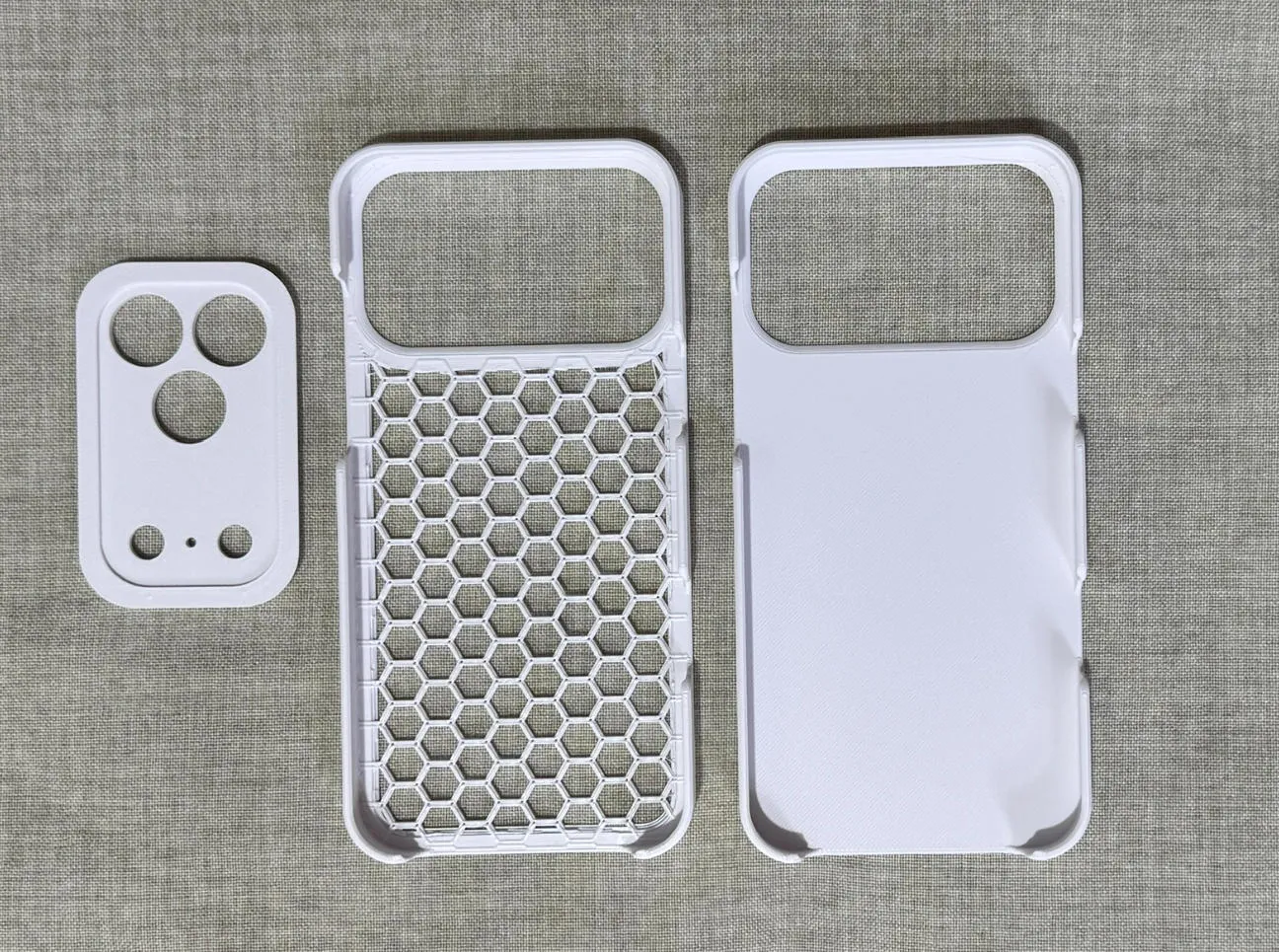

Disassembled parts (from left to right: high-protection lens cover, honeycomb phone case, flat-bottom phone case)

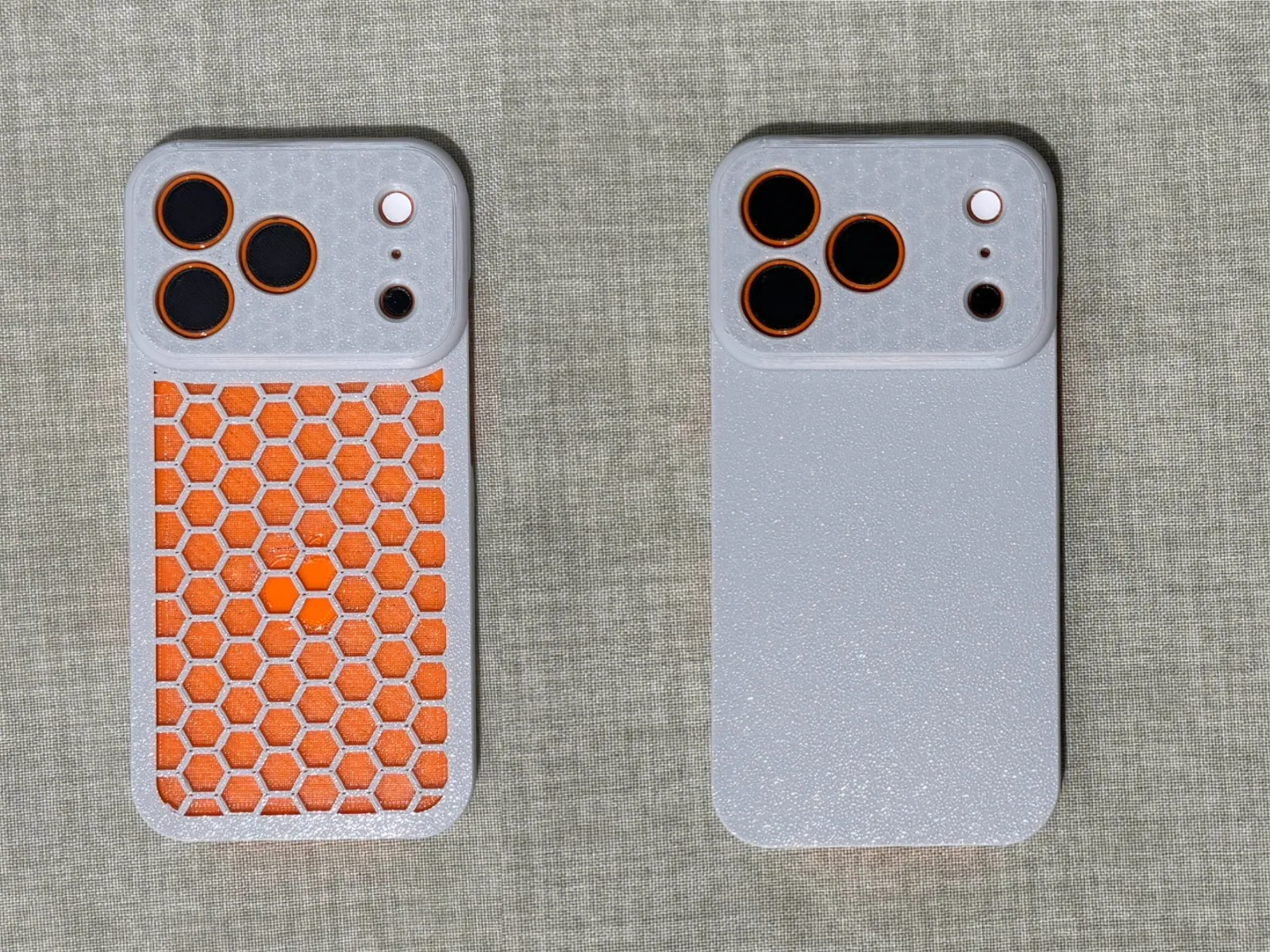

Installed (model phone) display (left: honeycomb phone case, right: flat-bottom phone case)

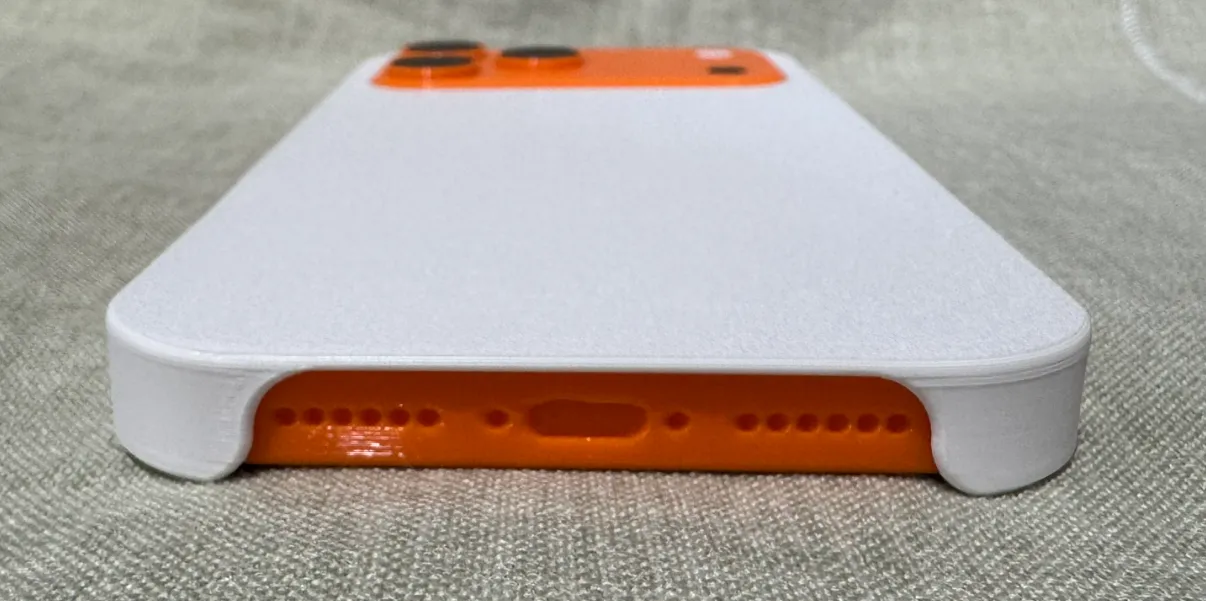

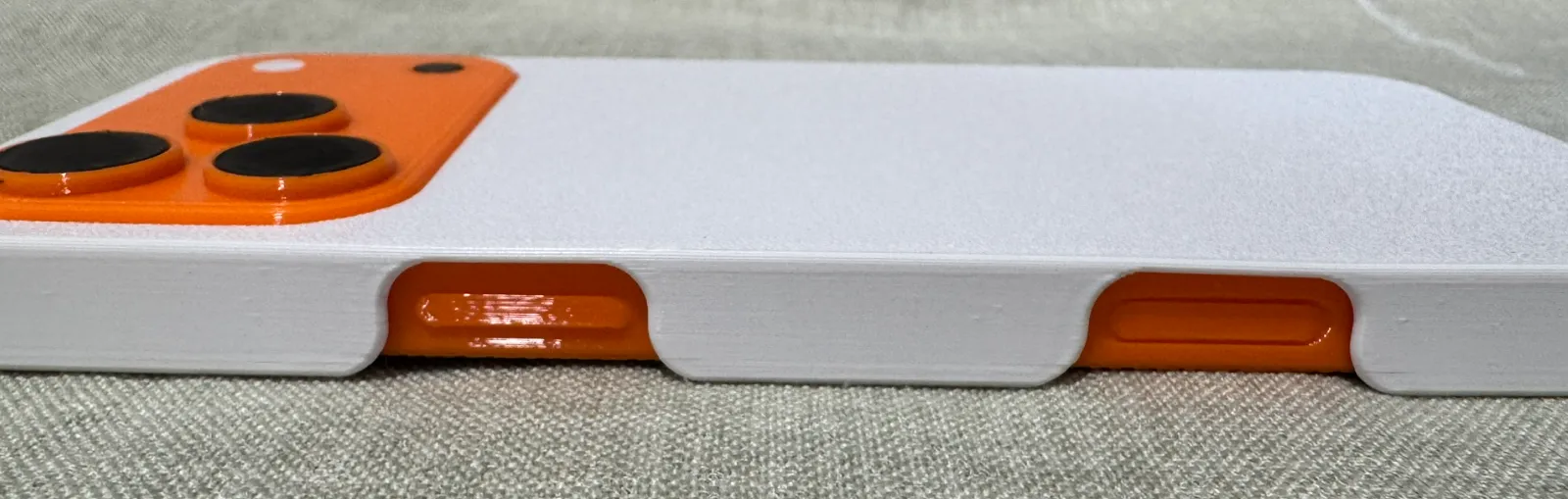

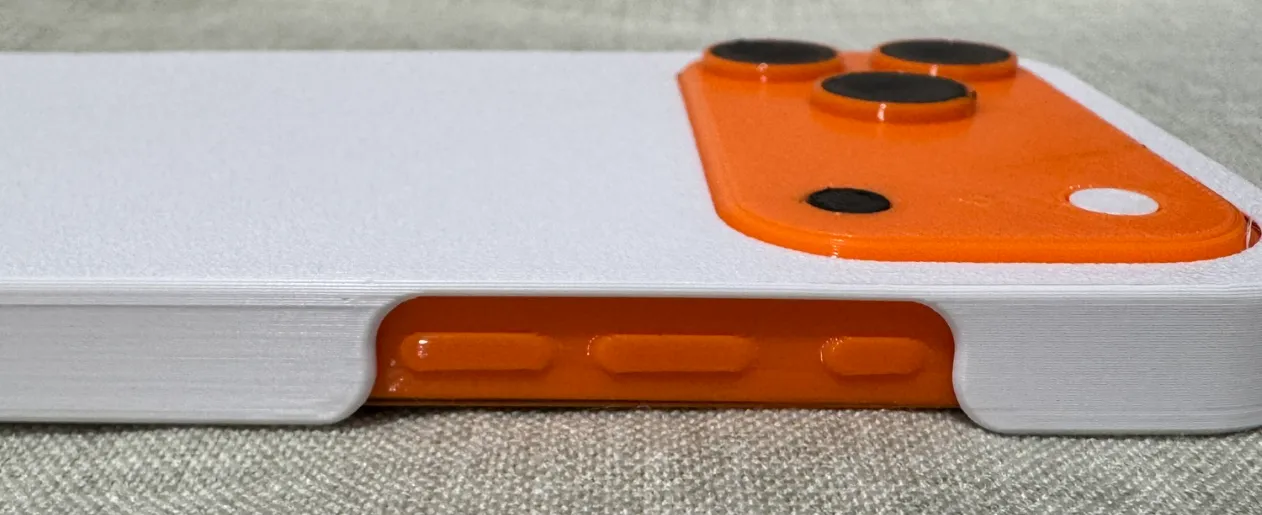

Phone case opening display
Display Image Description

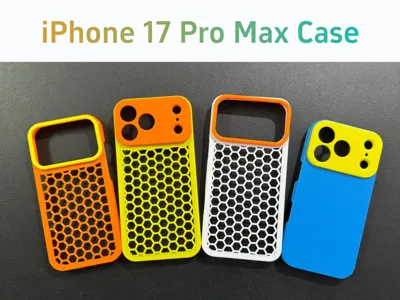

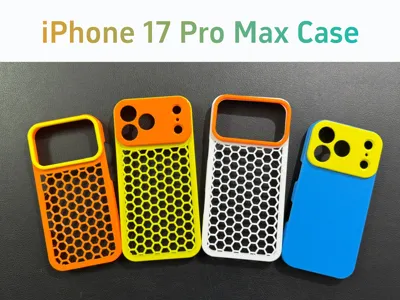

The iPhone 17 Pro and iPhone 17 Pro Max phone cases produced this time have consistent specifications (the main body of the phone case is divided into flat bottom and honeycomb versions, and there are two styles of camera covers, allowing for a total of 4 combinations), differing only in size. Among the colorful phone cases (orange, yellow, and blue combinations) shown on the cover and in the main text, the larger size is for the iPhone 17 Pro Max, and the smaller is for the iPhone 17 Pro.
Update Log
The original update log has been moved to the honeycomb version print configuration.
