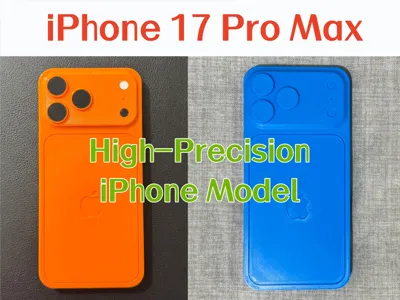

iPhone 17 Pro Max High Precision Model with STEP
Print Profile(3)
Description
Boost Me (for free)
If you like my model, please boost me, thank you
Other iPhone 17 Models
iPhone 17 Pro Phone Cases (Honeycomb Version, Flat Bottom Version, TPU Soft Case Version)
https://makerworld.com/en/models/1796345
iPhone 17 Pro Max Phone Cases (Honeycomb Version and Flat Bottom Version)
https://makerworld.com/en/models/1799064
iPhone 17 Pro High-Precision Mockup
https://makerworld.com/en/models/1789547
Update Log

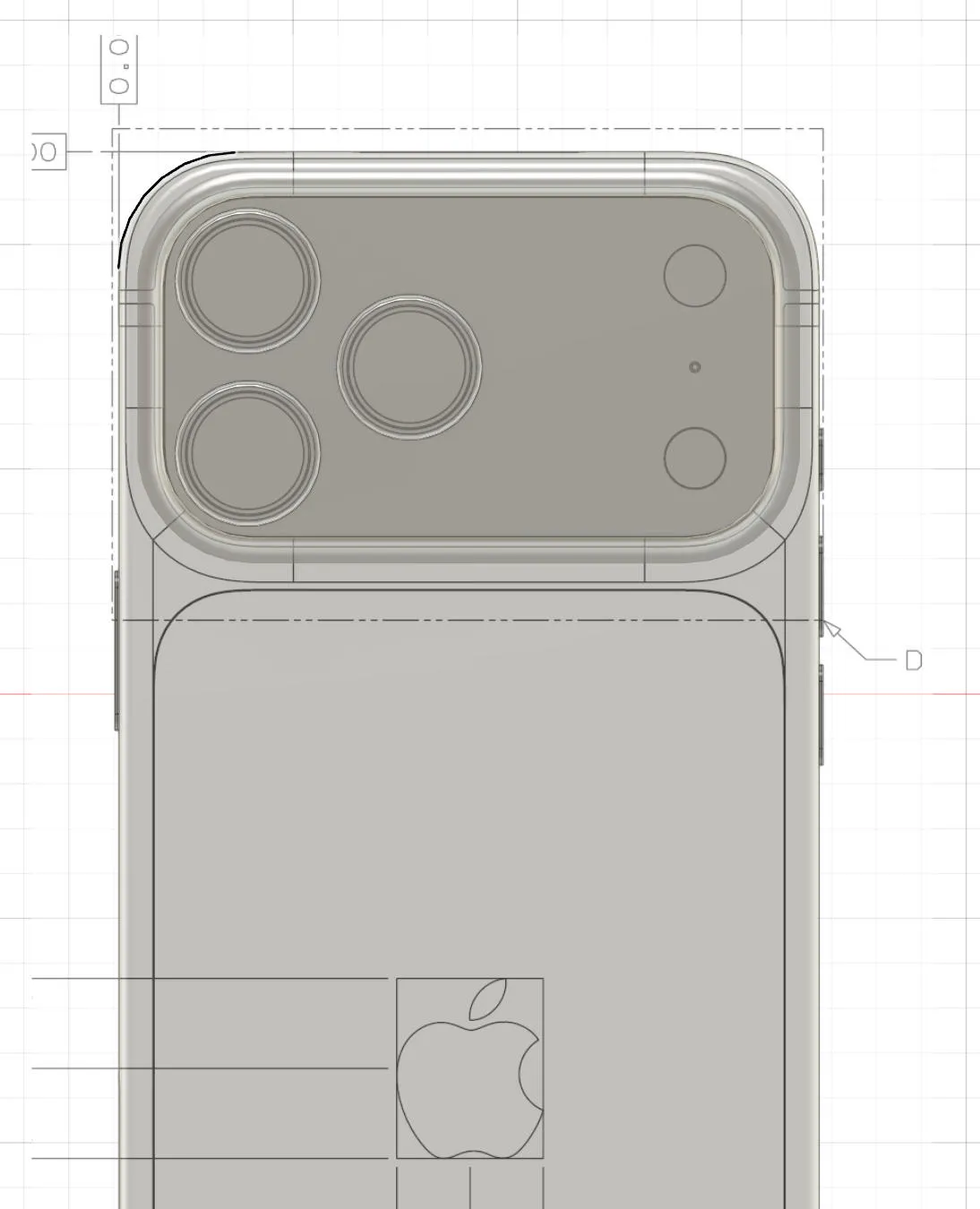

2025-9-18 Added image alignment, further improving curved surface accuracy
Model Features
1. Strictly adheres to the design dimensions of iPhone 17 Pro Max in Apple's product design documentation, see images and links below
2. Provides editable STEP files
3. Available in two versions, color and monochrome, with slight differences in appearance
- Color models use 3 colors of filament: black, white, and body color
- Monochrome models add gaps and grooves to highlight: phone screen area, SIM card slot, flash, and lidar

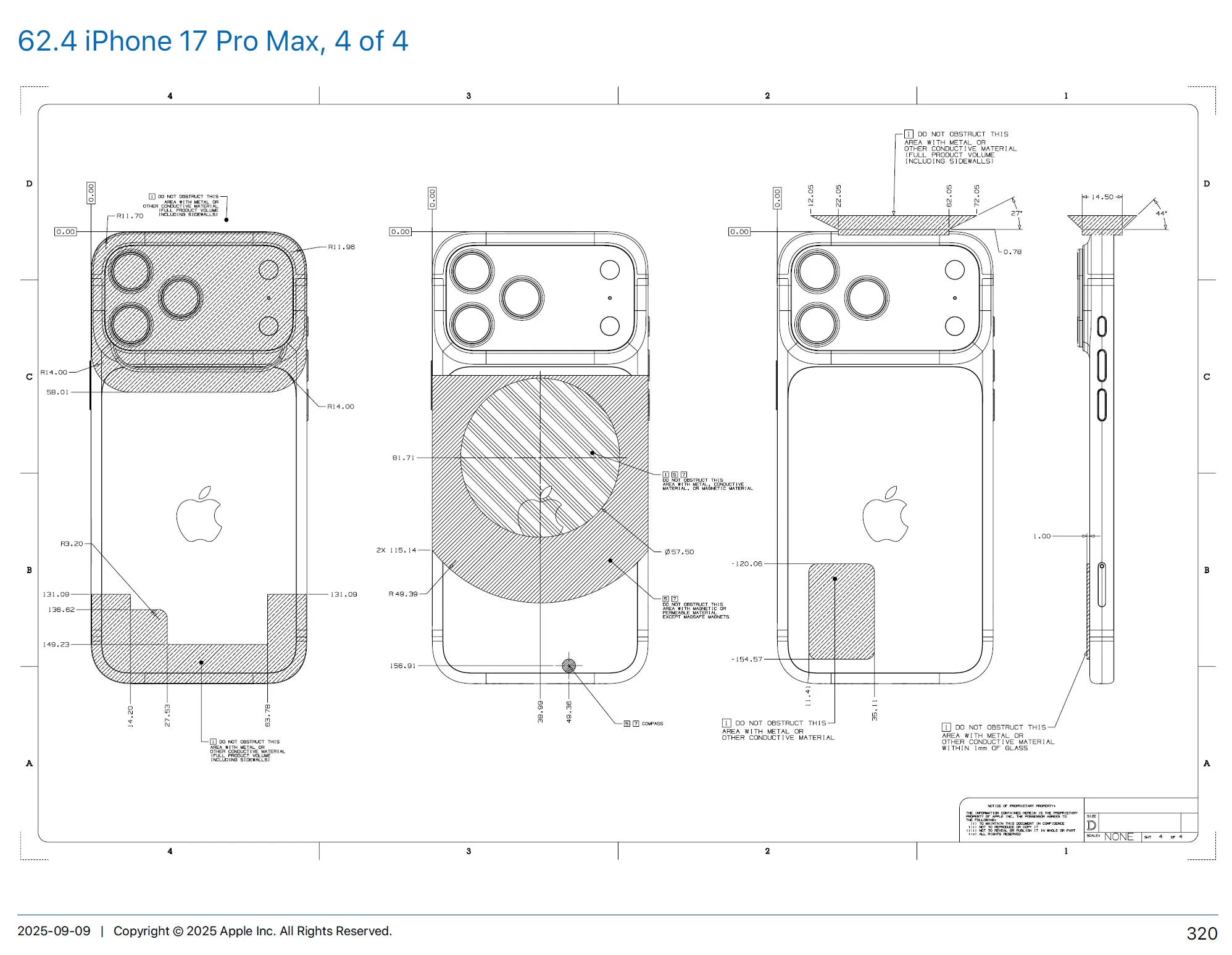

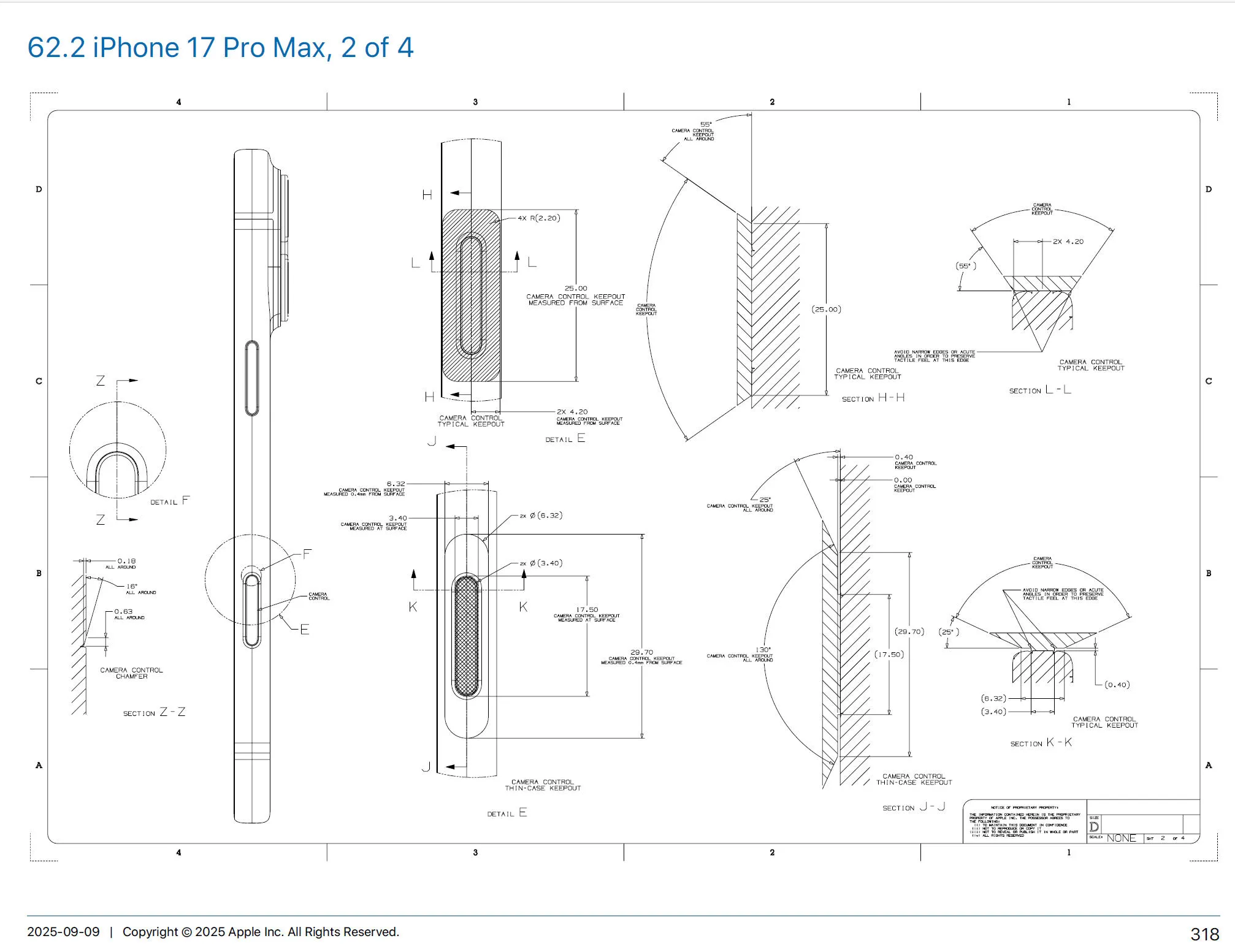

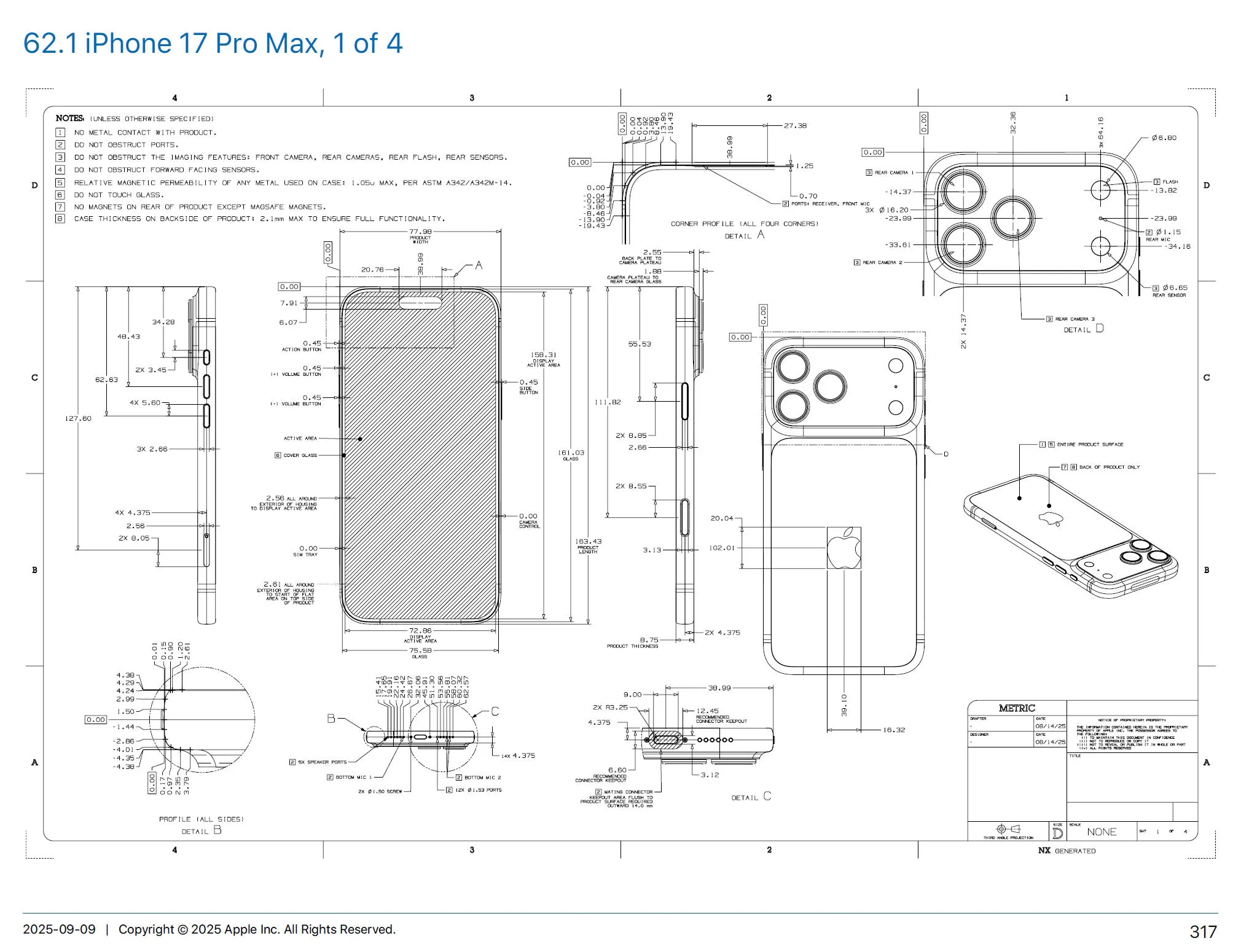

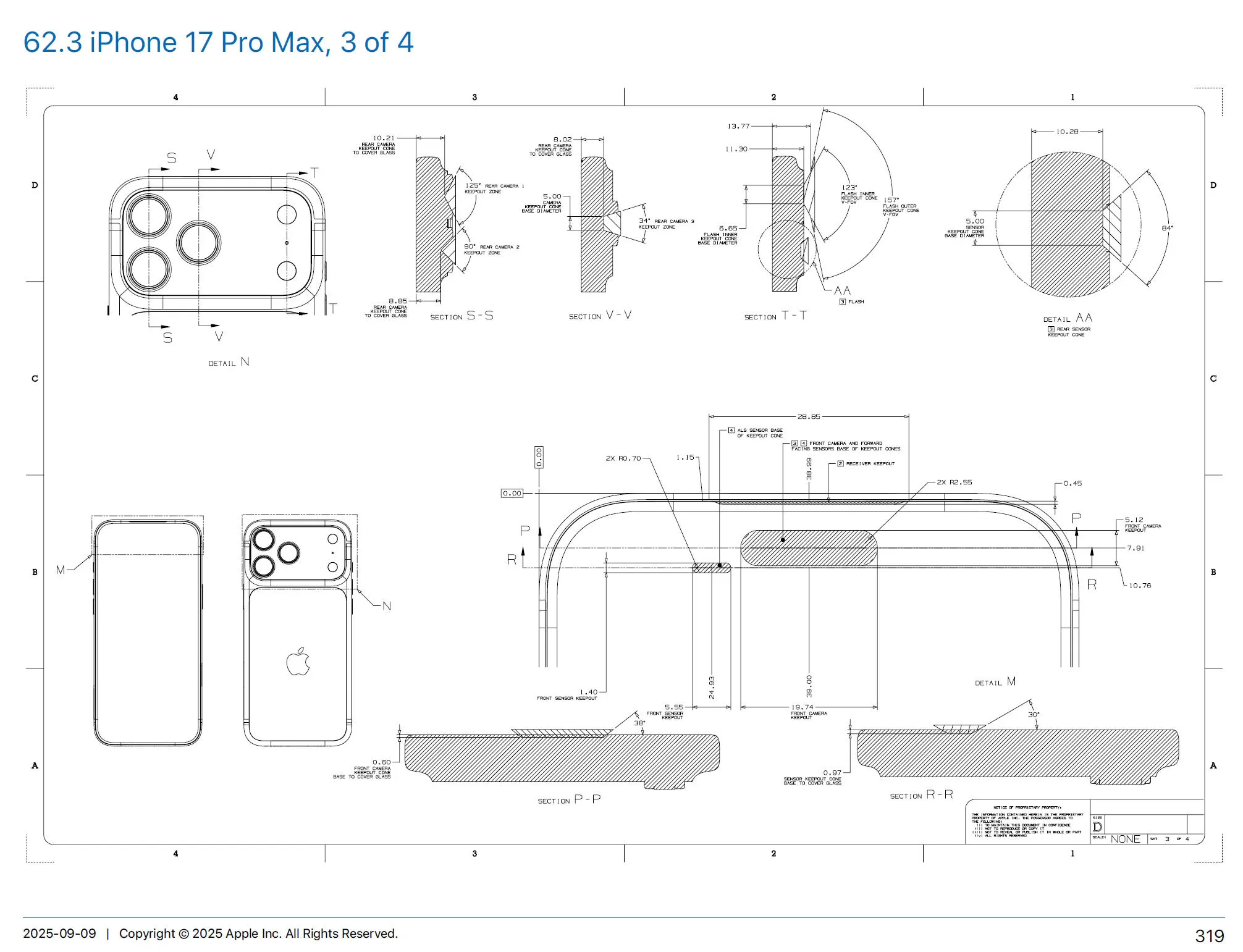

Apple Official Product Design Documentation
Design Diagram Source
https://developer.apple.com/accessories/Accessory-Design-Guidelines.pdf
Pages 317 to 320
Printing Notes
The contact area between the model and the build plate is relatively large, if you use filament with a high sinkage rate, such as PETG, ABS, to prevent warping, it is recommended to apply super glue to the build plate

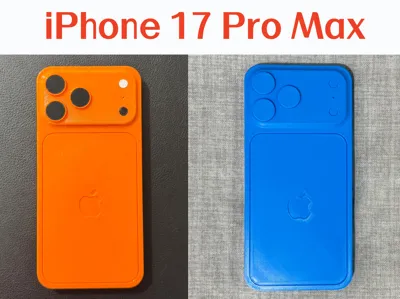

Model Display

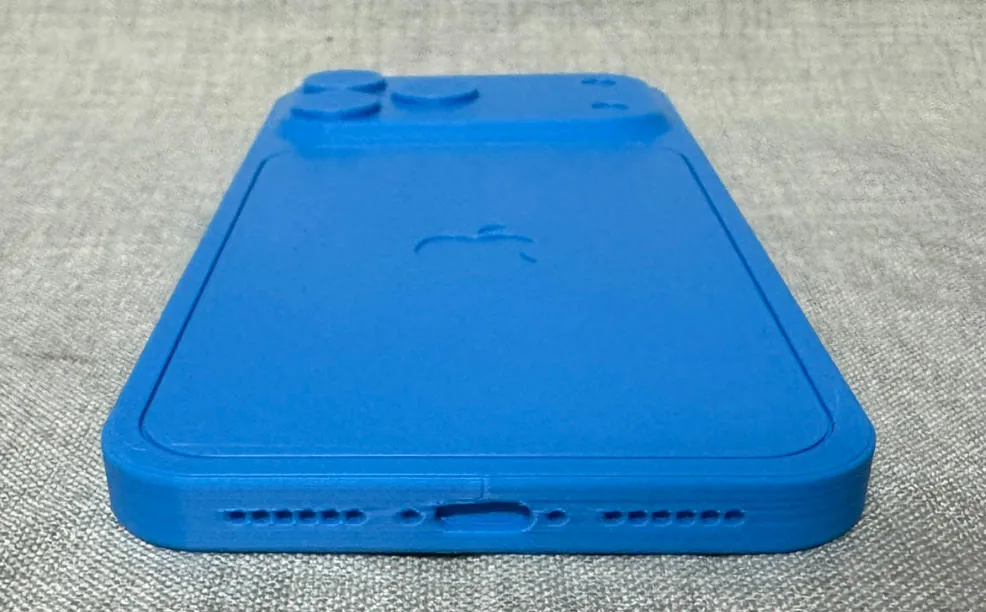

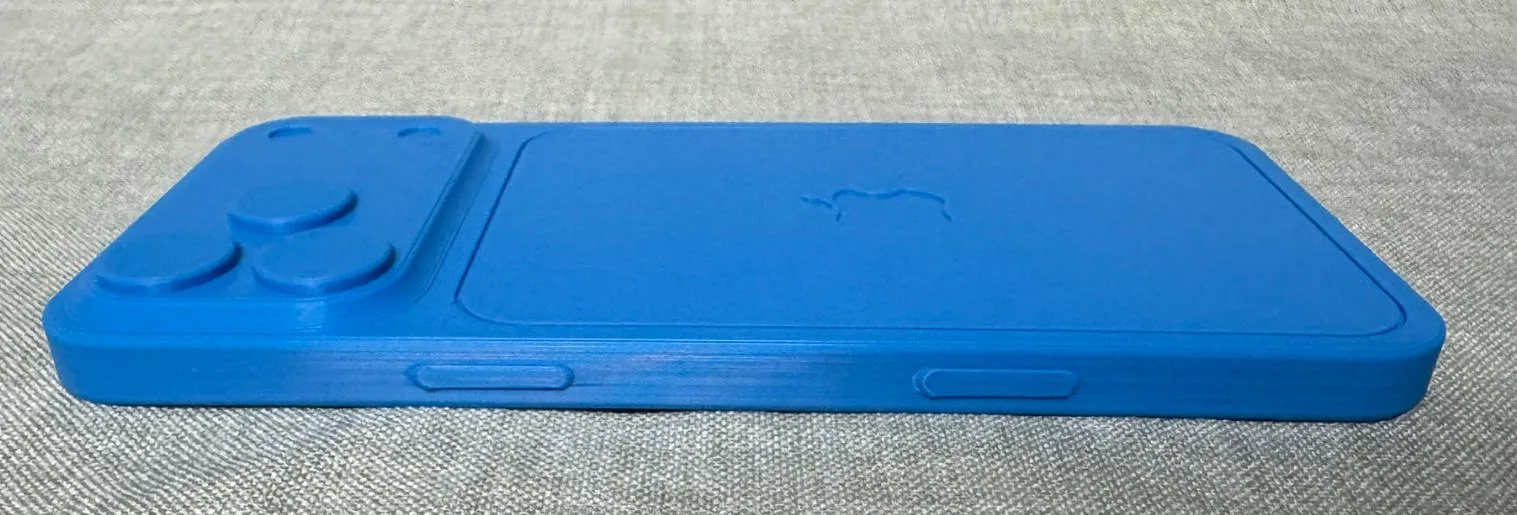

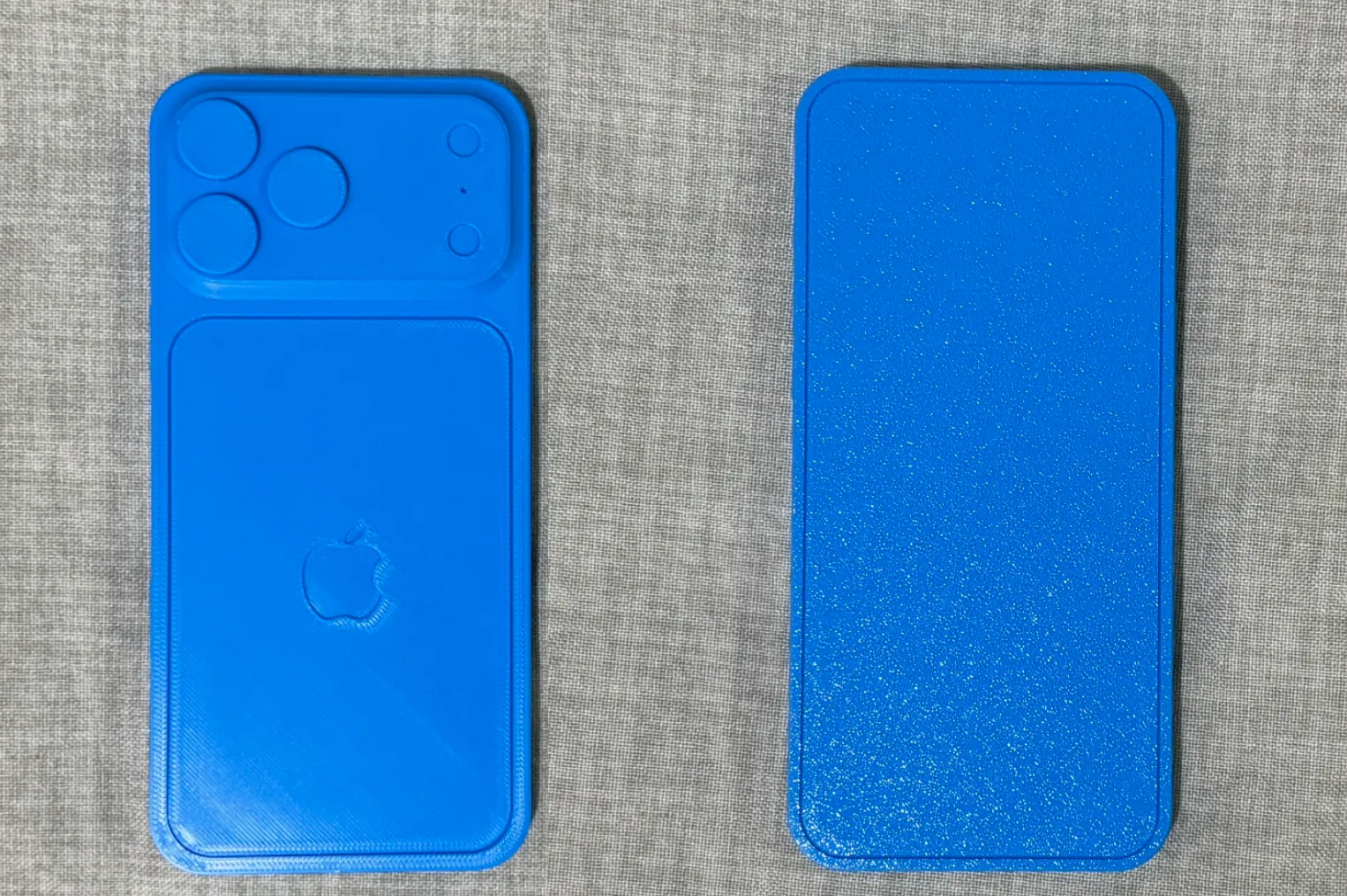

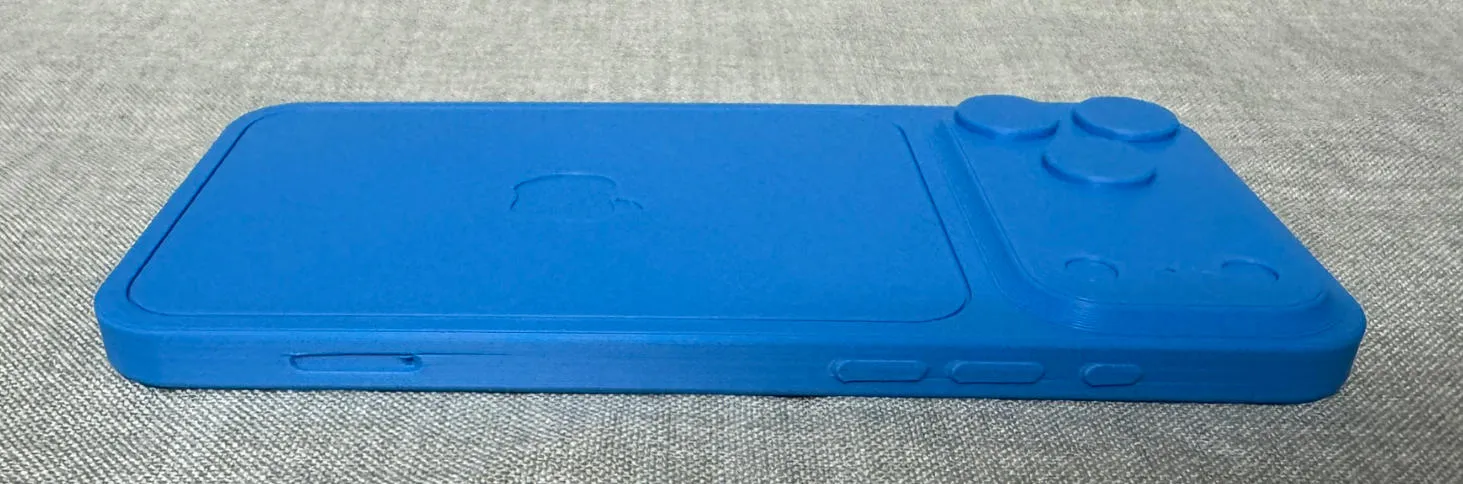

Monochrome Mockup

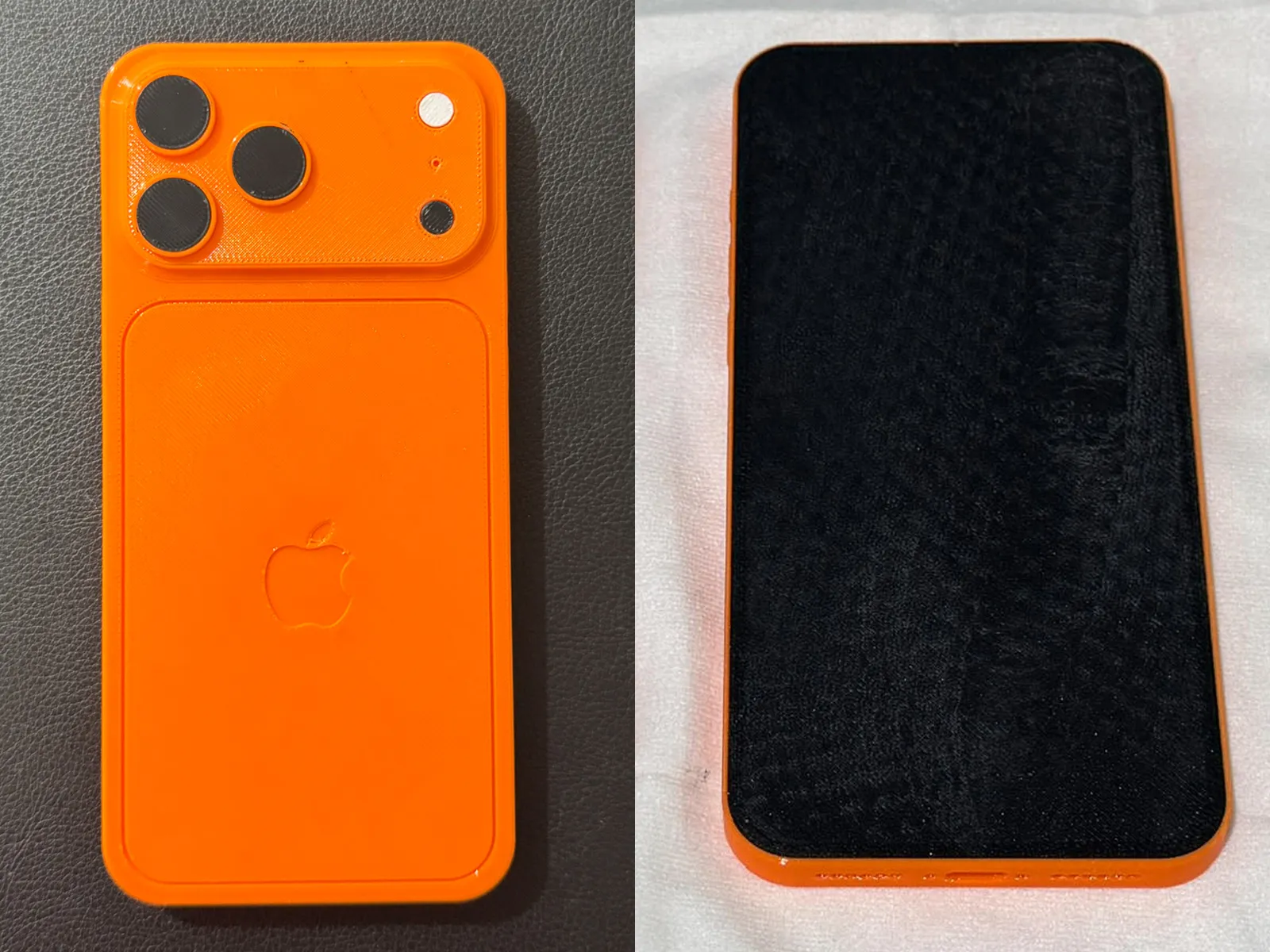

Color Mockup
Friendly Reminder

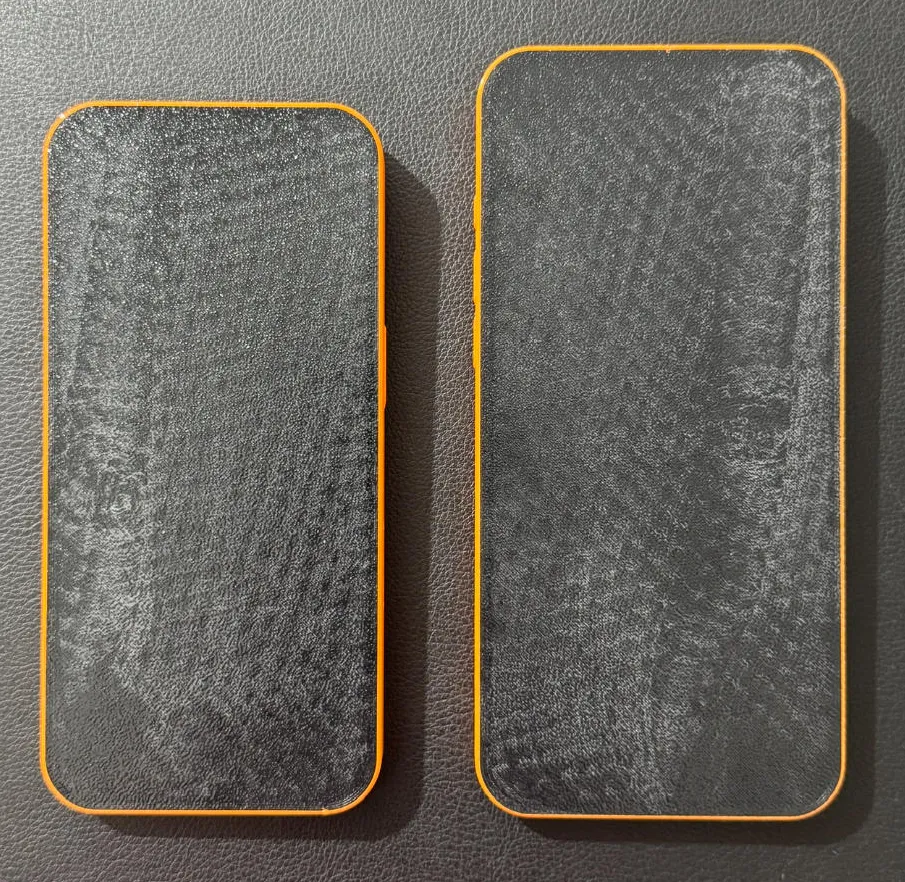

When printing color models, it is recommended to clean the build plate first, otherwise marks may appear on the front of the mockup (see image below)
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
