iPhone 17 Pro High precision phone case (honeycomb and flat-bottom versions, including STEP)
Print Profile(4)
Description
Boost Me (for free)
If you like my model, please boost me, thank you!

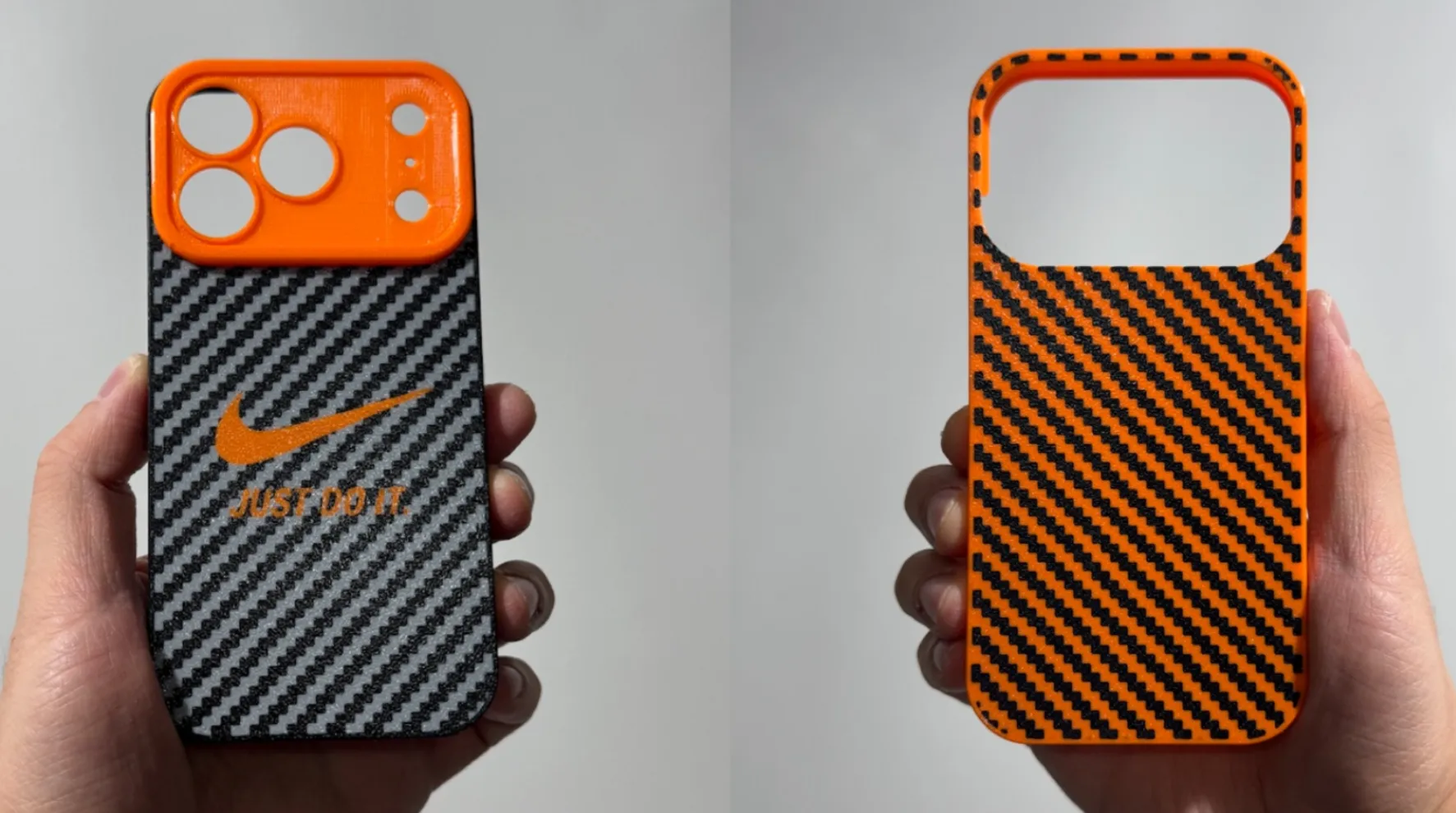

2025-12-4 Added iPhone 17 series carbon fiber texture phone cases
International site link:
https://makerworld.com/zh/models/2072103
Model Features
1. Molded from a model machine with the same dimensions as Apple's design documents, it perfectly fits your phone
2. STEP editable files are provided
3. Available in two versions: honeycomb and flat bottom. The honeycomb version weighs only 13 grams (without camera protection cover), prints in just 22 minutes, and has higher heat dissipation efficiency. The flat-bottom version offers better protection

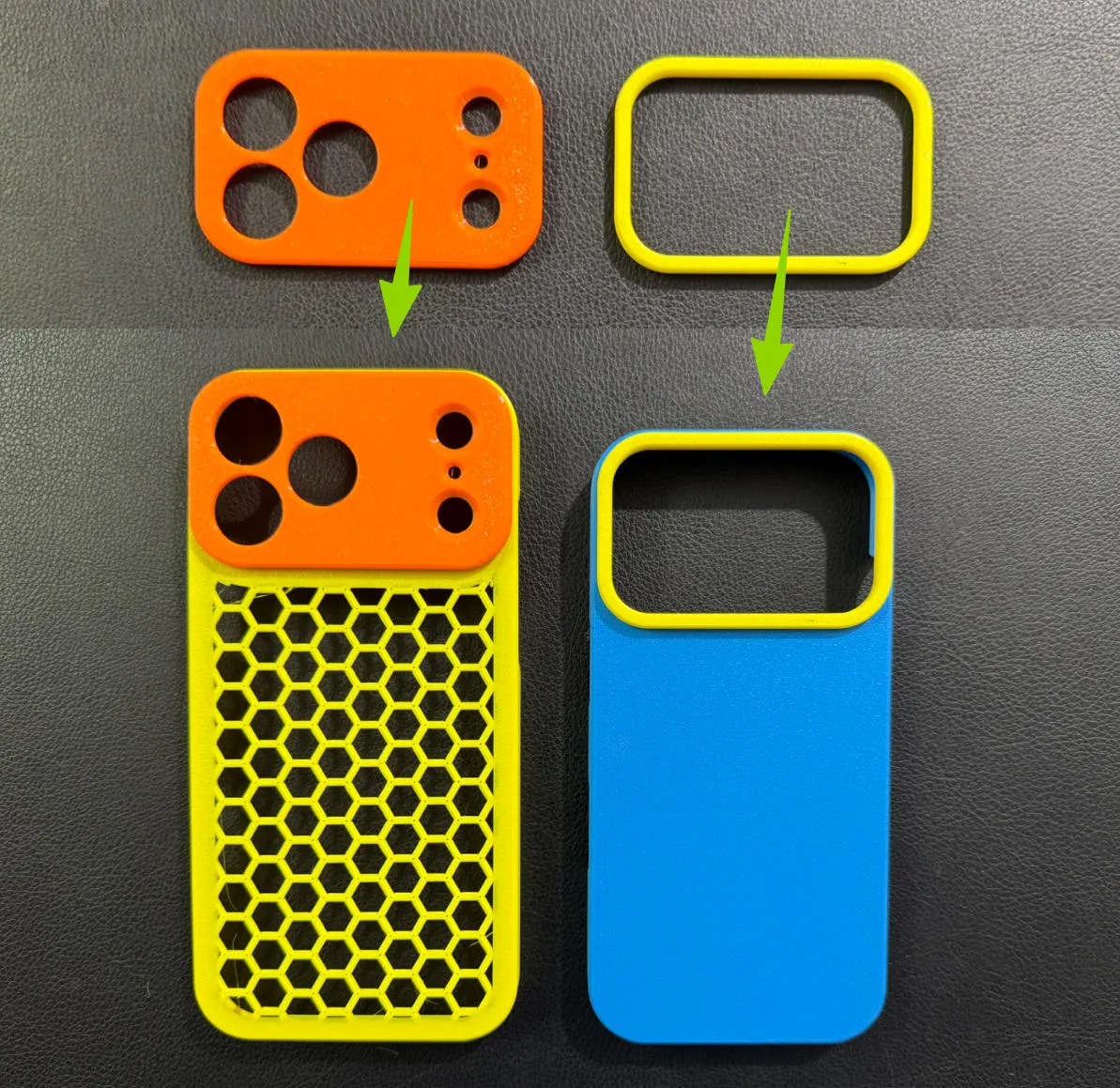

4. The camera protection cover and the main body are printed separately and can be assembled as needed (there are two versions: high protection and open, each made into a separate print profile). Assembly method: there are slots at the connection points of both parts, apply super glue first, then press them together. The printed parts are shown below (the left one is the high protection version, the right one is the open version)
Other iPhone 17 Models (with STEP Editable Files)
iPhone 17 Pro Max Phone Case (Honeycomb and Flat Bottom Versions)
https://makerworld.com/zh/models/1799064
iPhone 17 Pro Max High-Precision Model
https://makerworld.com/zh/models/1787225
iPhone 17 Pro Max Style Phone Case (Compatible with iPhone 15 Pro Max)
https://makerworld.com/zh/models/1781376
Honeycomb Version Printing Notes

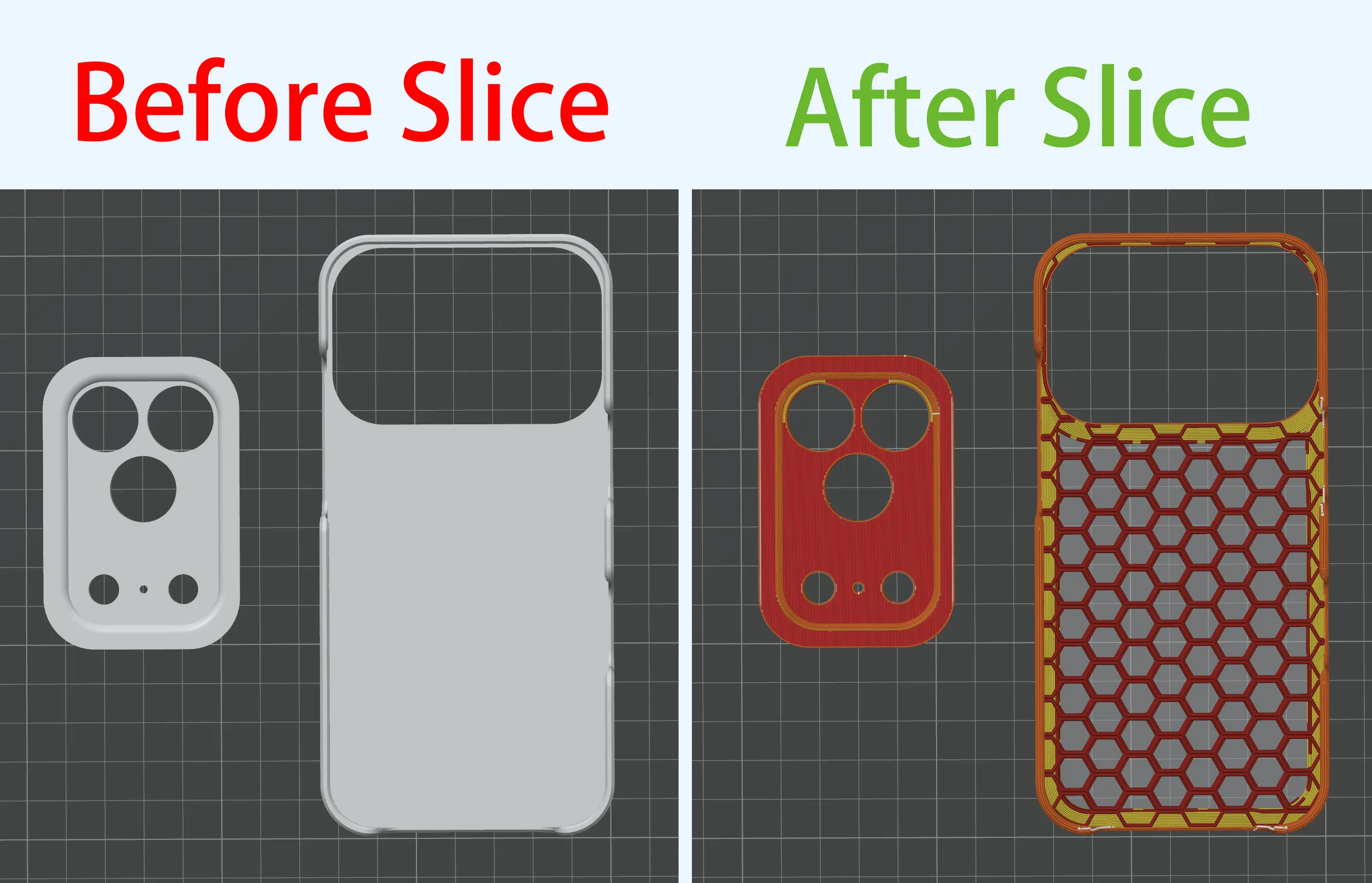

1. The honeycomb effect can only be seen when slicing the honeycomb version with desktop software (see image below); it is normal for the display interface to show a flat bottom, and it can be printed directly
2. The honeycomb effect is configured in Bambu Studio slicing software with the following parameters. If you want to adjust the honeycomb effect yourself, please modify it based on these settings
Line width - sparse infill: 1 (mm); walls: 11; sparse infill density: 20%; sparse infill pattern: honeycomb; infill direction: 0 (degrees); top/bottom shell layers: 0
Optional Third-Party Tools
super glue, used for bonding the camera protection cover
Test Phone Description
The orange printed part shown in the images is a high-precision phone model referenced from the official design document
Model link: https://makerworld.com/zh/models/1789547
Printed Parts Display
The gray lens protection cover shown below is an older model without slots. The latest model has added slots for a better fit (except for the slots, the appearance is largely the same, images will not be updated for now)

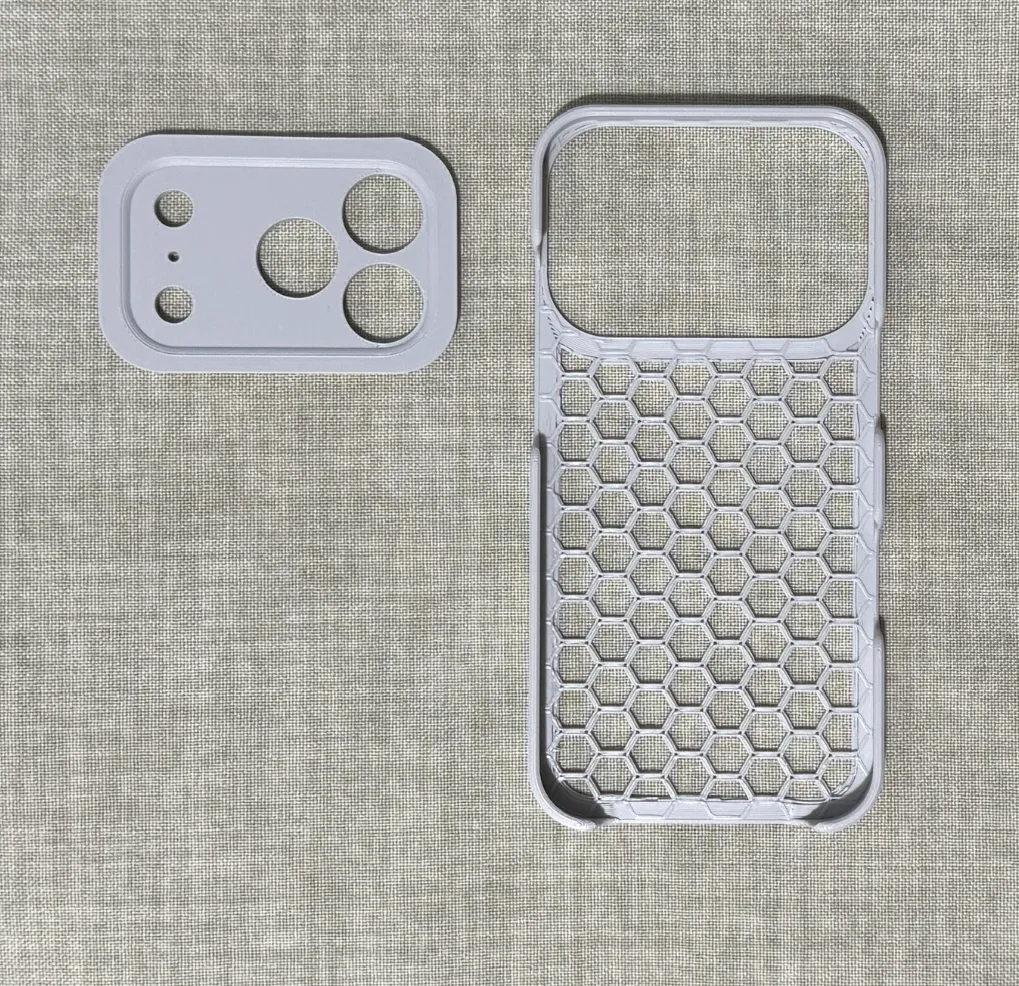

Honeycomb Version Disassembled Parts (High Protection Lens Cover + Honeycomb Phone Case)

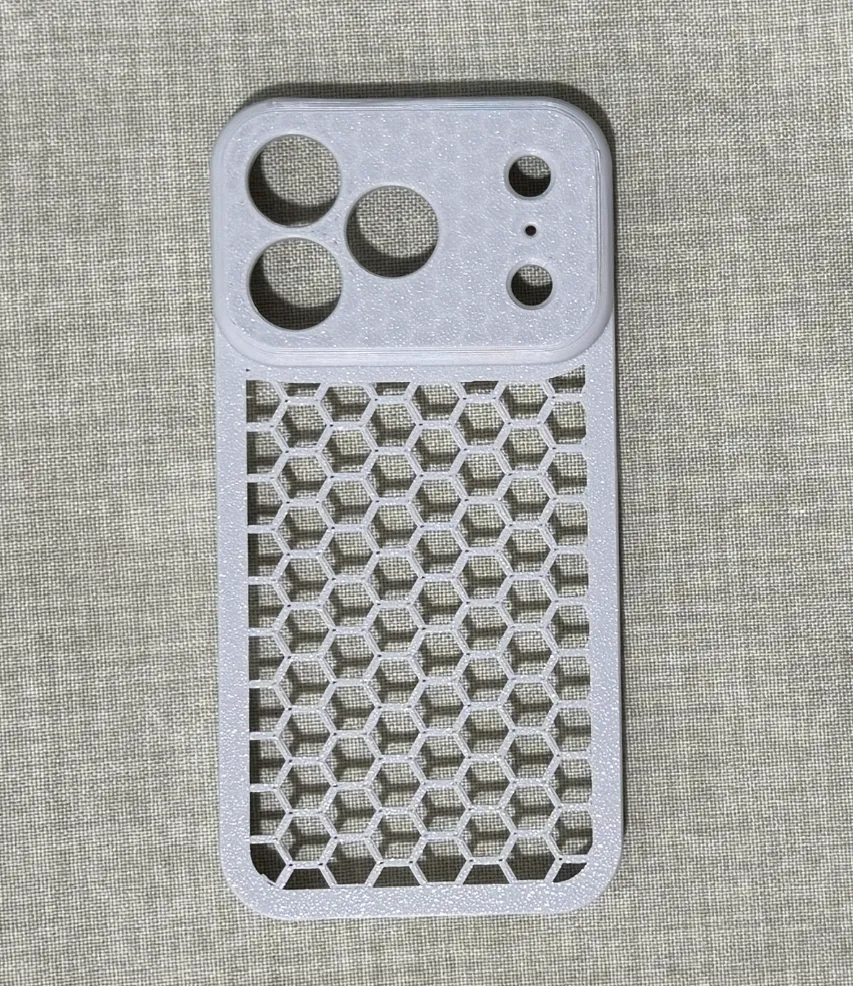

Honeycomb Version Assembled

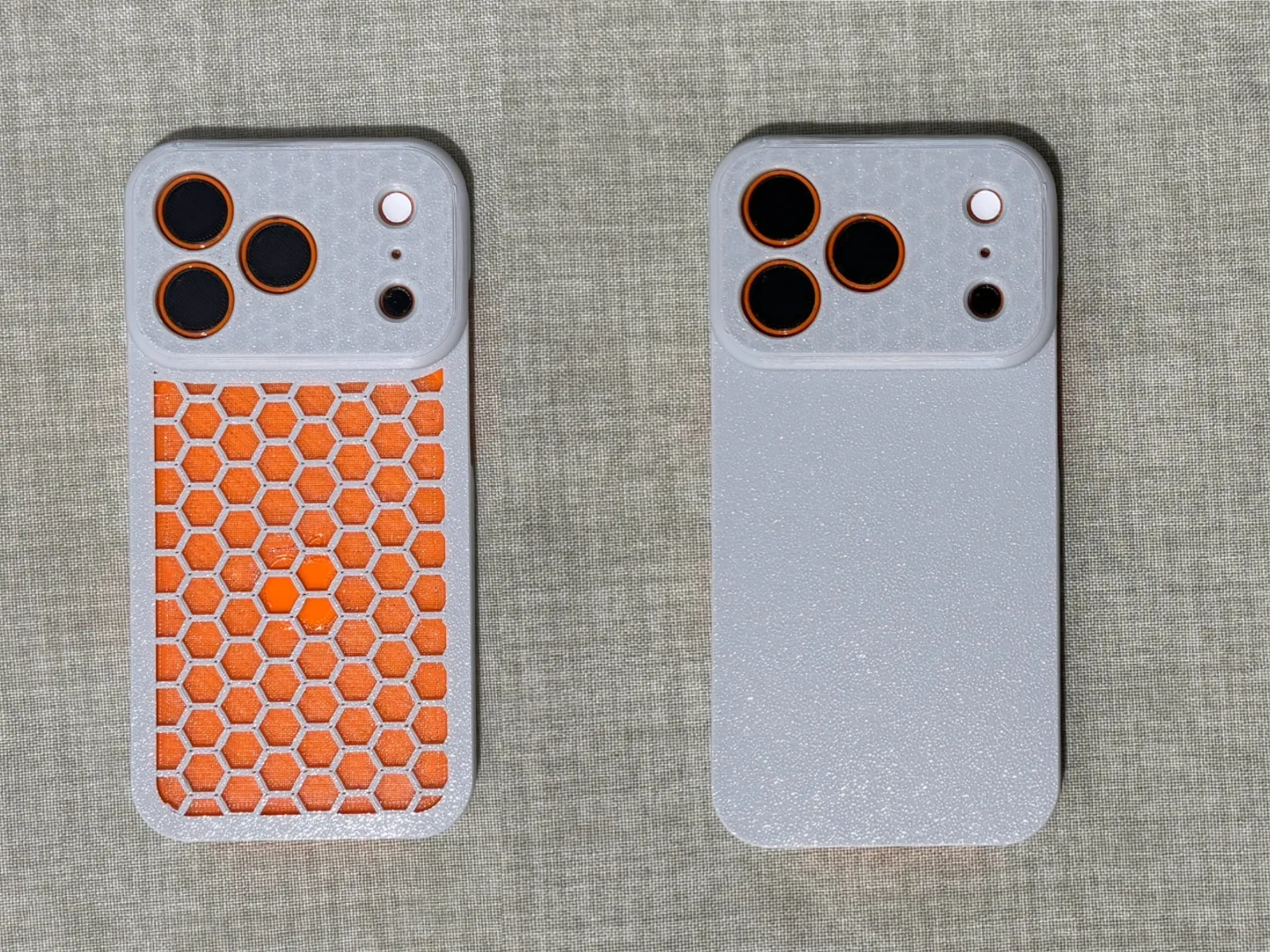

Installed (Model Phone) Display (Left: Honeycomb Phone Case, Right: Flat Bottom Phone Case)

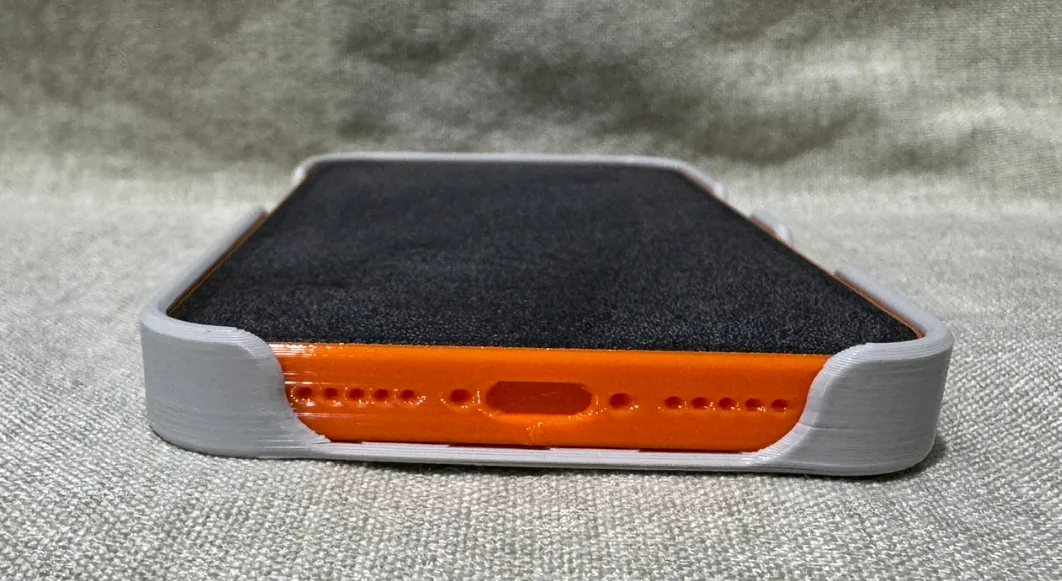

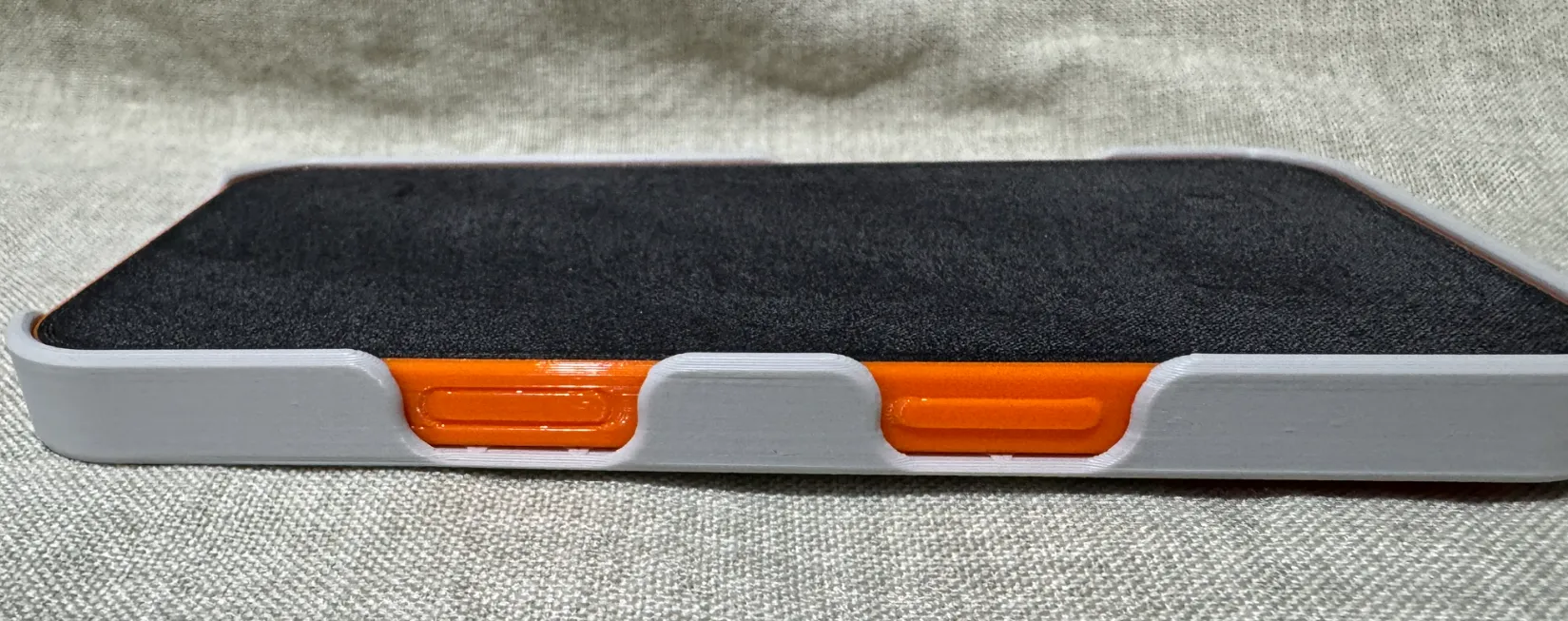

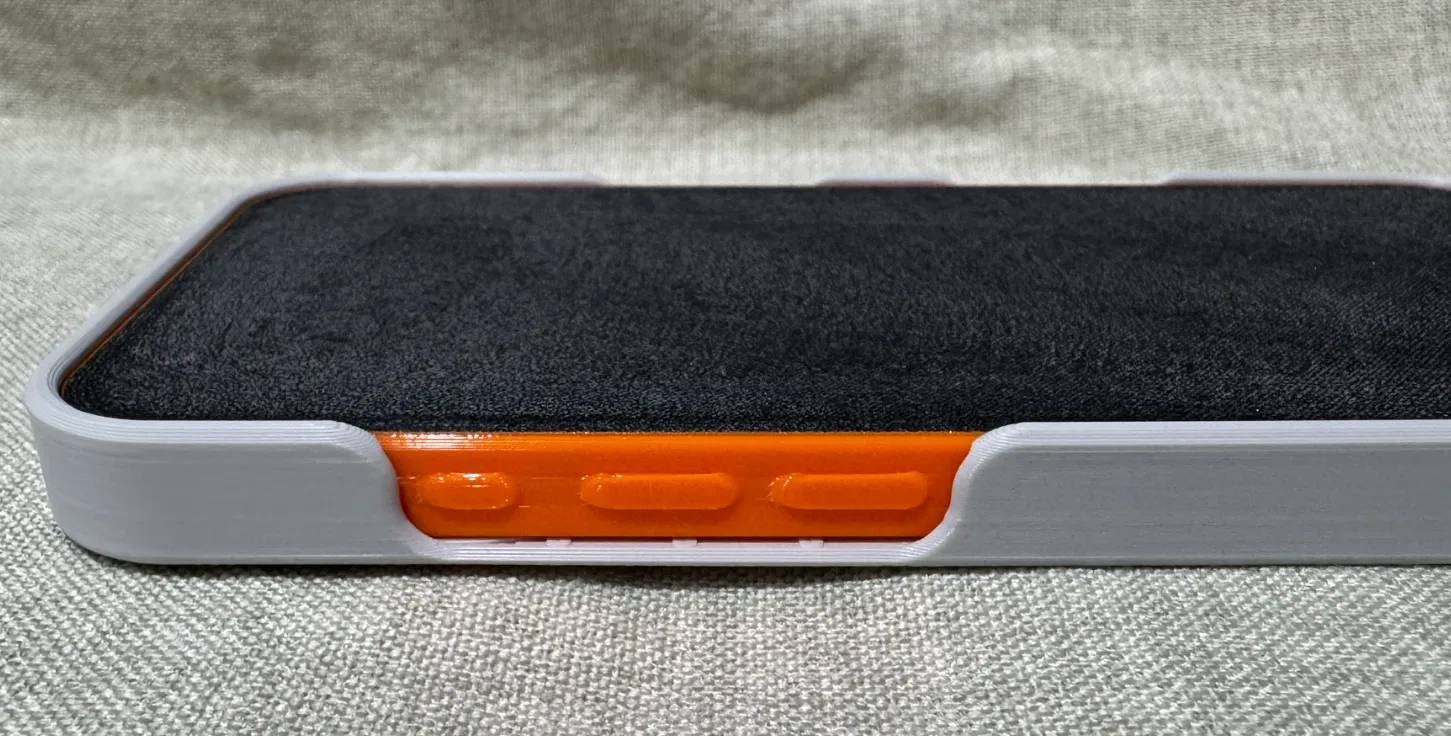

Phone Case Port Cutouts Display
Display Image Description

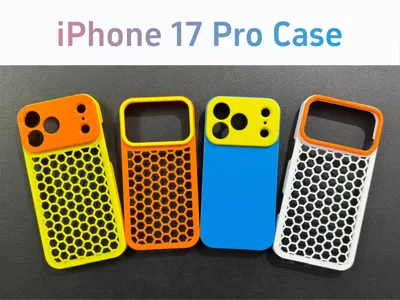

The iPhone 17 Pro and iPhone 17 Pro Max phone cases produced this time have identical specifications, apart from their size differences (the phone case body is available in a flat-bottom version and a honeycomb version, and there are two styles of camera covers, allowing for a total of 4 combinations). Among the colorful (orange, yellow, blue combination) phone cases displayed on the cover and in the text, the larger one is the iPhone 17 Pro Max phone case, and the smaller one is the iPhone 17 Pro phone case
Update Log
Previous update logs have been moved to the honeycomb version print profile
