Acoustic panel Shelf (Variations)
Print Profile(26)
Description

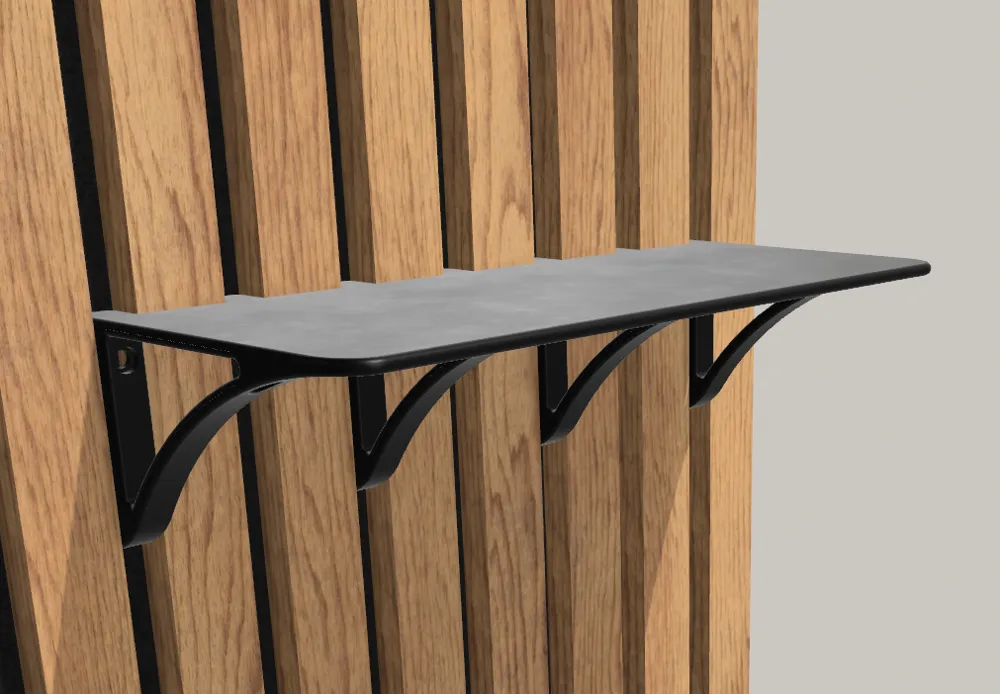

Update: Upon request, even wider versions for H-series printers were created

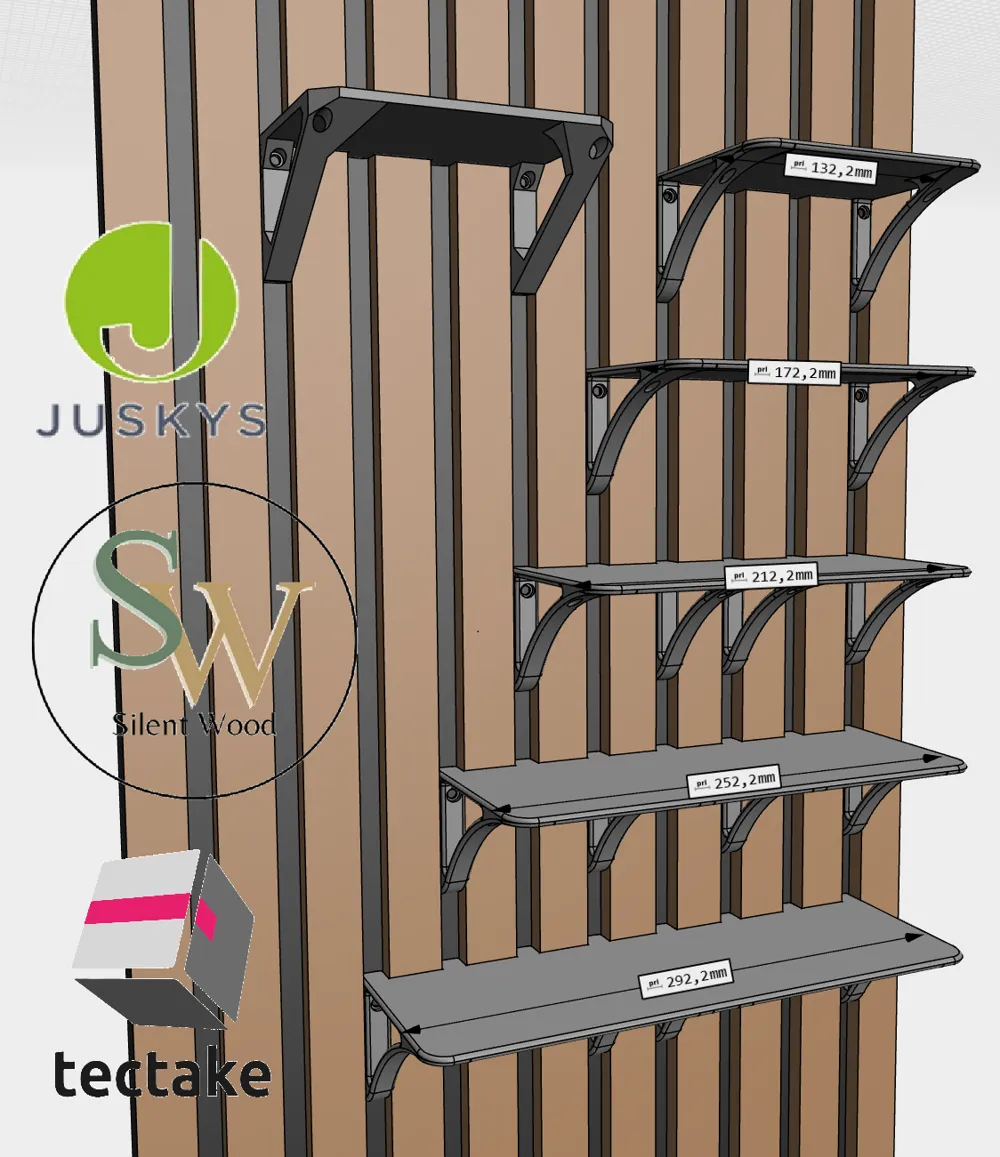

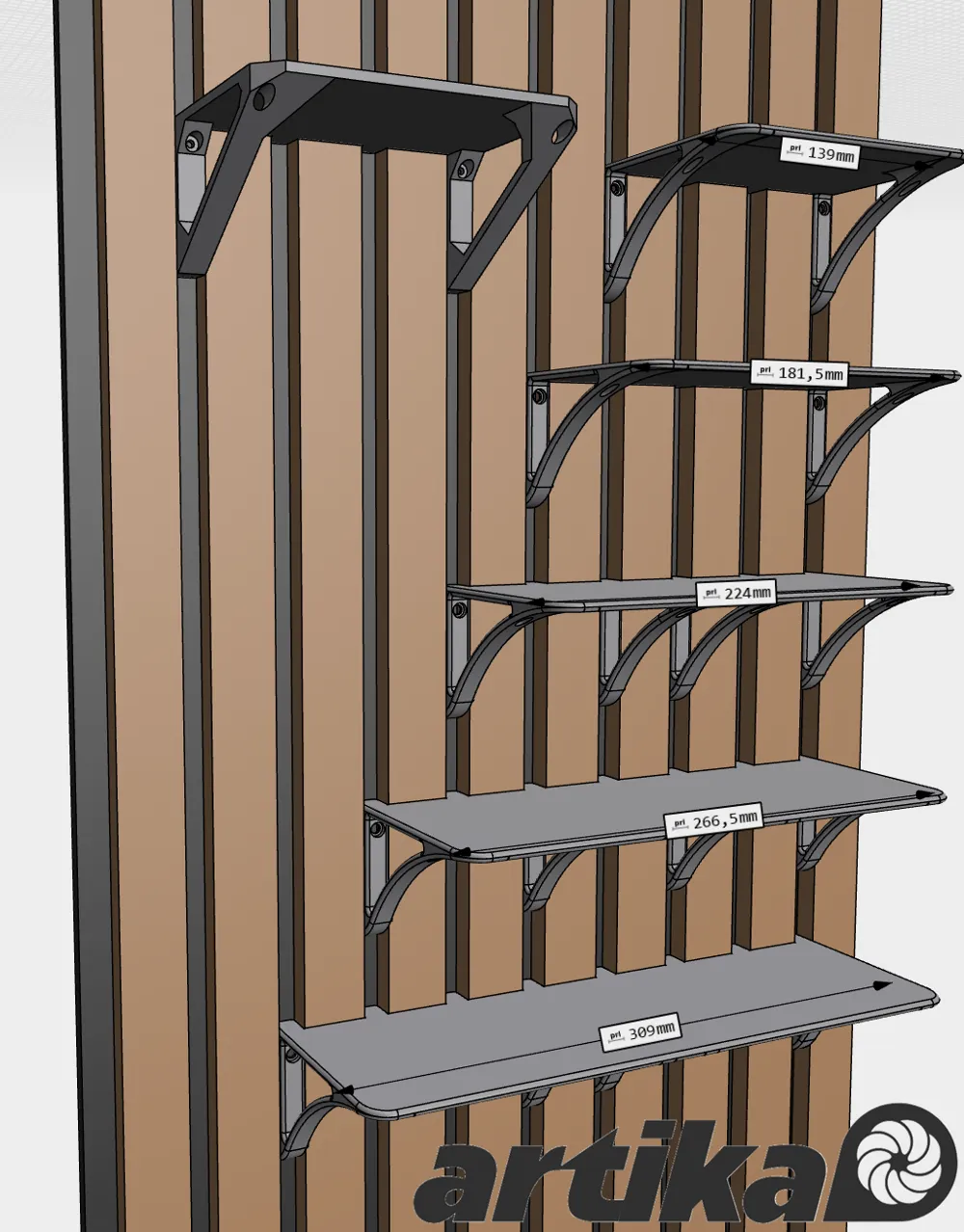

Update: Upon request, versions for panels from the brands Artika, Silent Wood, Tectake, and Juskys were added

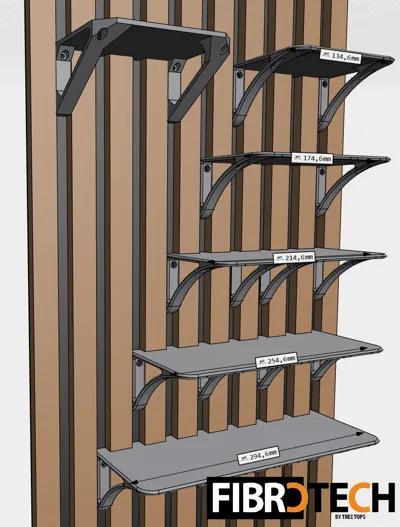

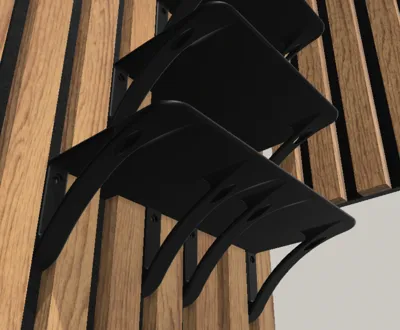

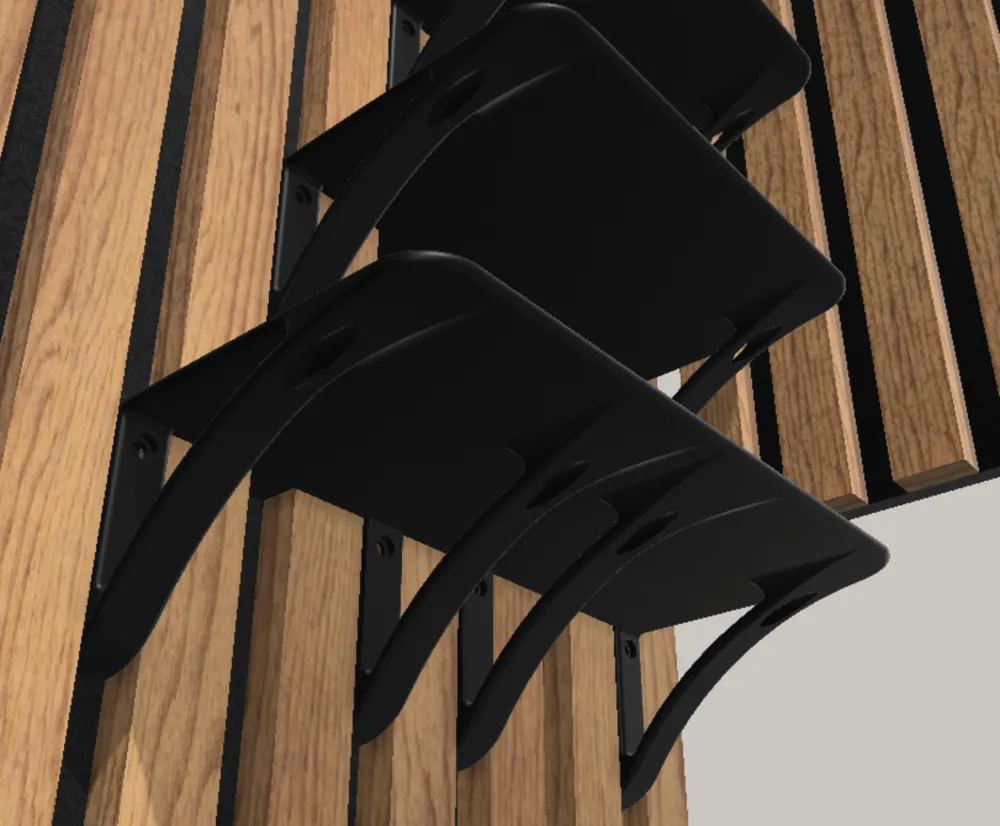

Update: Wider versions of the curved shelf were created upon request

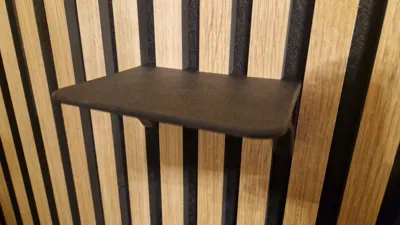

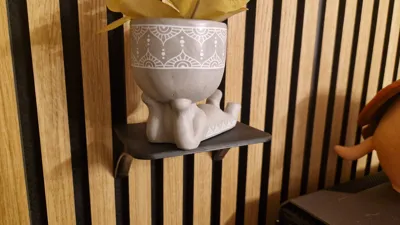

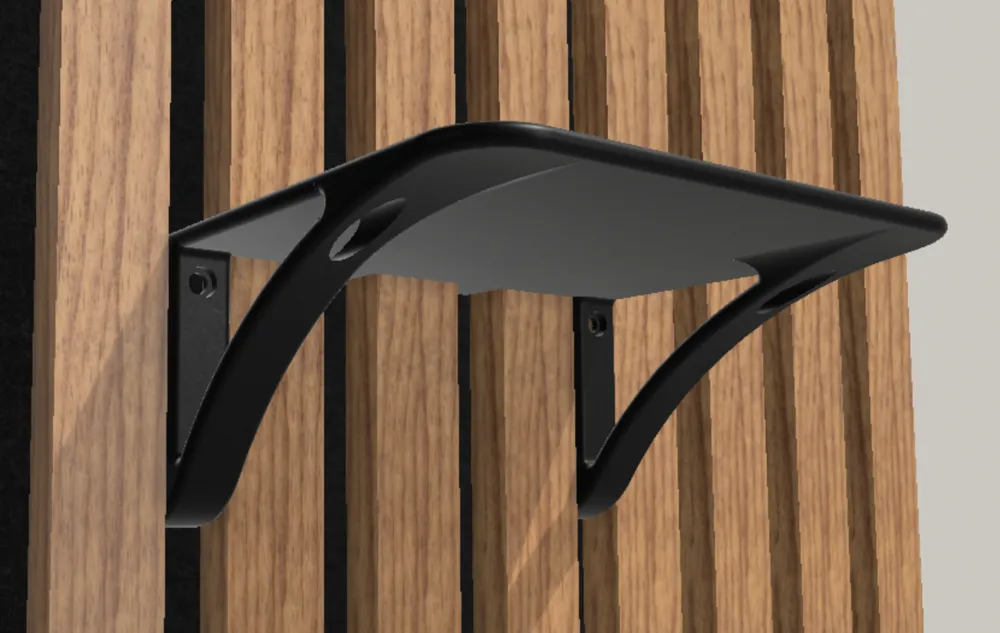

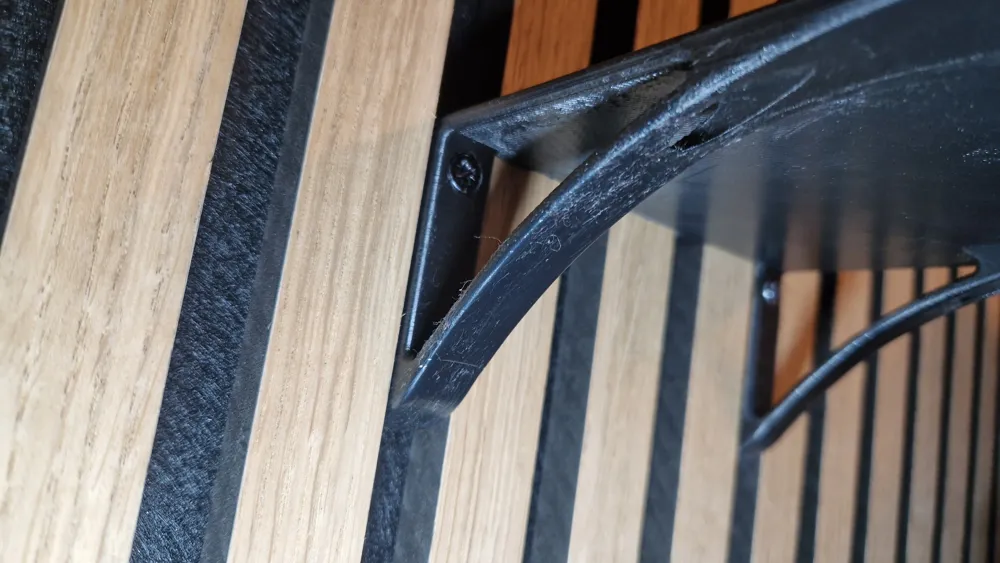

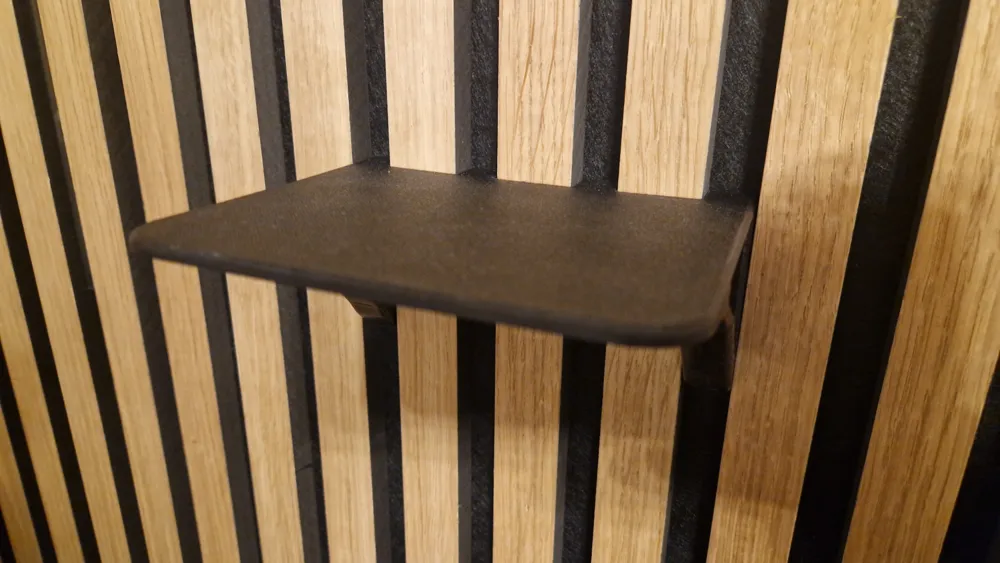

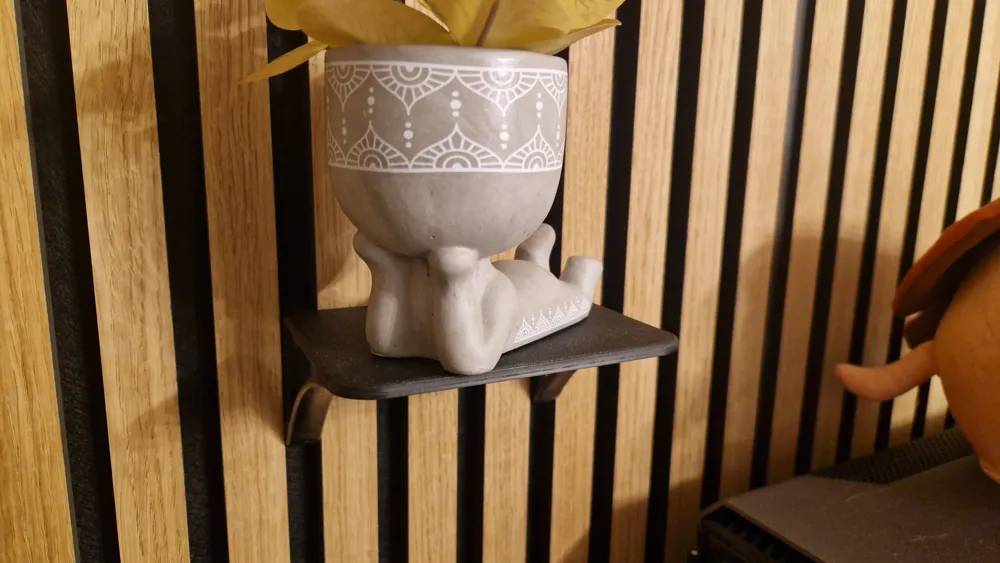

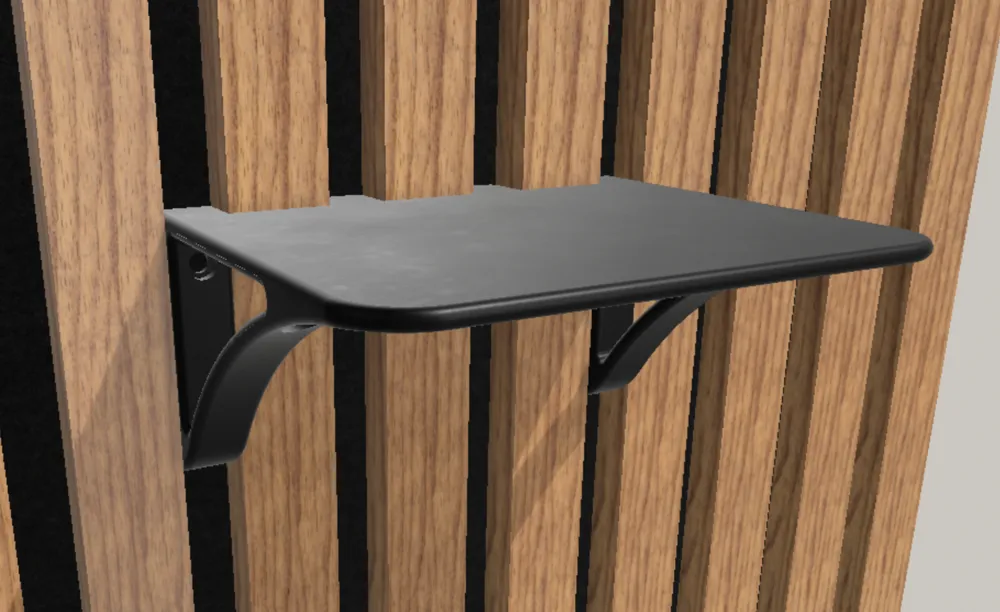

Small shelves which can be installed in the gaps between the wooden strips of the acoustic panels

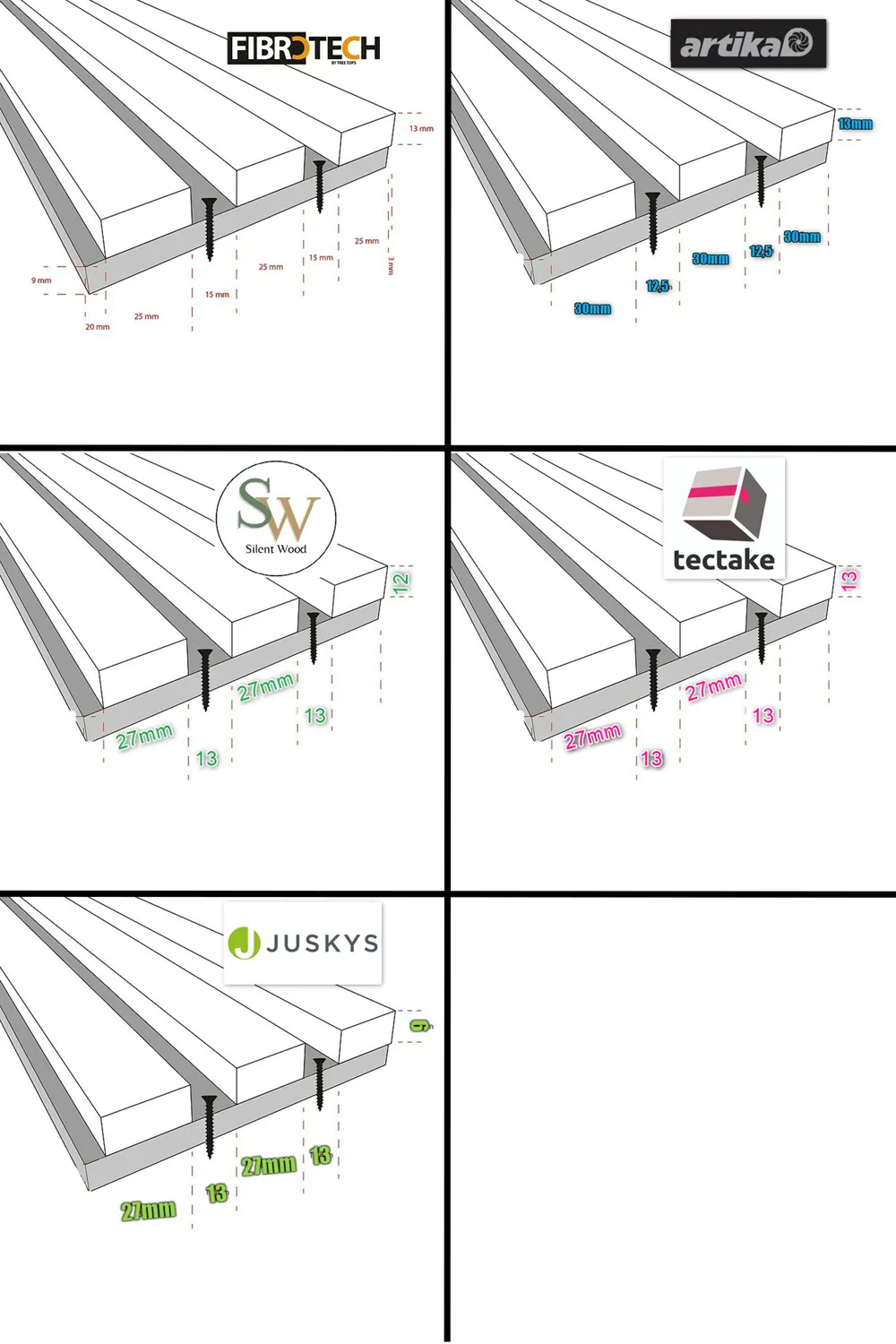

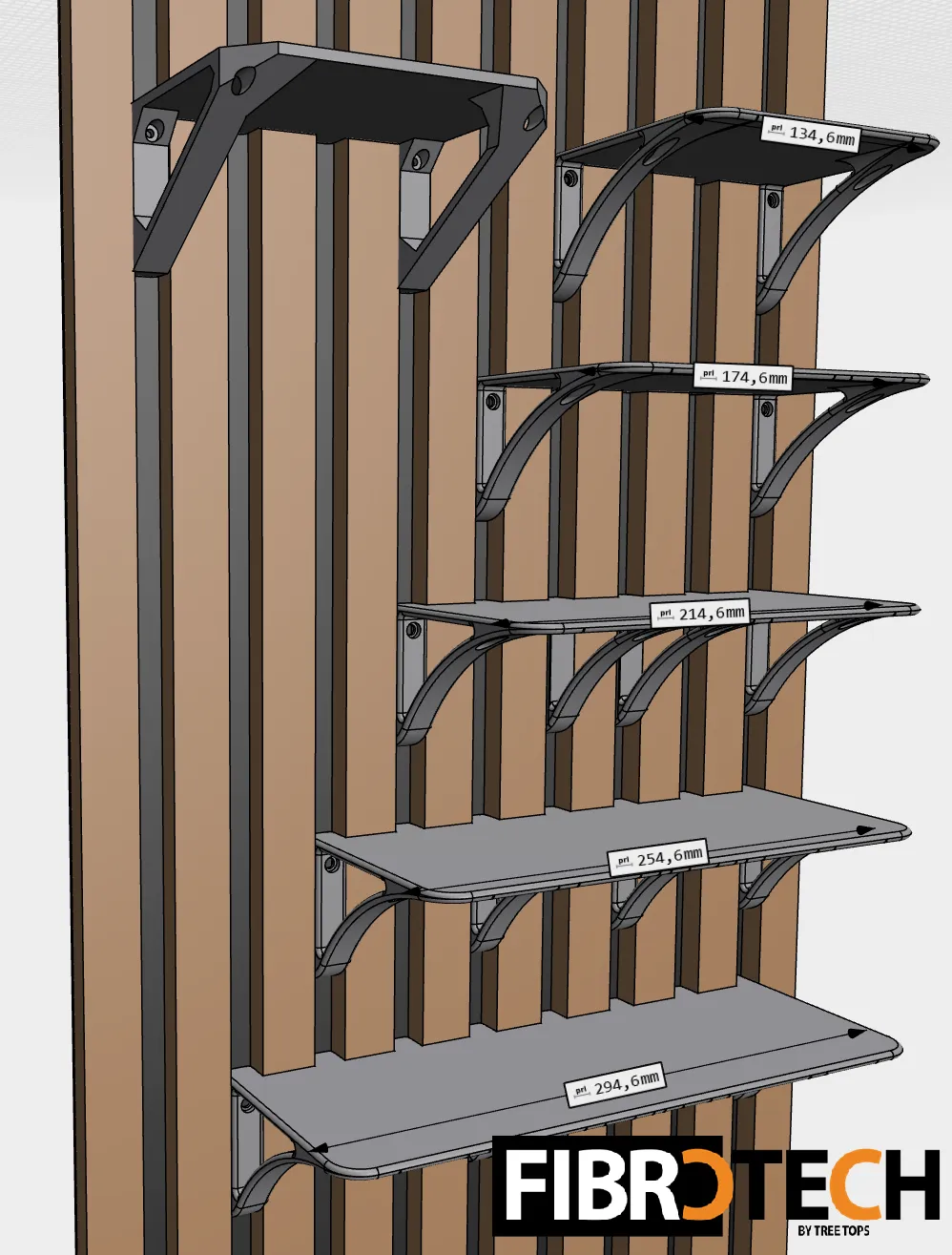

| Dimensions of Panels | Fibrotech | Artika-Sonolok | Silent Wood | Tectake | Juskys (Fibrotech-Quanti) |
| Width of Wood | 25mm | 30mm | 27mm | 27mm | 27mm |
| Height of Wood | 13mm | 13mm | 12mm | 13mm | 9mm |
| Width of free space | 15mm | 12,5mm | 13mm | 13mm | 13mm |
→ Before printing, be sure to measure your own panels and check the dimensions given here
It has happened before that one or more batches from the different manufacturers have deviated to varying degrees
→ Alternatively, send me your desired dimensions and brand
For mounting, I recommend my “Mount-Points”
Acoustic Panel Mounting Point (without drilling and gluing) by Marcy93 - MakerWorld

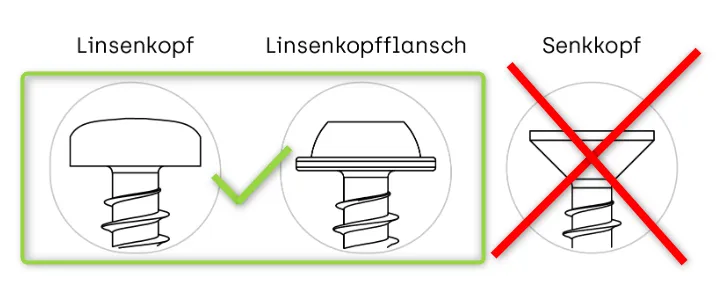

→ Use screws with a flat head, as countersunk screws can split the layers apart if tightened too much
(Also check out my other models on the topic of acoustic panels, Acoustic Panel | Collection - MakerWorld)
[ Please feel free to contact me if you have any questions, interest, or small change requests, also if you want to support me :D https://www.paypal.com/paypalme/clwmarcy ]
