Description

Content has been automatically translated.

Show original

Compatible with IKEA Skadis original accessories and my designed pegboard accessories: https://makerworld.com/en/collections/4150292

5mm thick, with rounded edges for enhanced aesthetics and tactile appeal.

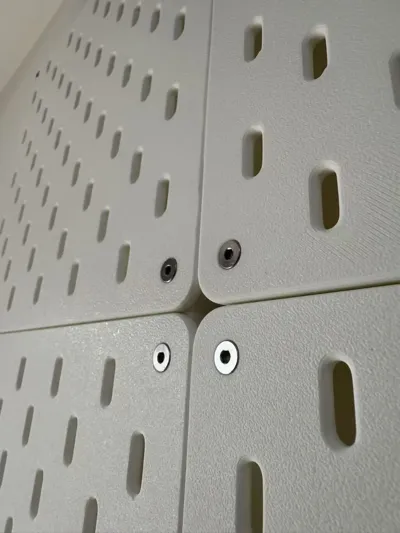

Each panel features four M4 mounting holes (25mm center-to-center distance), reinforced for durability.
The M4 holes are countersunk on one side and flush on the other; countersunk screws are recommended for countersunk side installation.
To minimize warping and edge lifting, a brim has been added to the print settings.
Therefore, post-printing refinement with a scraper and fine-grit sandpaper is necessary.

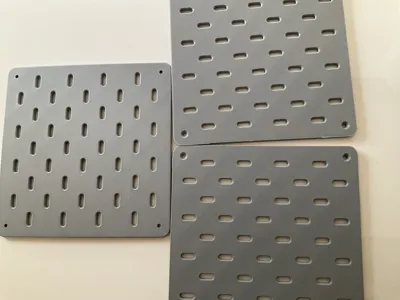

Five sizes are available:
320x320mm: 281g, 7h53m
280x280mm: 216g, 6h6m
240x240mm: 161g, 4h38m
200x200mm: 112g, 3h17m
160x160mm: 73g, 2h15m

Wall Mounting Option One: Hookless Nails
https://makerworld.com/en/models/933666

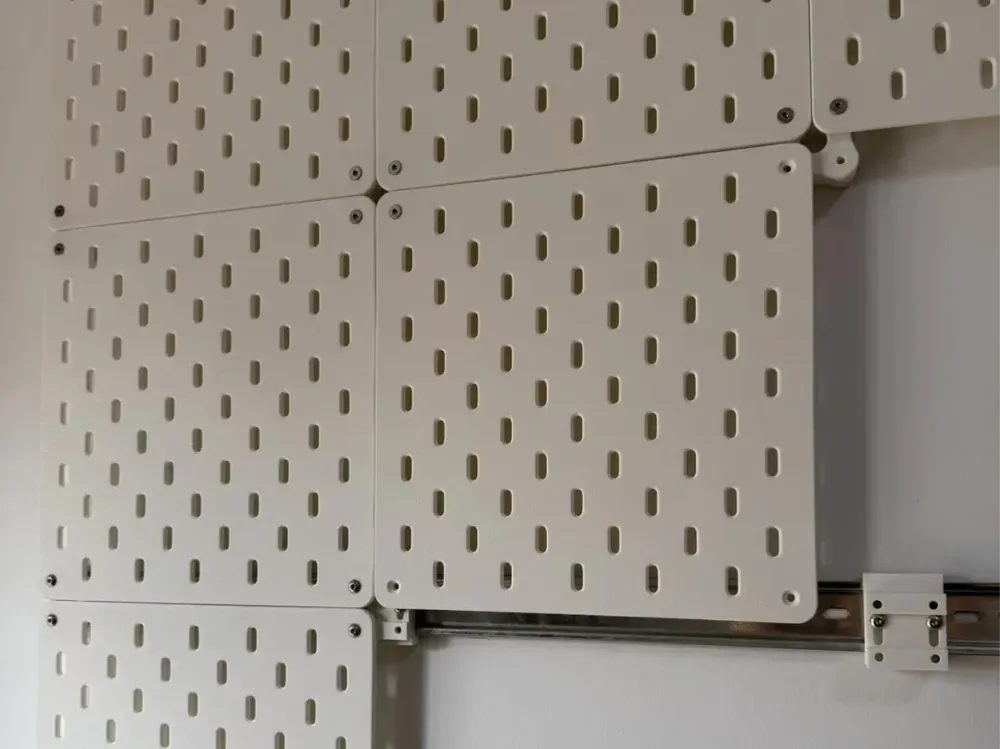

Wall Mounting Option Two: C45 Rails
https://makerworld.com/en/models/935758

2025-03-10: Modified the top print pattern to address surface imperfections.
2025-03-26: Added 280mm and 320mm sizes

Boost Me (for free)

If my model has been helpful to you, please consider boosting me. This is free for you, but it would greatly assist me. Thank you very much!

IKEA KALLAX wall panel

IKEA Skadis

Pegboard

Comment & Rating (630)

@Radkasten

Perfect and stable 200x200

The designer has replied

Show original

@user_562698936

Thank you for the acknowledgment and for sharing the photos, sanding the edges of your plate will yield a superior finish

Show original

@Tharkus02

What material did you use? @Radkasten

@Tharkus02

Replying to @user_562698936 :

which sandpaper to sand?

(Edited)

@a.j.lemieux401

Print Profile

200x200mm

The profile uploader has replied

@user_562698936

Cool，thanks for sharing the photo!

@bigJax

did you design the poop clock? or where did you find it? very neat!

@user_2518848023

Boosted

Printed Beautifully, I'm an Engieer and Designer by trade. I am planning on a pretty cool design using these. hope to start prototyping this weekend. Will post more once I get closer

The designer has replied

@user_562698936

Thank you for your appreciation, looking forward to your sharing

Show original

@user_2518848023

Boosted

What technic do you use to strengthen the holes. I see the 4 cylinders added and different settings but how do you limit height to the height of the plate?

@user_562698936

Replying to @user_2518848023 :

In the slicer software, a cylindrical modifier was added, and its infill density was increased

Show original

@Jar3Designs

Boosted

Print Profile

200x200mm

Genial!!

@Li_m

Hello, could you please share your desktop stand file?

Show original

@Jar3Designs

Boosted

Replying to @Li_m :

https://makerworld.com/en/models/943047-ikea-skadis-stand#profileId-909100

Show original

@Li_m

Replying to @Jar3Designs :

Thank you!

Show original

@Smokedog77

Print Profile

240x200mm，Customized

Had an issue with one hole, but apart from that great print, thank you.

The profile uploader has replied

@Smokedog77

Feel I need to say it was printed from the Bambu Labs Handy App so I didn't change the settings, so this was my fault, but it is still 100% usable and I will be making more.

@user_562698936

The issue might stem from decreased bed adhesion, consider applying glue or adhesive before printing

Show original

@djsente

Print Profile

200x200mm

printed two, works well, thanks!

The profile uploader has replied

@user_562698936

Thank you for your kind words and for sharing the photos

Show original

@El_Patron

Print Profile

160x160mm, A1 mini

Todo perfecto

The profile uploader has replied

@user_562698936

Thank you for your appreciation!

Show original

@GYoowen

Is this MIN's creation?

Show original

@user_562698936

Replying to @GYoowen :

This mini size is printable

Show original

@user_4124612190

Print Profile

240x240mm

Super cool print

The profile uploader has replied

Show original

@user_562698936

Thanks for sharing your photo!

@tayloremery

Print Profile

200x200mm

Fantastic. Turned our makerlab wall into a usable work area.

The profile uploader has replied

@user_562698936

Very beautiful,thanks for sharing your photo!

@user_2918246377

Hello, could you share the interlocking modules with me?

Show original

@apple_ping

Anyone can help ? ＰＬＡ for default setting

The designer has replied

@user_562698936

The build plate adhesion may have decreased. Try cleaning the build plate, or applying some glue before printing

Show original
