Acoustic panel Mount-Point (Drill and Glue free)
Print Profile(5)
Description
Update: Version for panels of the Action brand added upon request
Update: Version for panels of the AkuWood brand added upon request
Update: Version for panels of the Artika and Silentwood brands added upon request

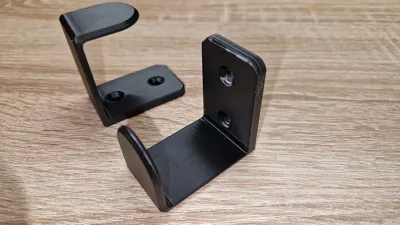

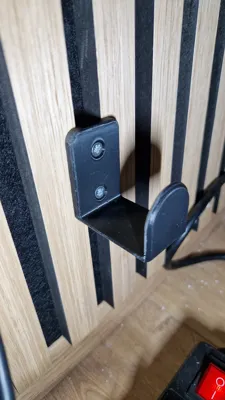

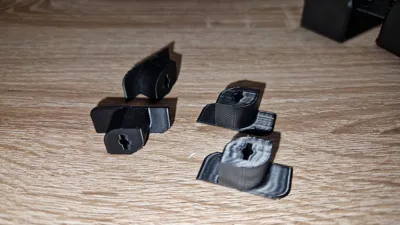

Clamp holders that can be attached without drilling into the gaps between the wooden strips of acoustic panels, allowing various items to be mounted using self-tapping screws

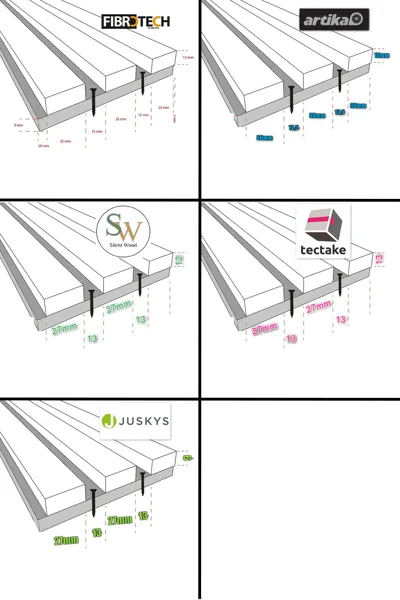

“Fibrotech”
Width of wood = 25mm
Height of wood = 13mm
Width of free space = 15mm
“Artika - Sonolok”
Width of wood = 30mm
Height of wood = 13mm
Width of free space = 12,5mm
“SW (Silent Wood)”
Width of wood = 27mm
Height of wood = 12mm
Width of free space = 13mm
“Juskys”
Width of wood = 27mm
Height of wood = 9mm
Width of free space = 13mm
“AkuWoodPanel”
Width of wood = 27mm
Height of wood = 15mm
Width of free space = 13mm
“Action”
Width of wood = 27mm
Height of wood = 5mm
Width of free space = 10mm
(Reduced load capacity)

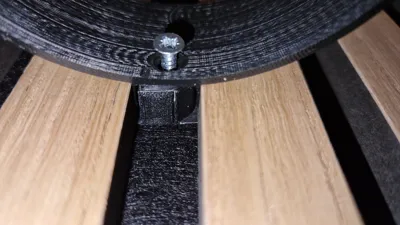

The mounts can be easily clamped between the panels using a slotted screwdriver
Print settings:

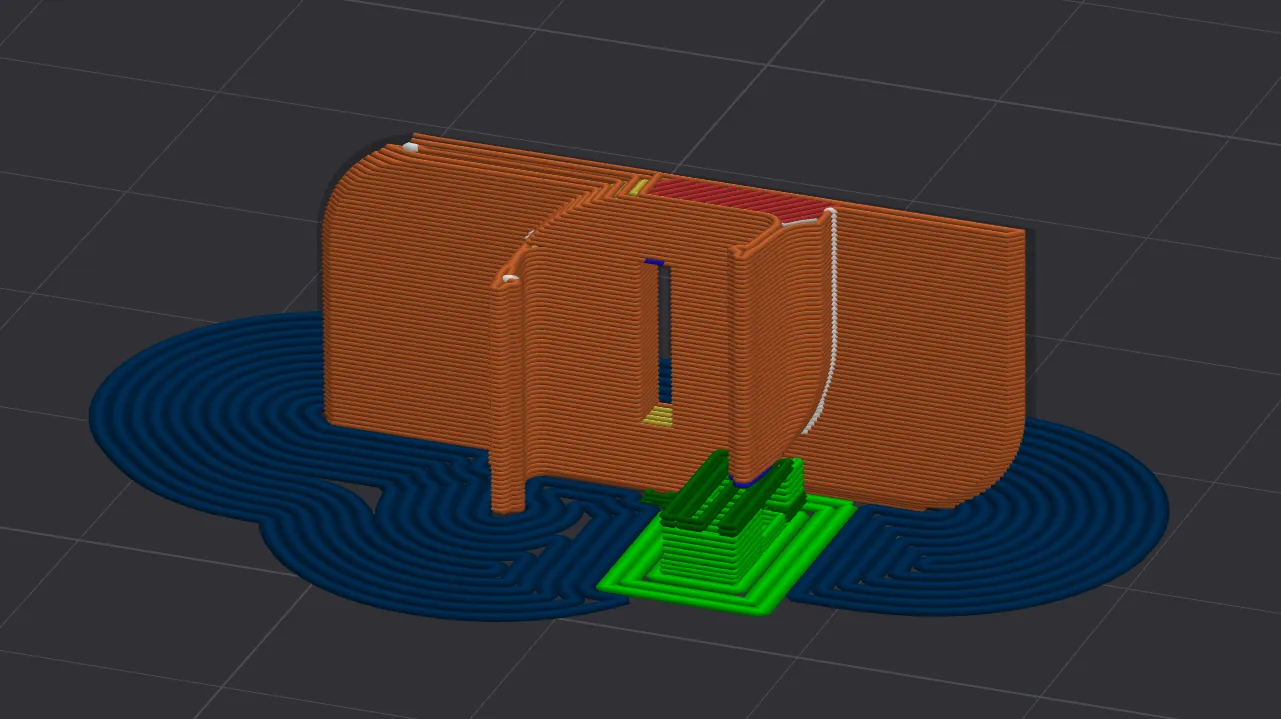

Print lying on its side with supports for the best stability
See also my other creations regarding acoustic panels
Acoustic panel | Collection - MakerWorld
[ Please feel free to contact me if you have any questions, interest, or small change requests, also if you want to support me :D https://www.paypal.com/paypalme/clwmarcy ]
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
