Parametric Music Box Cylinder
Print Profile(0)
Description
Some time ago I supported @Rossero with a detail of his project (♫ Mini ♪ Marble ♫ Music ♪ Machine ♬).
This has resulted in this parametric designer for music box cylinders.
The goal is to provide any melodies, then create them to fit music boxes (like https://makerworld.com/en/models/517401#profileId-437709
or https://makerworld.com/en/models/912536#profileId-873704 ).
Perhaps someone could use this parametric model for an improved version with a metallic tone comb.
In the current state, the following things are implemented:
* Currently there are three test melodies and two real melodies.
* The melodies can be placed on the drum clockwise or counter-clockwise.
* The drum is defined by its circumference, length and wall thickness. The length may be increased by the width of the pins and the number of notes.
* A free area can be defined at the top and bottom of the drum where no pins are applied.
* The drum can be hollow or filled.
* Each pin on the drum corresponds to a note. In the direction of the cylinder axis lie the n notes. In the direction of rotation lie the t time points.
* A melody is described by an array of arrays (n + t), where a 1 creates a pin.

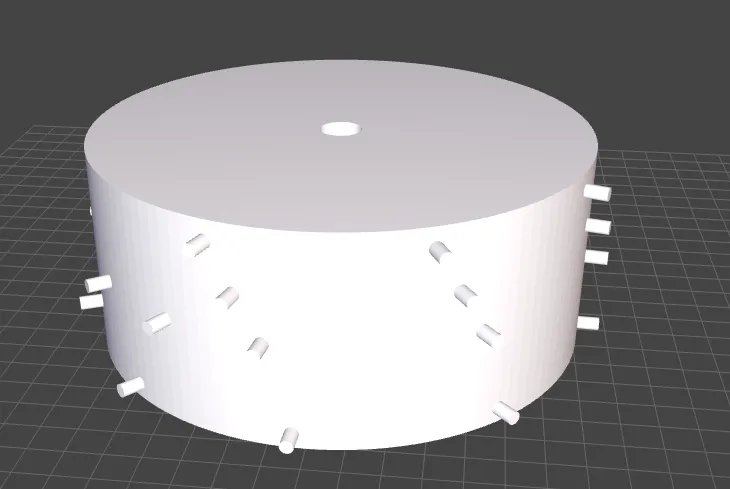

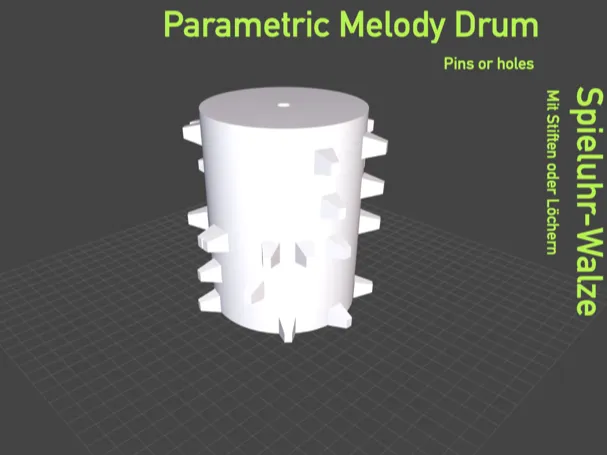

* The pins on the drum can be created in four different shapes (cube, cylinder, pro smoid or cone).
* The pin height is set relative to the outer diameter. If the value of the pin height is negative, a recess of the same shape is created instead of a pin.

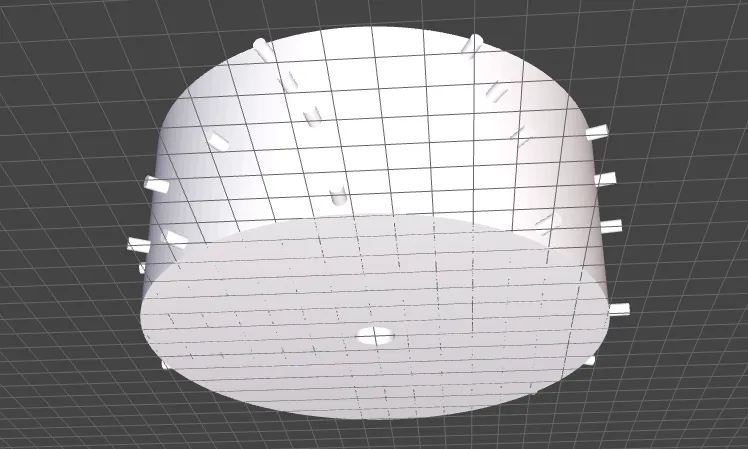

* The bottom of the drum can contain a (centered) hole.

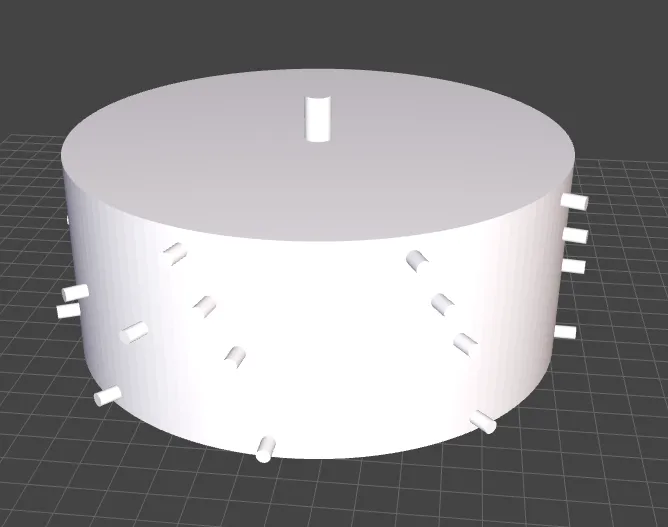

* The lid of the drum can contain a (centered) hole or a (centered) pin to which the drum can then be attached. If a hole **and** a pin are specified, the hole takes precedence and the pin is ignored.
Boost Me (for free)
If you like the model, I would appreciate a boost.
Otherwise, I would also appreciate it if you follow me so you don't miss any of my new models.
Further functions and ideas are planned and will be implemented gradually (depending on the feedback).
* more melodies
* better support for printing (splitting and tilting the rotating cylinder for printing)
* even more melodies
* adaptations for existing music boxes
* Adjustments so that music rolls can be created for the ♫ Mini ♪ Marble ♫ Music ♪ Machine ♬
