QRD Sound Diffusion / Dampening Acoustic Panel
Print Profile(1)
Description

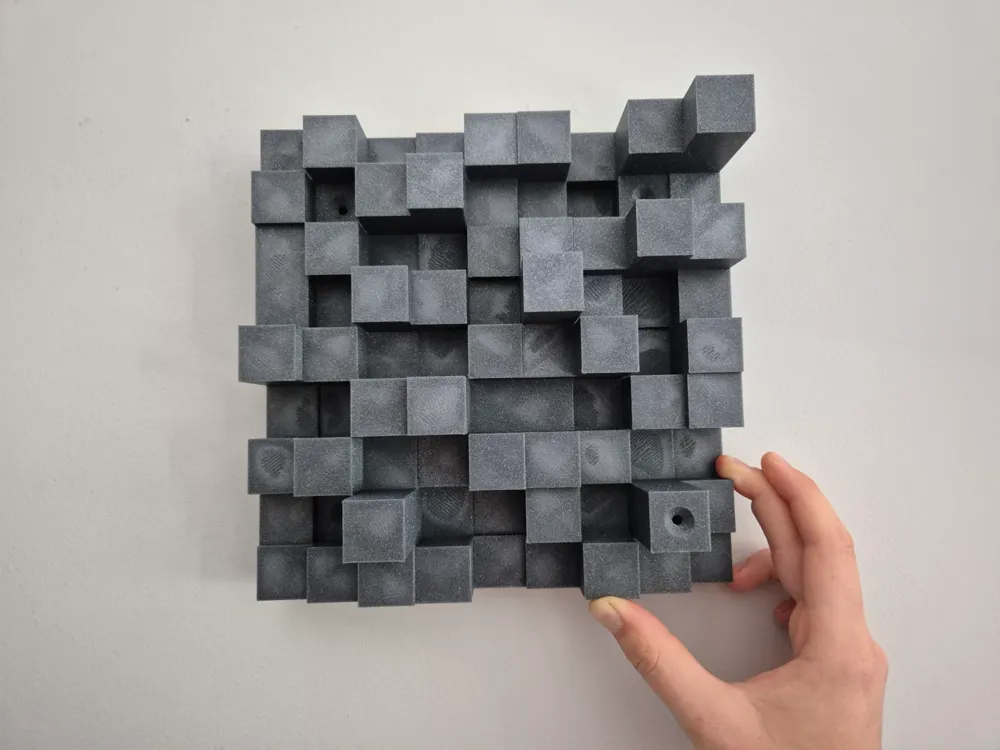

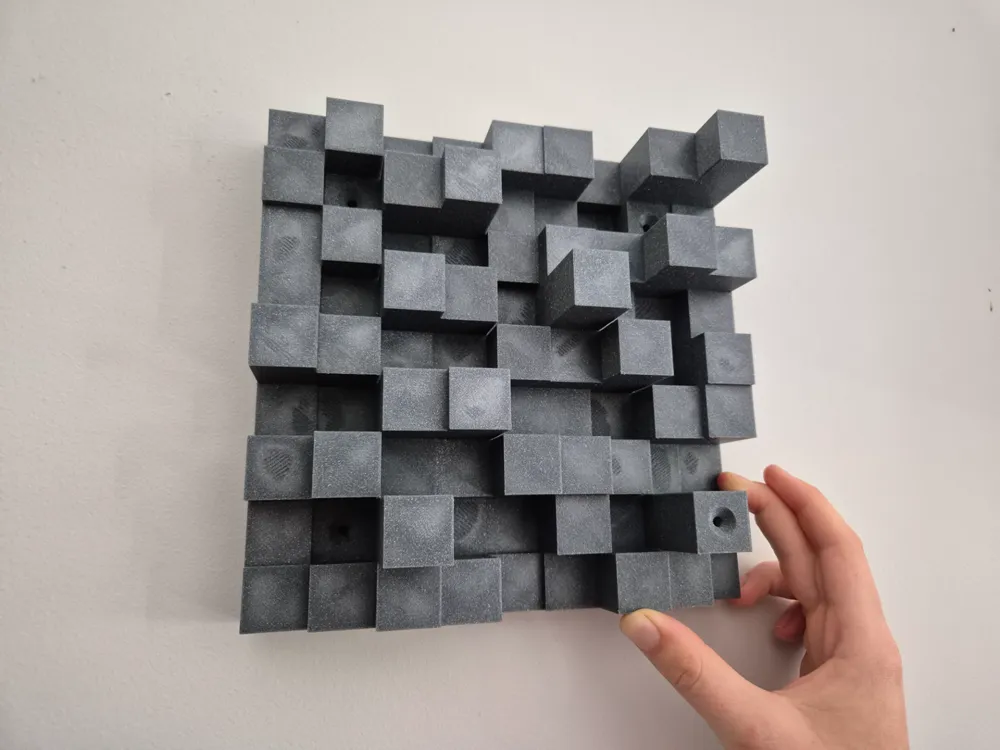

My take on a Sound Diffusion Panel. Cant guarantee how effective it is but it sure looks like the proper ones. Added two versions 225x255 mm and 180x180 mm in case you use an A1 Mini.
It can be screwed into the wall (5.5mm countersunk holes) and aligned with magnets on the side if desired (magnet size 7x2mm). I printed it in PLA to test.
Update: A low-profile version was added for both 225x225 mm and 180x180 mm if you want to save material and time. I also added a print profile that has ironing disabled.
Happy printing!
