A1 MINI Extruder Motor, Z-Axis Motor Auxiliary Heat Dissipation and LED Strip Lighting Scheme

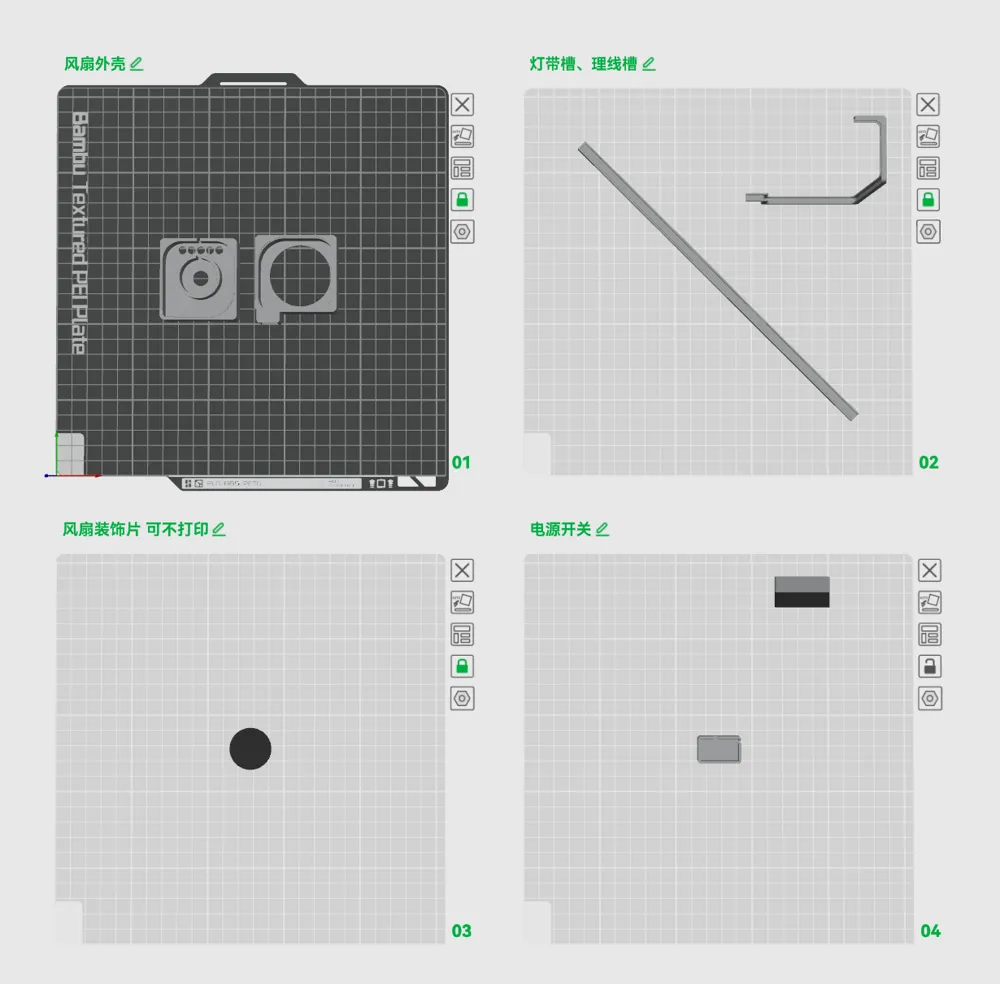

Print Profile(1)
Bill of Materials

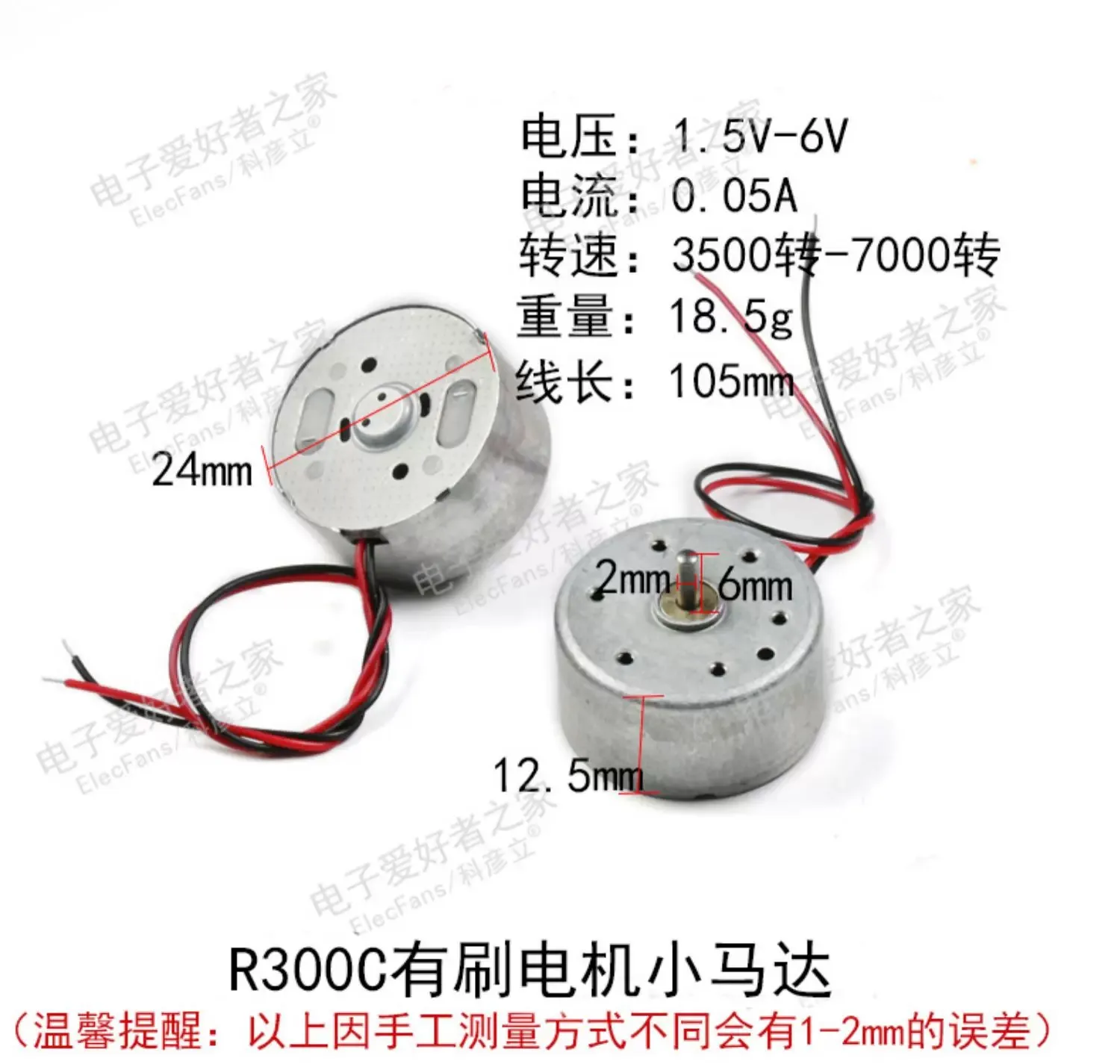

- R300C有刷电机小马达 x 1:

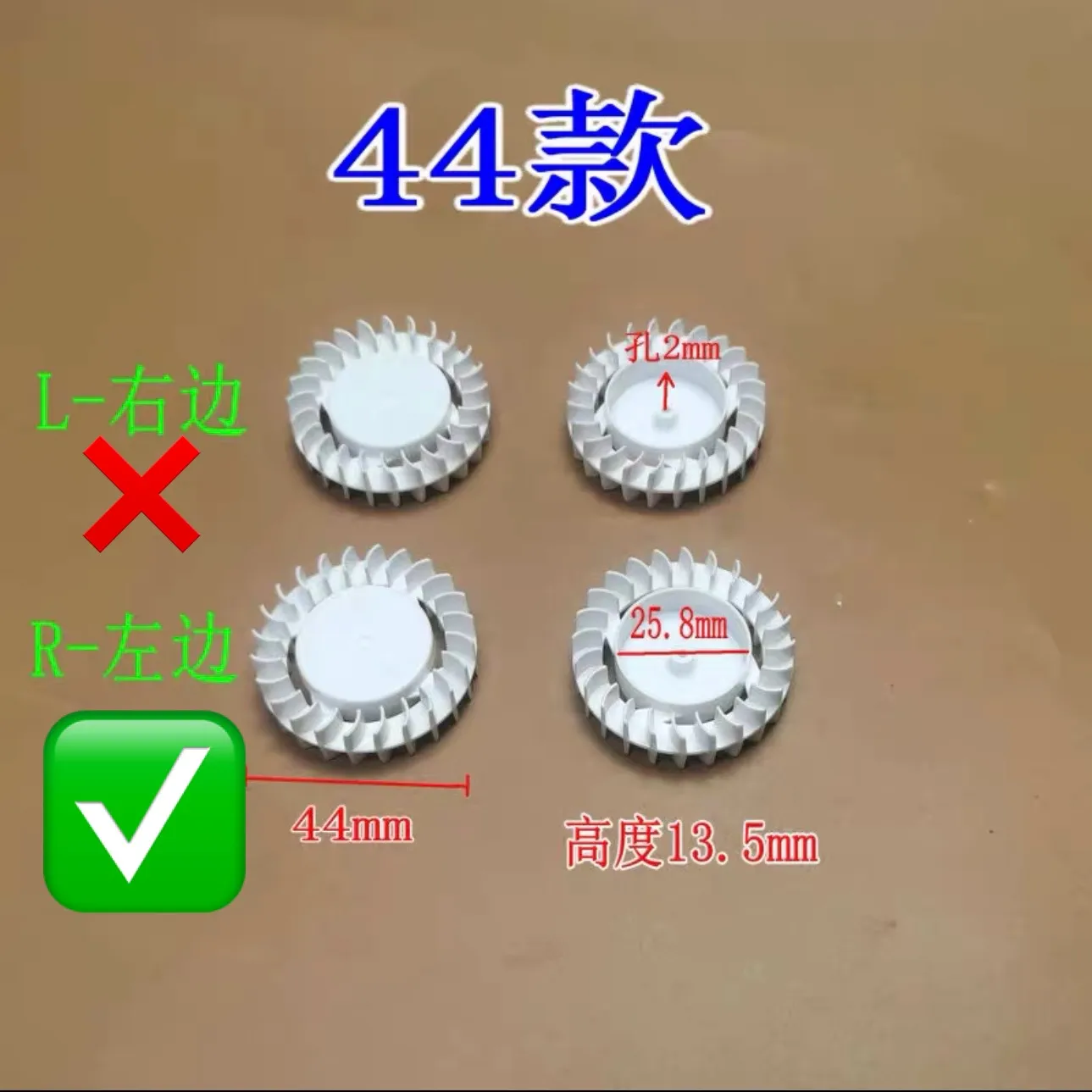

- 44款R-左边扇叶 x 1:

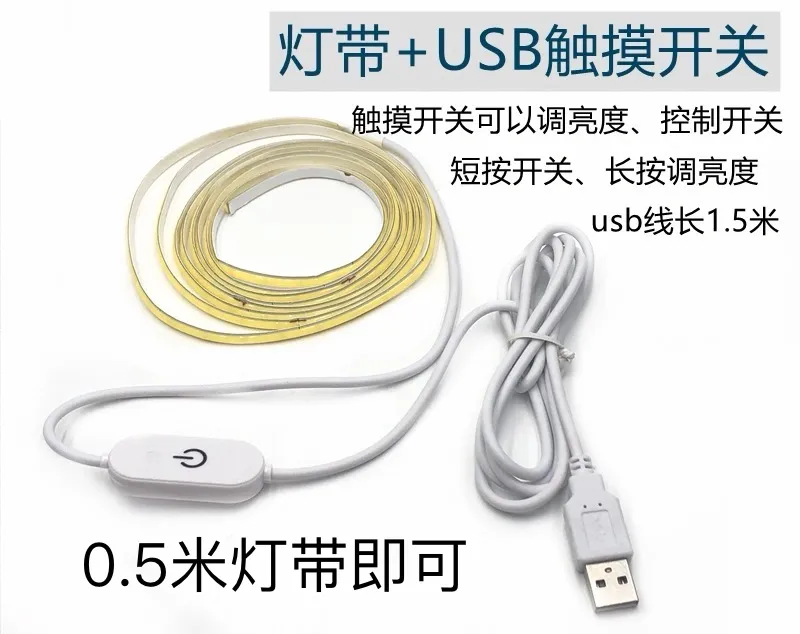

- 0.5米+USB触摸开关灯带 x 1:
Description

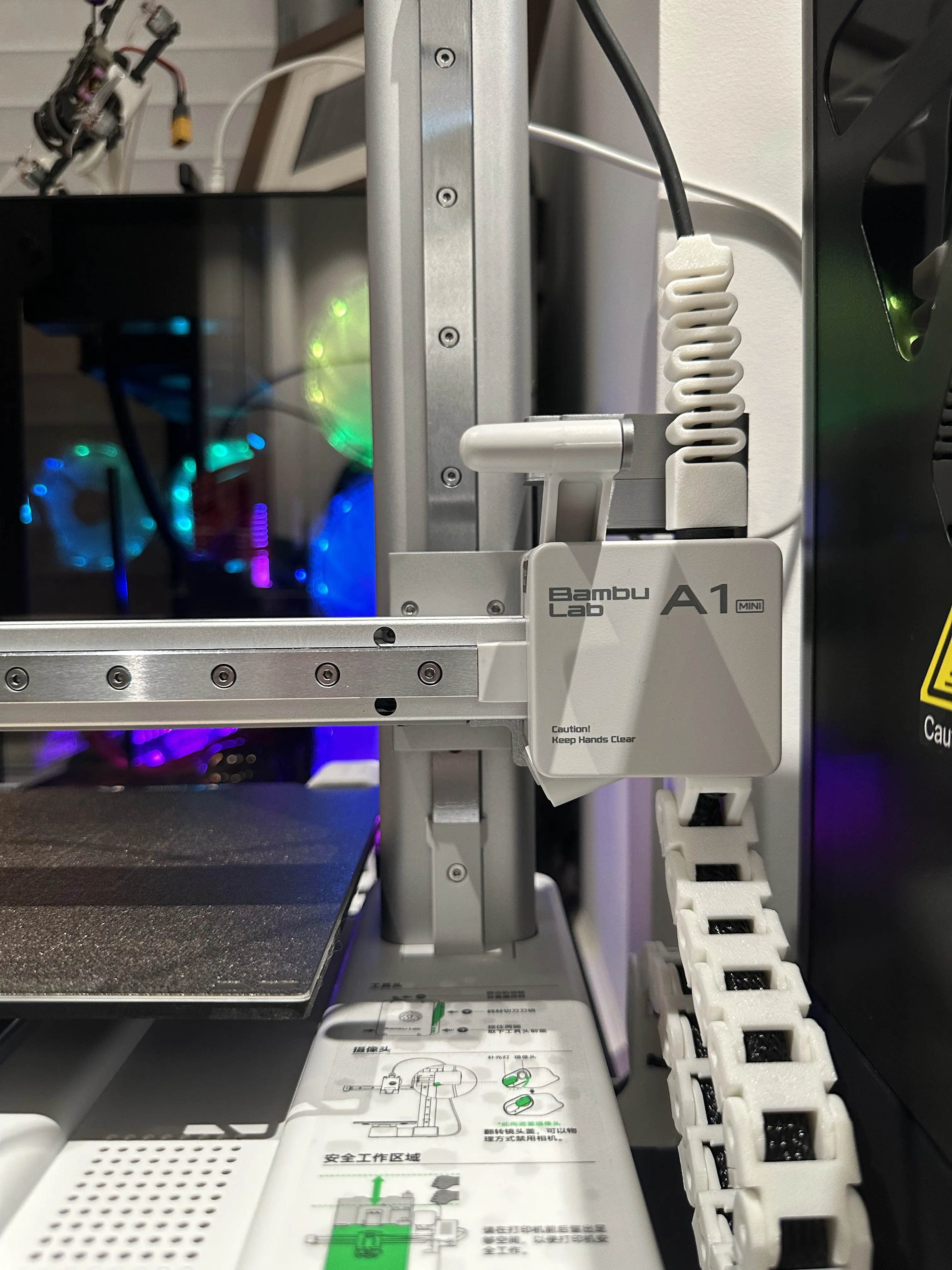

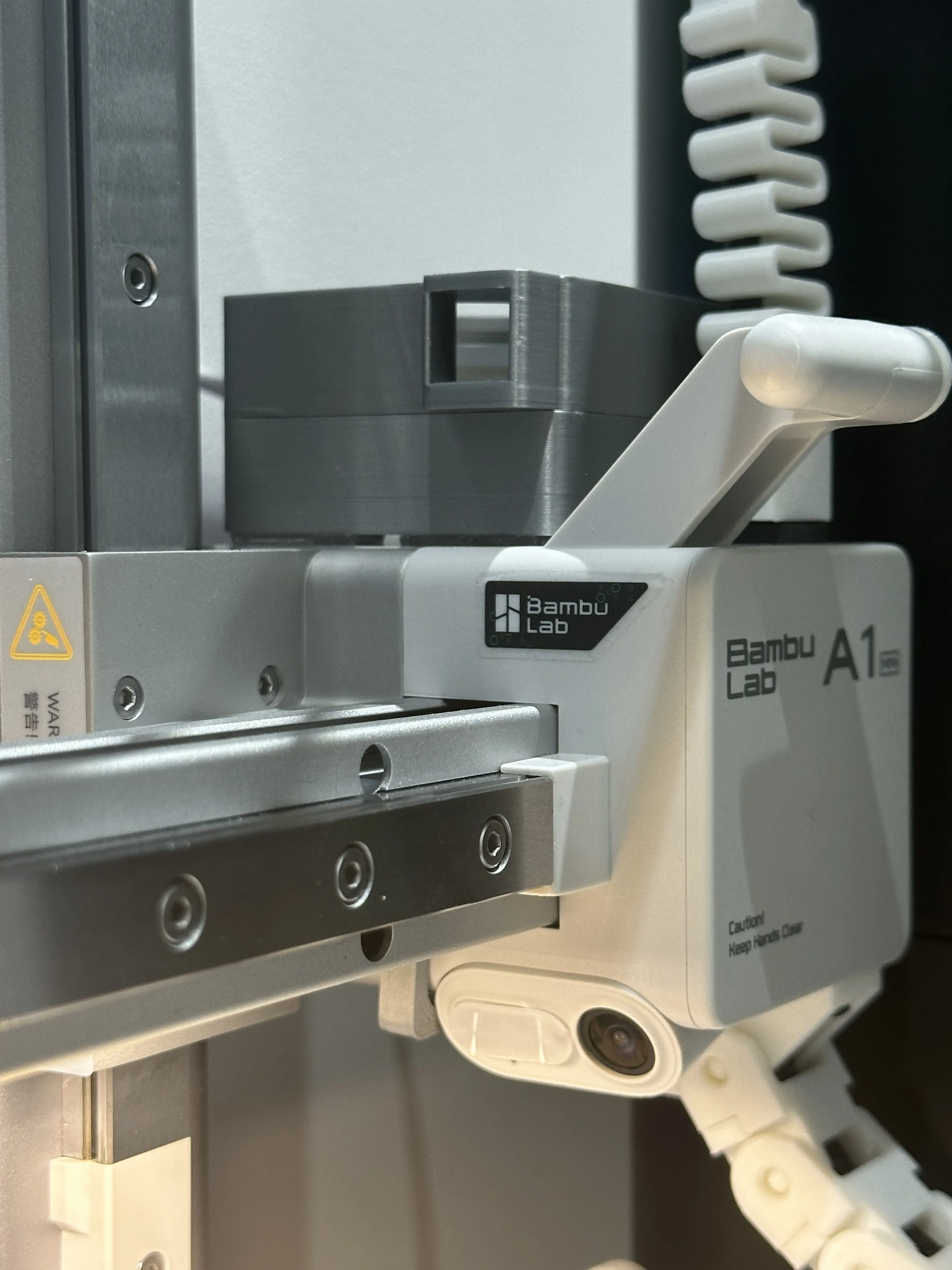

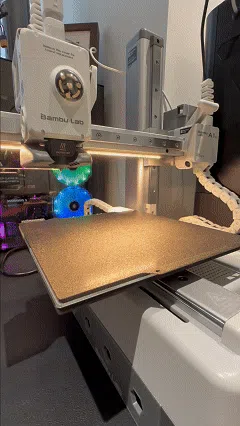

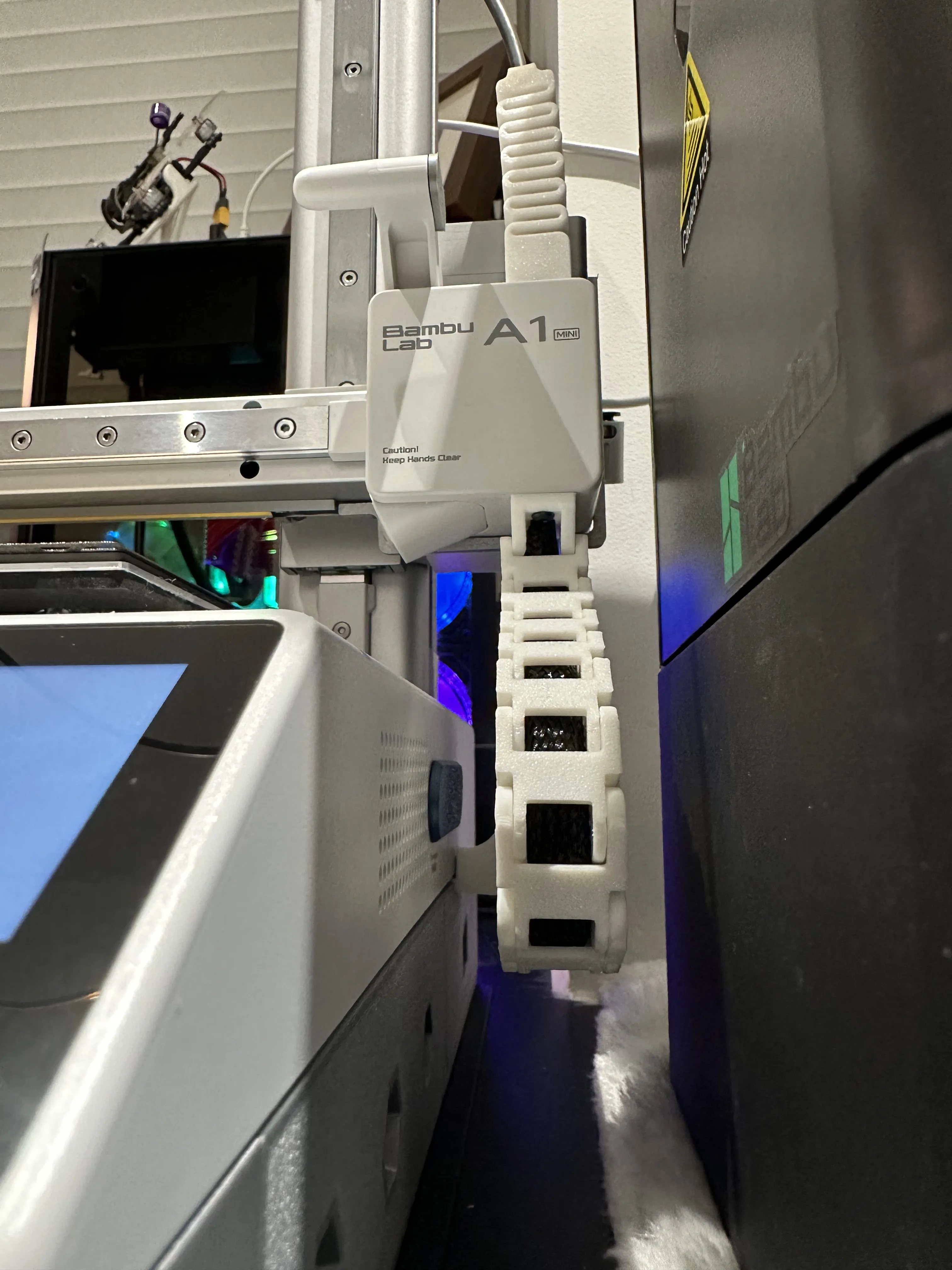

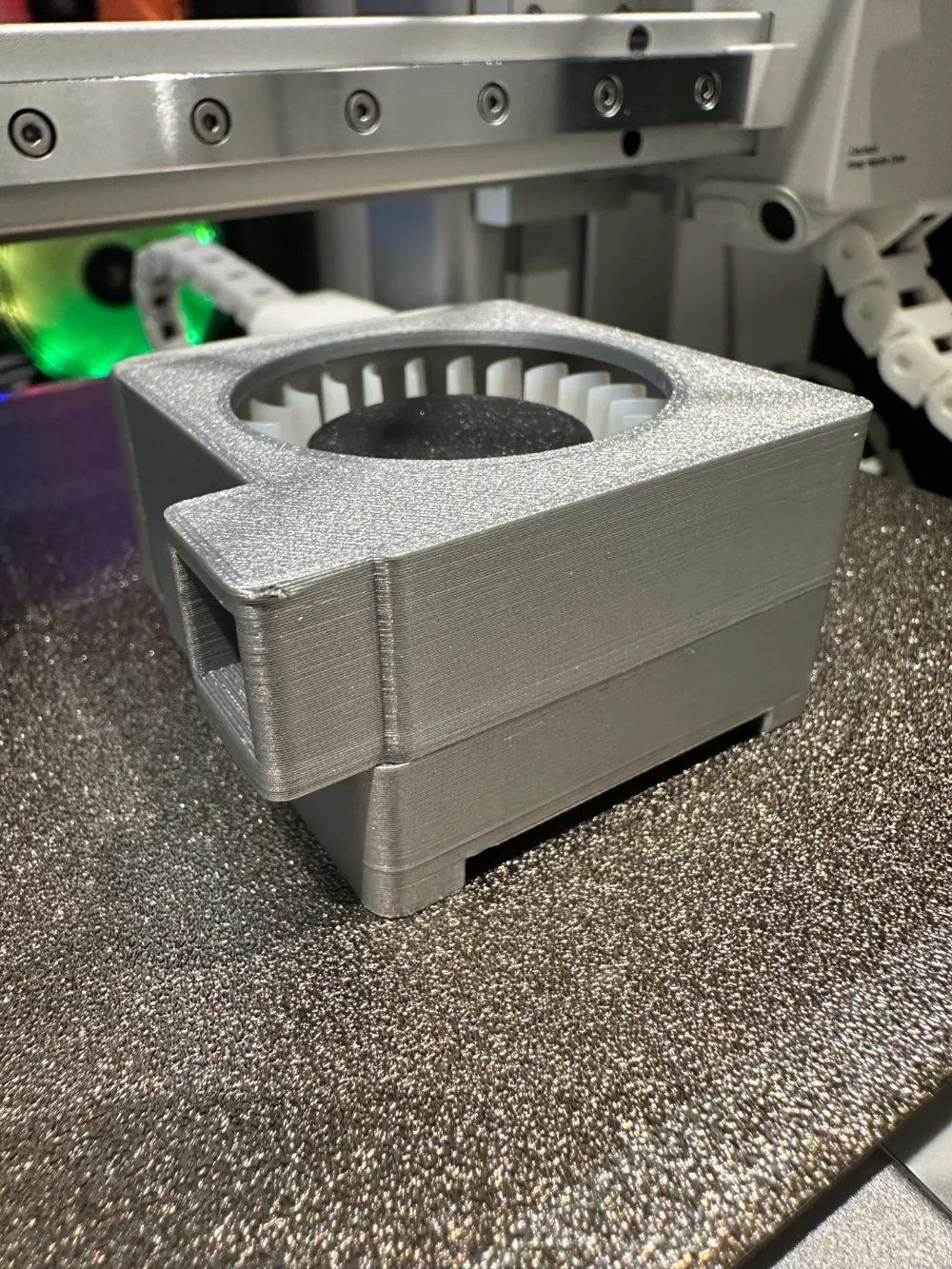

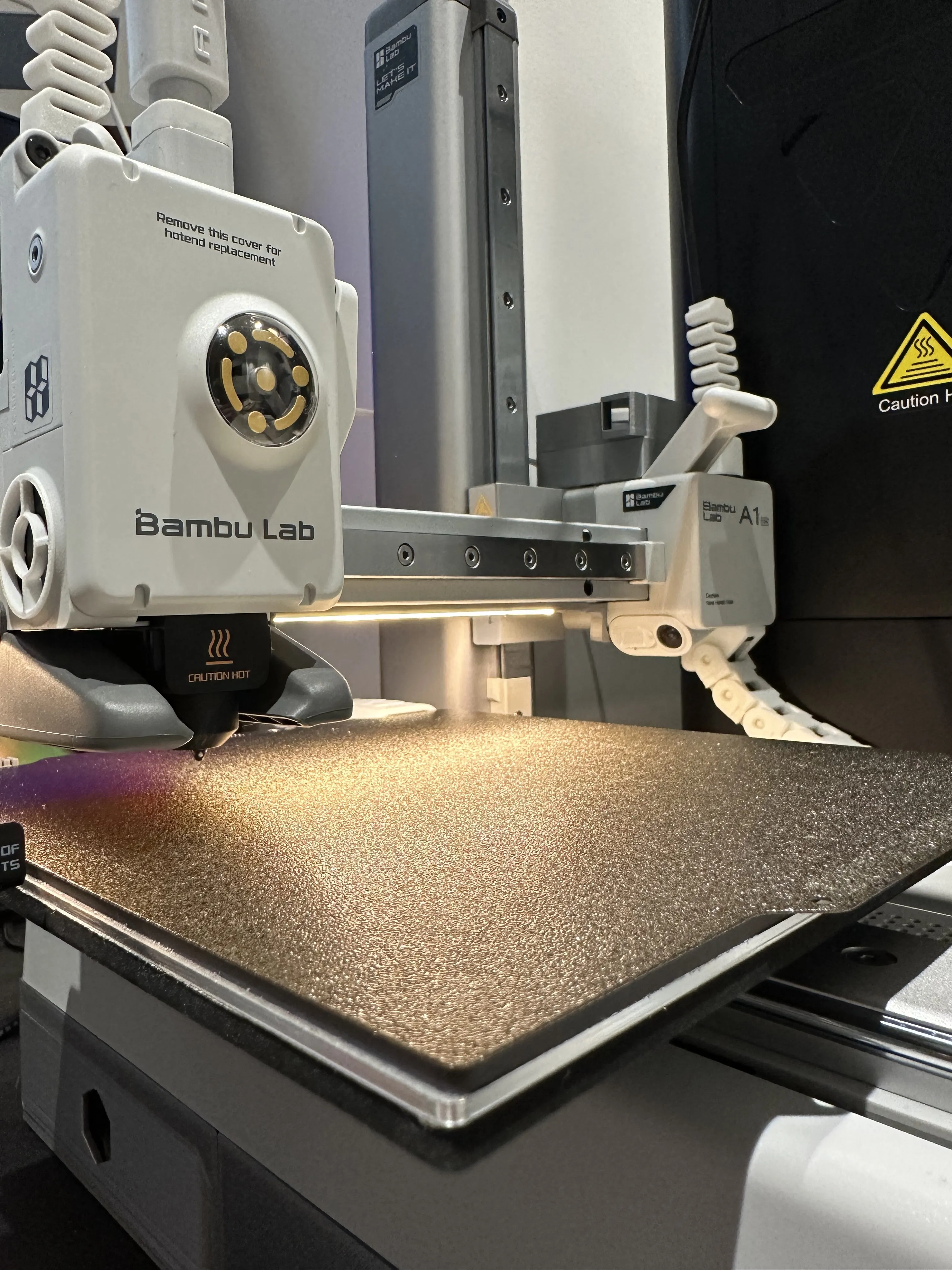

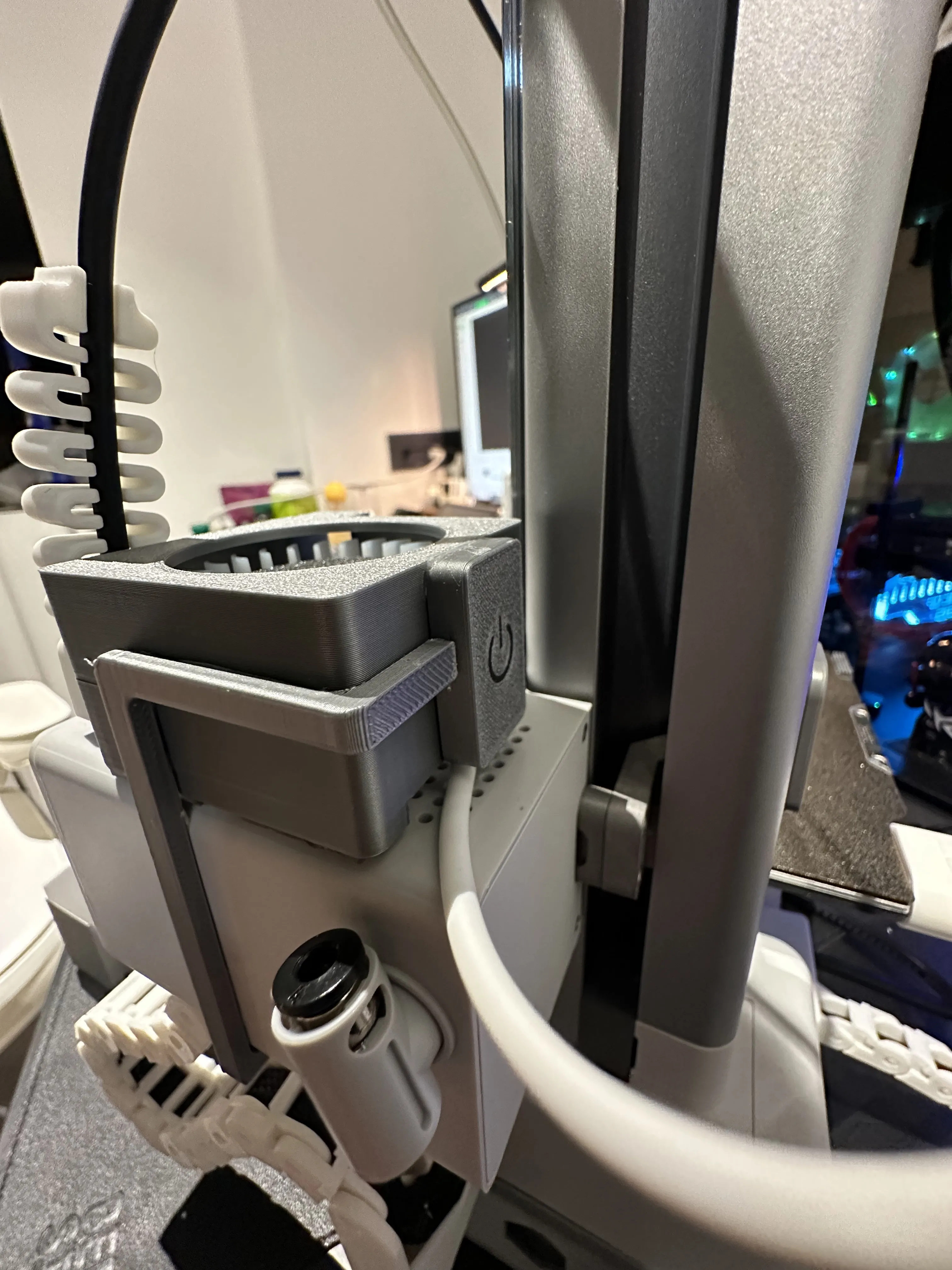

The fan is installed above the A1 MINI Z-axis motor, mainly for auxiliary heat dissipation of the extruder motor. The bottom of the fan also has an air outlet, which can also provide auxiliary heat dissipation for the Z-axis motor. A line of LED strip was added at the gap of the X-axis guide rail, which solved the problem of insufficient lighting of the original machine. It was collected into the fan switch through the wire groove. Different from most heat dissipation schemes that add fans to the extruder, it is more reasonable to place it at the Z-axis.
You can choose whether to add LED strip installation.
Here is information about the fan motor, fan blades and USB touch switch LED strip, which can be purchased online.
You can visit the following URL to watch my video: 【My A1 mini is perfect. What about yours?～】https://www.bilibili.com/video/BV1m3mWYzE7Q/?share_source=copy_web&vd_source=98ee5870e5db6741e7422d6dcfc13a68
