Description

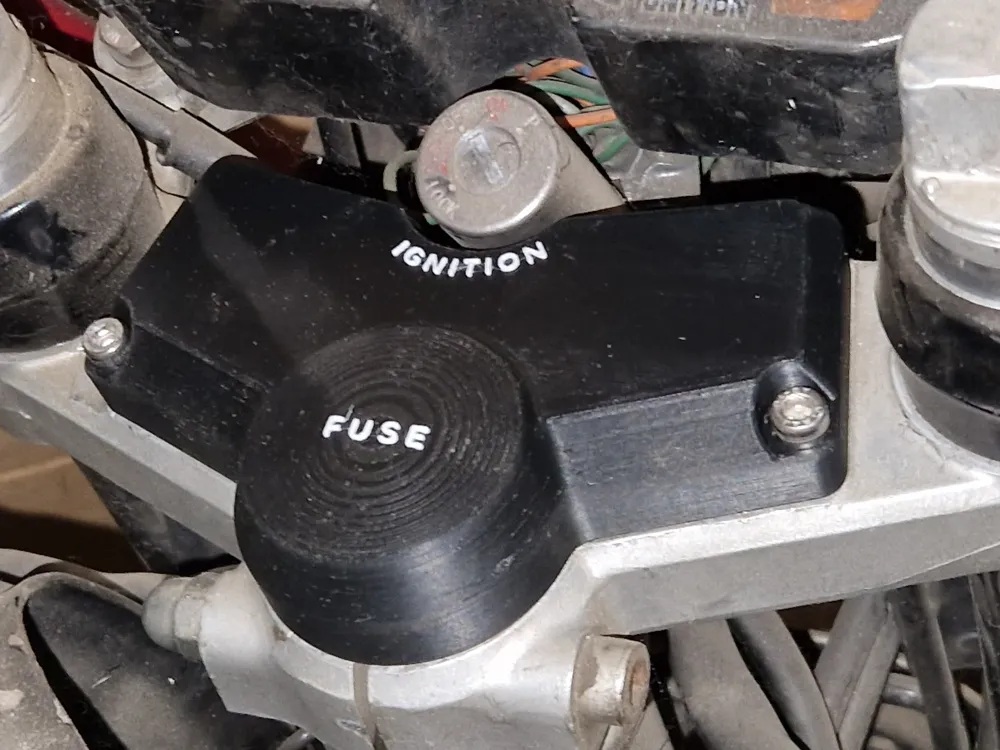

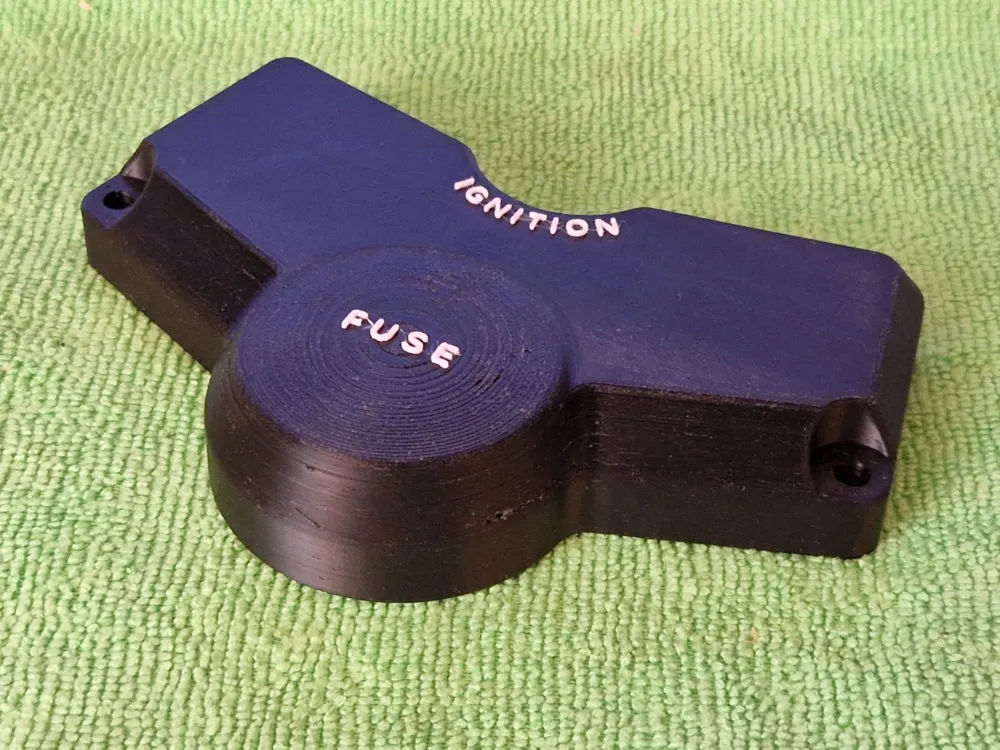

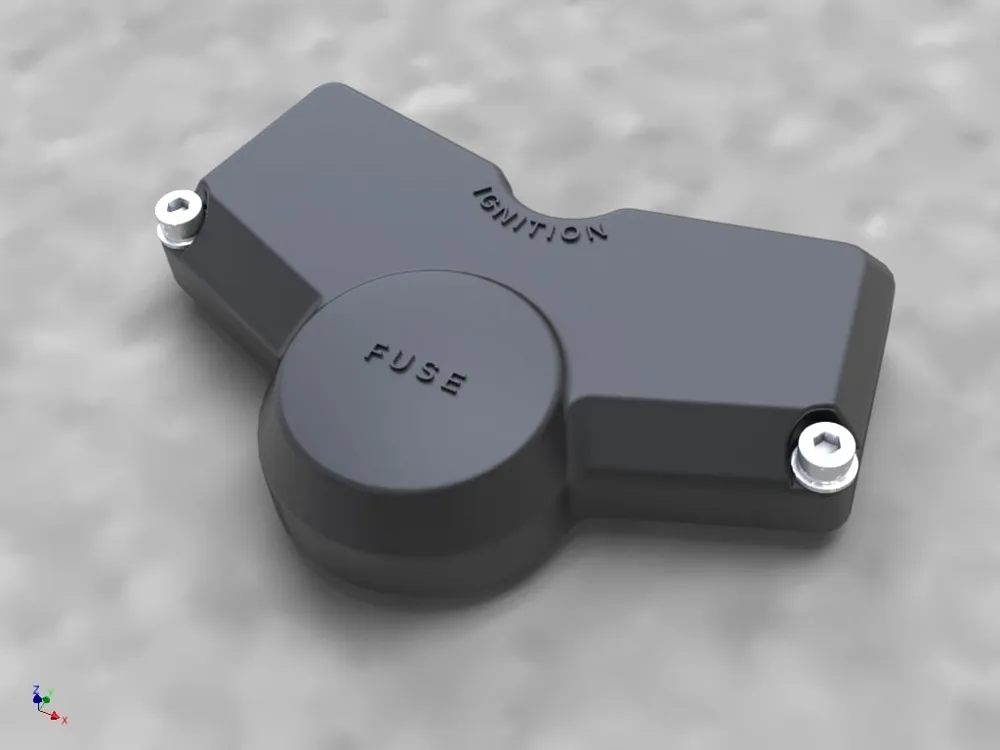

From My old Honda motorcycle missing the fuse cover. Unfortunately, a rare and unobtainable piece. Therefore, the only photograph can be found, I drew back a suitable model.
I hope other old Honda also helps my job.

Printing does not require any extra settings.
Model work with all nozzle and layer size.
Necessary support.

As a base material, I recommend ABS or other resistant material used in the vehicle industry.

It might be a good idea to use the adaptive layer thickness to remove the layers of the spherical surface of the upper part.

Perhaps another method is to tilt the model at 15-30 degrees, the layers still give a nicer surface, but the print will take longer.
