AMS Lite Veritcal Top Mount Alternative v2

UPDATE (11/30/2024) - V3 is now available https://makerworld.com/en/models/837398#profileId-782947

UPDATE (10/3/2024) - made v2

Fixed a few issues with the model

• Made shorter so should fit print bed better - might need to rotate the model around to fit better
• Added cable channel

I deleted print profile is for the 1st version. Have not yet made new print profile as I made physical mods to my print to accommodate cable and did not yet reprint.

----------------------

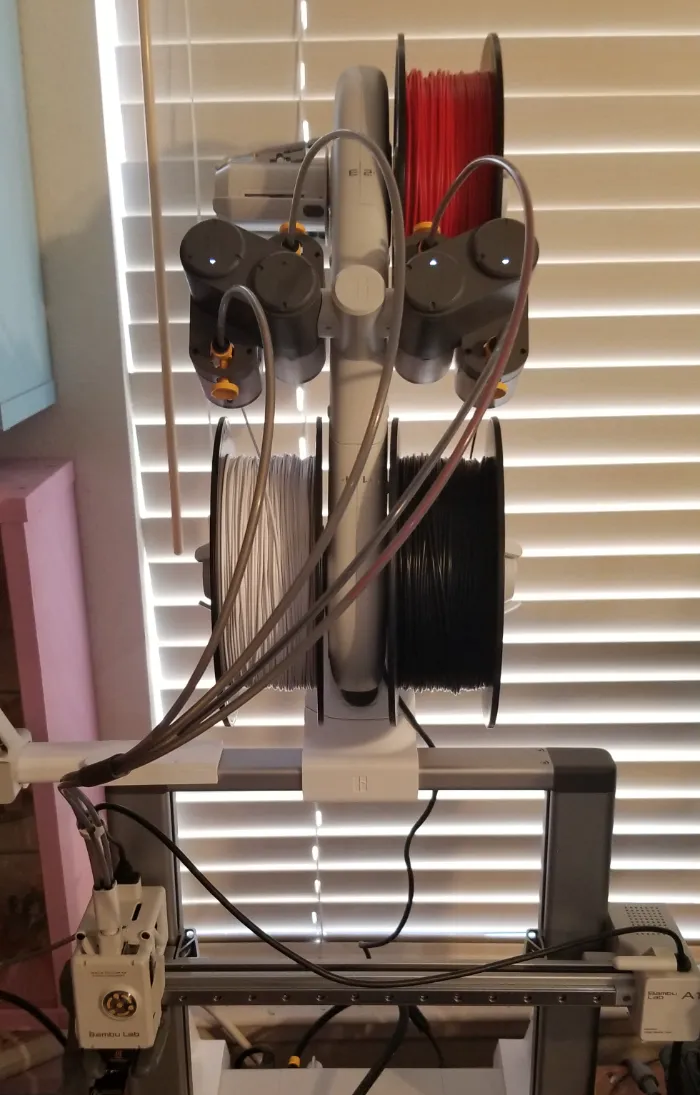

Need to mount my AMS Lite above but noticed that accessing the rear is very difficult using AMS Lite Top Mount for A1 and I want to incorporate the ULTIMATE Filament Spool Enclosure which would make using the rear mounts impossible where I have my A1 set up.

Rotating the mount 90° would make it easier to access from both sides and vertical mounting would not work with the Enclosure so looked for a bracket that I could hold onto the side of the AMS rather than the side and then angled it so it would fit the A1 print bed.

Using 3D Builder:

1. Sliced the Lower Half of AMT Top Mount to just collect the lower interface section
2. Rotated so the upper section was on the build plate and then lifted it until there was enough clearance and extruded down
3. Re-rotated the piece back to original orientation
4. Slided both sides of the AMS Lite Stand - FootMod
5. Aligned the pieces such that the Stand was above the Lower Half of the AMT Top Mount and interfacing the extruded extension
6. Used various blocks to delete excess areas
7. merged remaining items together to get shape being used

Wish I could get an extension cable for the AMS to A1. The cable is bearly long enough and will probably cause issues if I do full bed prints that are tall. As it is Slot 1 is on the right and would rather have it be on the left to match the wizard on the LCD. With an extension cable could flip it around and move the cable out of the way.

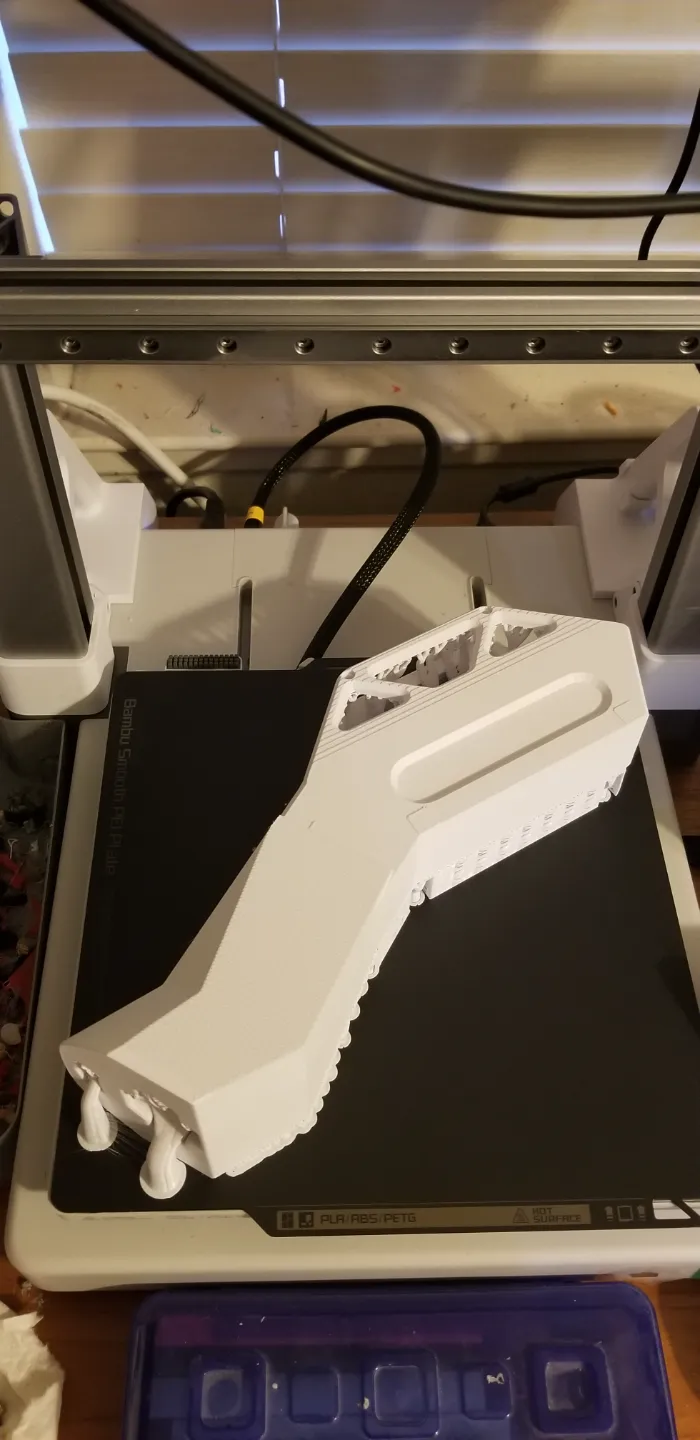

Note - this print used lots of support material but it worked.

WILL NEED ALSO TO PRINT:

All parts from AMS lite Top Mount for A1 except for Upper Half of AMT Top Mount
