Cover Generator - Air Vent, Gutter, Drain Covers
Print Profile(1)
Description

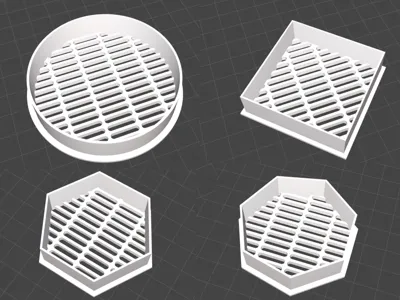

Vent/Gutter/Drain cover generator with a lot of options to customize. Although you can generate a cover with different shapes, it will require a bit of math to do it properly.
A rectangular/square cover generator can be found HERE.
Full cover generator without holes HERE.
Options explained:
Base_Thickness - thickness of the brim
Internal_D - diameter of the hole you have to insert this into. Substract the wall width you want to get twice from the external diameter if you need a cap instead of plug
Insert_Height - height of the part you are going to insert in the hole
Brim - width of the brim if you need one. 0 if you need none or want a pipe/vent cap instead of plug
More Options (not always needed):
Sides - sides of the polygon :) Leave at 200 if you need round, 4 for square etc… You will need some math as the size needs to be calculated.
Cutout_SpacingX, Cutout_SpacingY - spacing between the cutouts
Cutout_Thickness - how thick you want the cutouts to be
Cutout_Length, Cutout_Width - size of the cutouts
Wall_Width - wall width of the insert
With so many options, just play with it to get a result you like.
I welcome any comments or improvements you might have in mind.
