ASRocketry

panhead_m3x6

panhead_m3x12

cover



Brim will need to be removed from the glass screw plugs

0.2 layers 0.4 nozzle


0.6mm nozzle, 0.3mm layer

Petrichor Parametrics


<ul><li>0.2mm Nozzle</li><li>0.1mm Layers</li><li>8 Walls (as the individual wall width is half that of a 0.4)</li><li>15% Infill</li><li>Bambu ASA</li></ul>Prints beautifully, and super solid to boot!

0.2mm nozzle, 0.1mm layer, 8 walls, 15% infill

Deeper Glass Side (for 12mm Screws) and 2mm Offset Hinge Side


Had some issues closing the door with the base profile (at least when I printed it with a 0.2 Nozzle with 0.1 Layer height in Bambu ASA. So I made a couple adjustments to get it to align better for me at least.)<ul><li>Glass side brackets are 2mm thicker (Solely because 12mm coarse threaded screws was what I had available.)</li><li>The pieces that attach to the metal hinges have had their holes offset by 2mm. (Allows the door to close a bit more naturally.)</li><li>Printed on a 0.2 Nozzle for no other reason than it&#39;s what was installed but prints so nicely in 0.2!</li></ul>Hopefully, someone somewhere may find this useful.

(2mm Offset & Thicker Hinge) 0.2mm nozzle, 0.1mm layer ASA


<ul><li>Added a void to the top &amp; Bottom metal hinge side to accommodate an <a target="_blank" rel="noopener noreferrer ugc" href="https://www.amazon.com/dp/B073P7GL8R?th=1">8.5x3x2mm PTFE washer</a> (This is the specific one I used.) This eliminates the propensity of the hinge to creak when opening/closing. (This profile ONLY includes the Top &amp; Bottom hinges.)</li><li>Pivot hole offset by 2mm (same as in my other profile) to allow for easier closing.</li><li>0.2 nozzle but will print fine with larger.</li><li>Printed in ASA but should print fine with others. That was simply what I had loaded.</li><li>Note: I Supports ARE enabled but are very small. It&#39;s really just to ensure the void prints without any issue.</li></ul>

0.2mm nozzle, 0.1mm layer height, ASA filament, 2mm hinge offset, and PTFE washer

jakadels

P1S/X1 Door hinge 180/270° - V3 adjustable

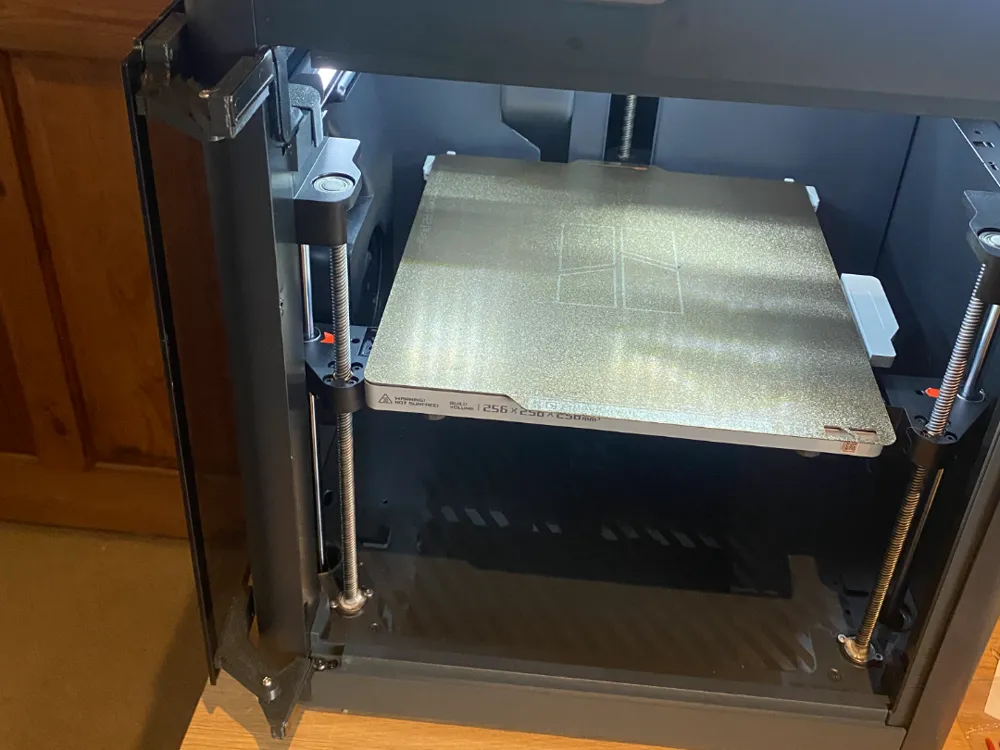

Bambu Lab P1S/X1 front door 270° hinge upgrade

The original model had a lot of requests for the use of more common screws, which I have implemented. This redesign uses entirely m3 pan head machine screws which replace the wood screws and 3d printed screws.4x m3x6mm for the stock metal hinge attachment 6x m3x12mm for the glass attachment and the equivalent of the 3d printed pin/screw of the original design.&nbsp;Assembly is identical.

M3 Screw only 270° front door hinge upgrade P1S/X1
