SmoothY (https://makerworld.com/en/models/18174#profileId-17021) is a Y-splitter connector to feed filament from an external spool into one of the PTFE tubes from the AMS Light.
I did not like the idea of having the SmoothY hanging in the PTFE tubes, moving around while printer is running.

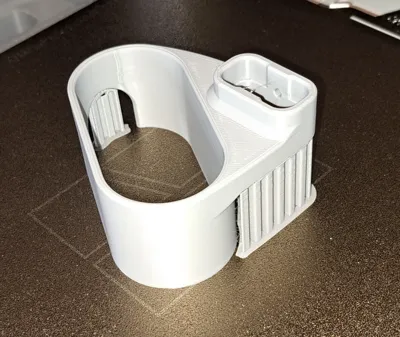

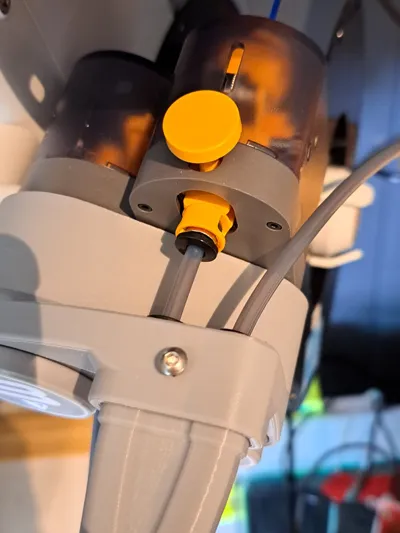

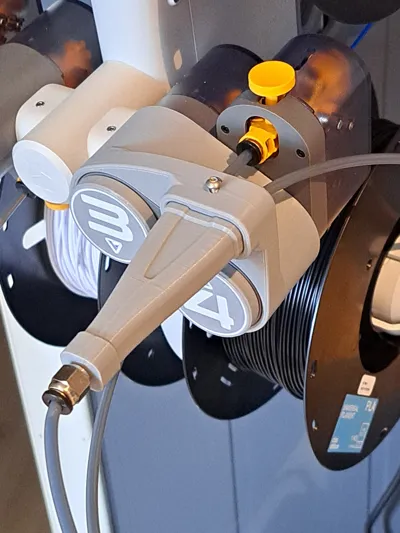

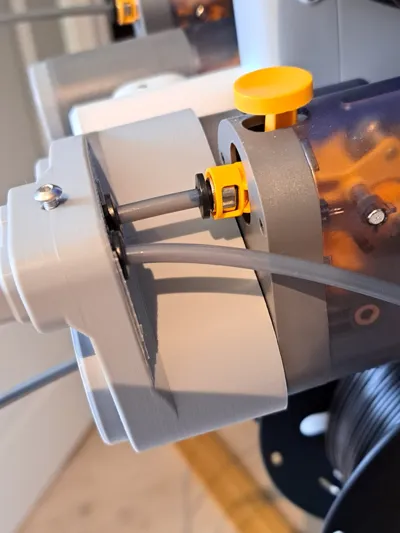

This fixture bracket fixes the SmoothY onto the AMS Light.

Optional: One 5mm M3 screw to lock the Smoothy in the fixture. Could also be glued.

This model is made for port #4 of the AMS Light.

For use on Port #1: Mirror the fixture before slicing/printing.

Prints with support.
