Roughly inspired from some cup koozie models that I have seen. Nothing that I saw quite matched the function and aesthetic of what I wanted, so the obvious thing to do was spend 20+ hours conceptualizing, designing, printing, testing, re-designing this system.

There are currently 6 parts:

Dwarven Style Mug
Magnetic Dice Tower Attachment
Base with Rolling Tray (V3)
355ml Can Adapter/Spacer (V2)
12oz Slim Can Adapter (V4)
Base with Rolling Tray - Minimalist Version (V1)

Magnets Required (optional):

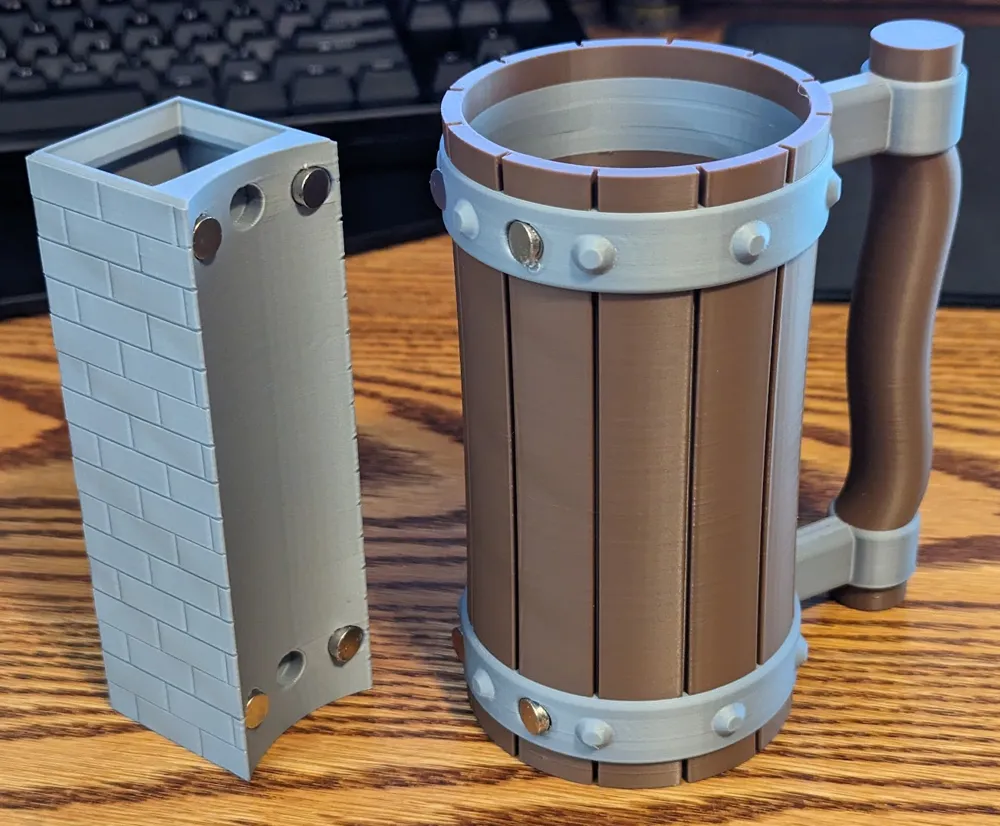

Mug - Tower: 8mm x 3mm (qty8)
Tower - Base: 8mm x 3mm (qty6)

If magnetic function is not desired you can just glue the Dice tower to the Mug with zero issues/problems.

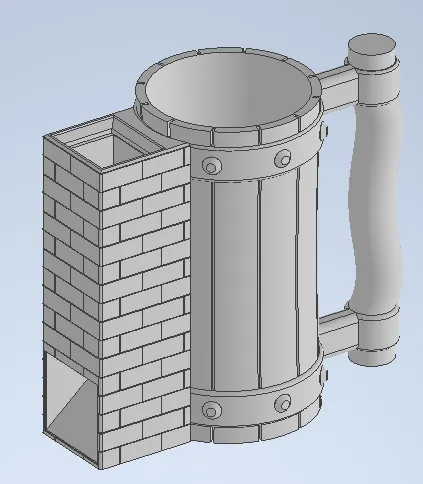

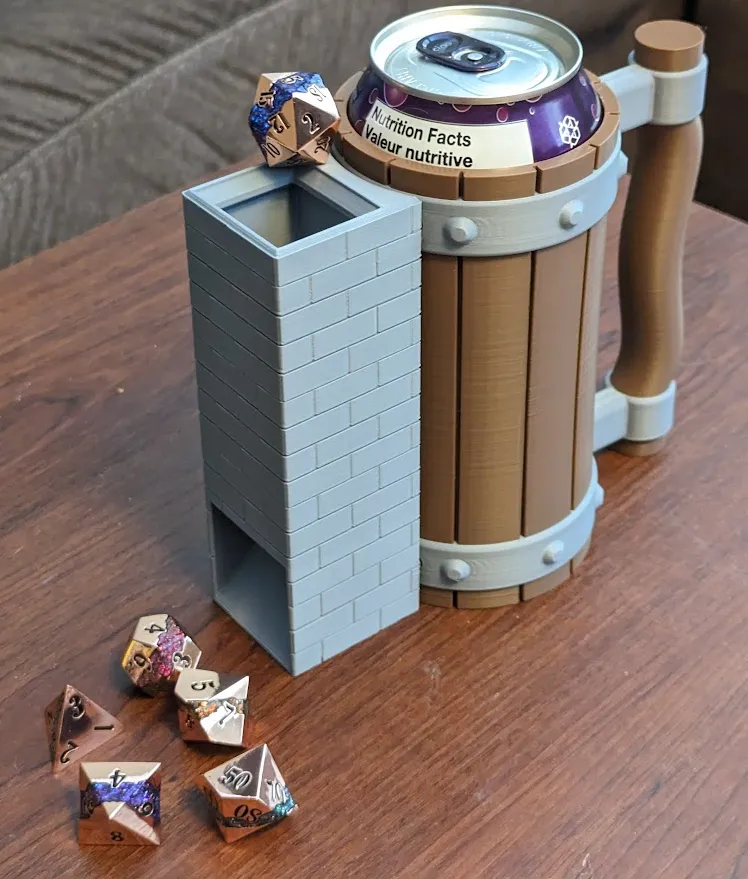

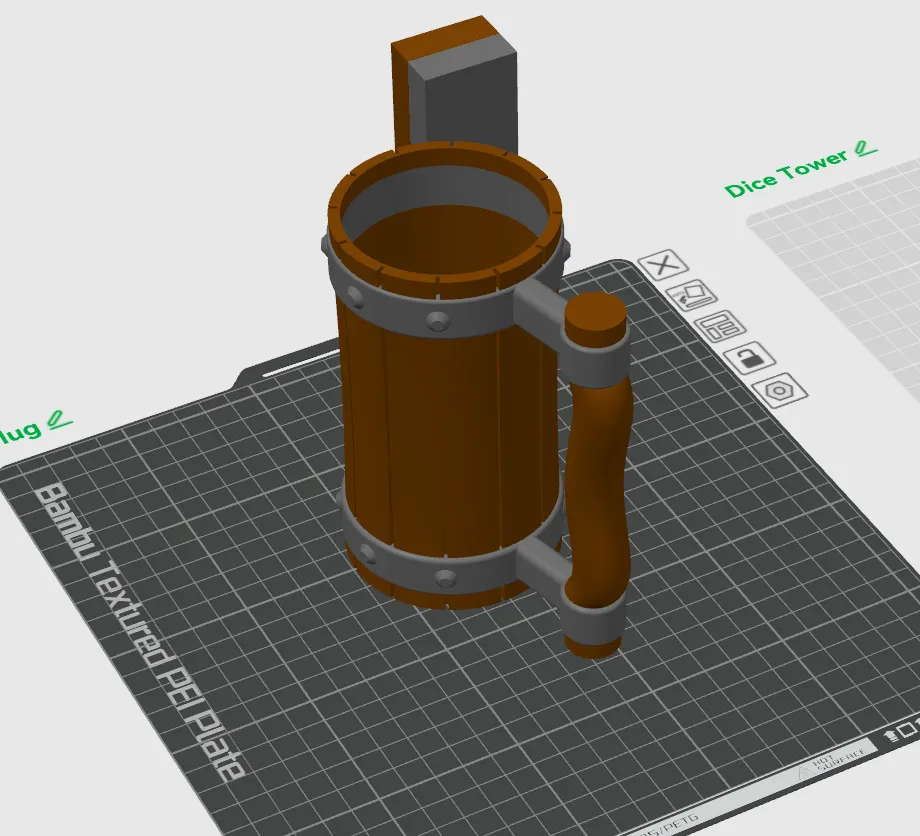

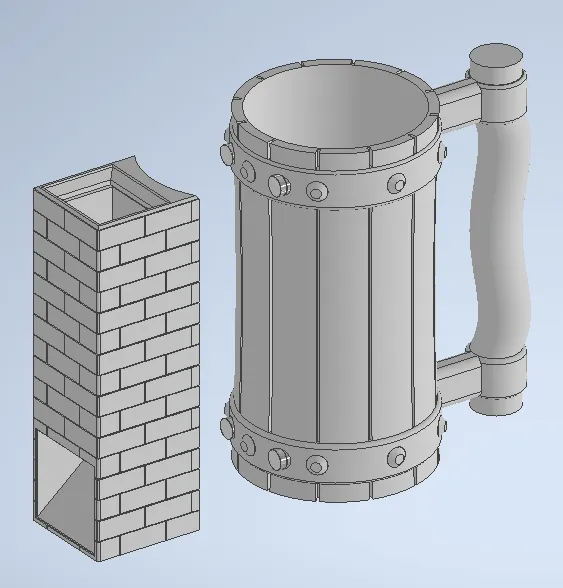

The Dwarven Style Mug was inspired from dungeons and dragons, with a banded wooden barrel aesthetic, without the chunky and girthy feel that I have seen previously incorporated. It is designed around a TALLBOY can (think energy drink) to fit a very ERGONOMIC handle for all hand sizes. It incorporates magnets along the banding at the top and bottom, in a similar shape and color so that if the dice tower isn't desired, it can be de-coupled and used just as a drink holder while the dice tower remains magnetically attached to the base.

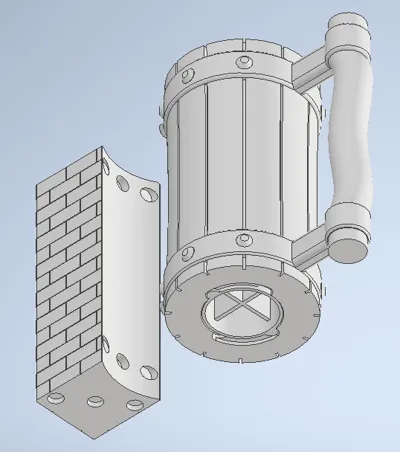

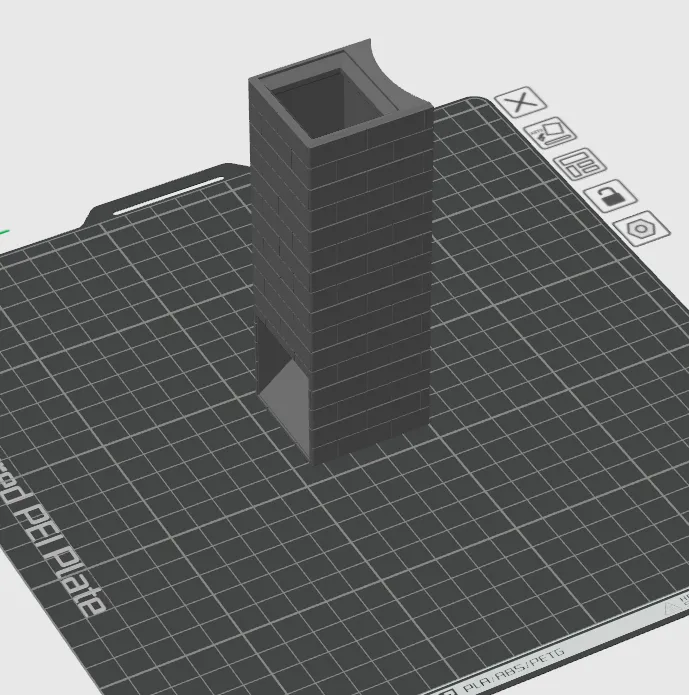

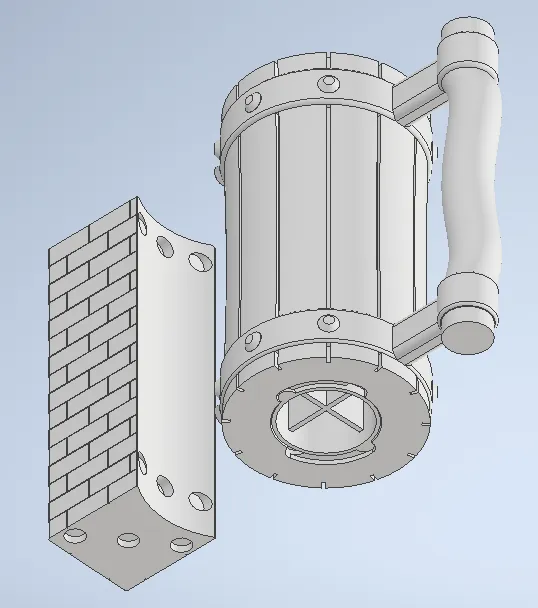

The dice tower is sized for sufficient dice spin, some of the shorter versions of the towers didn't create enough random dice randomization trajectories, this has 3 internal baffle walls with a 90 degree chute at the bottom for multidimensional randomness plus decent throw on exiting the chute. It incorporates magnets into the BACK to be attached to the MUG, and it also incorporates magnets into the BOTTOM to be detached from the mug and instead attached to the BASE.

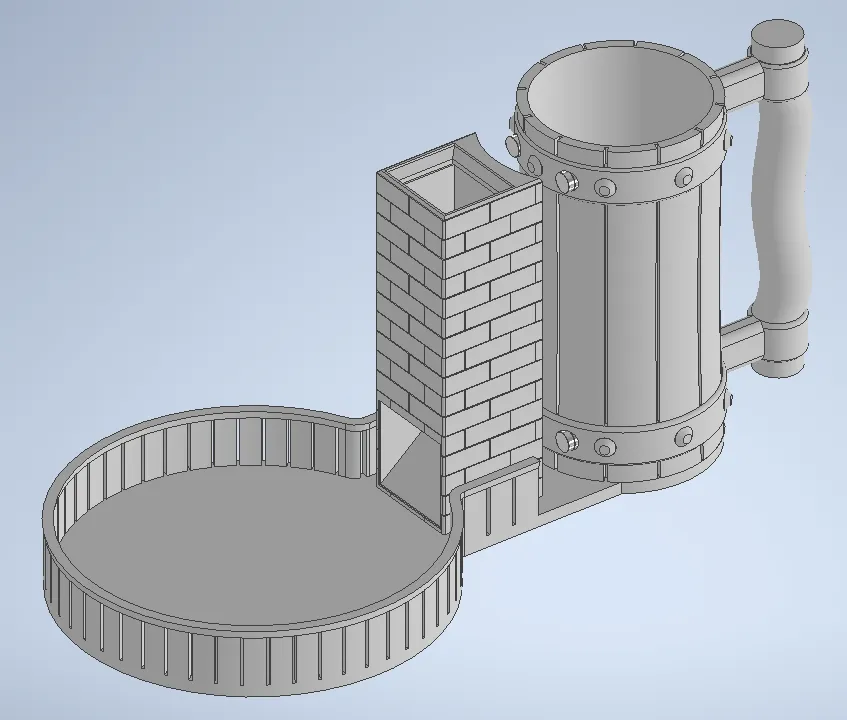

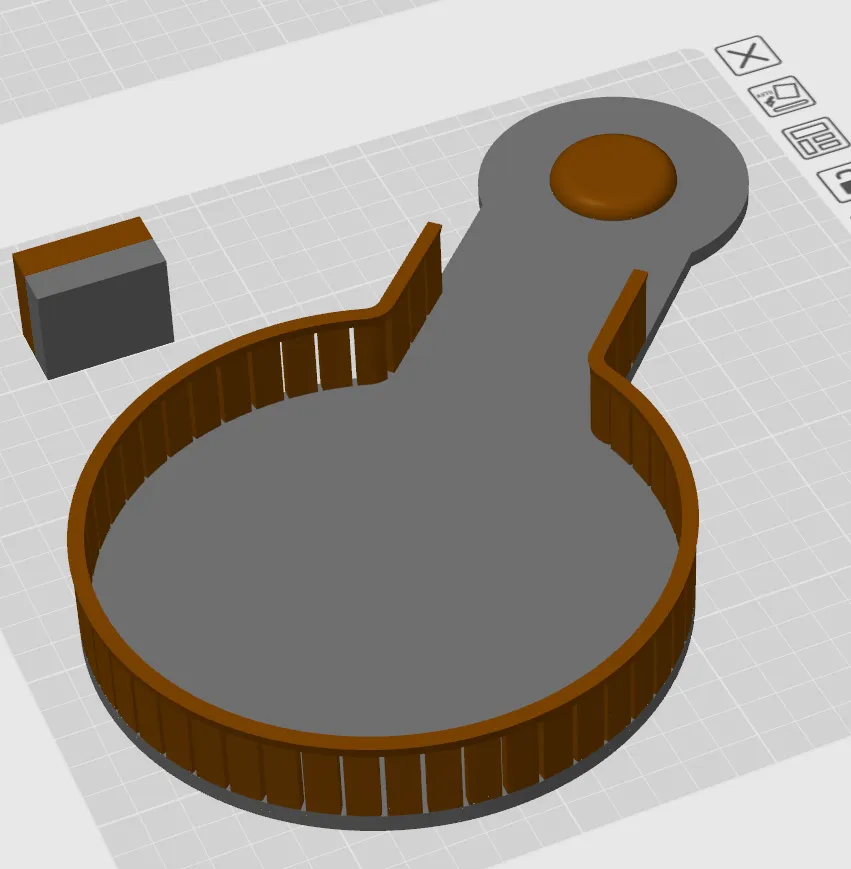

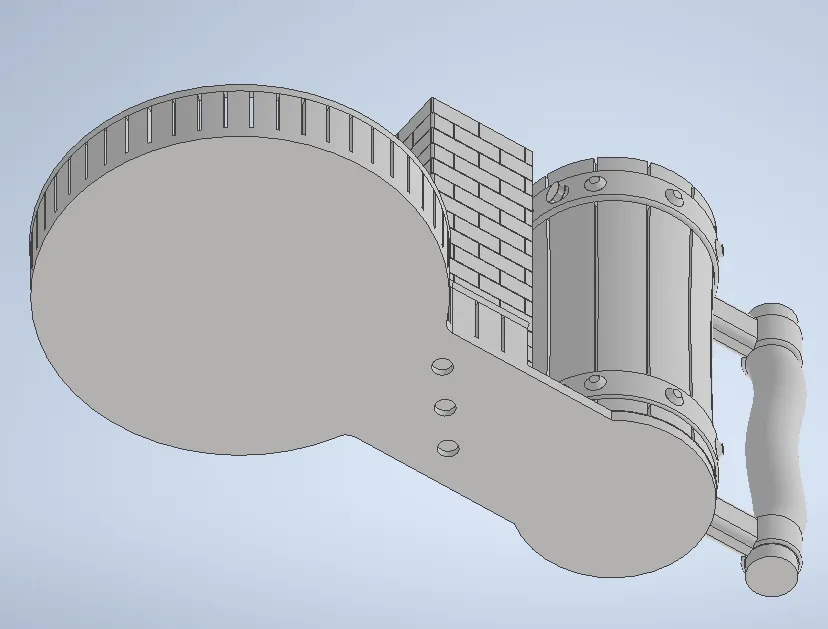

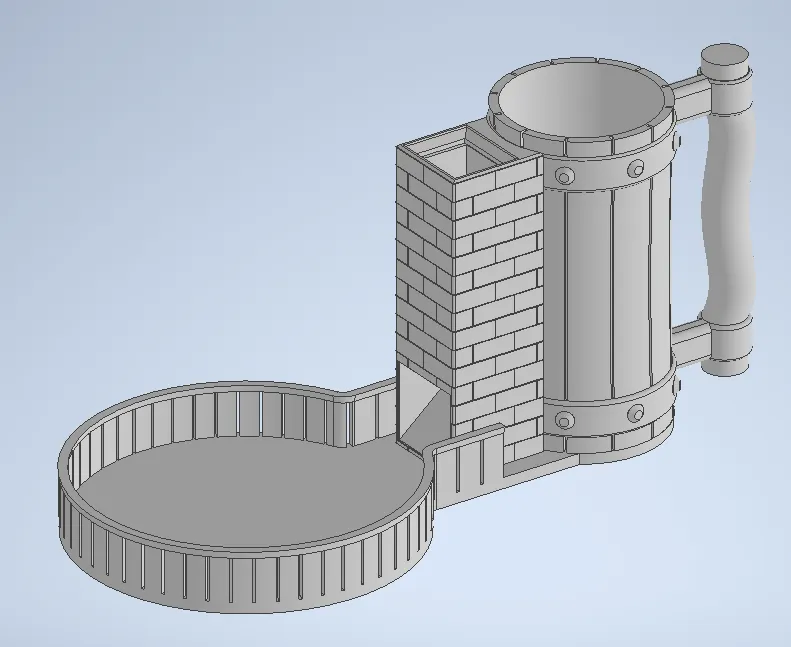

The base is dual function, it can both hold the combination Mug/ Dice tower with sufficient clearance for picking it up and setting it down, or it can hold the tower for rolling dice while you drink at the same time.

This system is designed to be able to fit spacers and adapters into the bottom of the TALLBOY sized Mug in order to adapt it to standard 355ML North America soda cans.

Edit 2023/11/04

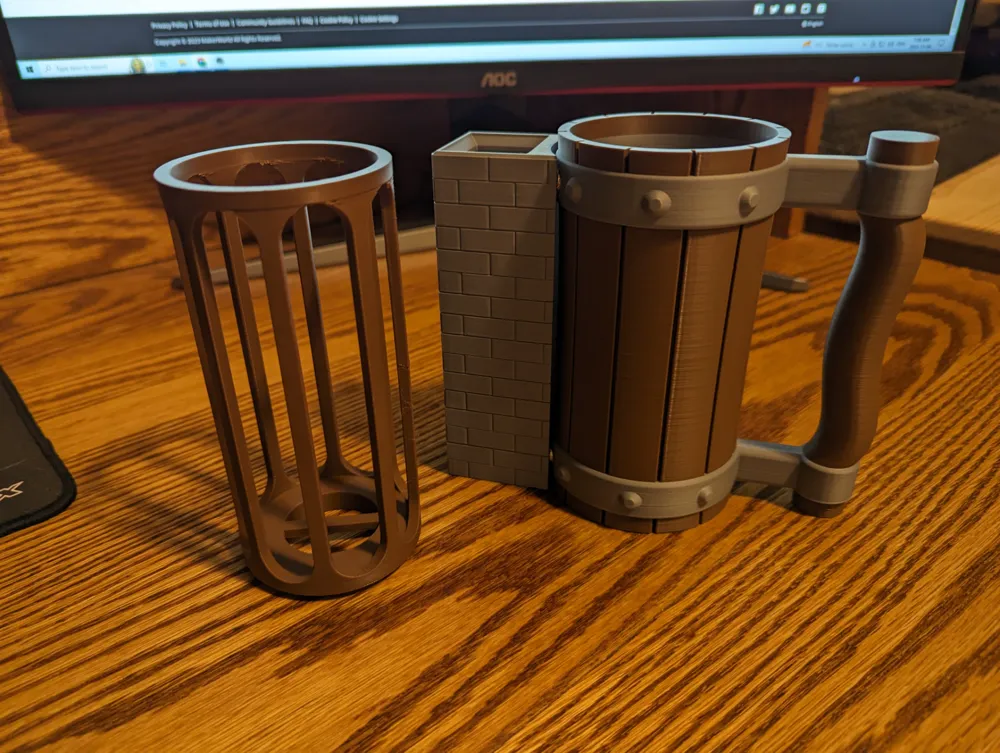

I have also now uploaded a 12oz slim can adapter to the second print profile. Grab plate 5 from the second designer file, or download the raw file and add it with a few painted supports to the original print profile.

Edit 2023/11/06

I have uploaded a few new files as replacement.

Base V3: I have added 10mm to the length so super strong magnets don't interfere with the mug and tower when separated. I have also changed the magnets in the base to 8.2mm instead of 8.0mm to allow for variances in magnet dimensions

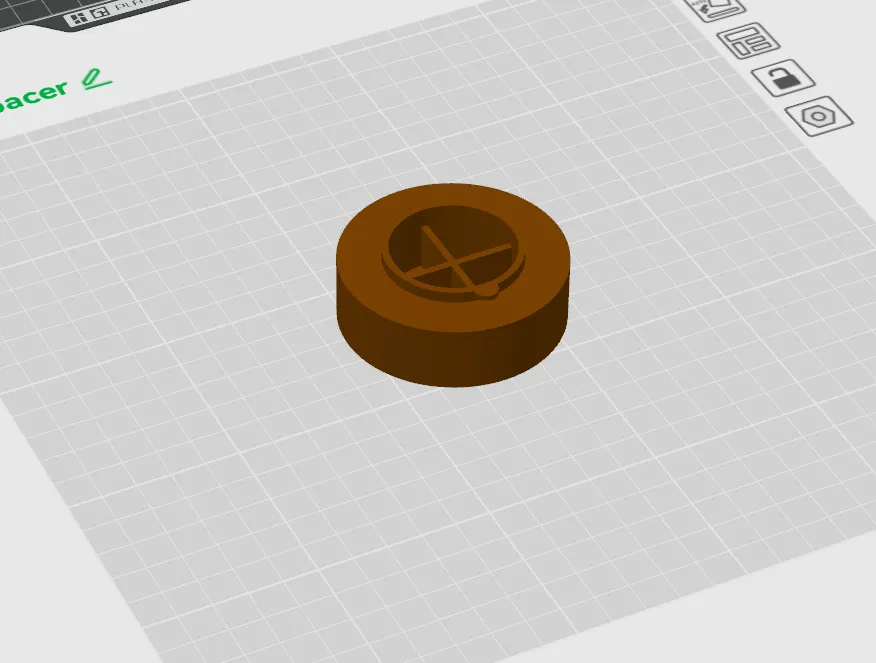

355ml Spacer V2: I have added another 0.3mm to the spacer interlock dimension. This should allow for a slightly easier twist function instead of it sticking or you having to shave the interference down a bit

12oz Slim Can Spacer V4: I have changed the inside dimension from 57.7 to 58.1mm. I have also fixed a slight dimension change in the model that came from a non-linked parametric dimension

Edit 2024/12/06

I have added one more file, a smaller base unit as requested by a few individuals. Available for download separately - and uploaded a newer profile including all of the items
