WORX Vision Cloud S300 Mount Additional Weights
Print Profile(1)
Description

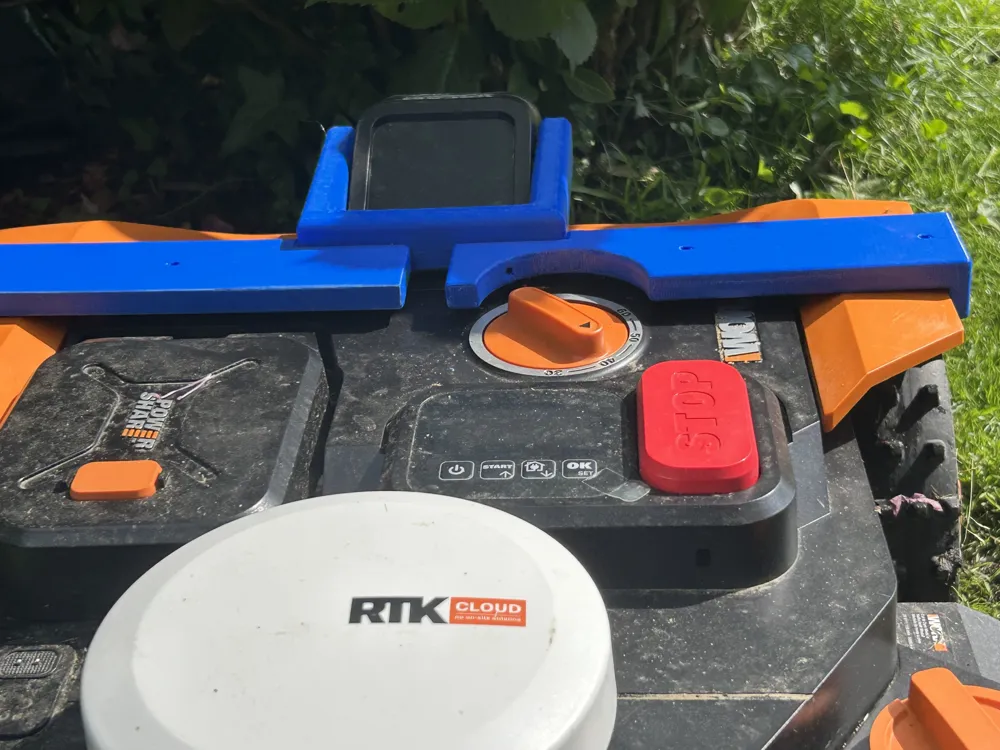

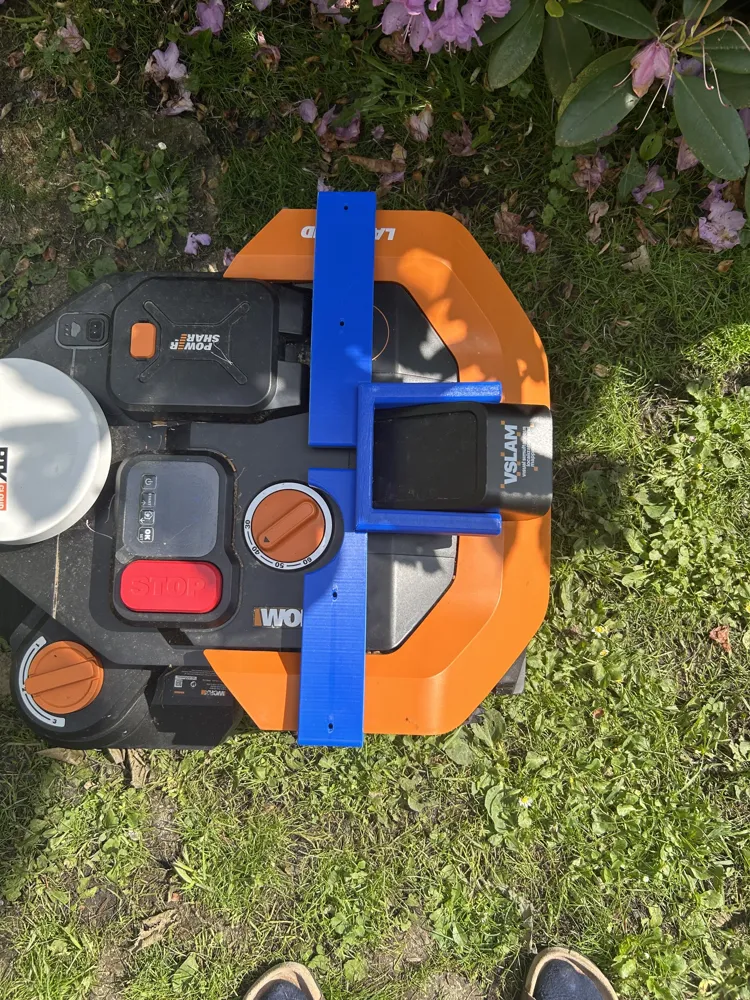

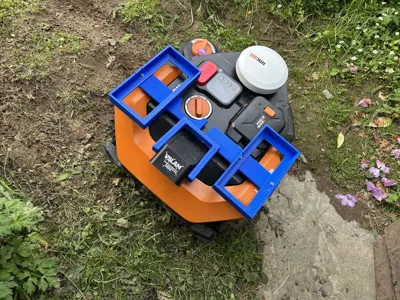

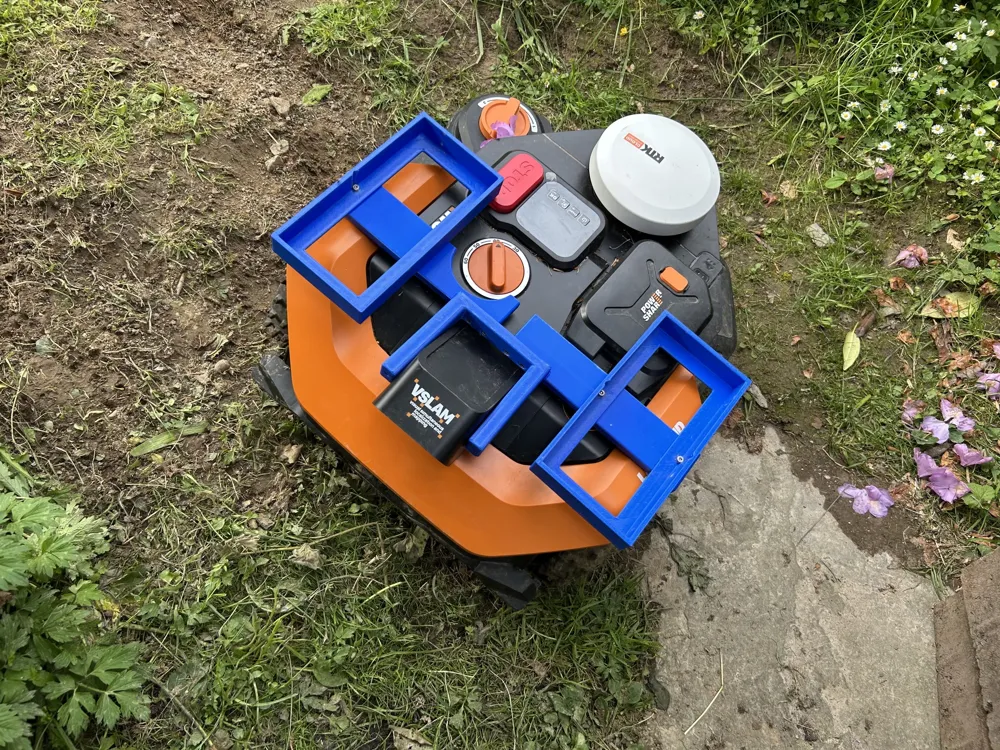

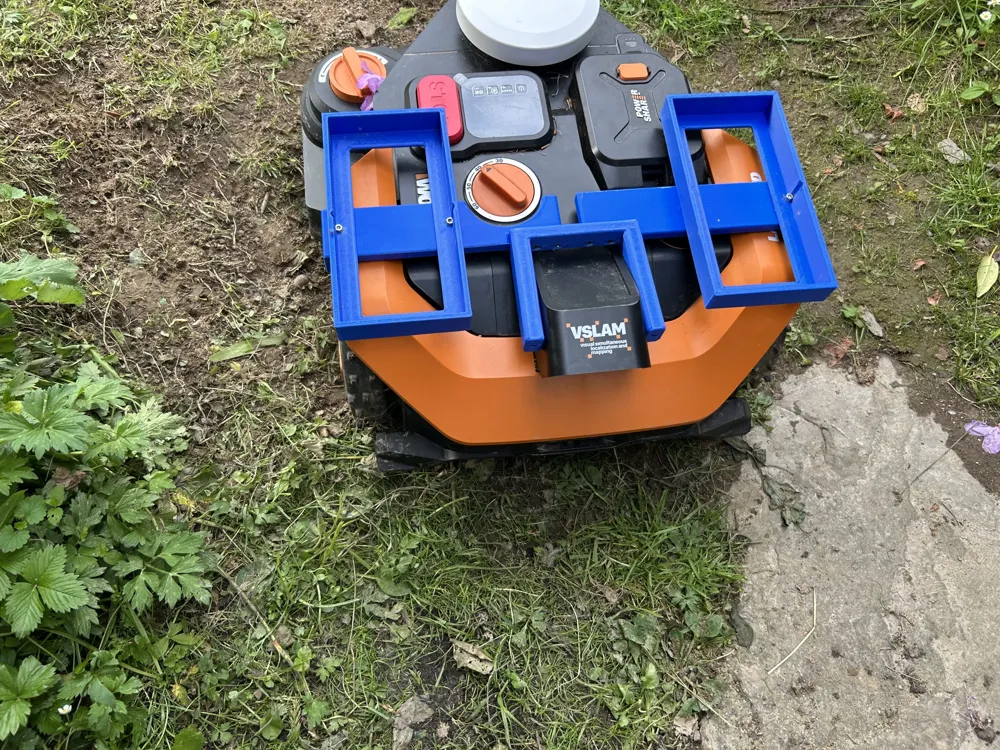

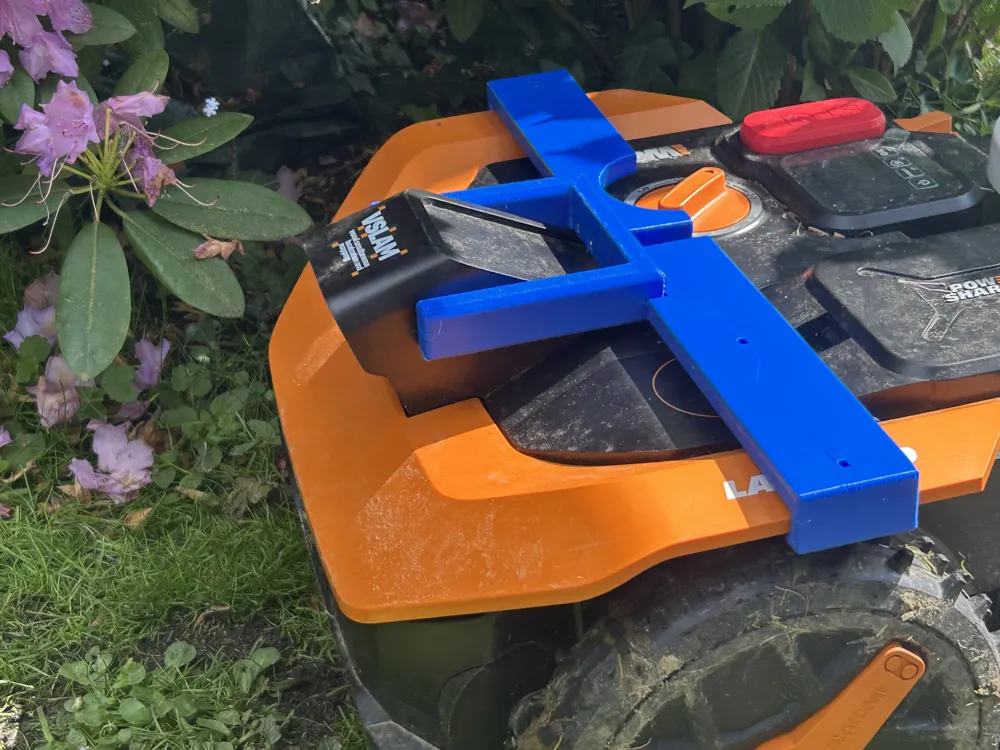

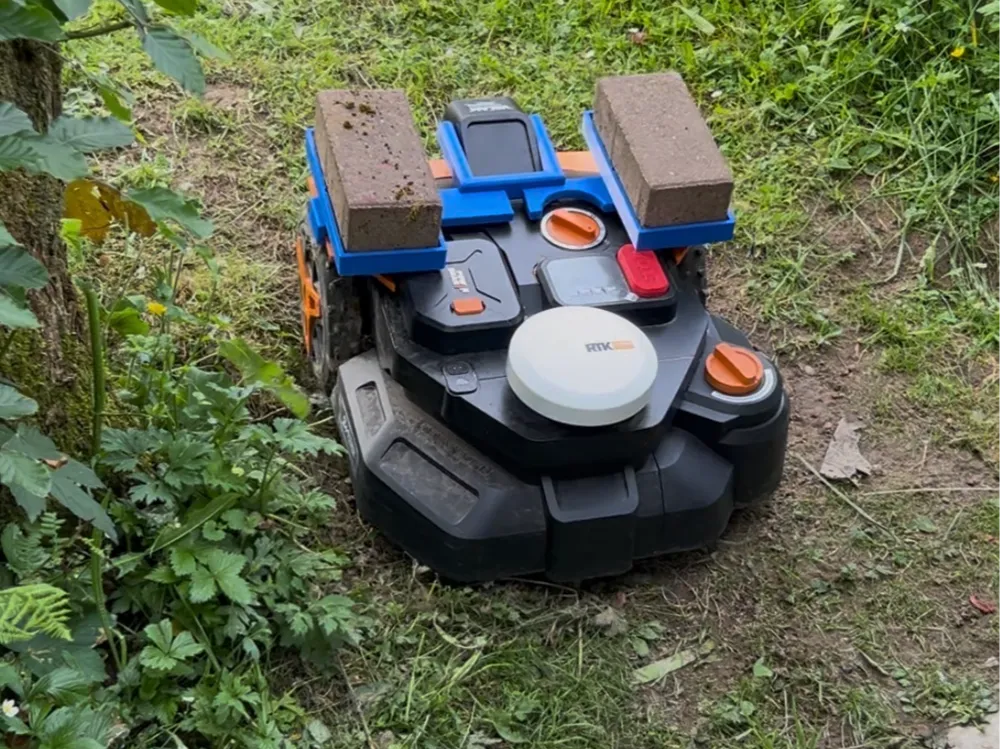

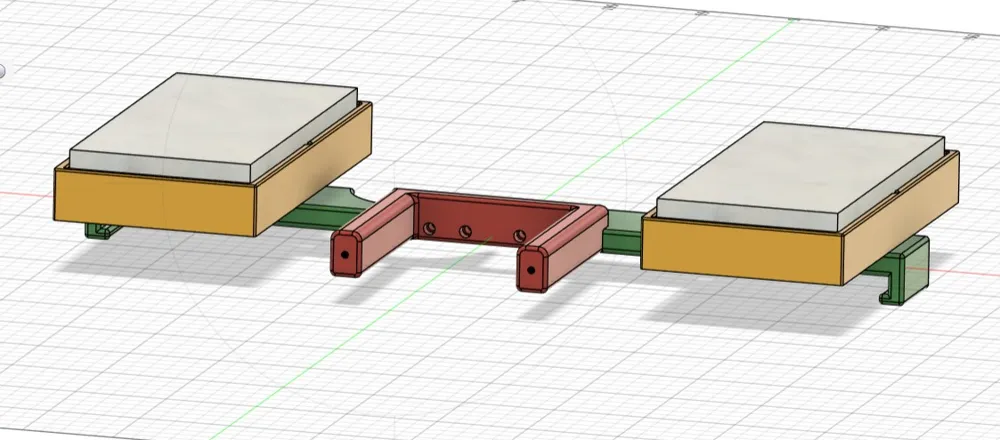

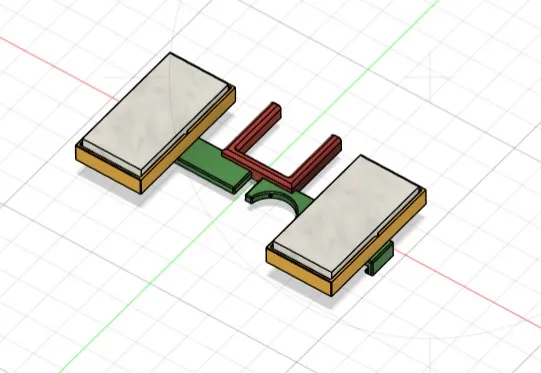

Holder for additional weights of a WORX Landroid Vision Cloud RTK S300 robotic lawnmower 4 DIN 912 M4 x 25 screws and 4 DIN 912 M4 x 20 screws are required The parts are connected with the screws and then slid onto the wheel covers from behind The holder must be bent slightly for this The entire assembly fits well without further fastening and can be quickly removed if access to the battery compartment is needed The frame surrounding the camera also has threaded holes at the front which are intended for later use with an additional Wi-Fi camera Installation is at your own risk and without warranty from the designer The weights are needed if the mower cannot advance on slopes and the wheels spin To prevent the weights from rattling foam rubber strips are glued into the frames slightly higher than the screw heads for fastening
