3/4 inch Pony Bar Clamp Holders

Just a regular guy designing prints for the masses.

Hey Everyone!

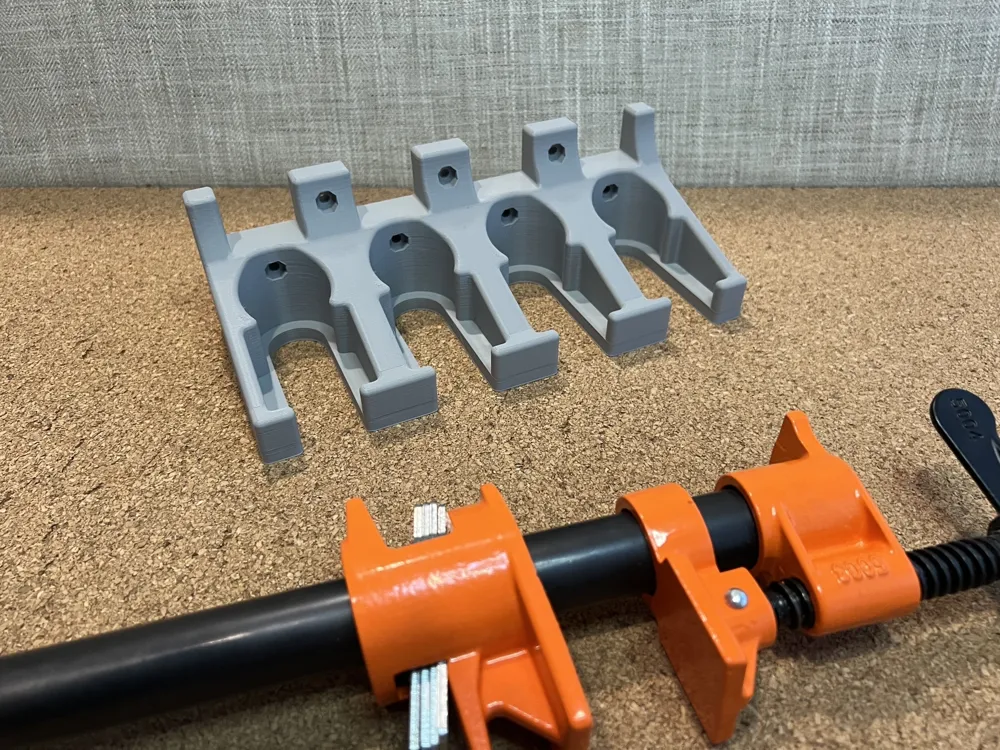

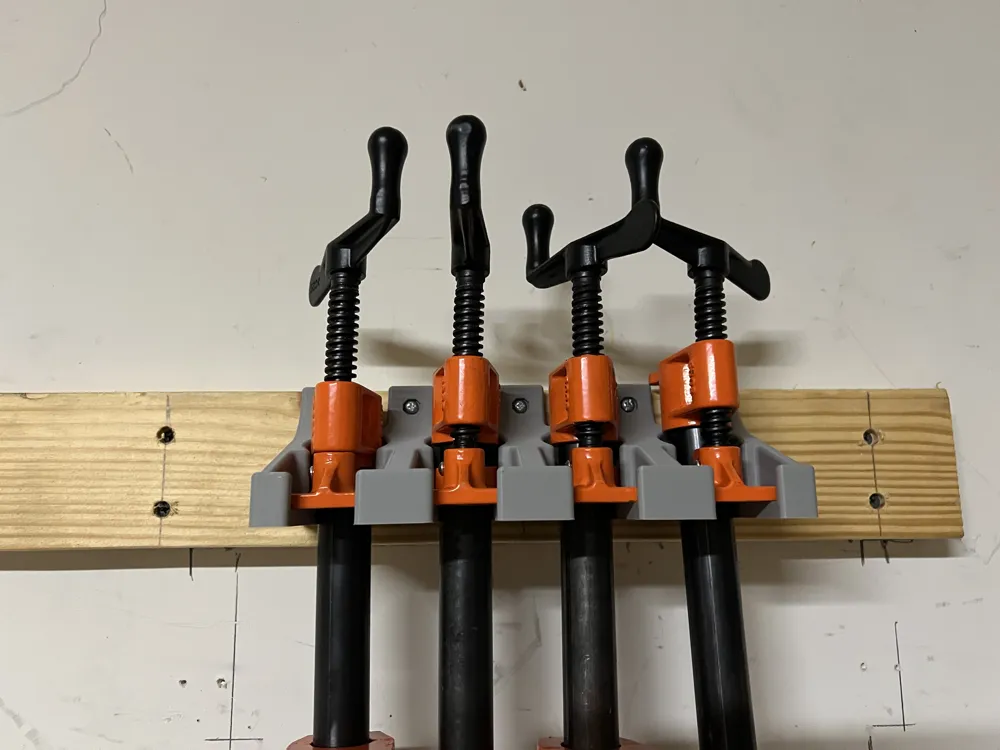

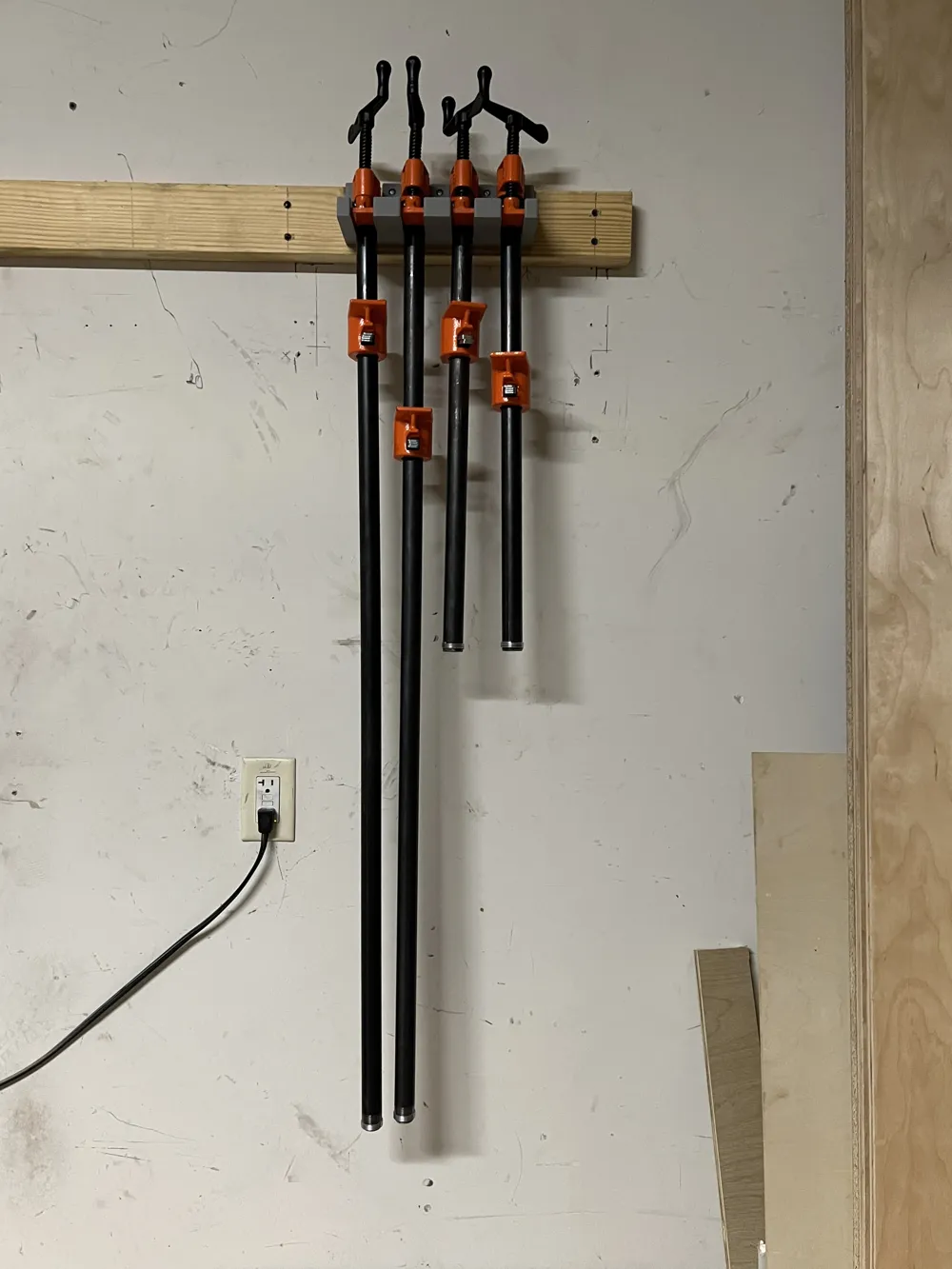

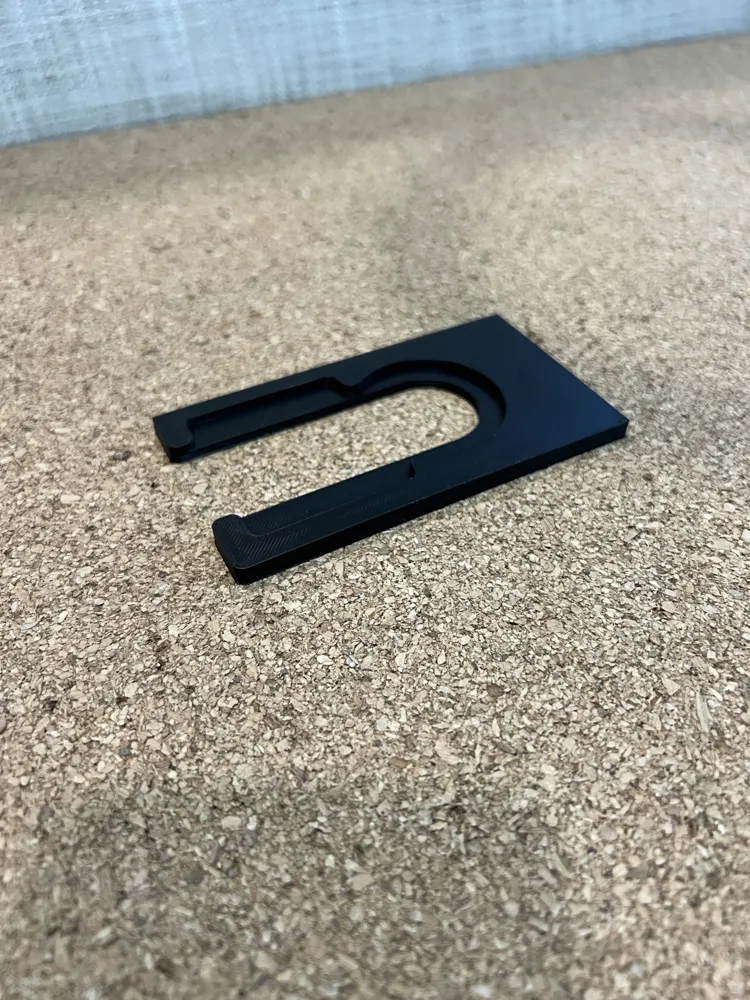

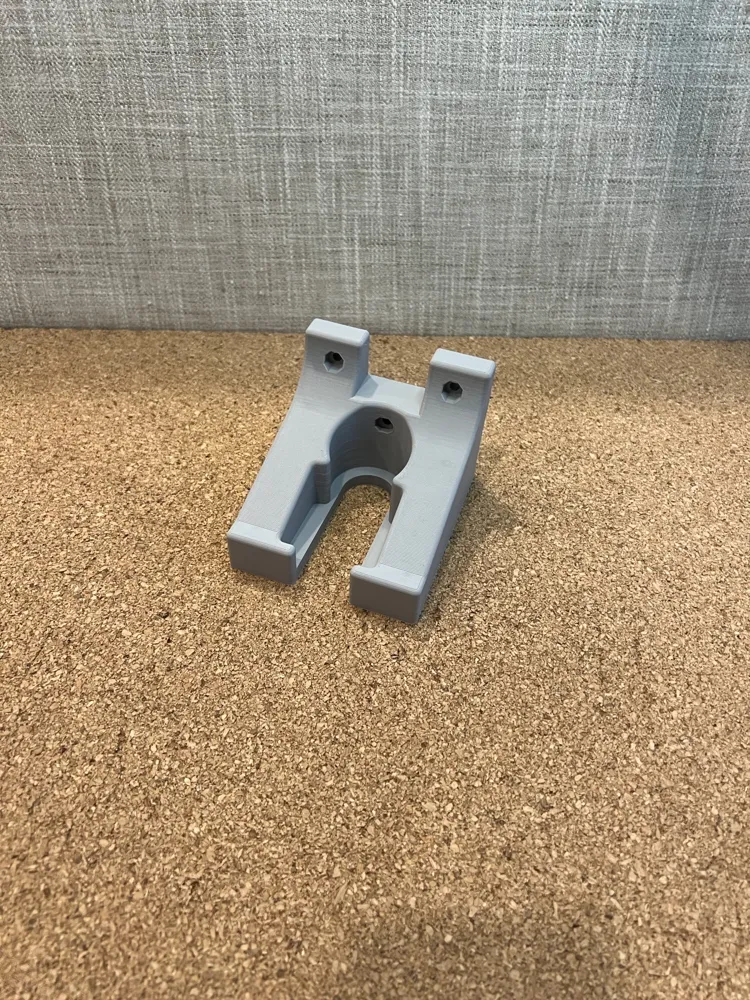

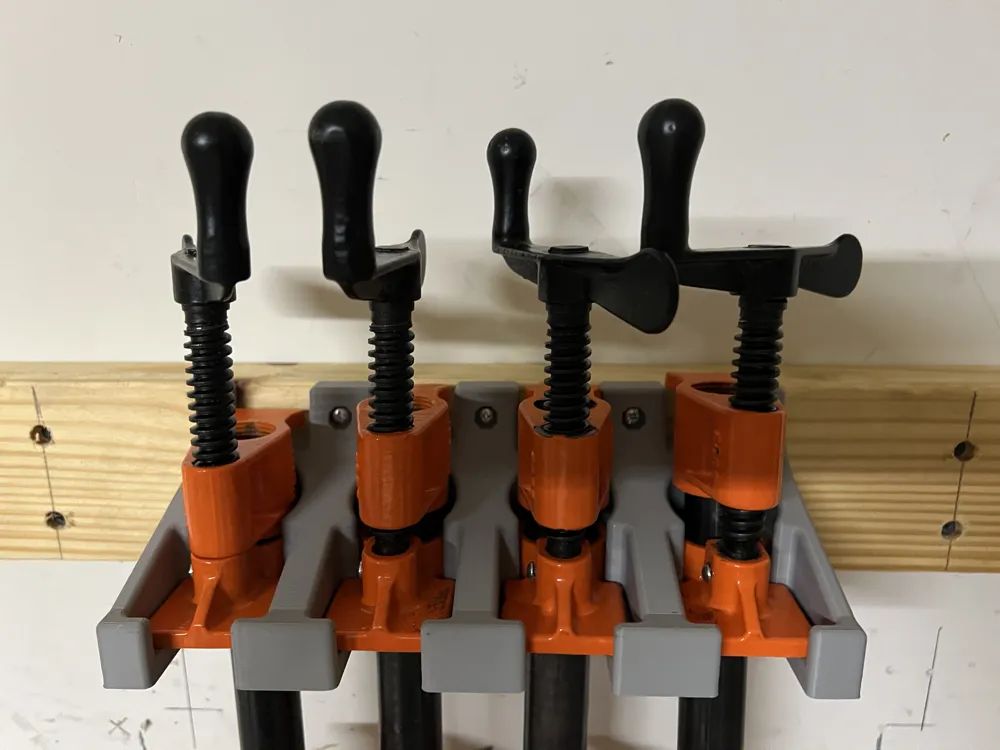

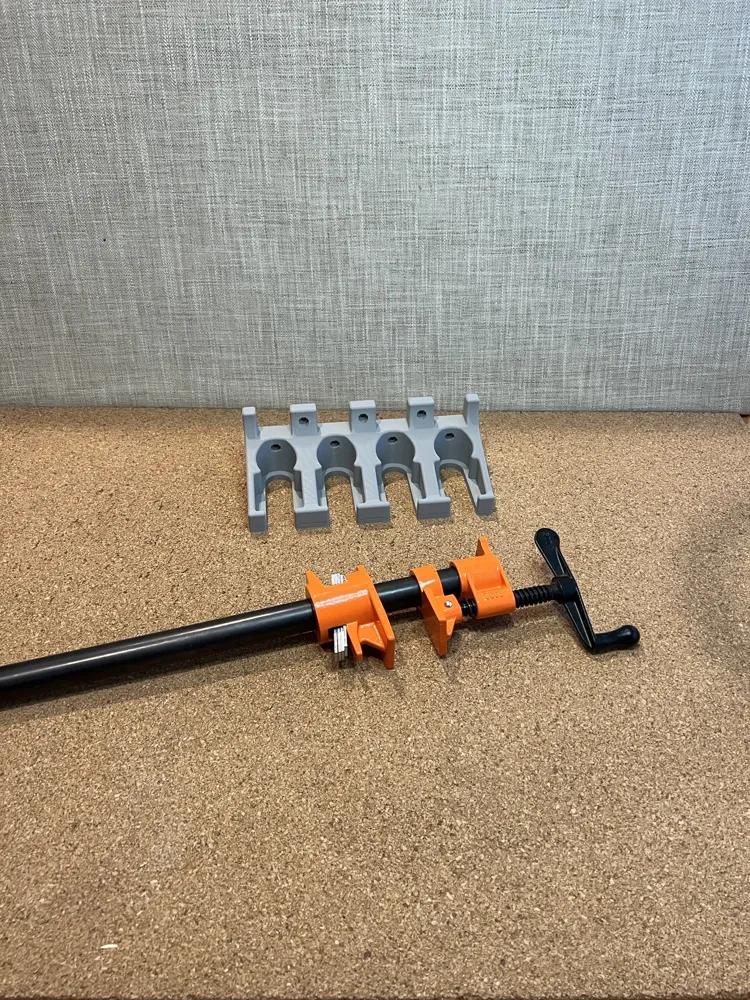

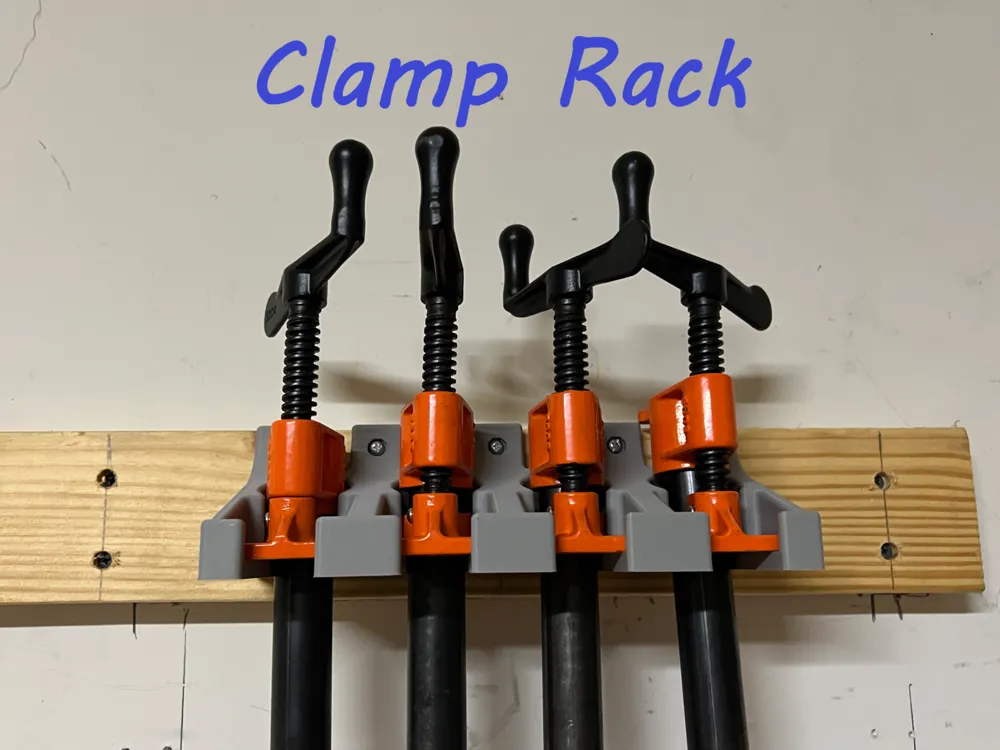

Some of you may know I'm on a wood working journey. Its been interesting to say the least and working on a budget leads to crafty innovation! I made these pony bar clamp holders to keep them neatly stored and out of the way. There are 2 versions ( single bar and 4 bar)  these are made for the ¾ inch Pony brand clamps so please verify what you have before printing. I even made a size template that is quick to print just to be sure. I recommend printing one even if you do have the ¾ pony clamps, you don't want to waste the filament or a 5 hour print to find out there are casting differences.  The larger 4 clamp holder has 7 screws for mounting and the smaller single has 3. I recommend mounting as pictured with a 2x4 spanning between wall studs. I live in the Texas heat and they are holding up well made from PLA. I'm sure they would print fine in PETG but have not verified.

Please take a peek at my bar clamp face protectors!

https://makerworld.com/en/models/2766589-3-4-in-pony-bar-clamp-face-protectors#profileId-3072285

Dimensions:

9.625 in W X 4.25 in D x 3 in H

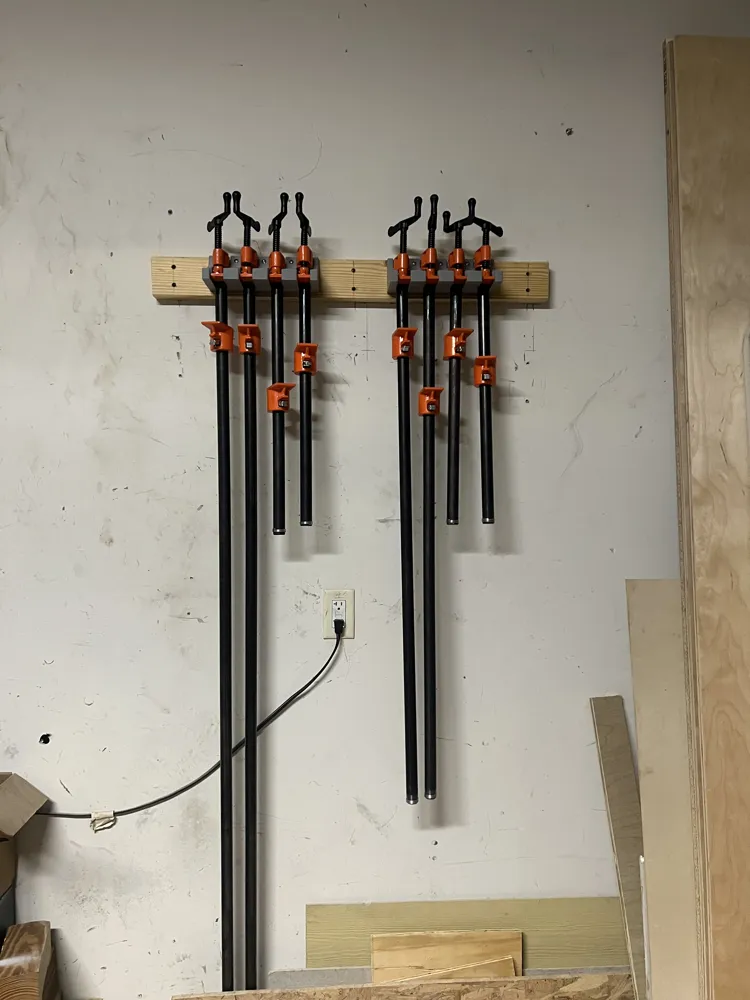

for reference the 8 clamps in the picture are:

4 x 2 foot

2 x 4 foot

2 x 6 foot

Print Specifications:

PLA

0.4 mm nozzle

0.2 mm layer height

4 wall loops

5- 15% infill

no supports needed
