Sunlu AMS lite adapter by BRADCAD

BRADCAD

3D Printer>3D Printer Accessories

IP Report

Print Profile(16)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

0.2mm layer, 2 walls, 15% infill

Designer

1.4 h

1 plate

4.9(3.2 k)

0.2mm layer, 2 walls, 15% infill

1.4 h

1 plate

4.9(64)

0.2mm layer, 2 walls, 15% infill

1.8 h

1 plate

4.8(50)

0.28mm layer, 2 walls, 15% infill

1.3 h

1 plate

4.8(41)

Click to see more

Open in Bambu Studio

Boost

2557

5378

4323

2.3 k

21.6 k

20.5 k

Released

Description

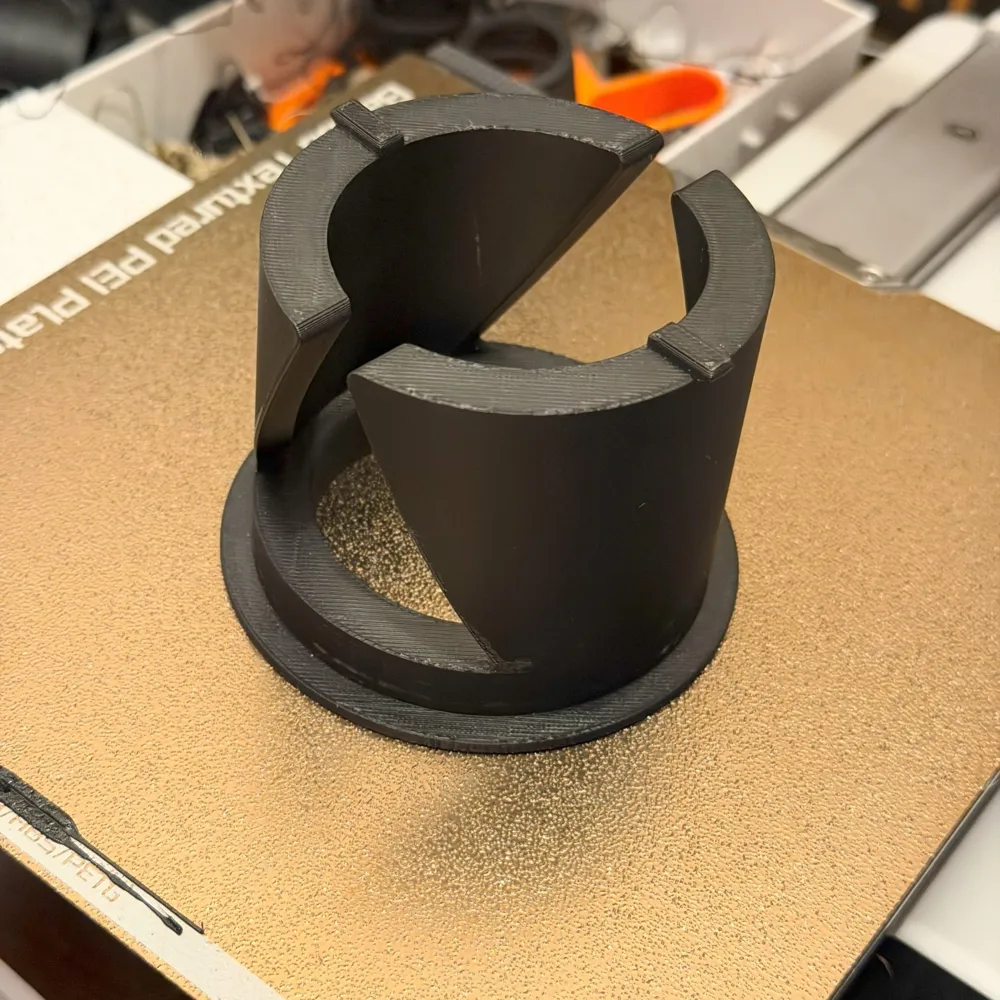

Converts 73.5mm (~3in) spools to 55mm (~2in) spools to work with the AMS Lite. Designed for fitting Sunlu spools that always slip off the AMS Lite system. You do not need to print support with this model. Feel free to remix for other spools!

Print at 15% infill. PLA will work great!
When assembling, you will need to bend the part inward. It will act as a spring to grip the spool. A tight fit is needed so it does not fall off the AMS lite. To take it out of your spool, push with 2 thumbs on the opposite side, and it should pop right out.

NOTE: Some rolls have draft (a slight taper) on the inside diameter walls. If the adapter does not fit well, try inserting on the other side of the roll.

Boost Me (for free)

Did this print help you out? Leave a boost if you think I earned it!
Thank you!

Comment & Rating (4323)

@CrackerJack575

Print Profile

0.2mm layer, 2 walls, 15% infill

awesome print. Thanks

@BRADCAD

@CrackerJack575 I love that color! What filament is this?

@CrackerJack575

Replying to @BRADCAD :

it is a silk copper filament by 3DHOJOR.

@BRADCAD

Replying to @CrackerJack575 :

Thanks!

@user_1463354526

Print Profile

0.2mm layer, 2 walls, 15% infill

works great for this unnamed random spool of black pla I had laying around! it actually makes it usable again.

@BRADCAD

Glad to hear it works and glad to help!

@user_848278060

Replying to @BRADCAD :

Apologies if the adapter doesn't fit on one side, can I insert it into the AMS Lite so that this part is on the outside, the reverse of how it's shown in the image above

Show original

@shanerrrr

Print Profile

0.2mm layer, 2 walls, 15% infill

I have printed 4 of these for the A1 Mini. Since the core of the spool for Sunlu filament was too large, this print allowed me to properly mount my spools. Thank you for providing this!

@BRADCAD

Thank you for sharing! I love getting to see others have successful prints that make printing even easier. Glad to hear they work well!

@belfastbiker

Boosted

never used this printer or software before yesterday, and duplicated four of these on the printbed, I'll find out 4.5 hours later if that was a good idea or not....

@DerbyPhase

not sure if I have a different type of spool from Sunlu but my adapter is too large to fit in. printed great and will keep for if other spools don’t fit. has anyone else run into this? wonder if it is a new size or spool update from them.

@DerbyPhase

When I just measured it, the internal dimensions are 62mm.

@Foxface

just ran into the same problem🙁

@Aquazimer

Hello, it's normal you have a 2.0 spool from Sunlu This adapter is compatible with 1.0 spools (black) Other adapters exist for your current spools

Show original

@slimshady

Print Profile

0.2mm layer, 2 walls, 15% infill

very tight to push through! One side cracked when doing so but I was being too rough with it. It's still connected and fits good on the AMS. no sliding off. this is a Sunlu PLA silk spool.

@BRADCAD

Glad to see it works! If it felt like a super tight fit, try and insert it on the other side of the spool. Some spools have a taper on the inside and make one side fit differently

@slimshady

Replying to @BRADCAD :

thank you! I'll remember that for next time!

@3DWPG

Boosted

Yes I just broke my first print tonight too :( Fast mode print - PLA Matte . Broke while pushing it in.

@ssweat

works great i used 15% gyroid infill, thanks for the fast easy print file.. also i dont see a way to leave ratings.. some people have option i see

(Edited)

The designer has replied

@BRADCAD

@ssweat The rating might be if you used the same print profile. I didn't use gyroid infill, but your print looks like it turned out great! Thanks for sharing!

@Asthix

Print Profile

0.2mm layer, 2 walls, 15% infill

Fit 100% fine, following the isntruction, it only fit as said in one direction of the spool

@BRADCAD

Glad it worked! What kind of filament did you use in the picture?

@swim_dx

Print Profile

0.2mm layer, 2 walls, 15% infill

Wasn't able to get it to fit before it broke. Thanks anyway

@BRADCAD

Darn, may I ask what material and brand you were using? Maybe I can make a profile or a tweak to the design so that doesn't happen again

(Edited)

@swim_dx

Replying to @BRADCAD :

Sunlu matte black PLA

@BRADCAD

Replying to @swim_dx :

I've had good luck with Sunlu before, but some matte PLAs have weaker bending strength, so it's easier to snap. If you have another PLA or PETG to print with and that breaks too, let me know, and I'll work on getting a better profile for the part!

@Antoexpo

Perfect print profile, I'm printing 4 for my AMS LITE!

Show original

@3dprintedin

Boosted

nice project, ty
