Description

Boost Me (for free)

If ProClip helps you on your 3D printing journey, please boost!

Meet the ProClip!

The ProClip Filament Clip is a pleasure to use and easy to print.

ProClip has a built-in handle that works in coordination with a clamping tunnel to manage and secure your filament.

NEW! ProClip V2 features:

A extra durable clamp inside the tunnel.
Symmetrical input holes work for right handed and left handed users.
Handle flange provides good control and a comfortable grip.

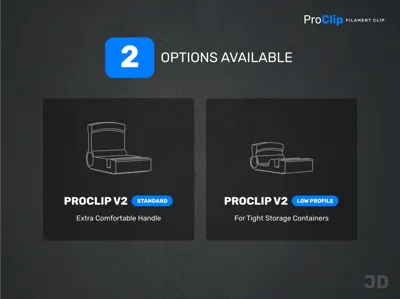

A Low Profile option designed for tight storage containers.

BENEFITS:

No Supports
No Overhangs
No Brims
Designed for FDM Printing
Free to Download!

UPDATES:

10/06/23 ProClip V2 Released

TIPS:

MUST be printed on side
Printer tolerances vary. If your ProClip is running tight just slide a piece of filament back and forth to break it in a little bit.
Glue stick can help condition the print bed for proper adhesion/release and is recommended.
Remove before placing spool in AMS.

NOTES:

ProClip can be used commercially, but can’t be resold.

TESTED PRINT DETAILS:

ProClip has been built around the following conditions.

Glue Stick: Yes (without is at your own risk)
Support: Disabled
Walls: 2
Brims: No
Nozzle: 0.4mm
Layer Height: 0.2mm
Infill: 15% Gyriod

Comment & Rating (8918)

@Melbo0

Works great! added labels since I sort my spools by filament color. thanks for sharing.

(Edited)

The designer has replied

@JDJDJD

Sweet setup! Thats one big happy family of ProClips, thanks for posting! @Melbo0

(Edited)

@user_2144081204

can you share them as remixes? :o

@JKtech3D

Replying to @user_2144081204 :

You can use the text tool in the slicer

@RafaelCz

Print Profile

ProClip V2 6-Pack

After a small test print, I decided to print a "few more" ;)

@JDJDJD

Excellent! 😍 @RafaelCz

(Edited)

@Xalibre

yea just a few

@user_2702540364

you need to chill bro

@LizzyPrintsCrea

Print Profile

ProClip V2 6-Pack

Nice clip. I was using a simple open design previously but over time the clips relaxed and stopped working. I don't think this one will.

(Edited)

@JDJDJD

Sweet pic! What filament is the ProClip printed in? Thanks for your post!

@LizzyPrintsCrea

Replying to @JDJDJD :

That's Bambu PLA-CF. I figured the carbon fibre would help with grippiness and it works great.

@spaxi82

But you have used the part incorrectly - the open end comes through the hole.

@Robuste3D

Print Profile

ProClip V2

parfait rie. a redire

@JDJDJD

Beautiful! Thanks for sharing your photos - enjoy!

@JDJDJD

By the way, love that filament - what is it?

@Robuste3D

Replying to @JDJDJD :

oui il est sympa vous le trouver sur le cite arianeplast en lien https://www.arianeplast.com (PLA + gris aluminium métalliser good filament french ...et aussi sur amazo......ya du choix normalement

@berniemcglone

Print Profile

ProClip V2 12-Pack

Print worked great had to make a couple to get size right. Then I printed off 12 pcs and thay are awesome thank you for you model cheers.

(Edited)

@JDJDJD

You’re welcome! I’m glad you think they’re awesome - please rate accordingly.

@berniemcglone

Replying to @JDJDJD :

sorry it wasn’t a successful print because I ran out of filament. I was still able to use them so it will not let me give you file stars as I just tried again. I still love you makes thank you.

@JDJDJD

Replying to @berniemcglone :

No worries, thanks for the effort - enjoy!

@PitScribble

Print Profile

ProClip V2

Printed a single one to test, was convinced and then printed a bunch for all my spools. So easy to use! The holes were a bit tight, but as recommended after sliding a piece of filament trough they work just perfect. Printed with the official Profile, Overture PLA on Textured PEI Plate. Update: I noticed, that when storing filaments for a while, some of them tend to break around the lower part of the clip, so I moved on to another model.

(Edited)

@JDJDJD

Gorgeous print! Thanks for posting I appreciate it - enjoy!

@N8TM8T

mind sharing what clip you moved on to? I loved this clip but am also having the issue with filament breaking at the clip when removing it.

@myth.ethical.0c

The print profile is no longer public

When printing in ABS on textured PEI I find that small prints with low surface area contacting the build plate will have a high likely chance of failure if they do not include a brim, as seen here. If you're planning to print this on anything other than PLA, unless your confident in your build plate adhesion I would recommend printing w/ a brim. EDIT: I totally didn't see that the OP specifically said glue stick should be used in the description. Updating the rating as I'll chalk up my failure to user error. But I've uploaded some print profiles with brims for anyone that has issues.

(Edited)

@myth.ethical.0c

Replying to @JDJDJD :

I have no doubts that with glue it would have adhered just fine, but i use my PEI specifically to avoid having to use gluesticks in the first place. This PEI plate works perfectly without any adhesives, but I've found that specifically with ABS/ASA if the part is very small with low surface area contact there is a high chance that it will come off the plate without a brim. I decided to print these in ABS so i wouldn't need to worry about removing them when drying my spools. I'm sure if these were printed in PLA I also wouldn't have had an issue. Edit: I've updated my rating and added a bit more to the comment to add additional context. Thanks for reaching out, i really like your clip design!

(Edited)

@JDJDJD

Replying to @myth.ethical.0c :

Cool cool - glad you got it sorted out. To be fair (and to not annihilate the print profile rating lol) the tips did/do say to use glue stick which it will print perfectly with. Anyways I’m glad you like it and happy you got it setup how you want it. 👌 Thanks and enjoy!

@myth.ethical.0c

Replying to @JDJDJD :

I did just see that 😓 I'll adjust my rating since I totally glossed over that in the description lol

@vagelisp

Print Profile

ProClip V2 6-Pack

I printed 12 without any issues; all worked just fine. Thank you.

@JDJDJD

Happy you like your new ProClips! That's a sweet photo, what filament is that?

@vagelisp

Replying to @JDJDJD :

That's the Bambu PLA Basic Sunflower Yellow (10402)

@user_4205804214

Print Profile

ProClip V2 12-Pack

In my opinion, these are the best filament clips.

@apt3d

Boosted

Print Profile

ProClip V2 Low Profile 12-Pack

Love these things. I always hated having to feed the filament through the holes and then cut that peice off when I want to print again. This keeps the filament right in line and no bending of the end. Thanks for the make, already printed out 3 sets of 12. Only have 3 left and looks like I'll need to print out more. I went with the low profile, as I didn't want it to stick out when the spools are full.

@JDJDJD

Outstanding - thanks for your little write up @apt3d !

@apt3d

Boosted

Replying to @JDJDJD :

My pleasure and thanks again.
