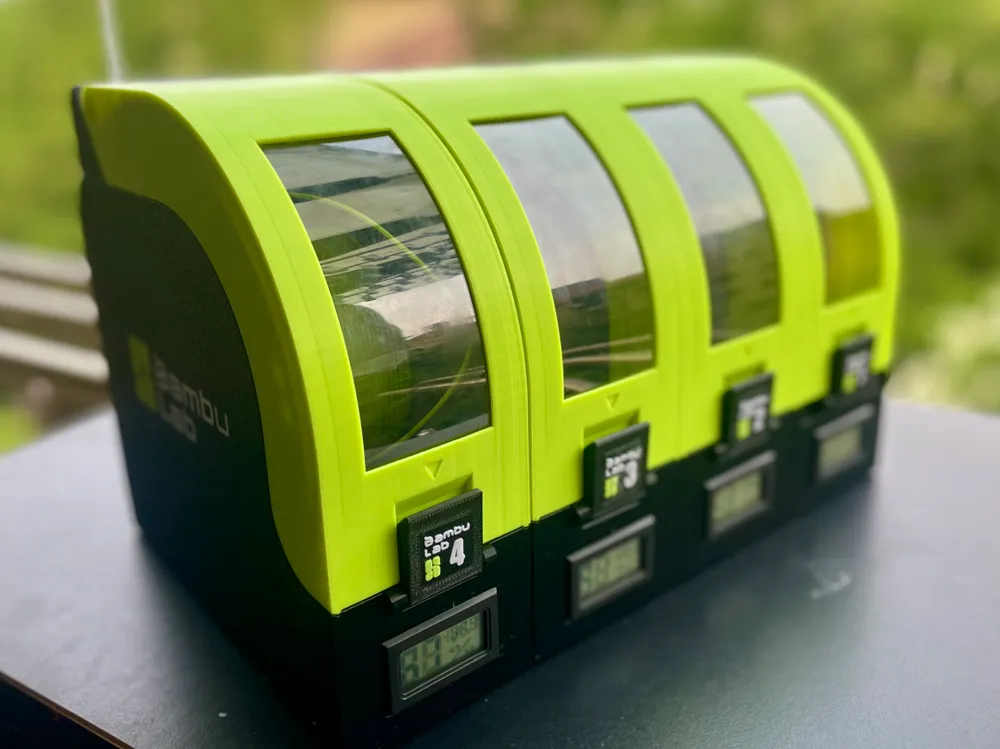

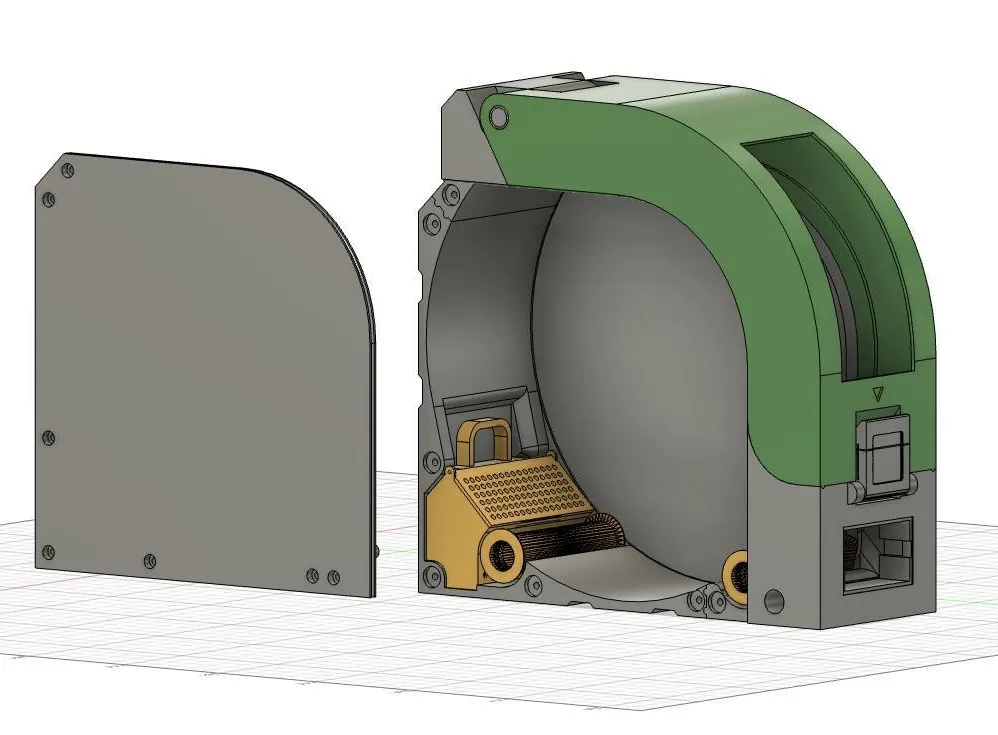

Compact Modular filament Dryer (for the A1 mini)

This is my first time designing something like this, welcome feedback so I can improve

If it's convenient, please click the little rocket to boost me, I'd be very grateful 🙏

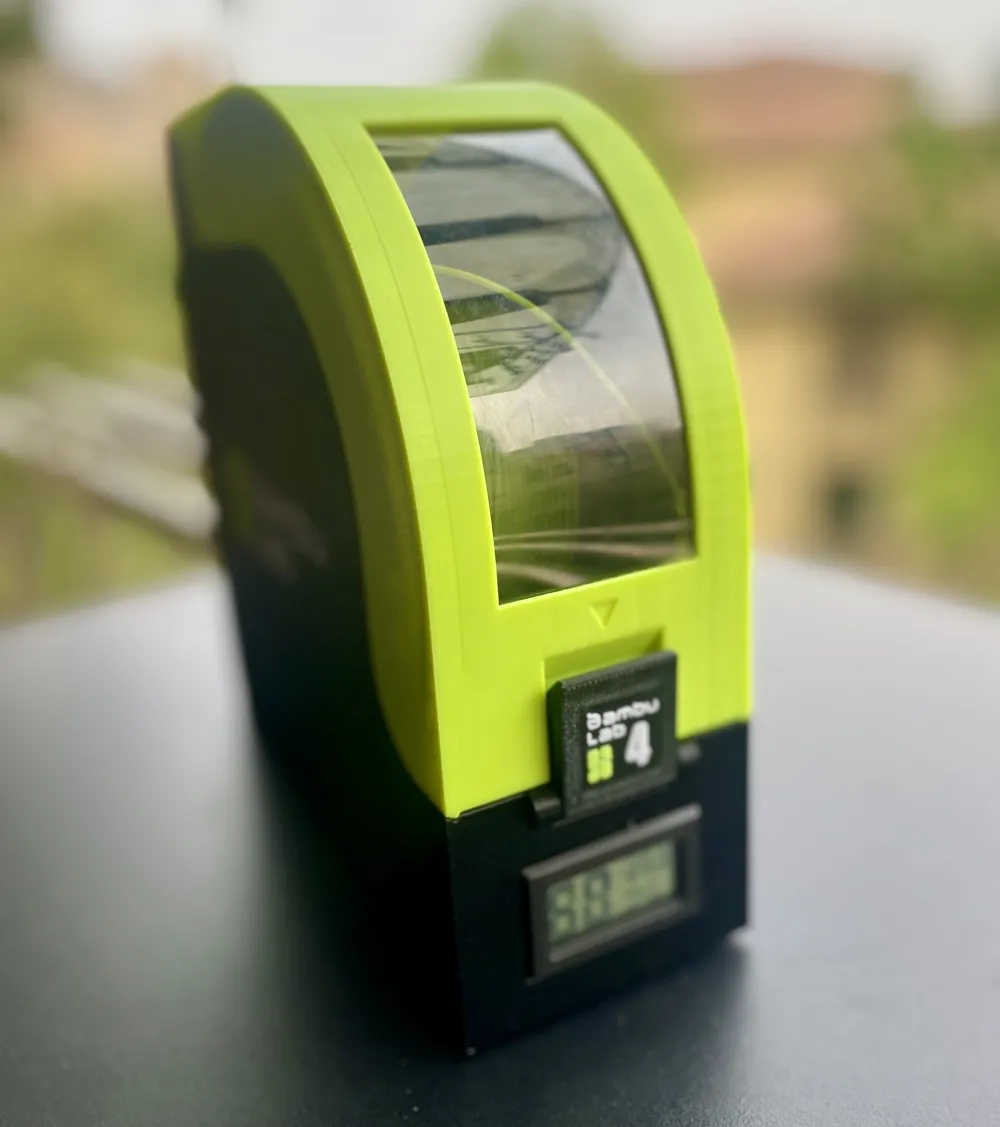

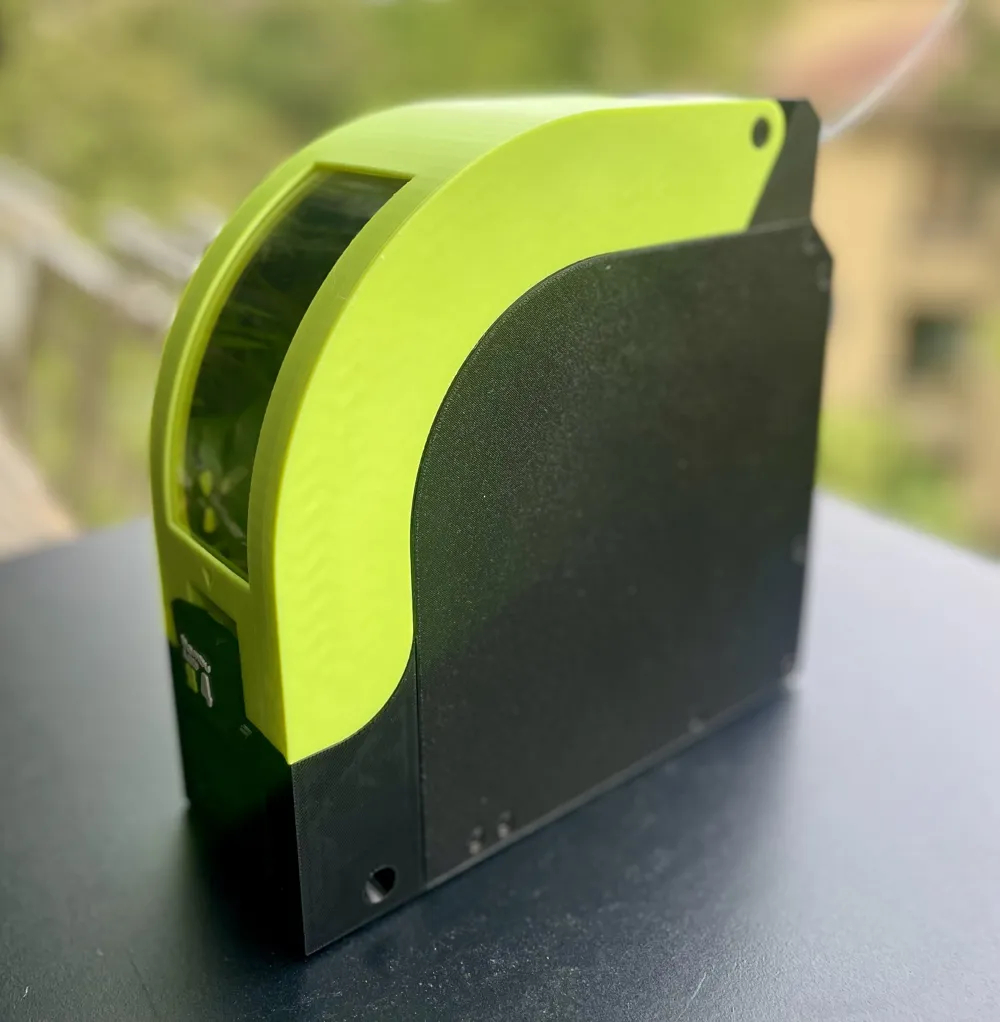

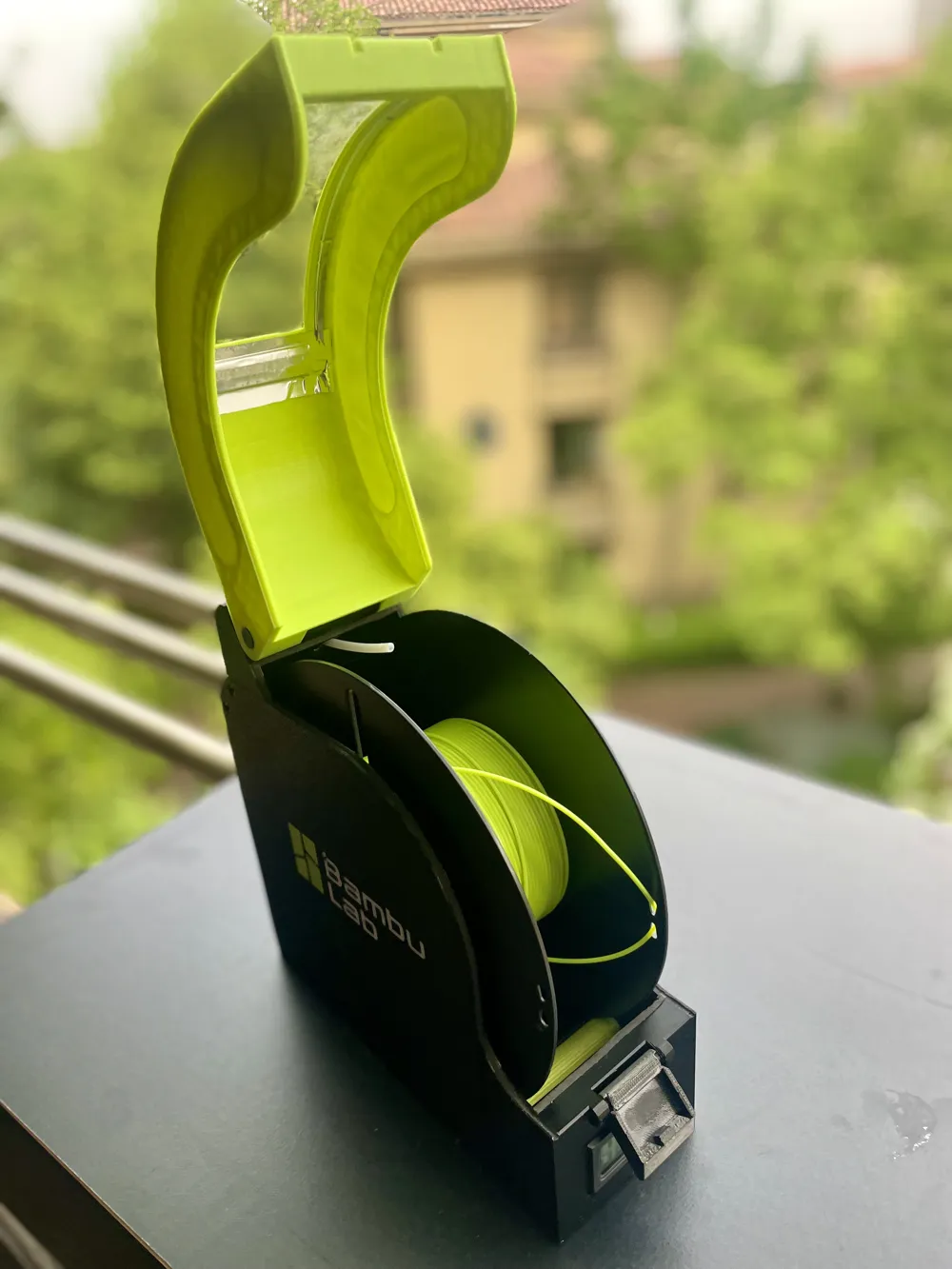

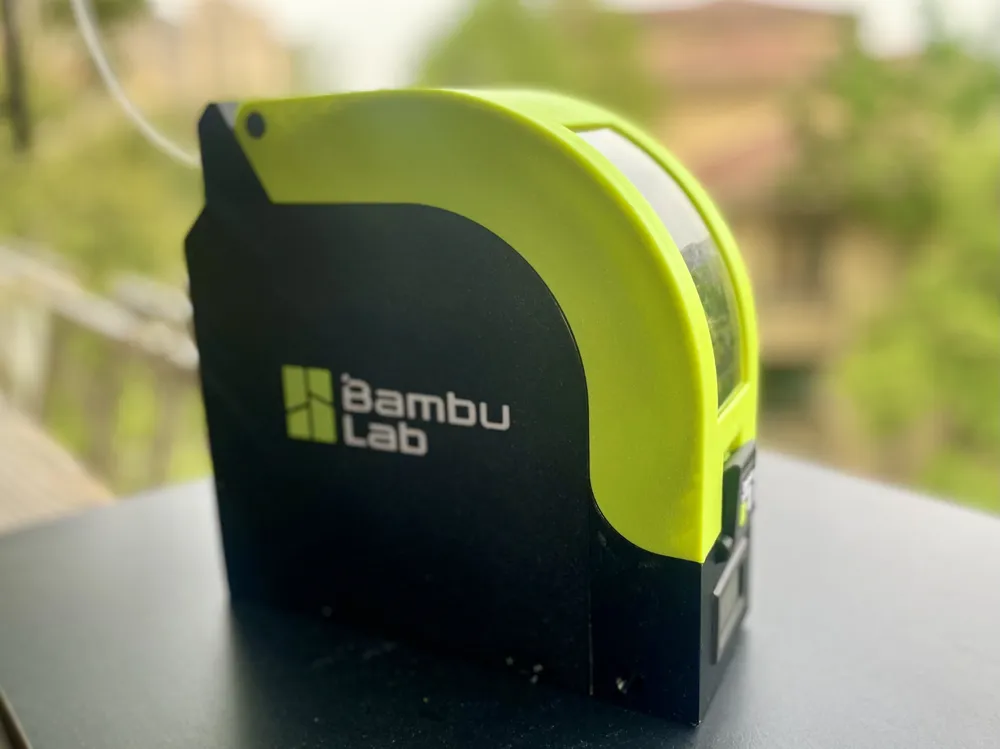

A drying box specially designed for the A1 mini, also compatible with other machines

Although I have optimized the structure to prevent warping, I still recommend using PLA material for more stable large-area printing with less warping

I personally use PETG, and it requires multiple tests and improvements to reduce costs

Accessories

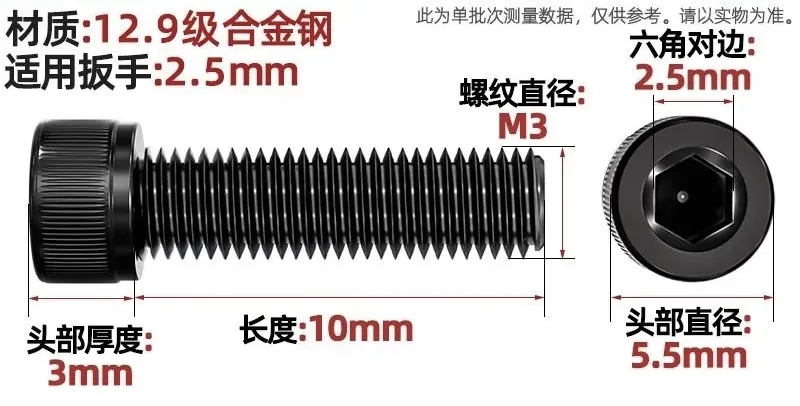

1. 14 screws, M3*10

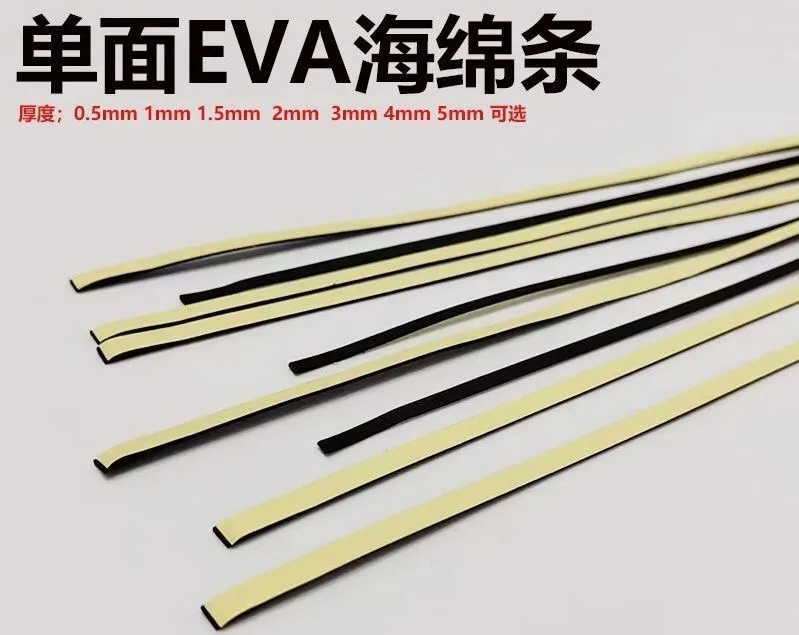

2. It is recommended to seal the component connections; I used a 3mm*0.5mm sealing strip, and the effect is quite good

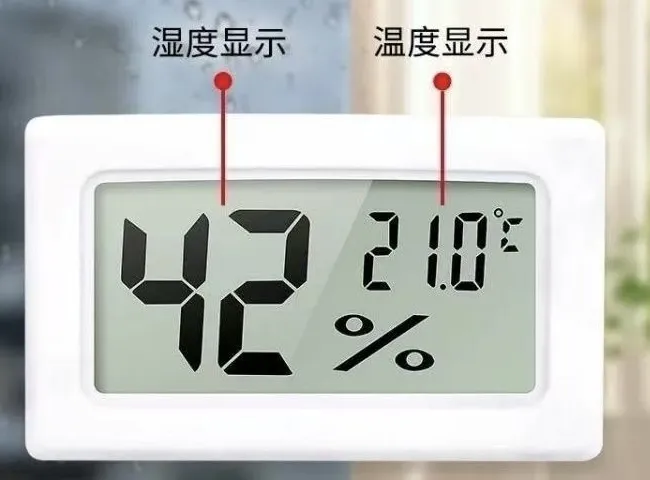

3. Hygrometer

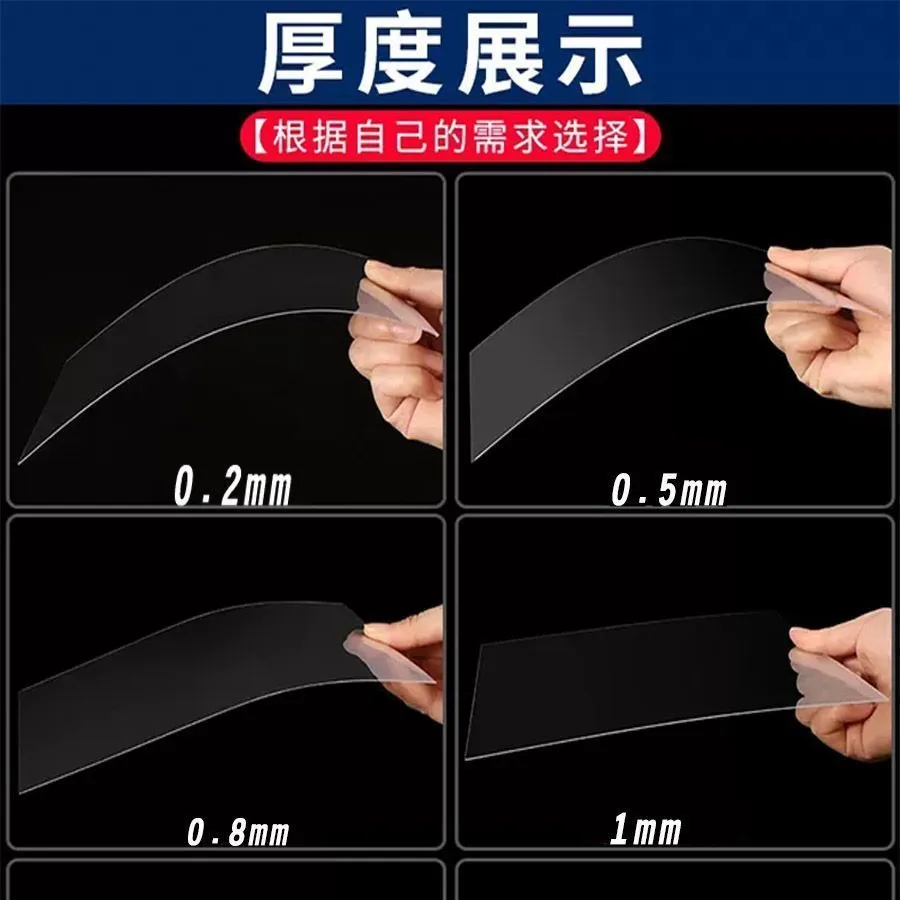

4. PVC film 62*140*0.8 (Seal the edges with tape after installation, refer to the configuration diagram)

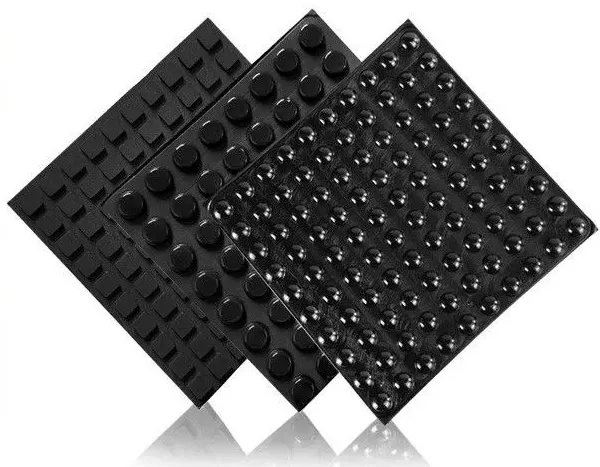

5. (Optional) Anti-slip feet 8×2.2mm

1. Hygrometer

https://mobile.yangkeduo.com/goods2.html?ps=SlOHGTVWmp

2. PVC film

https://mobile.yangkeduo.com/goods.html?ps=wkArcJfo5b

3. Sealing strip

https://mobile.yangkeduo.com/goods2.html?ps=dHJEp1Hx6u

4. M3-10 screws (14 pieces)

https://mobile.yangkeduo.com/goods.html?ps=pYbCio06Z7

5. Anti-slip feet 8×2.2mm

https://mobile.yangkeduo.com/goods1.html?ps=qb0wsyo4ET

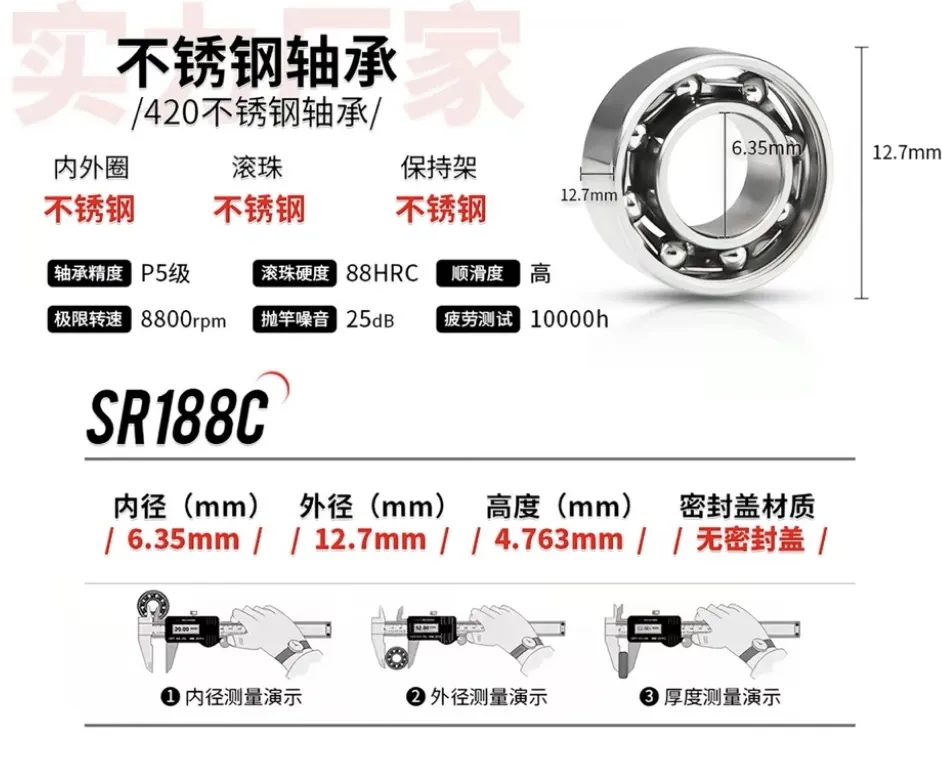

6. R188 bearings 4 pieces

https://mobile.yangkeduo.com/goods.html?ps=fVBYFQdSWt

Regarding assembly

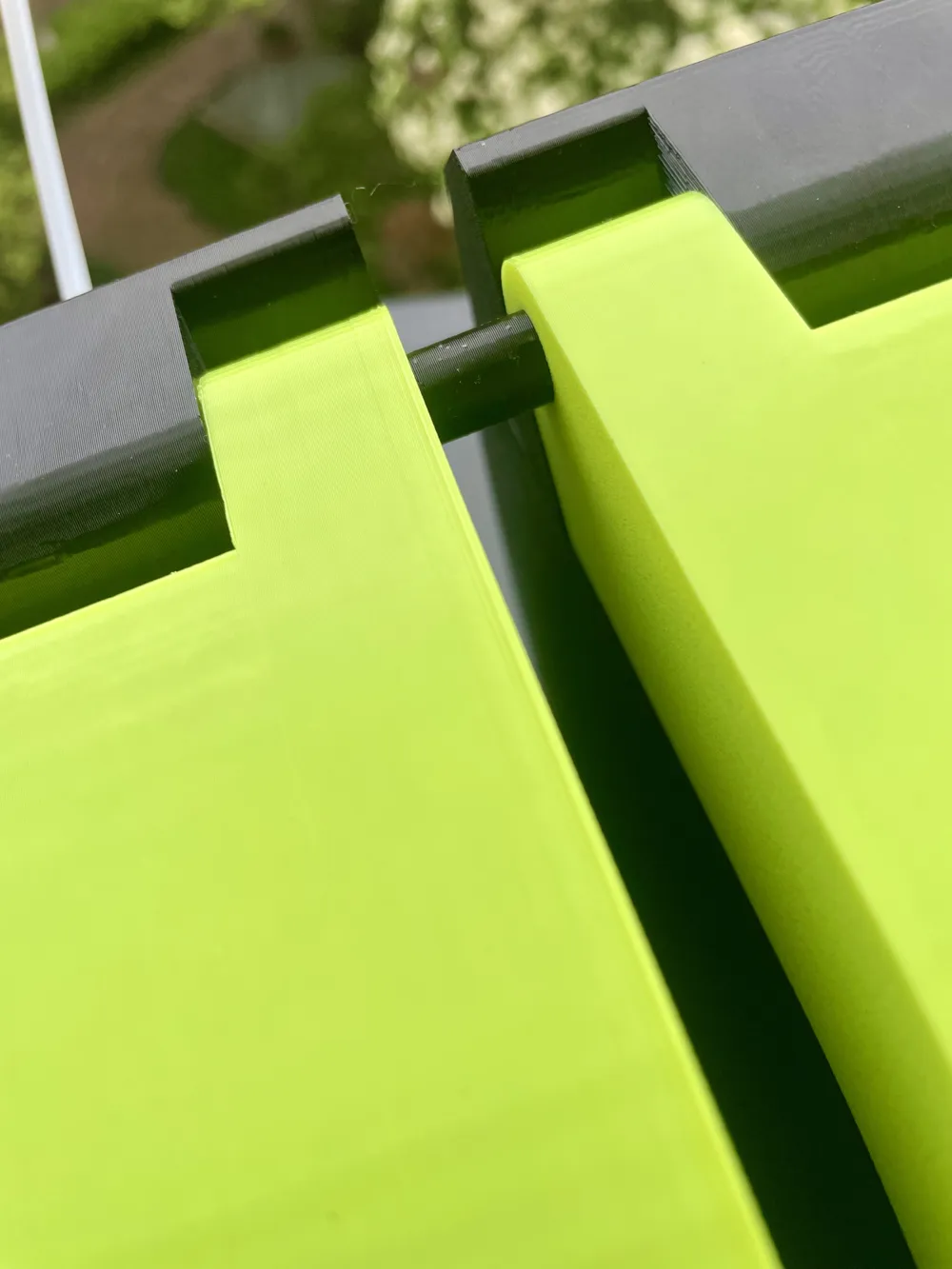

The project provides two types of connecting rods, 40mm and 80mm

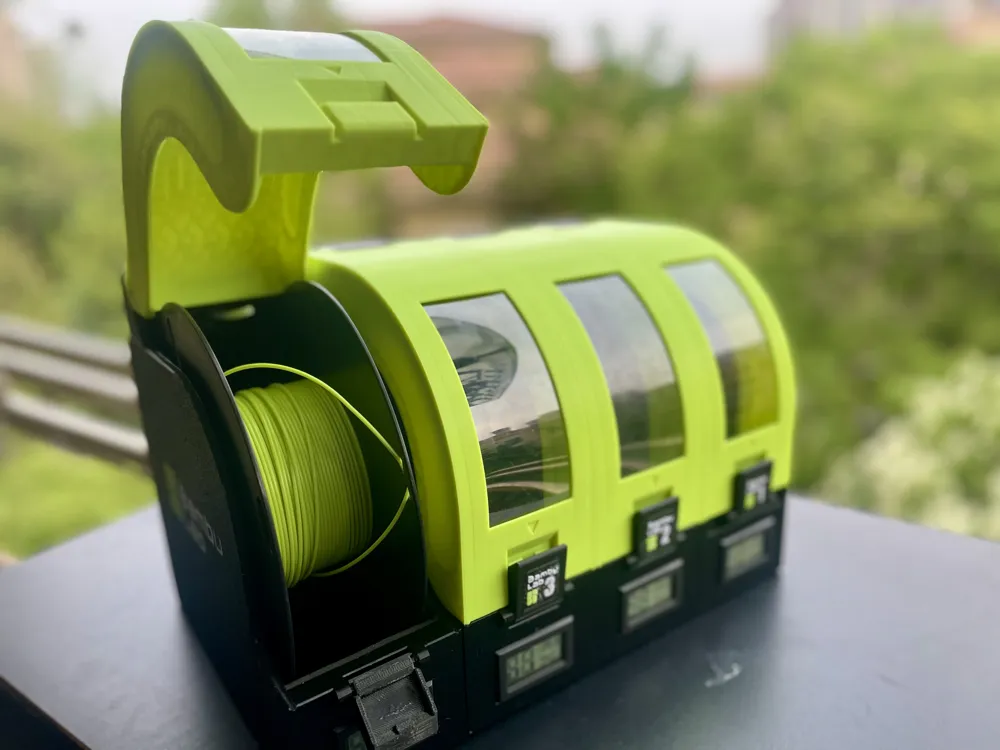

If connecting four boxes, they should be connected in a 40-80-80-80-40 sequence

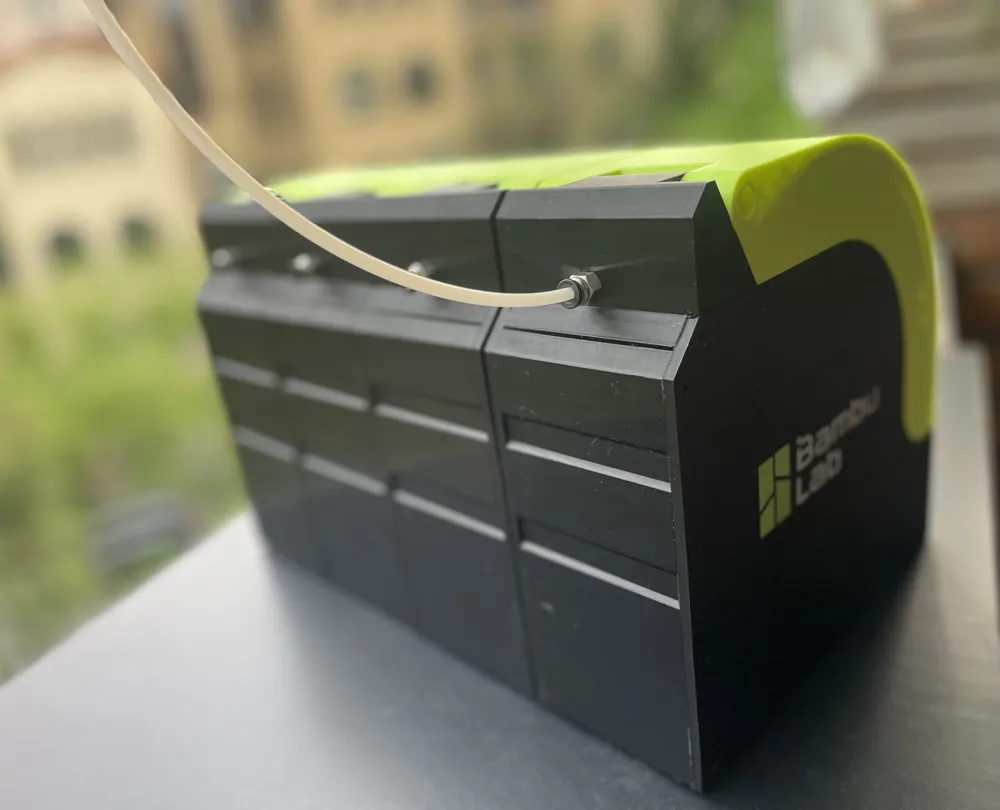

There are two connection points for increased stability
