Description
This one is just a quick upload nothing too special, a simple case/housing for a PWM controller module; linked below.

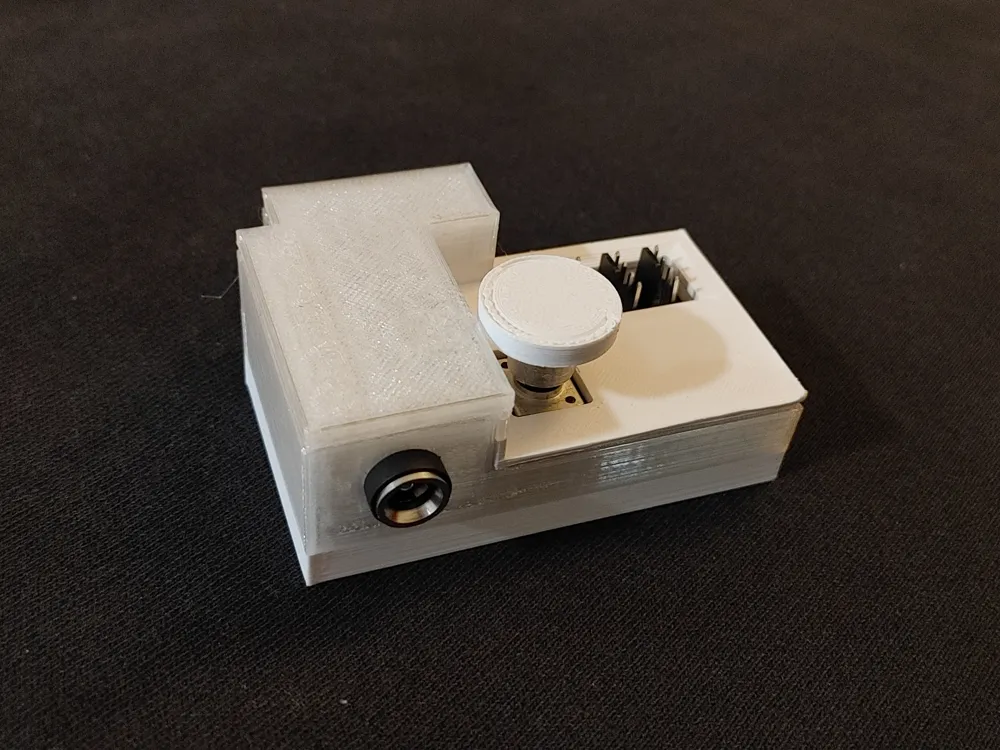

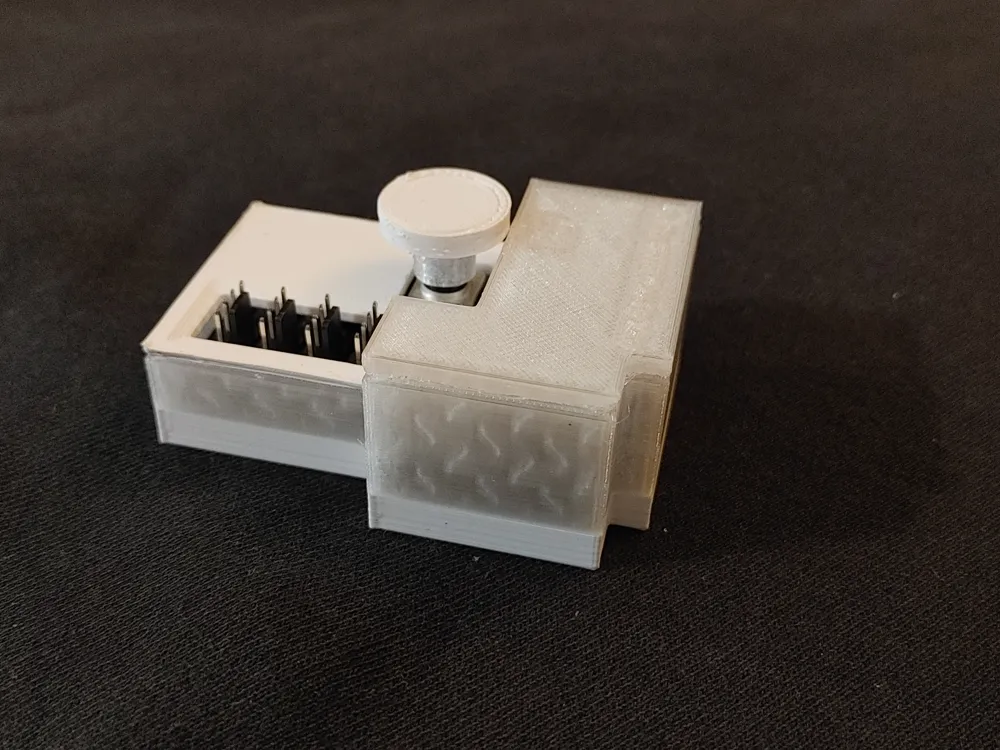

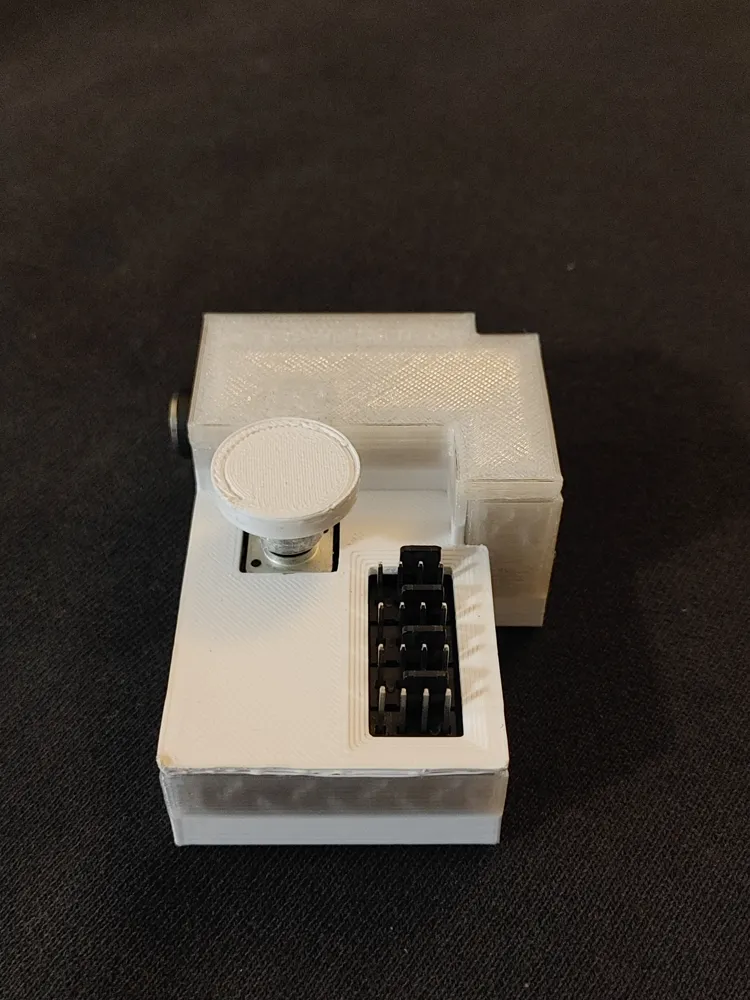

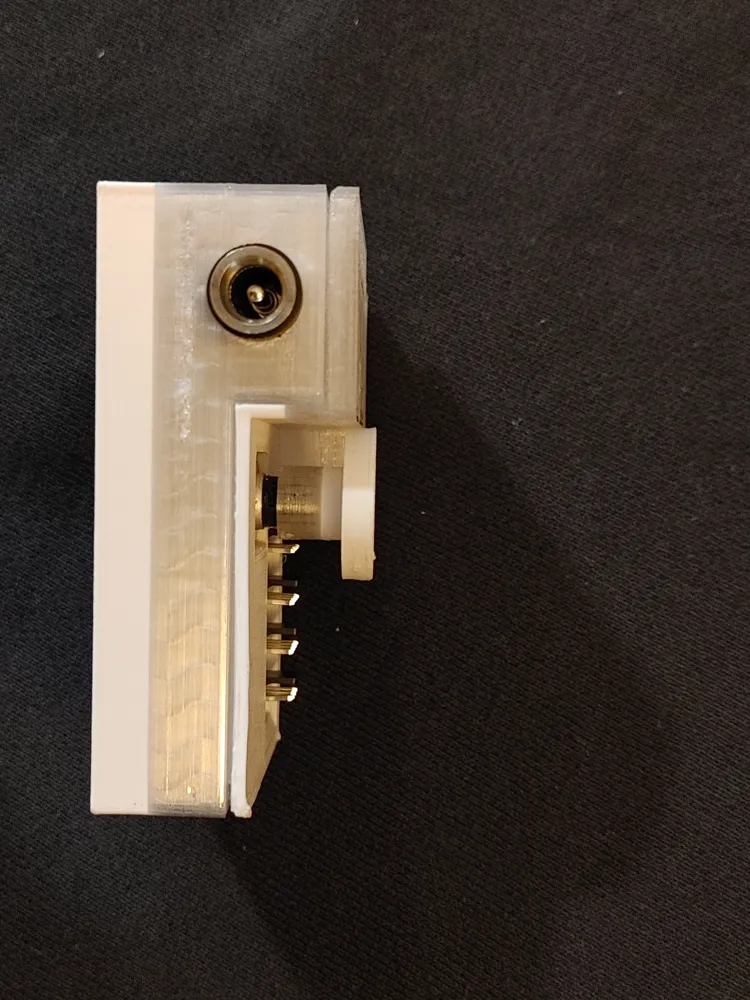

In the photos I ran out of filament and figured translucent filament would be a cool thing to transition to.
The LED light is visible through the case if printed with translucent filament somewhere near the LED.
It was meant to be all-white with red lettering.
Also the 5.5x2.5 Barrel Jack port does not come on the 4pin version of this PWM module.
A 90 degree sata cable is required to fit the case properly.
Can be printed with or without AMS, just remove the 2nd colour in the slicer.
I didn't print it with colour yet as I am still drying my red. When its all dried up I'll get a red photo.
Compatible with this PWM controller: 4 Pin 12V PWM Fan Controller - Aliexpress
Probably any other PWM controller module that looks exactly like that will fit.
I did design it to slip in with the 3D Printed holder it comes with/in still attached as it has a riser for the underside of the pins already in it.
Any questions just ask, cheers! :)
